INDUSTRIAL CRANE SCALE

MODEL: OCS-S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

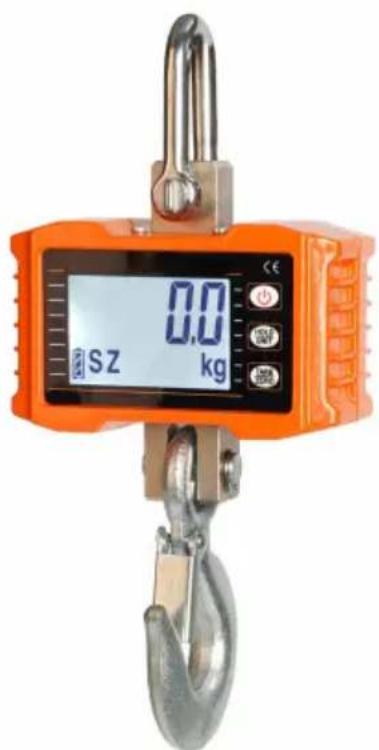

INDUSTRIAL CRANE SCALE

MODEL: OCS-S

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GENERAL SAFETY RULES

Symbol	Symbol Description
	Warning - To reduce the risk of injury, the user must instructions manual carefully.
	This symbol, placed before a safety comment, indicates of precaution, warning, or danger. Ignoring this warning lead to an accident. To reduce the risk of injury, fire, electrocution, please always follow the recommendations below.
	Warning- Be sure to wear gloves when using this produ
	Warning- Be sure to wear eye protectors when using this produ
	Disposal information:This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheeie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste but must be taken to a collection point for recycling electrical and electronic devices.

General safety instructions

WARNING! Read all safety warnings and notes. Failure to follow the instructions listed below may result in electrical shock, fire, and/or injury. For good performance and precise measurement, be careful with daily operation and maintenance.

WORK AREA SAFETY

a) Keep the application area clean and well-lit. Unclean and dark areas le accidents.
b) Do not use power tools in explosive environments, such as in the presence of flammable liquids, gases, or vapors. Power tools generate sp a that can ignite dust or vapors.
c) Keep children and bystanders away when operating the appliance.

Distractions can lead to loss of control over the device.

Usage Note:

Do not overload crane scale, this will damage loadcell;

Do not leave load hung on the digital balance for long. This will decrease s accuracy and shorten loadcell life;

Inspect shackle and hook before using. Check clips, pins and screws regularly. Thank you for your support of our products!

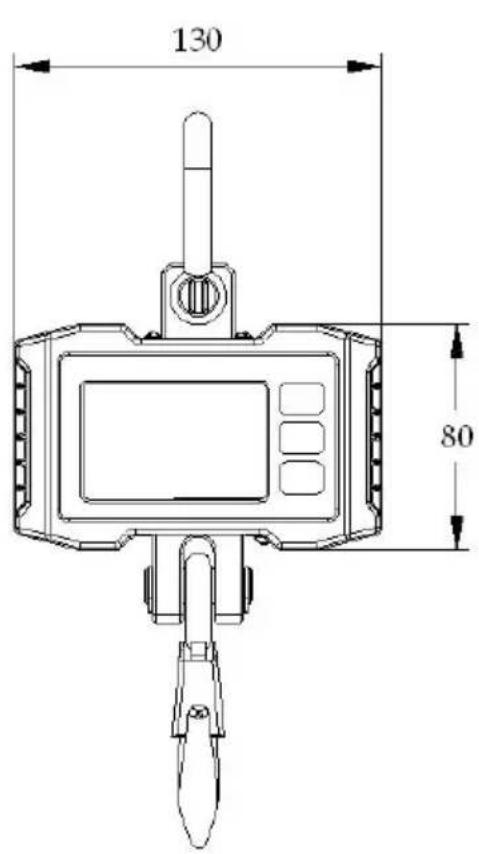

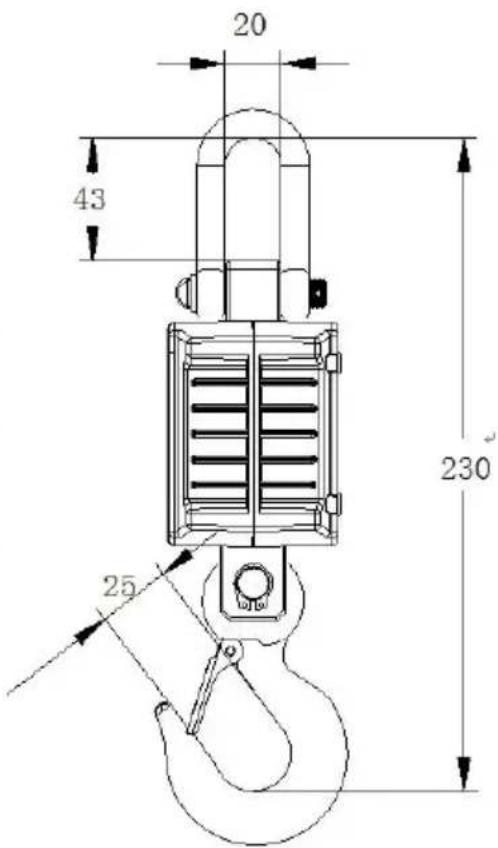

1. Dimension & Weight

2. Display & Keys

Scale Keys

Key	Name	Function
	On/Off	Power-on: Short pressing; Power-off: Long pressing; Increase digit;
	TARE/ZERO	Short pressing: Zero; Long pressing: Tare in/out; Confirm & next;
	HOLD/UNIT	Short pressing: Lock/unlock; Long pressing: Unit Switch; Move digit, Change options;

Remote Keys

Key	Name	Function
+0-	Zero	Zero; Confirm & next;
-T-	Tare	Tare in/out;
G	Hold	Lock or unlock;
ACC	Acc.	2nd function
DEL	Del.	2nd function
F1	F1	2nd function
F2	F2	Unit Switch, Move digit, Change options;
	Off	Long press to power off; Increase digit;
	2nd	2nd function;

Indicators

LED	Name	Note
S	Stable	lit when weight is stable
Z	Zero	lit when weight is at zero
T	Tared	lit when the scale is tared
H	Hold	lit when the scale is locked
lb	lb	lit when the unit is lb
kg	kg	lit when the unit is kg
N	N	lit when the unit is N

3. Operations

Power On/Off

Long press to power on the scale. Scale performs initialization and power-on tests, shows weight detection shows, and then auto zero.
For information about Auto-Zero, refer to Scale Configuration in the Technical manual.
Long press or to power off the scale. Off message shows OFF

and then cut off power.

When 3 batteries' voltage is lower than 3.2V , the scale will auto power off itself replace the dead batteries with new ones.

Zero

Short press TARE press, to zero. Z shows.
For information about Manual-Zero Range, refer to Scale Configuration in the Technical Manual.

Tare In/Out

In gross mode, long press TARE or press , to tare in. T shows.
Tare will reduce the apparent overload range of scale. For example, if a 500^*0.2 scale has a 100kg container as its tare, the scale will overload at a net weight 401.8kg (500 - 100 + additional 9 divisions).

In net mode, long press TARE or press , to tare out. T disappears.

Lock/Unlock

Press HOLD UNIF lock screen. H shows.

Press or again to unlock screen. H disappears.

Unit Switch

Long press HOLD press, to switch the unit between kg, lb, and N.
When unit is kg shows. When the unit is lb shows. When the unit is N, shows.
For more information about the User Unit, refer to Scale Configuration in the Te Manual.

4. User Setup

Press first then press or press and simultaneously 3 seconds to enter User Setup menu shows.

Auto-Off Timing

Press TARE enter Auto-Off Timing. shows.
Press HOLD, to change timing value.
Auto-Off Timing can be set to: (disabled), (5min), (55min), (30min), (60min). It is disabled by default.
Auto-Off function maximizes the scale's battery life against people's carelessness not to power off the scale when it's not working.
Auto-Off starts the countdown timer when there's no action, or the load is stable key pressing or motion in the load restarts the countdown timer.

Backlight Time

Press

enter Backlight Time. shows.

Press

ss , to change backlight

time value.

Backlight Time can be set to: OFF (disabled), 5 (5 sends), 15 (15 sends), 30 (30 sends), 60 (60 sends), on (light).

Display Brightness

Press

Center Display Brightness. shows.

Press

ss , to change brightness values

Display Brightness can be set to: 1-5 levels.

Dim display brightness saves battery power dramatically.

Hold/Peak Function

enter Hold/Peak Function. shows.

Press

ss to change value.

Hold/Peak Function can be set to: (hold enabled), (peak enabled),

exit User Setup.

5. Battery Maintenance

To maximize battery life, please follow the battery maintenance guide.

This scale is powered by 3 AA 1.5V batteries.
This remote is powered by 2 AAA 1.5V batteries.
Battery houses at the rear of the scale can be opened by screwing off screws.

In order to conserve battery life, enable Auto-Off and display brightness.
When 3 batteries' voltage is lower than 3.2V , the scale will auto power off it. Please replace the dead batteries with new ones.

6. Troubleshooting

Simple problems can be resolved as the below-listed solution. If problems st exist, please contact your local representative.

Symptom	Possible Cause	Suggested Solution
not power on after is pressed	discharged / defective battery	check the battery and replace
	defective On/Off key	press harder and keep pressing for 2s
	defective power cable	open the front panel, check power cable
	defective mainboard	contact representative
display flashes	discharged battery	replace battery
no action was taken after the key was pressed	scale is disturbed	re-plug power cable
	defective key	contact representative
weight reading is not stable	load in motion	keep load stable
	damped loadcell or mainboard	dry loadcell or mainboard
	defective mainboard	contact representative
weight reading is not zero when there is no load	discharged battery	replace battery
	loadcell stressed too long	hang scale in storage
	loadcell drifts	contact representative
large error in weight reading	scale not zeroed before applying the load	Manual Zero scale before loading
	wrong unit	switch to the correct unit
	require calibration	calibrate scale
	defective loadcell or mainboard	contact representative

7. Specifications

Accuracy	Chinese GB/T 11883-2002 CIII eqv. OIML R76
Tare Range	100% F.S.
Manual Zero	±4% F.S.
Stable Time	≤10sec
Overload	100% F.S. + 9e
Safety Load	120% F.S.
Ultimate Load	400% F.S.
Scale Battery	3*AA 1.5V batteries
Remote Battery	2*AAA 1.5V batteries
Display	65*41mm LCD display
Op. Temp.	-10°C - +40°C
Op. Humidity	20°C ≤90%

	Items	Description
1	Name	Industrial Crane Scale
2	Model	OCS-S
3	Parameter	Rating(s): 3x1.5AA Capacity: 1000kg/2200lb Division: 0.5lbs

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730
