This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Wooden Hall Tree.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

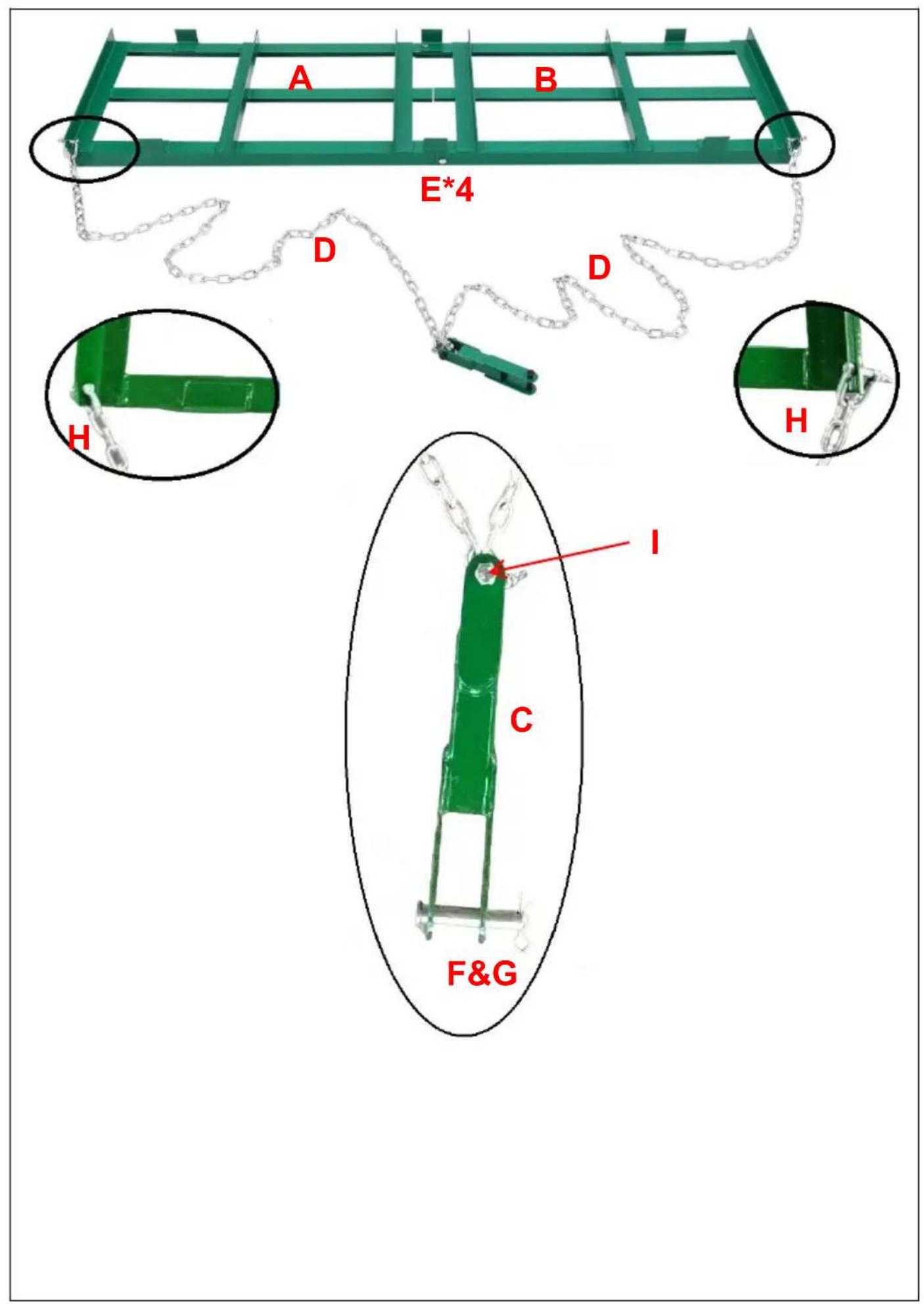

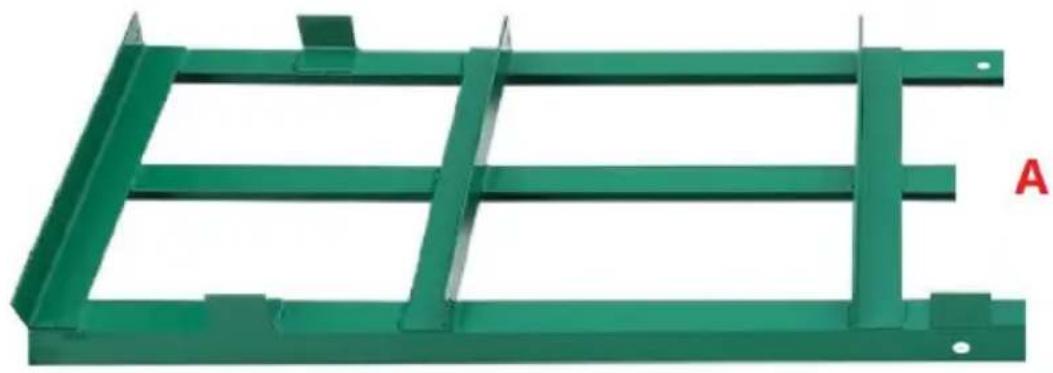

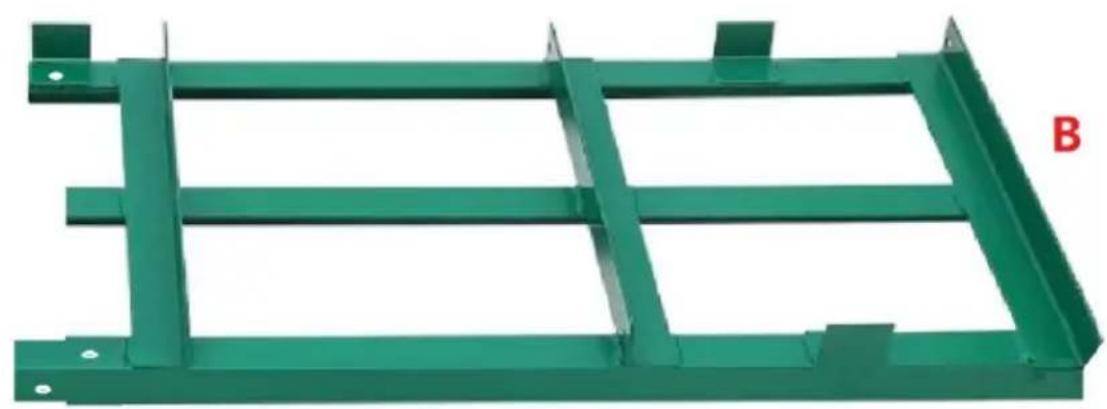

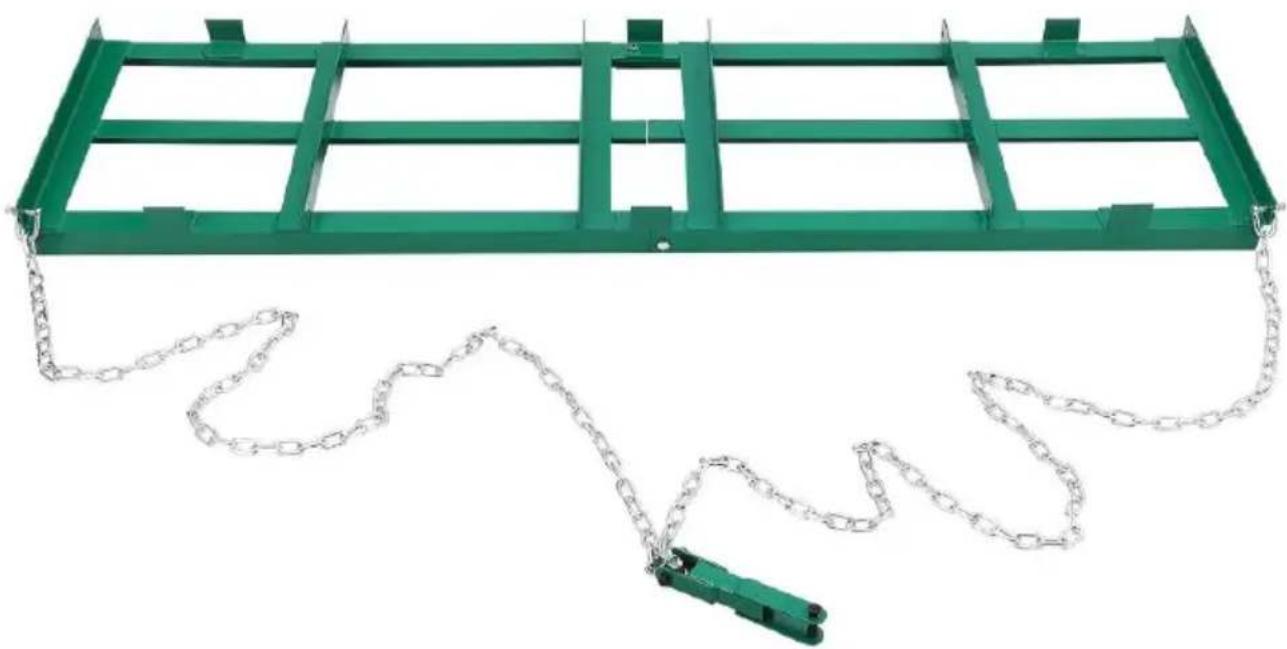

Green metal structural frame with vertical supports and a labeled section A (no text or symbols on the frame itself)

Green metal frame structure with no visible text or symbols

Green mechanical component with mounting holes and a red letter 'C' on the side (no text or symbols on the component itself)

D*2

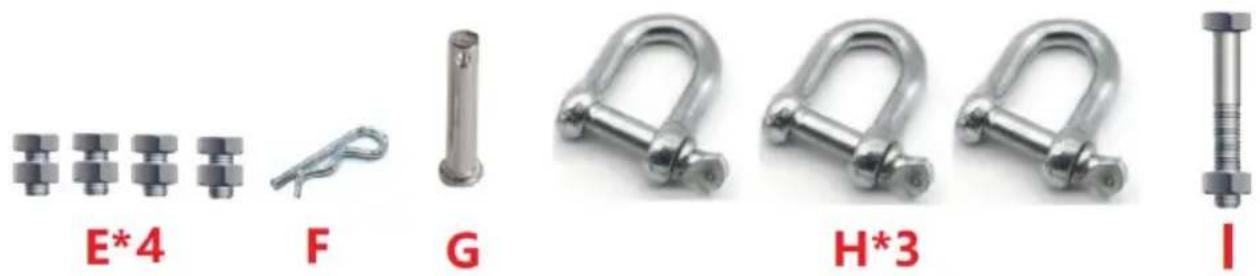

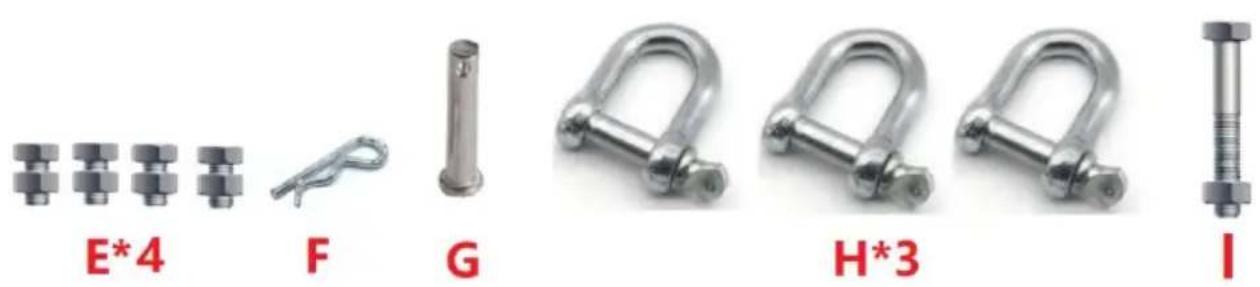

E*4 F G H*3 I

A B E*4 D D H H I C F&G

PRODUCT PARAMETER

Model	QYP72*20IN
Maximum load	50 LBS
Colour	Green
Product Size	72*20inch

Model	QYP96*20IN
Maximum load	50 LBS
Colour	Green
Product Size	96*20inch

Model	QYP48*20IN
Maximum load	50 LBS
Colour	Green
Product Size	48*20inch

ASSEMBLY STEP

Two green metal truss structures on a grassy field, one outlined with white dashed lines (no text or symbols)

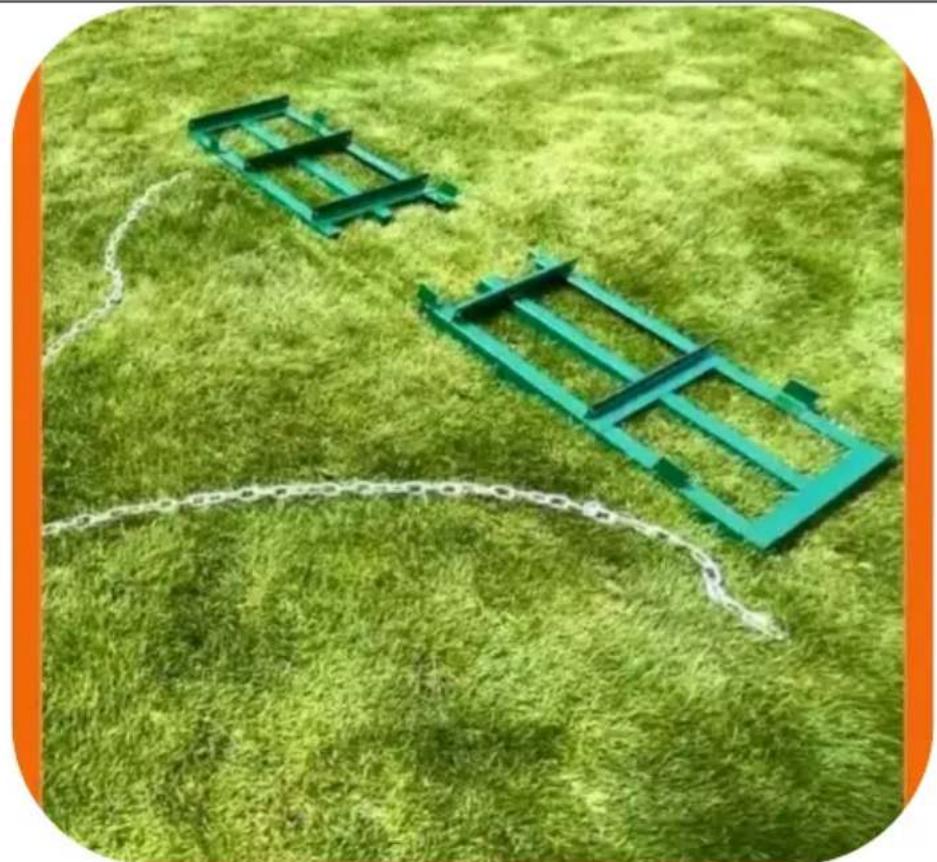

Lay out all pieces on your lawn.

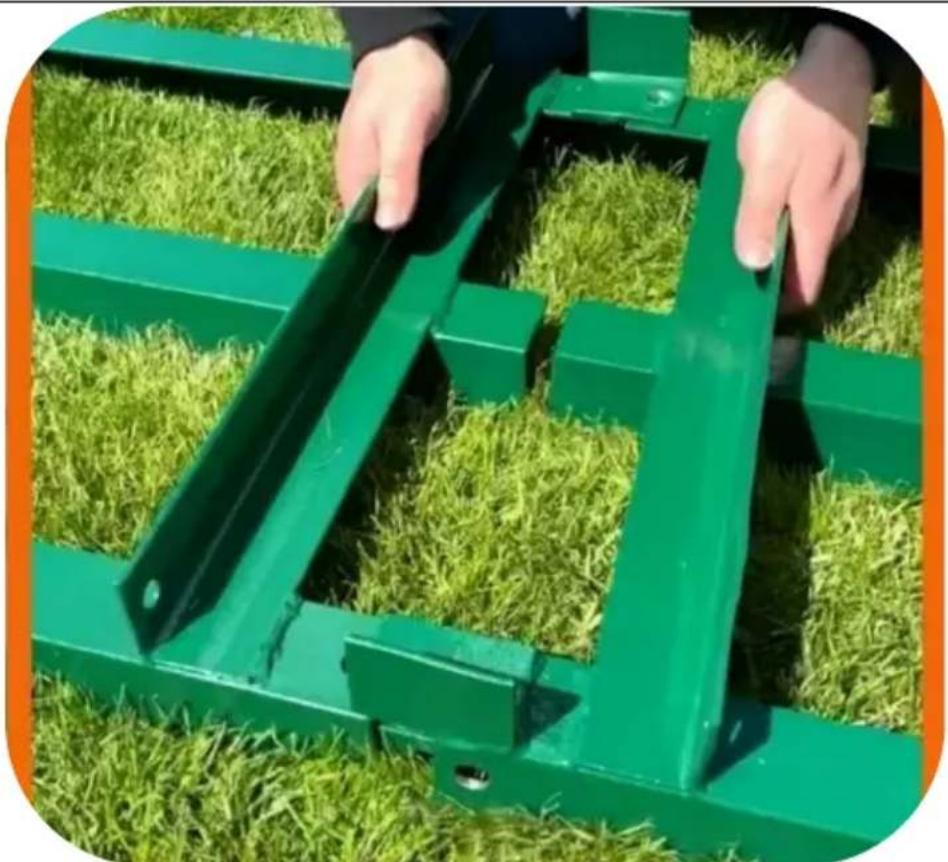

Close-up of hands operating a green metal structure with grass in the background (no text or symbols visible)

Line up and screw in each side.

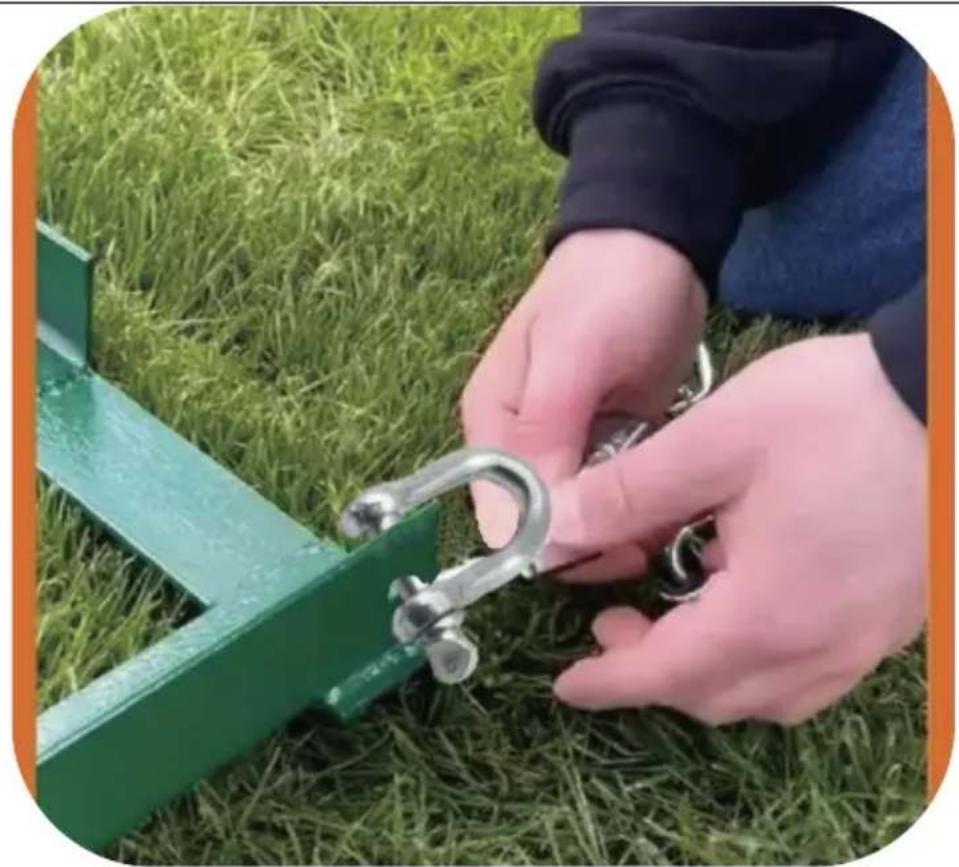

Close-up of hands securing a green metal chain spring attached to grass (no text or symbols visible)

Attach the chain.

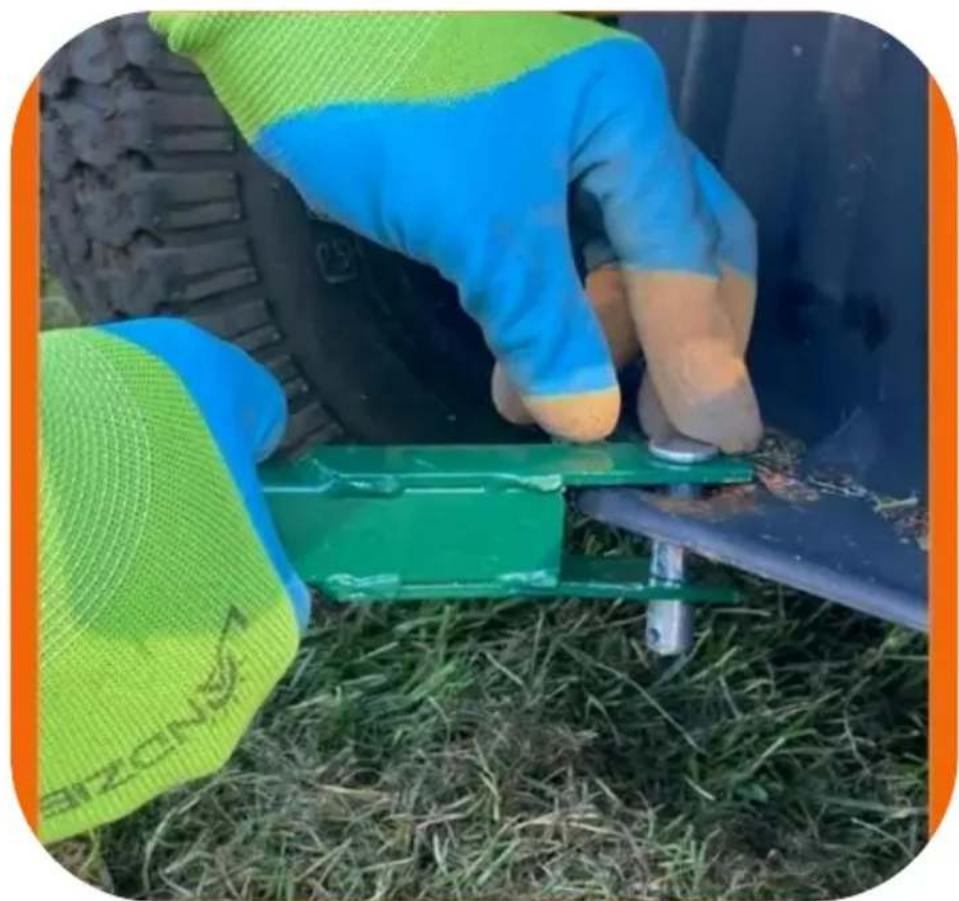

Close-up of hands in blue and green gloves installing a green metal component on a grassy field (no text or symbols visible)

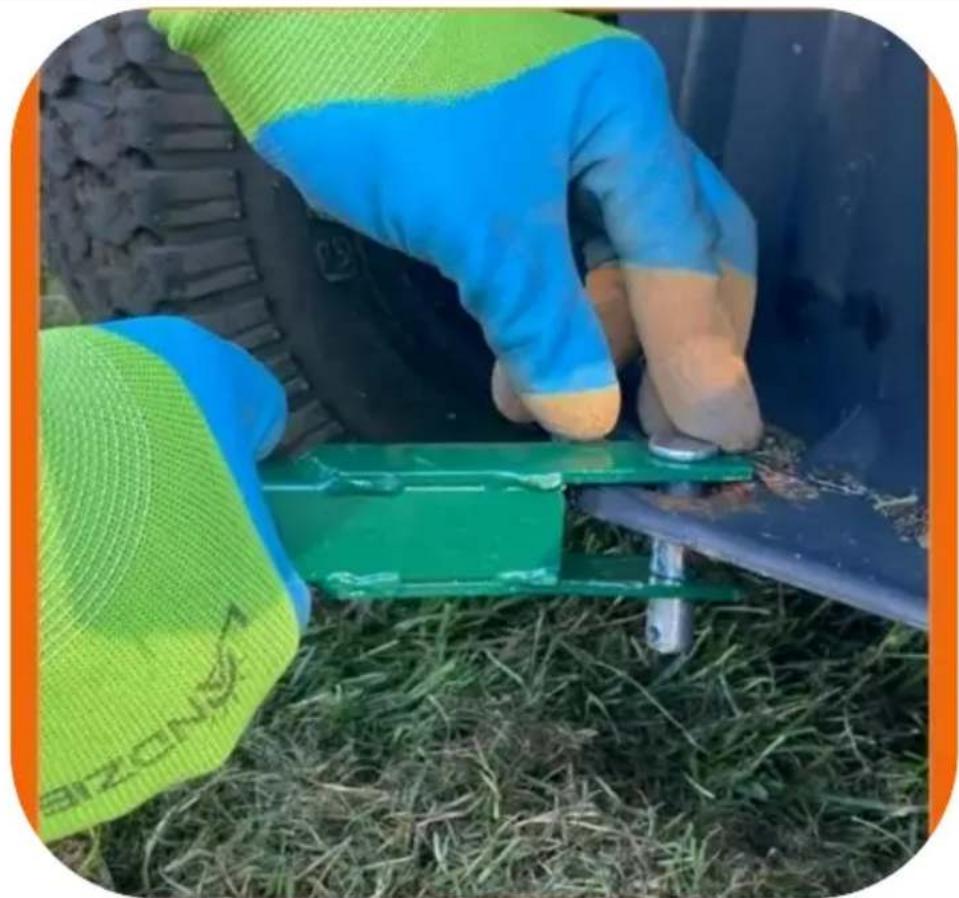

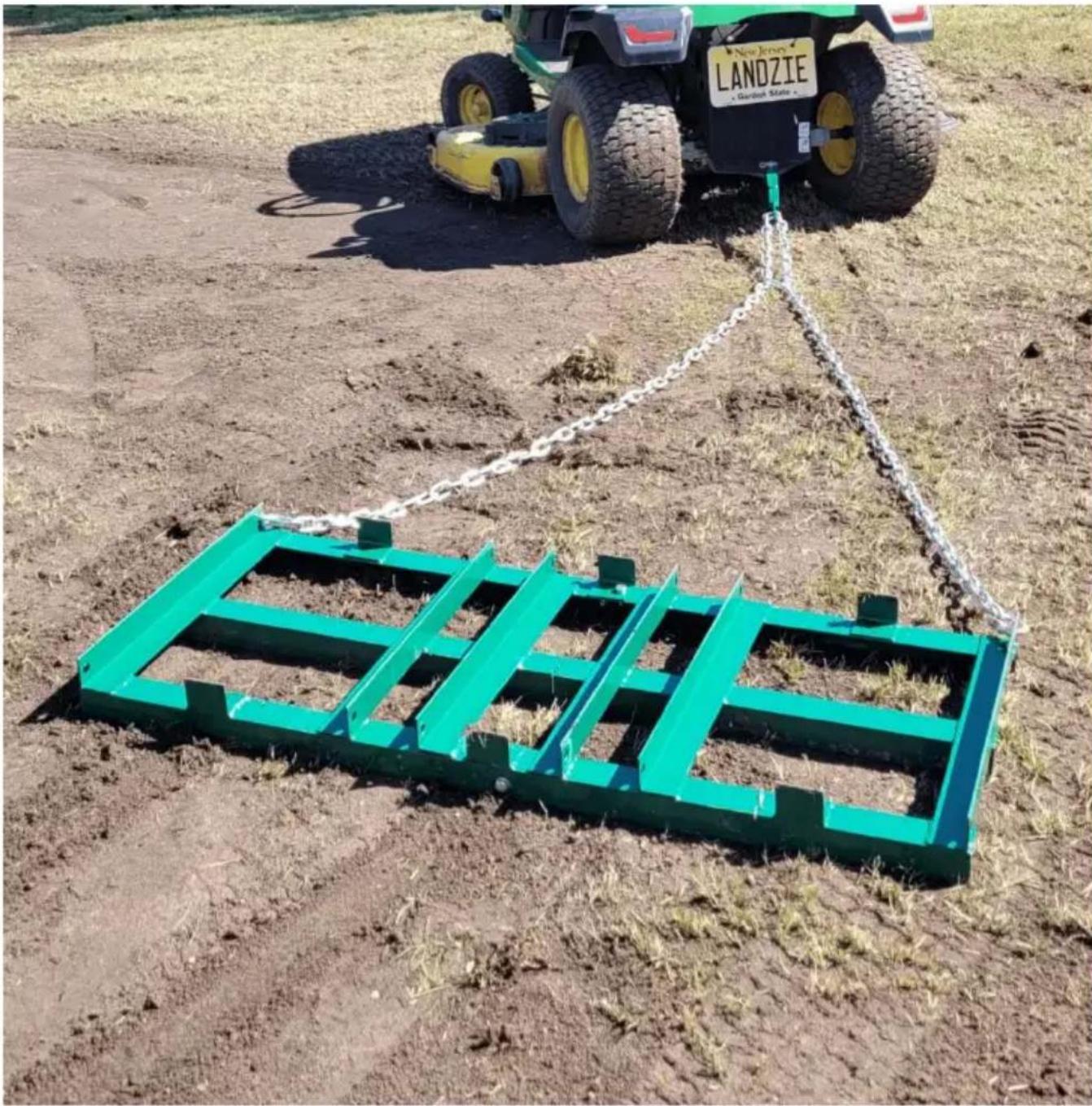

Hitch to Mower or tractor.

LANDZIE Garden State

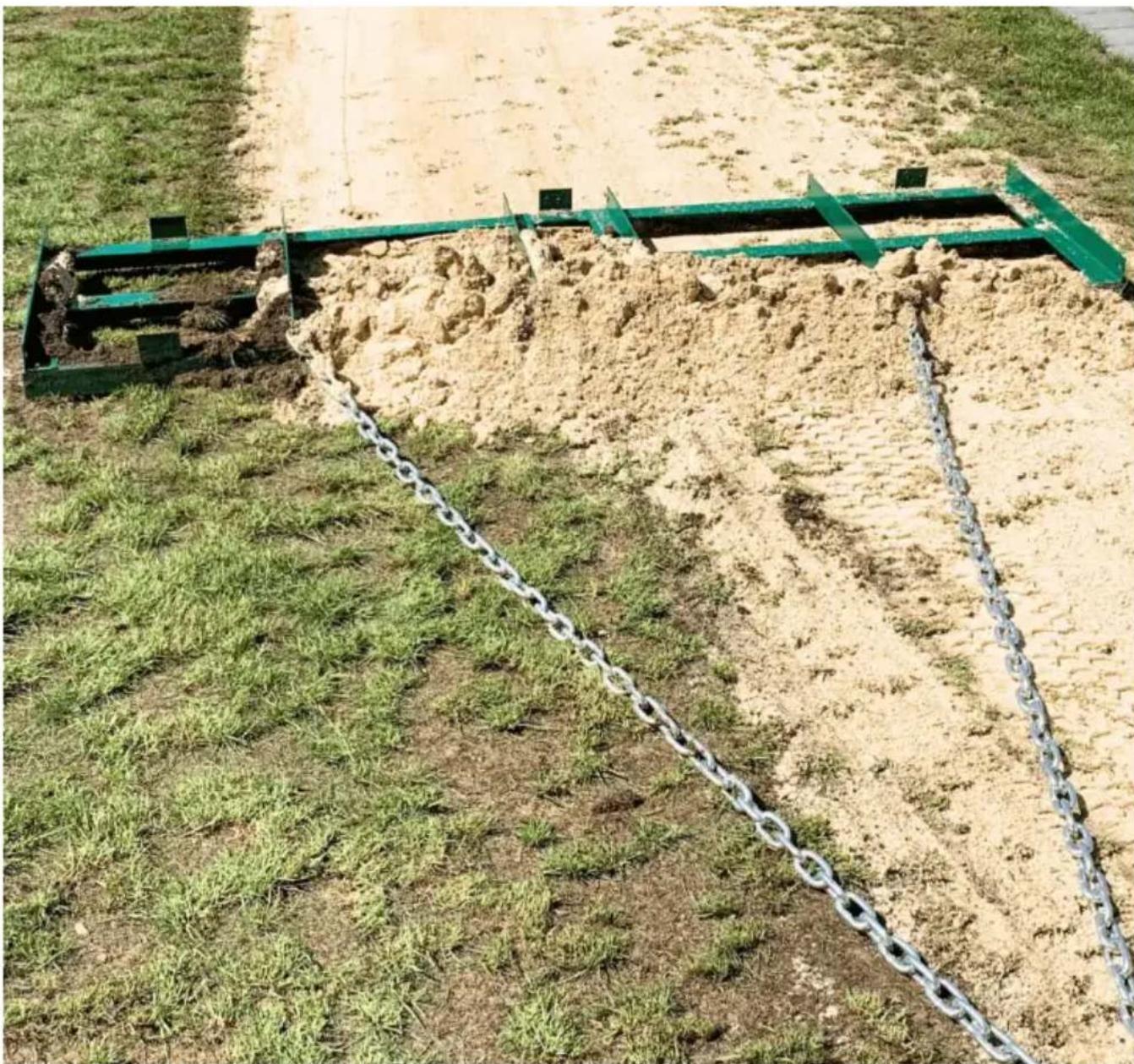

Outdoor construction site with green metal trusses and chains running across sandy ground, no visible text or symbols
