USER MANUAL QYP84IN Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
DRIVEWAY DRAG
USER MANUAL
MODEL:QYP84IN
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

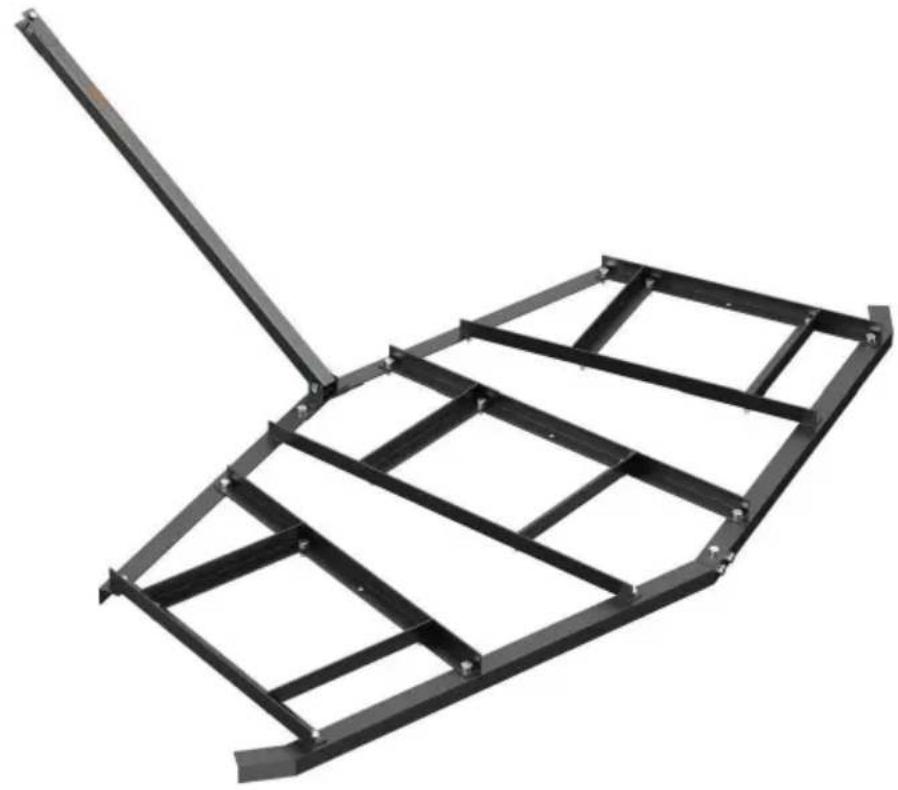

DRIVEWAY DRAG
MODEL:QYP84IN
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
WARNING:
Read this material before using this product. Failure to do so ca result in serious injury.
Assembly precautions
- Assemble only according to these instructions. Improper assembly c create hazards.
- Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
- Keep the assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- Do not assemble if tired or when under the influence of alcohol, or medication.
- The product capabilities apply to properly and completely assembled products only.
- Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.
Use precautions
- DO NOT SIT OR STAND ON THIS ITEM.
- This product is not a toy. Do not allow children to play with or item.
- Do not exceed specified weight capacities.
- Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Wooden Hall Tree.
- Use as intended only.
- Inspect before every use; do not use if parts are loose or damage
SAVE THIS MANUAL


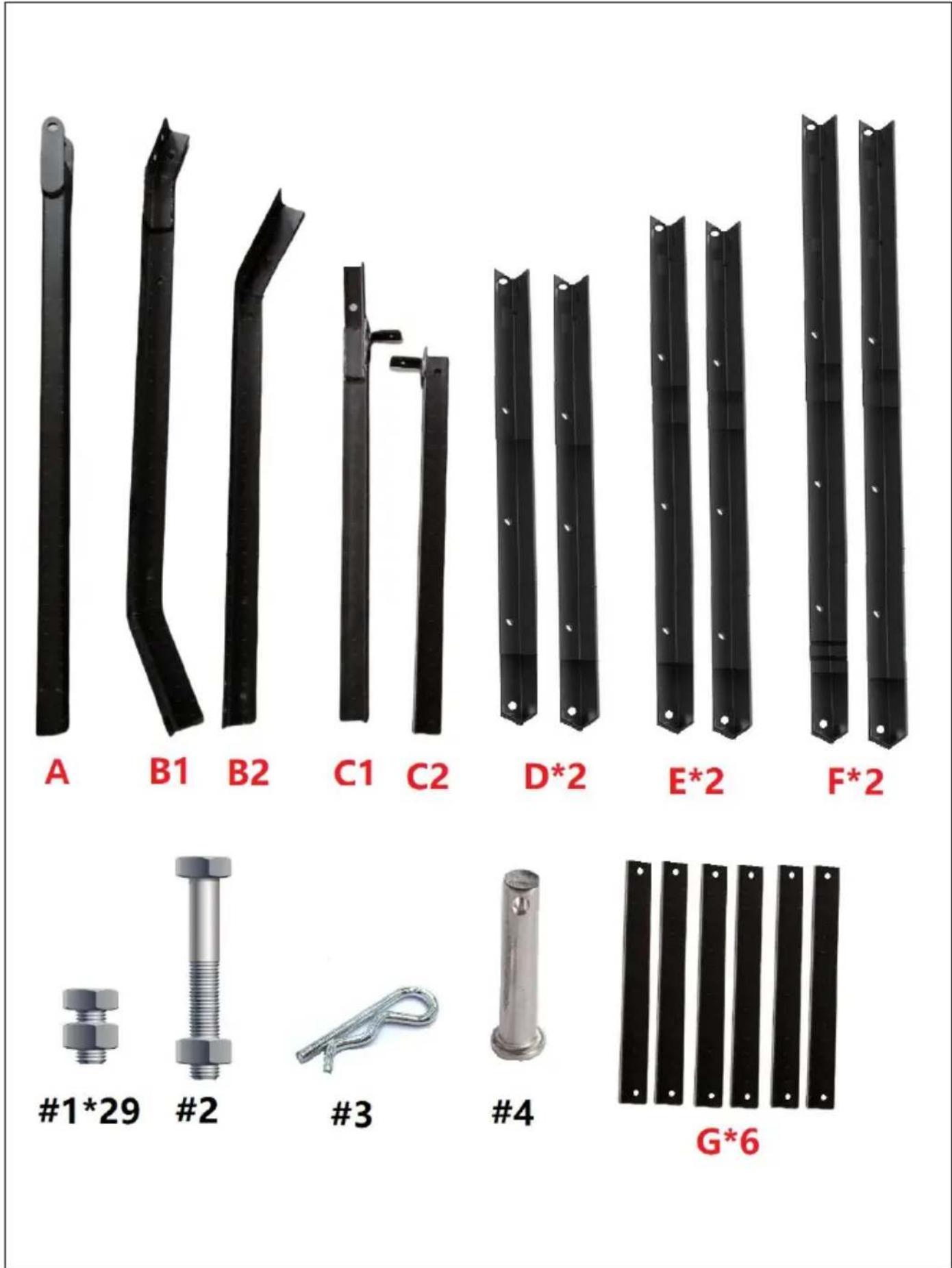

A B1 B2 C1 C2 D*2 E*2 F*2 #1*29 #2 #3 #4 G*6


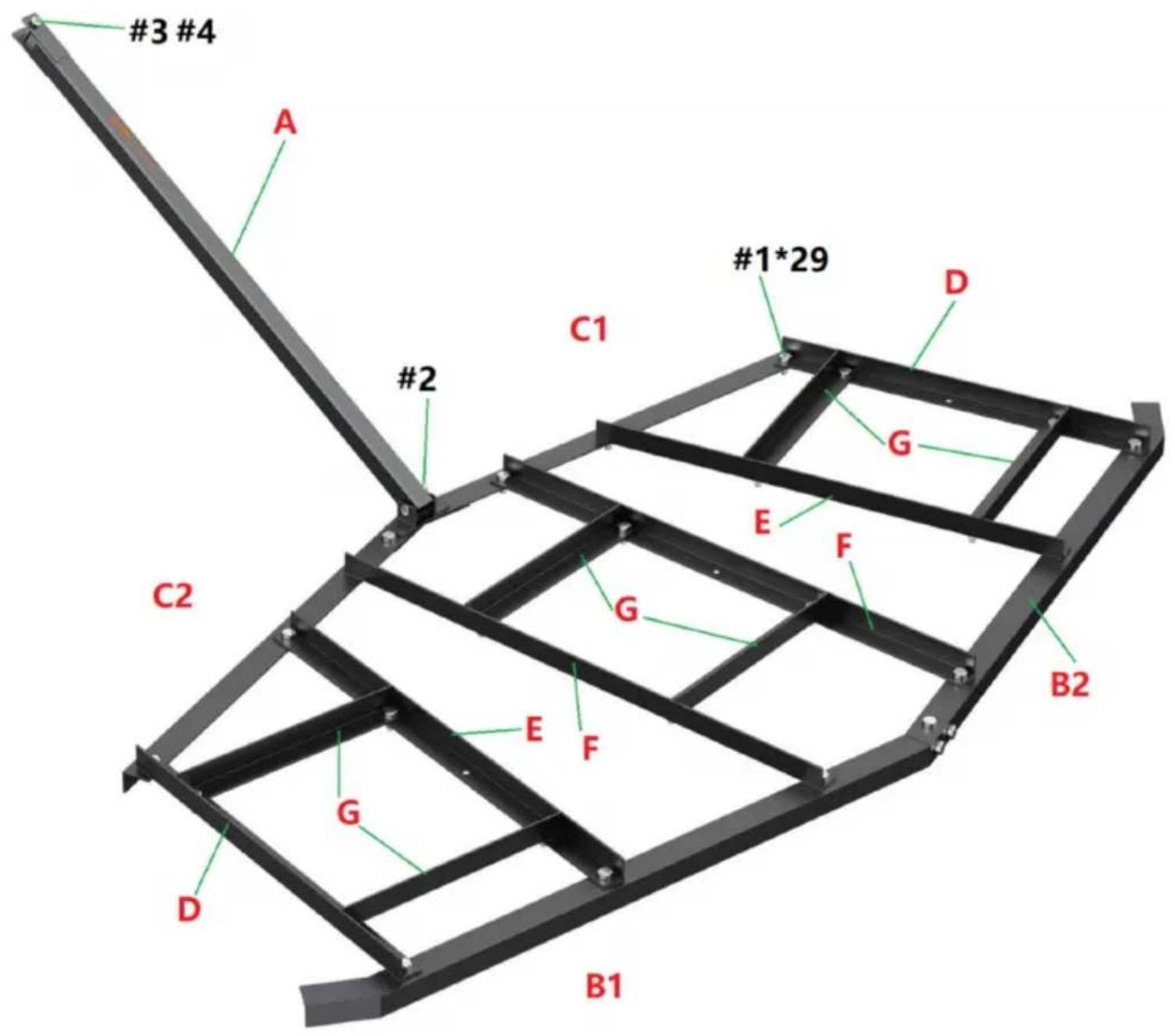

#3 #4 A #2 C1 #1*29 D G E F G C2 B2 E F G D B1PRODUCT PARAMETER
| Model | QYP84IN |
| Maximum load | 114 LBS |
| Colour | Black |
| Working width Size | 84inch/2150mm |


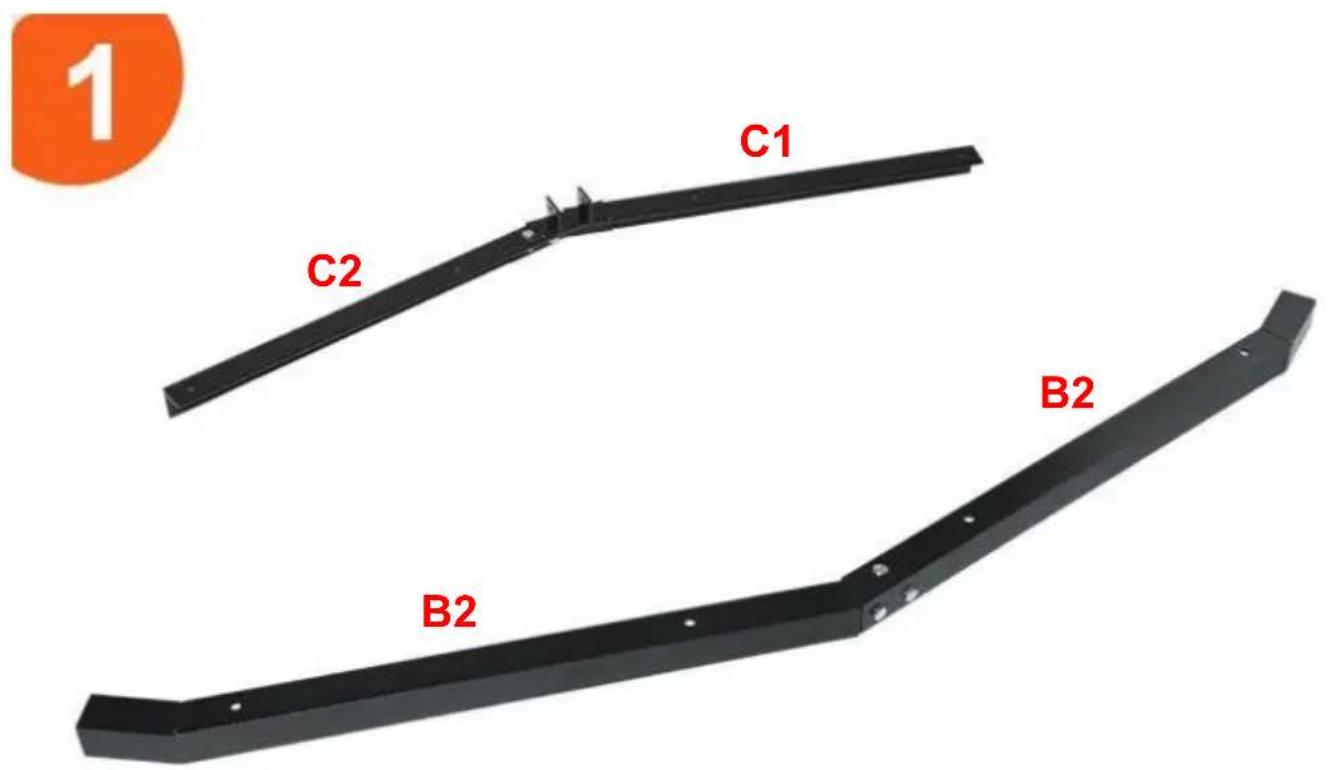

1 C1 C2 B2 B2Assemble large and small angle steels separately.


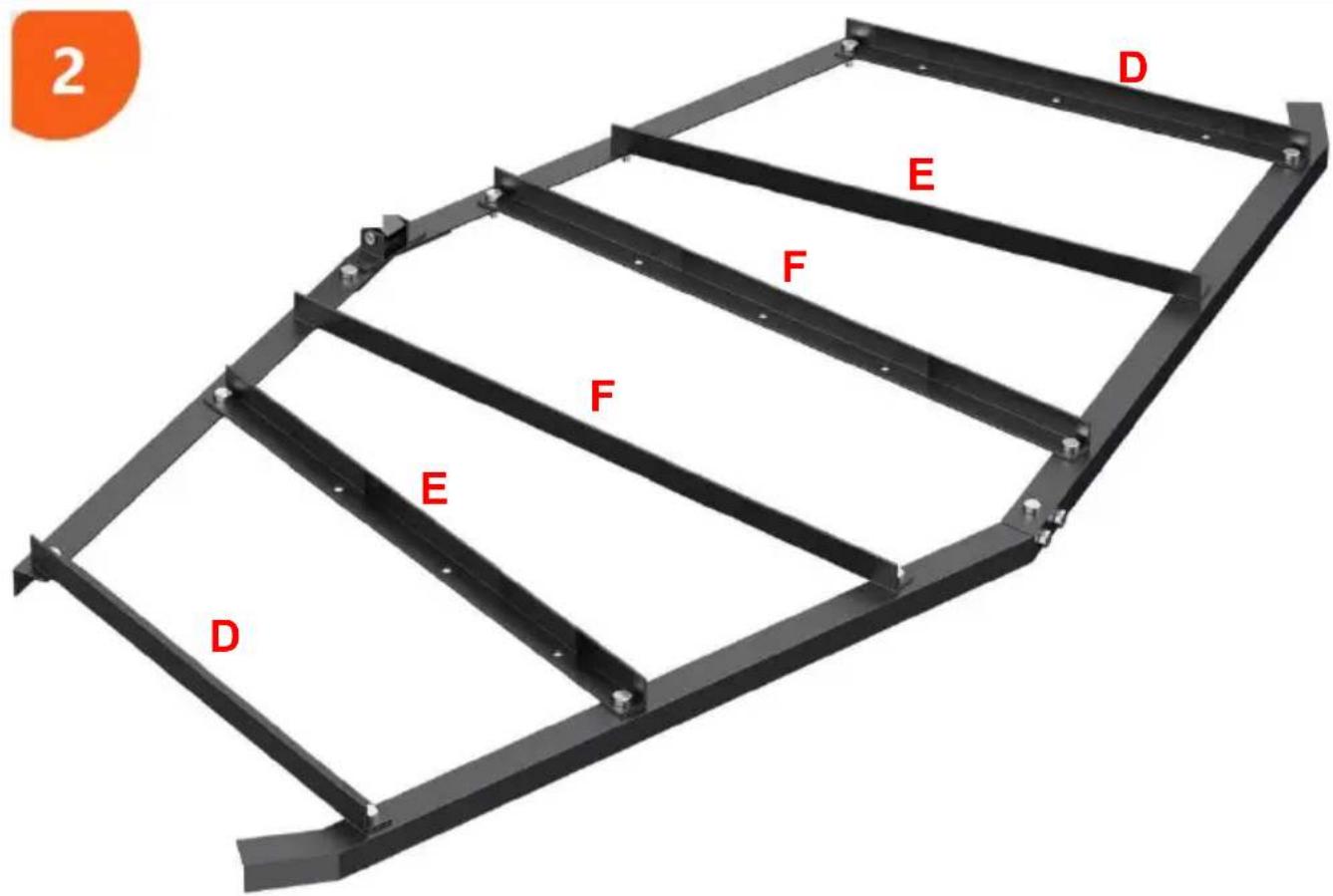

2 D E F F E F DConnect the steel bars with the angle steels.


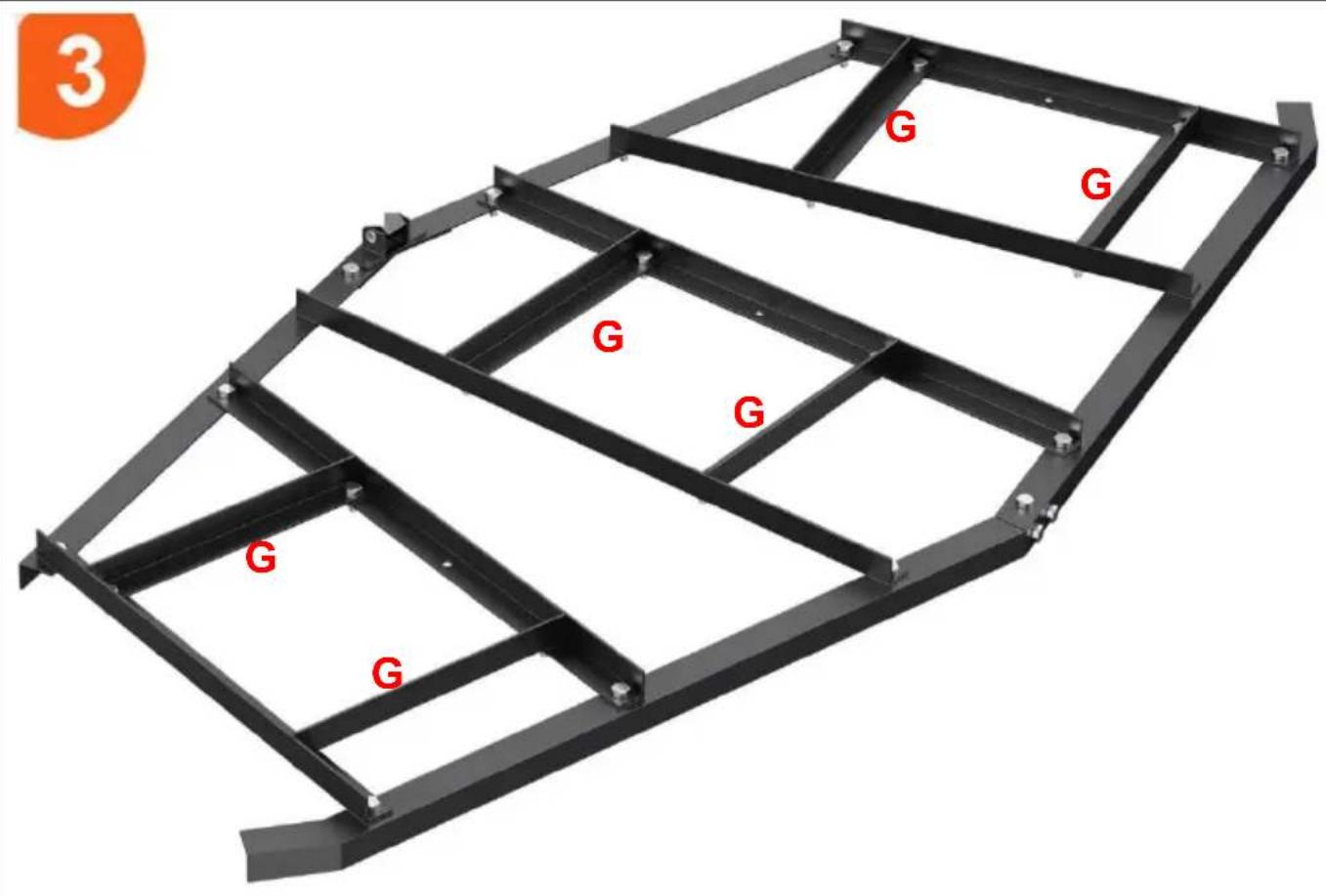

3 G G G G G G G GConnect the steel bars with the angle steels.


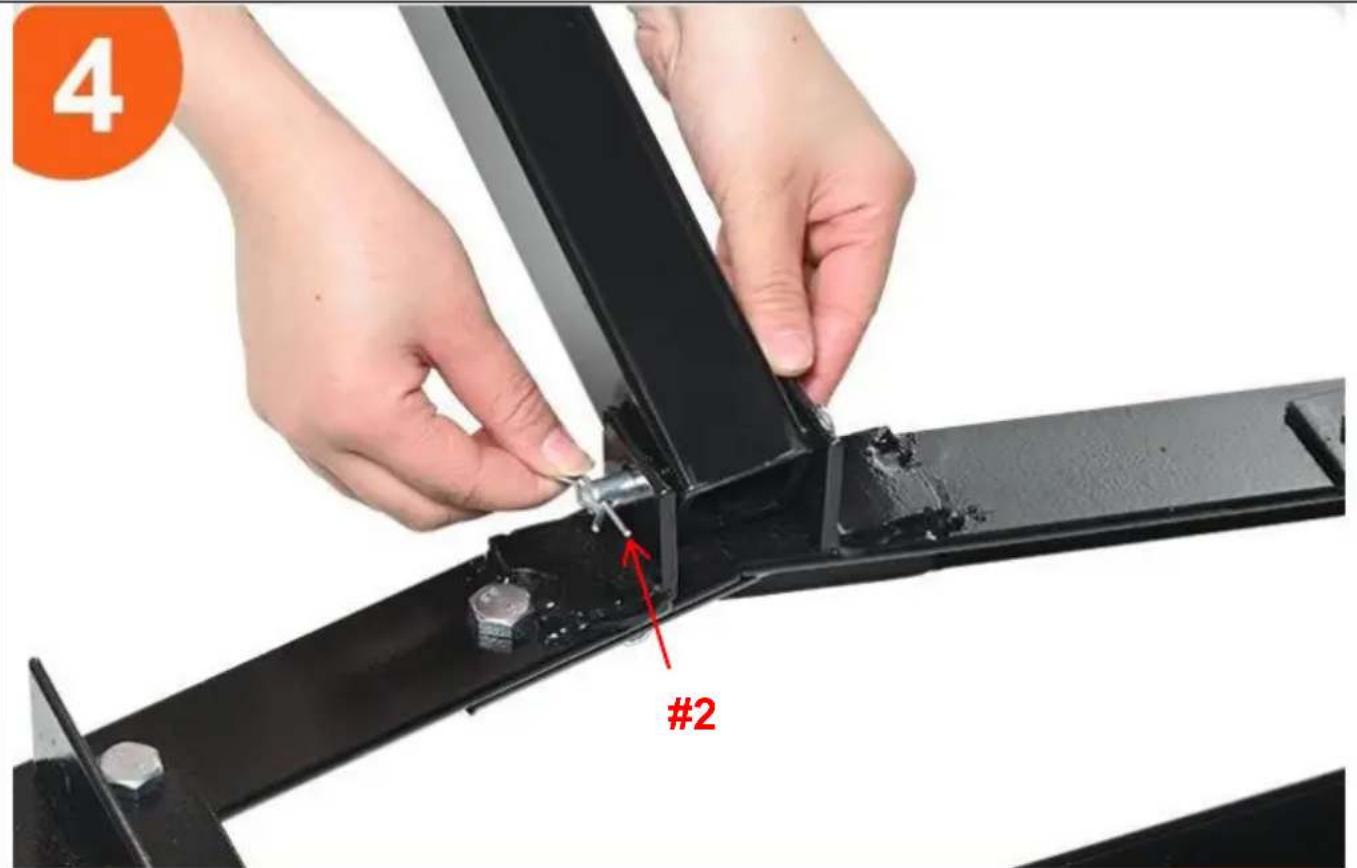

4 #2Install the tongue, hook pin, and R-pin.


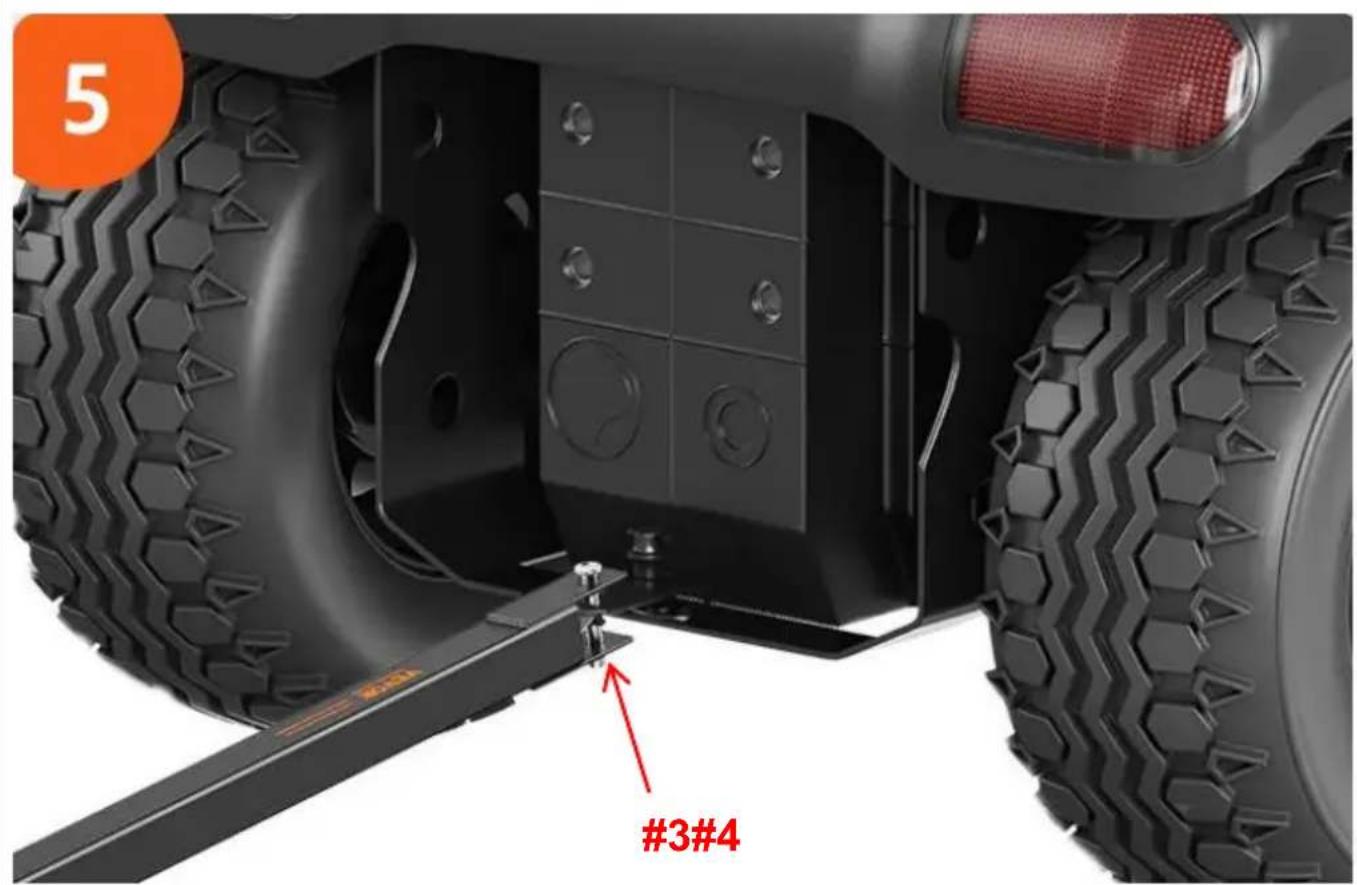

5 #3#4Attach to the vehicle.
POWERFUL CULTIVATION
Support up to 50 lbs of additional weight
Product Weight of 64 lbs +
Additional 50 lbs with Fire Bricks = 114 lbs


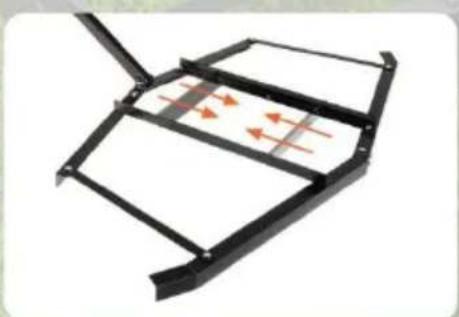

Multiple Adjustment Options
1 Without Crossbars
2 With 1 Crossbar
3 With 2 Crossbars
Suitable for Refractory Bricks: 0-33"

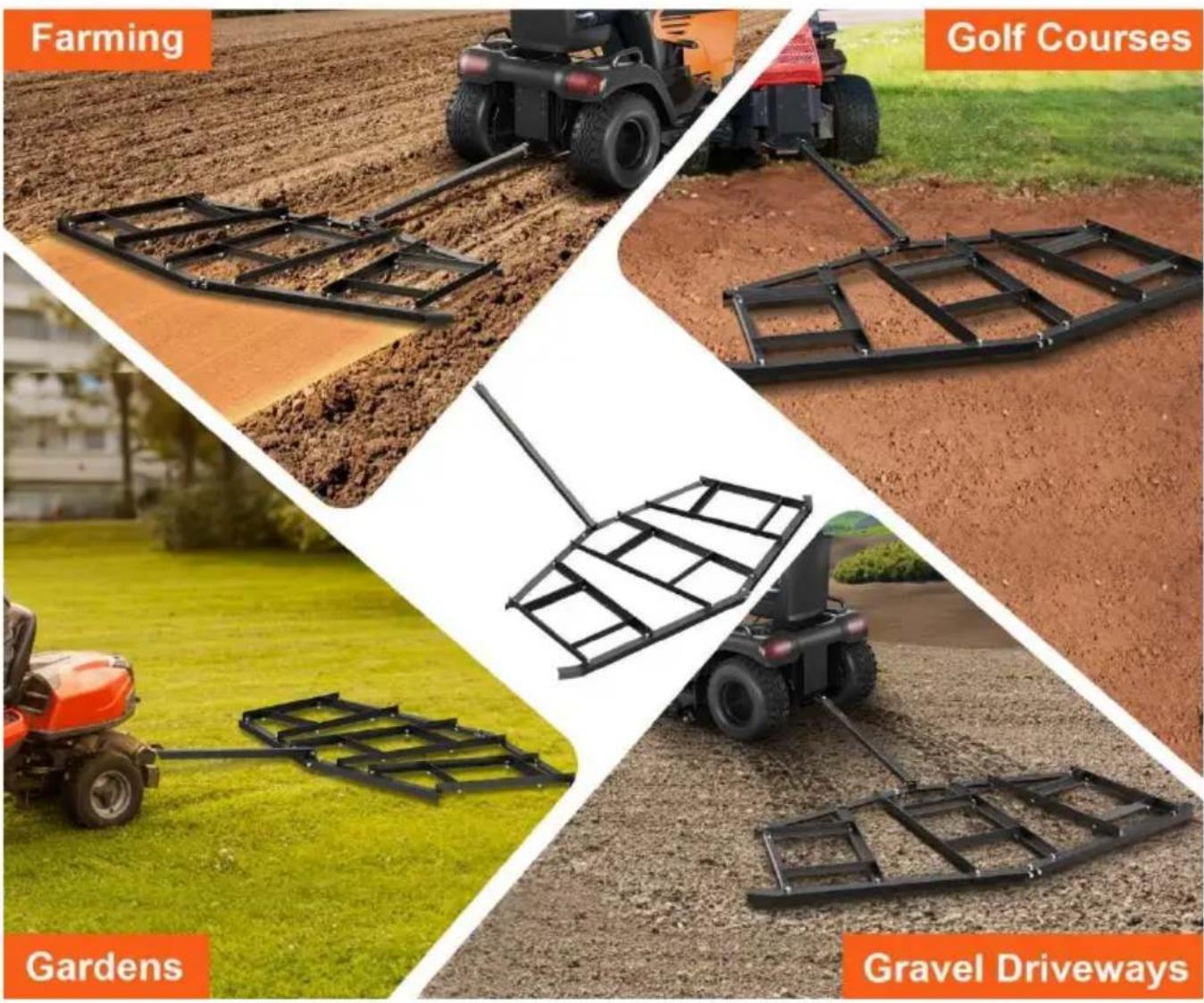

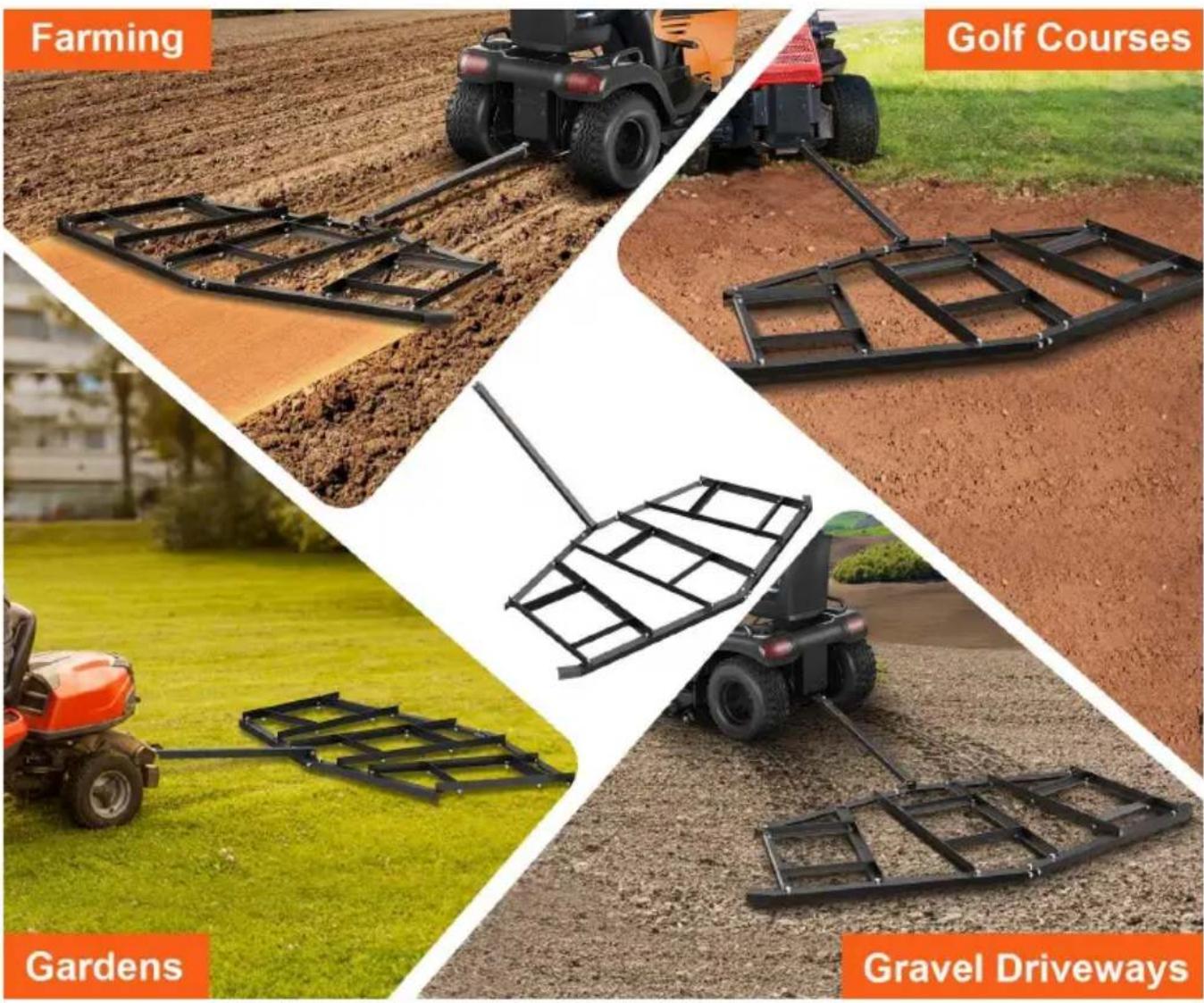

LAND LEVELING/COMPOSTING
Versatile application
Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.
ECREP:E-CrossStuGmbH.
MainzerLandstr.69,60329FrankfurtamMain.
UKREP: YHCONSULTINGLIMITED.
C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,
Staines-upon-Thames, Surrey, TW184AX
ImportedtoAUS:SIHAOPTYLTD.
1ROKEVASTREETEASTWOODNSW2122Australia
ImportedtoUSA:SanvenTechnologyLtd.
Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
