Product Type	Loading Net
Brand	Vevor
Model	PLCN120
Dimensions (Net surface area)	120 x 105 inches
Load Capacity	1,500 lb (approximately 680 kg)
Material	Polyester
Color	Black
Package Contents	Loading net x1, safety straps with hooks, carabiners x4, carry bag x1, user manual x1
Installation Instructions	Open the tailgate, locate anchor points, load the vehicle, spread the net, connect rings and hooks, tighten with multi-speed ratchet
Maintenance and Cleaning	Clean with standard detergent and a sponge or broom. Store in a cool, dry place away from sunlight and out of reach of children.
Safety	Do not overload, avoid sharp surfaces, inspect webbing and straps regularly, check hooks, do not twist straps before tensioning
Usage Precautions	Use additional ratchet straps to secure the load before placing the net. Use a cloth between the net and sharp edges.
Warranty and Support	Technical support and electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - PLCN120 Vevor

How to install the Vevor PLCN120 loading net?

Open the tailgate of your truck or trailer and locate the anchor points. Load the vehicle, then spread the net on the ground before placing it over the load. Connect the strap rings to the net rings using the carabiners, then hook the hooks to the anchor points. Use the multi-speed ratchet to tighten the strap until the net is secure. Ensure the strap is not twisted.

What is the load capacity of the PLCN120 model?

The load capacity of the Vevor PLCN120 loading net is 1,500 lb (approximately 680 kg). Never exceed this capacity to ensure safety.

How to clean and maintain the loading net?

Apply standard detergent to the net and use a sponge or broom to clean the surface. Store the product in a cool, dry place away from direct sunlight and out of reach of children.

Can I use this net to secure heavy loads like a motorcycle?

Yes, but ensure the total weight of the load does not exceed 1,500 lb and that the load is stable. Use additional ratchet straps to secure the load before placing the net. Place a cloth between sharp surfaces and the net to avoid wear.

What to do if the straps or net mesh are damaged?

Inspect the net regularly for tears in the mesh or straps. If the net is damaged, it may not function properly. Replace it immediately to ensure safety.

Does the PLCN120 model come with accessories?

Yes, the package includes: a loading net, safety straps with hooks, four carabiners, a carry bag, and a user manual. Note that the PPCN0096R model does not have hooks or carabiners.

How to avoid damaging the net during installation?

Avoid spreading the net over sharp surfaces. Place a cloth between the sharp surface and the net to prevent rubbing or cutting the mesh or straps. Before tightening, make sure the net and straps are not twisted.

What is the warranty of the Vevor loading net?

Vevor provides technical support and an electronic warranty certificate. For more information, visit www.vevor.com/support.

Can I use this net on a trailer?

Yes, the loading net is designed for trucks and trailers. Ensure the trailer's anchor points are strong and the load is evenly distributed to minimize movement during transport.

Is the net weather resistant?

The net is made of polyester, a durable material. However, to extend its life, store it in a cool, dry place away from direct sunlight and weather when not in use.

User questions about PLCN120 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Transport accessory in PDF format for free! Find your manual PLCN120 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PLCN120 by Vevor.

USER MANUAL PLCN120 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

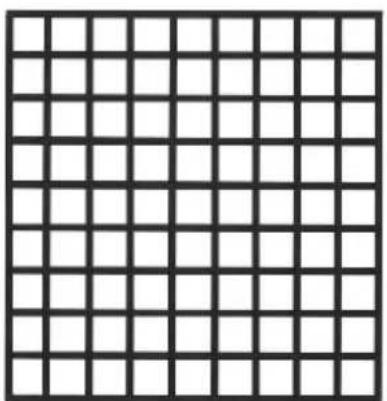

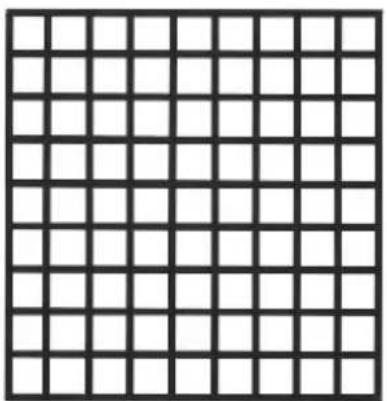

Pure grid pattern with no text, numbers, or symbols.

Webbing

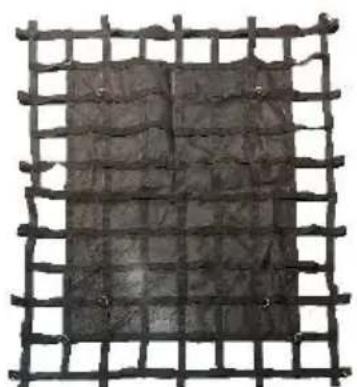

Abstract grid pattern with intersecting lines forming a mesh structure (no text or symbols).

Mesh

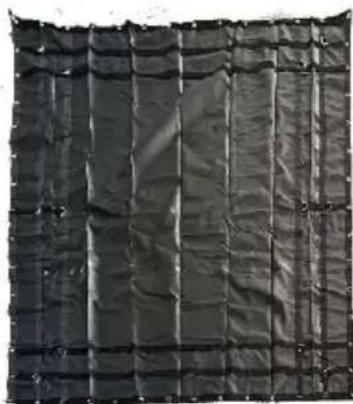

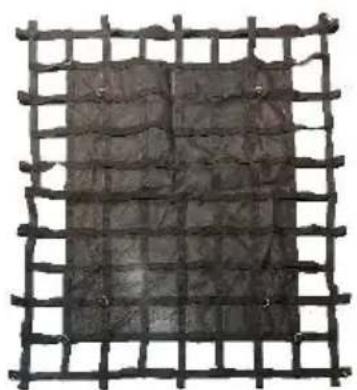

Close-up of a dark, grid-patterned fabric or material with no visible text or symbols.

Cargo Tarpaulin Cargo Net

NOTE: Photo for reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Load Securing

Prevent tensioning your load over sharp surfaces. To avoid damage to web strapping, place a rag between the sharp surface and the net to prevent rubbing or cutting of the mesh or straps.

Load Stability

A "Duty of Care" is required when loading a vehicle or trailer. Do not overload the vehicle. At all times, attempt to position the load to minimize any movement during transport.

Inspection

Regularly inspect your net for possible tears in either the mesh or strapping. If your net is compromised, it may fail to work as effectively as the designed specifications.

Early Detection

Before tensioning pull straps, make sure the net and the straps are not twisted.

Inspect hooks to make sure they are not bent or damaged.

NEVER allow the force exerted against the netting to exceed the capacity.

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	PPCN0054X	PLCN0054	PPCN0060
Net Area	54x18 inch	54x18 inch	60x18 inch
Strap Capacity	600lbs	1500lbs	600lbs
Color	Black	Black	Black
Strap Material	PP	Polyester	PP
Model	PPCN0096R	PPCN0072	PLCN0072
Net Area	96x72 inch	72x57 inch	72x57 inch
Strap Capacity	600lbs	1100lbs	1500lbs
Color	Black	Black	Black
Strap Material	PP	PP	Polyester

Model	PLCN0096	PLCN0120	VCCN0072
Net Area	96x81 inch	120x105 inch	72x57 inch
Strap Capacity	1500lbs	1500lbs	700lbs
Color	Black	Black	Black
Strap Material	Polyester	Polyester	PP

Model	VCCN0096	VCCN0120
Net Area	96x81 inch	120x105 inch
Strap Capacity	700lbs	700lbs
Color	Black	Black
Strap Material	PP	PP

PACKAGE LIST

Cargo Net x1 2. Safety Straps with hook x4 3. Carabiners x4 4. Carrying Bag x1 5. User manual x1

Remark: model PPCN0096R doesn't have hooks and carabiners.

INSTALLATION

Step 1: Open your truck or trailer gate and locate the cargo anchor. Load the truck or trailer with your cargo. Arrange the cargo so the force exerted against the netting will never exceed its rated capacity. Keep tiedown locations accessible.

Warning: Use additional ratchet straps to secure your load before placing the net over your load.

Step 2: Stretch the cargo net out to its fullest extent on the ground placing it over your load. Step 3: Connect the rings on the end of the straps to the rings on corners or sides of the net with carabiners. Connect the hooks on the bottom of the straps to the truck's cargo anchor points. (NOTE: Refer to your purchase for specific hook types.)

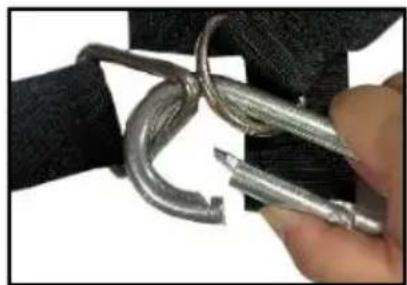

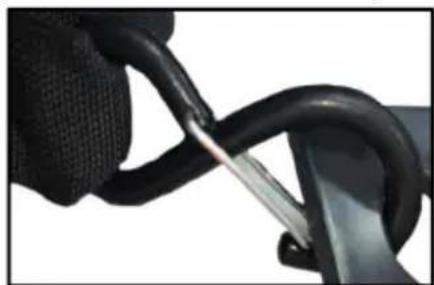

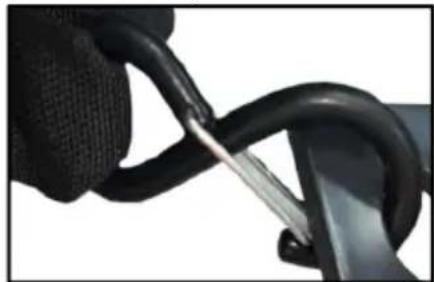

Close-up of a hand holding a metallic hook and metal clip against a black textured background (no text or symbols visible).

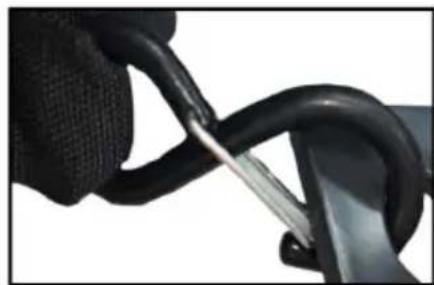

Close-up of a person using a black cable to lift a weight (no text or symbols visible).

Close-up of a black mechanical component with coiled spring and yellow connectors (no text or symbols visible).

Step 4: Press down the multi-gear ratchet and pull the strap until the net is tightly secured. (NOTE: Ensure the strap is not twisted.)

Close-up of hands adjusting a black belt buckle with a metal clip (no text or symbols visible).

For model PPCN0096R:

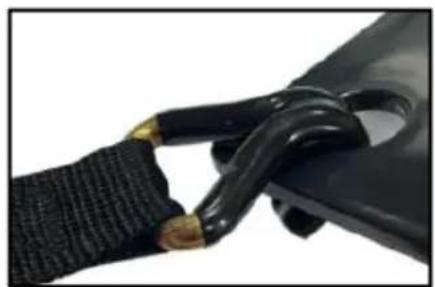

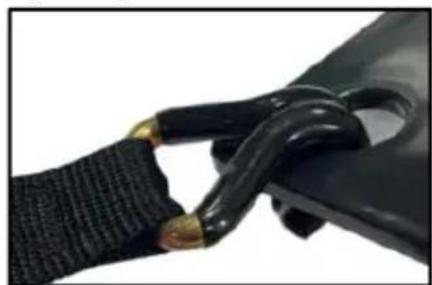

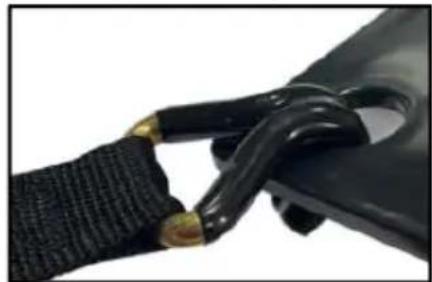

Connect the hooks on the bottom of the straps to the truck's cargo anchor points.
Refer to "Step 4" to tighten the net.

MAINTENANCE

Cargo nets will last longer if cleaned regularly. Simply apply a mild detergent and either sponge or broom across the surface area.
Store this product in a cool, dry place away from direct sunlight and inaccessible to children.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines forming squares (no text or symbols).

Woven grid pattern with a dark rectangular block at center (no text or symbols).

Close-up of a dark, textured fabric or material with vertical grooves and horizontal lines (no text or symbols visible).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Close-up of a person using a black cable to lift a weight (no text or symbols visible).

Close-up of a black rope tied with a coiled black cable, no text or symbols visible.

A/S YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported in AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines forming squares (no text or symbols).

Webbing cargo net

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Mesh cargo net

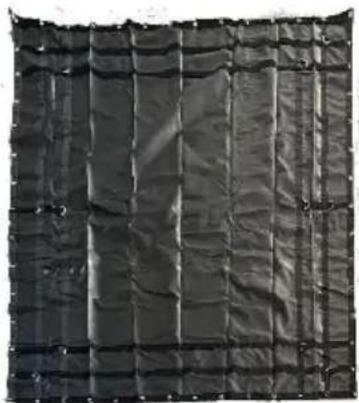

Close-up of a dark, textured fabric with vertical grooves and horizontal lines, no text or symbols.

Tarpaulin load net

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Cargo securing

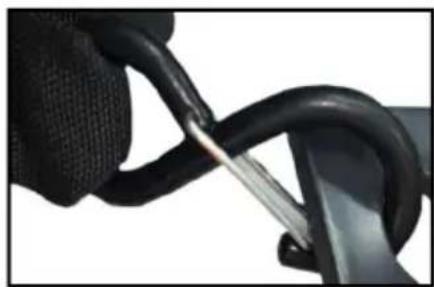

Close-up of a black cable being inserted into a mechanical component, no text or symbols visible.

Close-up of a black textured strap securing a metal clip, no text or symbols visible.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

PPCN0072/PLCN0072/PLCN0096/PLCN0120

ITEM CODE: VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines forming squares, no text or symbols.

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Close-up of a dark, textured fabric or material with vertical grooves and horizontal lines, no text or symbols visible.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Close-up of a black cable being inserted into a mechanical component, no visible text or symbols.

Close-up of a black mechanical component with attached golden clips and a textured strap, no visible text or symbols.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present.

Abstract grid pattern with dark rectangular blocks and thin lines, no text or symbols present.

Close-up of a dark, textured fabric with vertical grooves and horizontal lines. No text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Close-up of a black cable being inserted into a mechanical component. No text or symbols visible.

Close-up of a black rope tied with a golden clip, attached to a black object. No text or symbols visible.

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black squares on a white background. No text or symbols.

Abstract grid pattern with dark rectangular blocks and thin lines. No text or symbols present.

Close-up of a dark, textured fabric with vertical grooves and horizontal lines. No text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Close-up of a black cable being inserted into a mechanical component. No text or symbols visible.

Close-up of a black mechanical component with coiled black bands and gold connectors. No text or symbols visible.

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on a white background. No text or symbols present.

Webbing cargo net

Abstract grid pattern with dark rectangular blocks and thin lines. No text or symbols present.

Mesh cargo net

Close-up of a dark, grid-patterned fabric or material. No visible text or symbols.

Tarpaulin cargo net

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

SAFETY INSTRUCTIONS

WAARSCHUWING !

Ladingzekering

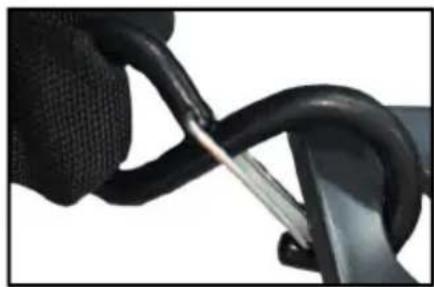

Close-up of a black cable being inserted into a mechanical component (no text or symbols visible)

Close-up of a black rope tied with gold clips, no visible text or symbols

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

Grid pattern with uniform black lines on white background, no text or symbols present

Webbing Cargo Net Mesh lastnät Presenning lastnät Woven grid pattern with a dark rectangular area at the bottom (no text or symbols)

Close-up of a dark, grid-patterned fabric or material with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

SAFETY INSTRUCTIONS

WARNING !

Load securing

Close-up of a black cable being inserted into a mechanical component (no text or symbols visible)

Close-up of a black rope tied with gold clips, no visible text or symbols

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Table of contents Click a title to access it

CARGO NET
VEVOR®
TOUGH TOOLS, HALF PRICE
NEED HELP? CONTACT US
SAFETY INSTRUCTIONS
WARNING
LOAD SECURING
LOAD STABILITY
INSPECTION
EARLY DETECTION
MODEL AND PARAMETERS
PACKAGE LIST
INSTALLATION
FOR MODEL PPCN0096R
MAINTENANCE
MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN
TARPAULIN LOAD NET
CARGO SECURING
MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN
WAARSCHUWING
LADINGZEKERING

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : PLCN120

Category : Transport accessory
