USER MANUAL PR-012-50 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

NINJA LINE/SLACK LINE KIT

MODEL: MODEL: PR-012-50/PR-010-50/PR-012-56/PR-014-60/PR-012-65/PR-03-60

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: PR-012-50/PR-010-50/PR-012-56/

PR-014-60/PR-012-65/PR-03-60

Children playing on outdoor obstacle course using colorful chains and ladders in a park (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Be careful to pinch your hands.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in the manual cannot cover all possible conditions and situations that may of Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble when tired or when under the influence of alcohol drugs or medication.
3. Keep the assembly area clean and well-lit.
4. Inspect before every use. Do not use it if parts are loose or dan

WARNING:

- This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

TIPS: Before installation, the packaging can be laid flat on the ground, the product placed on the packaging for assembly to protect the process. About this item.

Product related parameters

Model	PR-012-50	PR-010-50	PR-012-56	PR-014-60	PR-012-65	PR-03-60
Ribbon specifications	50FT	50FT	56FT	60FT	65FT	60FT
Six layer rope ladder	1	1	1	1	1
Soft board swing	1	1	1	1	1
Climbing the web	1	1	1	1	1
Climbing rope	/	/	/	1	/
Kuchu buranko	1	/	/	1	1
Gymnastic Triangle Ring	1	/	/	2	1
Monkey pole	2	3	3	2	2
Monkey fist	2	3	3	2	2
Gymnastic Circle	2	/	2	2	2
Rotating wheel	1	1	1	1	1
Total quantity	12	10	12	14	12	/

PR-012-50

Children playing on outdoor obstacle course using horizontal bars and rope, surrounded by trees (no text or symbols visible)

Installation instructions

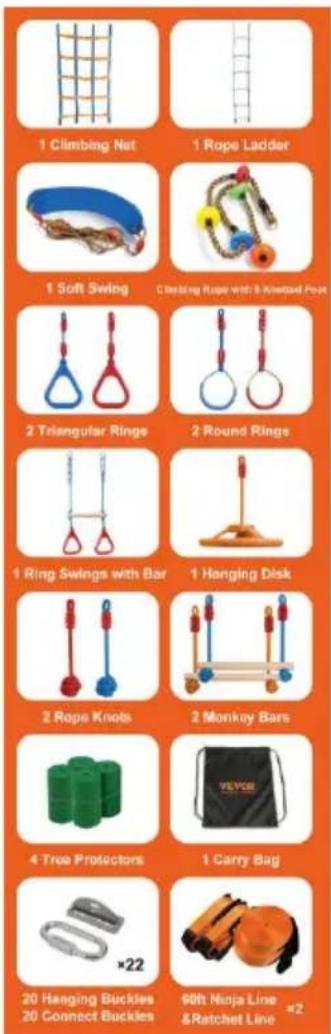

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors VEYOS ×20 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling a mechanical component with red arrows indicating direction (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on outdoor climbing ladders in a park with trees and greenery (no text or symbols visible)

Installation instructions

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a hand holding a small electronic device with red arrows indicating action steps (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to slow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing ladders in a park with trees and greenery (no text or symbols visible)

Installation instructions

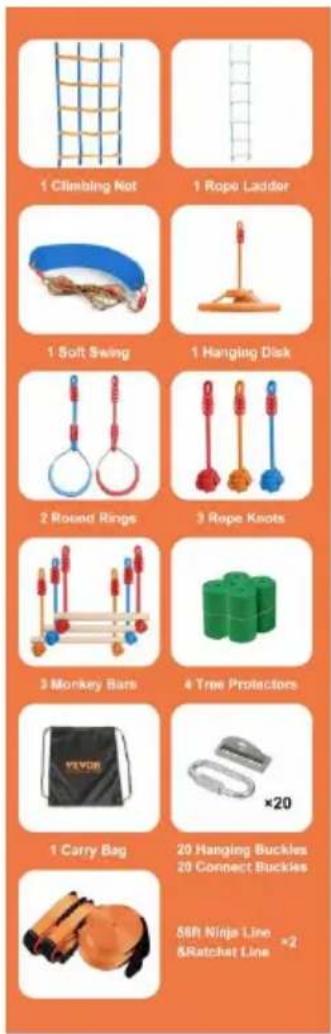

1 Climbing Not 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 58ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

Diagram illustrating a three-step process of a device or device with internal components and directional arrows indicating progression.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands using a computer to adjust or install an electronic component, with red arrows indicating the process (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing ladders in a park with trees and greenery (no text or symbols visible)

Installation instructions

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a hand holding a small electronic device, with red arrows indicating action steps (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on colorful climbing bars in a park, with trees and greenery in the background (no text or symbols visible)

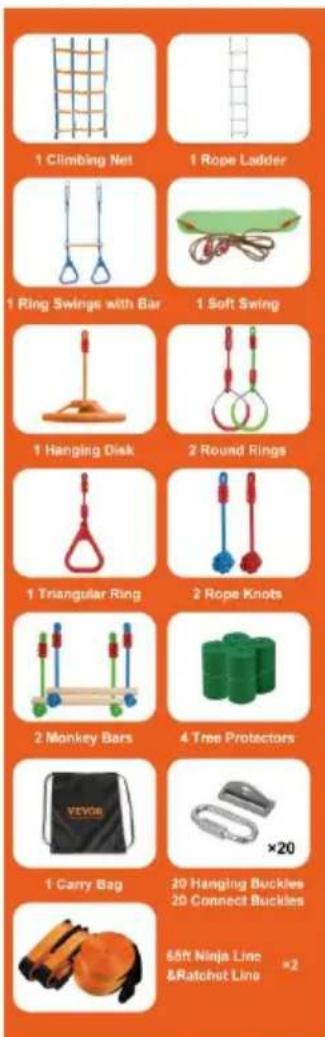

Installation instructions

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands using a tool to adjust or install electronic components, with no visible text or symbols.

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the wabbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the wabbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to slow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the wabbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children playing on a balance scale outdoors, surrounded by green trees and grass (no text or symbols visible)

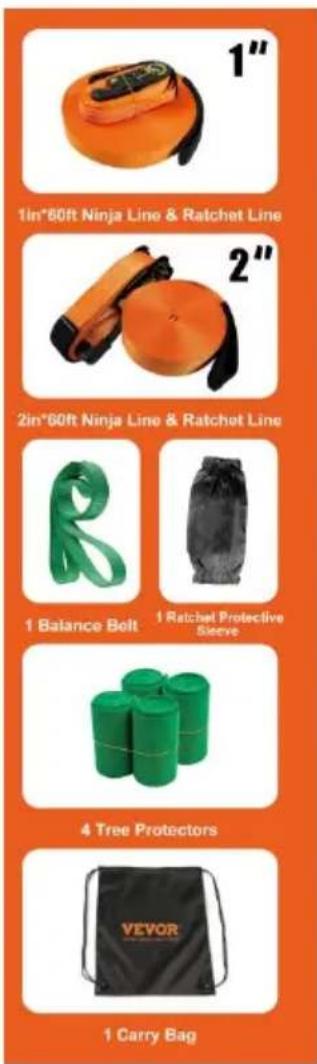

Installation instructions

• HOW TO SET UP A SLACKLINE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

Three circular images showing a hand holding a tool, with one being adjusted and the other holding a device (no text or symbols visible)

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180" at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or hat. Wipe with clean water. Keep product dry after cleaning.
2. Children are not allowed to wipe the product to avoid tipping and injuries.
3. After the product is disassembled, please put the parts and access together.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Children playing on outdoor climbing bars in a park, surrounded by trees (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Children playing on parallel bars in a park with trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a tool to adjust or install electronic components, with no visible text or symbols.

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on climbing ladders in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline); live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling a device with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing bars in a park, surrounded by trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors YEYOR ×20 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 58ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen:

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands assembling electronic components with red arrows indicating motion (no text or symbols)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on climbing and stretching bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a tightrope in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

A/S YH Consulting Limited Bureau 147, Centurion Maison, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Children playing on outdoor obstacle course using horizontal bars and ladders, surrounded by green trees (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands using a computer to adjust or install a component, with no visible text or symbols.

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on outdoor climbing ladders in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline); live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling a device with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as light as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing bars in a park, surrounded by trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen:

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands assembling electronic components with red arrows indicating motion (no text or symbols)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a tightrope in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

C/O YH Consulting Limited Office 147, Centurion Haus, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Children playing on outdoor obstacle course using horizontal bars and ladders, surrounded by green trees (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a tool to adjust or install electronic components, with red arrows indicating the process (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on outdoor climbing ladders in a park with trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Hanging Disk 1 Soft Swing 3 Monkey Bars 3 Rope Knots 2 Tree Protectors 1 Carry Bag 18 Hanging Buckles 18 Connect Buckles 50ft Ninja Line &Ratchet Line

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling or adjusting a mechanical component, with no visible text or symbols.

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as light as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor obstacle course using horizontal bars and ladders, surrounded by green trees (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors YEYOR ×20 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 58ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen:

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands assembling electronic components with red arrows indicating motion (no text or symbols)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on climbing and stretching bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a seesaw in a park, one holding green bars and the other with arms outstretched (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

www.vevor.com/support

Children playing on outdoor obstacle course using horizontal bars and ladders, surrounded by green trees (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a tool to adjust or install electronic components, with no visible text or symbols.

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on outdoor climbing ladders in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling a device with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as light as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing bars in a park, surrounded by trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors YEYOR ×20 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 58ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

Diagram illustrating a three-step assembly process: adding a component, adding a valve, and adding a belt buckle.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen:

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands assembling electronic components with red arrows indicating motion (no text or symbols)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on climbing and stretching bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a seesaw in a park, one holding green bars and the other with arms outstretched (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

LIMPIEZA Y ALMACENAMIENTO

C/O YH Consulting Limited Oficina 147, Centurion Casa, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Children playing on outdoor climbing bars in a park, surrounded by trees (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Children playing on outdoor obstacle course using horizontal bars and ladders, surrounded by green trees (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a tool to adjust or install electronic components, with no visible text or symbols.

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on climbing ladders in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling a device with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as light as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing bars in a park, surrounded by trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a computer to adjust or install a device, with red arrows indicating the process (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park, one girl swinging and the other climbing (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a tightrope in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

CZYSZCZENIE I PRZECHOWYWANIE

C/O YH Consulting Limited Biuro 147, Centurion Dom, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

Children playing on outdoor climbing bars in a park, surrounded by trees (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Children playing on outdoor climbing bars in a park, surrounded by green trees (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a tool to adjust or install electronic components, with red arrows indicating the process (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on climbing ladders in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline); live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands assembling a device with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing bars in a park with trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a computer to adjust or install a device, with red arrows indicating the process (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands assembling electronic components with red arrows indicating direction (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on climbing and stretching bars in a park with trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Ring Swings with Bar 1 Soft Swing 1 Hanging Disk 2 Round Rings 1 Triangular Ring 2 Rope Knots 2 Monkey Bars 4 Tree Protectors VEYOR ×20 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 65ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Three circular images showing a tree knot, a person's harness, and a measuring tape measure (no text or symbols)

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a tightrope in a park, surrounded by trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

REINIGING EN OPSLAG

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Children playing on outdoor climbing bars in a park, surrounded by trees (no text or symbols visible)

BEHÖVER HJÄLP? KONTAKTA OSS!

Children playing on outdoor obstacle course using horizontal bars and ladders, surrounded by green trees (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step illustration showing hands assembling a device with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.
2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

3 When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-010-50

Children playing on outdoor climbing ladders in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline); live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing a robotic arm performing manual tasks: holding a device, adjusting a camouflage patch, and adjusting a red ribbon (no text or symbols visible)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as light as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-56

Children playing on outdoor climbing bars in a park, surrounded by trees and greenery (no text or symbols visible)

1 Climbing Net 1 Rope Ladder 1 Soft Swing 1 Hanging Disk 2 Round Rings 3 Rope Knots 3 Monkey Bars 4 Tree Protectors 1 Carry Bag 20 Hanging Buckles 20 Connect Buckles 50ft Ninja Line &Ratchet Line ×2

• HOW TO SET UP A NINJA OBSTACLE COURSE?

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three circular images showing hands using a tool to adjust or install electronic components, with red arrows indicating the process (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-014-60

Children playing on colorful climbing bars in a park, one girl swinging and the other climbing (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing hands assembling electronic components with red arrows indicating motion (no text or symbols)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-012-65

Children playing on climbing and stretching bars in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninja line, two objects will be needed to tie it into place (typically trees).

▲ MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, please contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Installation height: more than 2.2m(7.2ft) is recommended

Of course, this value is not absolute. You can appropriately adjust the installation height of the slackline according to your child's height.

Step 3: Install the main line and ratchet line on the installed tree protectors.

Step 4: Install the hanging buckles to the main line.

It is recommended to install a hanging buckle every 11.8-15.8in.

If you are unable to determine the exact location during installation. You can straighten the main line and put it on the ground. Then measure with a tape measure and mark on the main line with a marker pen.

Step 5: Use the ratchet to tighten the main line of the slackline.

Tip: if you need to adjust the position of your hanging buckles, you must loosen the ratchet line before adjustment. Because the friction between the buckles and the main line is very large when the main line is tightened, you can't adjust the position of the hanging buckles.

Step 6: Use contact buckles to hang all accessories on the hanging buckle and tighten it.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your ninja slacklinel kit as much as possible. Have fun!

• HOW TO USE THE RATCHET LINE

Three-step diagram showing a robotic arm performing a task, with arrows indicating movement (no text or symbols present)

1. First, close the ratchet and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180 ° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty Certificate www.vevor.com/support

PR-03-60

Two children balancing on a tightrope in a park with trees and greenery (no text or symbols visible)

Step 1: Where to Slackline?

Picking a place to slackline is mostly based on personal preference. To set up the ninjaline, two objects will be needed to tie it into place (typically trees).

MATTERS NEEDING ATTENTION:

Do not use buildings or playground structures (unless specifically built for slackline), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposedroots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point. If in doubt, contact us.

Step 2: Install tree protectors. It can not only protect trees, but also reduce the wear of slackline.

Step 3: Attach the main line to a tree or solid post.

Installation height: Generally, we recommend that the installation height difference of two slackline be slightly less than: your child's height + half of the length of the balance belt, and the slackline at the bottom is about 23.6in from the ground. Of course, you can adjust the height according to your actual situation.

Step 4: Attach the ratchet line to another tree or solid post. Put the ratchet protector on first. Then use the ratchet to tighten the main line of the slackline. Cover the protective sleeve onto the ratchet again. (The protective sleeve is used for 2-inch slackline.)

Step 5: How to use the slackline ratchet?

We introduced the use of ratchet on the right.

Please note that after installing the accessories, you need to test their reliability. We sincerely hope you enjoy your slackline kit as muchas possible. Have fun!

• HOW TO USE THE RATCHET LINE?

Three-step diagram showing hands using a handheld device to adjust internal components, with red arrows indicating direction of change (no text or symbols present)

1. First, close the ratchet, and thread the webbing go through the upper hole in the middle of the ratchet. If the position of the hole is not above, it can be adjusted to the top by opening and closing the ratchet.

2. Pull the webbing down until it is as tight as possible. Then tighten the webbing with one hand and hold the handle of the ratchet with the other hand. Tighten the webbing by continuously opening and closing the ratchet. Until you can't pull the handle of the ratchet. Note: please make sure your ratchet is closed when it is finally tightened.

180°

1. When you are ready to stow the slackline kit, you can pull the switch marked in the figure outward and open the handle of the ratchet to about 180° at the same time. After hearing the "bang", you can pull the webbing out of the ratchet and put it away.

The ratchet is open The ratchet is closed

Technical Support and E-Warranty

Certificate www.vevor.com/support

RENGÖRING OCH FÖRVARING

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
