USER MANUAL PPCN0072 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CARGO NET

MODEL:PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

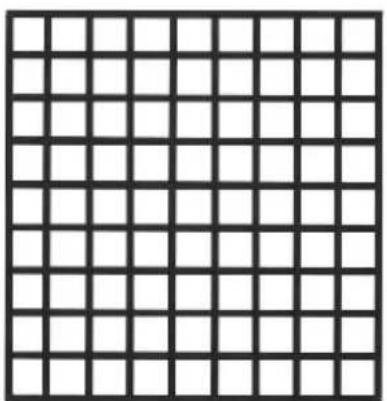

Pure grid pattern with no text, numbers, or symbols

Webbing

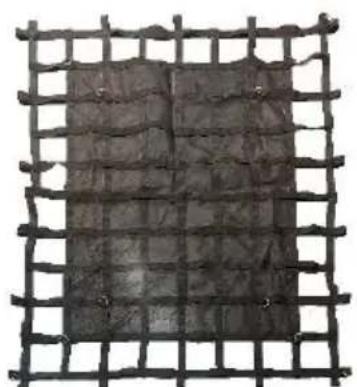

Abstract grid pattern with intersecting lines forming a mesh structure (no text or symbols)

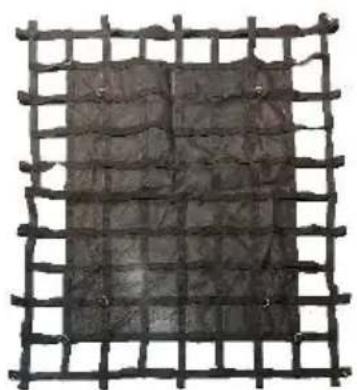

Mesh

Black textured panel with grid pattern, no visible text or symbols

Cargo

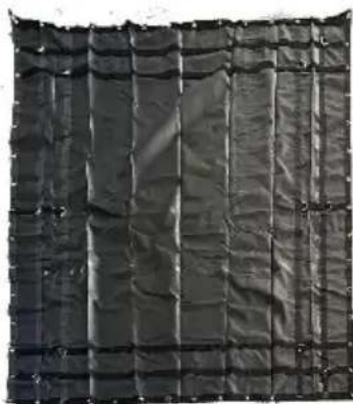

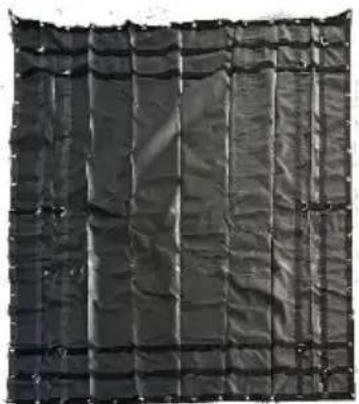

Tarpaulin
Cargo
Net

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Load Securing

Prevent tensioning your load over sharp surfaces. To avoid damage to web strapping place a rag between the sharp surface and the net to prevent rubbing or cutting of the mesh or straps.

Load Stability

A "Duty of Care" is required when loading a vehicle or trailer. You are not overload the vehicle. At all times, attempt to position the load to minimize any movement during transport.

Inspection

Regular inspection of your net for possible tears in either the mesh or strapping. If your net is compromised it may fail to work as effectively the designed specifications.

Early Detection

Before tensioning pull straps, make sure the net and the straps are twisted.

Inspect hooks to make sure they are not bent or damaged.

NEVER allow the force exerted against the netting to exceed the capacity.

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	PPCN0054X	PLCN0054	PPCN0060
Net Area	54x18 inch	54x18 inch	60x18 inch
Strap Capacity	600lbs	1500lbs	600lbs
Color	Black	Black	Black
Strap Material	PP	Polyester	PP
Model	PPCN0096R	PPCN0072	PLCN0072
Net Area	96x72 inch	72x57 inch	72x57 inch
Strap Capacity	600lbs	1100lbs	1500lbs
Color	Black	Black	Black
Strap Material	PP	PP	Polyester

Model	PLCN0096	PLCN0120	VCCN0072
Net Area	96x81 inch	120x105 inch	72x57 inch
Strap Capacity	1500lbs	1500lbs	700lbs
Color	Black	Black	Black
Strap Material	Polyester	Polyester	PP

Model	VCCN0096	VCCN0120
Net Area	96x81 inch	120x105 inch
Strap Capacity	700lbs	700lbs
Color	Black	Black
Strap Material	PP	PP

PACKAGE LIST

1. Cargo Net x1 2. Safety Straps with hook x4
   3.Carabiners x4 4.Carrying Bag x1 5.User manual x1

Remark: model PPCN0096R doesn't have hooks and carabiners.

INSTALLATION

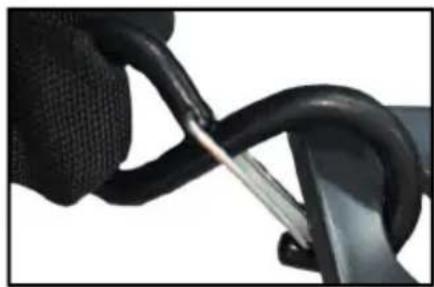

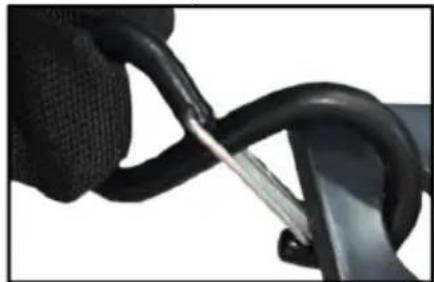

Step 1: Open your truck or trailer gate and locate the cargo anchor. Load the truck or trailer with your cargo. Arrange the cargo so the exerted against the netting will never exceed its rated capacity. Keep tiedown locations accessible.

Warning: Use additional ratchet straps to secure your load before placing the net over your load.

Step 2: Stretch the cargo net out to its fullest extent on the ground placing it over your load.

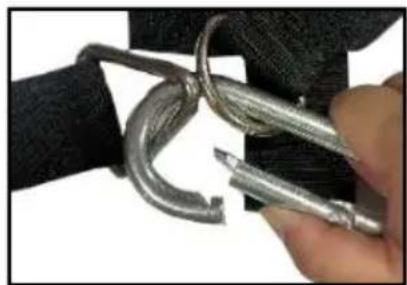

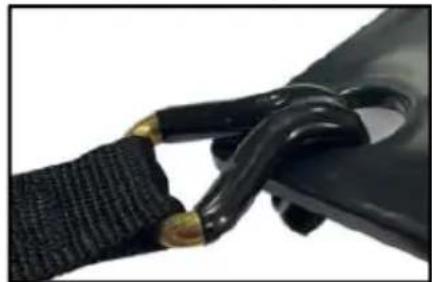

Step 3: Connect the rings on the end of the straps to the rings on corners or sides of the net with carabiners. Connect the hooks on the bottom of the straps to the truck's cargo anchor points. (NOTE: Refer to your purchase for specific hook types.)

Close-up of a hand holding a metallic hook and metal clip against a black textured background (no text or symbols visible)

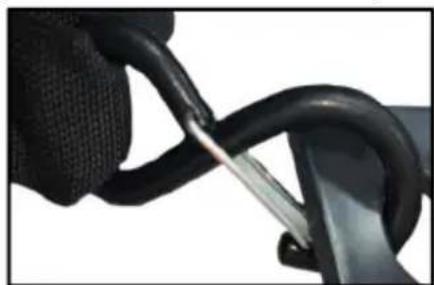

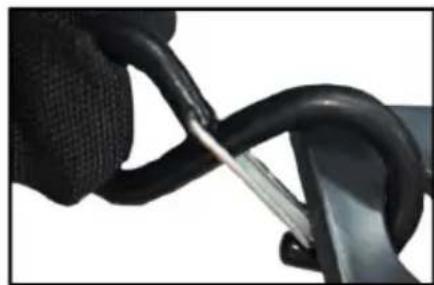

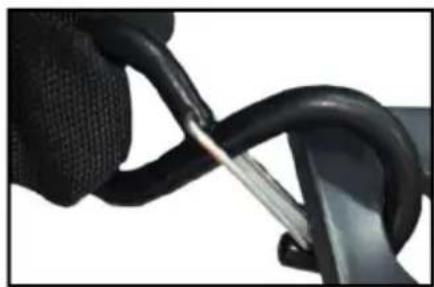

Close-up of a person using a black cable to lift a vehicle (no visible text or symbols)

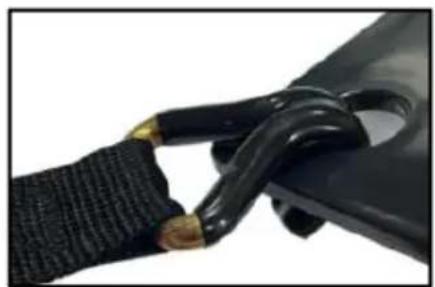

Close-up of a black mechanical component with coiled spring and yellow connectors (no text or symbols visible)

Step 4: Press down the multi-gear ratchet and pull the strap until the net is tightly secured. (NOTE: Ensure the strap is not twisted.)

Close-up of hands adjusting a black belt buckle with metal clamps (no text or symbols visible)

For model PPCN0096R:

1. Connect the hooks on the bottom of the straps to the truck's cargo anchor points.
2. Refer to "Step 4" to tighten the network.

MAINTENANCE

1. Cargo Nets will last longer if cleaned regularly. Simply apply a sta detergent and either sponge or broom across the surface area.
2. Store this product in a cool, dry place away from direct sunlight as inaccessible to children.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
