Product Type	Cargo net for truck or trailer
Brand	Vevor
Model	PLCN0096
Net area	96 x 81 inches (244 x 206 cm)
Maximum load capacity	1,500 lb (680 kg)
Material	Polyester
Color	Black
Package contents	Cargo net, 4 safety straps with hooks, 4 carabiners, carry bag, user manual
Intended use	Securing loads on vehicles or trailers
Installation	Attach hooks to anchor points, tighten with the multi-speed ratchet
Safety	Do not exceed the rated capacity, inspect the mesh and straps regularly, avoid sharp surfaces
Maintenance	Clean with a mild detergent and a sponge or broom; rinse with clear water
Storage	In a cool and dry place, away from direct sunlight, out of reach of children
Technical support	Website: www.vevor.com/support
Compatible models	PPCN0054X, PLCN0054, PPCN0060, PPCN0096R, PPCN0072, PLCN0072, PLCN0096, PLCN0120, VCCN0072, VCCN0096, VCCN0120
Feature	Polyester mesh net model with safety straps and carabiners

Frequently Asked Questions - PLCN0096 Vevor

How to install the Vevor PLCN0096 cargo net?

Open the tailgate, locate the anchor points, load the vehicle, stretch the net over the load, connect the straps to the net rings using the carabiners, then attach the hooks to the anchor points. Tighten the net with the multi-speed ratchet until it is securely fastened. Make sure the straps are not twisted.

What is the maximum load capacity of the PLCN0096?

The maximum load capacity is 1,500 lb (680 kg).

How to clean the cargo net?

Use a standard detergent and a sponge or broom to clean the surface. Rinse with clear water and air dry. Do not use abrasive products.

Can I use this net to secure a motorcycle?

Yes, if the motorcycle's weight does not exceed 680 kg and you use additional straps to stabilize the load. Make sure the anchor points are sturdy and the net is tightly secured.

Is the net UV resistant?

The net is made of polyester, which is moderately UV resistant. To extend its lifespan, avoid prolonged exposure to direct sunlight and store it in a dry place away from light.

How to store the PLCN0096 net?

Store the net in a cool and dry place, away from direct sunlight and out of reach of children. Use the provided carry bag.

What to do if a strap is damaged?

Do not use the net if a strap or hook is damaged. Replace defective parts immediately. Contact Vevor support for replacement parts.

Is this net suitable for a trailer?

Yes, it can be used on a trailer provided the anchor points are compatible and the load does not exceed the maximum capacity.

Are carabiners included with the net?

Yes, 4 carabiners are included in the package to connect the straps to the net rings. (Except for model PPCN0096R).

Where to find technical support for this product?

Visit www.vevor.com/support for assistance, replacement parts, or the electronic warranty.

USER MANUAL PLCN0096 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CARGO NET

MODEL: PPCN0054X/PLCN0054/PPCN0060/PPCN0096R PPCN0072/PLCN0072/PLCN0096/PLCN0120 VCCN0072/VCCN0096/VCCN0120

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CARGO NET

MODEL:PPCN0054X/PLCN0054/PPCN0060/PPCN0096R/PPCN0072/PLCN0072/PLCN0096/PLCN0120/VCCN0072/VCCN0096/VCCN0120

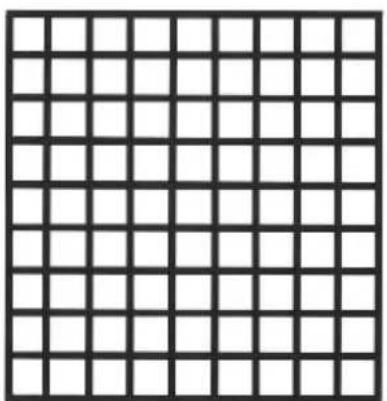

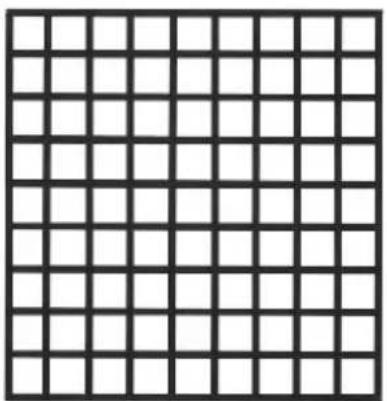

Grid pattern with uniform black lines forming squares (no text or symbols)

Webbing

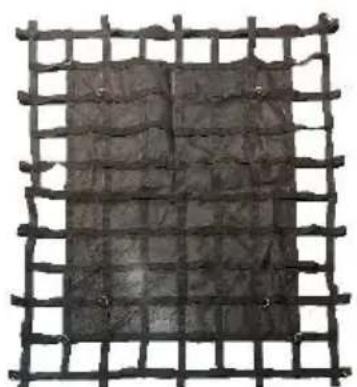

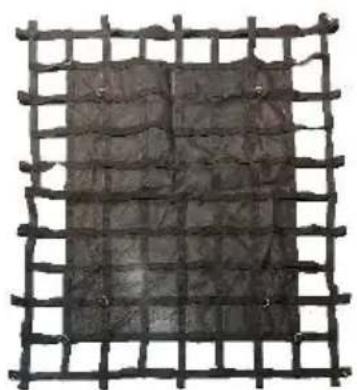

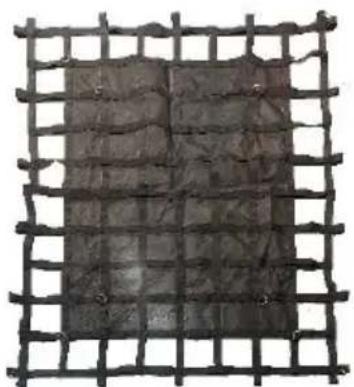

Abstract grid pattern with intersecting lines forming a mesh structure (no text or symbols)

Mesh

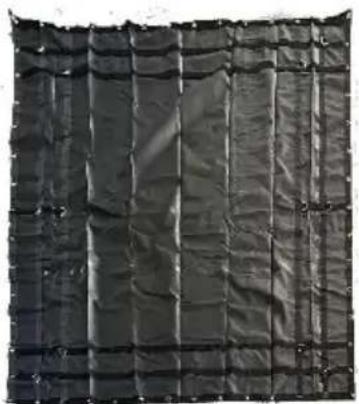

Close-up of a dark, grid-patterned fabric or material with no visible text or symbols

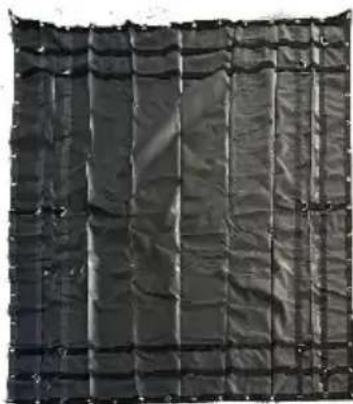

Cargo
Tarpaulin
Cargo
Net

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Load Securing

Prevent tensioning your load over sharp surfaces. To avoid damage to web strapping place a rag between the sharp surface and the net to prevent rubbing or cutting of the mesh or straps.

Load Stability

A "Duty of Care" is required when loading a vehicle or trailer. You are not overload the vehicle. At all times, attempt to position the load to minimize any movement during transport.

Inspection

Regular inspection of your net for possible tears in either the mesh or strapping. If your net is compromised it may fail to work as effectively the designed specifications.

Early Detection

Before tensioning pull straps, make sure the net and the straps are twisted.

Inspect hooks to make sure they are not bent or damaged.

NEVER allow the force exerted against the netting to exceed the capacity.

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	PPCN0054X	PLCN0054	PPCN0060
Net Area	54x18 inch	54x18 inch	60x18 inch
Strap Capacity	600lbs	1500lbs	600lbs
Color	Black	Black	Black
Strap Material	PP	Polyester	PP
Model	PPCN0096R	PPCN0072	PLCN0072
Net Area	96x72 inch	72x57 inch	72x57 inch
Strap Capacity	600lbs	1100lbs	1500lbs
Color	Black	Black	Black
Strap Material	PP	PP	Polyester

Model	PLCN0096	PLCN0120	VCCN0072
Net Area	96x81 inch	120x105 inch	72x57 inch
Strap Capacity	1500lbs	1500lbs	700lbs
Color	Black	Black	Black
Strap Material	Polyester	Polyester	PP

Model	VCCN0096	VCCN0120
Net Area	96x81 inch	120x105 inch
Strap Capacity	700lbs	700lbs
Color	Black	Black
Strap Material	PP	PP

PACKAGE LIST

1. Cargo Net x1 2. Safety Straps with hook x4
   3.Carabiners x4 4.Carrying Bag x1 5.User manual x1

Remark: model PPCN0096R doesn't have hooks and carabiners.

INSTALLATION

Step 1: Open your truck or trailer gate and locate the cargo anchor. Load the truck or trailer with your cargo. Arrange the cargo so the exerted against the netting will never exceed its rated capacity. Keep tiedown locations accessible.

Warning: Use additional ratchet straps to secure your load before placing the net over your load.

Step 2: Stretch the cargo net out to its fullest extent on the ground placing it over your load.

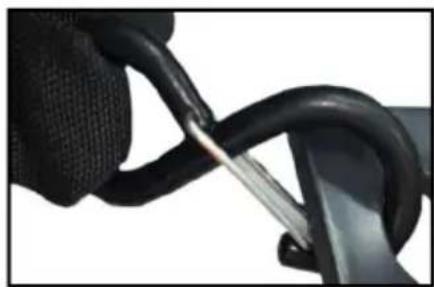

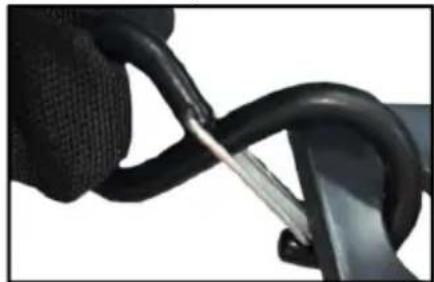

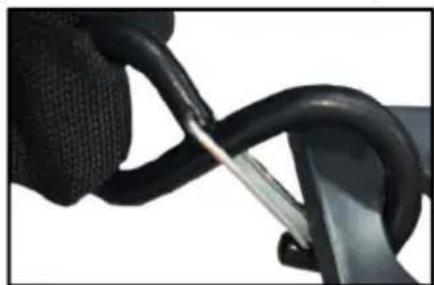

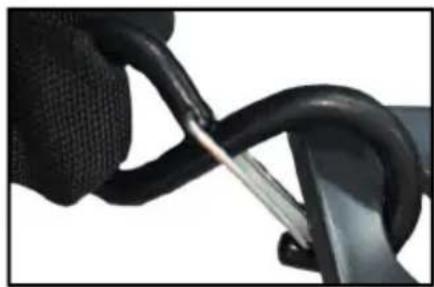

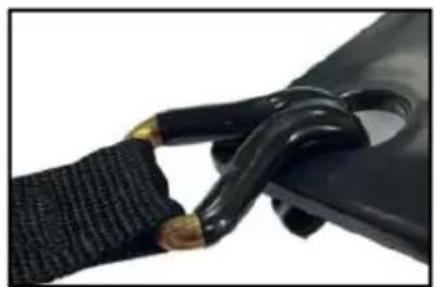

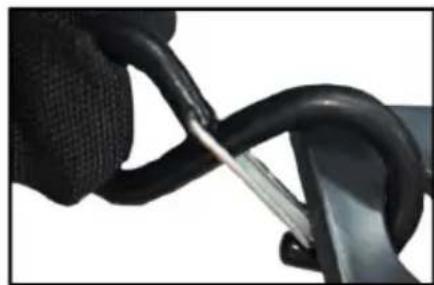

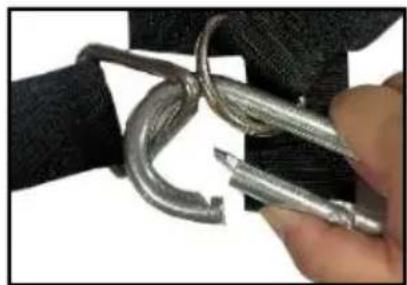

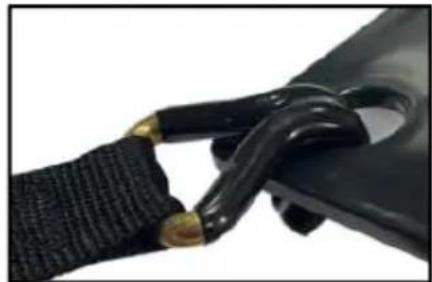

Step 3: Connect the rings on the end of the straps to the rings on corners or sides of the net with carabiners. Connect the hooks on the bottom of the straps to the truck's cargo anchor points. (NOTE: Refer to your purchase for specific hook types.)

Close-up of a hand holding a metallic chain spring attached to a black fabric (no text or symbols visible)

Close-up of a person using a black cable to lift a weight (no text or symbols visible)

Close-up of a black mechanical component with coiled spring and yellow connectors (no text or symbols visible)

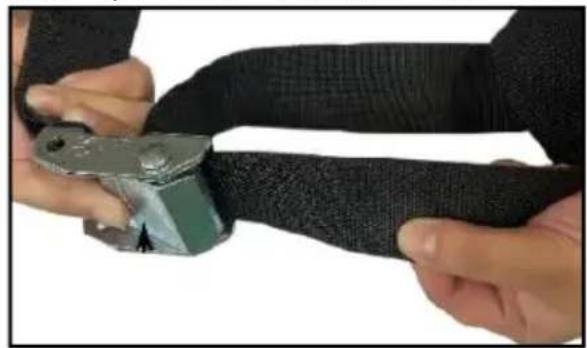

Step 4: Press down the multi-gear ratchet and pull the strap until the net is tightly secured. (NOTE: Ensure the strap is not twisted.)

Close-up of hands adjusting a black belt buckle with metal clamps (no text or symbols visible)

For model PPCN0096R:

1. Connect the hooks on the bottom of the straps to the truck's cargo anchor points.
2. Refer to "Step 4" to tighten the network.

MAINTENANCE

1. Cargo Nets will last longer if cleaned regularly. Simply apply a sta detergent and either sponge or broom across the surface area.
2. Store this product in a cool, dry place away from direct sunlight as inaccessible to children.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
