Product Type	Fryer filter paper
Brand	Vevor
Model	LZ-18L-38L, LZ-55L
Use	Fryer oil filtration
Main components	Filter paper, metal frame, silicone pad, pressure screen, chamber reinforcement, primary filter
Material	Filter paper
Compatibility	Vevor oil filters models LYC-18L, LYC-18L-EU, LYC-38L, LYC-38L-EU, LYC-55L, LYC-55L-EU
Installation	Follow the indicated order: place the filter paper on top of the filter, then the frame and clamps
Maintenance	Regularly replace the filter paper and add filter powder (8 ounces per change)
Safety	Do not use with children or persons without supervision; device reserved for indicated models
Filter powder	8 ounces (approx. 227 g) evenly distributed on the paper
Fixing clamps	4 clamps to unscrew to open the frame
Technical support	www.vevor.com/support
Warranty	Electronic warranty certificate available online
EU Representative	SHUNSHUN GmbH, Germany
UK Representative	Pooledas Group Ltd, United Kingdom
Manufacturing	Made in China

Frequently Asked Questions - LZ-18L-38L Vevor

How to install the filter paper?

Make sure the machine is turned off and the oil has been returned to the fryer. Unscrew the 4 clamps, remove the metal frame, place a new sheet of filter paper in the tray, evenly distribute 8 ounces of filter powder, then put the frame back and retighten the clamps.

Which fryer models are compatible?

This filter paper is compatible with Vevor oil filters of models LYC-18L, LYC-18L-EU, LYC-38L, LYC-38L-EU, LYC-55L and LYC-55L-EU.

How much filter powder to use?

Measure 8 ounces (approx. 227 g) of filter powder and distribute it evenly on the surface of the filter paper before closing the frame.

How often should the filter paper be changed?

The manual does not specify an exact frequency, but it is recommended to change the filter paper with each use or when the oil is saturated. Follow your fryer's instructions.

What to do if the machine does not work after installation?

Check that the filter paper is installed above the filter (A-1) and not below. Incorrect order may prevent operation. Consult the diagram in the manual.

Is the filter paper washable?

No, the filter paper is disposable. It must be thrown away after use and replaced with a new one to ensure effective filtration.

Where to buy filter powder refills?

Filter powder refills are available from Vevor or authorized dealers. Visit www.vevor.com/support for more information.

Can I use this filter with other brands of fryers?

This product is designed exclusively for Vevor oil filters of the listed models. Using it with other brands could cause malfunction or safety hazards.

How to clean the metal frame?

The metal frame can be cleaned with a damp cloth and mild detergent. Dry it thoroughly before reinstalling. Do not immerse in water.

What are the safety precautions?

Do not let children use the appliance. Make sure the machine is turned off before any handling. Use only with compatible models to avoid risk.

USER MANUAL LZ-18L-38L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

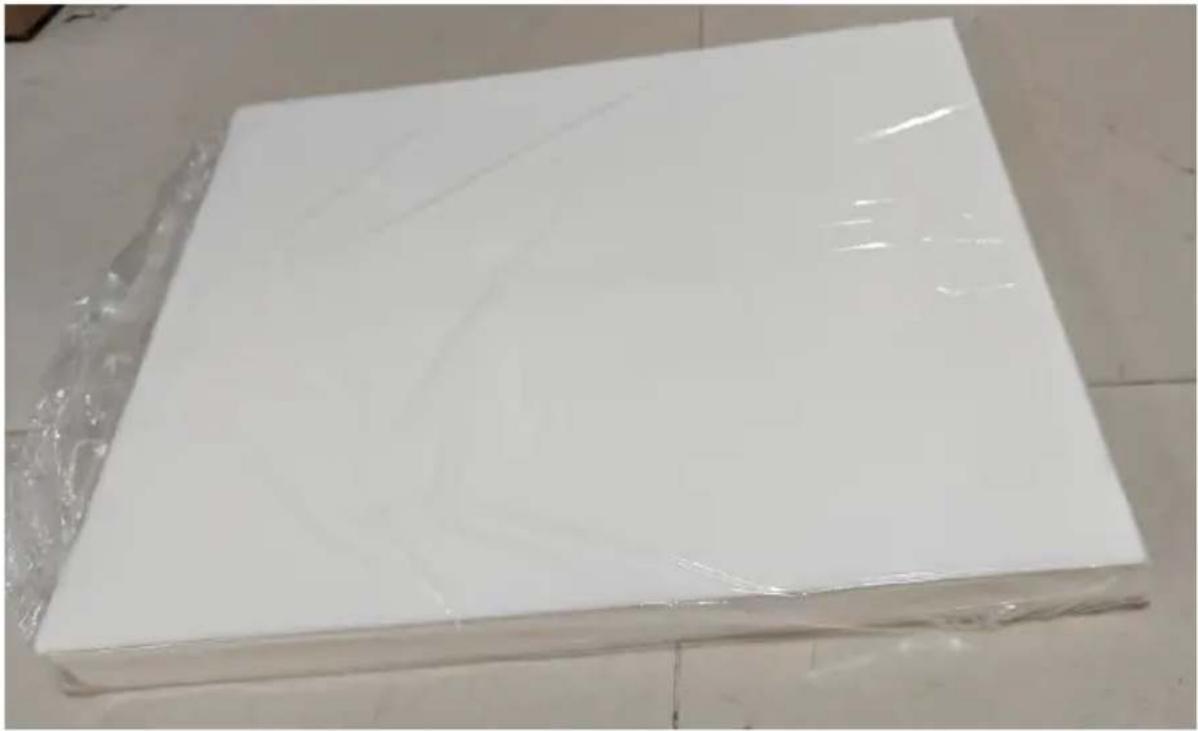

FILTER PAPER

MODEL: LZ-18L-38L, LZ-55L

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: LZ-18L-38L, LZ-55L

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

CAUTION: This equipment is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety.

CAUTION: Children should be supervised to avoid playing with the equipment.

CAUTION: This appliance is only for use with VEVOR brand Oil Fryer model: LZ-18L-38L, LZ-55L

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

MODEL	ADAPT TO OIL FRYER FILTE MODEL	SIZE(LENGTH*WIDTH)
LZ-18L-38L	LYC-18L、LYC-18L-EU LYC-38L、LYC-38L-EU	490×410mm
LZ-55L	LYC-55L、LYC-55L-EU	653×430mm

REPLACING FILTER PAPER

1. Ensure that the machine is OFF and oil has been returned to the
2. Unscrew the 4 clamps pressing the filter paper frame down.
3. Remove the metal frame.
4. Place a new sheet of filter paper into the filter pan.
5. Measure 8 ounces of filter powder and distribute evenly over the surface.
6. Place the metal frame over the gasket and filter paper.
7. Reinstall the 4 clamps and ensure the filter paper is securely in

SETUP

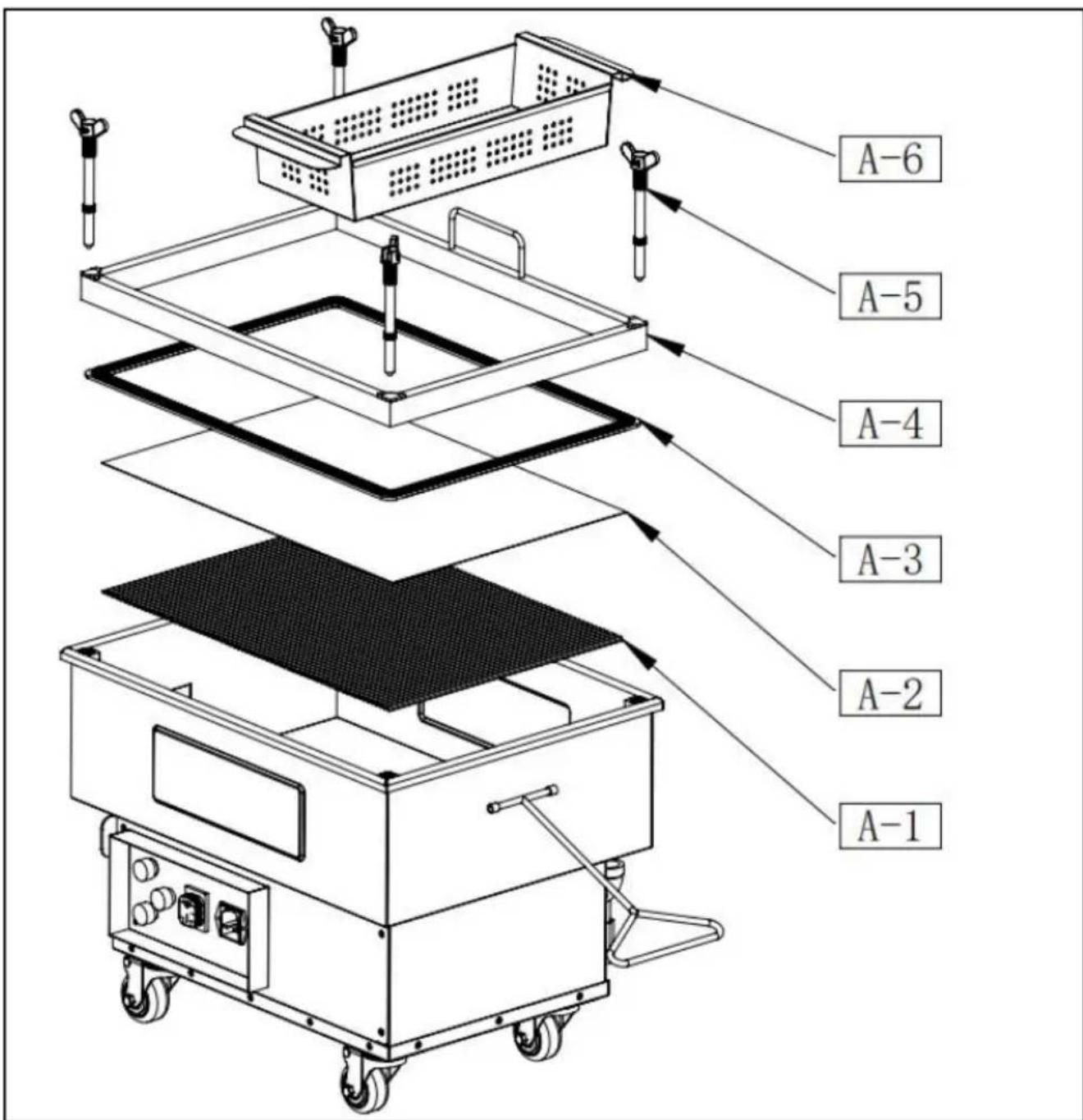

Adapt to Oil Fryer Filter For Model LYC-18L, LYC-18L-EU:

Caution: It must be installed in the order shown in the figure, and the paper (A-2) must be installed on top of the filter (A-1), otherwise the machine may not work and be empty.

A-1: filter, A-2: filter paper, A-3: silicone pad, A-4: pressure screen frame, A-5: filter chamber reinforcement, A-6: primary filter

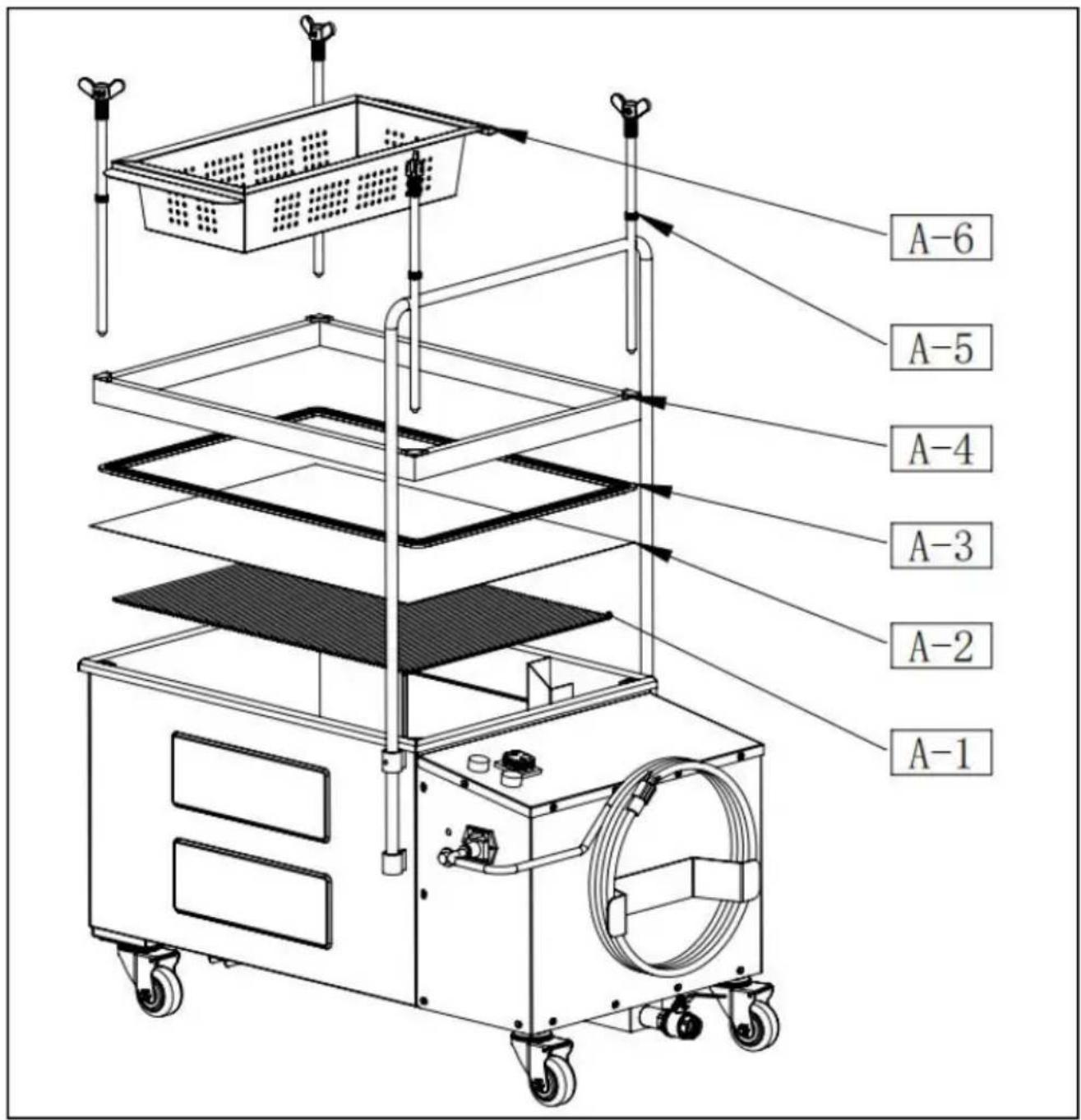

Adapt to Oil Fryer Filter For Model LYC-38L, LYC-38L-EU, LYC-55L, LYC-55L-EU:

Caution: It must be installed in the order shown in the figure, and the paper (A-2) must be installed on top of the filter (A-1), otherwise the machine may not work and be empty.

A-1: filter, A-2: filter paper, A-3: silicone pad, A-4: pressure screen frame, A-5: filter chamber reinforcement, A-6: primary filter

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

PRODUCT PARAMETERS

MODÈLE	ADAPTATION AU FILTRE DE FRITEUSE À HUILE MODÈLE	TAILLE (LONGUEUR * LARGEUR)
LZ-18L-38L	LYC-18L LYC-18L-EULYC-38L LYC-38L-EU	490×410mm
LZ-55L	LYC-55L LYC-55L-EU	653×430mm

REPLACEMENT OF FILTER PAPER

A-1: filter

A-2: filter paper

Place, Rancho Cucamonga, CA 91730

Grupo Pooledas Ltd.

NEED HELP? CONTACT US!

A-1: filter

A-5: filter chamber reinforcement

NEED HELP? CONTACT US!

A-1: filter A-2: filter paper A-5: filter chamber reinforcement A-3: silicone pad A-4: pressure screen frame A-6: primary filter

A-1: filter A-2: filter paper A-5: filter chamber reinforcement A-3: silicone pad A-4: pressure screen frame A-6: primary filter

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, De Paviljoens

NEED HELP? CONTACT US!

Unit 5 Albert Edward House, The Pavilions
