KZ-17.9 - Support leveler Vevor - Free user manual and instructions

Product Type	Ladder Leveler
Brand	Vevor
Model	KZ-17.9
Maximum load	550 lb (249 kg)
Adjustment range	11,4 inches (29 cm)
Main material	Sturdy steel
Number of adjustable feet	2
Use	Indoor and outdoor, on uneven ground, roofs, stairs, ladders
Surface of use	Firm and non-slip surfaces
Assembly	Requires assembly of footrests and fixing blocks
Supplied parts	2 leg bodies, 2 foot cushions, 4 circular washers, screws and nuts, 2 long blocks, 2 short blocks, wrench, etc.
Maintenance	Clean with a damp cloth, do not use abrasive products
Safety	Do not use on slippery surfaces; always check stability
Warranty	Electronic warranty certificate available at www.vevor.com/support
Importer	Sanven Technology Ltd. (USA)
EU representative	YH CONSULTING LIMITED, Frankfurt

Frequently Asked Questions - KZ-17.9 Vevor

How to assemble the KZ-17.9 leveler?

First install the footrests on the support legs (do not tighten too much to allow rotation). Then, assemble the long and short blocks with M6 screws. Attach the assembly to the ladder by drilling holes and using M8 screws.

What is the maximum supported load?

The KZ-17.9 supports a maximum load of 550 lb (about 249 kg).

How to adjust the length of the legs?

The legs can be lowered by loosening the locking screws and sliding the lower part. The maximum adjustment is 11,4 inches.

Can I use this leveler on slippery surfaces?

No, it is only designed for firm surfaces. Do not use on slippery ground to avoid any risk of tipping.

Is the product suitable for outdoor use?

Yes, it can be used outdoors on uneven terrain, roofs, and stairs, provided the surface is stable.

How to clean the leveler?

Clean it with a damp cloth and dry it. Do not use harsh chemicals that could damage the coating.

Where can I find spare parts?

Contact Vevor technical support via www.vevor.com/support to order spare parts.

Is this leveler compatible with all types of ladders?

It is designed to be attached to standard ladders using the fixing blocks. Check that the hole dimensions match the supplied screws.

What is the warranty of the KZ-17.9?

Vevor offers an electronic warranty certificate. Check their website for terms.

Is the product delivered with all necessary assembly tools?

Yes, the kit includes a wrench and all required screws and nuts. No additional tools are needed.

USER MANUAL KZ-17.9 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Ladder Leveler

MODEL: KZ-17.9

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: KZ-17.9

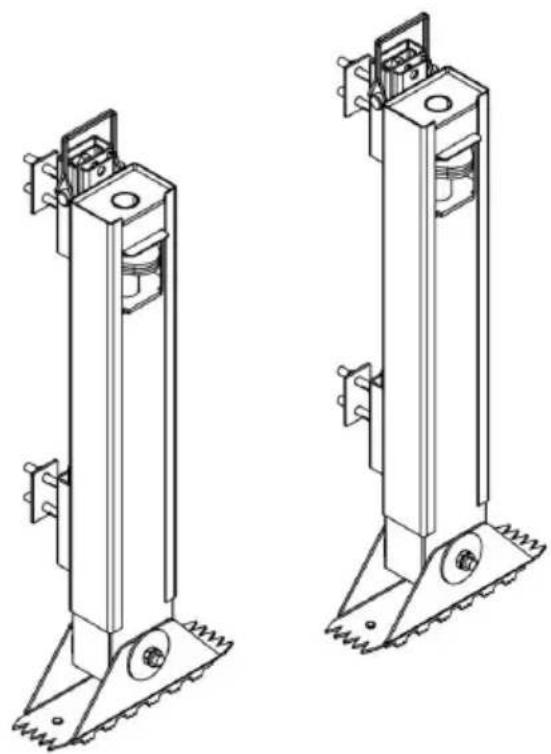

Technical line drawing of two vertical electrical enclosure components with mounting base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

• It works indoors and out, use it on uneven ground, roof tops, and building materials & ladders, ladder-accessories.
• For use only on firm surfaces.

Not intended for use on slippery surfaces.

Part List
No.	Name	Picture	QTY.
A	Supporting Leg Body		2
B	Foot Pad		2
C	Circular Gasket		4
D	Screw M8*70		2
E	Nut M8		2
F	Long Block		2
G	Short Block		2
H	Screw M6*50		8
I	Nut M6		8
J	Square Gasket		4
K	Screw M6*25		2+8
L	D-pin		1
M	Wrench		2
Tip:"+"is extra spare parts.

Model	Max Load (lbs)	Adjusting Length (inch)
KZ-17.9	550	11.4

Product Assembly

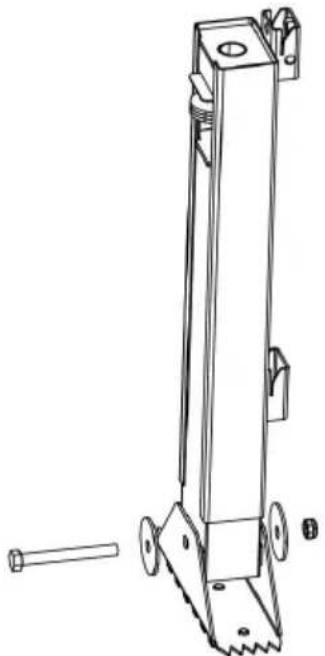

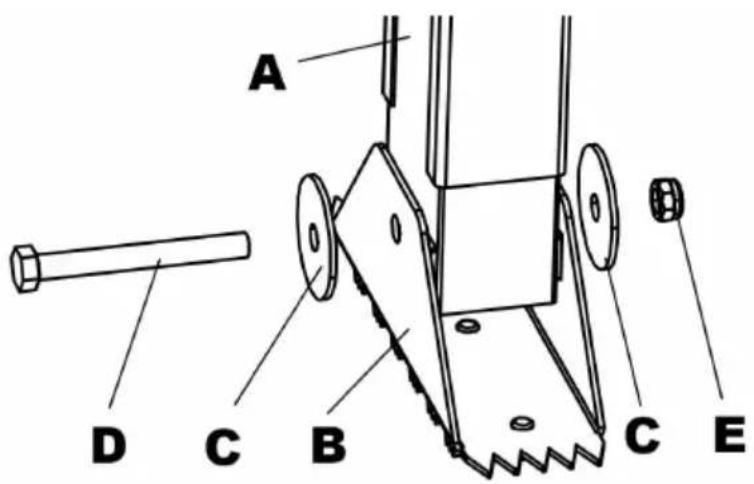

Step 1: Install foot pad.

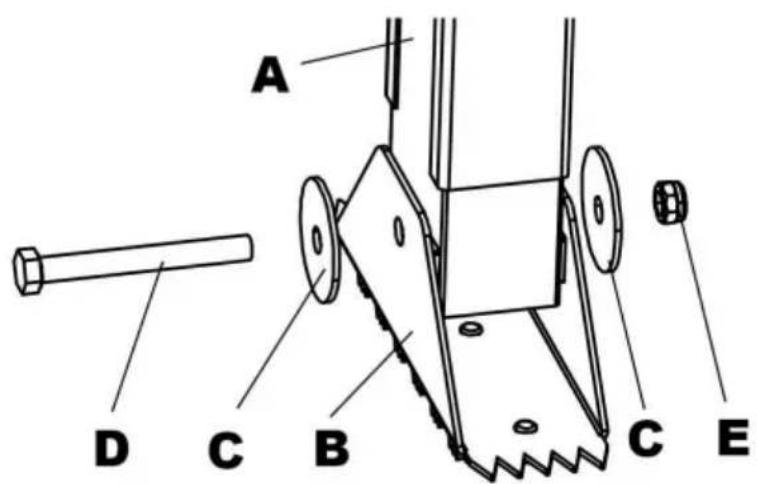

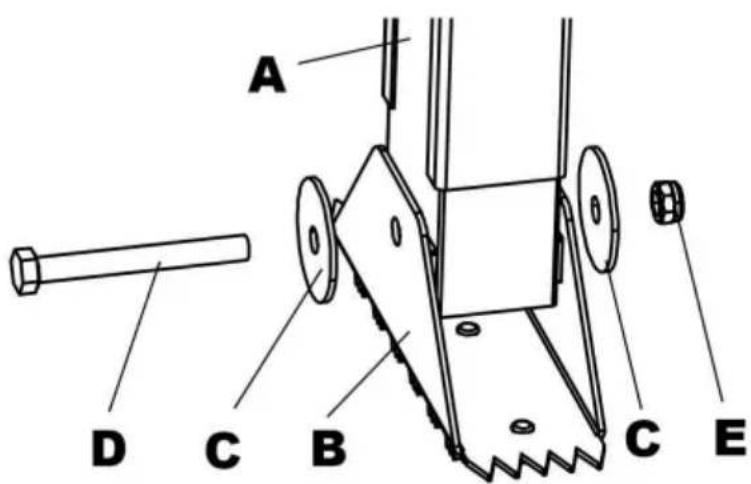

Technical line drawing of a mechanical device with a cylindrical rod and stepped base (no text or symbols)

Note: Do not lock too tight, the foot pad can be turned freely!

Step 2: Assembly fixture.

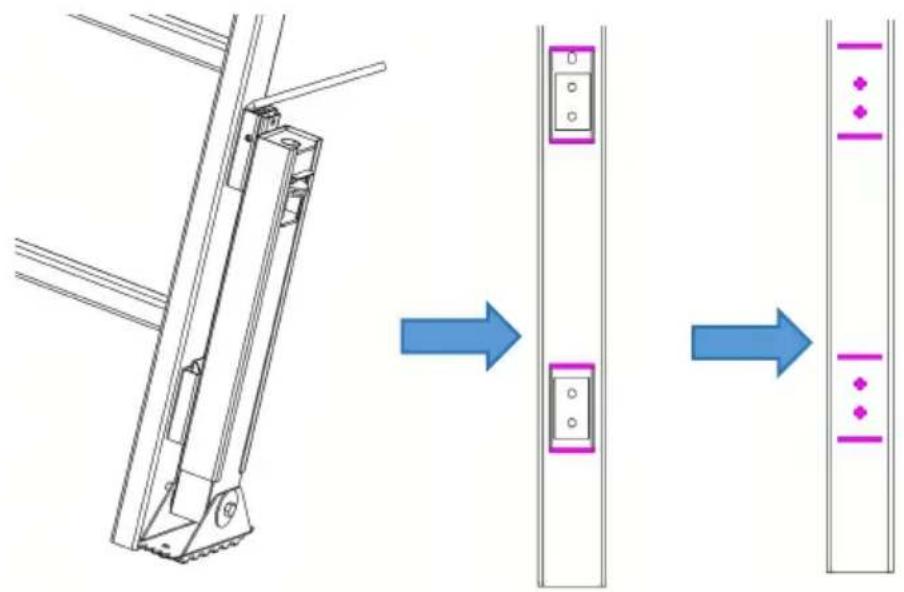

Step 3:Draw and dot.

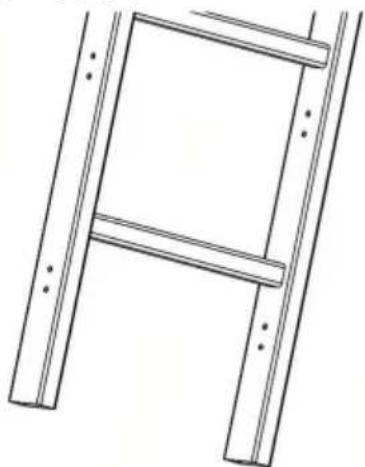

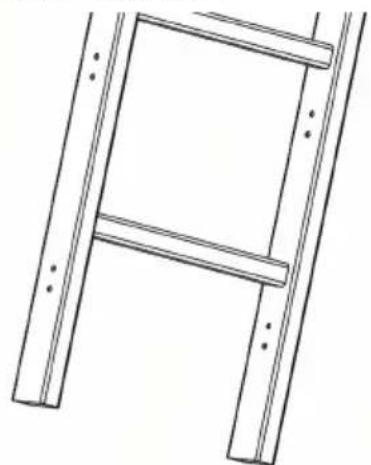

Step 4: Drill holes in the ladder.

Line drawing of a ladder structure with two vertical supports and a horizontal beam (no text or symbols)

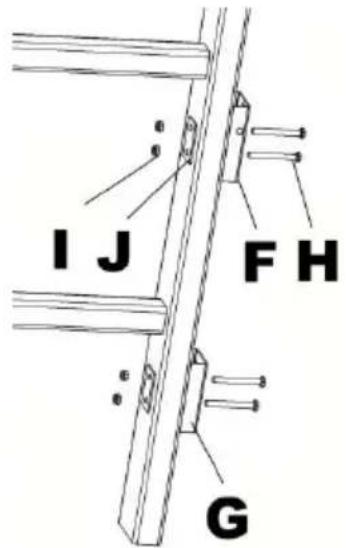

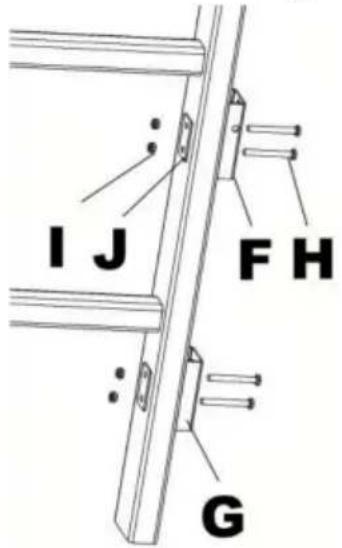

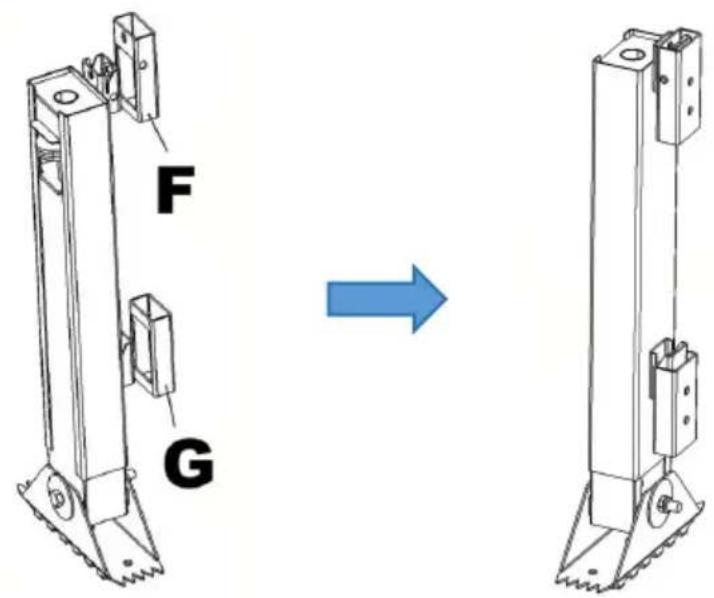

Step 5: Connect the fixed block to the ladder.

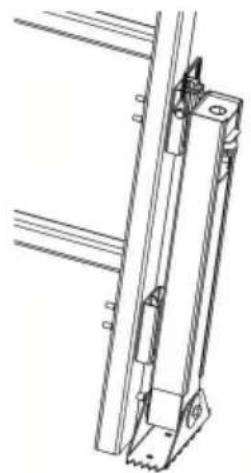

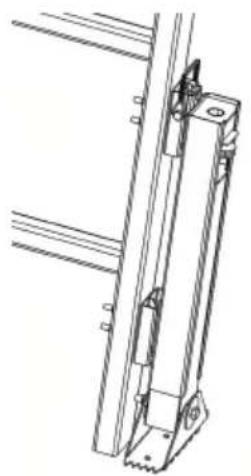

Step 6: Fixed assembly.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Adjusting Length

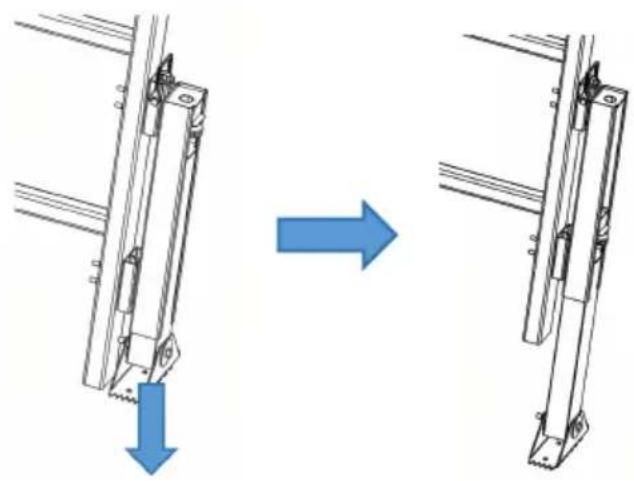

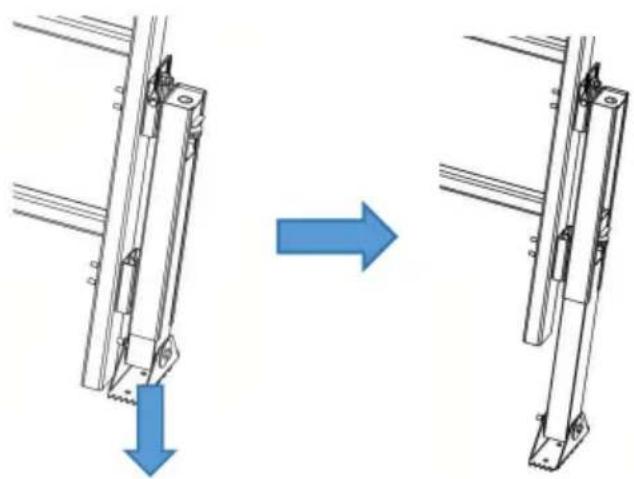

1. The legs can be pulled down.

Diagram showing two mechanical assembly states with blue arrows indicating direction of movement (no text or symbols)

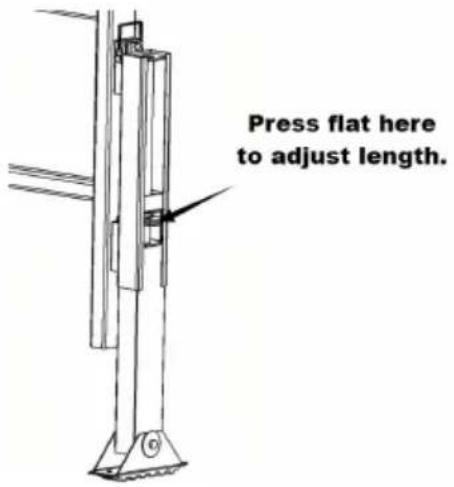

1. Adjust leg length by operating below.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
