USER MANUAL LY006 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Fold Down Shower Seat

MODEL: LY006

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

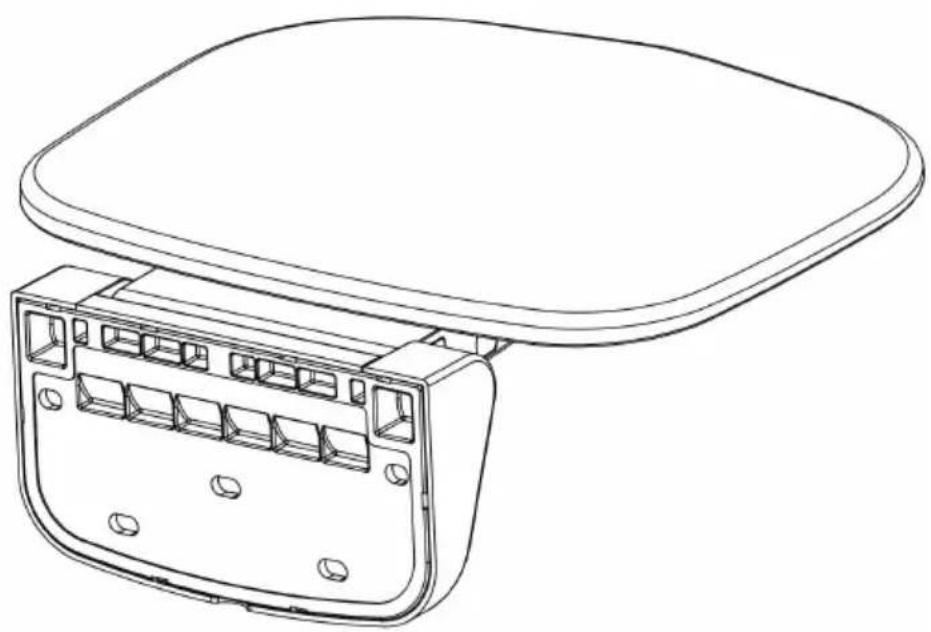

MODEL: LY006

Line drawing of a mechanical or electronic component with a flat top and internal compartments (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Cautions

1: Please confirm whether the wall is a load-bearing pond before drilling;
2: Before drilling, please confirm whether there is a water pipe at the hole |
3: Check whether the product accessories are complete before installation;
4: Make sure the drill bit is 10mm in size.
5: Make sure the hole depth is 6.5cm
6: The recommended height between the seat and ground is about 40-48cm.

Part List
NO.	Name	Pictures	QTY.
1	Main Body		1
2	Chrome Base Cover		1
3	Nylon Bolt Cap		5+2
4	Screw ST8*70mm		5+2
5	Flat gasket 8		5+2
6	Soft mud mat		1
7	Mounting Hole Guiding Sticker		1
8	Drill Bit Φ10*150		1
Tip: “+” is extra spare parts.

Model	LY006
Specification (inch)	13.6*12.8
Max. Load (lbs/kg)	450/204

INSTALLATION

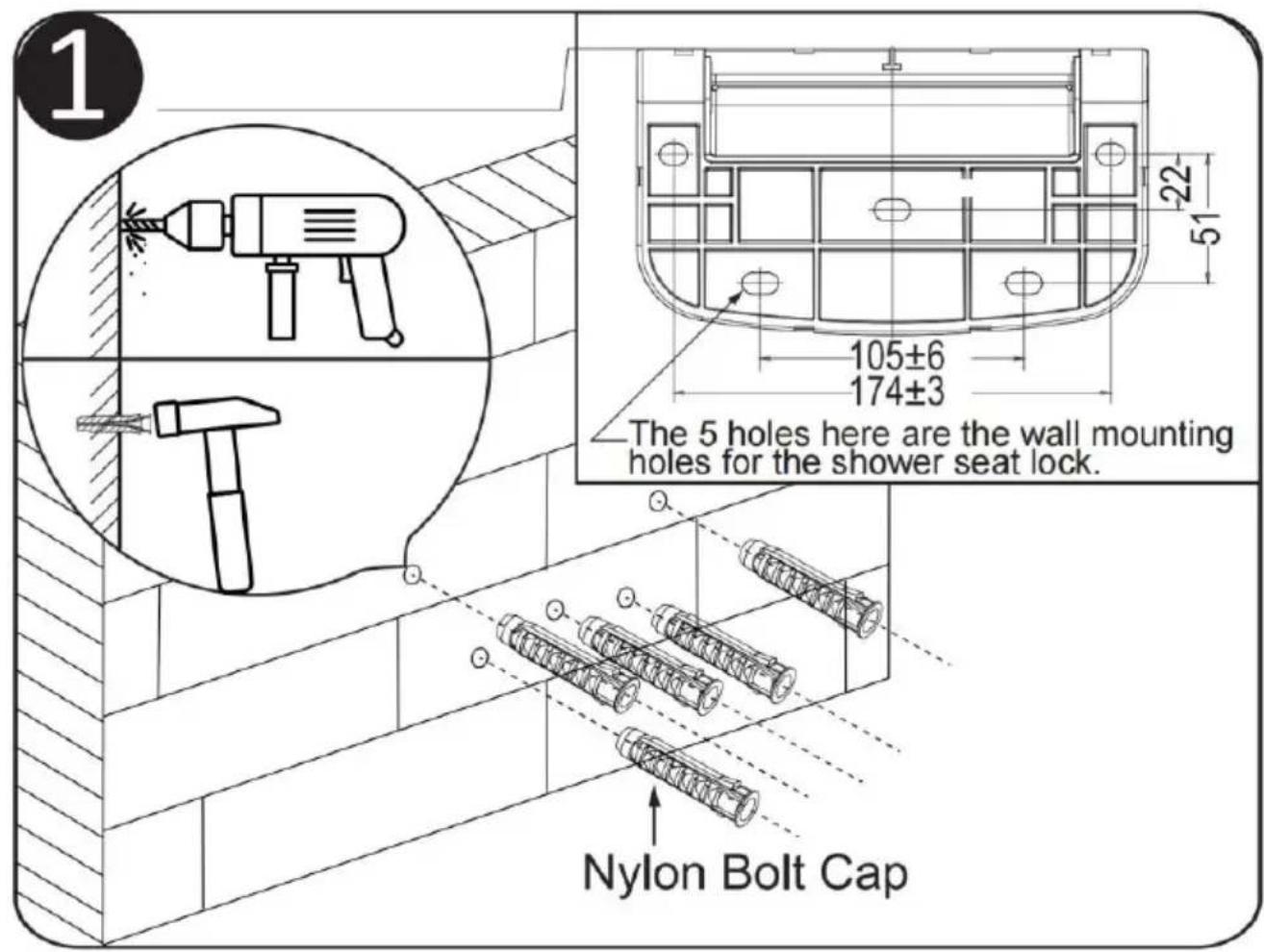

STEP1:

Firstly, drill 5 holes in the wall according to the screw holes of shower seats (the drilling bit is 10mm, the holes depth is 65 n based on the length of screws). Then, use the hammer to knock Nylon Bolt Caps into the wall holes.

1 The 5 holes here are the wall mounting holes for the shower seat lock. Nylon Bolt Cap

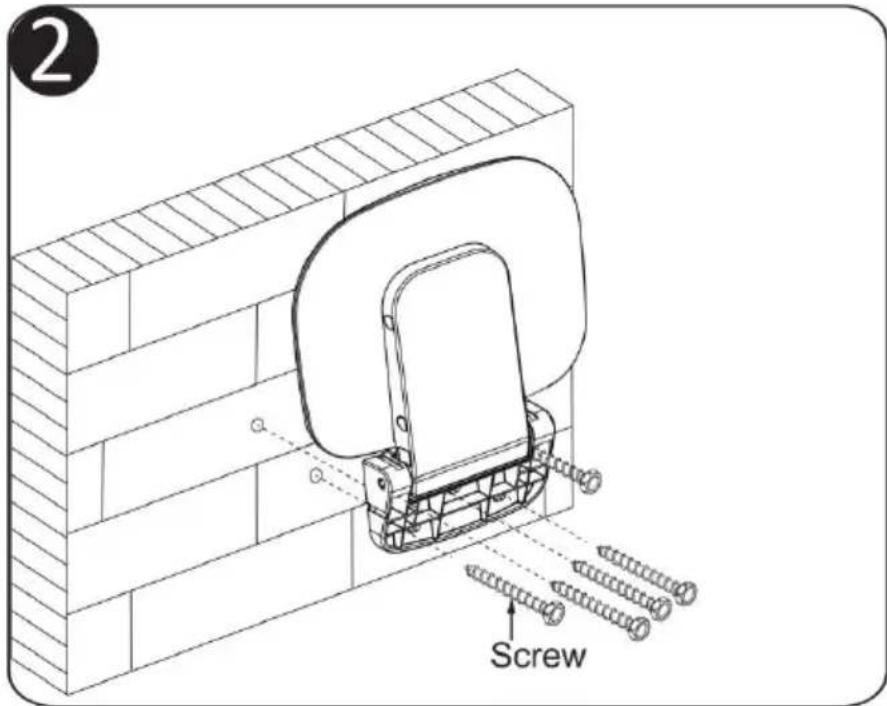

STEP2:

Place the shower seat on the wall, align the screw holes with holes, and then tighten the screws with a socket wrench.

② Screw

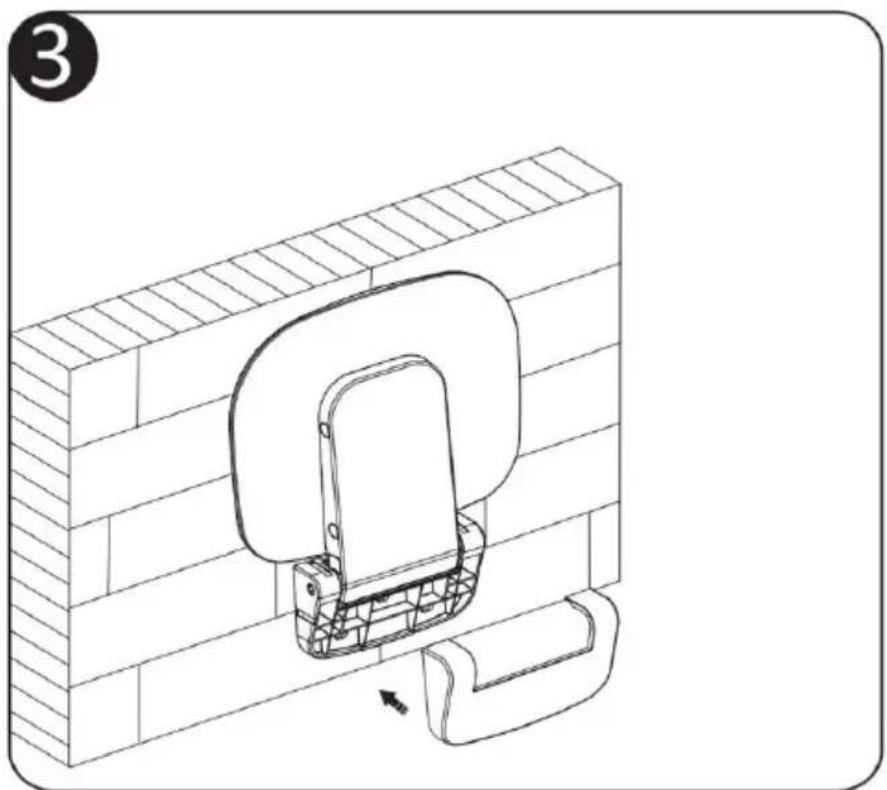

STEP3:

Cover the chrome base cover tightly.

Technical line drawing of a mechanical assembly mounted on a brick wall, showing a clamping mechanism (no text or symbols)

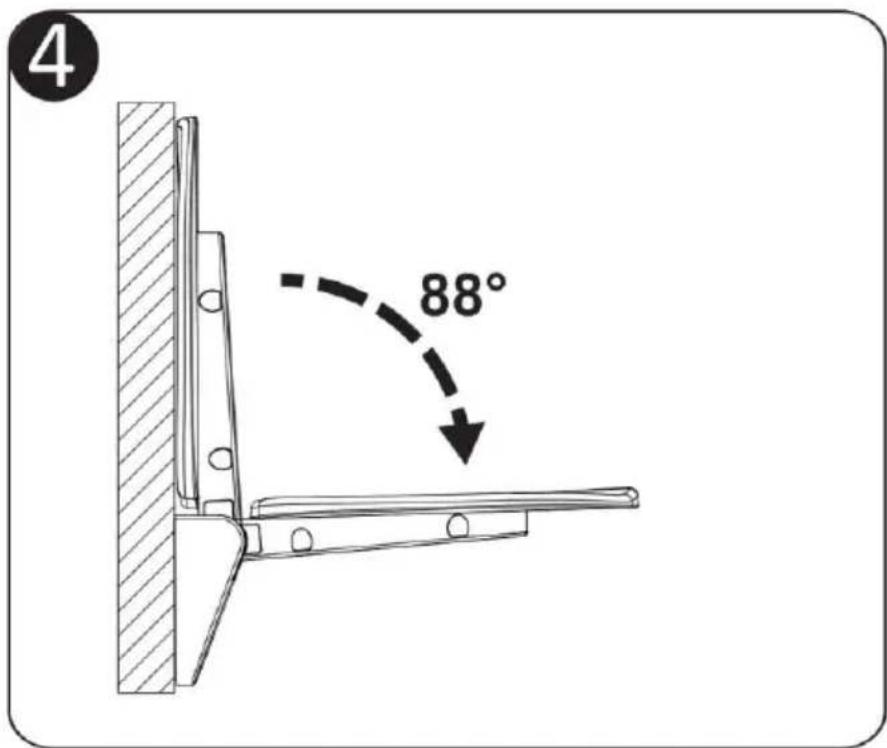

STEP4:

After installation, fold up the seat when not to use it and unfol when to use it.

4 88°
