USER MANUAL LY001 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Fold Down Shower Seat

MODEL: LY001

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

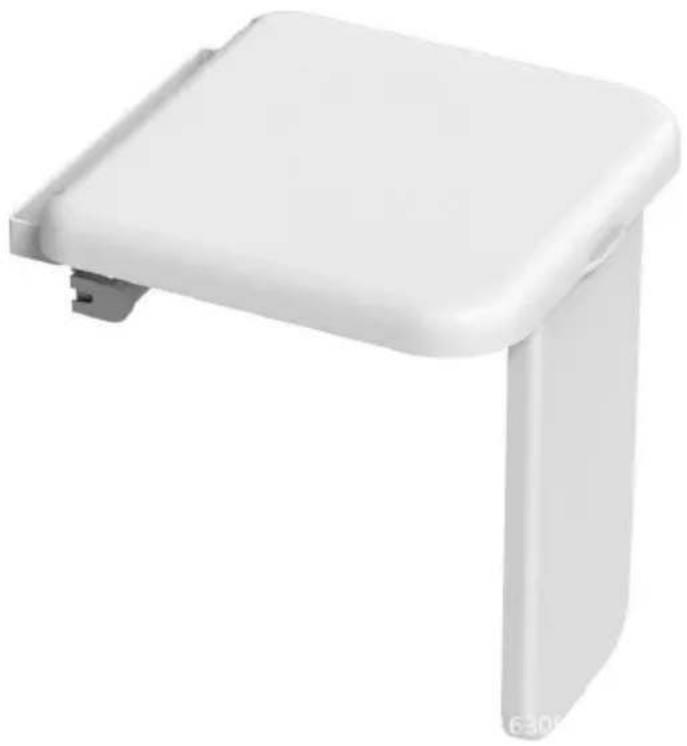

MODEL: LY001

White plastic chair with a flat top and side support (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Cautions

1: Please confirm whether the wall is a load-bearing pond before drilling;
2: Before drilling, please confirm whether there is a water pipe at the hole |
3: Check whether the product accessories are complete before installation;
4: Make sure the drill bit is 8.5mm in size.
5: Make sure the hole depth is 6.5cm
6: The recommended height between the seat and ground is about 40-48cm.

Part List
NO.	Name	Pictures	QTY.
1	Main Body		1
2	Nylon Bolt Cap		4+2
3	Screw ST8*70mm		4+2
4	Soft mud mat		1
5	Mounting Hole Guiding Stick		1
6	Drill Bit 8.5*150		1
Tip: “+” is extra spare parts.

Model	LY001
Specification (inch)	15.7*15.3
Max. Load (lbs/kg)	440/200

INSTALLATION

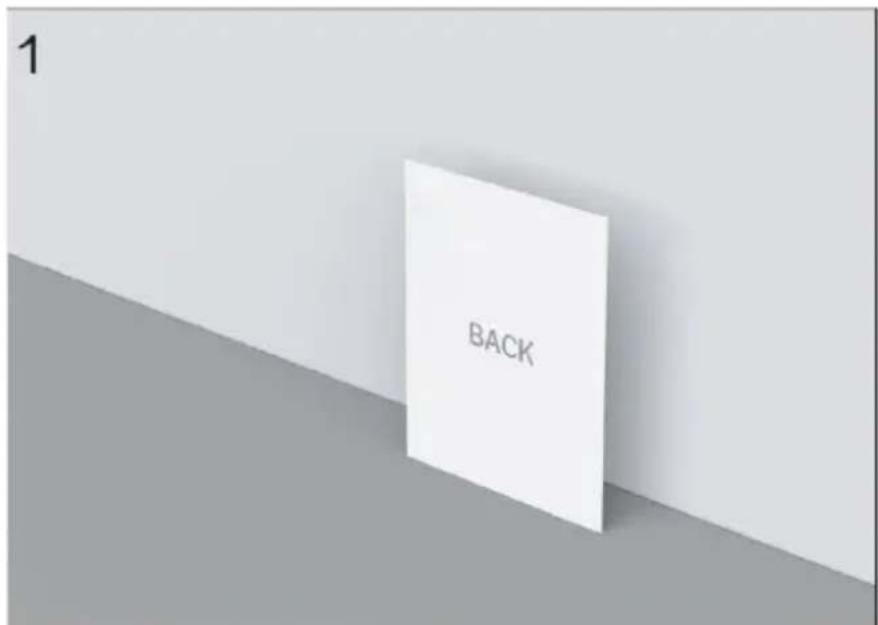

STEP1:

Firstly, attach the mounting plate to the wall where you are about install.

1 BACK

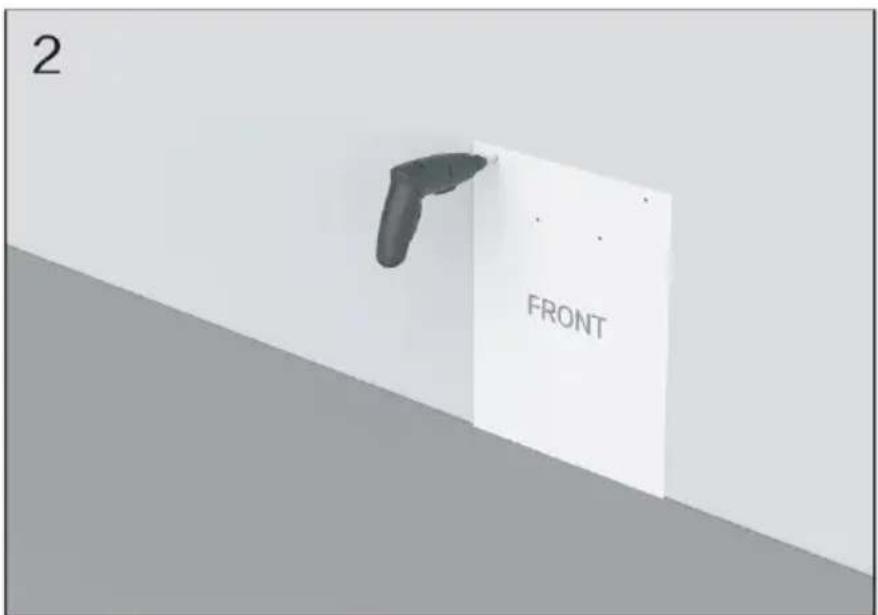

STEP2:

Punch holes in alignment with the anchor points on the template (Drill bit is 8.5mm, punching depth is 65mm)

2 FRONT

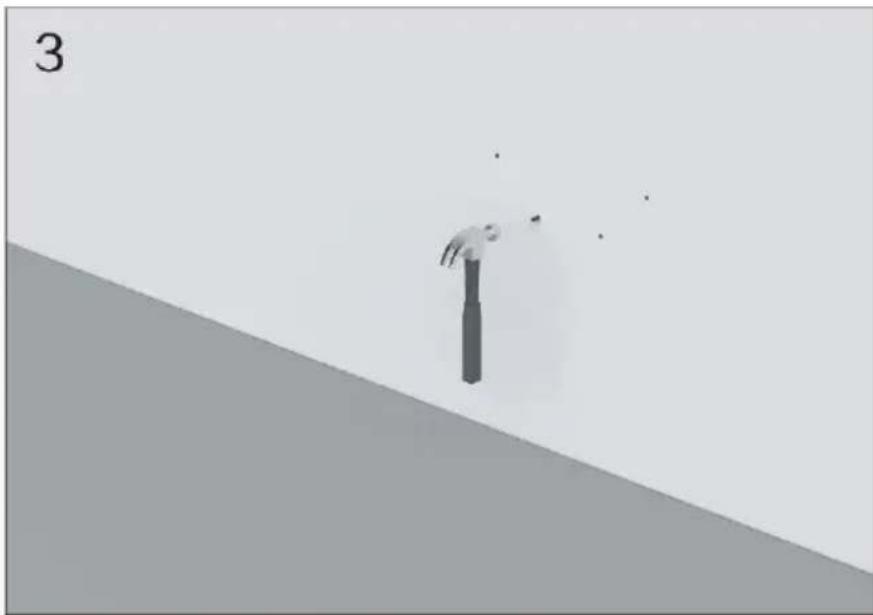

STEP3:

Remove the template, insert the expansion bolt and tap it with hammer until it is flush with the wall.

Simple 3D-rendered figure standing on a slope with scattered dots, no text or symbols present

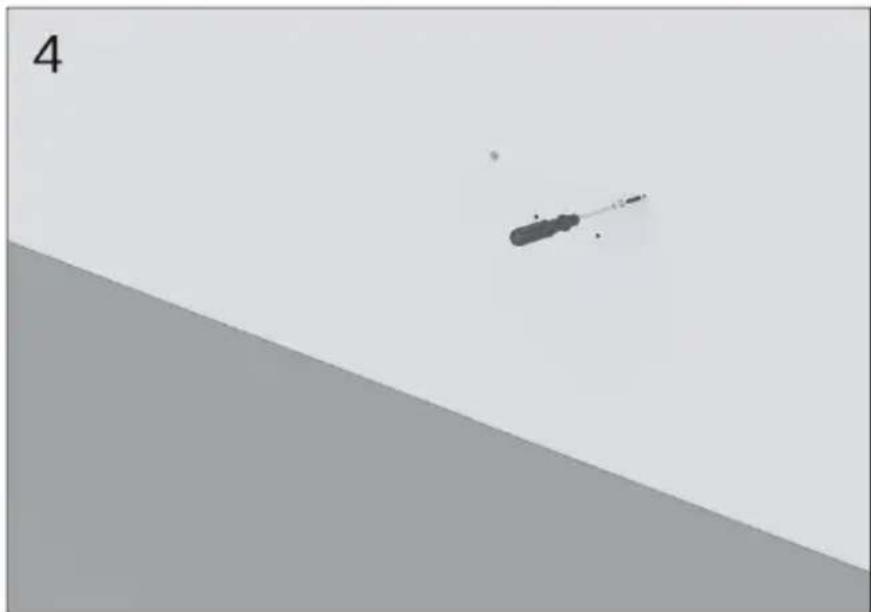

STEP4:

Screw the upper two holes into the screw about 10mm higher the wall.

Simple 3D-rendered object on a plain background with a diagonal line and number '4' in the top-left corner (no text or symbols on the object itself)

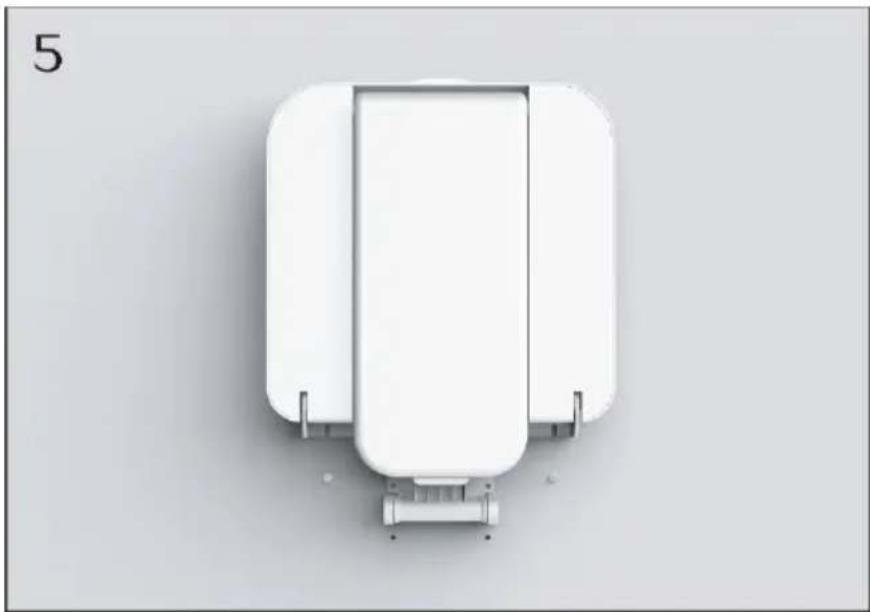

STEP5:

Align the slot on the stool mounting bracket with the screw pos and lock it.

Top-down view of a white rectangular device with a vertical panel and mounting base (no text or symbols visible)

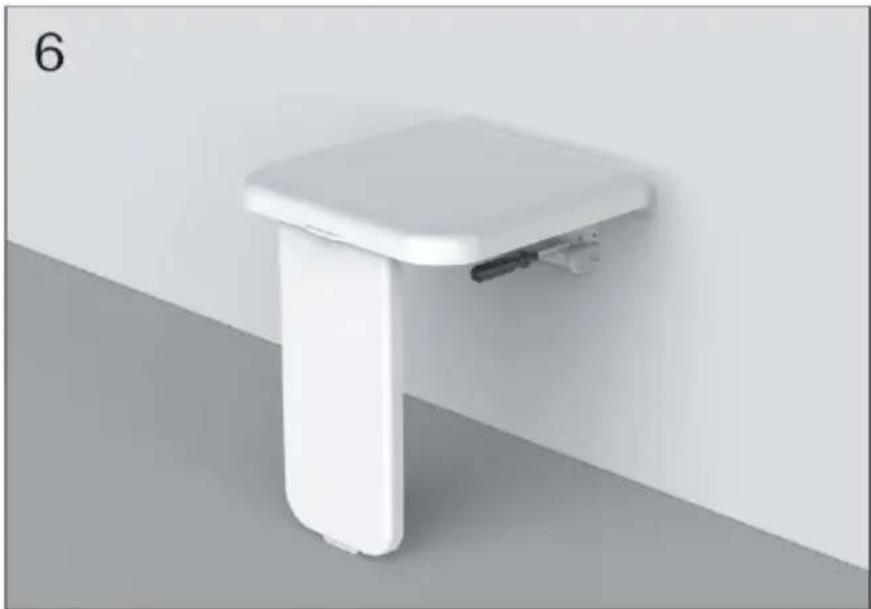

STEP6:

Turn the stool to a proper position, screw the two holes in the part into screws and lock them.

White wall-mounted toilet or sink with a small clip attached, placed on a plain surface (no text or symbols visible)

Made In China

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
