CHARCOAL GRILL

MODEL: KY22022C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: KY22022C

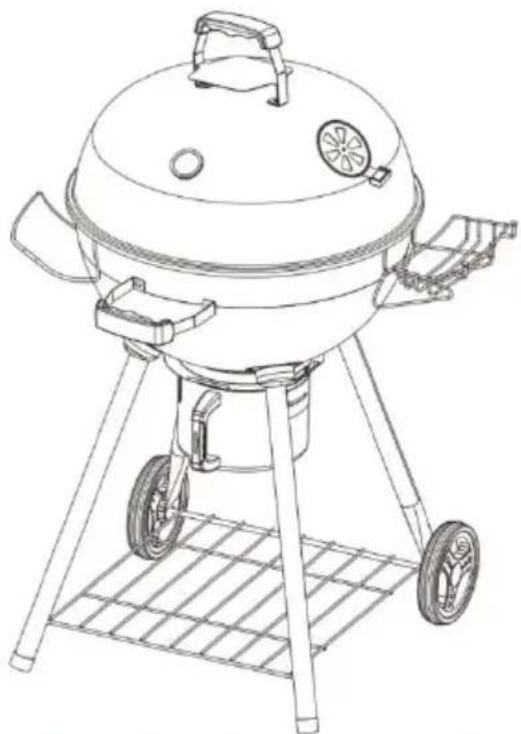

Line drawing of a portable grill with a dome lid and wheels on a stand (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Carbon Monoxide Poisoning Hazard Do not use in Motor Homes Do Not Use Indoors Do Not Use in Tents Use in open Spaces

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in manual cannot cover all possible conditions and situations that may of Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do NOT let children and minors get close to or touch the machir
2. Do NOT touch the hot surface directly with your hands. Always operate with handle or knob.
3. Do NOT immerse the appliance in water or any other liquid.

4. Cool down the HOT parts before operation.

5. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.

6. If the machine is not to be used for a long period of time, unpla and cover it and store it in a dry and safe place.
7. KEEP IT OUT OF CHILDREN'S REACH.
8. Never leave it unattended while in use.
9. Avoid using it in the presence of flammable liquids, gases, dust o explosive situations.
10. Extreme caution must be taken when moving an appliance contain hot oil or other hot liquids.
11. Children shall not play with the machine alone. Cleaning and use maintenance shall not be made by children without supervision.
12. The barbeque must never be left unattended during operation or cleaning.
13. Make sure that the barbeque is always placed on a firm, level a retardant surface, and also placed far away from combustibles.
14. The barbeque should be located in an open area with good vent away from trees and fences.
15. While every effort has been made in the manufacture of your bar to remove any sharp edge, you should handle all components with ca order to avoid accidental injury.
16. If the fire flares up due to dripping fat then douse the flames like a fine water spray.
17. Keep fire extinguisher within safe and accessible distance and ma sure those operating the barbeque are trained to use it.
18. Keep away from flammable material and fluids such as petroleum, alcohol, diesel fuel, kerosene and charcoal lighter fluid or vehicles while use. Do not use these materials to light or relight also.

19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

20. DO NOT use the barbeque in high wind.

21. Do NOT store the barbeque until the fire is completely out and are cold; also do not store the barbeque with ashes or combustible materials inside.

22. Do NOT overload or use this barbeque to burn leaves, household waste, or paper.

23. DO NOT wear loose clothing, and ensure that long hair is tied I when around the barbeque when it is hot or in use.

24. DO NOT use this product as a furnace.

25. DO NOT cook before the charcoal has a coating of ash.

26. Ensure that the product is positioned on a permanent, flat, level, resistant, non-flammable surface always from flammable items, including wooden fences or overhanging trees.

27. Ensure the product has a minimum of 2 meters overhead clearar and has a minimum of 2 m clearance from other surrounding items.

28. NEVER leave a burning fire unattended.

WARNING! This product rotisserie grill will become very hot, d not move it during operation.

WARNING! Keep children and pets away.

WARNING! In case of the danger of carbon monoxide poisoning, do use the product rotisserie grill indoors.

WARNING! Do not use the barbecue in a confined and/or habitable s e.g. houses, tents, caravans, motor homes, boats.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children play with the packaging materials. If the swallow the packaging materials, they will suffocate!

WARNING! Do not use spirit or petrol for lighting or relighting! Use firelighters complying to EN 1860-3!

WARNING! Keep children and pets away. Children must not operate or play near this barbeque.

WARNING! Failure to follow instructions could result in death, serious bodily injury and/or property loss.

ATTENTION! Always wear gloves when adjusting the grill, the handles the grill can become very hot during the grilling process.

IMPORTANT! Do not pour water into the product while it is still hot.

ATTENTION AGAIN!

This article is intended for outdoor use. Do NOT use indoors!

PRODUCT COMPONENTS

1. Please dispose of all plastic bags carefully and keep them away 1 children.
2. Check all the parts provided against the list in this instruction mar
3. make sure you have all of the parts listed. If not, contact your job who will be able to help you.
4. Take a few moments to familiarize yourself with the contents and starting, check all holes are clear of any paint residue.
5. When you are ready to start, make sure that you have plenty of s and a clean dry area for assembly.
6. Please wear safety protective equipment: gloves and goggles.

ATTENTION!

Whilst every care is taken in the manufacture of this product, care is taken during assembly in case sharp edges are present.

Parts List

1 x1pcs[7X79]	2 x2pcs	3 x1pcs	4 x1pcs	5 x1pcs	6 x1pcs[A800]
7 x1pcs	8 x1pcs	9 x1pcs	10 x2pcs	11 x2pcs	12 x1pcs
13 x2pcs	14 x2pcs	15 x4pcs[0910]	16 x1pcs[TD3W]	17 x1pcs	18 x1pcs
19 x1pcs	20 x4pcs	21 x1pcs

A M6 x 16

B φ6 × 18

C M6

D M5 x 10

E φ5 × 12

F M5

×8

x 2

×8

G M6

H M8

I M6 x 12

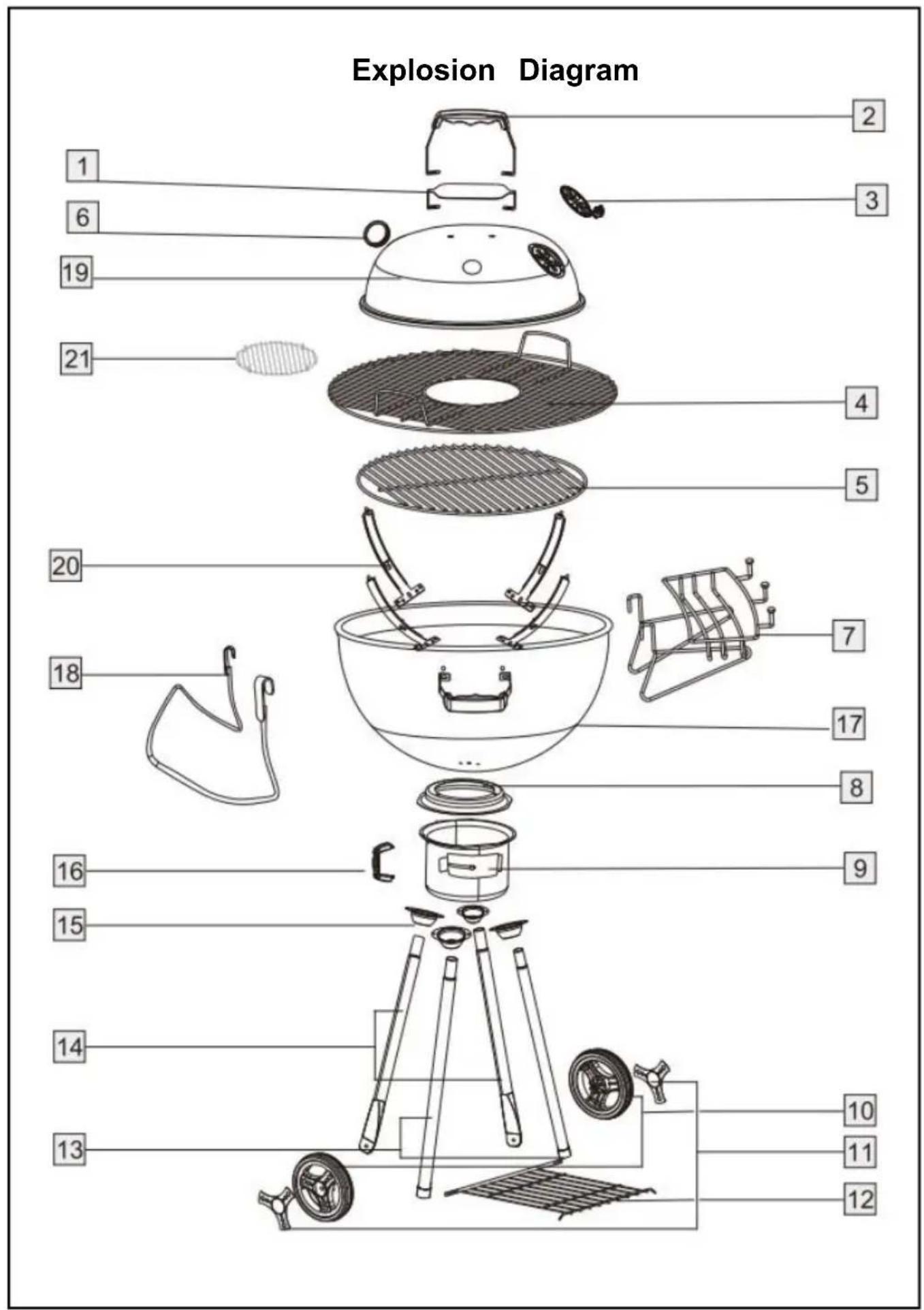

Explosion Diagram 1 2 3 6 19 21 4 5 20 7 18 17 8 16 9 15 14 13 10 11 12

STEP1 D 8 17 F

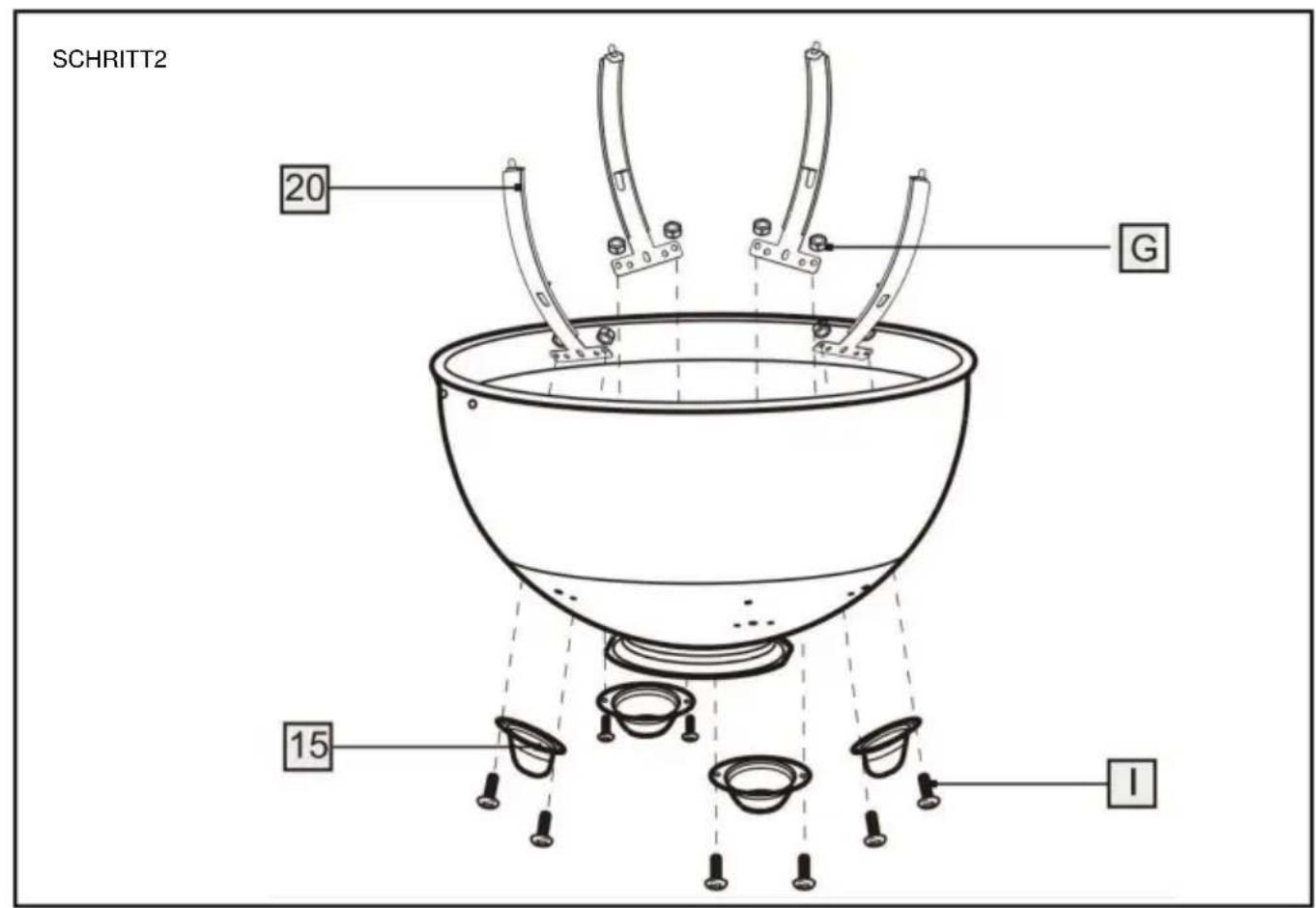

STEP2 20 G 15 I

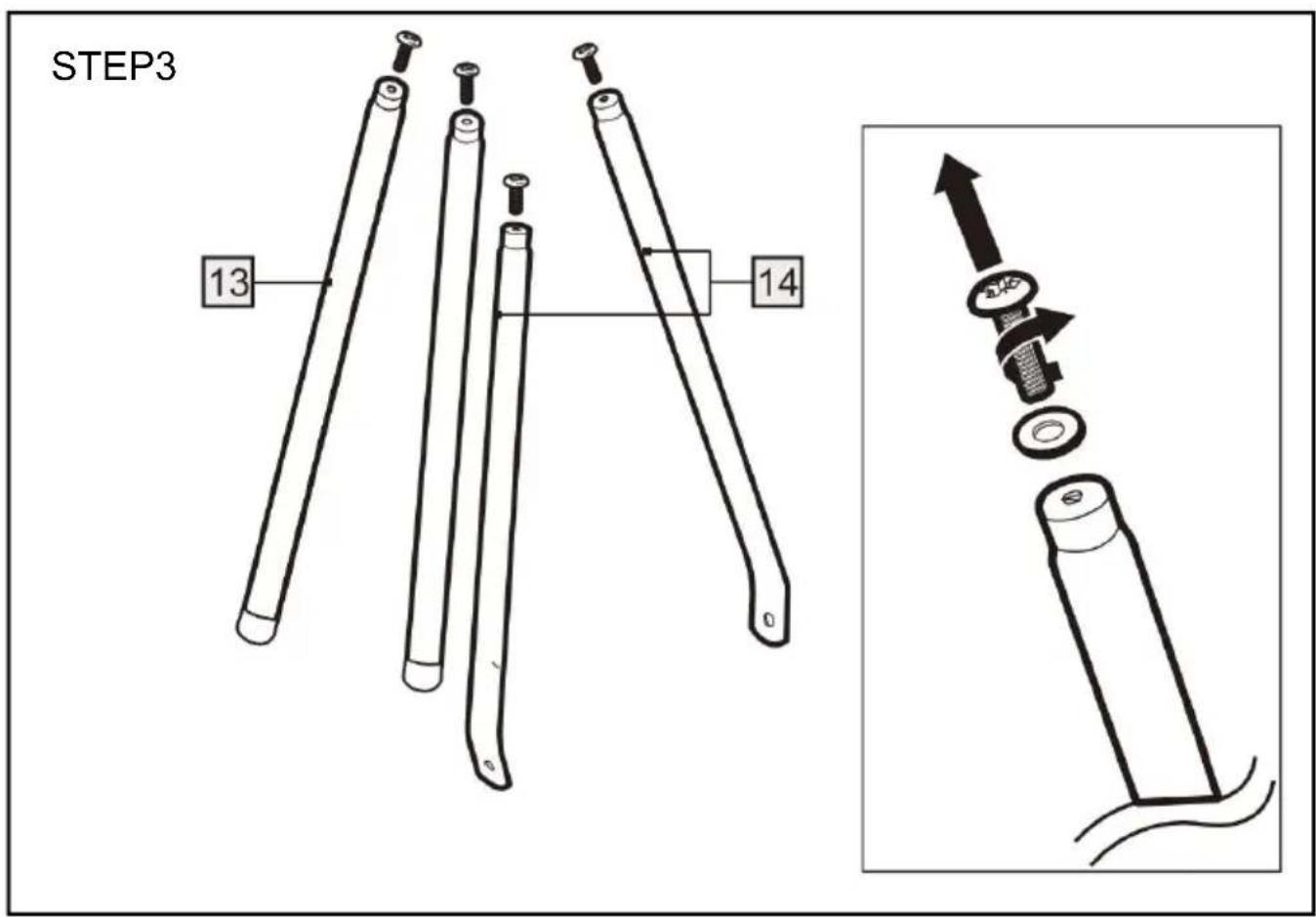

STEP3 13 14

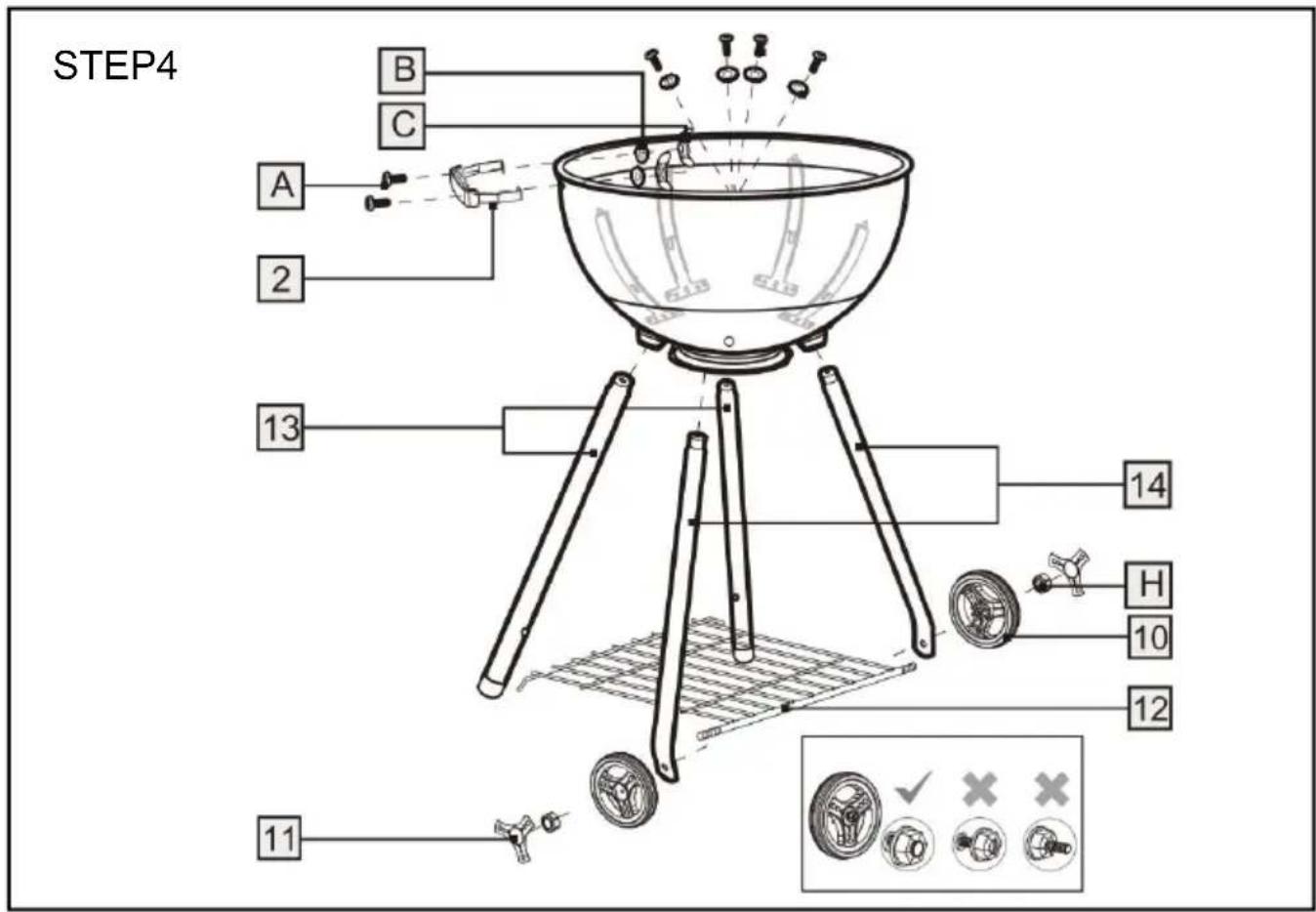

STEP4 A B C 2 13 14 H 10 12 11

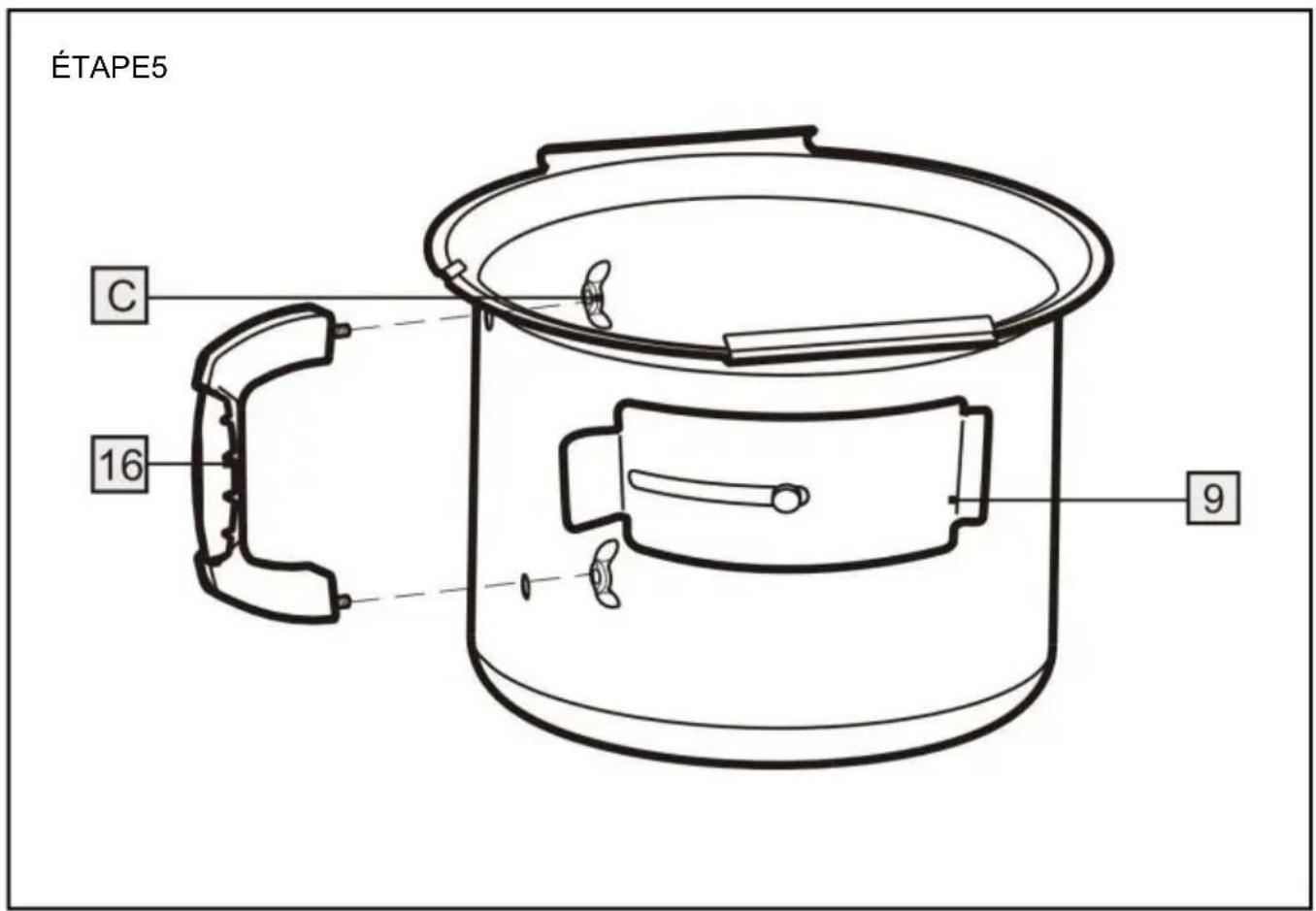

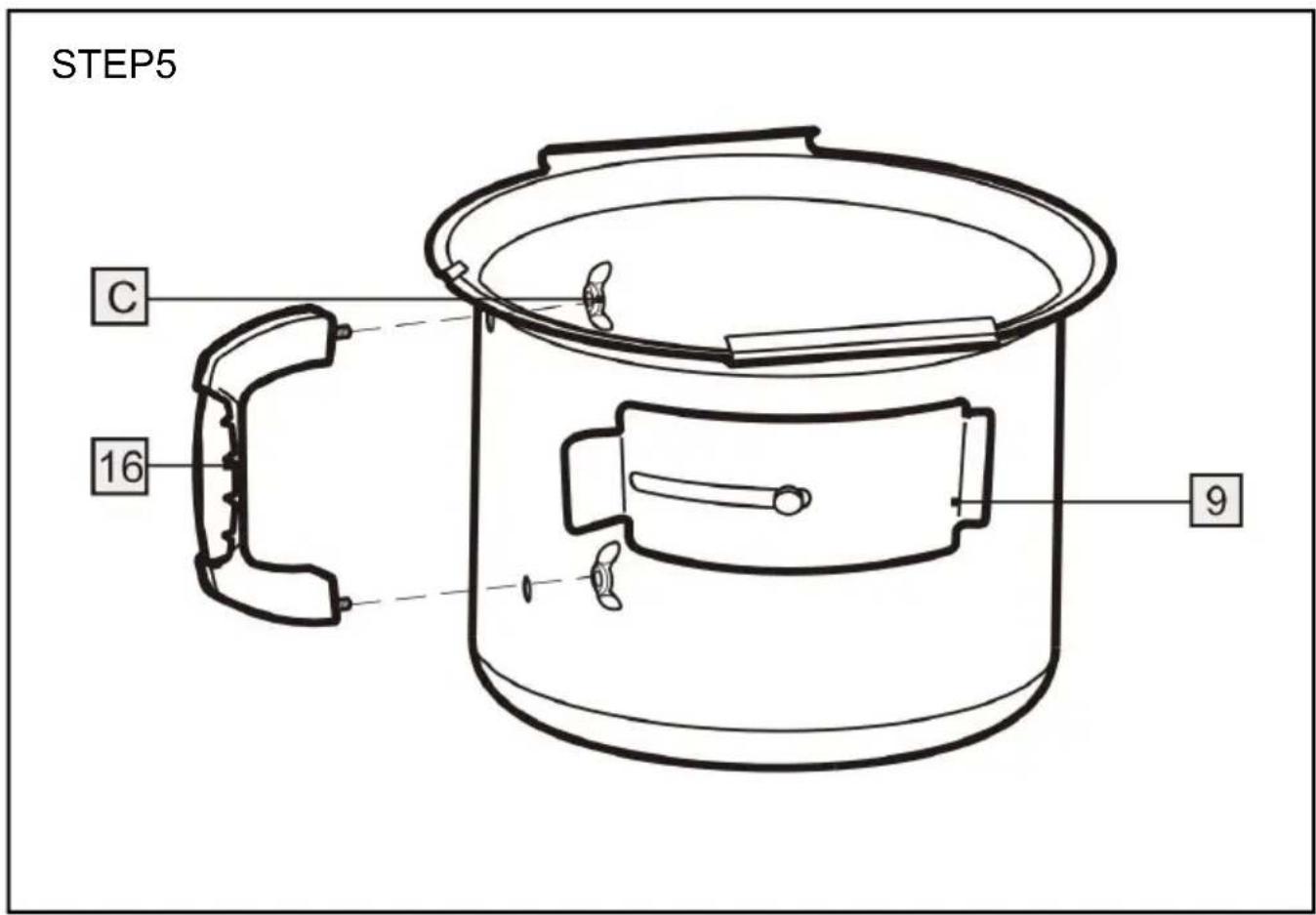

STEP5 C 16 9

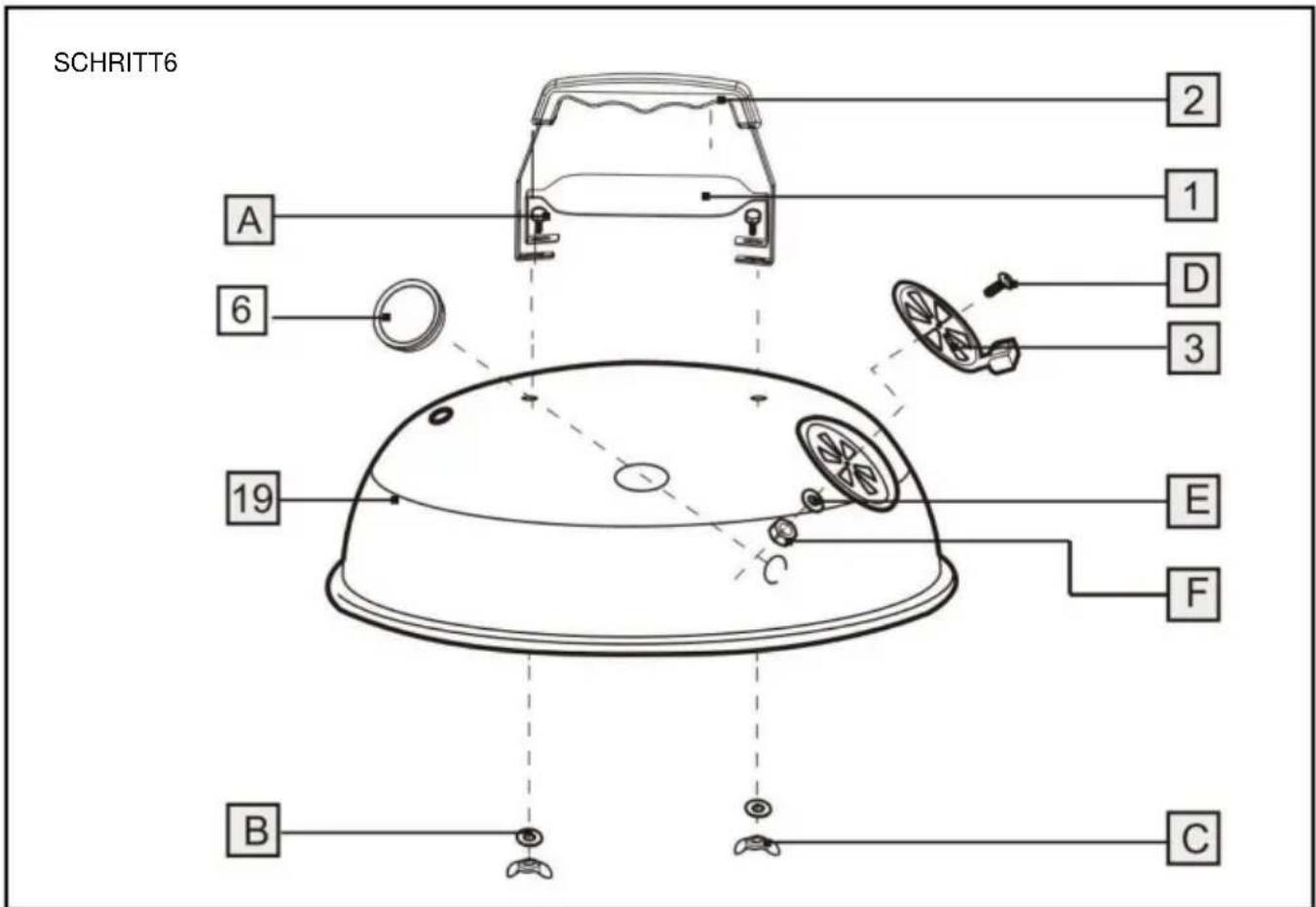

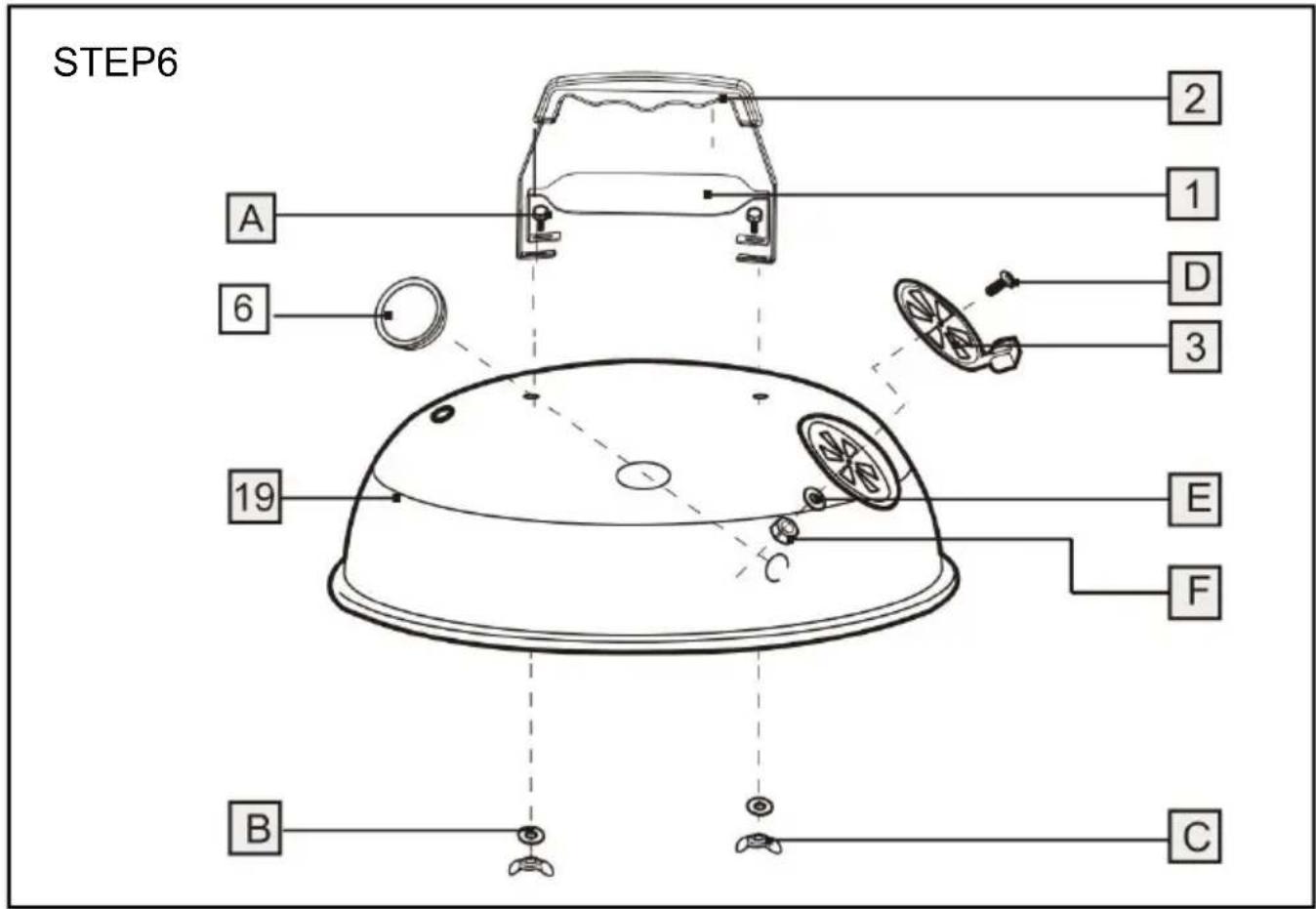

STEP6 A 2 1 6 D 3 19 E F B C

STEP7

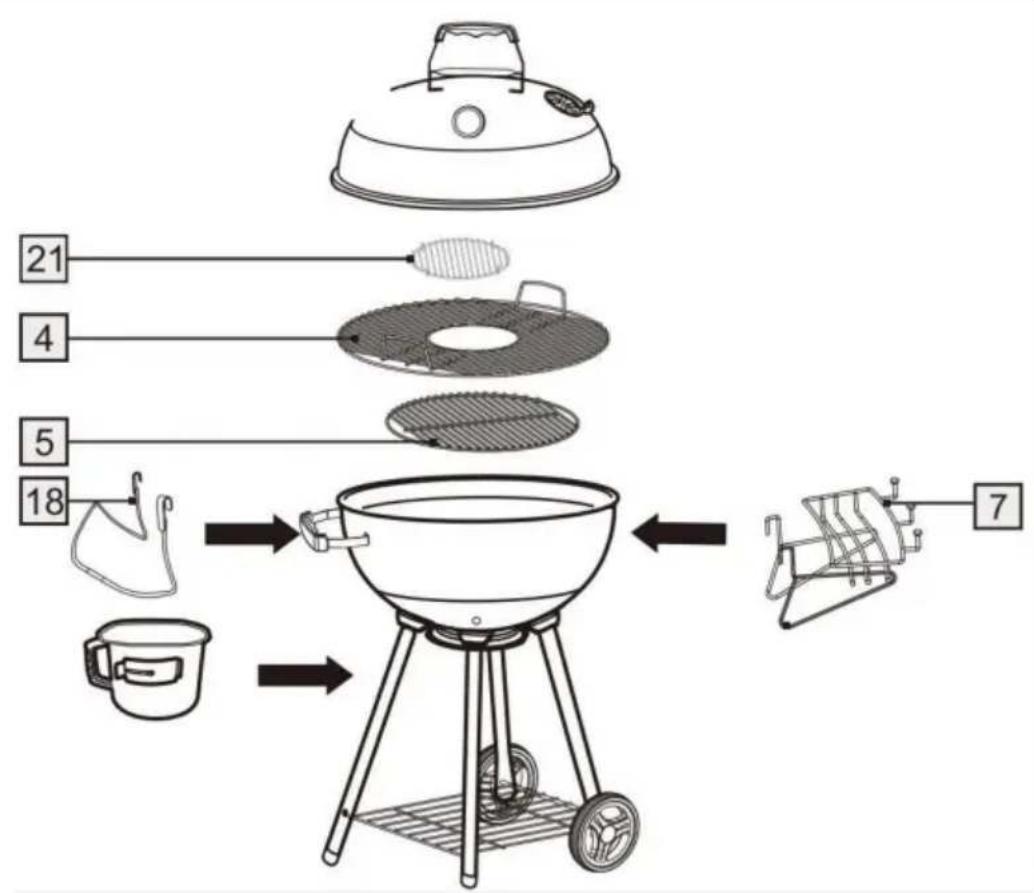

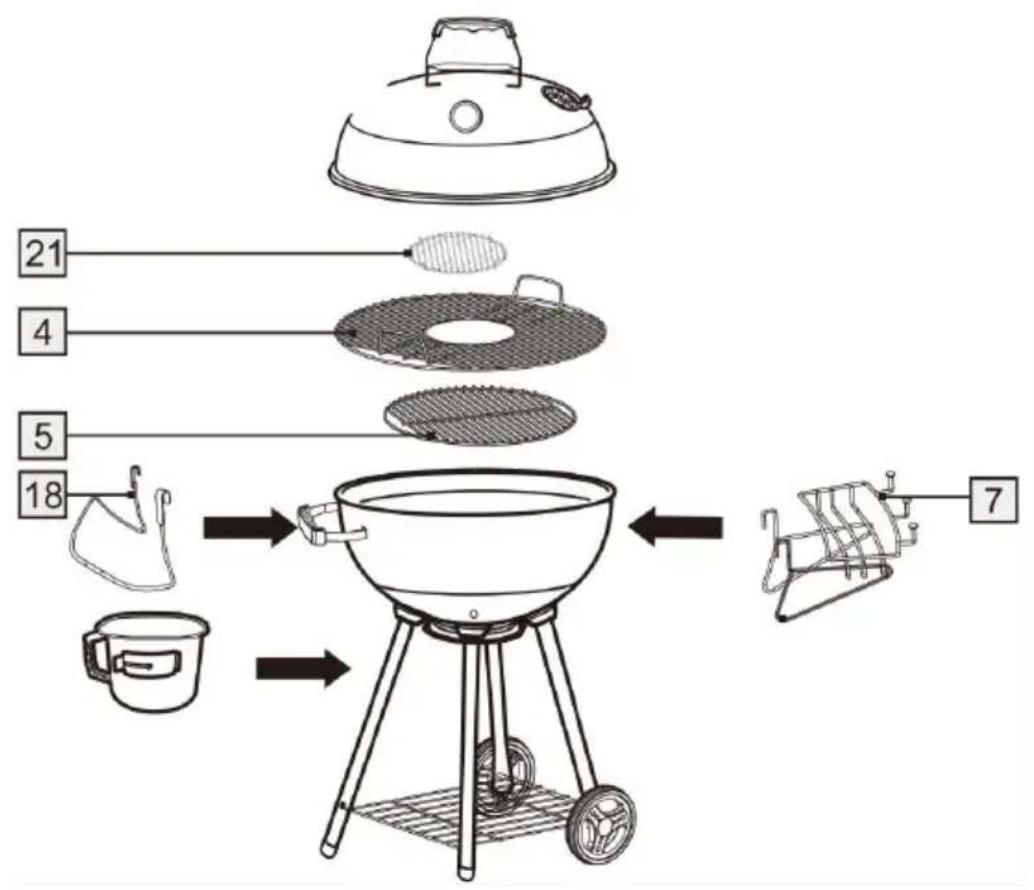

21 4 5 18 7

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates clean and free of dust. If necessary, wipe them over with a damp c Spread over with an absorbent kitchen towel and wipe off any excess. When your product is heated for the first time, it may emit slight sm odor, which is normal for many heating appliances, and will not affect safety of your appliance.

1. Place the product on a clean, dry, level surface.
2. The barbeque should be heated up for at least 30 minutes prior first cooking on the barbeque.

3. Lift up the warming rack and remove the cooking grid and place quantity of charcoal onto the charcoal grid. Light in accordance with instructions on the charcoal pack.

4. When the charcoal becomes red hot, add more charcoal for cooking. The maximum fill level for charcoal is approx 1.32Lb (0.6Kg).

5. Wait approximately 15 minutes before placing the cooking grid on start cooking. Do not cook before the charcoal has a coating of ash.
6. To extinguish, wait for the charcoal to stop burning and for it to completely cool.

WARNING! Do not use spirit or petrol for lighting or relighting. Use firelighters complying to EN 1860-3.

WARNING! When using your barbecue for the first time, allow the ch to remain red hot for an additional 15 minutes before cooking.

WARNING! Accessible parts will be hot - avoid touching the BBQ wh however if it is necessary, make sure to wear oven gloves when tou the barbecue.

WARNING! Do not extinguish with water as this may damage the barbecue.

COOKING TIPS & HINTS

Please read and follow this advice when cooking on your produc

1. Always wash your hands before and after handling uncooked meat before eating.
2. Always keep raw meat away from cooked meat and other foods.
3. Before cooking, ensure grill surfaces and tools are clean and free food residues.
4. DO NOT use the same utensils to handle cooked and uncooked
5. Ensure all meat is cooked thoroughly before eating.

CAUTION:

1. ALWAYS wash your hands before or after handling uncooked mea before eating.

2. ALWAYS keep raw meat away from cooked meat and other foods Before lighting your BBQ, ensure grill surfaces and tools are clean ar of old food residues.

3. DO NOT use the same utensils to handle cooked and uncooked food. Ensure all meat is cooked thoroughly before eating.
4. CAUTION - eating raw or under cooked meat can cause food poi (e.g.bacteria strains such as E.coli).
5. To reduce the risk of under cooked meat, cut it open to ensure cooked all the way through internally before consuming.
6. CAUTION-if meat has been cooked sufficiently the meat juices should be clear in colour and there should be no traces of pink/red juices (colouring.
7. After cooking with your BBQ always clean the grill cooking surfac and utensils.

FOOD SAFETY

1. Thoroughly defrost frozen meat and poultry in the refrigerator before cooking. Keep raw meat and poultry separate from cooked foods.
2. Always wash hands after handling raw meat and poultry, before handling any ready to eat foods.
3. Wipe and disinfect surfaces that have been in contact with raw m poultry.
4. When barbecuing meat and poultry, make sure the barbecue is extremely hot. Place the larger, thicker portions furthest away from the most intense heat to ensure thorough cooking without burning and tur regularly.
5. Use separate utensils for handling raw meat/poultry and cooked food the barbecue, or wash them thoroughly between uses.
6. To check whether meat, particularly poultry, is cooked, pierce the 1 with a skewer or fork; the juices should run clear. Ensure the product piping hot throughout.

CLEAING MAINTENANCE

1. Allow the barbecue and ash to become completely cold before em
2. Lift the warming rack and remove the cooking grid to ensure easy removal of the charcoal.
3. Remove the charcoal grid from the bowl and safely dispose of the ash in a fire proof container, or dampen with water to ensure the as entirely cold before disposing in a suitable container.
4. Detach the ash cup and dispose of the ash.
5. Empty the ash from the barbecue and clean after each use.
6. The warming rack, cooking grid and charcoal grid, can be cleaned a dishcloth, warm water and a commercial detergent. Avoid using abrics cleaners, and wire wool and brushes as these may scratch the surface

STORAGE

1. Always make sure the machine is cool and dry before string.
2. Store the appliance in a dry and clean area.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Warning sign with warning symbols and icons for heating, cooking, heating, camping, and gathering scenarios

Carbon Monoxide Poisoning Hazard
Do not use in Motor Homes
Do Not Use Indoors
Do Not Use in Tents
Use in open Spaces

MESURES DE SÉCURITÉ IMPORTANTES

1 x1pcs[422]	2 x2pcs	3 x1pcs[608]	4 x1pcs	5 x1pcs	6 x1pcs[74w2]
7 x1pcs	8 x1pcs[772]	9 x1pcs	10 x2pcs	11 x2pcs[CYG]	12 x1pcs
13 x2pcs	14 x2pcs	15 x4pcs	16 x1pcs	17 x1pcs	18 x1pcs
19 x1pcs	20 x4pcs	21 x1pcs

A M6 x 16

×8

×2

×8

G M6

M8

M6 x 12

E φ5 × 12

F

M5

Diagramme d'explosion 1 2 3 6 19 21 4 5 20 7 18 17 8 16 9 15 14 13 10 11 12

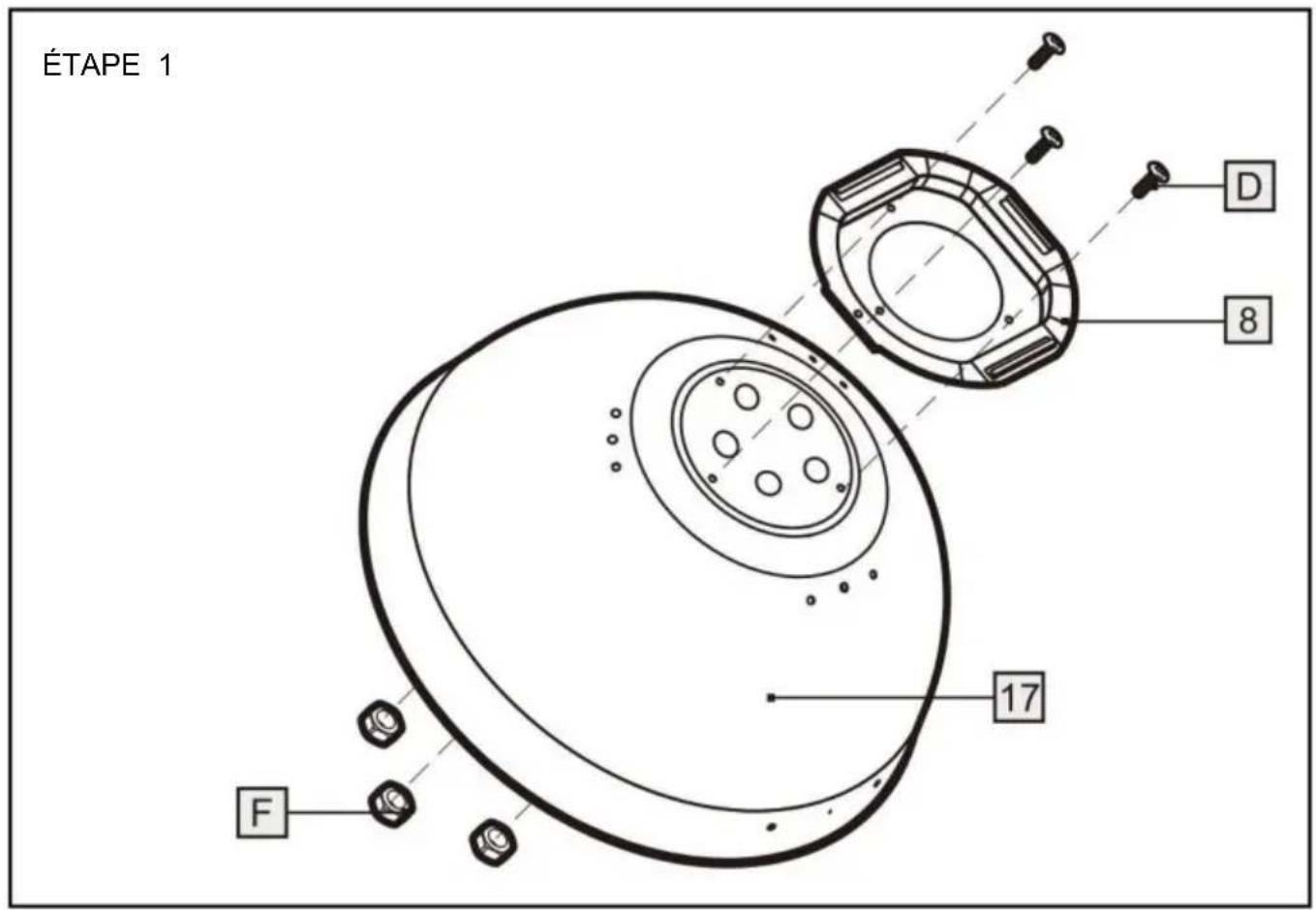

ÉTAPE 1 D 8 17 F

ÉTAPE 2 20 G 15 I

ÉTAPE 3 13 14

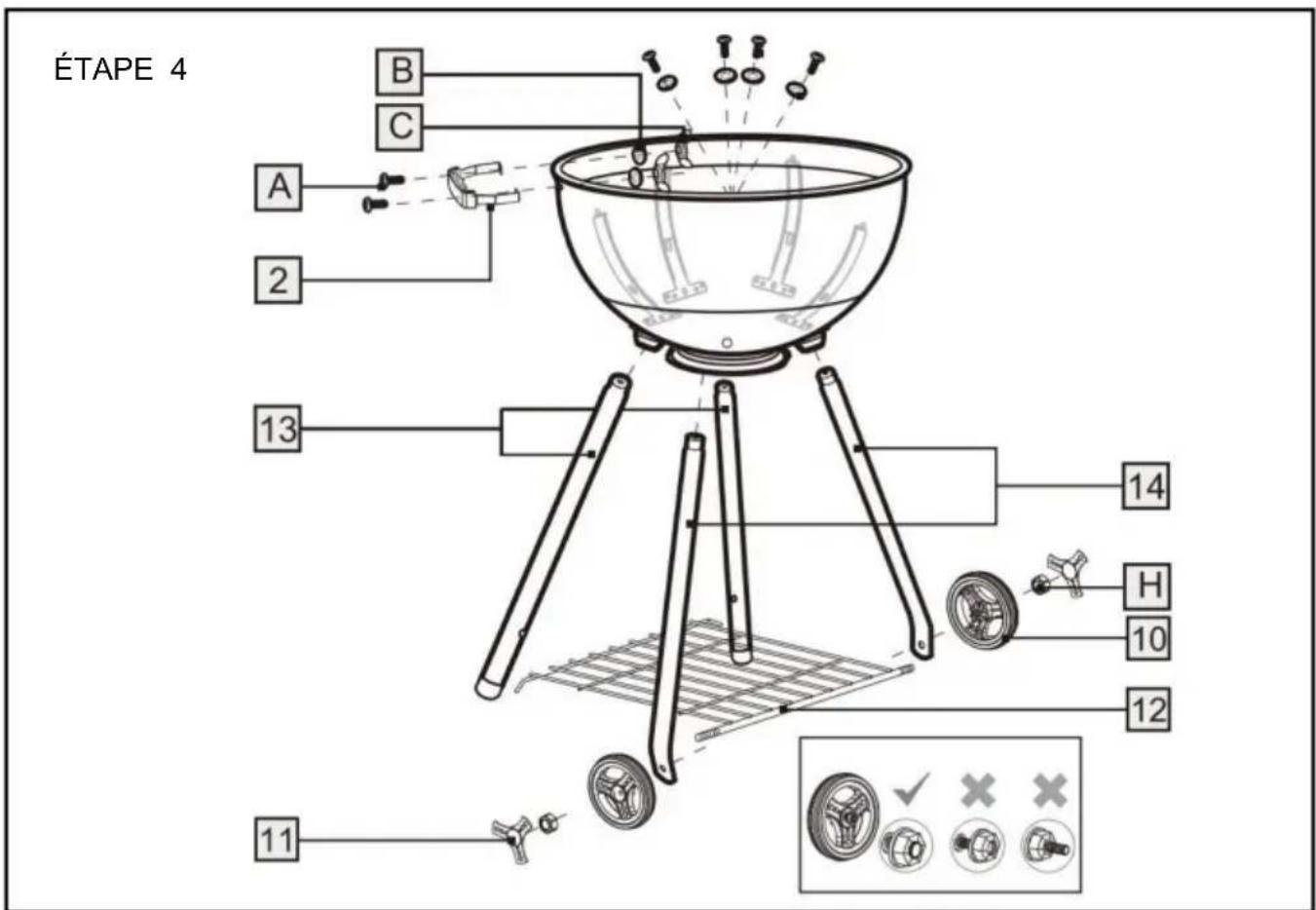

ÉTAPE 4 A 2 B C 13 14 H 10 12 11

ÉTAPE5 C 16 9

ÉTAPE 6 A 2 1 6 D 3 19 E F C B C

ÉTAPE 7

21 4 5 18 7

MODE D'EMPLOI

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRÉSENTAN DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

Carbon Monoxide Poisoning Hazard Do not use in Motor Homes Do Not Use Indoors Do Not Use in Tents Use in open Spaces

SCHRITT 1 D 8 17 F

SCHRITT2 20 G 15 I

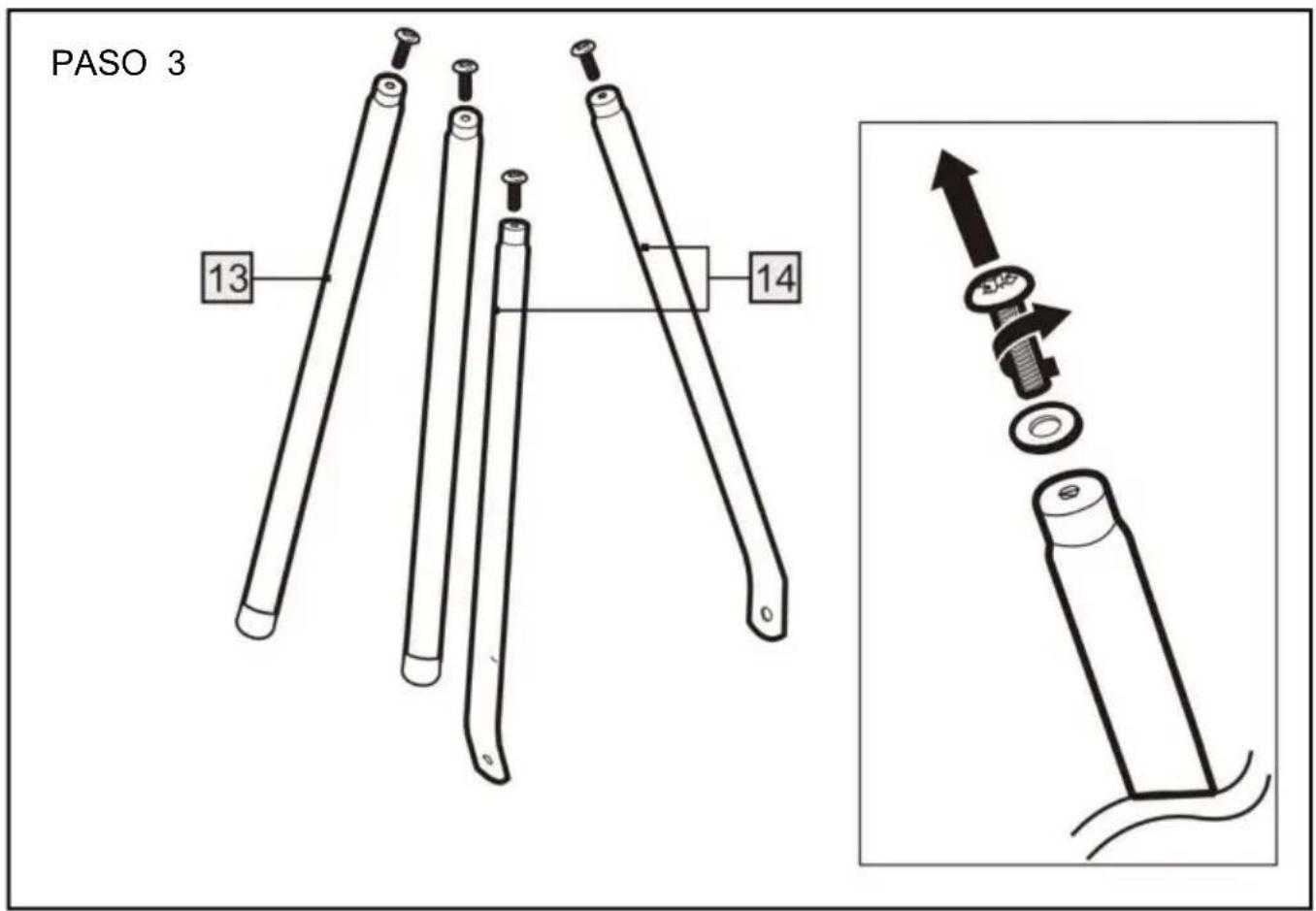

SCHRITT3 13 14

SCHRITT4 A B C 2 13 14 H 10 12 11

SCHRITT5 C 16 9

SCHRITT6 A 2 1 6 D 3 19 E F B C

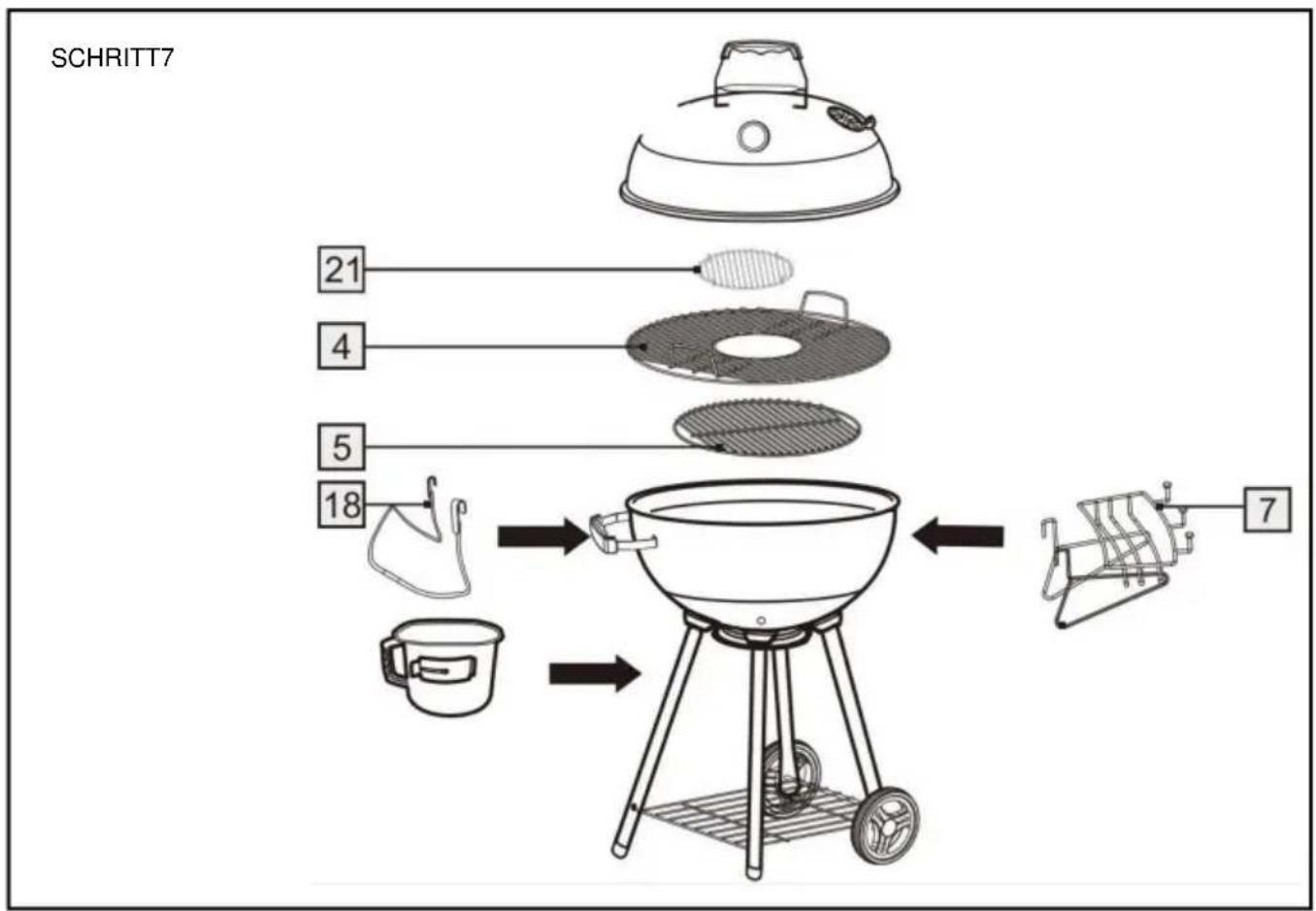

SCHRITT7 21 4 5 18 7

BEDIENUNGSANLEITUNG

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

Warning sign with warning symbols and icons for heating, cooking, heating, camping, and gathering scenarios

Carbon Monoxide Poisoning Hazard
Do not use in Motor Homes
Do Not Use Indoors
Do Not Use in Tents
Use in open Spaces

IMPORTANTI MISURE DI SICUREZZA

PASSO 1 D 8 17 F

PASSO 2 20 G 15 I

PASSO 3 13 14

PASSO4 B C A 2 13 14 H 10 12 11

PASSO5 C 16 9

PASSO6 A 6 19 B C 2 1 D 3 E F C

PASSO 7

21 4 5 18 7

ISTRUZIONI PER L'USO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

Warning sign with warning symbols and icons for heating, cooking, heating, camping, and gathering scenarios

Carbon Monoxide Poisoning Hazard
Do not use in Motor Homes
Do Not Use Indoors
Do Not Use in Tents
Use in open Spaces

PASO 1 D 8 17 F

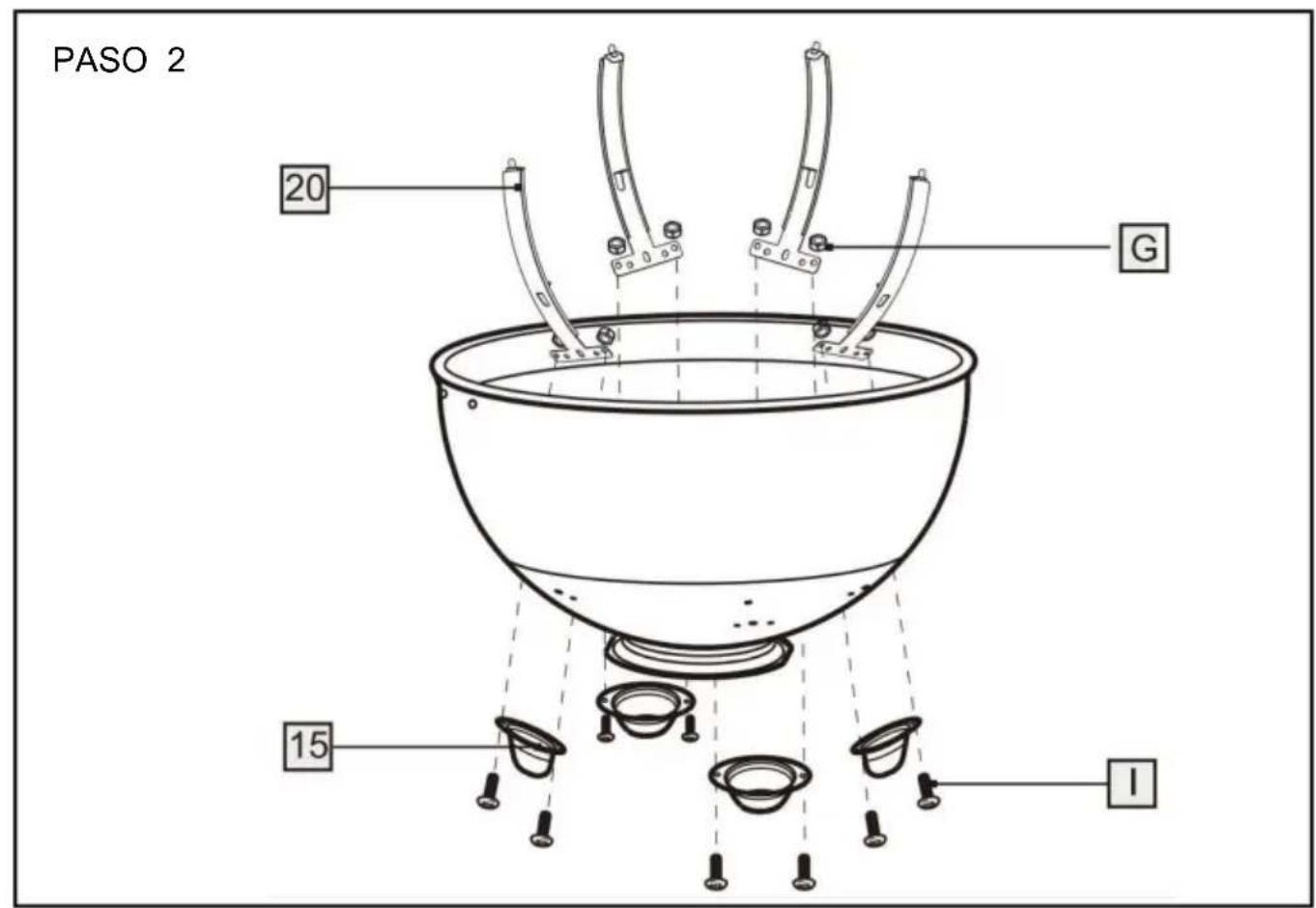

PASO 2 20 G 15 I

PASO 3 13 14

PASO 4 A B C 2 13 14 H 10 12 11

PASO 5 C 16 9

PASO 6 A 6 19 B C 2 1 D 3 E F C

PASO 7

21 4 5 18 7

INSTRUCCIONES DE USO

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Warning sign with warning symbols and icons for heating, cooking, heating, camping, and gathering scenarios

Carbon Monoxide Poisoning Hazard
Do not use in Motor Homes
Do Not Use Indoors
Do Not Use in Tents
Use in open Spaces

WAŻNE ZABEZPIECZENIA

KROK 2 20 G 15 I

KROK 3 13 14

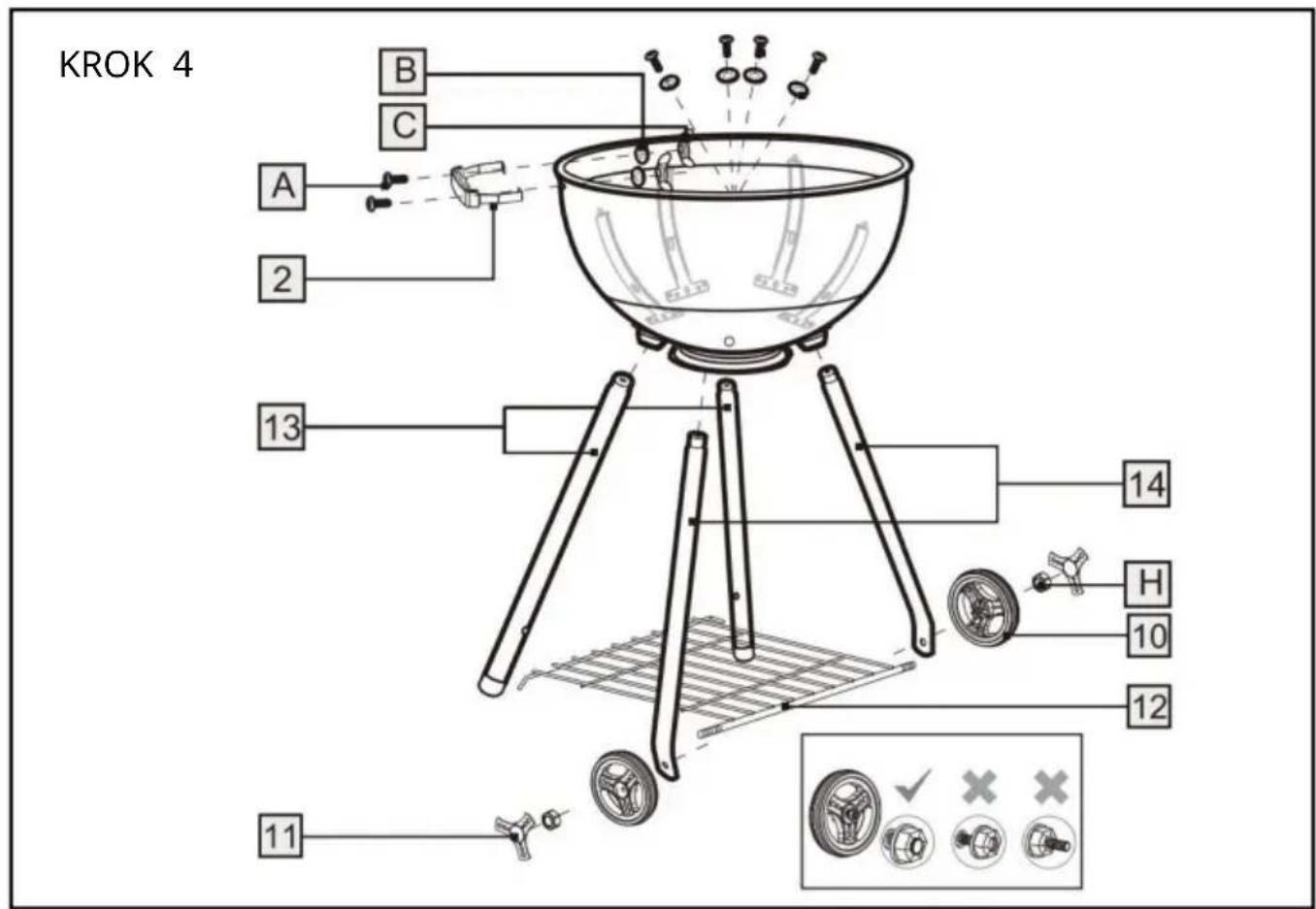

KROK 4 A B C 2 13 14 H 10 12 11

KROK 5 C 16 9

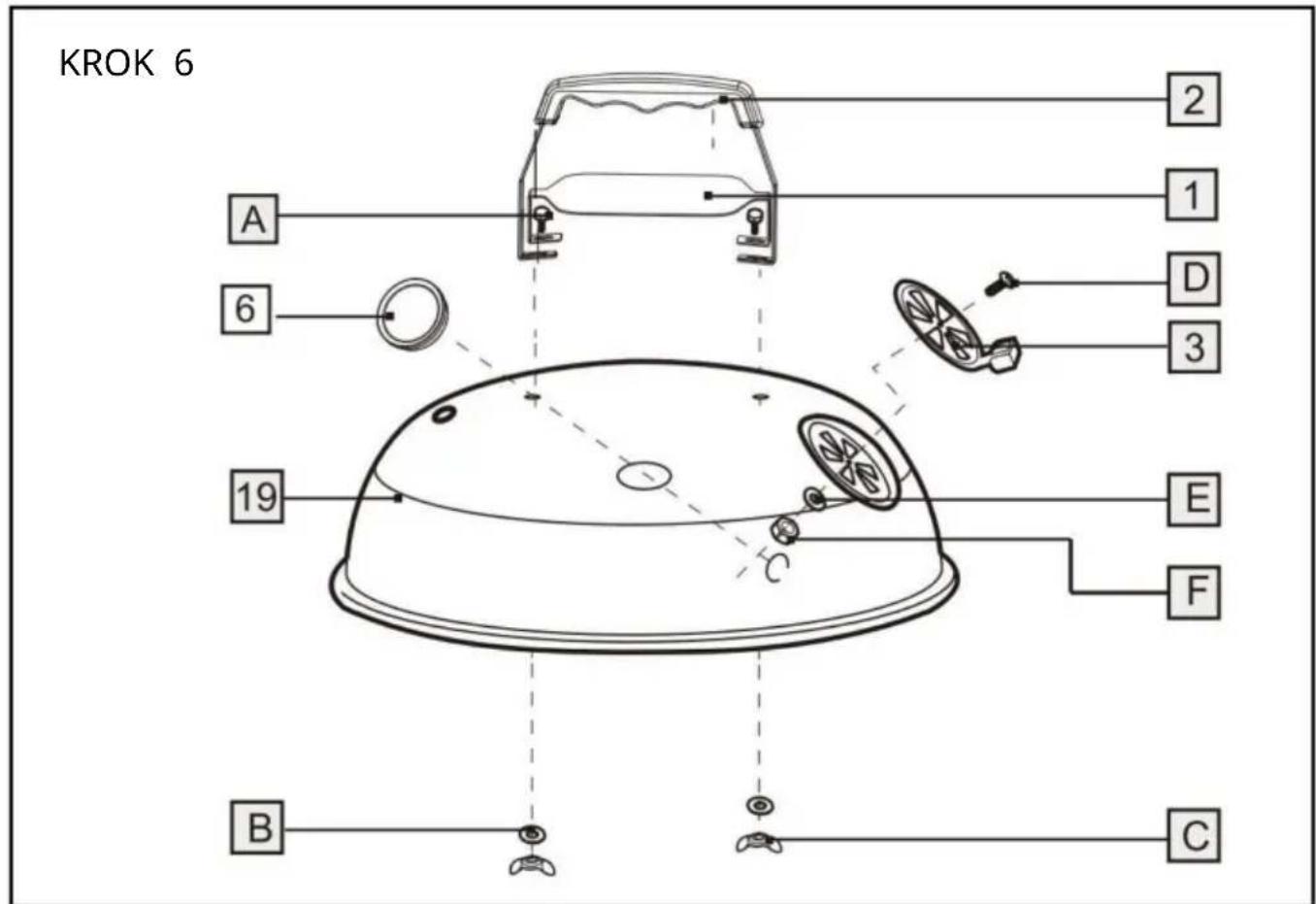

KROK 6 A 6 19 B C 2 1 D 3 E F C

KROK 7

21 4 5 18 7

INSTRUKCJA OBSŁUGI

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Carbon Monoxide Poisoning Hazard Do not use in Motor Homes Do Not Use Indoors Do Not Use in Tents Use in open Spaces

BELANGRIJKE VEILIGHEIDSMAATREGELEN

STAP 2 20 G 15 I

STAP 3 13 14

STAP 4 A B C 2 13 14 H 10 12 11

STAP 5 C 16 9

STAP 6 A 6 19 C 2 1 D 3 E F B C

STAP 7

21 4 5 18 7

GEBRUIKSAANWIJZING

C/O YH Consulting Limited Kantoor 147, Centurion

Huis, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a standard K-10 grill with a dome cover and wheels on a stand (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Warning sign with warning symbols and icons for heating, cooking, heating, camping, and gathering

Carbon Monoxide Poisoning Hazard

Do not use in Motor Homes

Do Not Use Indoors

Do Not Use in Tents

Use in open Spaces

VIKTIGA SÄKERHETSÅTGÄRDER

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC REP

www.vevor.com/support
