Vevor LYY8438S1206 - Acoustic panels
📄 128 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Vevor LYY8438S1206 - page 3
3 / 128
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type MDF Acoustic Slat Wall Panels
Brand Vevor
Model LYY8438S1206
Dimensions (per panel) 1200 x 600 x 21 mm
Quantity 4 panels
Color Light Oak
Material MDF (Medium Density Fiberboard) with black felt
Number of included screws 34 screws
Usage Acoustic absorption and wall or ceiling decoration
Installation methods Adhesive bonding (for wall only) or screwing (8 screws per panel for wall, 12 or 20 screws for ceiling depending on model)
Required tools Circular saw, electric screwdriver, wood supports, pencil, measuring tape, stapler, stud, acoustic absorption wool, knife, construction adhesive and glue gun
Maintenance Clean with a soft dry cloth. Avoid excessive moisture.
Safety Installation by an adult. Regularly check the fixation. Do not glue to the ceiling. Keep children and pets away from small parts.
Warranty Electronic warranty certificate available at www.vevor.com/support
Technical support Technical support via www.vevor.com/support

Frequently Asked Questions - LYY8438S1206 Vevor

How to install Vevor LYY8438S1206 acoustic panels?
Installation can be done by adhesive bonding on a clean, dry wall, or by screwing. For screwing, use 8 screws per panel (for wall mounting) by fixing through the black part. For a ceiling, use 12 screws per panel. It is recommended to first install a stud and acoustic absorption wool for better performance.
Can I cut the panels to the desired size?
Yes, you can cut the panels with a circular saw or a knife according to your needs. First measure the height and width of your wall or ceiling.
What tools are needed for installation?
Recommended tools are: circular saw, electric screwdriver, wood supports, pencil, measuring tape, stapler, stud, acoustic absorption wool, knife, construction adhesive and glue gun.
How many screws are provided with the product?
The product is equipped with 34 screws in total, which allows installing the 4 panels (8 screws per panel for a wall, or more for a ceiling).
Can I install the panels on the ceiling?
Yes, but you must use screws to reinforce the installation. For the model LYY8438S1206, 12 screws are needed for ceiling mounting. Caution: it is forbidden to use glue for the ceiling.
How to maintain the acoustic panels?
Clean the panels with a soft dry cloth. Avoid excessive moisture that could damage the MDF.
What are the exact dimensions of a panel?
Each panel measures 1200 mm in length, 600 mm in width, and 21 mm in thickness.
What color are the LYY8438S1206 panels?
The color is 'Light Oak'.
Are the panels delivered with a warranty?
Yes, Vevor provides an electronic warranty certificate. You can access it and get technical support at www.vevor.com/support.
Can I install the panels on an uneven or curved wall?
Yes, if using the adhesive bonding method on a curved wall, it is recommended to add screws at the curved areas to firmly fix the product to the wall.

User questions about LYY8438S1206 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Acoustic panels in PDF format for free! Find your manual LYY8438S1206 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LYY8438S1206 by Vevor.

USER MANUAL LYY8438S1206 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ACOUSTIC MDF SLAT WALL PANELS

MODEL: LYW8292C1206 / LYW8292C2402 / LYB8210C1206 / LYB8210C2402 / LYY8438S2402 / LYY8438S1206 / LYS30942402

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands, and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

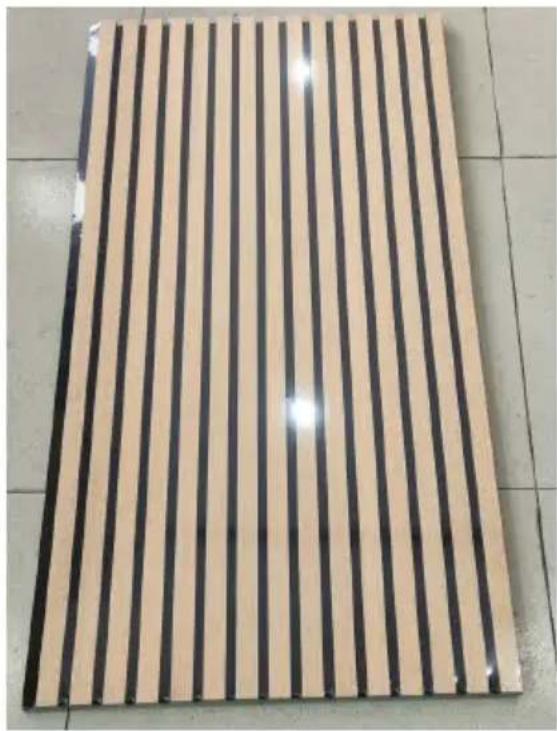

ACOUSTIC MDF SLAT WALL PANELS

Model: LYW8292C1206 / LYW8292C2402 / LYB8210C1206 / LYB8210C2402 / LYY8438S2402 / LYY8438S1206 / LYS30942402

Striped wooden panel with black vertical stripes on a tiled floor (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

  1. Please read and understand this manual carefully before using the Acoustic MDF slat wall panels.

The installation should be done by an adult, and children should not be without supervision.

  1. Please ensure that the Acoustic MDF slat wall panels are firmly installed; otherwise, they may fall off and cause harm to people.
  2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
  3. For safety purposes, prohibit using glue alone to mount panels on the ceiling. Due to uneven glue or poor quality, the panel will warp off.

PARAMETER LIST

ModelSizeQTYColor
LYW8292C12061200*600*21mm4walnut
LYW8292C24022400*200*21mm4walnut
LYB8210C12061200*600*21mm4black oak
LYB8210C24022400*200*21mm4black oak
LYY8438S24022400*200*21mm4Light oak
LYY8438S12061200*600*21mm4Light oak
LYS309424022400*200*21mm4Silver wood

Note: This product is equipped with 34 screws.

If there is any difference between the color of this product and the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

- Check you have all the components and tools listed on the following pages.

  • Remove all fittings from the plastic bags and separate them into groups.
  • Keep children and animals away from the work area; small parts can choke if swallowed. Make sure you have enough space to lay out the parts before starting.
  • Assembly will be easier with 2 people.

Install the required tools.

Vevor LYY8438S1206 - Safety and Care Advice - 1Circular SawVevor LYY8438S1206 - Safety and Care Advice - 2Electric ScrewdriverVevor LYY8438S1206 - Safety and Care Advice - 3Wooden racksVevor LYY8438S1206 - Safety and Care Advice - 4Pencil
Vevor LYY8438S1206 - Safety and Care Advice - 5Band TapeVevor LYY8438S1206 - Safety and Care Advice - 6StaplerVevor LYY8438S1206 - Safety and Care Advice - 7KeelVevor LYY8438S1206 - Safety and Care Advice - 8Sound Absorption Wool
Vevor LYY8438S1206 - Safety and Care Advice - 9KnifeVevor LYY8438S1206 - Safety and Care Advice - 10Structural AdhesiveVevor LYY8438S1206 - Safety and Care Advice - 11Structural Adhesive Gun
Vevor LYY8438S1206 - Safety and Care Advice - 12• To reduce the likelihood of damaging your pro please ensure that your power drill is set on a torque setting.

THE STANDARD INSTALLATION METHOD

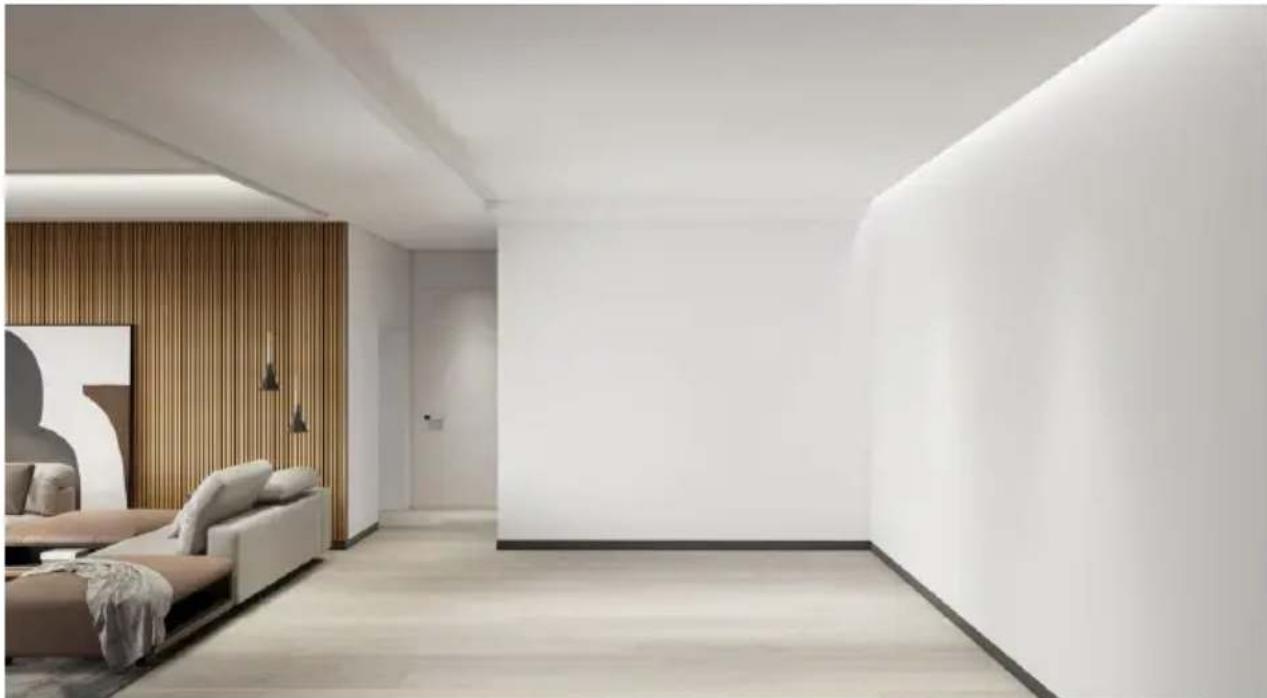

Step 1: Preparing the wall or ceiling

• Make sure the surfaces are clean and dry, without nails or screws.

Modern interior hallway with white walls, wooden paneling, and minimalist furniture (no text or symbols visible)

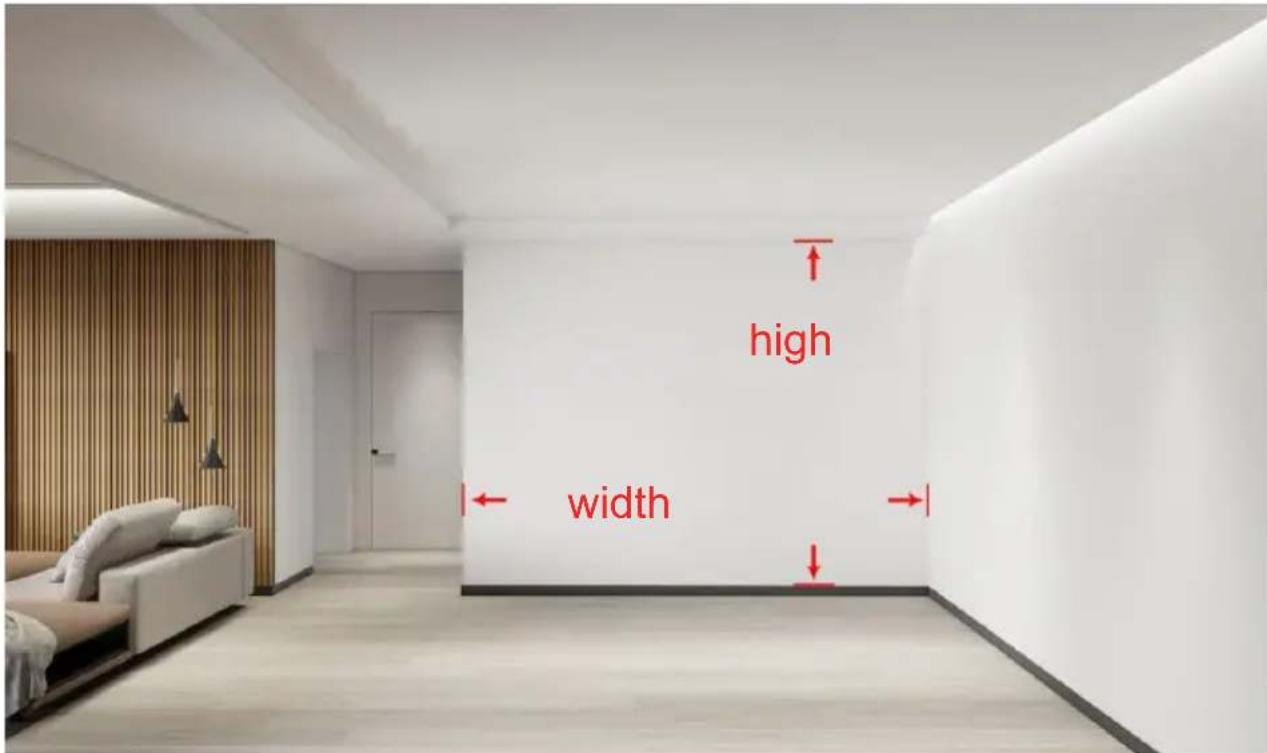

Step 2:

Measuring the height and width

high width

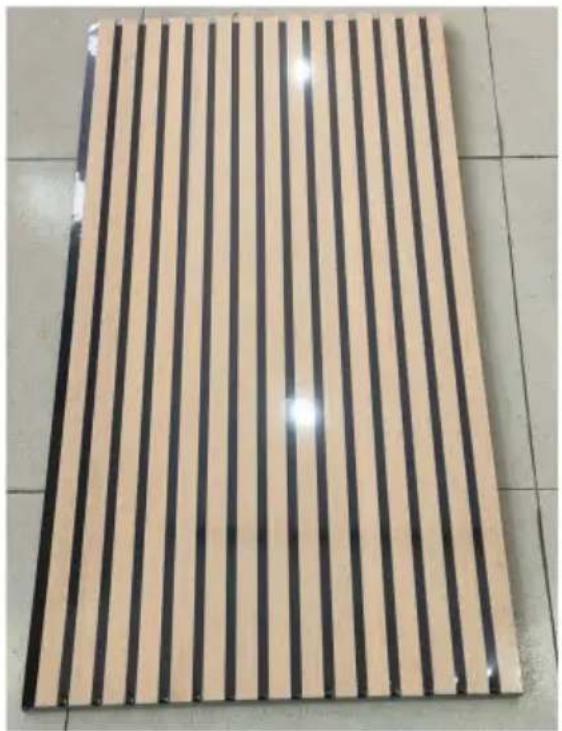

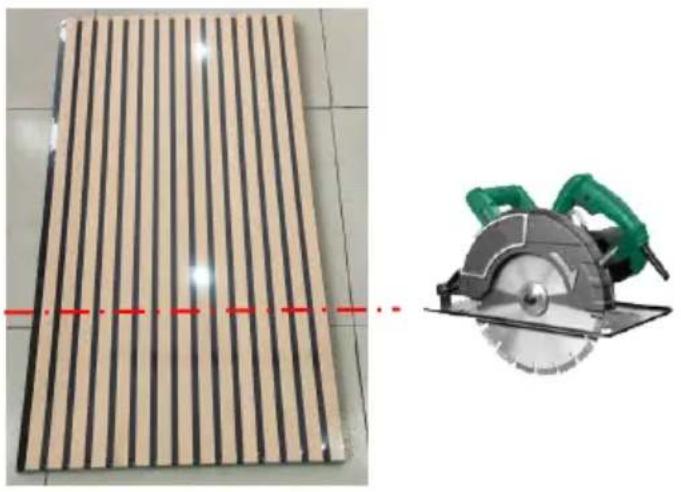

Step 3: Cutting the panels

- Cut products with circular saws and knives to your required size.

Two-panel image: left shows a striped pattern on tiled floor; right shows a cut-out saw blade with green handle (no text or symbols)

Step 4: Mounting the panel

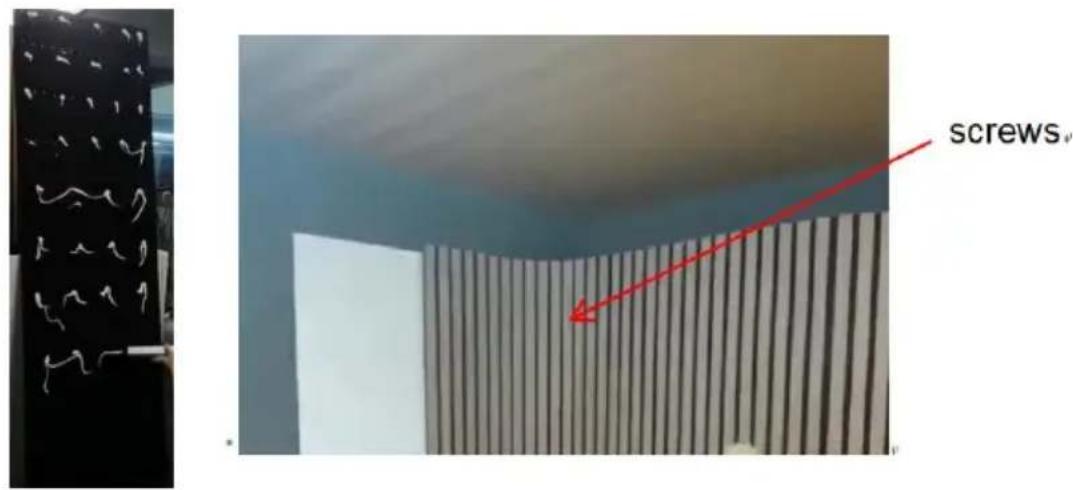

A: Simple installation on the wall: you can use glue; first apply the glue to the back of the product, then paste it on the wall. If pasted on a curve, use screws in the curved position to attach the product to the wall.

screws

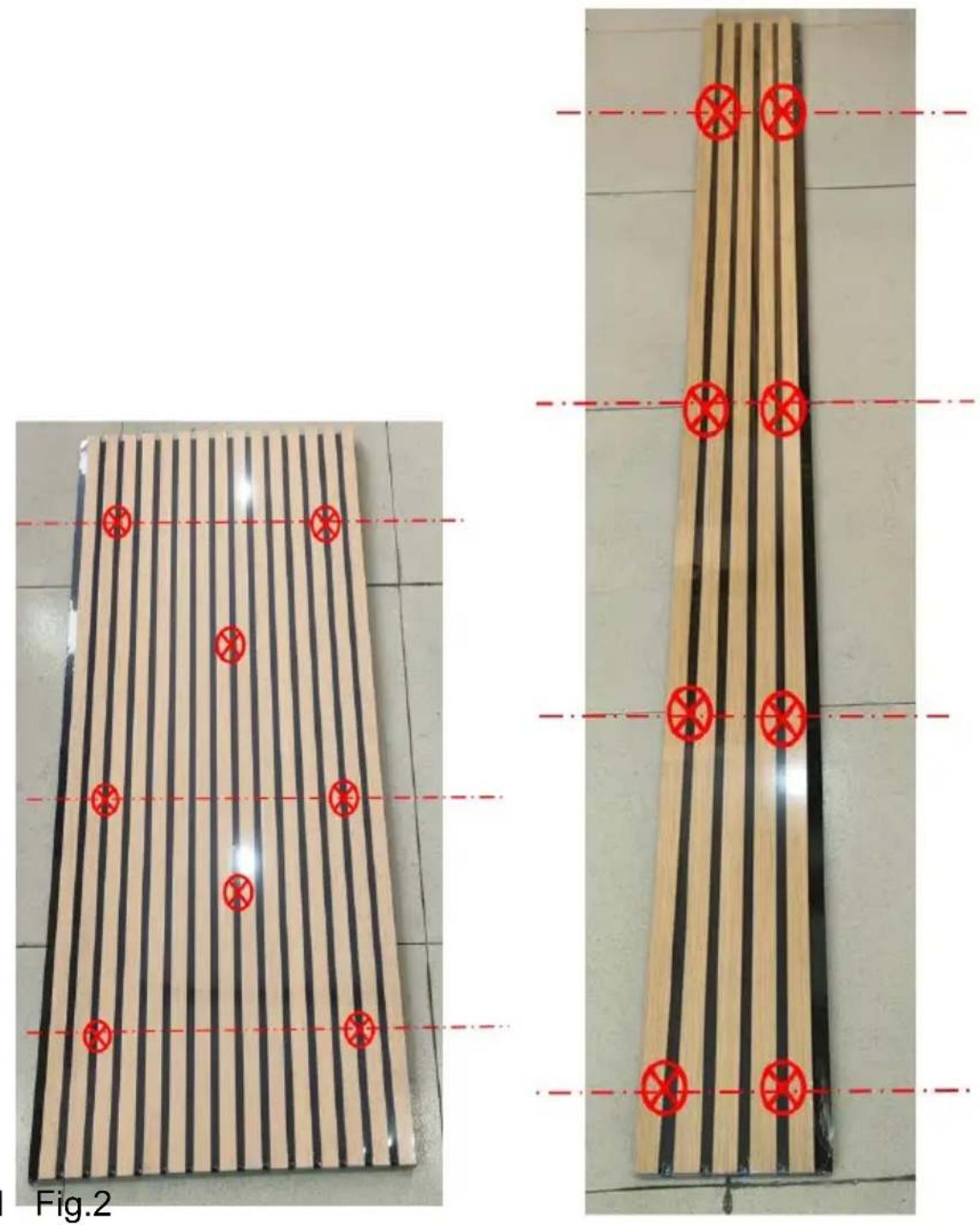

B. Use 8 screws to install on the wall; the screws should be fixed through the black part, which is more beautiful.

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402

And 8 screws are required. (Fig. 1);

Model LYW8292C1206, LYB8210C1206, LYY8438S1206. And 8 screws are required. (Fig. 2.)

Fig.2

Fig.1 Fig.2

Note: If you need to install the product on the ceiling, you need to use screws to reinforce the installation.

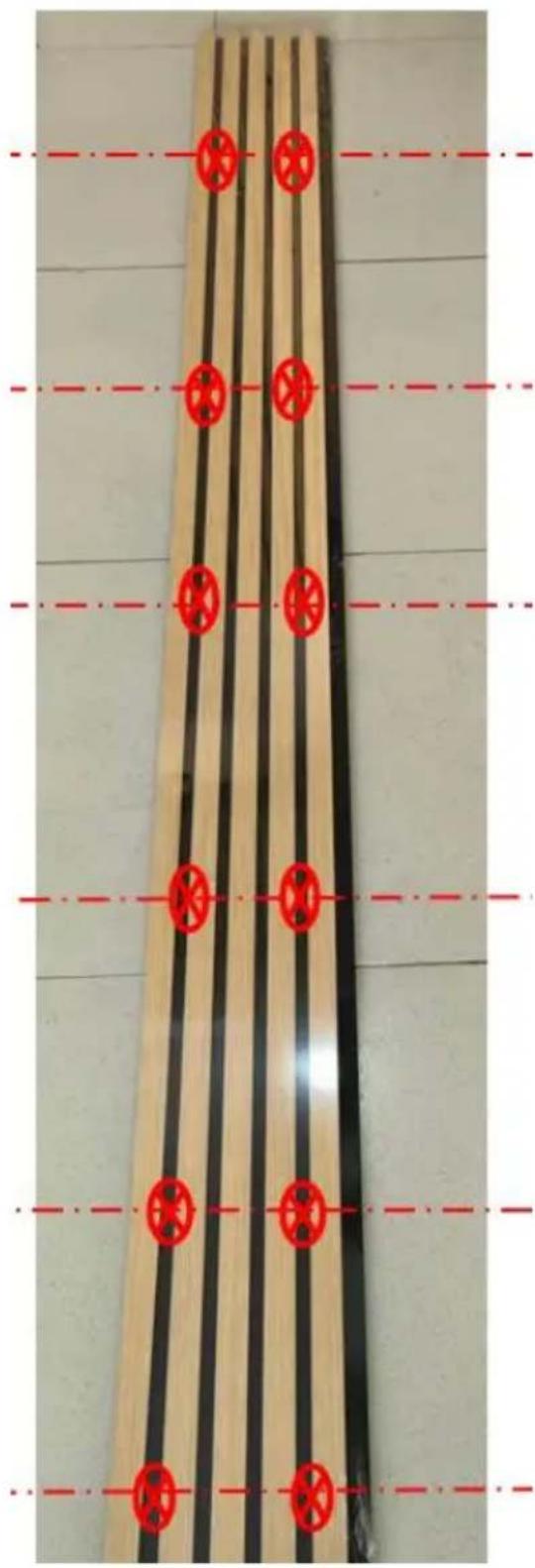

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402. And 20 screws are required. (Fig. 3);

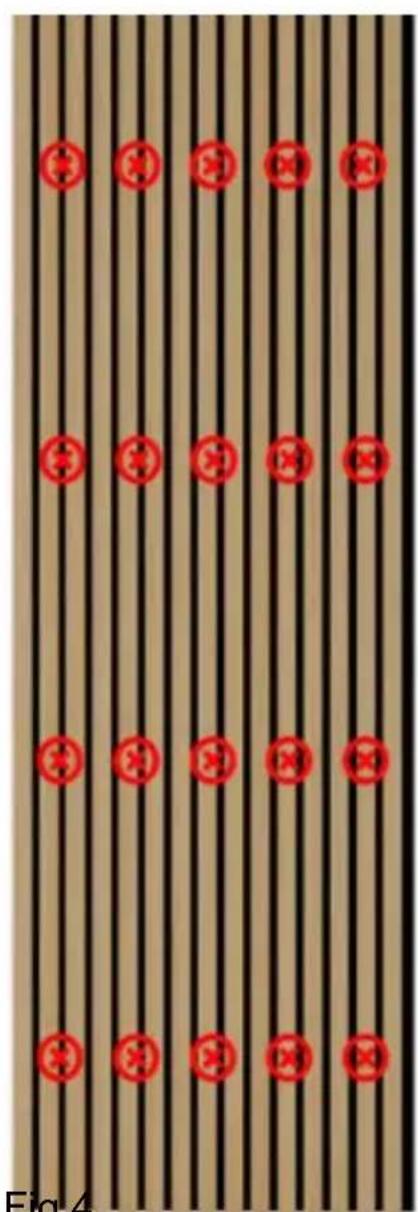

Model LYW8292C1206, LYB8210C1206, LYY8438S1206. And 12 screws are required. (Fig. 4.)

Fig.3 Fig.4Fig 4

Diagram showing a vertical strip with multiple black bands and red circular symbols, possibly indicating measurement or labeling points.

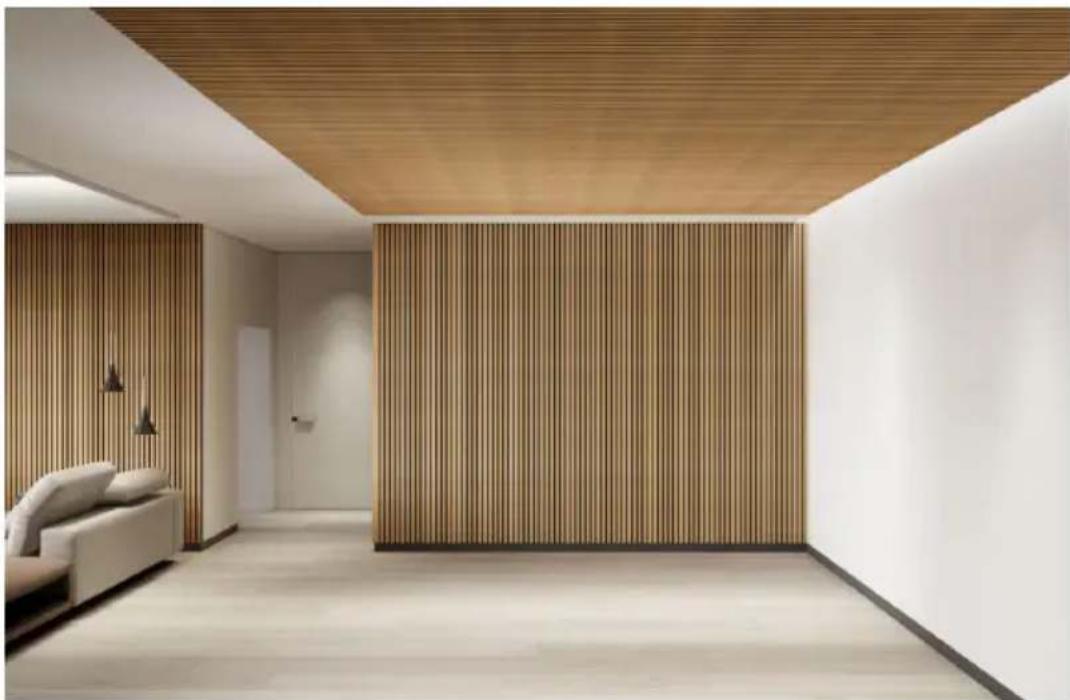

Step 5: The end result of the installation

Modern interior hallway with wooden paneling and white walls, featuring a sofa and pendant lights (no text or symbols visible)

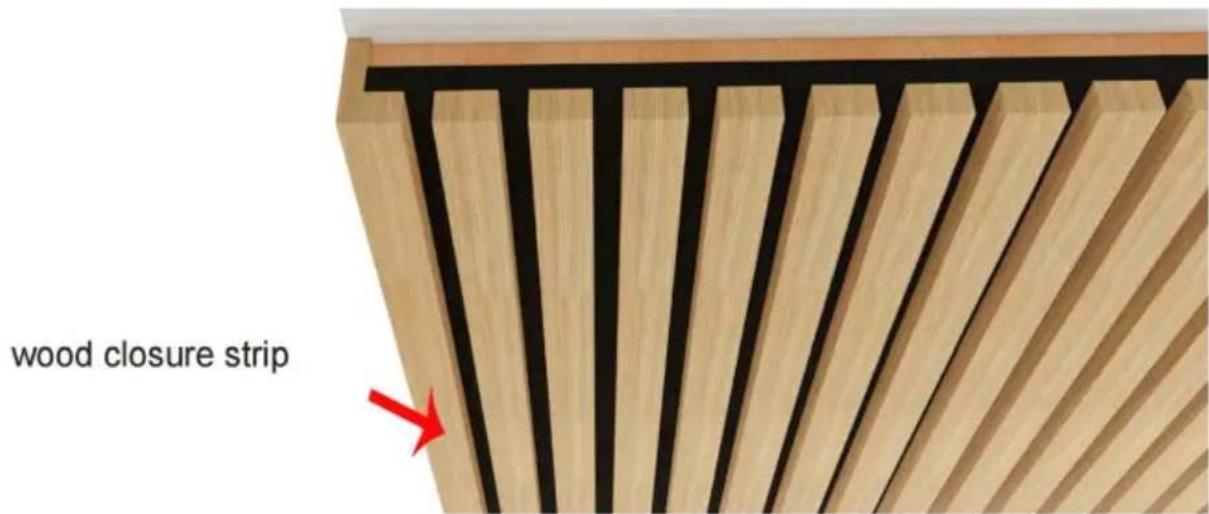

Note: If necessary, install a wooden seal at the end of the panel for aesthetics; however, the wooden seal must be purchased separately.

wood closure strip

THE INSTALLATION METHOD FOR HIGHEST SOUND ABSORPTION

Step 1: The preparation of wall or ceiling

Modern interior hallway with white walls, gold curtains, and a beige sofa (no text or symbols visible)

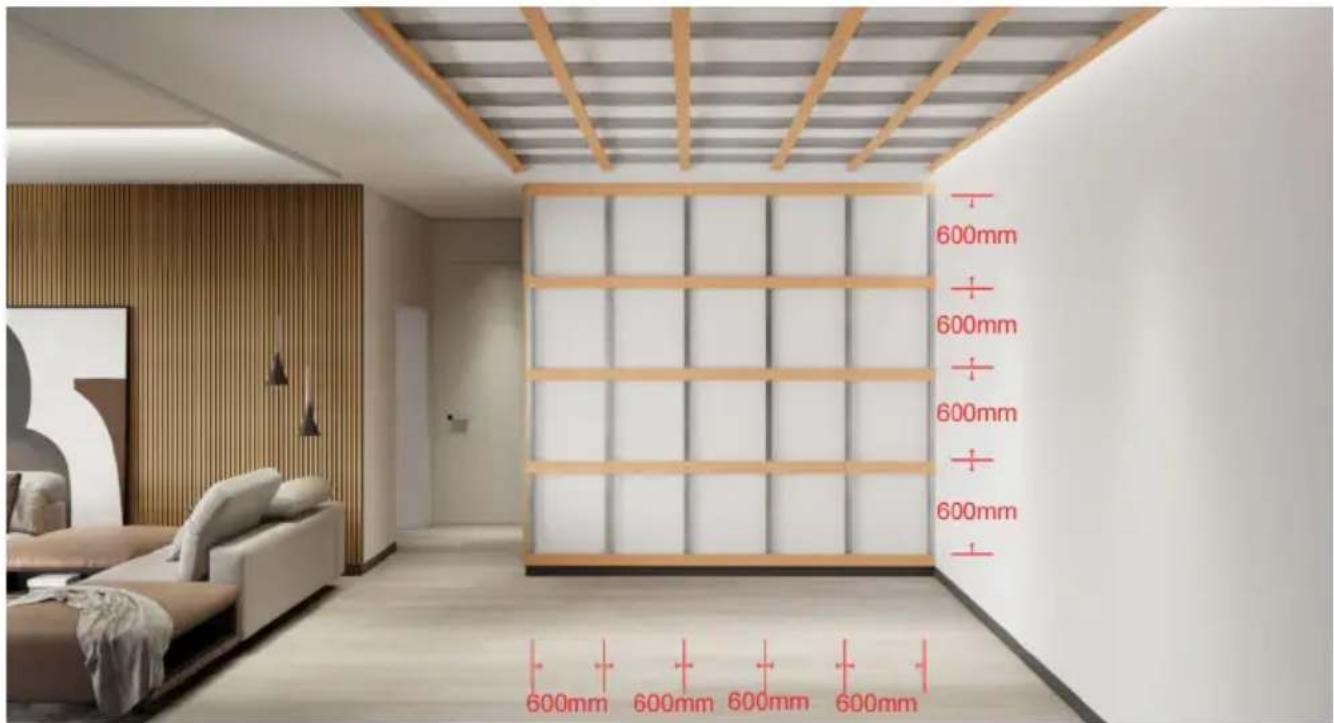

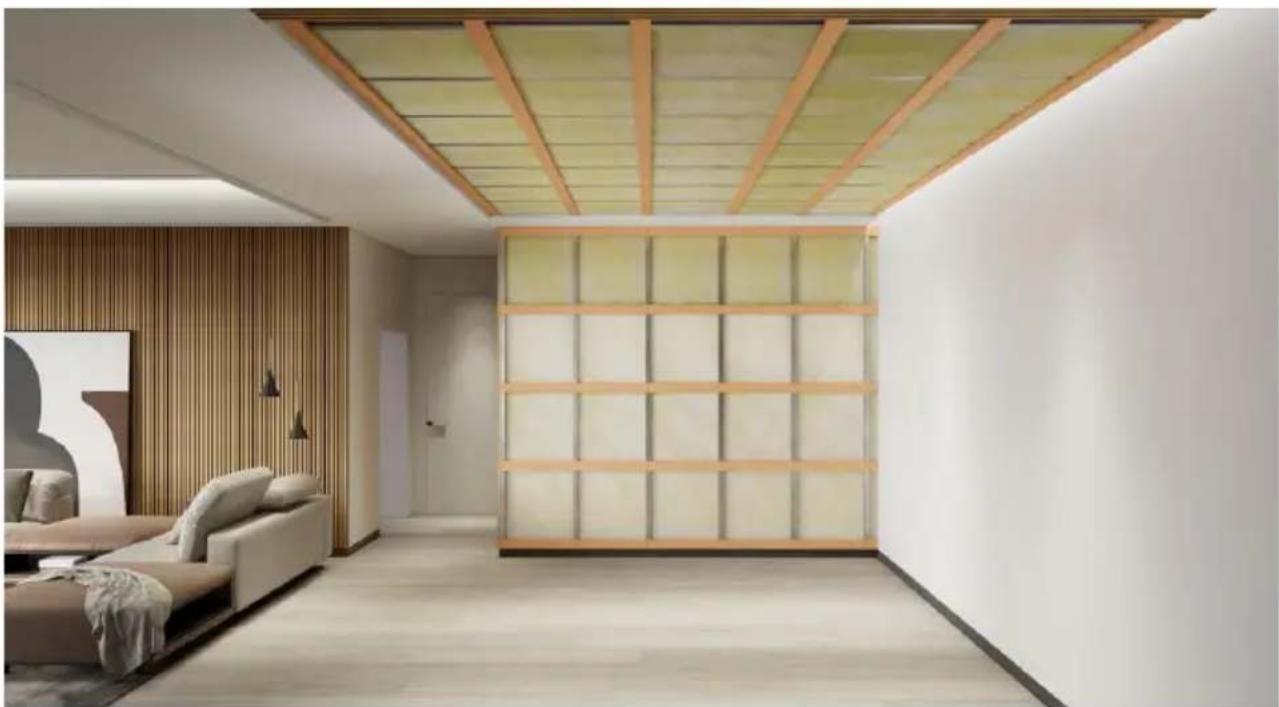

Step 2: Installing sound absorbing device;

A: We recommend installing the keel initially, then the sound absorption wool, and then the wooden racks and panels. With this combination, you will get the highest sound absorption.

Vevor LYY8438S1206 - Step 2: Installing sound absorbing device; - 1

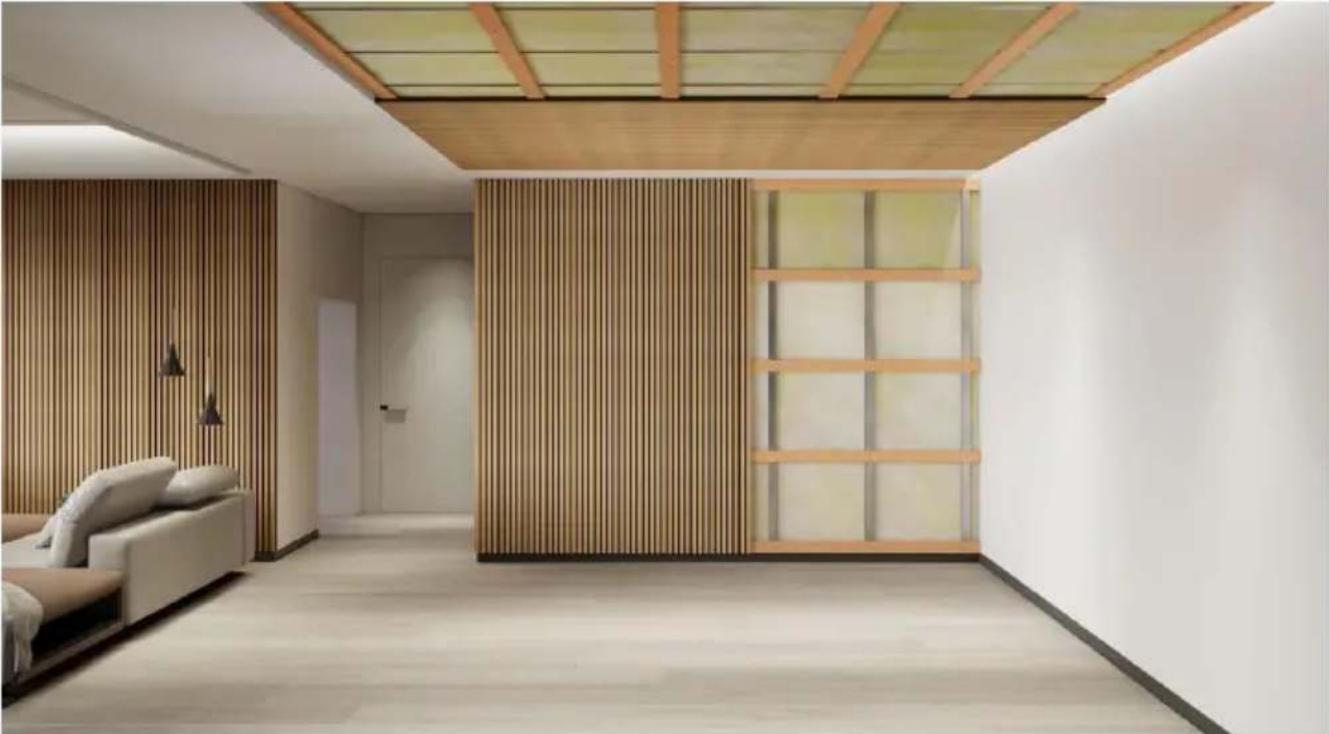

B: Inserting the sound absorption wool between the keel and wooden racks

Modern interior living room with wooden ceiling panel, beige wall panels, and minimalist furniture (no text or symbols visible)

Step 3:

Mounting the panel

• Using the electric screwdriver to screw through the black felt into the wooden racks.

Interior view of a room with wooden panel and vertical black stripe (no text or symbols)

Note: Please refer to the above simple screw installation method - When assembling in continuation to each other, please note that the side of one panel is seamless with the slat side of the following panel.

Modern interior hallway with wooden paneling, beige sofa, and wall-mounted storage unit (no text or symbols visible)

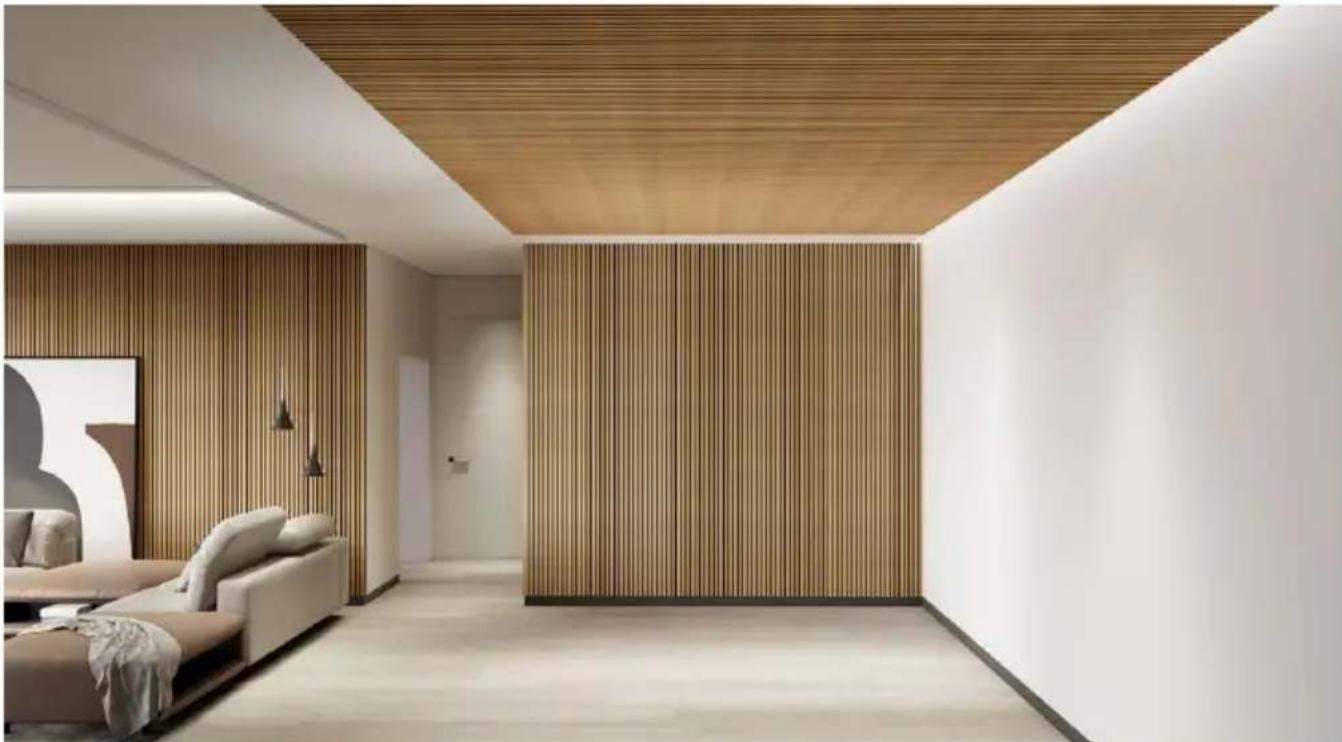

Step 4: The wall and ceiling are fully installed now.

Modern interior hallway with wooden paneling, beige sofa, and white walls (no text or symbols visible)

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

ECREP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

/LYB8210C1206/LYB8210C2402/LYY8438S2402

/LYY8438S1206/LYS30942402

LYY8438S2402/LYY8438S1206/LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible)

NEED HELP? CONTACT US!

www.vevor.com/support

Step 2:

Figure 2 Figure 1

Figure 4 Figure 3

THE INSTALLATION METHOD FOR THE HIGHEST SOUND ABSORPTION

Step 3:

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREETASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTING THIS

E-CrossStu GmbH

Mainzer Landstr.69,

MODEL: LYW8292C1206 / LYW8292C2402 / LYB8210C1206 / LYB8210C2402 / LYY8438S2402 / LYY8438S1206 / LYS30942402

LYY8438S2402 / LYY8438S1206 / LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible)

Step 2:

Step 4: Attaching panel A:

Fig.2 Fig.1

Step

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Vevor LYY8438S1206 - Step - 1

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL: LYW8292C1206/LYW8292C2402 /LYB8210C1206/LYB8210C2402/LYY8438S2402 /LYY8438S1206/LYS30942402

LYY8438S2402/LYY8438S1206/LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible)

Step 2:

Fig.2 Fig.1

Fig.4 Fig.3

THE INSTALLATION METHOD FOR HIGHER SOUND ABSORPTION

Step 3:

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

/LYB8210C1206/LYB8210C2402/LYY8438S2402

/LYY8438S1206/LYS30942402

LYY8438S2402/LYY8438S1206/LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible)

Step 2:

Fig.4Fig.3

Step 3:

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC Representative

E-CrossStu GmbH

Mainzer Landstr.69,

/LYB8210C1206/LYB8210C2402/LYY8438S2402

/LYY8438S1206/LYS30942402

LYY8438S2402/LYY8438S1206/LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible).

NEED HELP? CONTACT US!

Step 2:

Fig.2Fig.1

INSTALLATION METHOD FOR BEST SOUND

ABSORPTION

Step 3:

Panel installation • For

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importer to Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importer to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

LIABILITY. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW1

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

ACOUSTIC MDF SLAT WALL PANELS

MODEL: LYW8292C1206/LYW8292C2402/LYB8210C1206/LYB8210C2402/LYY8438S2402/LYY8438S1206/LYS30942402

Model: LYW8292C1206/LYW8292C2402/LYB8210C1206/LYB8210C2402/

LYY8438S2402/LYY8438S1206/LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible).

NEED HELP? CONTACT US!

Step 2:

INSTALLATION METHOD FOR MAXIMUM SOUND ABSORPTION

Step 2: Sound-absorbing device

Step 3:

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG REP

MODELS: LYW8292C1206 / LYW8292C2402 / LYB8210C1206 / LYB8210C2402 / LYY8438S2402 / LYY8438S1206 / LYS30942402

LYY8438S2402 / LYY8438S1206 / LYS30942402

Striped wooden panel with alternating beige and black stripes, placed on tiled floor (no text or symbols visible).

NEED HELP? CONTACT US!

Step 2:

Fig.2 Fig.1

INSTALLATION METHOD FOR MAXIMUM SOUND

ABSORPTION

Step 3:

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

ECREP

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : LYY8438S1206

Category : Acoustic panels
