Product Type	MDF Slatted Acoustic Wall Panels
Brand	Vevor
Model	LYW8292C1206
Dimensions (L x W x H)	1200 x 600 x 21 mm
Color	Walnut
Quantity per Package	4 panels
Material	MDF (Medium Density Fiberboard)
Main Function	Acoustic Reduction and Sound Absorption
Mounting	Wall (glue or screws) or ceiling (screws)
Screws Included	34 screws
Maintenance	Clean with a dry cloth
Safety	Installation by adult, check fixation regularly
Included Accessories	Screws
Recommended Use	Indoor spaces, studios, offices
Installation Method	Use glue or screws. For ceiling, reinforce with additional screws.
Required Tools	Circular saw, electric screwdriver, spirit level, pencil, tape measure, staple gun, absorbing wool, knife, construction adhesive
Package Contents	4 panels, 34 screws

Frequently Asked Questions - LYW8292C1206 Vevor

How to install Vevor LYW8292C1206 acoustic panels?

Two methods are possible: glue directly on a clean, dry wall, or screw using the provided screws. For a more robust ceiling installation, increase the number of screws (see manual).

Can I paint the panels?

It is not recommended to paint the panels as it could alter their acoustic properties and the appearance of the slats. Use them as is.

How to cut the panels to the right size?

Use a circular saw or a sharp knife. First measure the space, mark the cut line, then cut slowly to avoid chipping the MDF.

Is additional acoustic treatment necessary?

For better absorption, the manual recommends installing an absorbent wool behind the panels, between the wooden supports.

What tools are necessary for installation?

You will need an electric screwdriver, a spirit level, a tape measure, a pencil, a circular saw, a staple gun, a knife, construction adhesive, and possibly a stud finder.

Are the panels suitable for ceiling installation?

Yes, but it is imperative to use additional screws (20 screws for 2400x200 models, 12 for 1200x600) and to check the solidity of the fixation. Do not use only glue.

How to clean the panels?

Wipe gently with a dry cloth to remove dust. Avoid water and chemicals.

Are there safety precautions to follow?

Installation must be done by an adult. Regularly check the stability of the fixings. Never use glue on the ceiling, as it may detach.

Are the provided screws sufficient for all models?

The package contains 34 screws. For a simple wall installation, 8 screws per panel are enough. For the ceiling, plan for additional screws not provided.

Can I install the panels on an irregular wall?

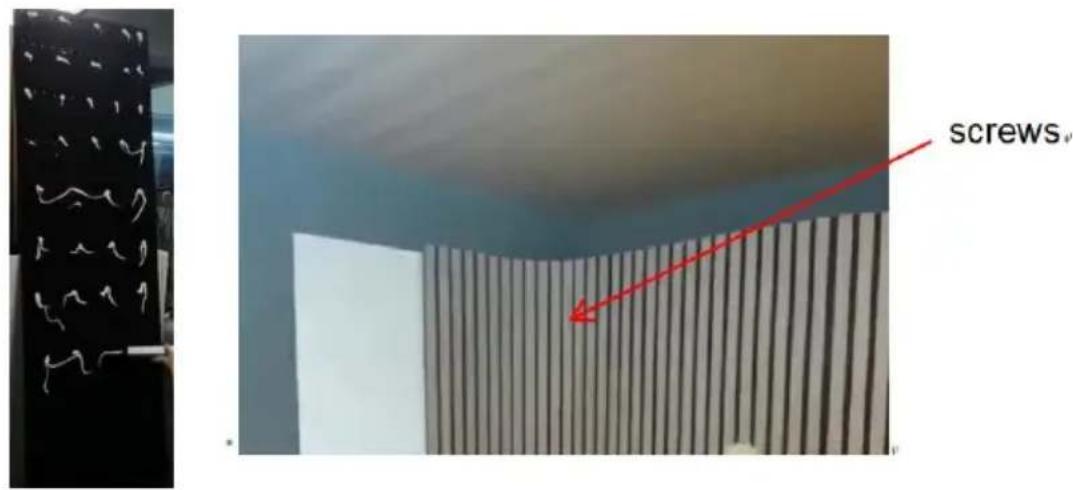

Yes, by using the screw method. If the wall is curved, fix screws at the curved points to hold the panel. Use glue on flat areas.

USER MANUAL LYW8292C1206 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ACOUSTIC MDF SLAT WALL PANELS

MODEL:LYW8292C1206 /LYW8292C2402 /LYB8210C1206/LYB8210C2402/LYY8438S2402 /LYY8438S1206/LYS30942402

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ACOUSTIC MDF SLAT WALI PANELS

Model: LYW8292C1206/LYW8292C2402/LYB8210C1206/LYB8210C2402/ LYY8438S2402/LYY8438S1206/LYS30942402

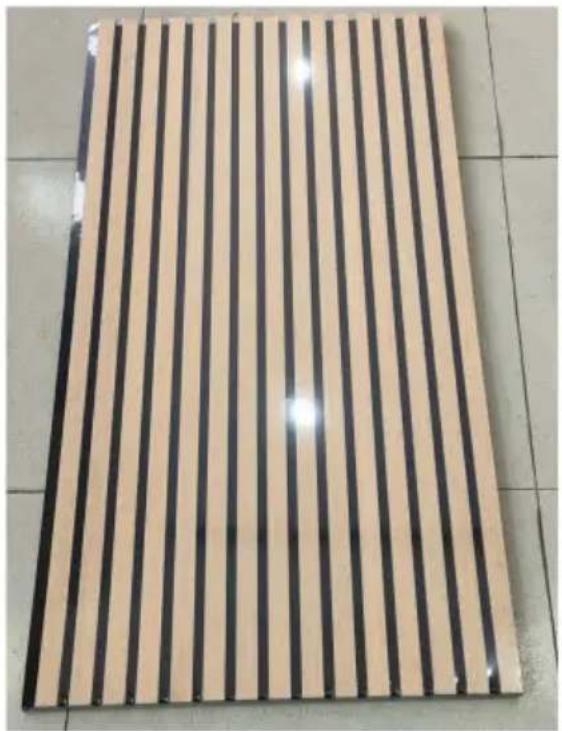

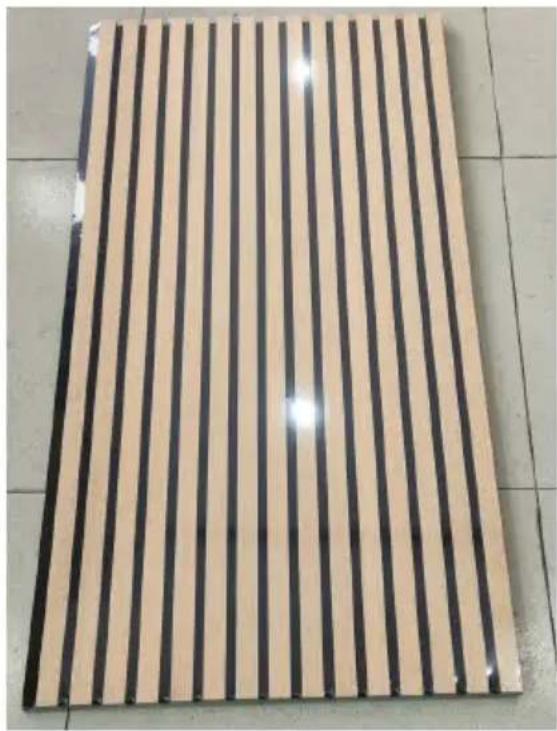

Striped wooden panel with black vertical stripes on a tiled floor (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Acoustic MDF slat wall panels

The installation should be done by an adult, and children should not without supervision.

1. Please ensure that the Acoustic MDF slat wall panels is firmly installed otherwise he may fall off and cause harm to people.
2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
3. For safety purposes, prohibit separate glue to mounting panels on the ceiling. Due to uneven glue or poor quality, the panel will be warped off.

PARAMETER LIST

Model	Size	QTY	Color
LYW8292C1206	1200*600*21mm	4	walnut
LYW8292C2402	2400*200*21mm	4	walnut
LYB8210C1206	1200*600*21mm	4	black oak
LYB8210C2402	2400*200*21mm	4	black oak
LYY8438S2402	2400*200*21mm	4	Light oak
LYY8438S1206	1200*600*21mm	4	Light oak
LYS30942402	2400*200*21mm	4	Silver wood

Note: This product is equipped with 34 screws;

If there is any difference between the color of this product and the the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

- Check you have all the components and tools listed on the following pages.

• Remove all fittings from the plastic bags and separate them into the groups.
• Keep children and animals away from the work area, small parts c choke if swallowed.
  • Make sure you have enough space to layout the parts before start
• Parts of the assembly will be easier with 2 people.

Install the required tools

Circular Saw	Electric Screwdriver	Wooden racks	Pencil
Band Tape	Stapler	Keel	Sound Absorption Wool
Knife	Structural Adhesive	Structural Adhesive Gun
	• To reduce the likelihood of damaging your pro please ensure that your power drill is set on a torque setting.

THE STANDARD INSTALLATION METHOD

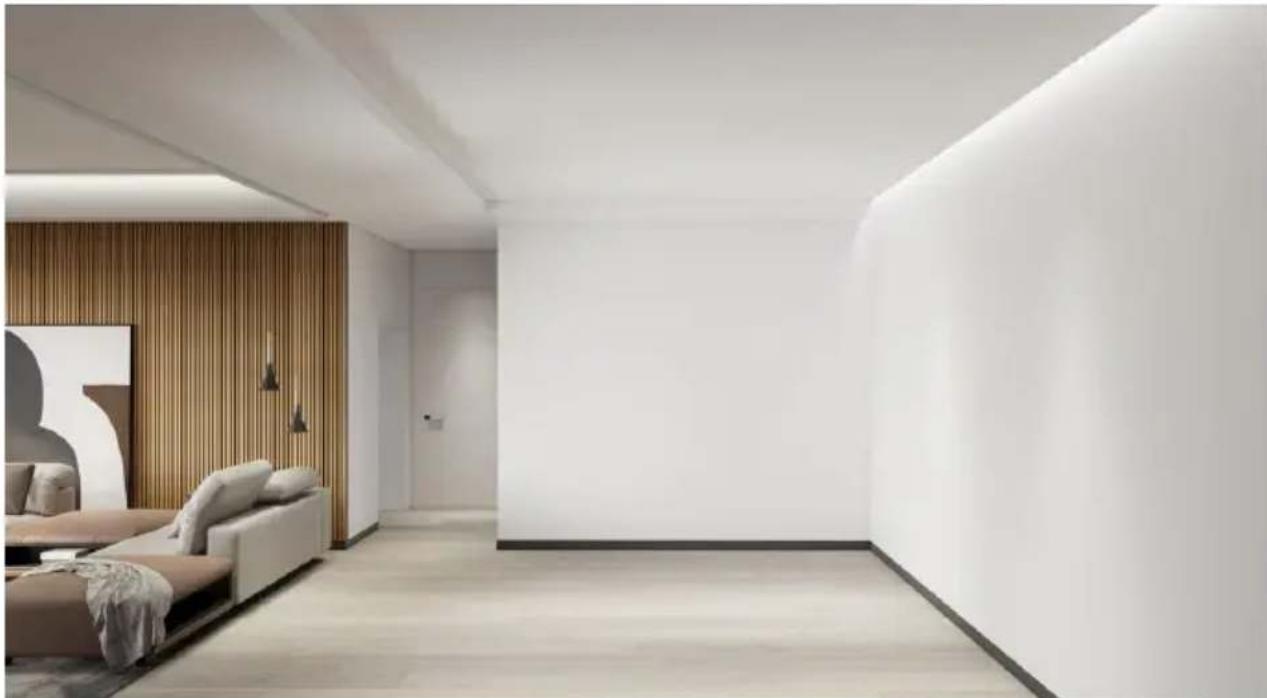

Step1:Preparing the wall or ceiling

• Make sure the surfaces are clean and dry, without nails and screw

Modern interior hallway with minimalist furniture and white walls, featuring a wooden panel and wall art (no text or symbols visible)

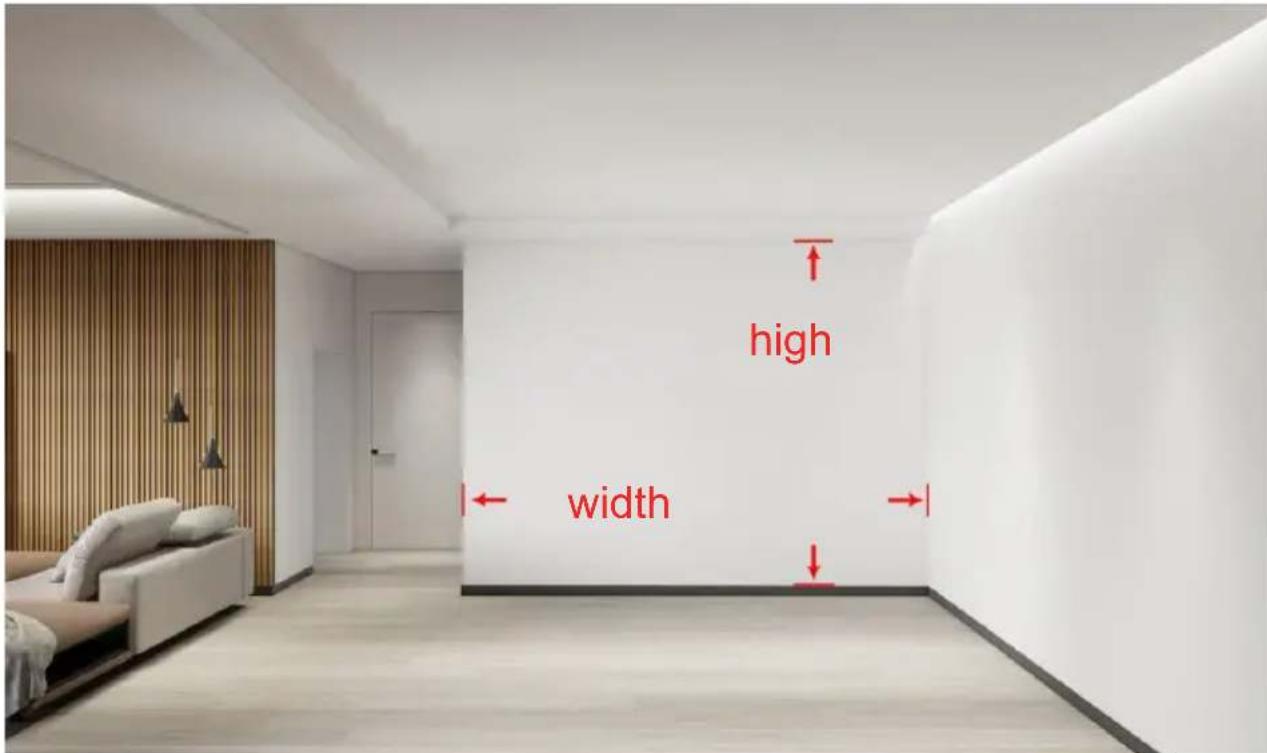

Step 2:

Measuring the height and width

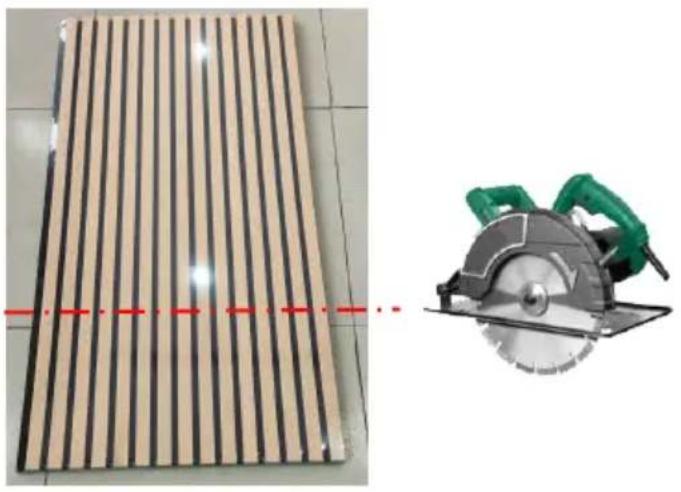

Step 3: Cutting the panels

- Cut products with circular saws and knives for your size requiremer need.

Two-panel image: left shows a striped pattern on tiled floor; right shows a cut-out saw blade with green handle (no text or symbols)

Step 4:Mounting the panel

A: Simple installed on the wall, can use the glue; first fix the glue or back of the product, and then paste on the wall; If pasted on a curve use screws in the curved position to attach the product to the wall.

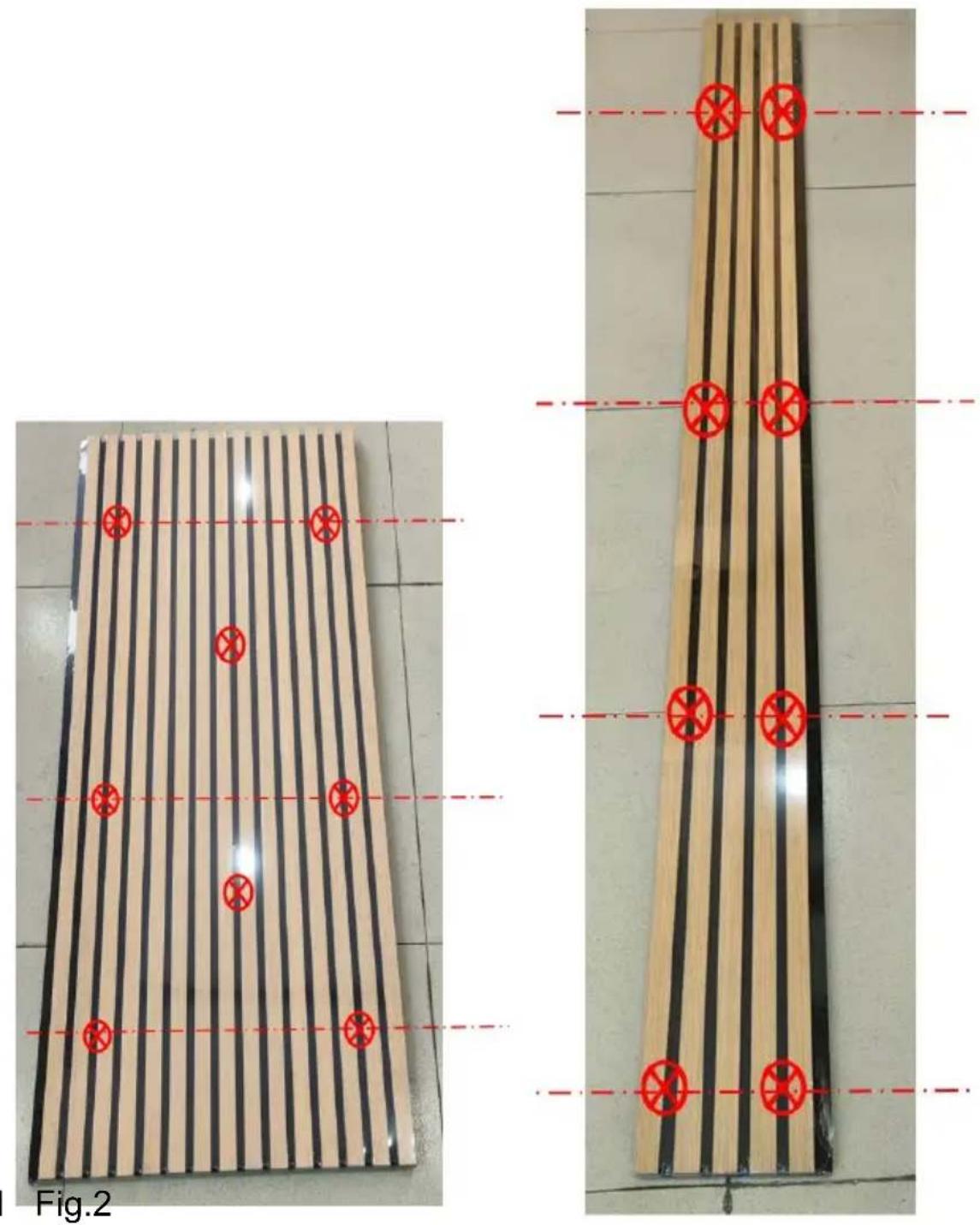

B. Use 8 screws to install on the wall; The screws should be fixed thr the black part, which is more beautiful.

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402

And 8 screws are required.(Fig. 1);

Model LYW8292C1206, LYB8210C1206, LYY8438S1206 And 8 screws are required. (Fig. 2.)

Fig.1 Fig.2

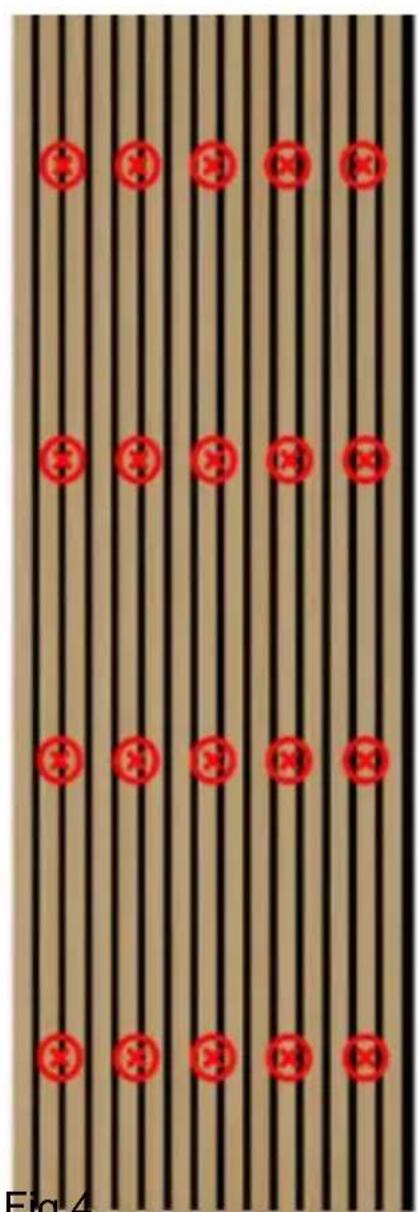

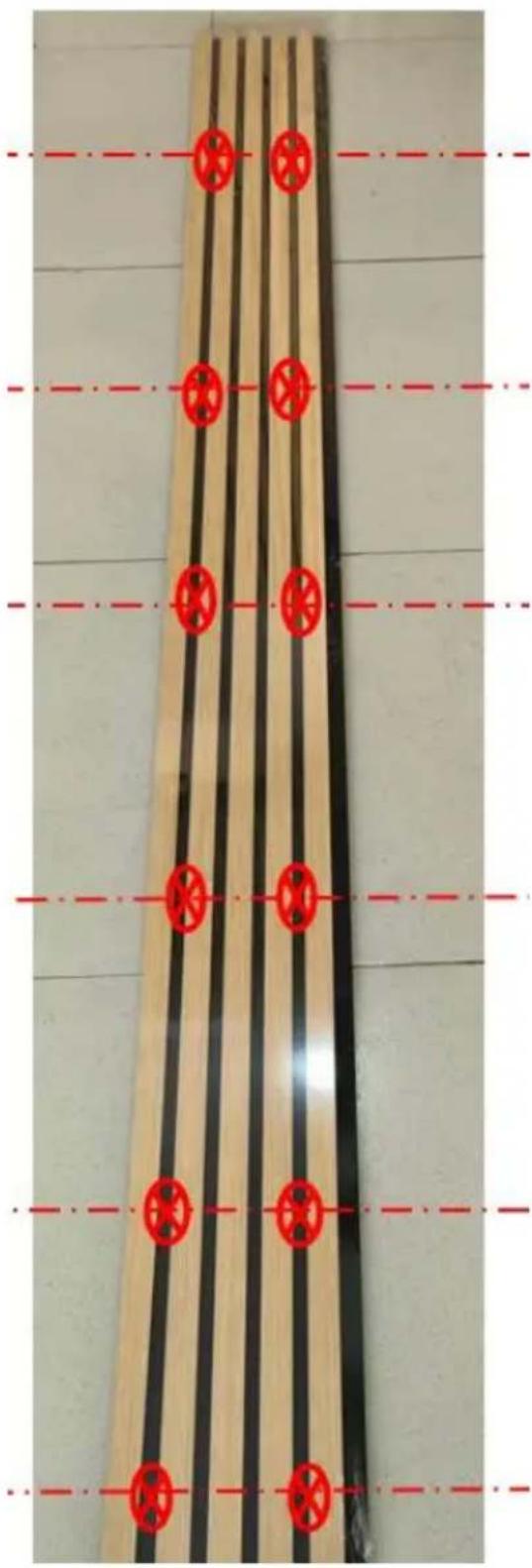

Note: If you need to install the product on the ceiling you need to be screws to reinforce the installation.

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402 And 20 screws are required.(Fig. 3);

Model LYW8292C1206, LYB8210C1206, LYY8438S1206 And 12 screws are required. (Fig. 4.)

Fig.3 Fig.4

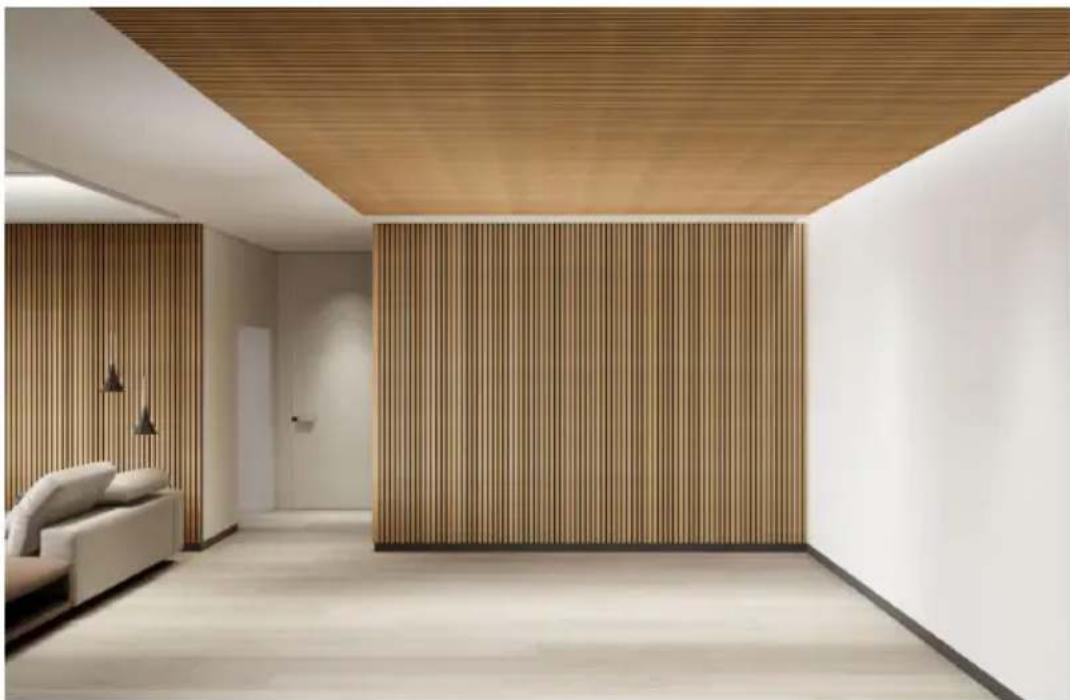

Step5:The end result of the installation

Modern interior hallway with wooden paneling and white walls, featuring a sofa and pendant lights (no text or symbols visible)

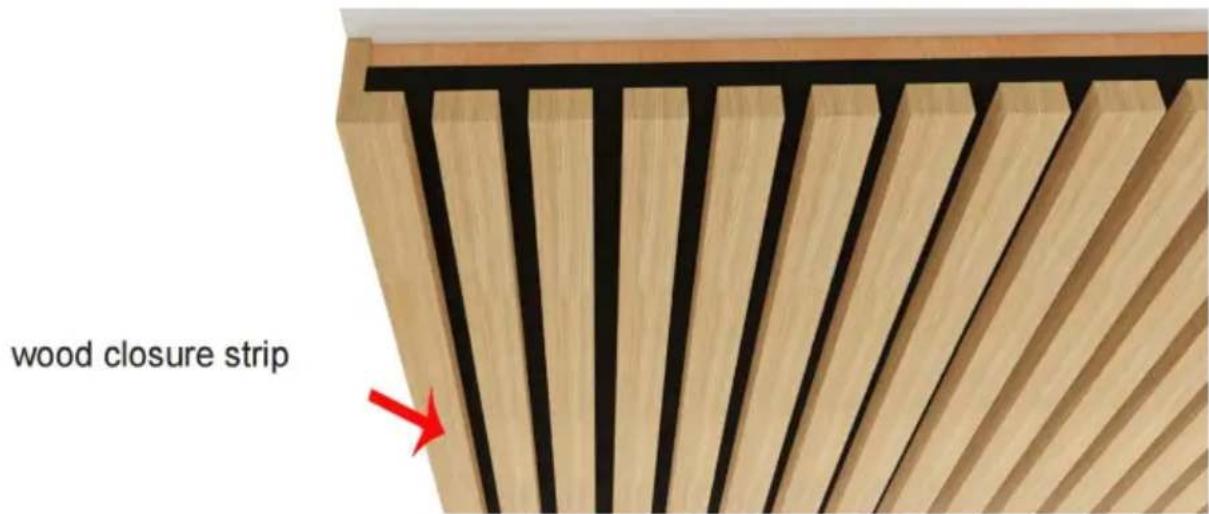

Note: If necessary, install a wooden seal at the end of the panel to aesthetics; but the wood seal shall be purchased extra yourself.

THE INSTALLATION METHOD FOR HIGHEST SOUND ABSORPTION

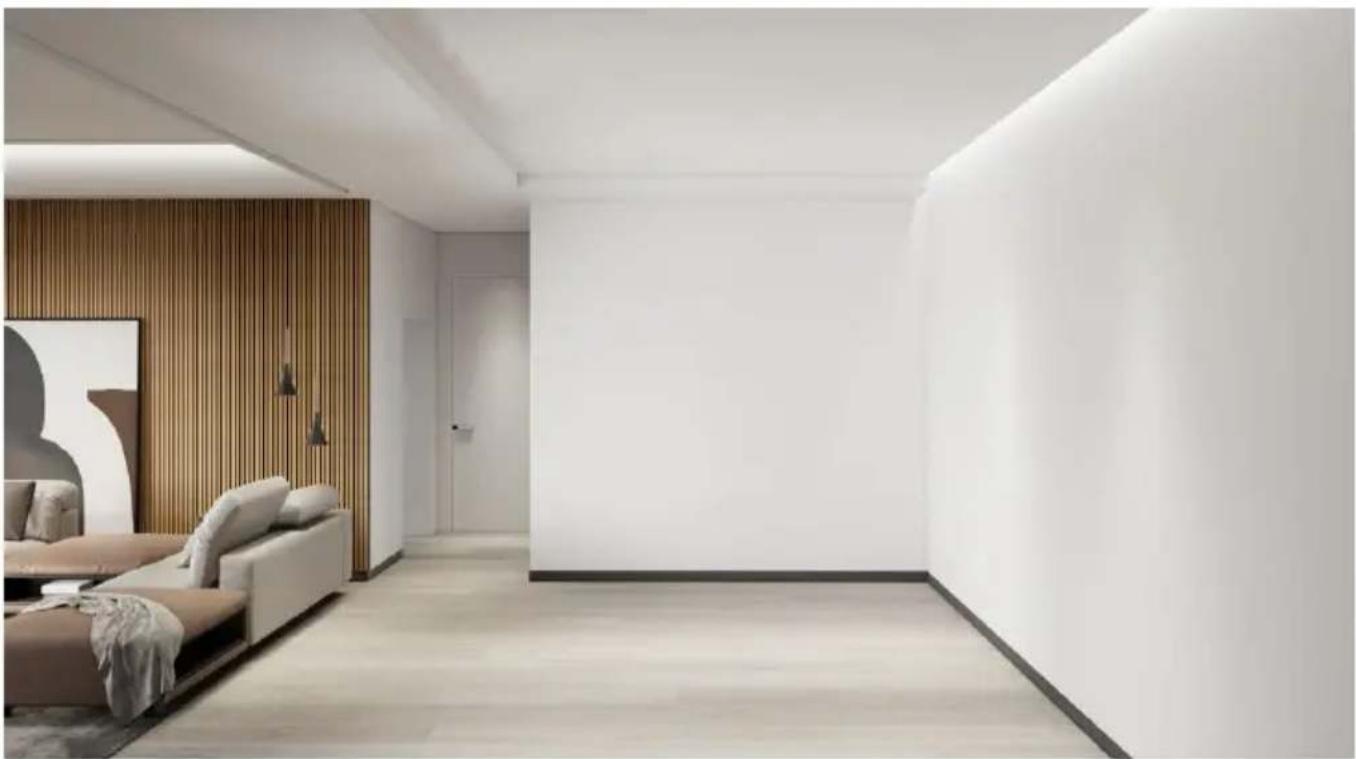

Step 1: The preparation of wall or ceiling

Modern interior hallway with white walls, gold curtains, and a beige sofa (no text or symbols visible)

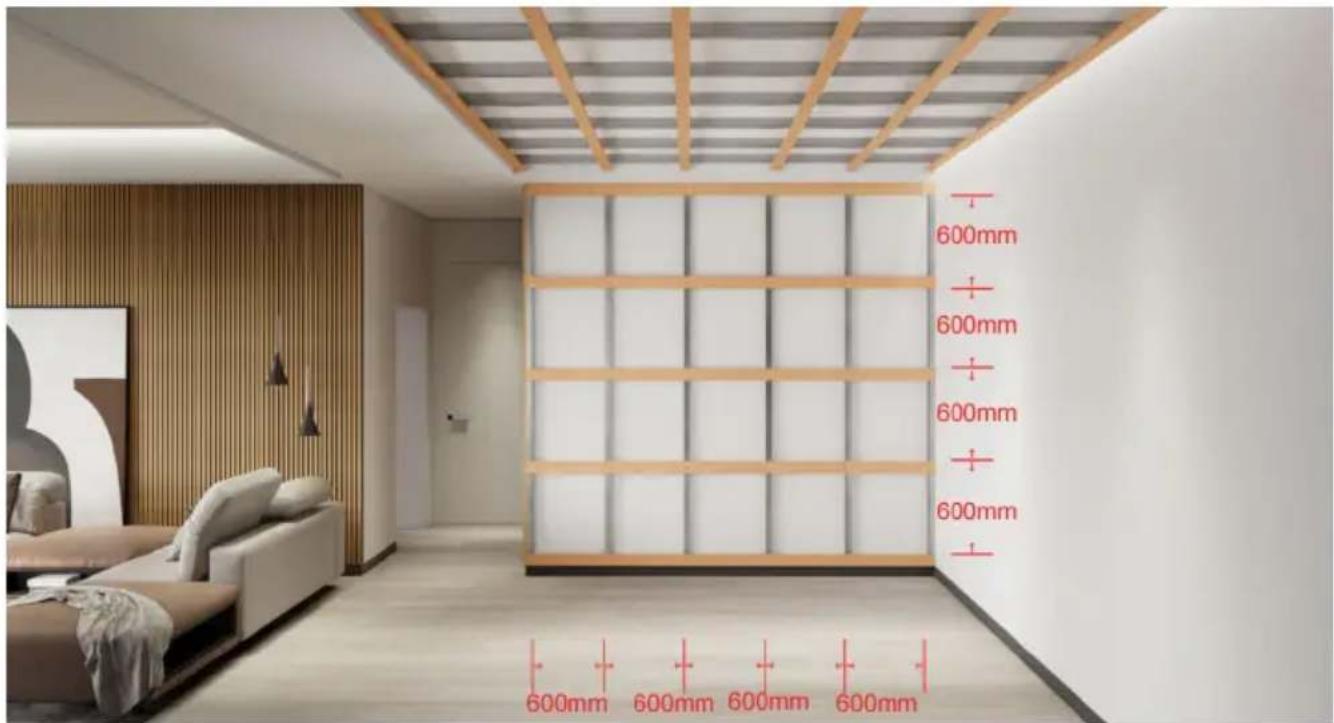

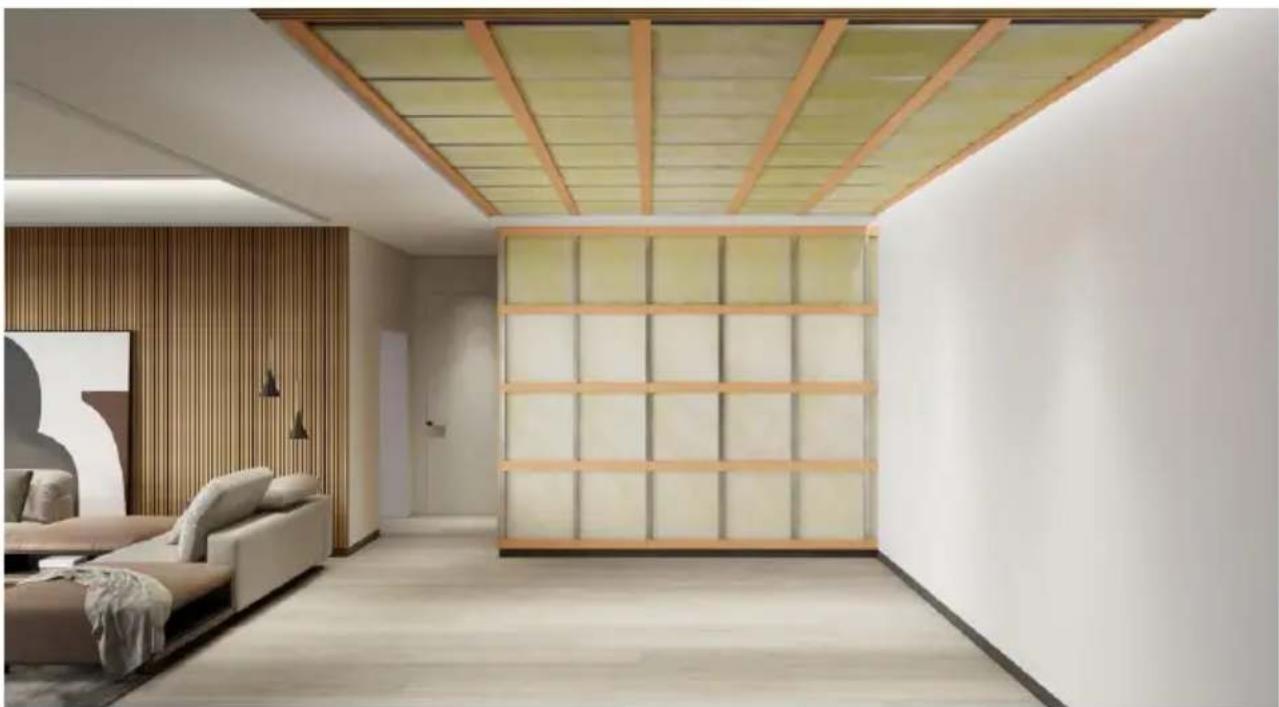

Step 2: Installing sound absorbing device;

A: We recommend installing the keel initially, then the sound absorption wool, and then the wooden racks and panels. With this combination, will get the highest sound absorption.

B: Inserting the sound absorption wool between the keel and wooden r

Modern interior living room with wooden ceiling panel, beige wall panels, and minimalist furniture (no text or symbols visible)

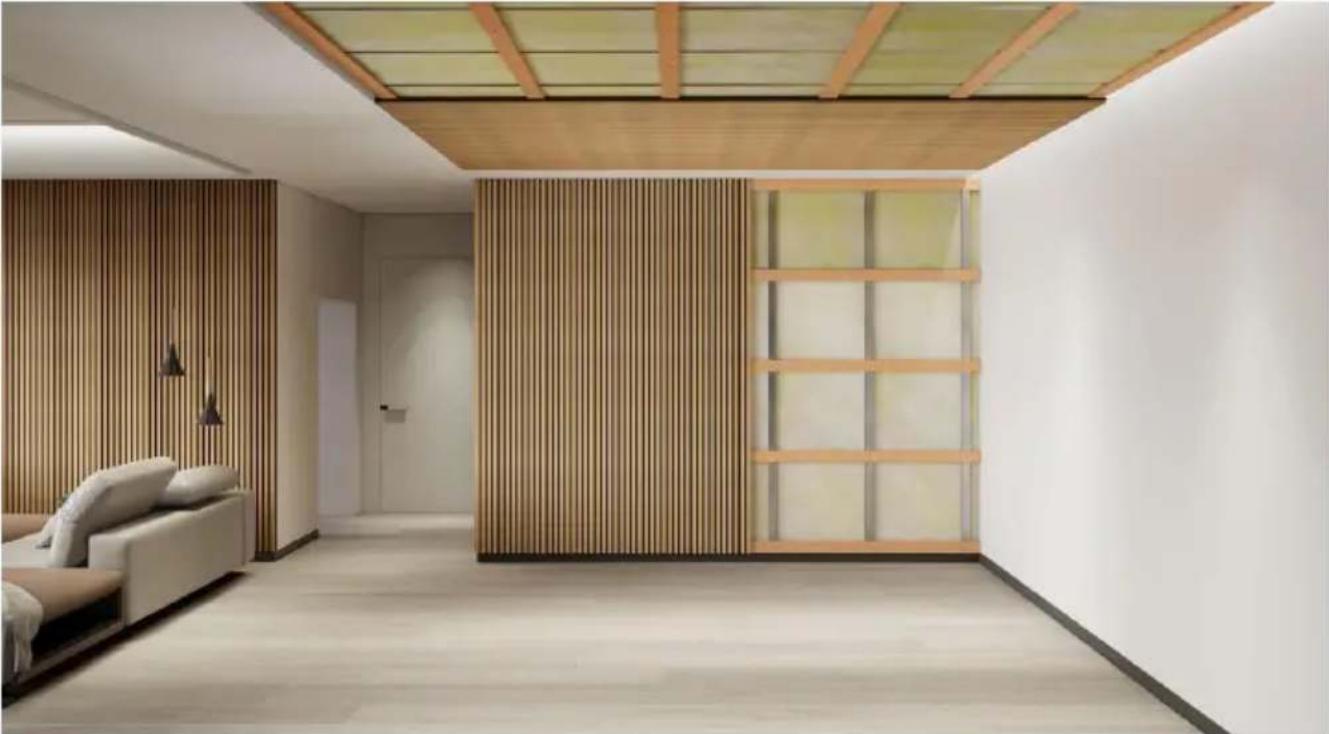

Step 3:

Mounting the panel

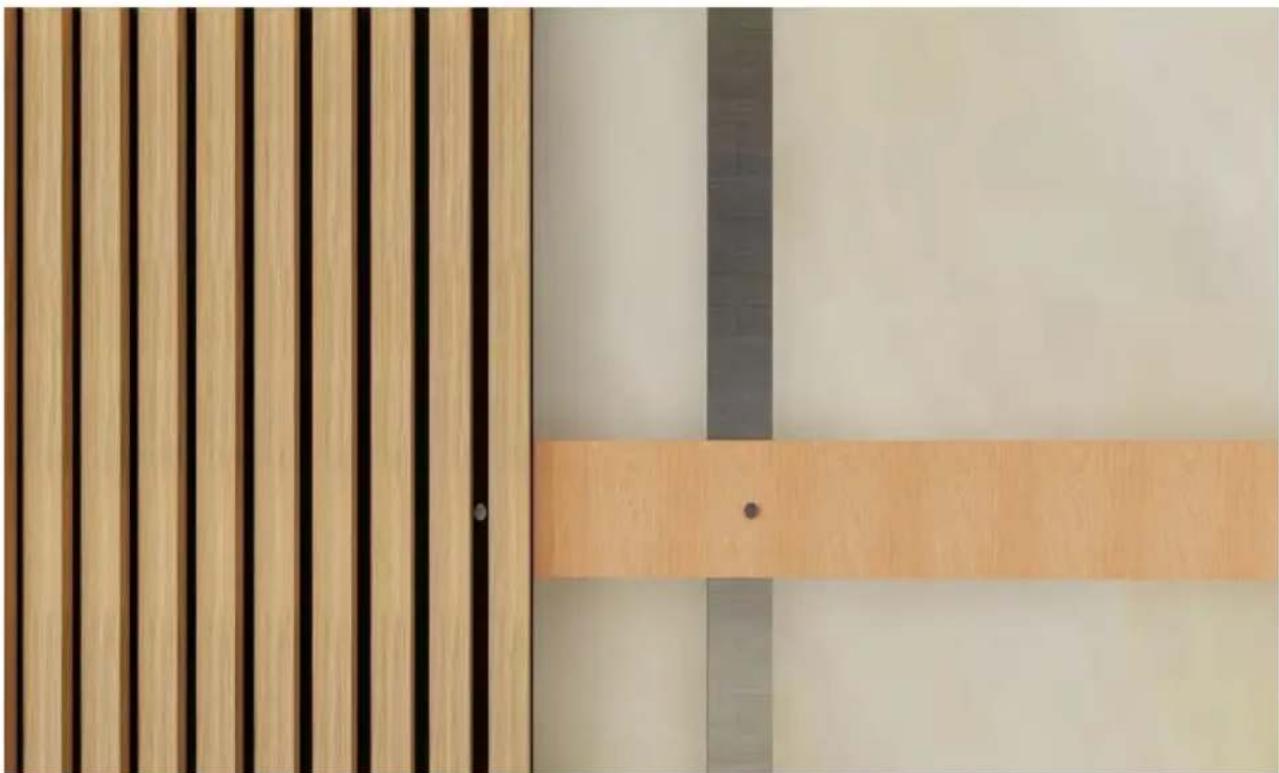

• Using the electric screwdriver to screw through the black felt into the wooden racks.

Interior view of a room with wooden panel and vertical black stripe (no text or symbols)

Note: Please refer to the above simple screw installation method - When assembling in continuation to each other, please note that the side of the one panel is seamless with the slat side of the following

Modern interior hallway with wooden paneling, beige sofa, and wall-mounted storage unit (no text or symbols visible)

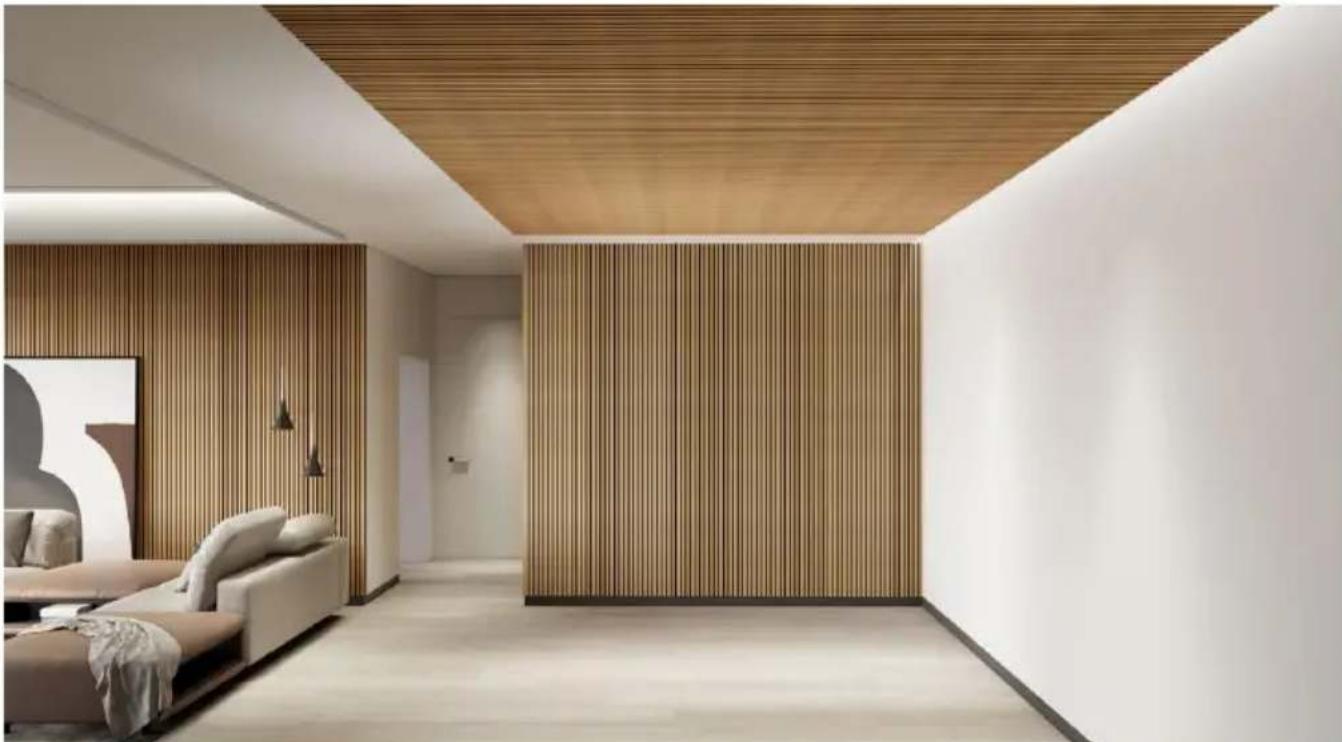

Step 4: The wall and ceiling are fully installed now.

Modern interior hallway with wooden paneling, beige sofa, and white walls (no text or symbols visible)
