ACOUSTIC MDF SLAT WALL PANELS
MODEL:LYW8292C1206 /LYW8292C2402/LYB8210C1206/LYB8210C2402/LYY8438S2402/LYY8438S1206/LYS30942402
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
Model:LYW8292C1206/LYW8292C2402/LYB8210C1206/LYB8210C2402/LYY8438S2402/LYY8438S1206/LYS30942402

NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you as there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
- Please read and understand this manual carefully before using the Acoustic MDF slat wall panels
The installation should be done by an adult, and children should not without supervision.
- Please ensure that the Acoustic MDF slat wall panels is firmly insta otherwise he may fall off and cause harm to people.
- Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
- For safety purposes, prohibit separate glue to mounting panels on the ceiling. Due to uneven glue or poor quality, the panel will be warped off.
PARAMETER LIST

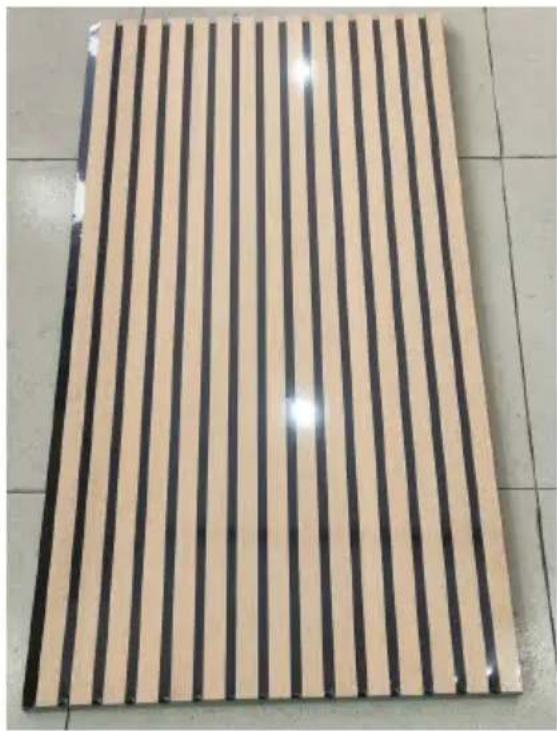

| Model | Size | QTY | Color |

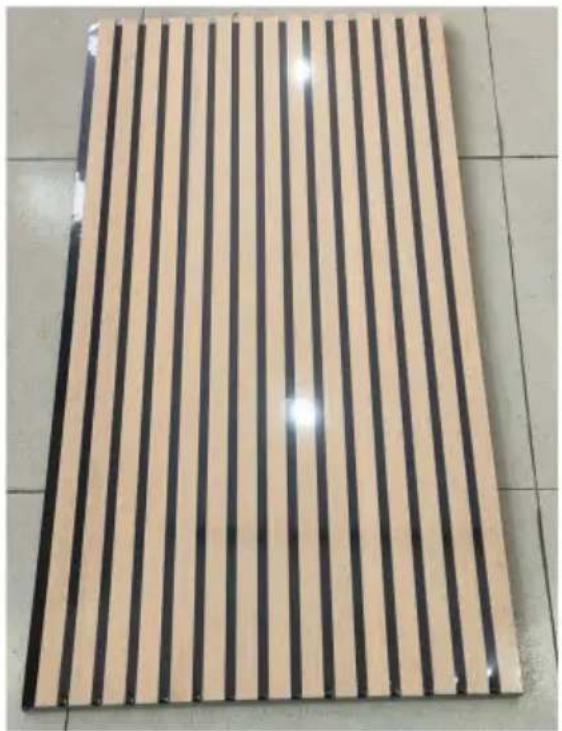

| LYW8292C1206 | 1200*600*21mm | 4 | walnut |
| LYW8292C2402 | 2400*200*21mm | 4 | walnut |
| LYB8210C1206 | 1200*600*21mm | 4 | black oak |
| LYB8210C2402 | 2400*200*21mm | 4 | black oak |
| LYY8438S2402 | 2400*200*21mm | 4 | Light oak |
| LYY8438S1206 | 1200*600*21mm | 4 | Light oak |
| LYS30942402 | 2400*200*21mm | 4 | Silver wood |
Note: This product is equipped with 34 screws;
If there is any difference between the color of this product and the instruction manual, please refer to the physical object.
INSTRUCTIONS
Safety and Care Advice
-
Check you have all the components and tools listed on the following pages.
-
Remove all fittings from the plastic bags and separate them into the groups.
- Keep children and animals away from the work area, small parts c choke if swallowed.
• Make sure you have enough space to layout the parts before start - Parts of the assembly will be easier with 2 people.
Install the required tools
| Circular Saw | Electric Screwdriver | Wooden racks | Pencil |
| Band Tape | Stapler | Keel | Sound Absorption Wool |
| Knife | Structural Adhesive | Structural Adhesive Gun | |
| ·To reduce the likelihood of damaging your pro please ensure that your power drill is set on a torque setting. | |||
THE STANDARD INSTALLATION METHOD

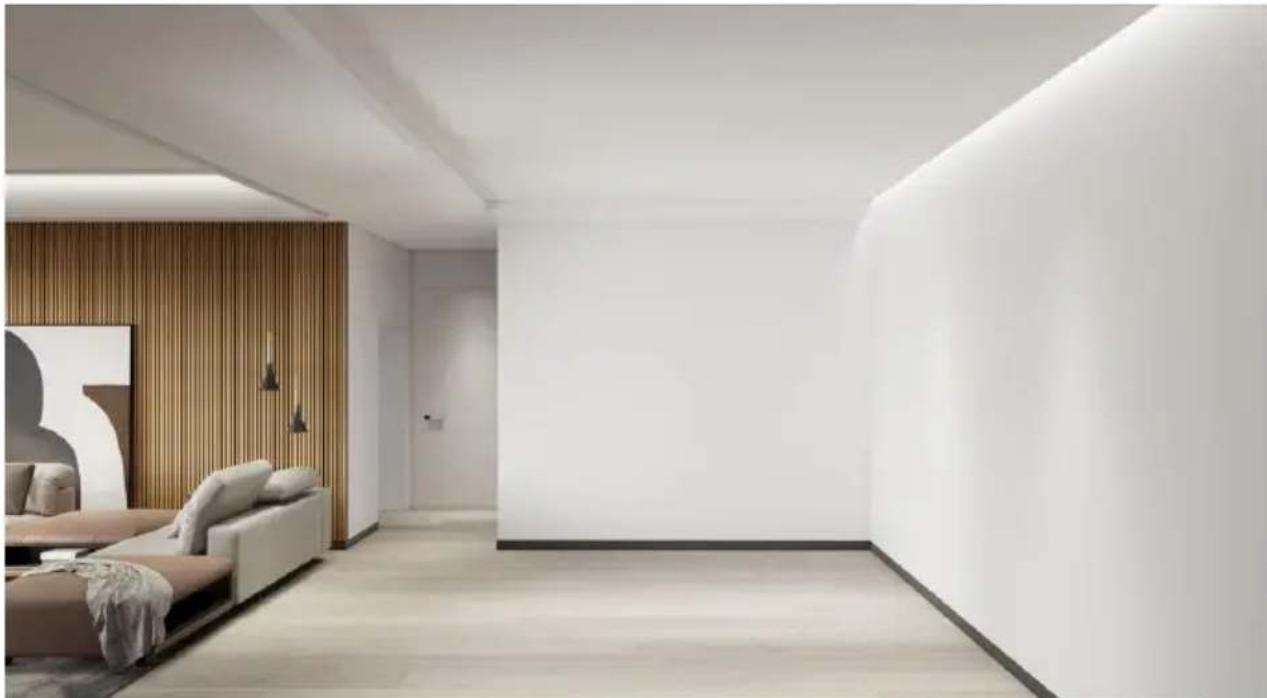

Step1:Preparing the wall or ceiling
- Make sure the surfaces are clean and dry, without nails and screw

Step 2:

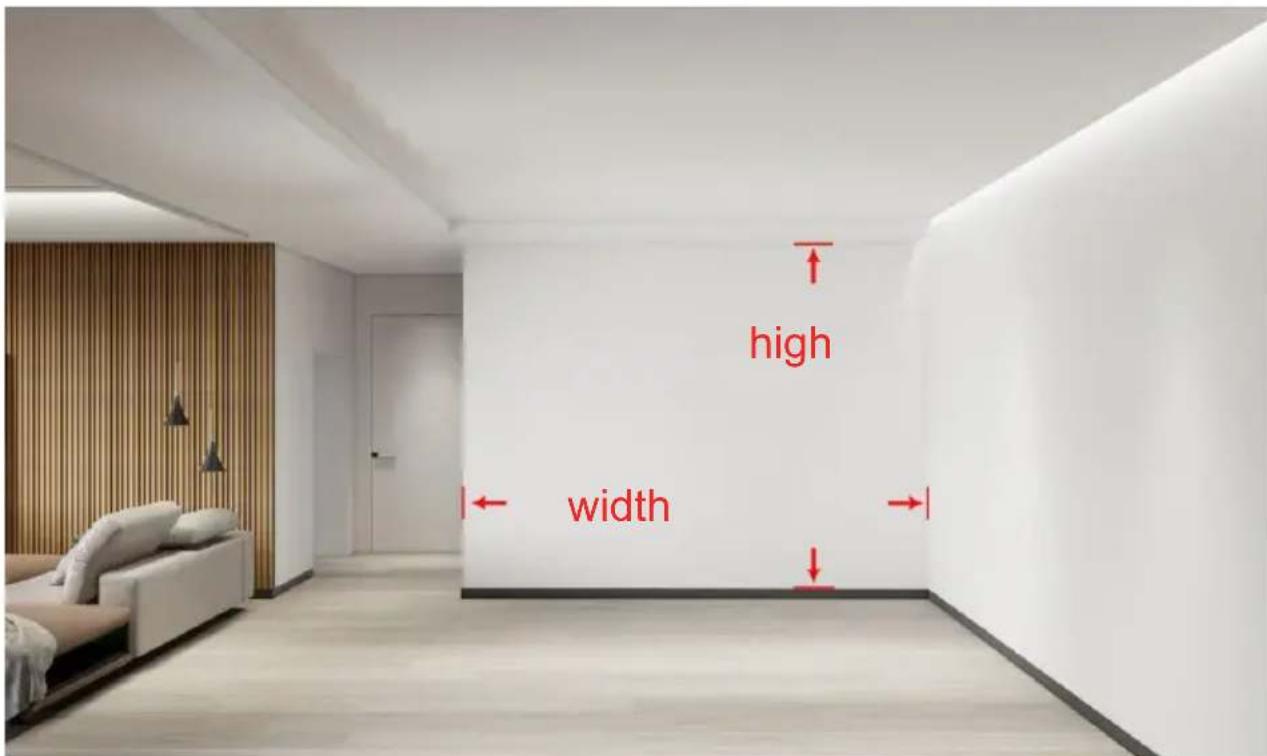

Measuring the height and width

Step 3:Cutting the panels

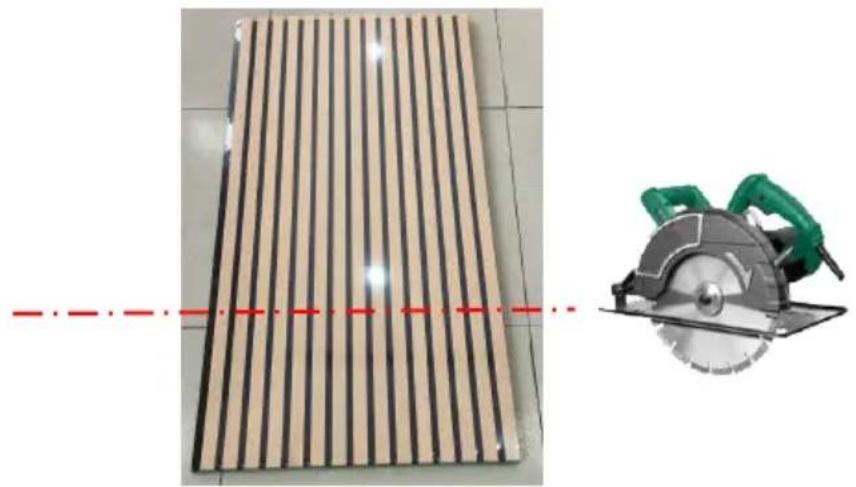

- Cut products with circular saws and knives for your size requirement need.

Step 4:Mounting the panel

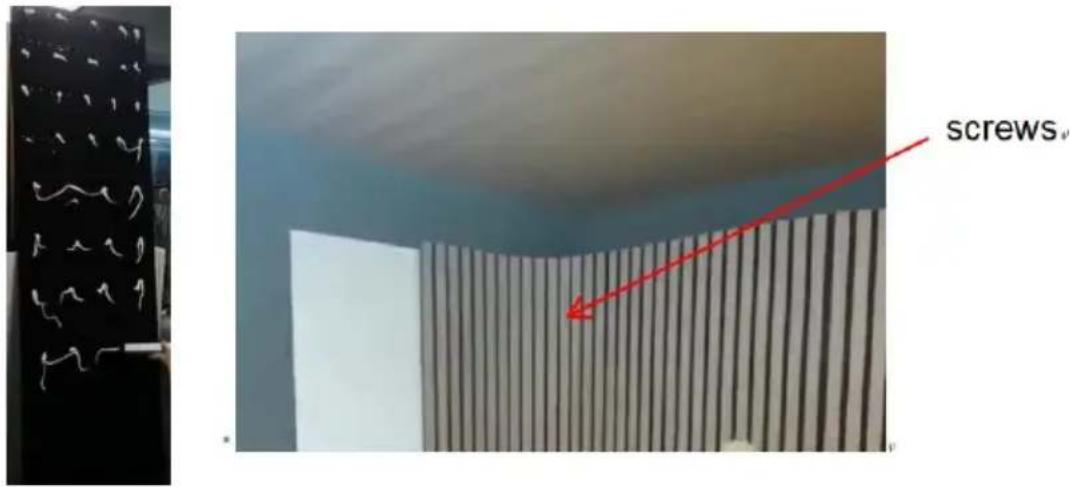

A:Simple installed on the wall, can use the glue; first fix the glue or back of the product, and then paste on the wall;If pasted on a curve use screws in the curved position to attach the product to the wall.

B.Use 8 screws to install on the wall; The screws should be fixed thr the black part, which is more beautiful.
Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402
And 8 screws are required.(Fig. 1);
Model LYW8292C1206, LYB8210C1206, LYY8438S1206 And 8 screws are required. (Fig. 2.)

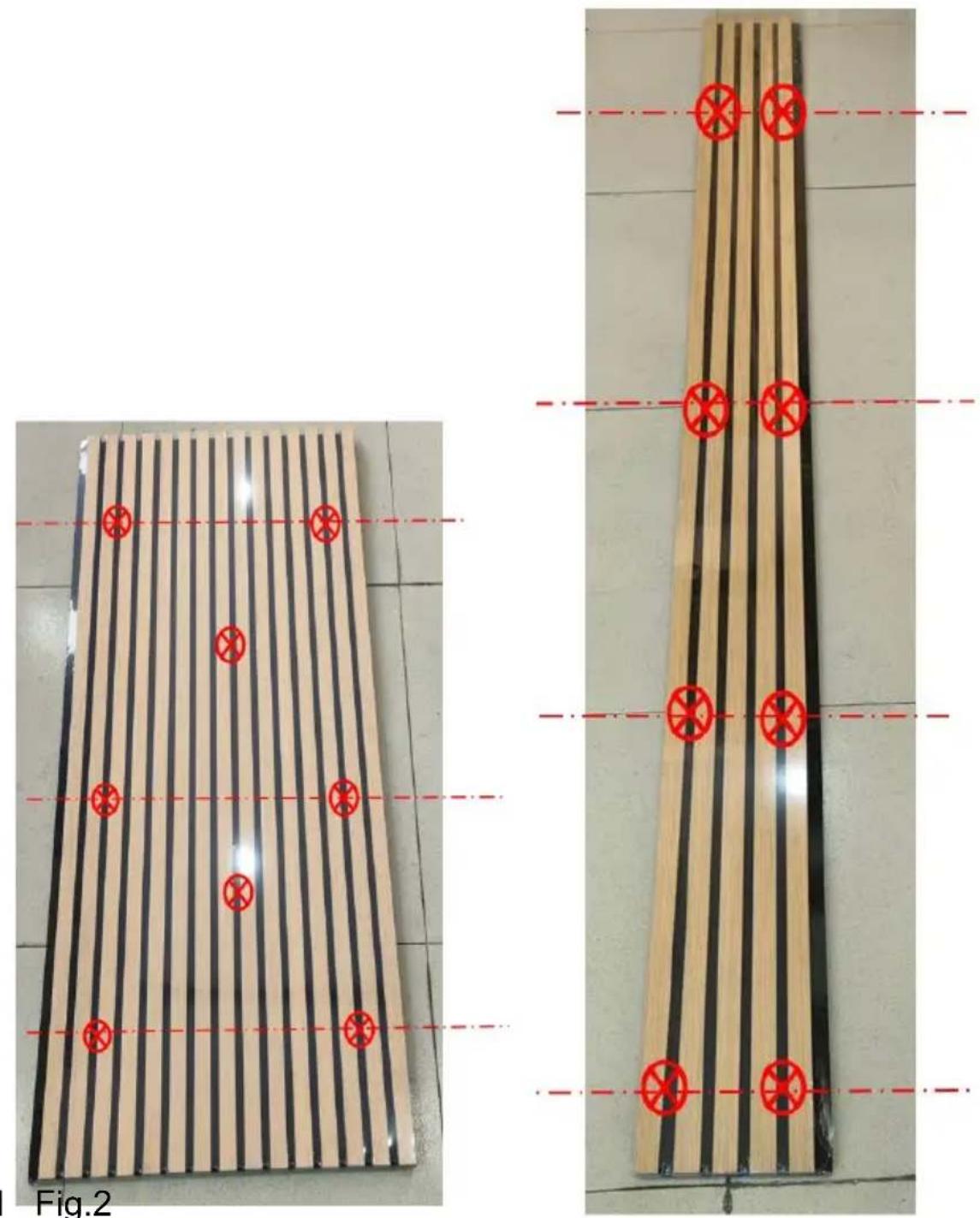

Fig.1 Fig.2
Note: If you need to install the product on the ceiling you need to be screws to reinforce the installation.

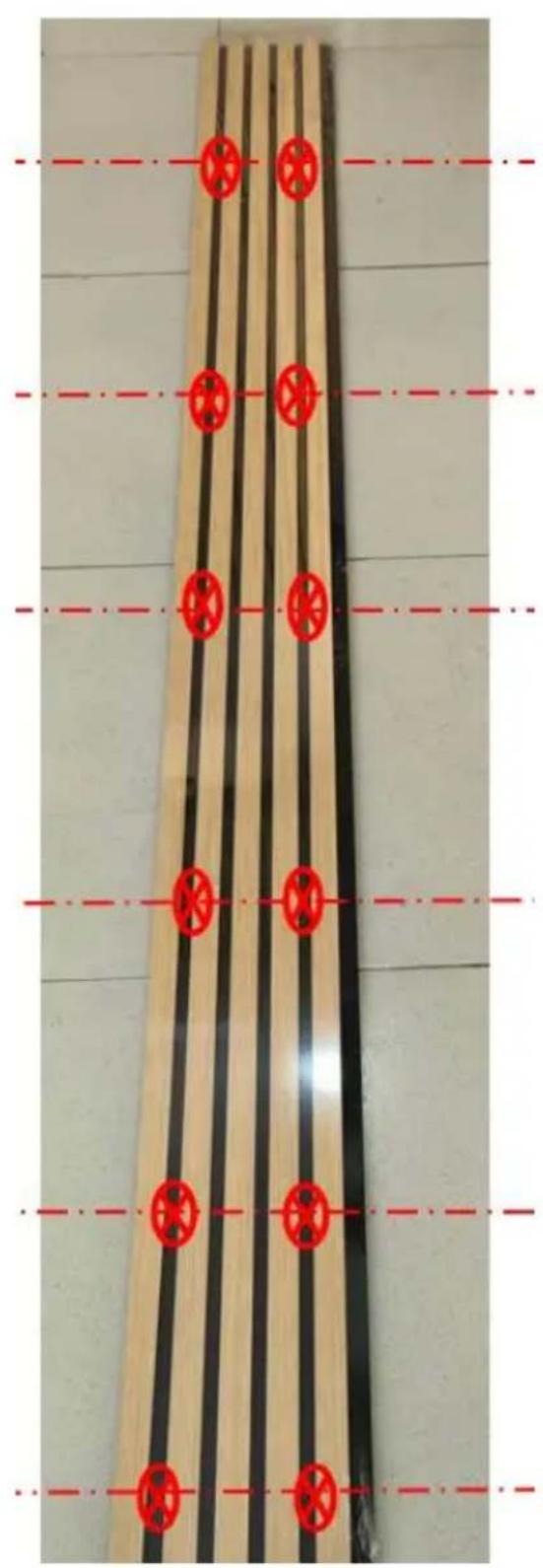

Model LYW8292C2402, LYB8210C2402, LYY8438S2402, LYS30942402
And 20 screws are required.(Fig. 3);
Model LYW8292C1206, LYB8210C1206, LYY8438S1206 And 12 screws are required. (Fig. 4.)

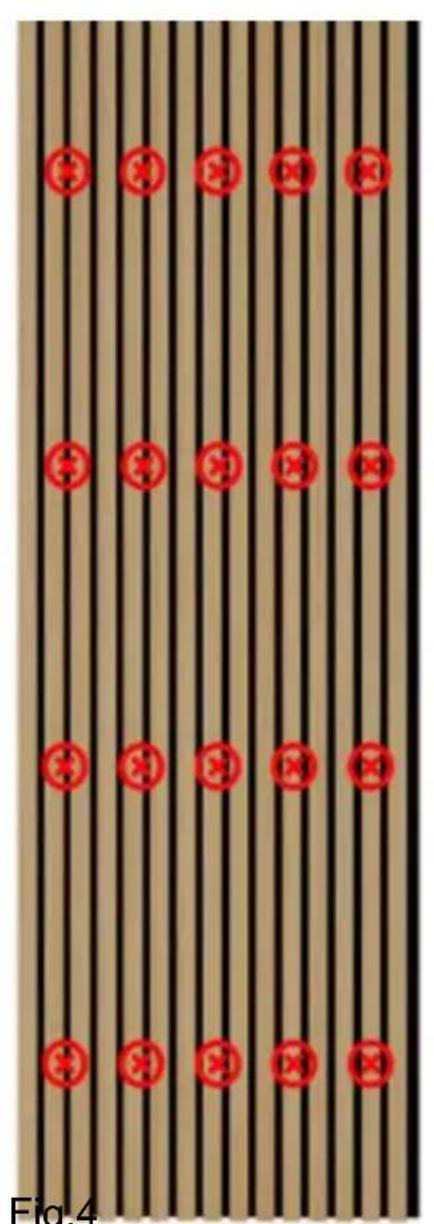

Fig.3 Fig.4

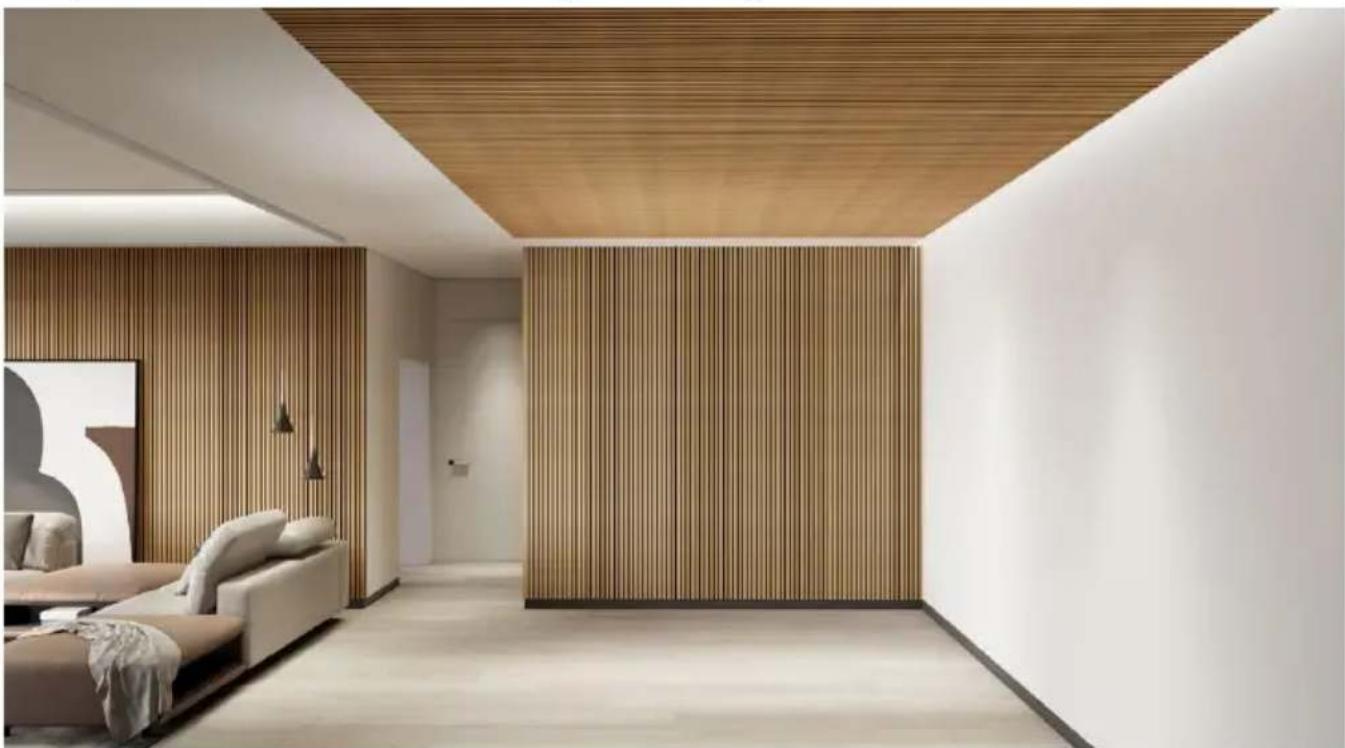

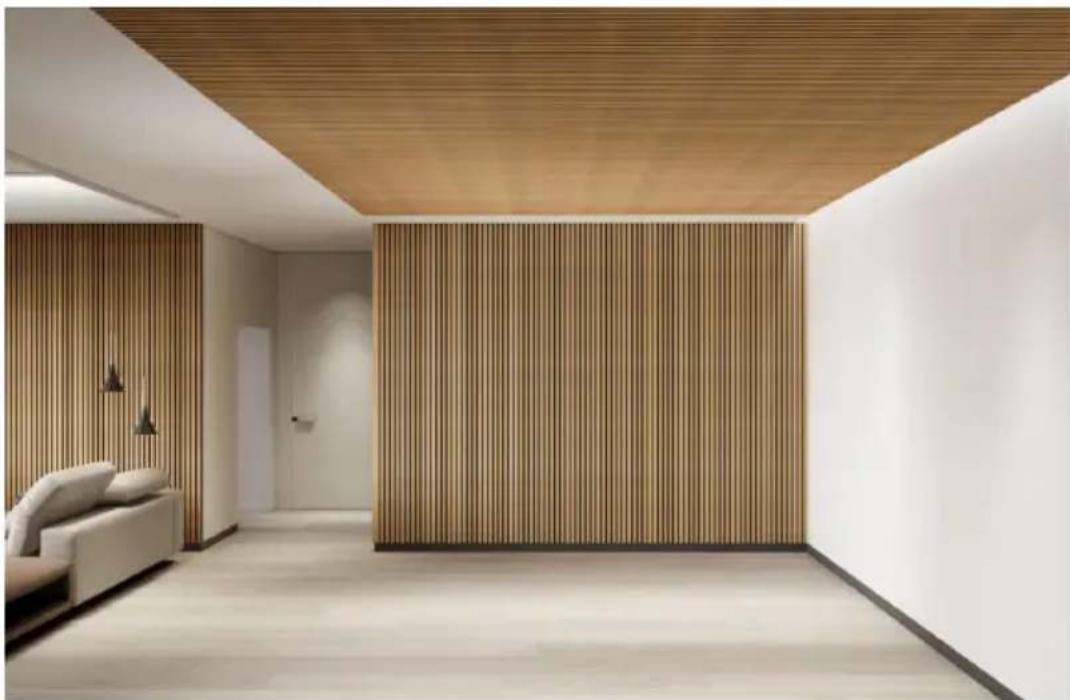

Step5:The end result of the installation

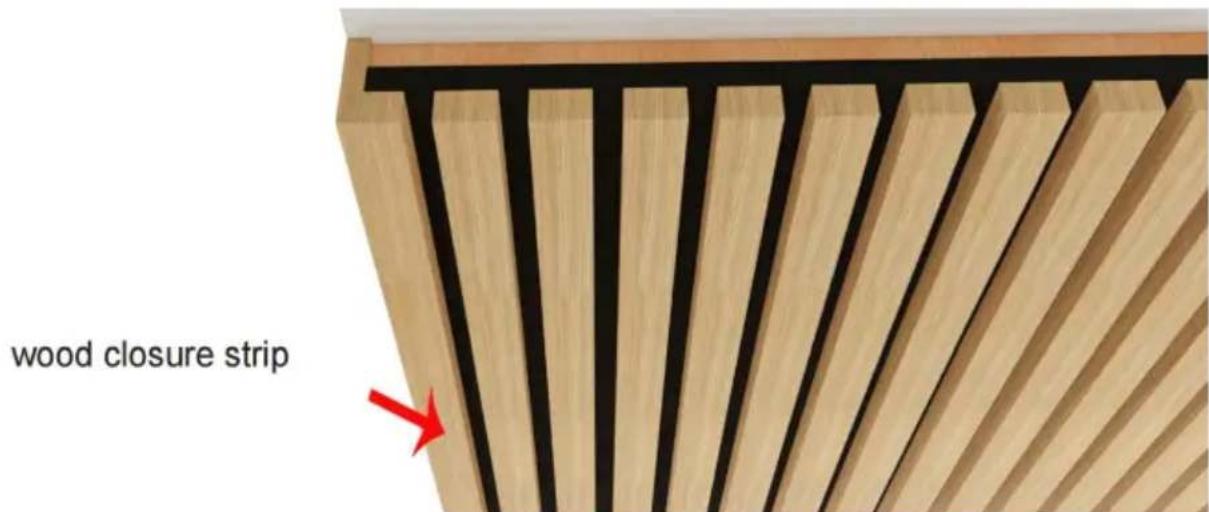

Note: If necessary, install a wooden seal at the end of the panel to aesthetics; but the wood seal shall be purchased extra yourself.

THE INSTALLATION METHOD FOR HIGHEST SOUND ABSORPTION

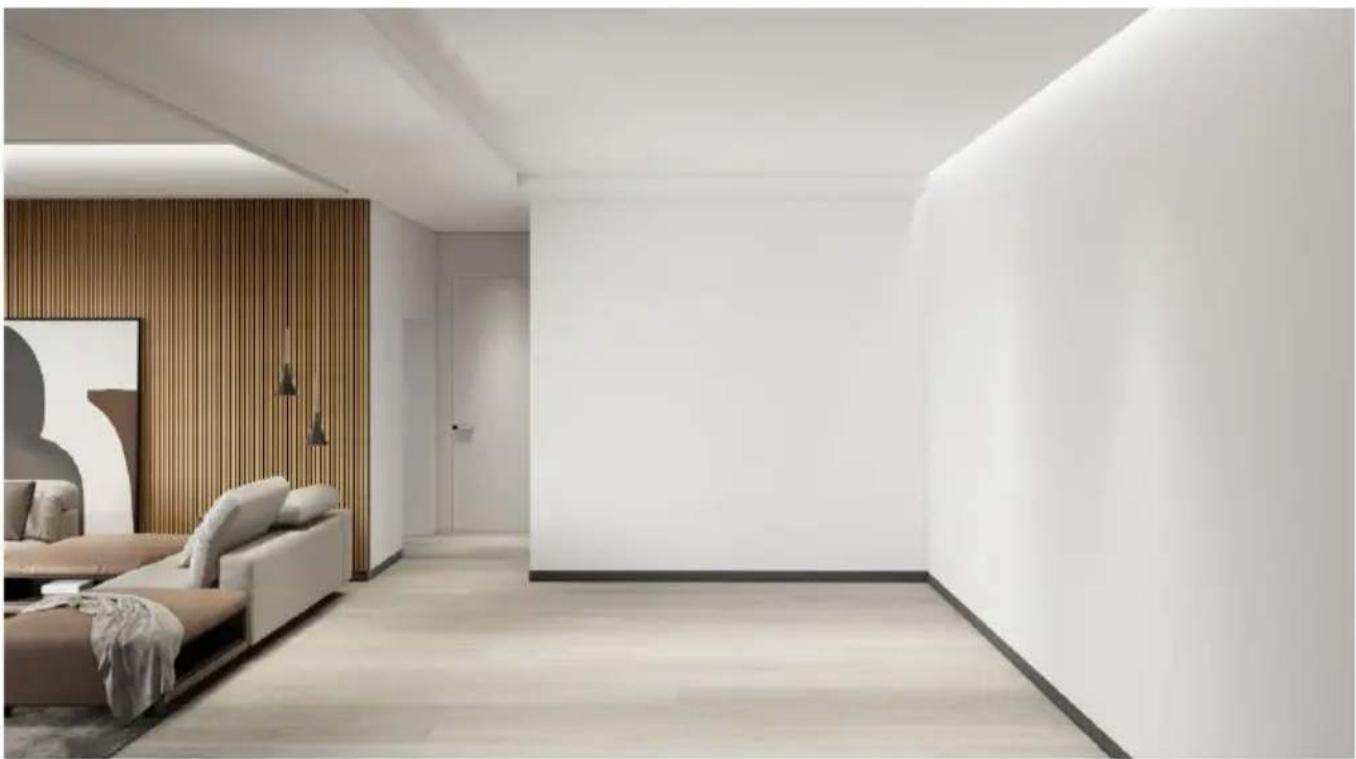

Step 1: The preparation of wall or ceiling

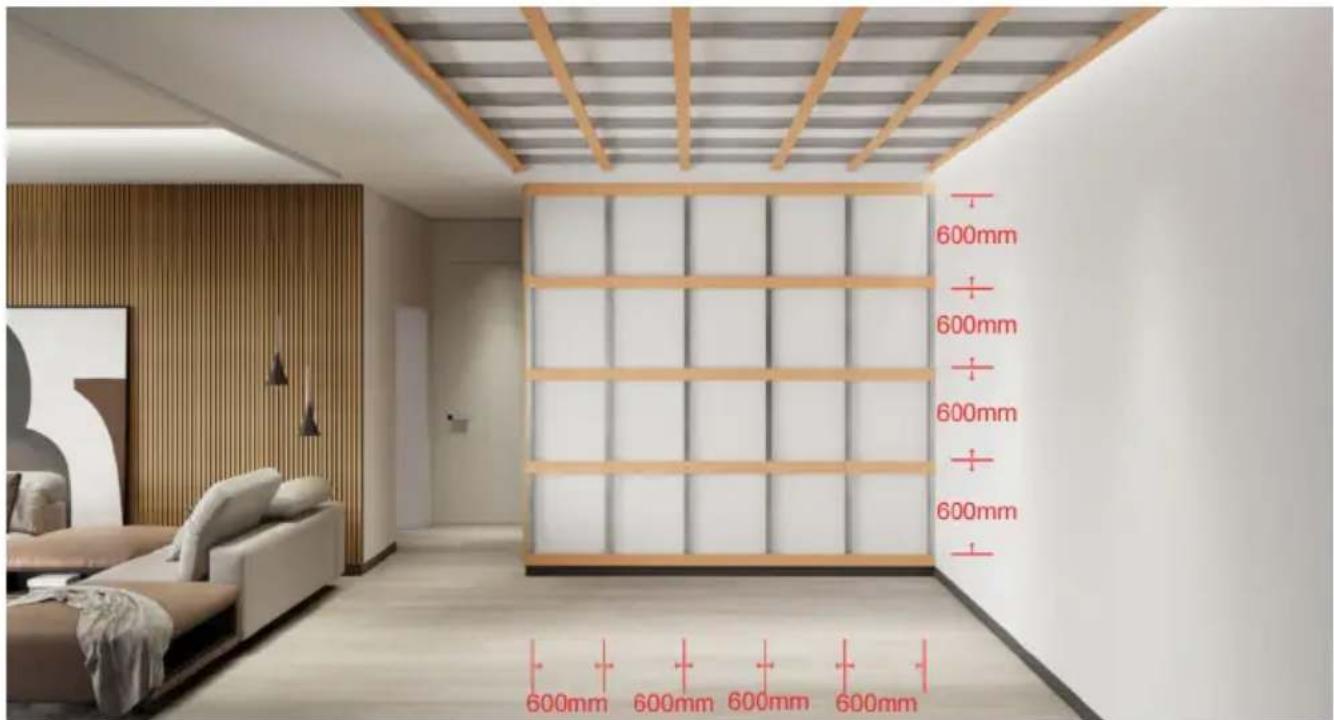

Step 2: Installing sound absorbing device;
A:We recommend installing the keel initially, then the sound absorption wool, and then the wooden racks and panels. With this combination, will get the highest sound absorption.

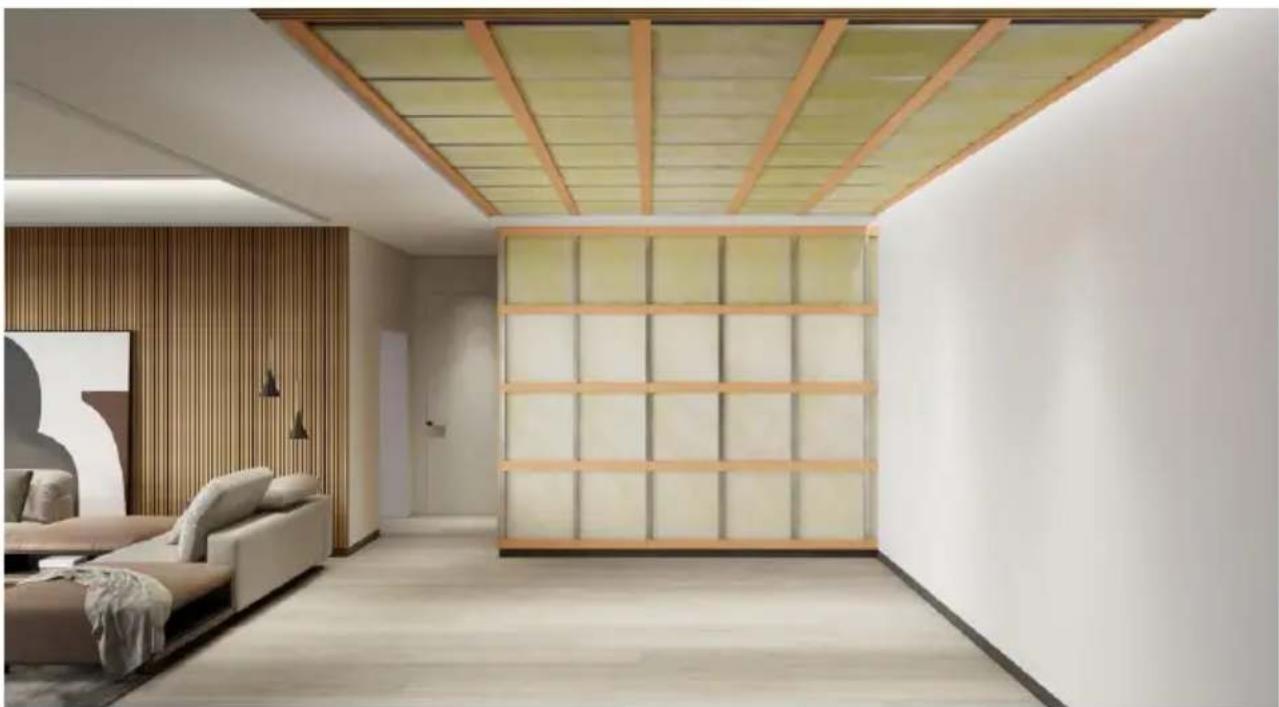

B:Inserting the sound absorption wool between the keel and wooden i

Step 3:
Mounting the panel

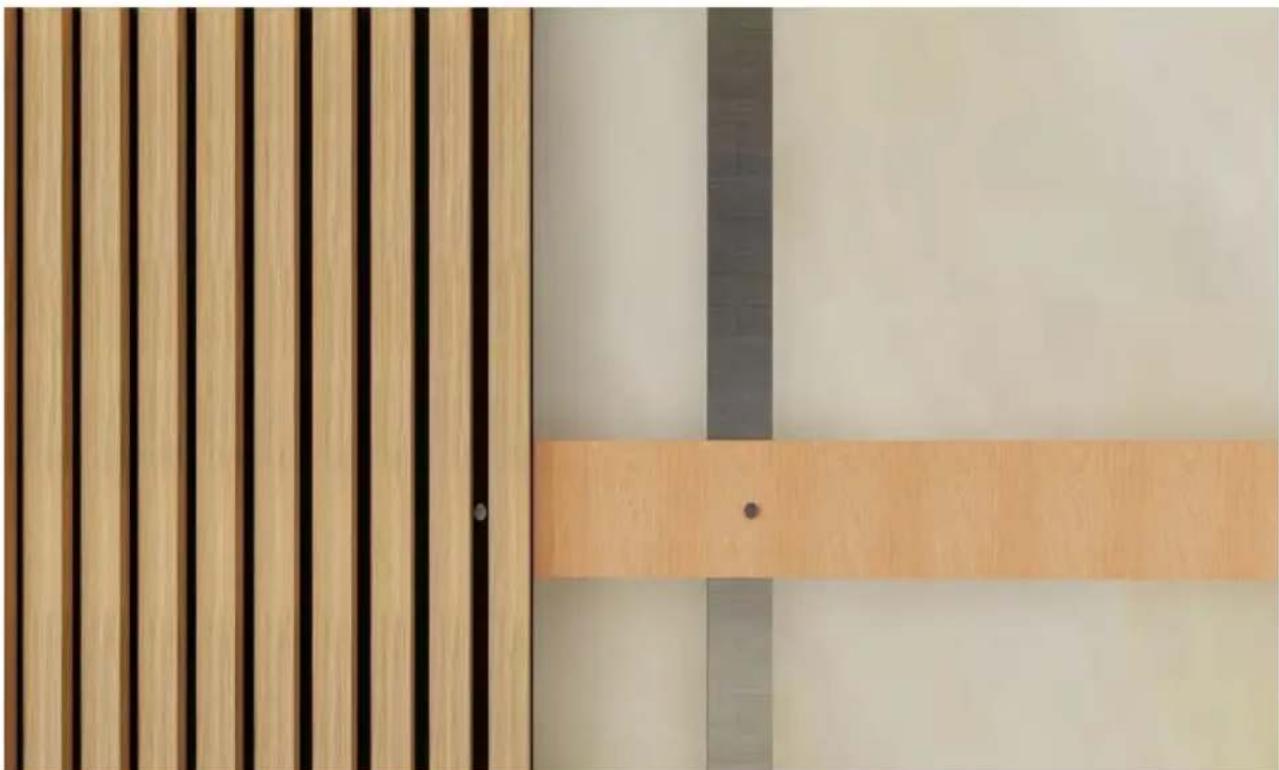

- Using the electric screwdriver to screw through the black felt into the wooden racks.

Note: Please refer to the above simple screw installation method.
- When assembling in continuation to each other, please note that the side of the one panel is seamless with the slat side of the following

Step 4:The wall and ceiling are fully installed now.

Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
