LD-140 - Teaching mannequin Vevor - Free user manual and instructions

Product Type	Teaching Mannequin
Brand	Vevor
Model	LD-140
Material	PVC (imported elastic thermoplastic materials)
Gender	Male and Female (convertible)
Main Functions	Pressure ulcer care (4 stages), head care (shampoo, face, eyes, ears, mouth), holistic care (bathing, dressing, hot/cold therapy), tracheal intubation, suctioning, oxygen, nasal/oral feeding, gastric lavage, thoracic and abdominal anatomy, venipuncture, injections (subcutaneous, intramuscular, femoral), thoracentesis/abdominocentesis, enema, male/female catheterization, bladder irrigation, fistula drainage, hip injection, movable joints
Application Fields	Clinical teaching (medical universities, nursing schools), continuing education for hospital staff, medical popularization
Maintenance	Clean with clean water after use; avoid chemical solvents; store in a ventilated and dry place
Safety	Read instructions before use; after use, assemble and store vertically; avoid high temperatures and direct light; use a neutral detergent
Included Spare Parts	Left and right palm models, shin model, clothing, 10 ml syringe, urinary catheter, suction tube, anal cannula, gastric tube, bottles (x3), infusion bottle, wig, genital organ, pressure ulcer module (x4)
Warranty	1 year on manufacturing defects; lifetime maintenance (shipping costs borne by user)
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai, China

Frequently Asked Questions - LD-140 Vevor

What types of care can be simulated with the LD-140 mannequin?

The mannequin can simulate many nursing procedures: pressure ulcer care (4 stages), head care (shampoo, face, ears, mouth), holistic care (bathing, dressing, cold and heat therapy), tracheal intubation, suctioning, oxygen therapy, nasal and oral feeding, gastric lavage, venipuncture, injections (subcutaneous, intramuscular, femoral), male and female catheterization, bladder irrigation, and more.

How to clean the mannequin after use?

After each training session, clean the mannequin with clean water. Avoid chemical solvents and abrasive cloths. Use a neutral detergent if necessary. Make sure to drain any residual liquid from the stomach, intestines, or bladder after corresponding exercises.

What is the warranty period for the Vevor LD-140 mannequin?

The warranty is one year from the date of purchase, covering manufacturing or original material defects (excluding artificial damage). The company also offers lifetime maintenance, with shipping costs borne by the user.

Can the mannequin be used for catheterization training?

Yes, the LD-140 mannequin allows training for female and male catheterization, as well as bladder irrigation. Interchangeable genital organs are provided for both sexes.

What are the replaceable parts of the mannequin?

Many parts are replaceable: palm models (left and right), shin model, wig, genital organ, pressure ulcer modules (x4), as well as accessories such as urinary catheter, gastric tube, etc. This allows for increased durability.

How to perform intramuscular injection on this mannequin?

The mannequin has specific injection sites: the deltoid muscle for subcutaneous injection, the lateral femoral muscle, and the hip for intramuscular injection. Use the provided syringes to practice on these realistic areas.

Does the mannequin allow simulation of pressure ulcers?

Yes, the mannequin includes four pressure ulcer modules representing the four clinical stages: congestion/redness, inflammatory infiltration, superficial ulcer, and necrotic ulcer. It also shows associated pathologies such as sinuses, necrosis, and pressure sores.

What accessories are included with the mannequin?

The box contains: clothing, 10 ml syringe, urinary catheter, suction tube, anal cannula, gastric tube, three bottles, one infusion bottle, a wig, an interchangeable genital organ, and four pressure ulcer modules. These accessories allow performing most technical procedures.

Can the mannequin be used for tracheal intubation training?

Absolutely. The LD-140 mannequin allows direct training for tracheal intubation via oral route, as well as suctioning of expectorations and oxygen inhalation, making it suitable for emergency care.

How to store the mannequin when not in use?

After cleaning, store the mannequin in a well-ventilated, cool, and dry place, away from direct sunlight and high temperatures. Assemble all parts and keep it upright to extend its lifespan.

USER MANUAL LD-140 Vevor

Upgrade · The Home Creator Way

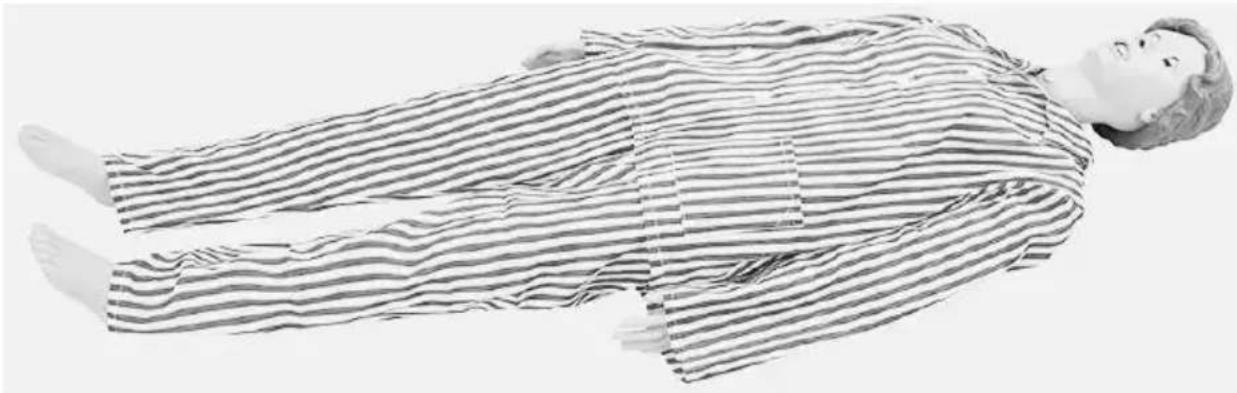

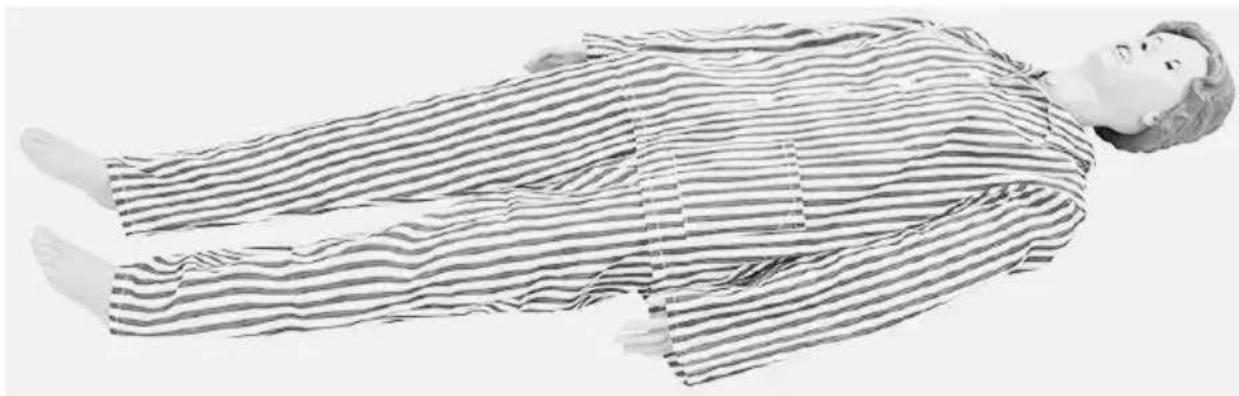

HUMAN BODY TEACHING MODELS USER MANUAL

MODEL: LD-140

MODEL: LD-140

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Read these instructions before using this product. Failure to do so can result in serious injury.
2. After use, please assemble all the parts and keep them vertically.
3. Avoid high temperature and direct sunlight.
4. Remove minor stains with neutral detergent. The use of alcohol, beer and other substances may damage the product.

SAVE THESE INSTRUCTIONS

INSTRUCTIONS

Model features: Male and female

This model is designed according to the requirements of clinical basic nursing operation and practice nursing technical outline. Using imported thermoplastic elastic-plastic materials, with integral nursing and disassembly parts for skill training teaching, is an ideal teaching practice model for clinical medical staff. It is characterized by vivid image, real operation, convenient disassembly, reasonable structure, durable, and parts can be replaced. It is the most advanced, the most complete function, and elegant new product.

Product functions

1. Simulation of the desirable supine kneeling position; after abduction, the two legs can be independently supported, and the left and right upper arms and calves can flexibly rotate. 2. Bedsore care: shows the 4 clinical stages of pressure sores. Stage 1: congestion and redness; Stage 2: inflammatory infiltration; Stage 3: shallow ulcer; Stage 4: necrotic ulcer. At the same time, it displays various pathological manifestations of pressure sores: inflammation, ulcers, sinuses, carrion, necrosis, eschar, etc. 3. Head

care: shampooing, face washing, eye and ear drops cleaning, oral care. 4. Holistic care: bed bath, sitting bath, changing clothes, cold and hot therapy. 5. Can conduct oral direct tracheal intubation operation training. 6. Sputum aspiration method. 7. Oxygen inhalation method. 8. Oral and nasal feeding method. 9. Gastric lavage. 10. Observation of the structure of vital organs in thoracic anatomy. 11. Observation of the structure of vital organs in abdominal anatomy. 12. Arm venipuncture, injection and infusion (blood). 13. Subcutaneous injection into deltoid muscle. 14. Injection into lateral femoris muscle. 15. Thoracic cavity and abdominal cavity puncture. 16. Enema method. 17. Female catheterization. 18. Male catheterization. 19. Female bladder irrigation. 20. Male bladder irrigation. 21. Fistula drainage. 22. Hip intramuscular injection. 23. Limb joints bend left and right, rotate and move up and down.

Scope of Application

1. Clinical teaching and practical operation training for students in medical universities, nursing schools and medical colleges.
2. Continuing clinical teaching practice training for hospital medical and nursing staff.
3. Popularize clinical medicine training in grassroots health units.

Maintenance, warranty

1. After the training of nasal feeding, gastric lavage, enema, catheterization and other functional operations, the residual liquid injected into the

stomach, intestine and

bladder should be emptied during the operation.

1. Keep the model clean. After the operation training, the model should be scrubbed and cleaned with clean water cloth, and chemical solvents should be prohibited.
2. If not used for a long time, please clean up the model and store it in a ventilated, cool and dry place to prolong the service life.
3. Within one year of the purchase date of this model or the warranty stipulated in the contract, if any quality problems occur due to failure in the manufacturing process or the original (except man-made), the company is responsible for free maintenance services, and promises lifetime maintenance (the cost is at the user's own expense).

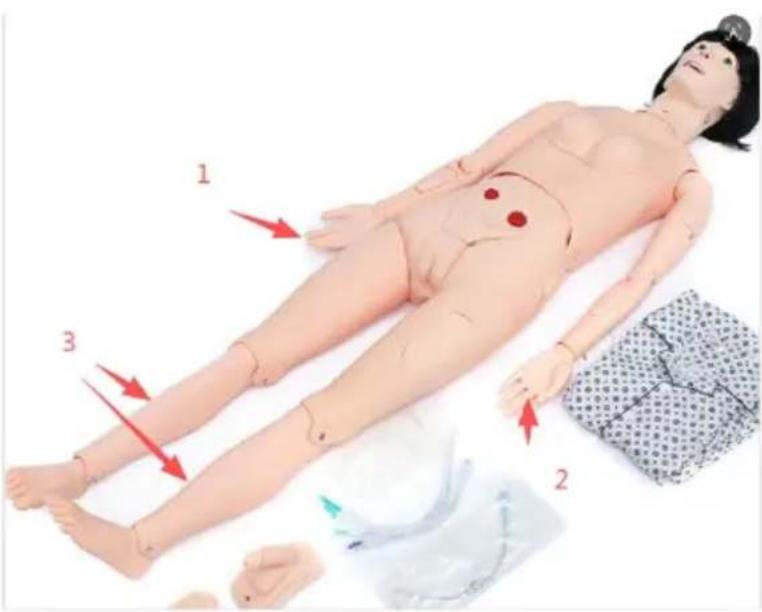

PARTS LIST

NO.	Name	PCS
1	Left Palm Model	1
2	Right Palm Model	1
3	Shin Model	2
NO.	Name	PCS
A	Clothes	1
B	Syringe 10ml	1
C	Urinary Catheter	1
D	Sputum Suction Tub	1
E	Anal Canal	1
F	Gastric Tube	1
G	Bottle	3
H	Infusion Bottle	1
I	Wig	1
J	Genital Organ	1
K	Bedsore Module	4

PRODUCT PARAMETER

Model	LD-140
Gender	Woman/Man
Material	PVC

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
