JZT50-4 - Acoustic panels Vevor - Free user manual and instructions

Brand	Vevor
Model	JZT50-4
Product type	Acoustic foam panels
Material	High-density acoustic foam (30 kg/m³)
Number of panels	4 pieces
Dimensions of each panel	1200 x 600 x 50 mm (L x W x H)
Shape	Pyramid
Density	30 kg/m³
Color	Gray (typical)
Main functions	Acoustic absorption, echo reduction, sound quality improvement
Recommended use	Recording studios, home theaters, offices, meeting rooms
Installation	Requires universal adhesive (not included); apply to a clean, dry wall; let rest for 24-48 hours after unpacking
Maintenance and cleaning	Dust regularly with a soft cloth; avoid excessive moisture; do not immerse
Safety	Keep out of reach of children and pets during assembly; do not use if tired or under influence
Spare parts & repairability	Monoblock product; no spare parts available; not repairable
Country of origin	China (Shanghai)
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122
Importer (United States)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Customer service	www.vevor.com/support

Frequently Asked Questions - JZT50-4 Vevor

How to install Vevor JZT50-4 acoustic panels?

After unpacking, let the panels rest for 24 to 48 hours in the open air to regain their shape. Clean the wall, apply universal adhesive (not included) to the back of the panel and press against the wall. Make sure the adhesive is evenly spread.

Can I speed up the reshaping of the panels?

Yes, you can soak the panels in water, gently wring them to remove excess water, then dry them in a tumble dryer on medium heat. This speeds up the shape recovery process.

Are the panels delivered with adhesive?

No, universal adhesive is not included. You need to purchase it separately. Make sure to spray or apply the adhesive evenly on the back surface of the panel.

What are the exact dimensions of a panel?

Each panel measures 1200 mm in length, 600 mm in width, and 50 mm in thickness (1200 x 600 x 50 mm). The JZT50-4 model includes 4 panels.

What is the purpose of the pyramid shape of the panels?

The pyramid shape increases the contact surface with sound waves, thus improving acoustic absorption and sound diffusion. It is ideal for reducing echo and reverberations.

Can I paint or tint the panels?

The manual does not provide specific recommendations for painting. In general, painting foam panels can reduce their acoustic effectiveness. It is best to use them as is.

How to clean the acoustic panels?

Use a soft cloth or a vacuum cleaner with a brush to remove dust. Avoid excessive moisture. If necessary, you can wipe them very lightly with a damp cloth, but do not soak them.

Are the panels fireproof?

The manual does not mention fire-resistant properties. It is recommended to keep them away from any heat source or open flame. For safe use, check local standards.

Can I cut the panels to fit specific spaces?

Yes, you can cut the panels to the desired shape using a sharp utility knife. Make sure to measure and mark carefully before cutting. Wear gloves to avoid irritation.

What is the warranty for these Vevor panels?

Vevor offers an electronic warranty certificate. For any technical assistance or claims, visit www.vevor.com/support. Warranty details depend on the place of purchase.

USER MANUAL JZT50-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

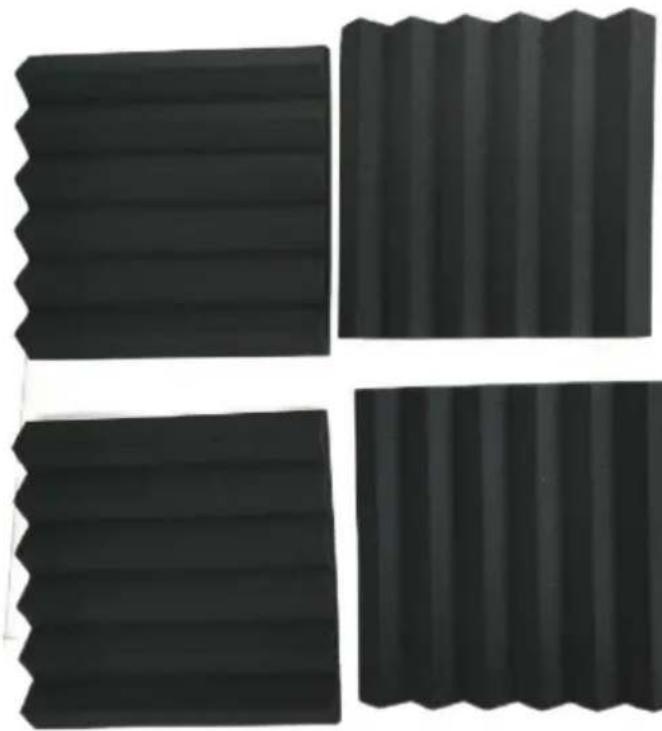

Acoustic Foam Panels

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36

/JZT50-24/JDM50-2/JZT50-4/JDM50-4

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36/JZT50-24 /JDM50-2/JZT50-4/JDM50-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you as there are any technology or software updates on our product.

SECURITY &WARNINGS

WARNING:

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructio Incorrect assembly could be hazardous.
3. Do not try to assemble the product when feeling tired or when using influence of alcohol, drugs or medication.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	Quantity	Size	density	Product texture
SJ25-80	80pcs	300*300*25mm	30kg/m3	triangle
SJ50-36	36pcs	300*300*50mm	30kg/m3	triangle
SJ50-50	50pcs	300*300*50mm	30kg/m3	triangle
SJ25-52	52pcs	300*300*50mm	30kg/m3	triangle
JZT50-36	36pcs	300*300*25mm	30kg/m3	Pyramid shape
JZT50-24	24pcs	300*300*25mm	30kg/m3	Pyramid shape
JDM50-2	2pcs	1200*600*50mm	30kg/m3	Egg shape
JZT50-4	4pcs	1200*600*50mm	30kg/m3	Pyramid shape
JDM50-4	4pcs	1200*600*50mm	30kg/m3	Egg shape

Note: The above product installation needs to buy their own additional universal glue.

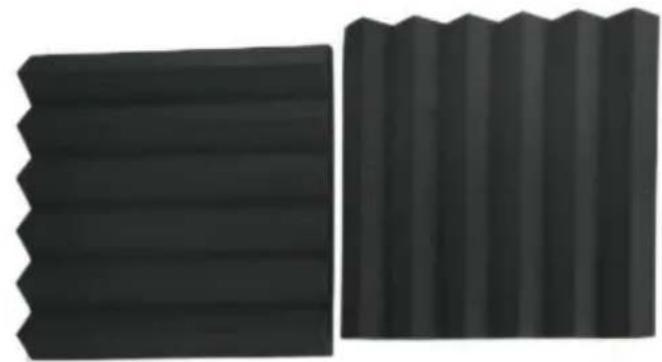

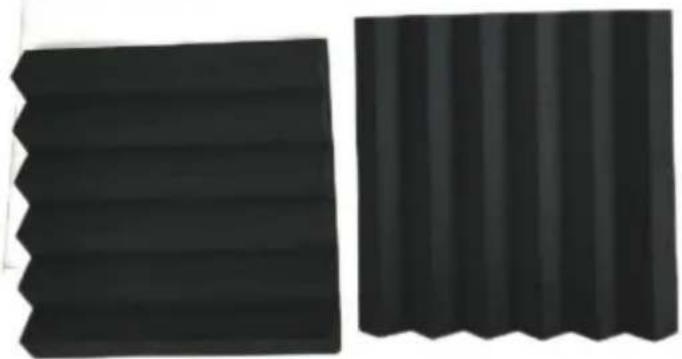

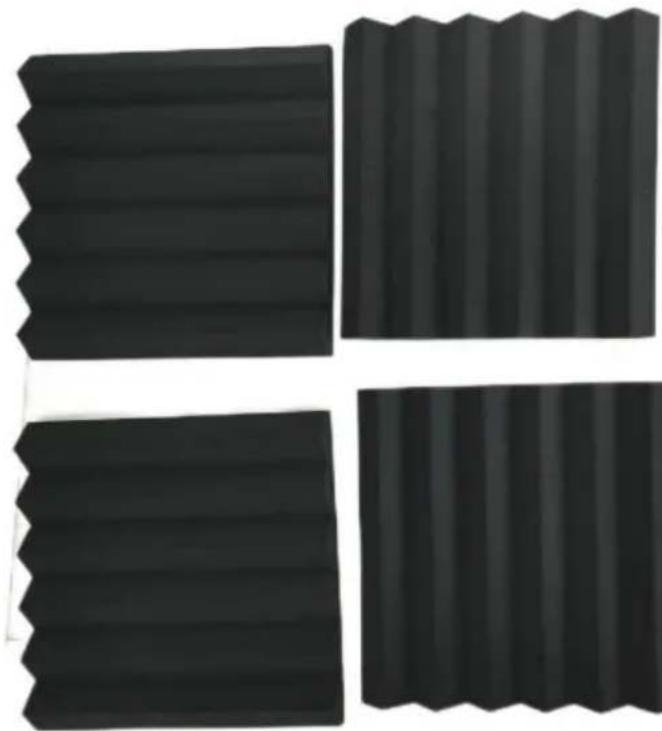

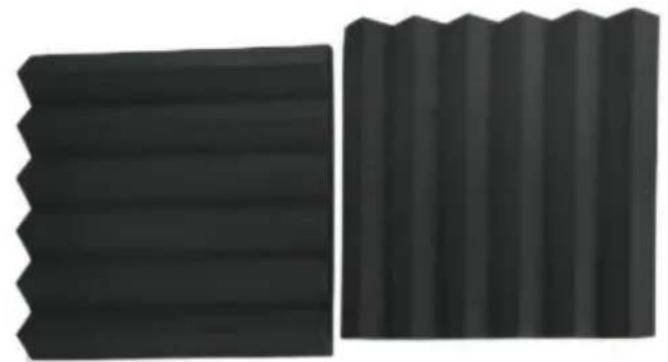

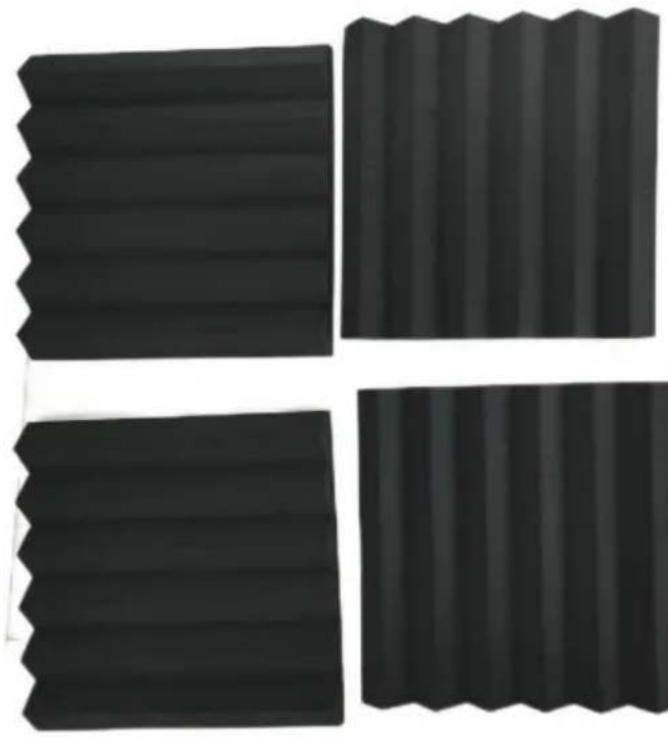

Note: The instruction manual picture is the model SJ 50-36, please r

the physical objects for other models.

INSTRUCTIONS

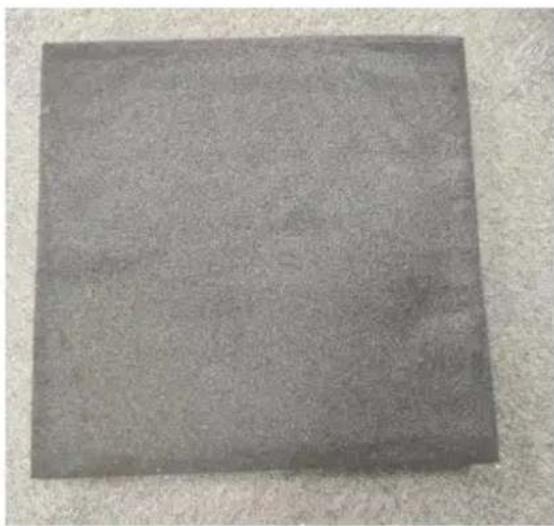

1. Open the box and remove the product from the compression bag. Spread the product on an open ground and stand for 24-48 hours.

Note: In order to make the product return to shape quickly, the produce be soaked in water, then twist dry the product. Finally, use the dryer medium-gear temperature to dry the product; if the product is wet, it affect the paste effect of the product;

2.Remove the wall of dust and dirt.
3. Apply universal glue on the back of the product and paste it on th

Note: Need to buy their own universal glue, glue spraying needs to be evenly.

Question	Ways of resolution
The product thickness is not u the standard	Product did not return to the sh it is recommended to stand for 24-48 hours
Product paste on the wall to	The wall is not clean, it is recommended to clean the wall dry, and apply the universal glue the product paste surface

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
