BrandVevor
ModelNGW4238
Product typeTubular rear wheel kit for sliding doors
Number of wheels4 pieces
Outer diameter of rail tube60.1 to 63 mm
Outer diameter of installation column101.6 mm
Plastic hubcap includedYes
MaterialSteel (metal parts) and plastic (hubcaps)
Fixation type8 U-bolts with nuts and washers
InstallationRecommended by two adults, wear gloves
MaintenanceClean regularly; apply anti-rust for outdoor use
SafetyCheck stability regularly; installation prohibited for children
RepairabilitySpare parts available through Vevor technical service
WarrantyElectronic warranty certificate at www.vevor.com/support
ManufacturerShanghai Muxin Muye Co., Ltd., Shanghai, China
OriginImported to Australia, United States, and EU

Frequently Asked Questions - NGW4238 Vevor

What is this wheel kit used for?
This tubular rear wheel kit is designed for sliding doors on tubular rails with a diameter of 60.1 to 63 mm.
How many wheels are included in the kit?
The kit contains 4 wheels complete, each with a plastic hubcap.
What are the compatible rail diameters?
The outer diameter of the rail tube must be between 60.1 and 63 mm. The installation column must have an outer diameter of 101.6 mm.
Is installation difficult?
Installation is simple but requires two adults and wearing protective gloves. Follow the provided installation guide.
What tools are needed for installation?
All fixings (U-bolts, nuts, and washers) are included. You will likely need a suitable wrench to tighten the nuts.
Can these wheels be used for exterior doors?
Yes, but it is recommended to treat metal parts with an anti-rust product to extend outdoor lifespan.
How to maintain the wheels?
Regularly clean dirt from the surface. For outdoor use, apply anti-rust on metal parts. Check stability periodically.
Are the plastic hubcaps included?
Yes, each wheel comes with a plastic hubcap already installed.
What is the maximum load capacity?
The manual does not specify an exact load capacity, but these wheels are designed for standard doors of medium size.
Where can I get spare parts or technical support?
Contact Vevor technical support via www.vevor.com/support to obtain spare parts or an electronic warranty certificate.

User questions about NGW4238 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Device or tool wheel in PDF format for free! Find your manual NGW4238 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NGW4238 by Vevor.

USER MANUAL NGW4238 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

REAR PIPE WHEELS

MODEL:NGW4238

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

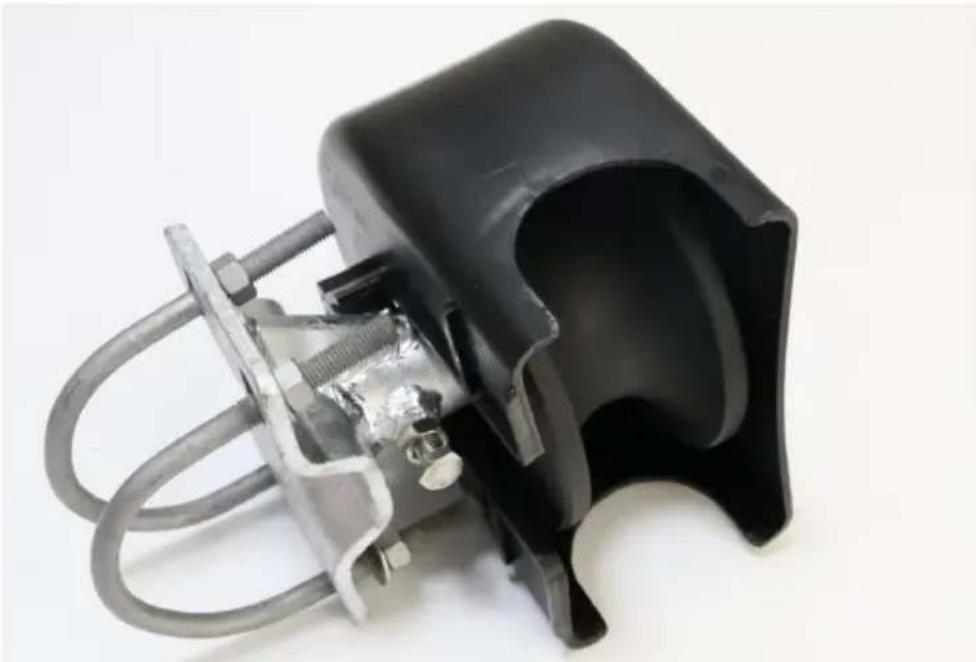

Model:NGW4238

Close-up of a black plastic mechanical component with coiled tubing and metal fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

  1. Products need to be installed by adults, and gloves are required due to the installation.
  2. Children are prohibited from installing the product.
  3. Check the product for stability regularly to avoid product damage caused by nut loosening.
  4. The product is outdoors for a long time, so it is recommended that metal parts be treated with rust prevention to better prolong the life of product.

PARAMETER LIST

ModelNGW4238
Number of kits4pcs
With a plastic wheel coverYes
The outer diameter of the rail pipe∅60.1-∅63mm
Install the outer diameter of the colur∅101.6mm

Installation guide

It is recommended that two adults install the product together. Please wear gloves when installing.

First remove the product from the carton, count the number of accessories: there are 4 wheel components and 8 U-shaped bolts.

Each U-shaped bolt comes with 2 individual nuts and 2 metal gaskets.

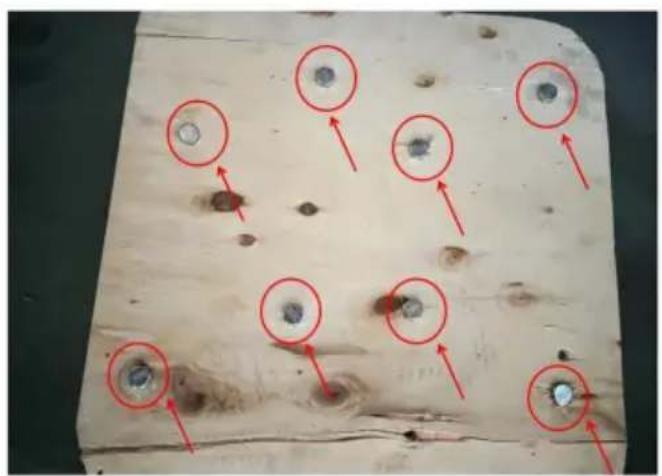

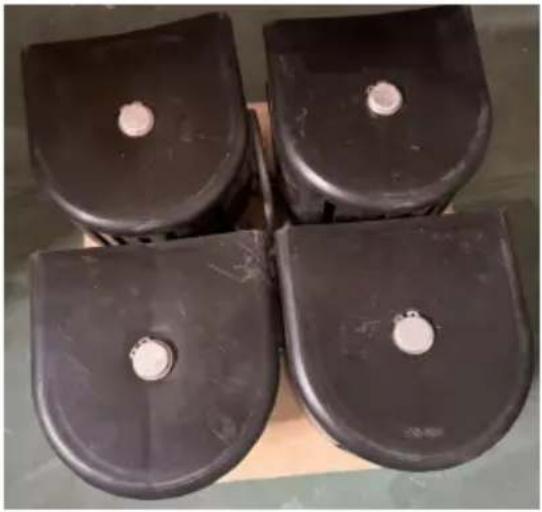

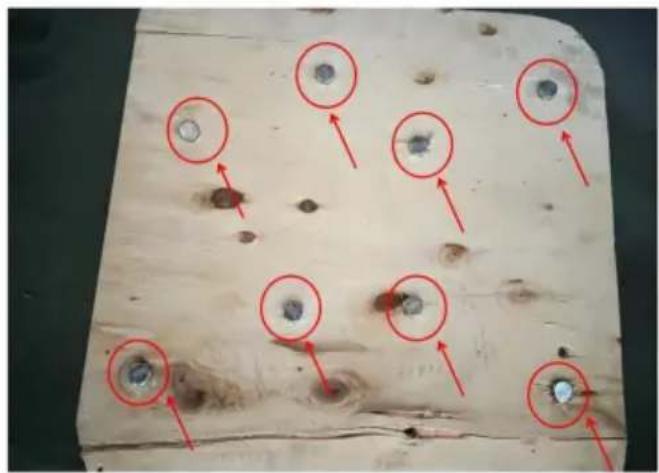

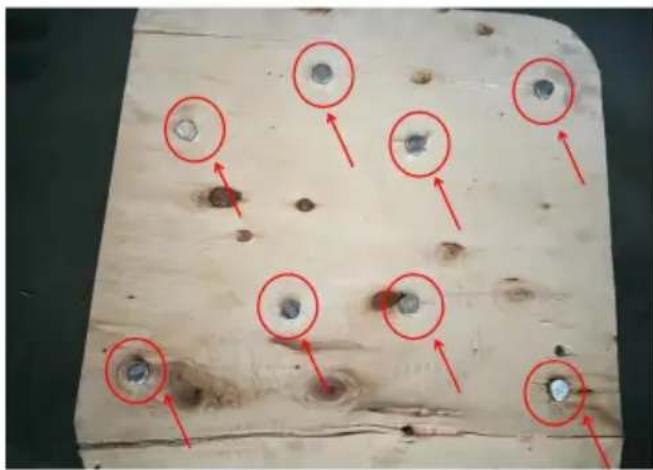

  1. The four rear pipe wheel components are installed on wooden boards. Please remove the bolts at the bottom of the wooden boards before removing the wheel. Each wheel is fixed by two bolts.

Four black plastic mechanical components with circular bases, arranged on a wooden surface (no text or symbols visible)

Close-up of a textured surface with several small circular features and red arrows pointing to them, no visible text or symbols.

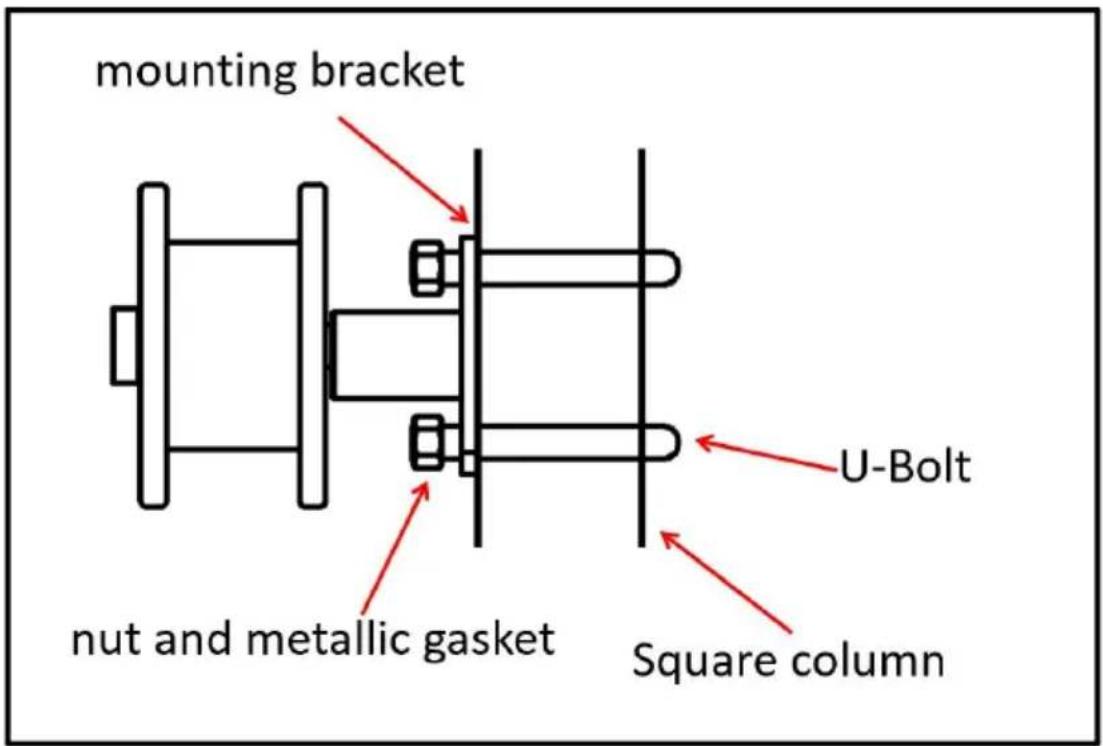

  1. Adjust the mounting height of the wheels according to the height of the door. Place the wheel on the door rail tube, cover the 2 U-shaped bolts first over the upright square column, then through the bracket, and finally through the metal gasket. Lock the U-shaped bolts with the nut. The wheels are now installed.

Mounting bracket, nut and metallic gasket, U-bolt, square column

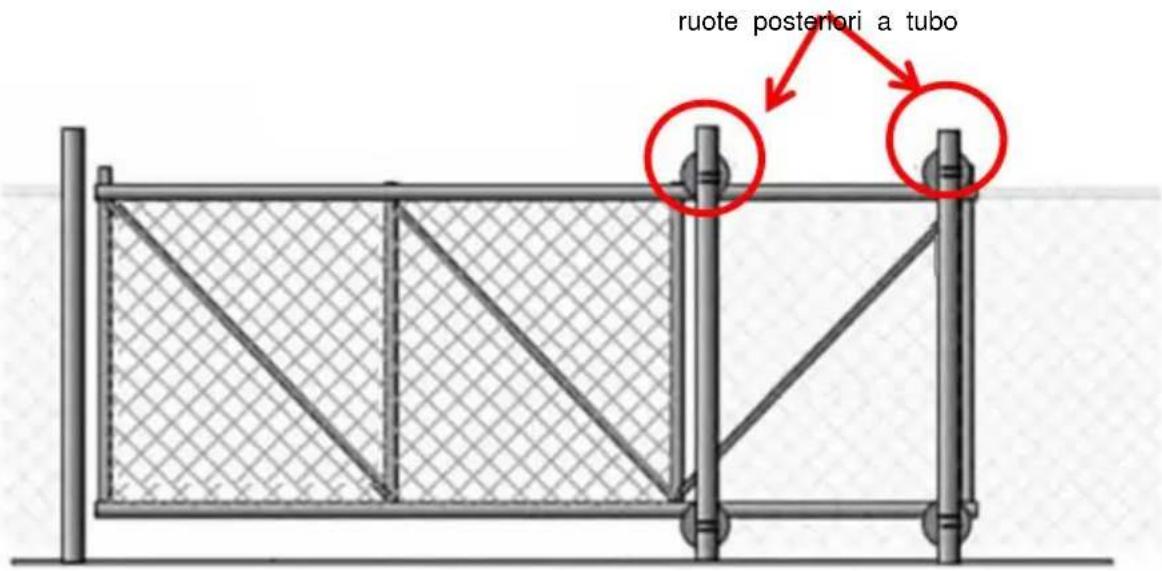

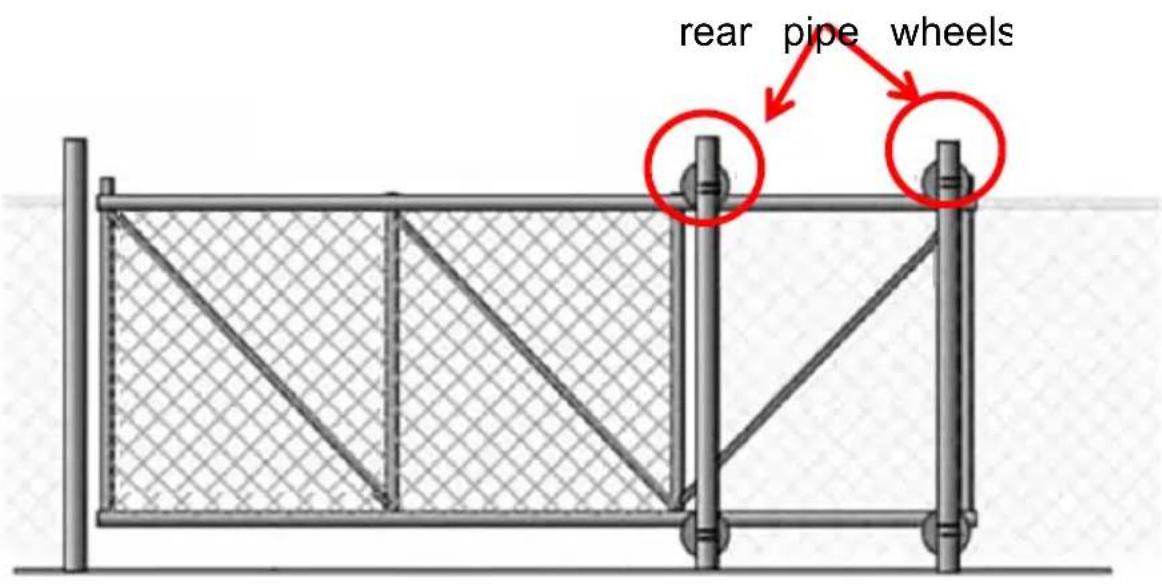

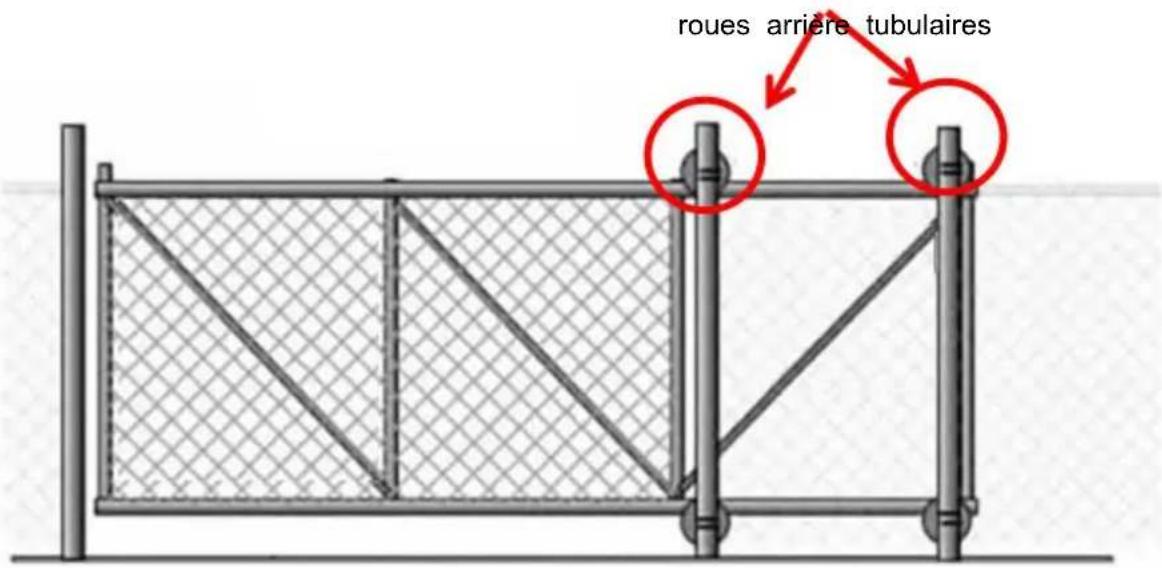

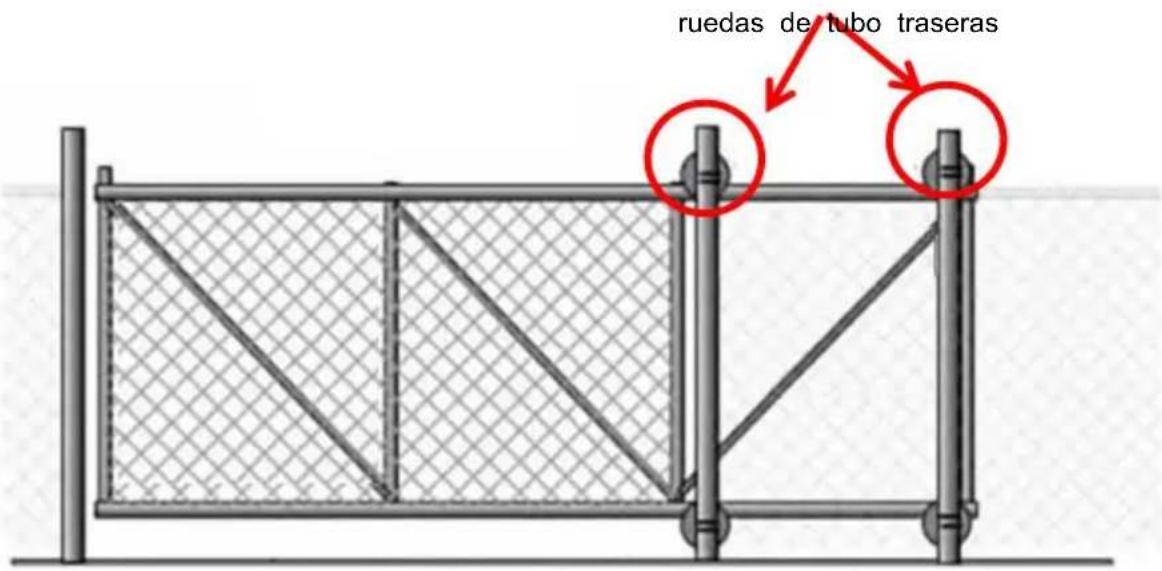

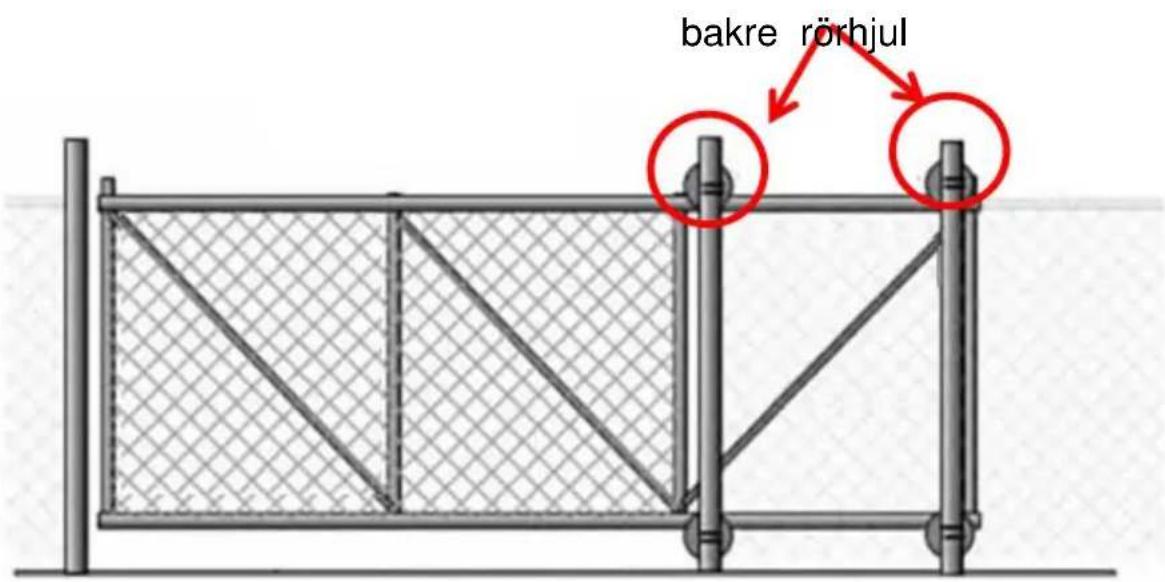

Rear pipe wheels

Product maintenance

  1. Check the product regularly for loose installation to avoid damage or malfunction of loose parts.
  2. Clean up the dirt on the surface of the product regularly, so that the product runs more smoothly.
  3. The product is outdoors for a long time, so it is recommended that metal parts be treated with rust prevention to better prolong the life of the product.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

ECREP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Close-up of a wooden surface with several small circular features and red arrows pointing to them, no visible text or symbols.

Vevor NGW4238 - NEED HELP? CONTACT US! - 2

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Close-up of a textured surface with several small circular features circled in red, pointing to them (no text or symbols visible)

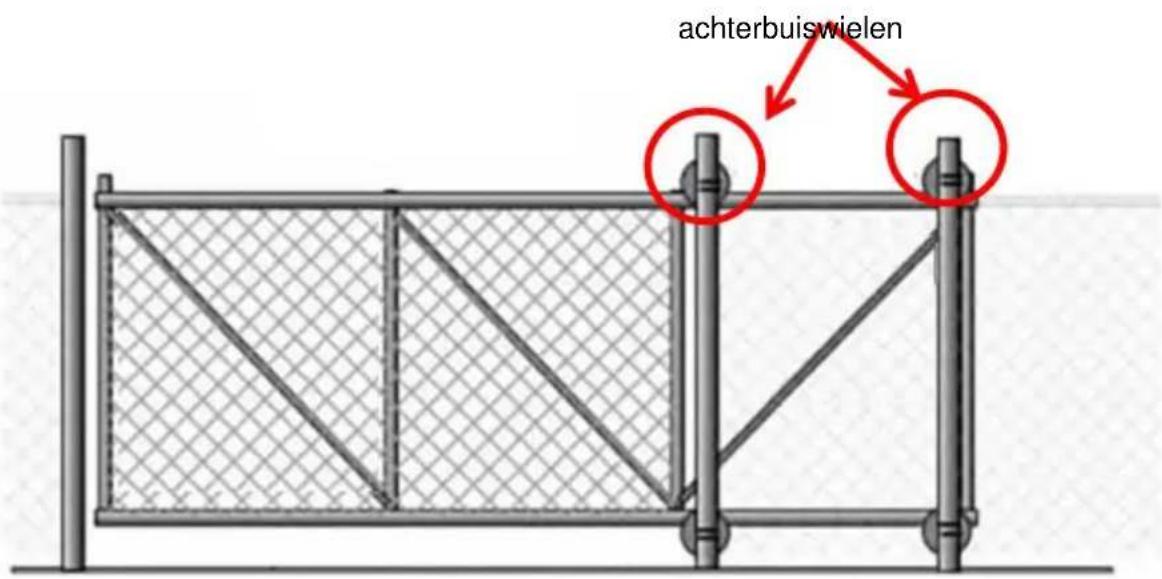

Rear pipe wheels

Product Maintenance

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Four black plastic objects with circular indentations, arranged side by side on a wooden surface (no text or symbols visible)

Close-up of a textured surface with several small circular features circled in red, pointing to them (no text or symbols visible)

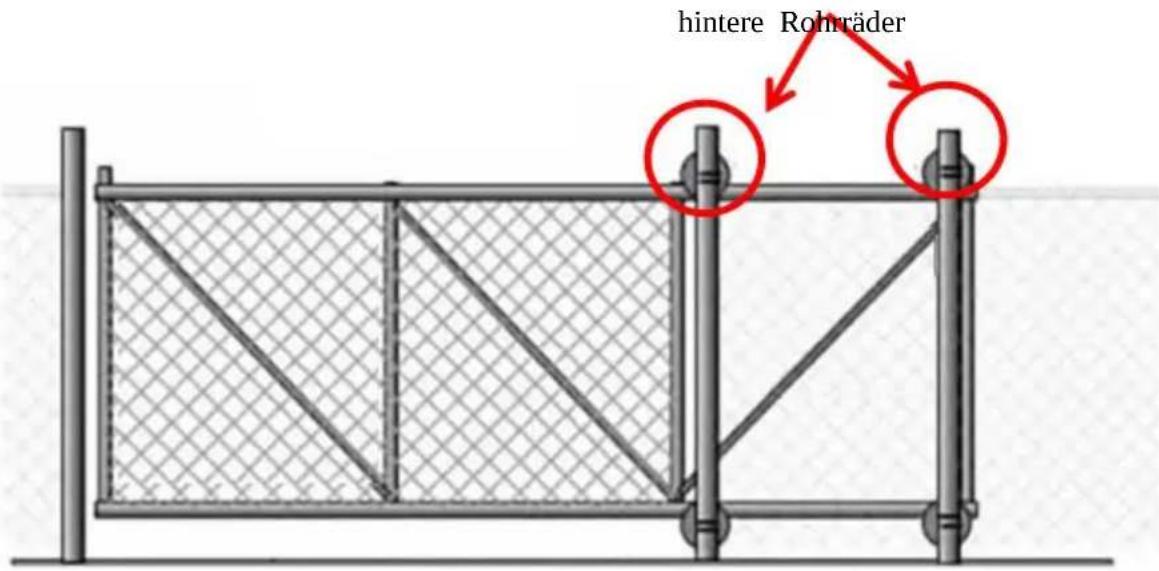

Rear wheels with tube
