Ladder Stabilizer

MODEL: KH-WD03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: KH-WD03

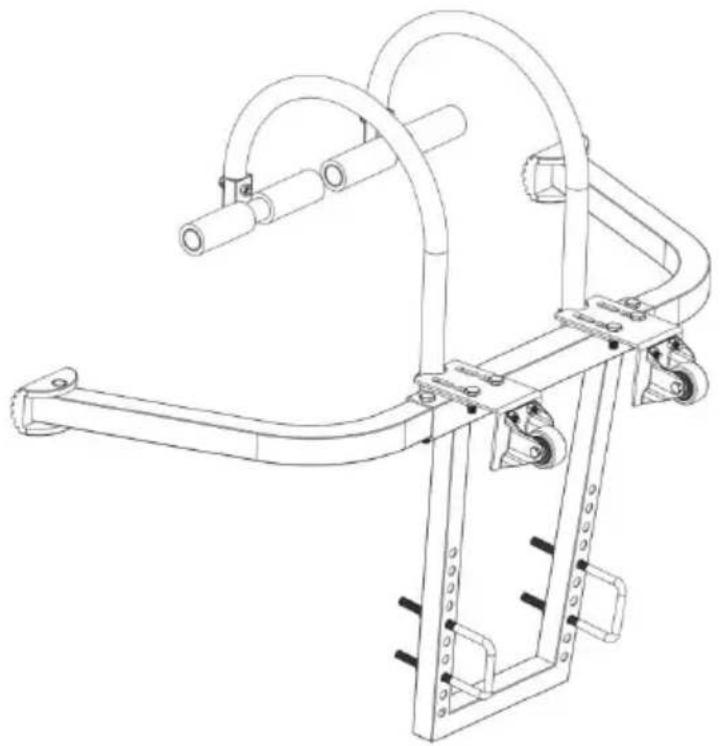

Technical line drawing of a mechanical device with articulated arms and mounting feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY STATEMENTS & WARNINGS

Begin with an inspection:

• Failure to comply with all instructions may result in serious injury.
• Before installing this kit, identify all kit components. If any component missing or damaged, return the kit to place of purchase. Do not subany components.

- MAKE SURE THAT THE STABILIZER IS ASSEMBLED TO THE LADDER CORRECTLY.

- To properly secure a ladder to a roof, you need to begin with first analyzing the state of the ladder itself. Ensure there are no safety is that would prevent safe use. Also, ensure there is no oil, grease or substance on the later or the ground surface that could cause slippin

- Stable surface: Place the ladder on a solid and level surface when. Avoid using the ladder on unstable ground to ensure the proper function of the stabilizer.

- NEVER STAND ON STABILIZER.

- Windy conditions require extra caution.

- DO NOT use on ladders over 40 ft, as excessive height may com the stability the ladder stabilizers.

- DANGER: Keep Clear of electric wires! Never use near electrical copper metal conducts electricity.

- Never use stabilizer or any climbing equipment if you are not in g physical condition.

- Never repair a damaged stabilizer.

- This stabilizer is designed to support the weight of one person and material [300Lb. Maximum].

- Use extreme caution when pushing or pulling anything while on a ladder. You may lose your balance and tip the ladder.

- Proper installation: Follow the manufacturer's guidelines to correctly install the ladder stabilizer, Adhere to the installation steps and requirements, ensuring that the stabilizer is securely attached to the ladder without any looseness or shifting.

No.	Item	Quantity	Diagram
1	Mainframe	1
2	Supporting leg	2
3	L-shaped hardware	2
4	Bending bar	2
5	Bending rod fitting	2
6	M8 -L 45mm	2
7	M8 -L 50mm	2
8	M8 -L 16mm	4
9	U-lock	2
10	Rubber foot mat	2
11	M8 Lock nut	12
12	Wrench	2
13	M6 -L 15mm	8
14	M6 -L 30mm	6
15	M6 Lock nut	10
16	Pulley	2

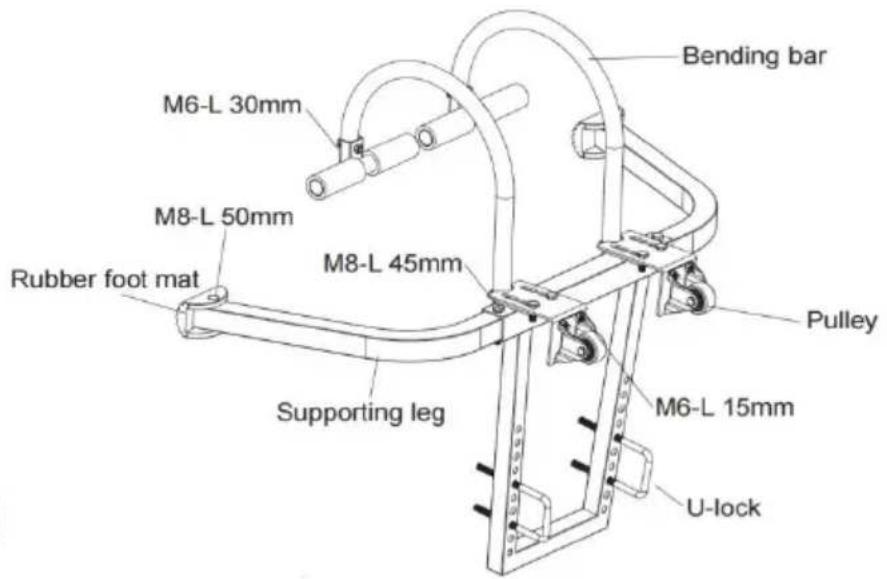

STRUCTURE DIAGRAM AND COMPONENTS

Bending bar M6-L 30mm M8-L 50mm Rubber foot mat M8-L 45mm Supporting leg Pulley M6-L 15mm U-lock

Ladder Size
20mm≤L1≤70mm	L2≥280mm	L3≥190mmL4≤355mm

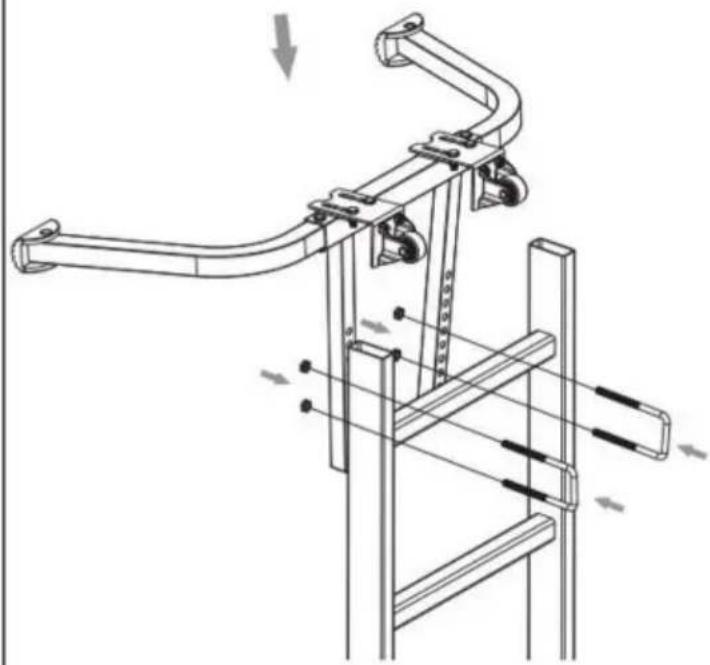

INSTALLATION AND INSTRUCTION

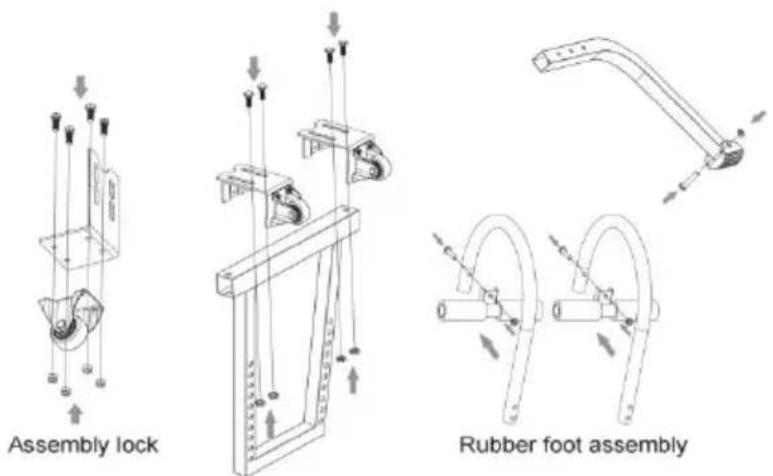

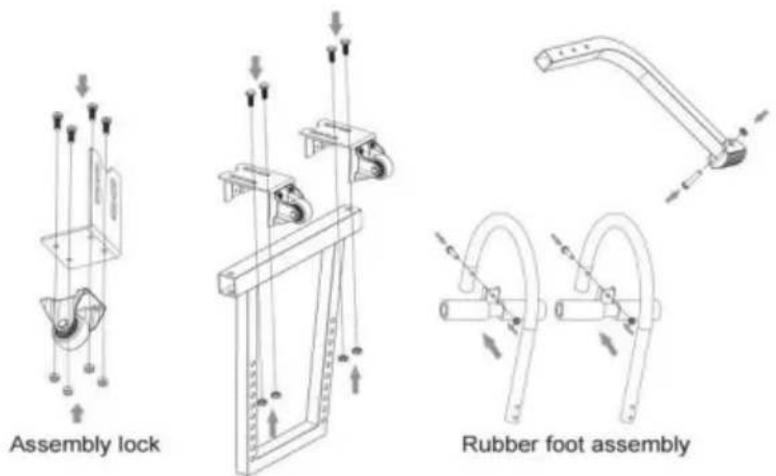

Assembly lock Rubber foot assembly

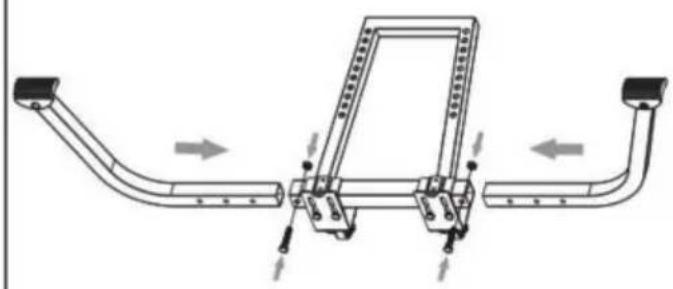

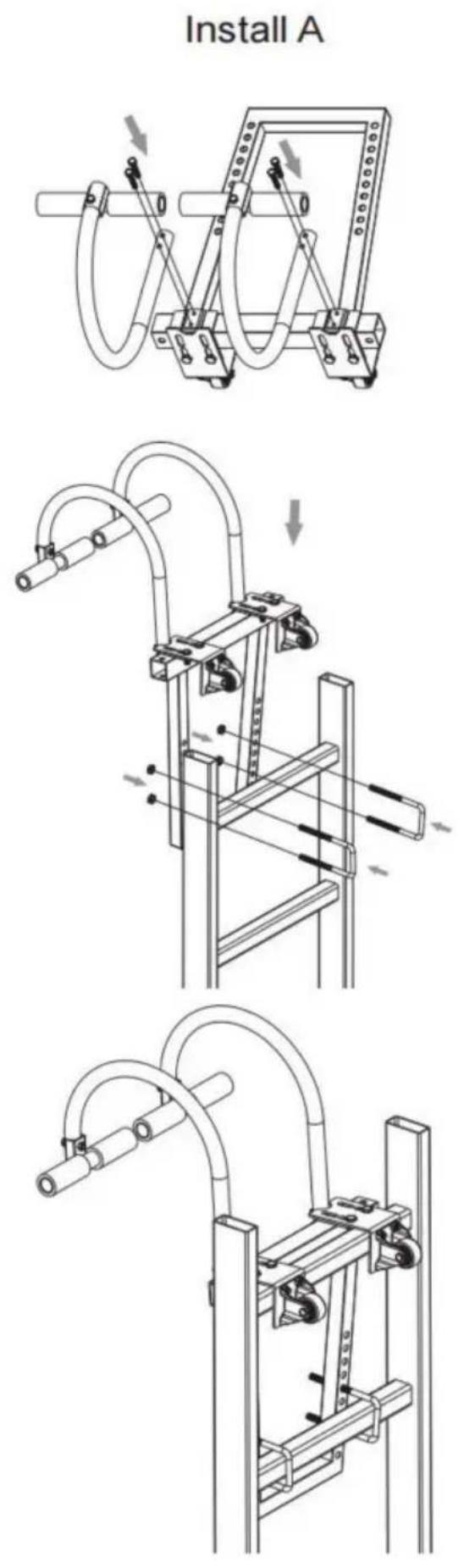

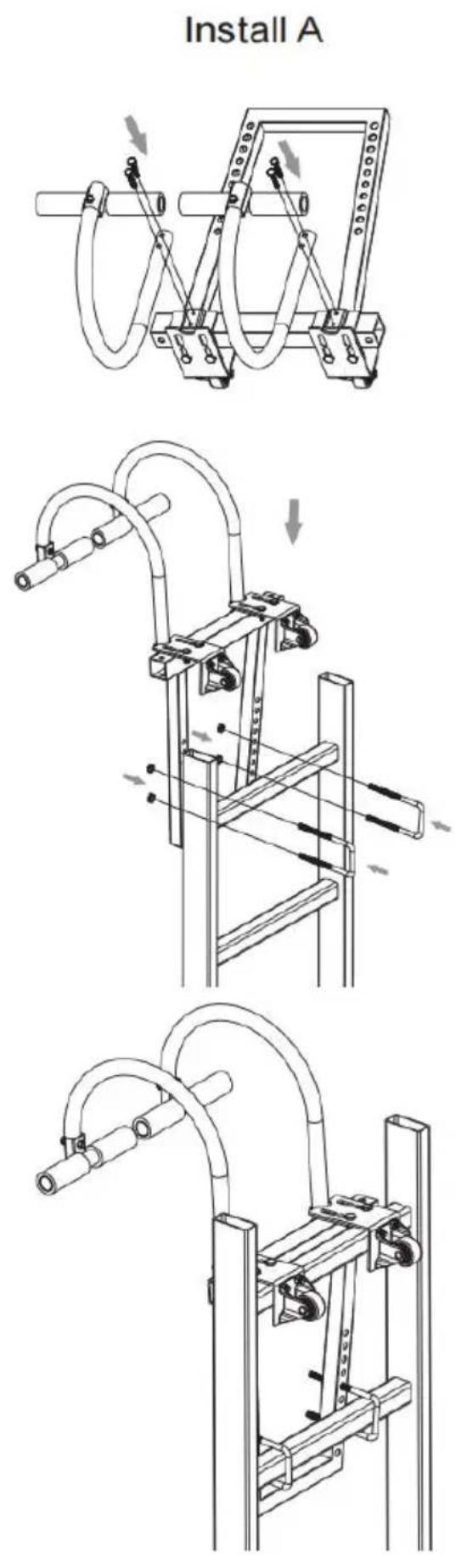

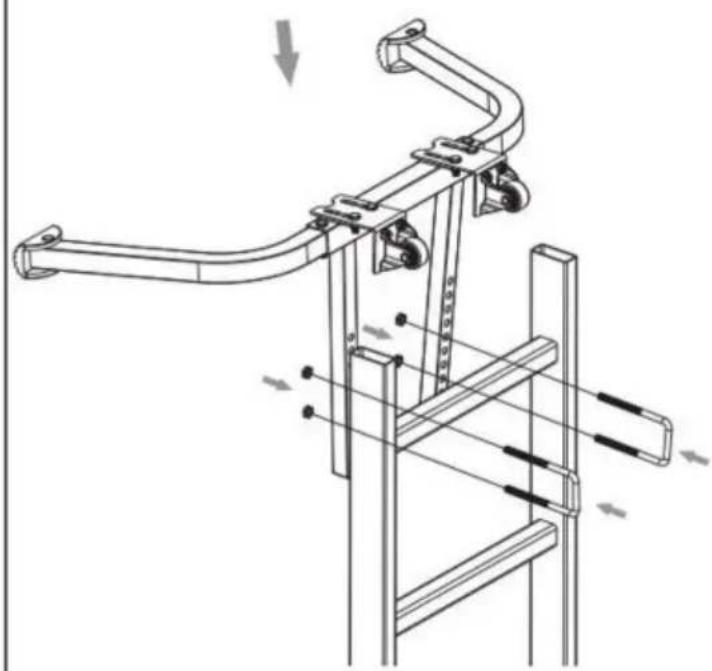

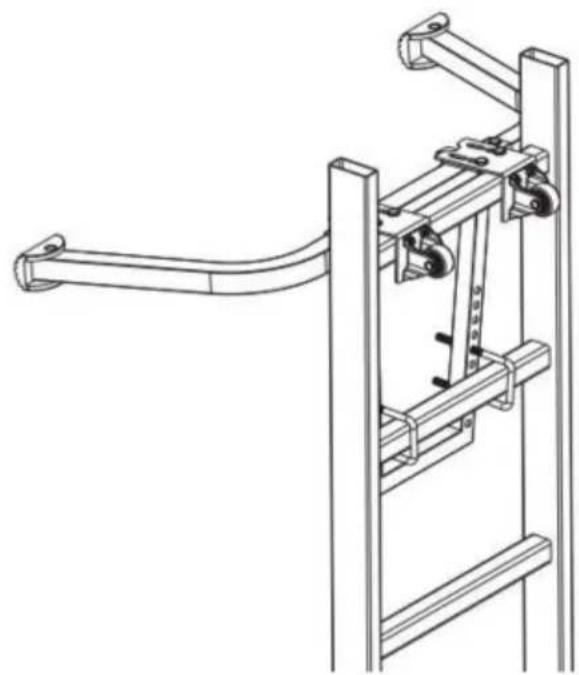

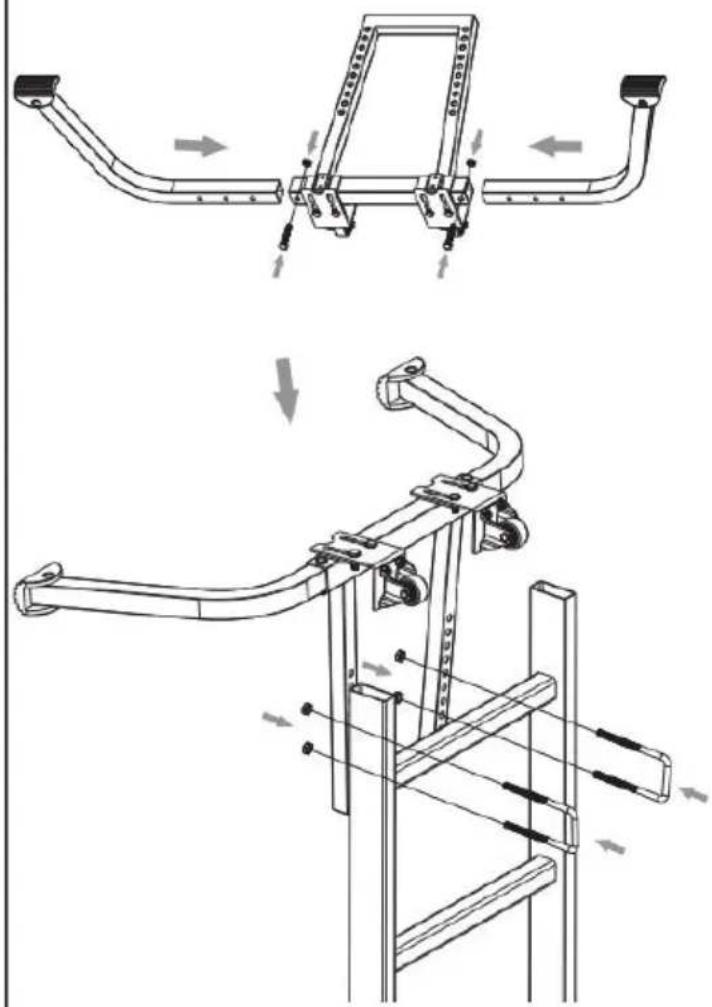

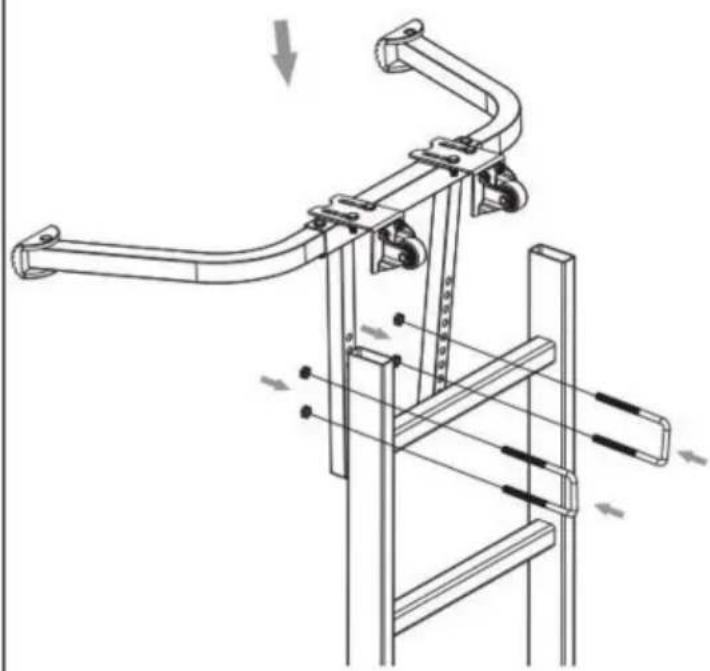

Install B

Technical line drawing of a mechanical assembly with two views: top shows a bracket and side arm, bottom shows a ladder structure (no text or symbols)

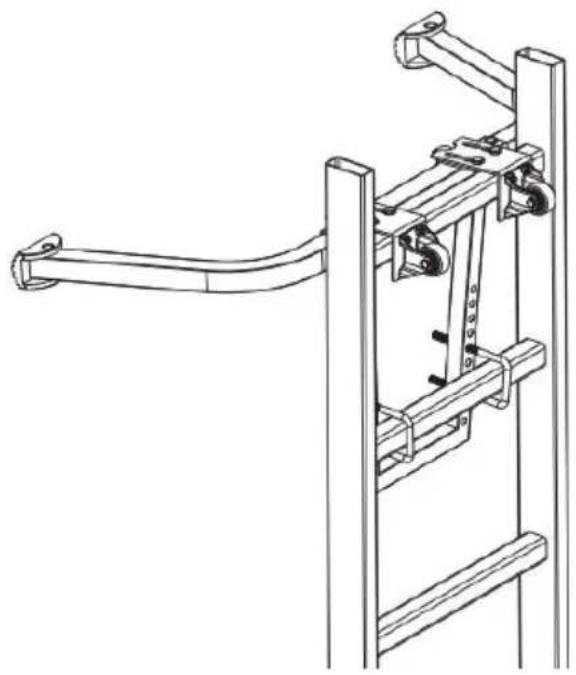

Technical line drawing of a ladder-mounted bracket structure with no text or symbols

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical device with articulated arms and mounting brackets (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Bending bar M6-L 30mm M8-L 50mm Rubber foot mat M8-L 45mm Supporting leg Pulley M6-L 15mm U-lock

Taille de l'échelle
20 mm ≤ L1 ≤ 70 mm	L2≥280mm	L3≥190mmL4≤355mm

INSTALLATION ET INSTRUCTIONS

Assembly lock Rubber foot assembly

Install B

Technical line drawing of a mechanical assembly with two curved components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical lever assembly with no visible text or symbols

Technical line drawing of a mechanical ladder assembly with railings and levers (no text or symbols)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

A/S YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

Leiterstabilisator
