H-8010B - Adjustable seat Vevor - Free user manual and instructions

Brand	Vevor
Model	H-8010B
Product type	Adjustable racing seat
Material	Leather
Seat dimensions (W x D x H)	Approx. 56 x 48 x 90 cm
Net weight	Approx. 15 kg
Maximum supported load	150 kg
Power supply type	None (mechanical)
Adjustments	Backrest tilt, fore-aft slider adjustment
Main functions	Racing seat with adjustment sliders, reclining backrest
Package contents	2 seat sliders, 1 M8 Allen key, 4 M8 screws
Care and cleaning	Clean with a damp cloth, avoid abrasive products
Safety	Regularly check screw tightness, do not use if parts are missing or damaged
Spare parts and repairability	Contact Vevor technical support for spare parts
Warranty	Electronic warranty via www.vevor.com/support
Intended use	Racing simulation, video games
Color	Black (according to standard image)
Country of origin	China
Package dimensions	Approx. 70 x 60 x 30 cm
Gross weight	Approx. 17 kg

Frequently Asked Questions - H-8010B Vevor

How to adjust the backrest tilt?

Pull the lever located under the seat all the way, lean back slowly to the desired angle, then gently return the lever to its starting position to lock.

How to move the seat forward or backward?

Press the adjustment lever under the seat and slide the slider in the desired direction.

What tool is needed for assembly?

An M8 Allen key is provided to fix the sliders with the M8 screws.

Is the seat compatible with all simulation chassis?

The seat is equipped with universal sliders. Check the dimensions and hole spacing of your chassis before purchase.

What is the maximum supported load?

The seat can support up to 150 kg.

How to clean the leather seat?

Use a soft damp cloth and a mild leather cleaner. Avoid abrasive products or solvents.

Is the seat delivered assembled?

No, the seat is delivered disassembled. Assembly requires fixing the seat sliders using the provided Allen key.

How to get a spare part?

Contact Vevor technical support via www.vevor.com/support to order spare parts.

Are there any risks of injury during assembly?

Yes, keep children away during assembly and handle parts with care. Make sure all screws are tightened.

Does the adjustment lever lock easily?

Yes, after adjusting the tilt or position, release the lever slowly so it locks automatically. Check that it is properly engaged.

USER MANUAL H-8010B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ADJUSTABLE RACING SEAT

MODEL: H-8005/H-8010B/H-8005B/H-8010

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain too with us compared to the major top brands and does not necessarily mean cover all categories of tools offered by us. You are kindly reminded to ve carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

ADJUSTABLE RACING SEAT

Model: H-8005/H-8010B/H-8005B/H-8010

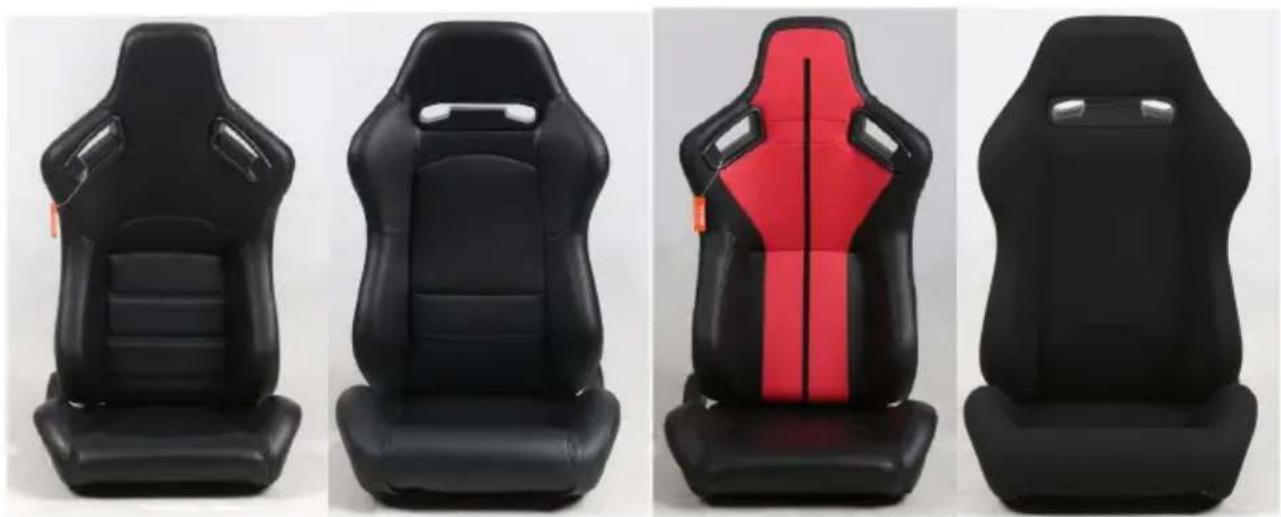

Four black and red automotive racing seat designs, one highlighted in red (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

BEFORE YOU GET STARTED, A FEW POINTERS

Two people assembling will make the assembl process much easier!	During assembly, children should be kept away from the product due to the possible risk of injury.	Do not use this item any components are missing or damaged.

PARAMETER LIST

Model	amount	Size/material	picture
Adjustable racing seat/ H-8005	2	leather
Adjustable racing seat/ H-8010B	2	leather
Adjustable racing seat/ H-8005B	2	leather
Adjustable racing seat/ H-8010	2	cloth

PART LIST

Name	Picture	Quantity
Seat Sliden		1
Allen wrench/M8		1
Screw/M8		4

INSTRUCTIONS

Step-by-step assembly of a car seatbelt switch, showing component alignment and mounting process (no text or symbols visible)

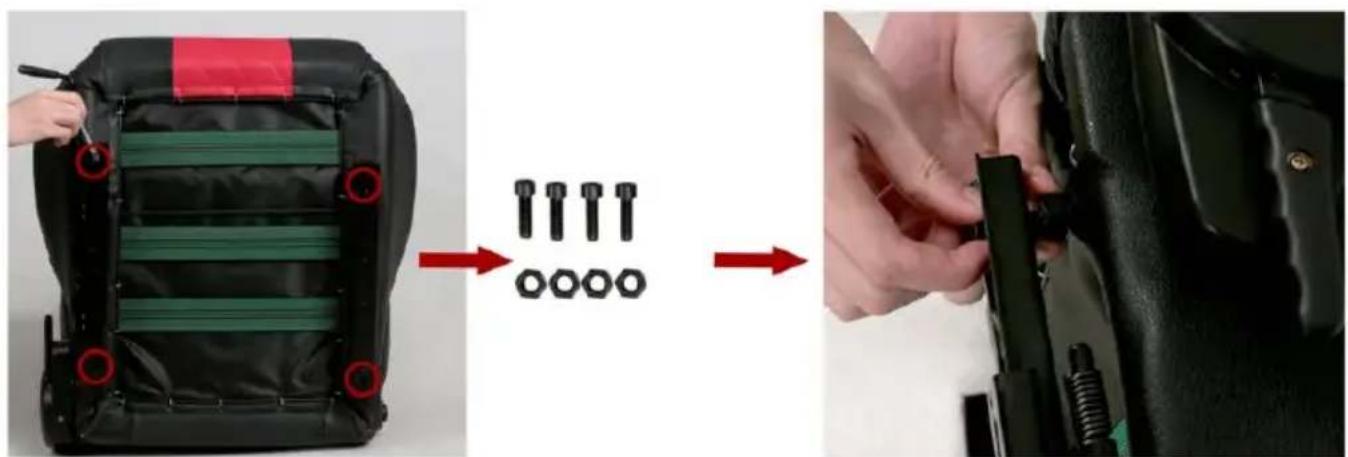

Install the slider with the M8 Alien wrench. There are four holes in the bottle seat. Use the screw to fix it.

Operation1 Operation2 Operation3

Black and red racing chair seat with white top and black body (no text or symbols visible)

Person sitting in a black and red chair wearing a cap and face mask, no visible text or symbols

Person lying on a cushioned chair, wearing casual clothing (no text or symbols visible)

Carefully tilt the seat to an upright position.

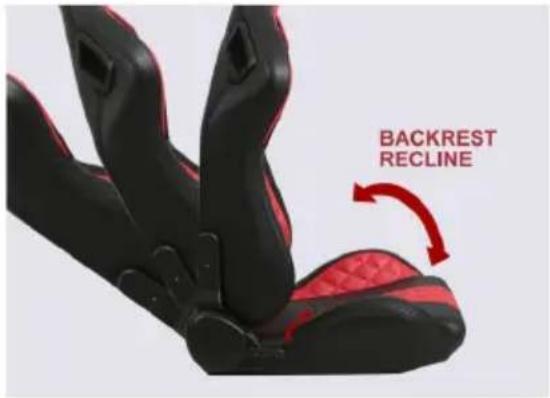

BACKREST RECLINE

Pull up fully on the lever and lean back slow until the backrest is at your desired angle.

Then, slowly return the lever to its starting position. Ensure the lever locks back in place.

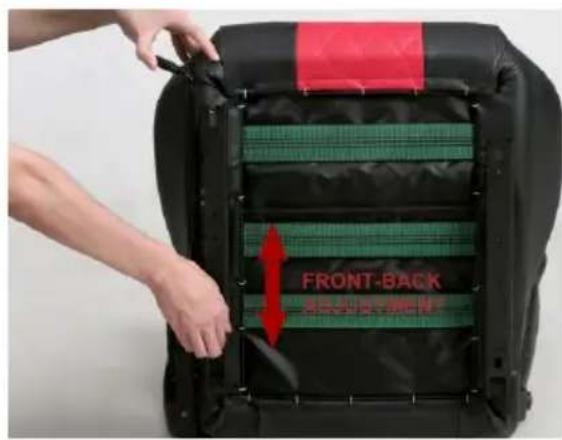

Press the adjusting lever to move the slider forward or backward.
