FARMHOUSE COFFEE TABLE USER MANUAL

MODEL:KLLT-01

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:KLLT-01

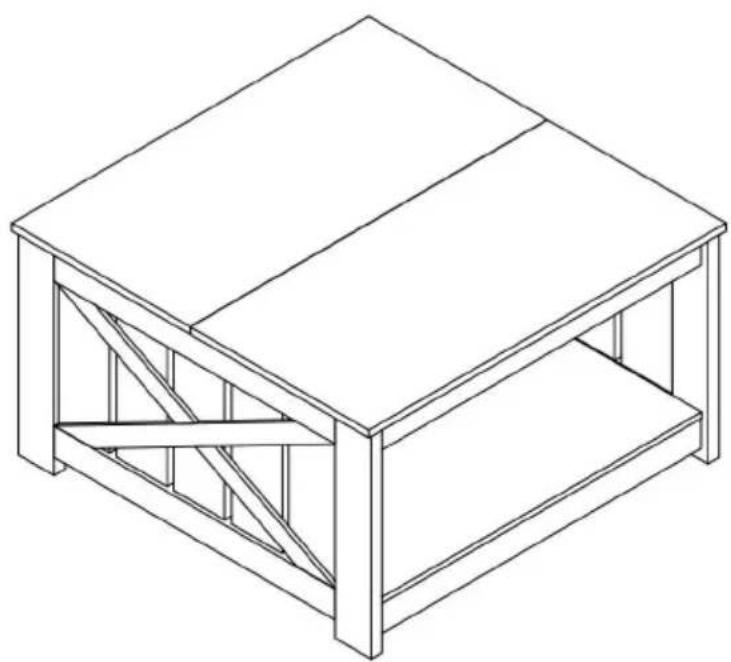

Isometric line drawing of a simple wooden coffee table with no text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Farmhouse Coffee Table.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Farmhouse Coffee Table.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

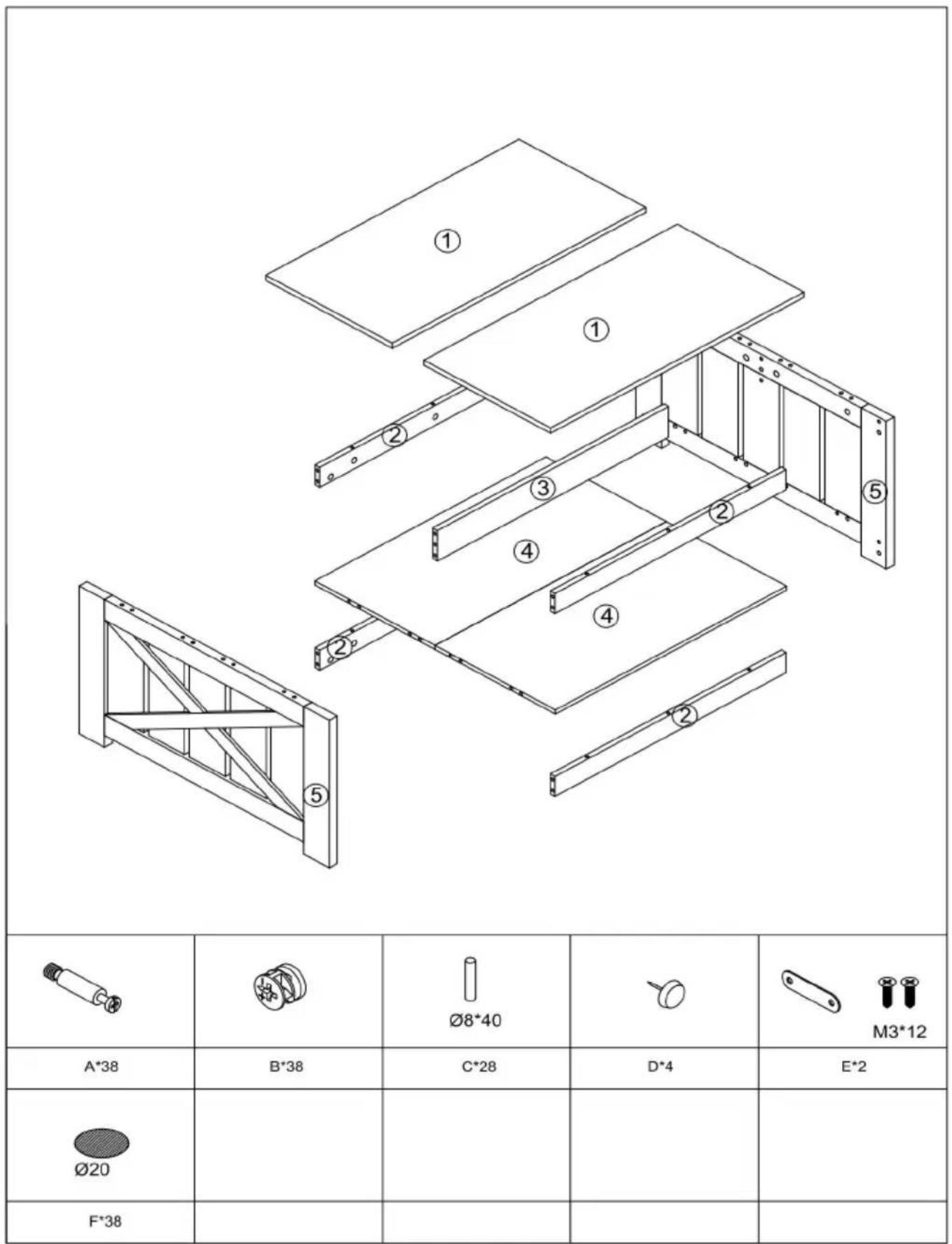

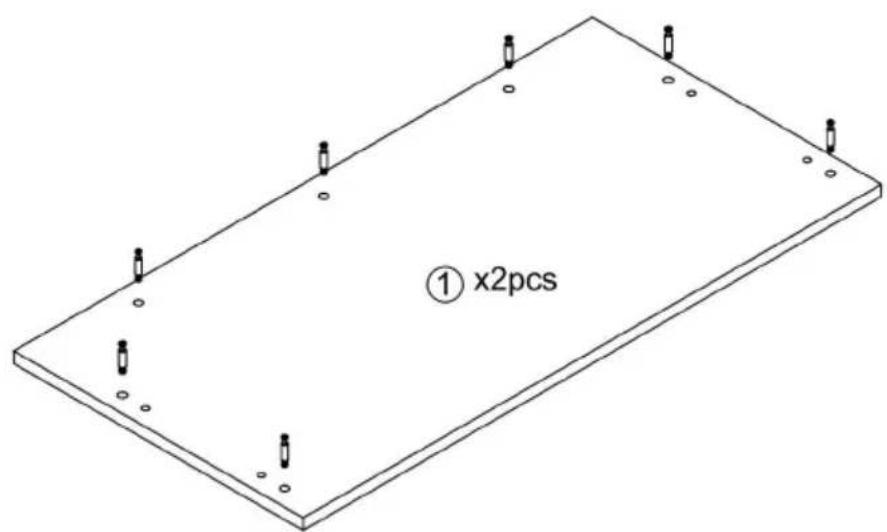

Technical diagram of a mechanical assembly with labeled components and corresponding table references in Chinese.

1

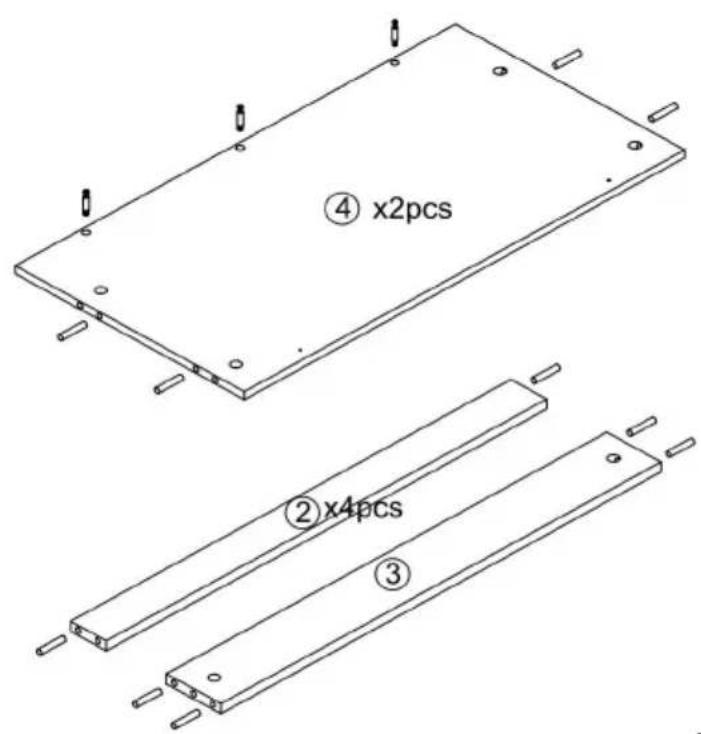

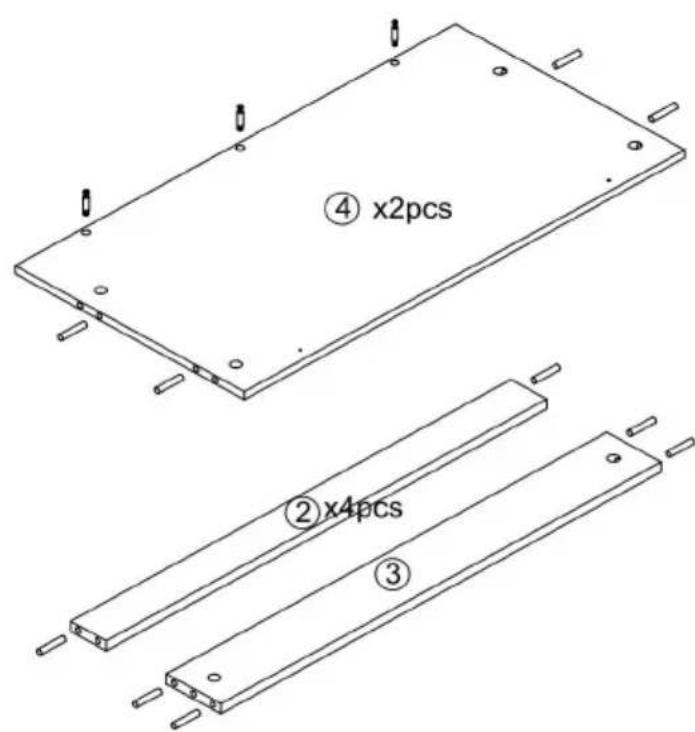

④ x2pcs ②x4pcs ③

A*6+C*16

2

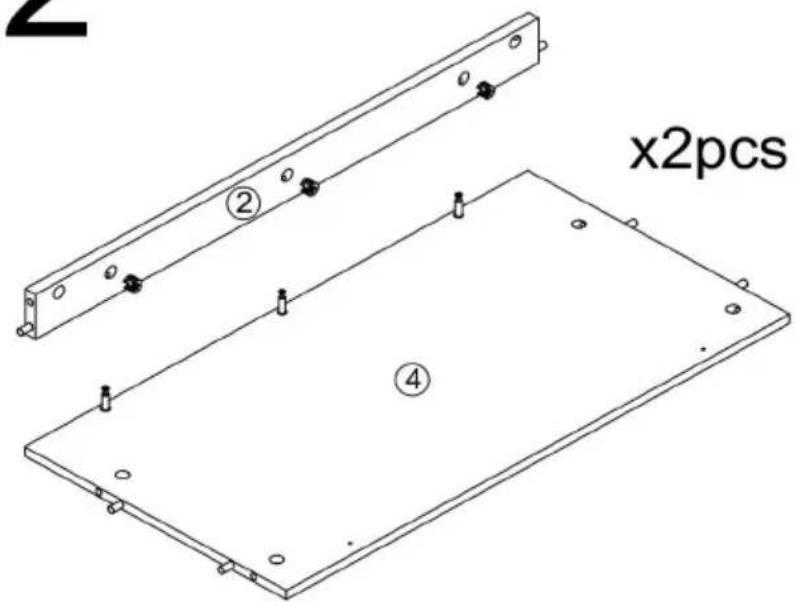

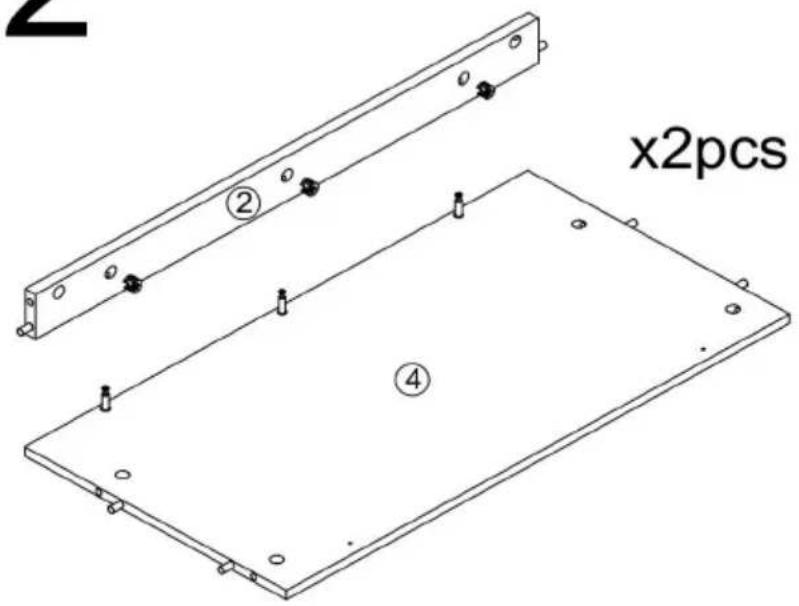

x2pcs

Technical diagram illustrating three-step machining process: step-by-step assembly, close-up of cylindrical component, and final drilling with tool.

B*6

3

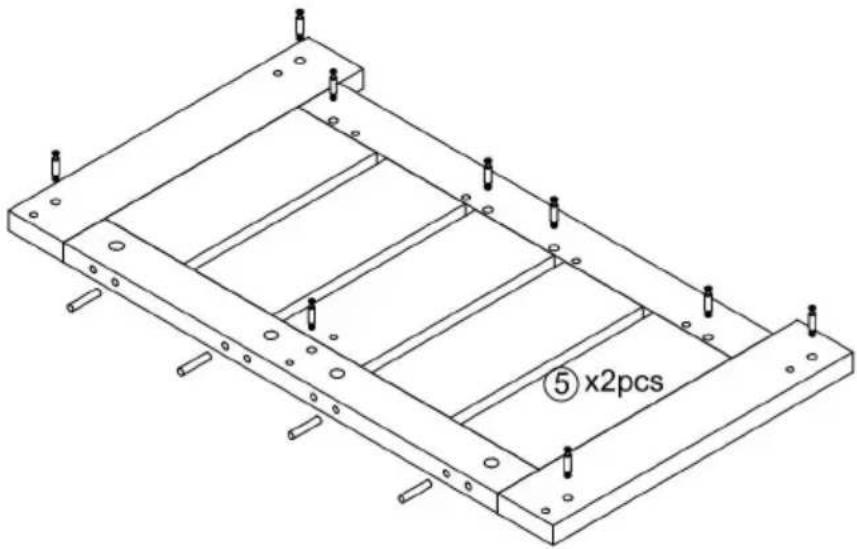

⑤ x2pcs

A*18+C*8

4

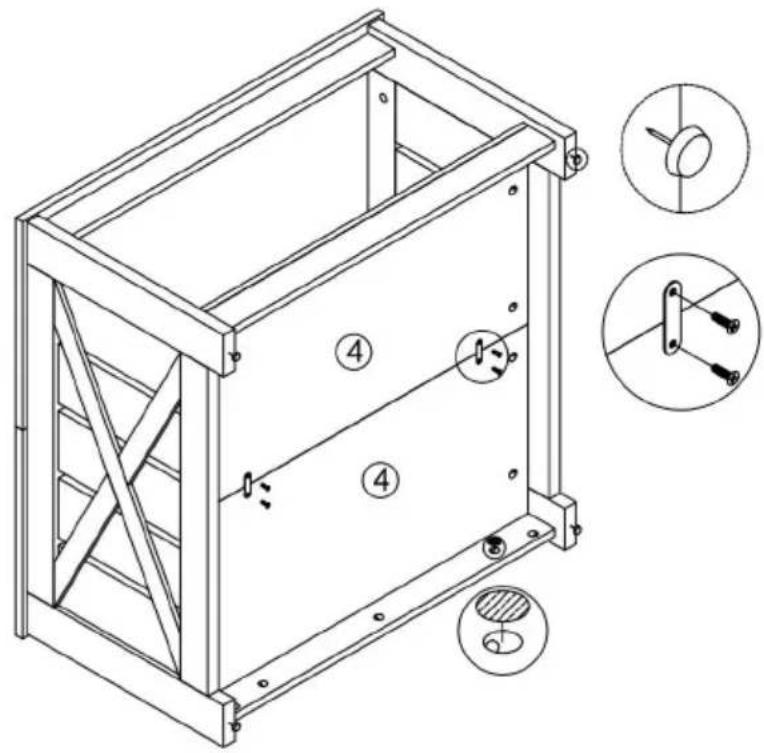

Technical diagram of a structural frame assembly with numbered components for identification

B*9

5

Technical diagram of a structural frame assembly with numbered components for identification

B*9

6

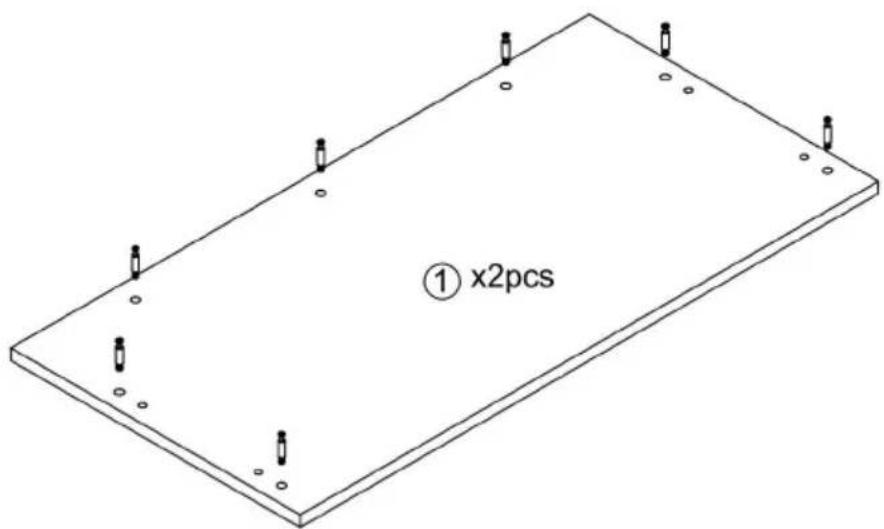

① x2pcs

A*14

7

Technical diagram of a structural frame with numbered components, likely for engineering or construction purposes.

B*7

8

Technical diagram of a structural frame assembly with numbered components

B*7

9

Technical diagram of a mechanical frame assembly with numbered components and close-up insets showing pin connections.

D*4+E*2+F*38

10

Isometric line drawing of a two-level wooden coffee table with triangular supports (no text or symbols)

PRODUCT PARAMETER

Model	KLLT-01
Safe Loading Weight	180 lbs
Colour	Grey + White
Product Size	800*800*455mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
