USER MANUAL KH-L03 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Ladder Leveler

MODEL: KH-L03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: KH-L03

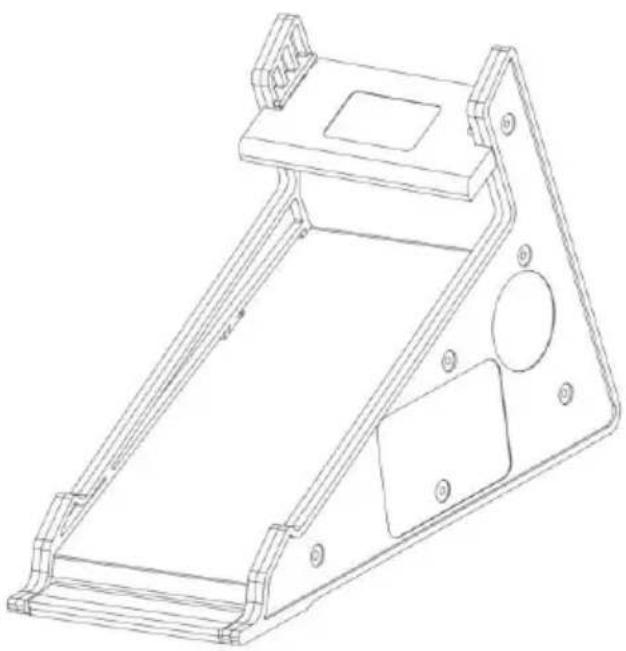

Technical line drawing of a mechanical bracket component (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Do not use when air temperature is over 95^ F. Always make sure bot ladder feet are on astable surface before climbing.

Note: Not following proper procedures while usinathe Ladder tool may result in serious injury or death. Ramps rated at 380 lbs.

Model	Max Load (lbs)
KH-L03	380

Ladder must be at right anglesto the LadderTool, exerting downward pressure. See figures 1,2,3, and 5 below.

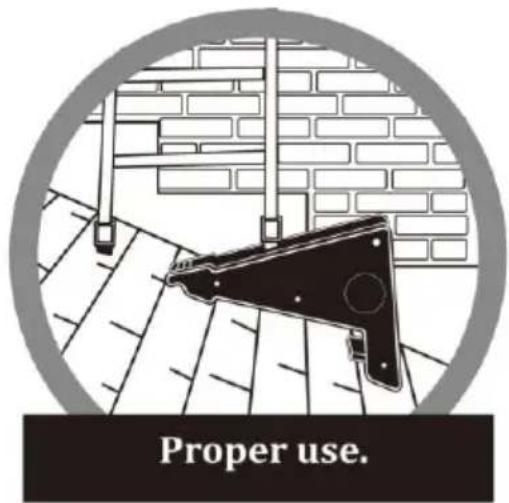

Picture aboveleft shows the proper positioning of the Ladder tool, illustrat the perpendicular downward pressure.

Proper use.

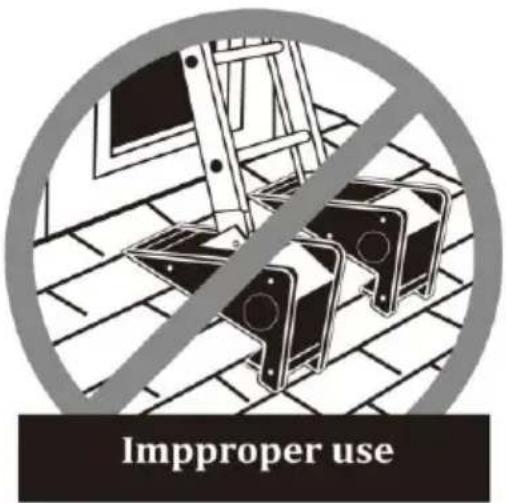

Improproper use

WARNING!

- Improper use of the Platform could result in injury or death. Please and follow these safety precautions.

• Make surethe Platform securely snaps and latches onto the Ladder

- When used as a standing platform, double check to make sure the is secure and properly angled, and the Ladder Toolis properly positione

- When used as a ladder iack to secure a walk board, be sure the board is positioned as close to the ladder as possible.

- When used as a ladder jack and standing surface always use the required safety harness and lanyard.

WARNING!

Always center ladder foot on ramp and then climb 3 or 4 step stability before ascending ladder to a higher working position.

Simple line drawing of a ladder leaning against a curved ramp, with no text or symbols present.

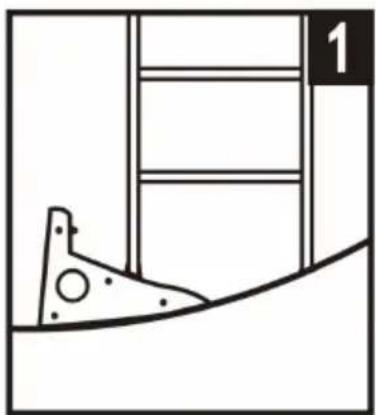

1/12 to 4/12 PITCH(GENTLE)SLOPES-This position levels a lade a small to medium rise. NOTE: Always place Ladder Tool on a angle or perpendicular to ladder sides, exerting downward pressu shown in this diagram. The skid resistant ramps and rubber edg provide traction.

WARNING!

It is always important to test ladder stability and anticipate the of forces.

Simple line drawing of a ladder leaning against a wall, with no text or symbols present.

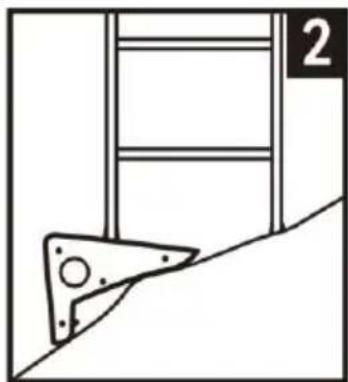

4/12 T07/12 PITCH(STEEP)SLOPES-The Ladder Tool can help your ladder up to 14" when placed in this position.

Normally,the tool automatically grips and digs into dirt,gravel,gras other such terrain-even on asphalt shingle roofs up to 7/12 pit slippery or extreme conditions,it will be necessary to drive pegs ground tokeep the Ladder Tool from slipping.

©

WARNING!

Use only on asphalt shingle roofs with 7/12 pitch or less. For 7/12 pitch.

Simple line drawing of a ladder leaning against a ladder, with no text or symbols present.

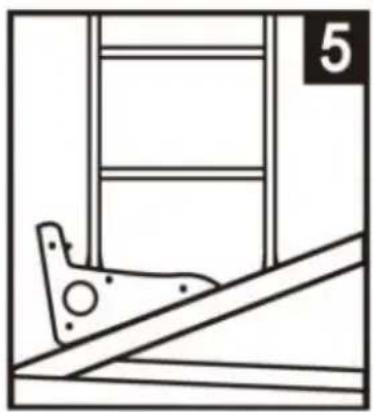

ROOF JACK-This position is valuable for leveling your ladder of Use only on an asphalt shingled roof and only up to a 7/12 here on a roof less than 5/12 pitch.(For roof pitches from 5/12, must be turned over and used similarly to the position sh infigure 1 above).For roofs steeper than7/12 pitch,a RoofBoot (a from ProVisionTools,Inc,)o rwooden block nailed to the roof to the Ladder Tool is essential.

WARNING!

Make sure ladder feet are on stable surface before using Lado as a stand off.

Simple line drawing of a ladder leaning against a wall, no text or symbols present

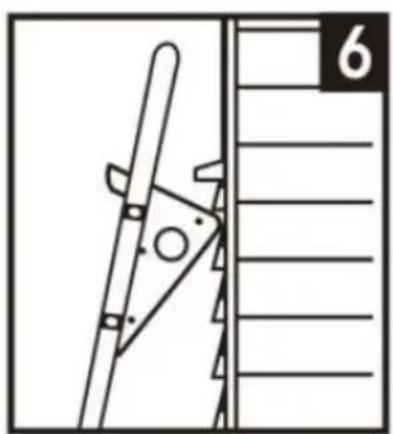

STAND OFF-This position holds ladder away from window or v surface for ease of work access.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
