JZT50-24 - Acoustic insulation materials Vevor - Free user manual and instructions

Product Type	Acoustic Foam Panels
Brand	Vevor
Model	JZT50-24
Quantity	24 pieces
Dimensions (each panel)	300 x 300 x 25 mm
Density	30 kg/m³
Shape	Pyramid
Material	Acoustic foam
Intended use	Echo reduction and sound absorption
Installation method	Wall mounting with universal adhesive
Adhesive required	Universal adhesive (not included)
Recovery time after decompression	24 to 48 hours
Accelerated cleaning method	Soak in water, wring, dry in dryer on medium heat
Safety warning	Keep children and pets away during installation
Wall preparation	Clean and dry
Estimated total weight	Approximately 1.6 kg
Technical support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Australian importer	SIHAO PTY LTD, Eastwood NSW 2122
US importer	Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
UK representative	60329 Frankfurt am Main (Germany)

Frequently Asked Questions - JZT50-24 Vevor

How to install the JZT50-24 acoustic panels?

Clean and dry the wall. Apply universal adhesive evenly to the back of the panel. Press the panel against the wall and hold for a few seconds. Allow 24 to 48 hours for the panel to regain its shape and the adhesive to set.

Why are my panels not the correct thickness?

The panels are compressed in their packaging. They need 24 to 48 hours to return to their original thickness after opening. If this time is respected and they remain flat, check that the ambient temperature is sufficient (20-25°C).

How to speed up the panel reformation?

Soak the panels in water, wring them gently, then dry them in a dryer on medium heat. This will quickly restore their original shape.

What to do if the panels fall off the wall?

Make sure the wall is clean, dry, and dust-free. Apply a good quality universal adhesive in an even layer. If the problem persists, use a stronger adhesive or mechanical fixings (not supplied).

What adhesive to use for Vevor JZT50-24 panels?

Use a universal spray or tube adhesive suitable for foam and walls. The adhesive is not supplied, you must purchase it separately. Spray or spread evenly over the entire surface of the panel.

How long does it take for the adhesive to dry completely?

The drying time varies depending on the adhesive used and ambient conditions (temperature, humidity). Usually allow 24 hours for full setting. Avoid touching or moving the panels during this time.

Are the JZT50-24 panels moisture resistant?

Acoustic foam can absorb moisture, which reduces its effectiveness and may promote mold. It is not recommended to install them in very humid rooms like bathrooms without adequate ventilation.

Can I paint the acoustic panels?

It is not recommended to paint the panels as paint can clog the foam pores and reduce sound absorption. If you wish to change the color, use a special foam paint (test on a small sample first).

What area can I cover with 24 panels of 300x300 mm?

Each panel covers 0.09 m² (30 cm x 30 cm). With 24 panels, you can cover approximately 2.16 m². Plan a spaced or continuous arrangement according to your needs.

Where to find technical support for this product?

Go to the official Vevor website: www.vevor.com/support. You will find technical support, electronic warranty, and answers to your questions.

USER MANUAL JZT50-24 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Acoustic Foam Panels

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36

/JZT50-24/JDM50-2/JZT50-4/JDM50-4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36/JZT50-24/JDM50-2/JZT50-4/JDM50-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SECURITY & WARNINGS

WARNING:

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
3. Do not try to assemble the product when feeling tired or when under the influence of alcohol, drugs, or medication.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	Quantity	Size	density	Product texture
SJ25-80	80pcs	300*300*25mm	30kg/m3	triangle
SJ50-36	36pcs	300*300*50mm	30kg/m3	triangle
SJ50-50	50pcs	300*300*50mm	30kg/m3	triangle
SJ25-52	52pcs	300*300*50mm	30kg/m3	triangle
JZT50-36	36pcs	300*300*25mm	30kg/m3	Pyramid shape
JZT50-24	24pcs	300*300*25mm	30kg/m3	Pyramid shape
JDM50-2	2pcs	1200*600*50mm	30kg/m3	Egg shape
JZT50-4	4pcs	1200*600*50mm	30kg/m3	Pyramid shape
JDM50-4	4pcs	1200*600*50mm	30kg/m3	Egg shape

Note: The above product installation needs to buy their own additional universal glue.

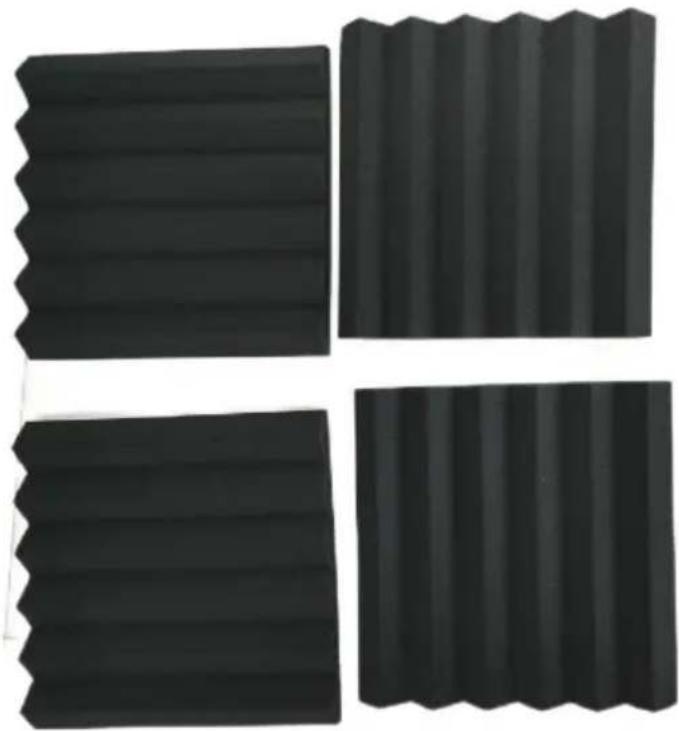

Note: The instruction manual picture is the model SJ 50-36, please refer to

the physical objects for other models.

INSTRUCTIONS

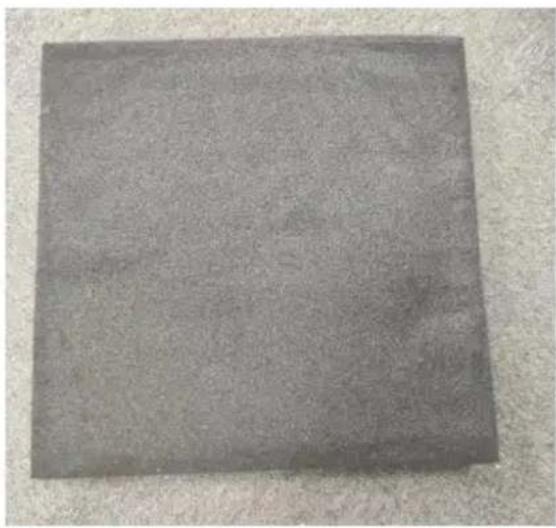

1. Open the box and remove the product from the compression bag. Spread the product on an open ground and stand for 24-48 hours.

Note: In order to make the product return to shape quickly, the product should be soaked in water, then twist dry the product. Finally, use the dryer medium-gear temperature to dry the product; if the product is wet, it affects the paste effect of the product.

1. Remove the wall of dust and dirt.
2. Apply universal glue on the back of the product and paste it on the

Note: Need to buy their own universal glue, glue spraying needs to be evenly.

Question	Ways of resolution
The product thickness is not u the standard	Product did not return to the sh it is recommended to stand for 24-48 hours
Product paste on the wall to	The wall is not clean, it is recommended to clean the wall dry, and apply the universal glue the product paste surface
