USER MANUAL KH-CW02 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
DOG WHELPING BOX
MODEL: KH-CW01\KH-CW02\KH-CW03
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
MODEL: KH-CW01\KH-CW02\KH-CW03

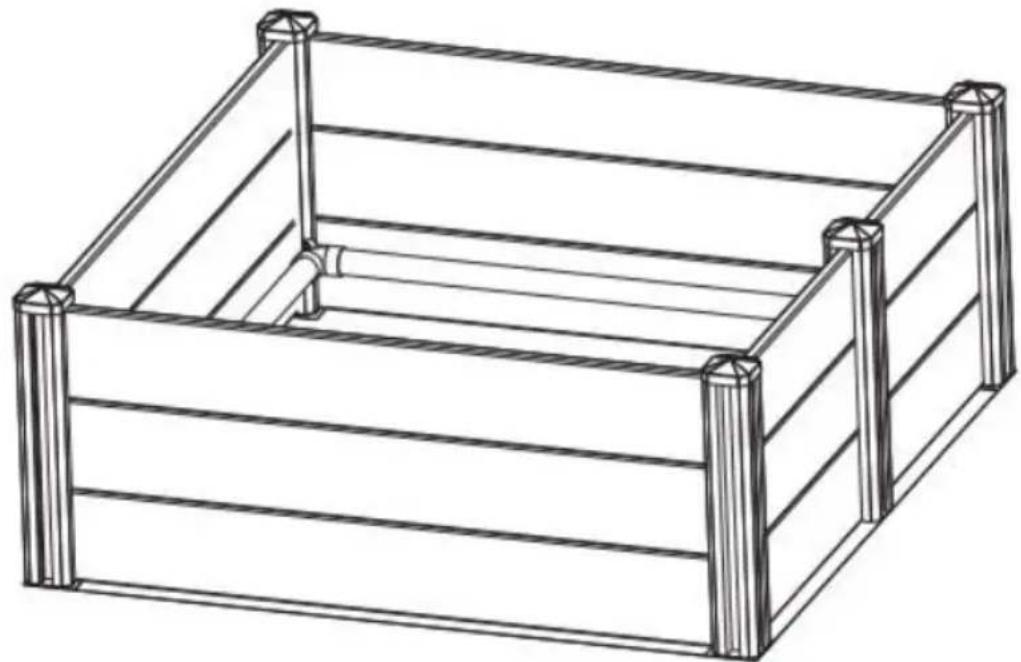

Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must read instructions manual carefully.
WARNING & PRECAUTIONS
WARNING :
- Wear protective gloves when using tools to install fixed signposts, two people to assist with the installation.
- When using, please read this manual first, and it is recommended keep it well for subsequent use to view.
PRODUCT DESCRIPTION
| Model | KH-CW01 | KH-CW02 | KH-CW03 |
| Color | Milky White | ||
| Material | PVC | ||
| Applicable dog types | L Large Dog | M Medium Dog | S small dogs |
| Product size | 1220*1220*460mm | 980*980*460mm | 720*720*460mm |
| Packing size | 1160*325*275mm | 925*410*270mm | 670*405*270mm |
PART LIST
| Number | Item | Quantity | Diagram |
| 1 | Short baffle | 6 |  |
| 2 | Long baffle | 9 |  |
| 3 | Stand column | 5 |  |
| 4 | Round tube | 4 |  |
| 5 | Column foot pad | 5 |  |
| 6 | Column cover | 5 |  |
| 7 | Support seat | 4| |  |
| 8 | Round pipe elbow | 4 |  |
| 9 | M4 -L 16mm | 4 |  |
| 10 | Mat | 1 |  |
| 11 | Phillips screwdriver | 1 |  |
| 12 | Pet medication aid | 1 |  |
| 13 | Pet bottle set | 1 |  |
| 14 | Pet feeding syringe | 1 |  |
| 15 | tape measure | 1 |  |
| 16 | Specification | 1 |  |

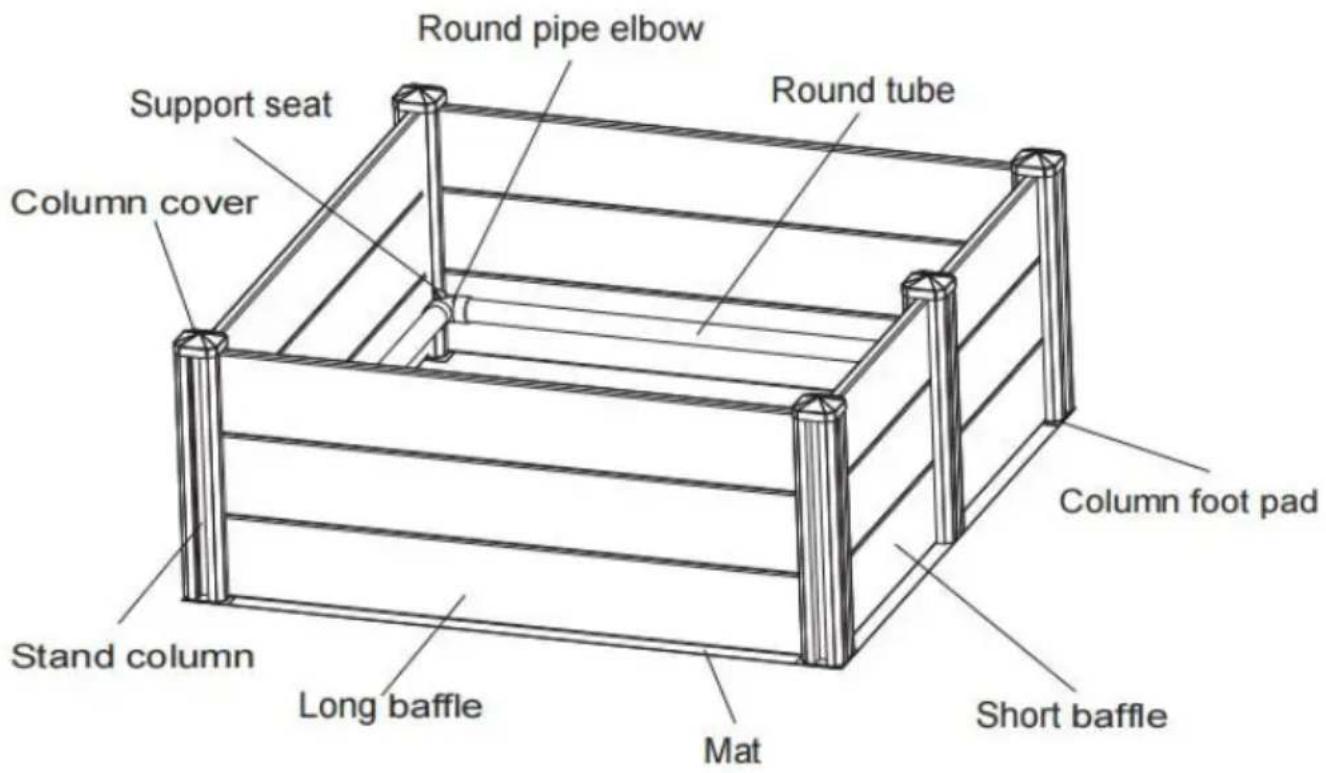

STRUCTURE DIAGRAM AND COMPONENTS


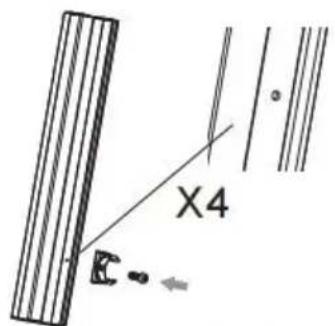

X4 KFix the pipe support seat on the column according to the position of the reserved hole of the column.


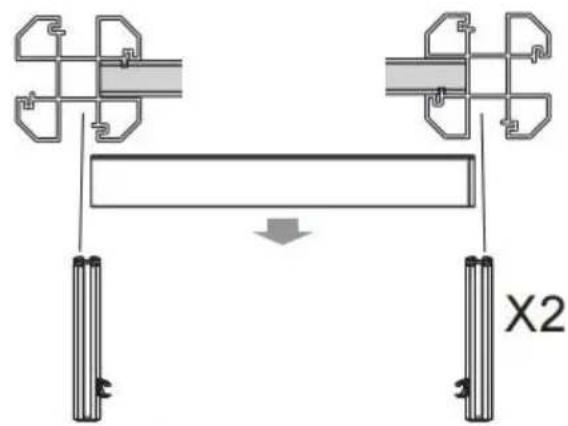

X2Pay attention to the position of the card slot and insert the baffle into the post


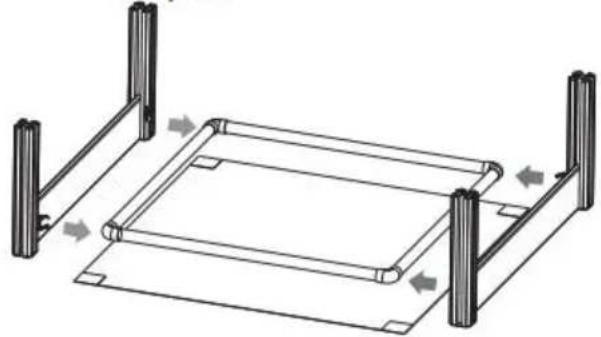

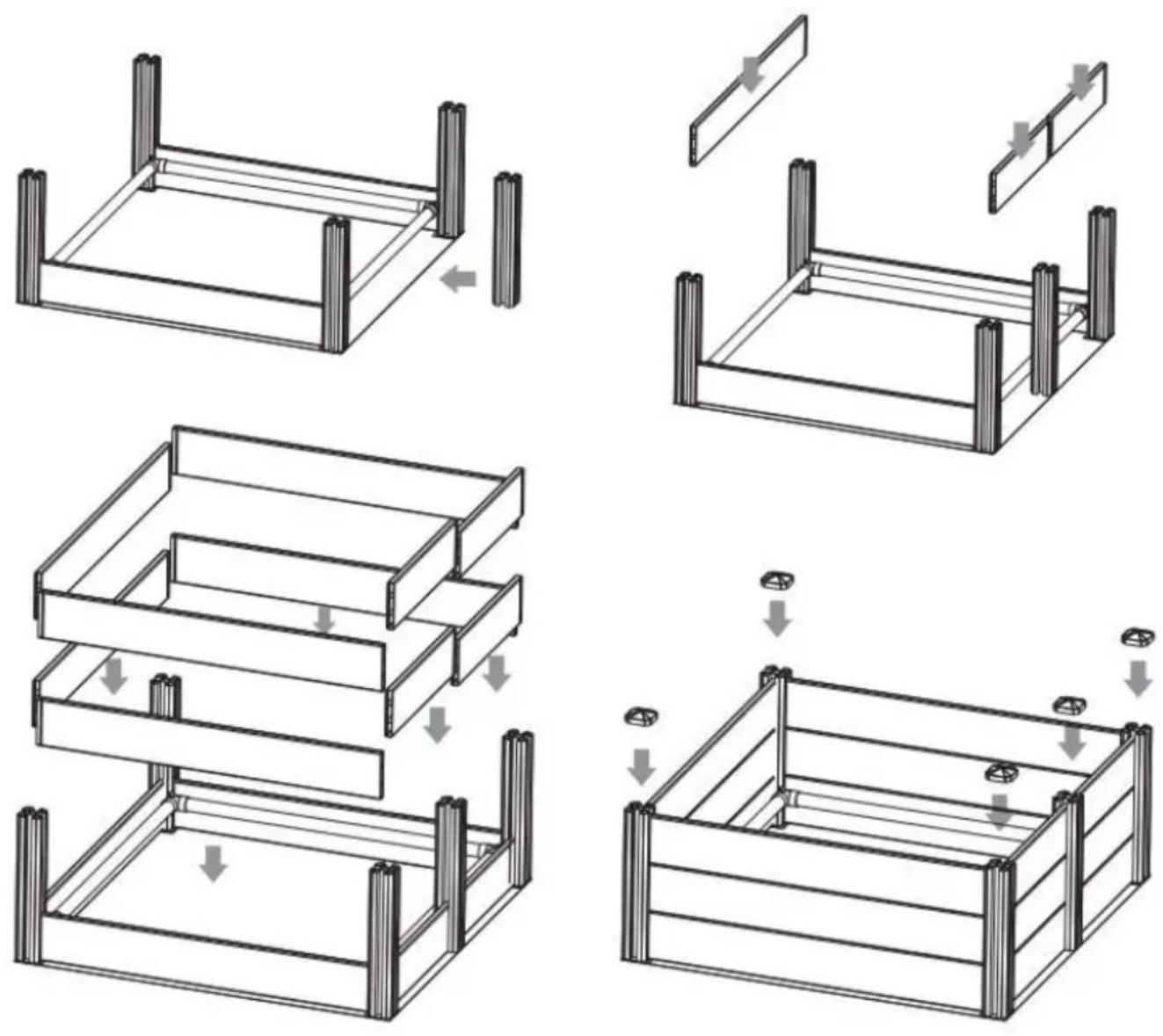

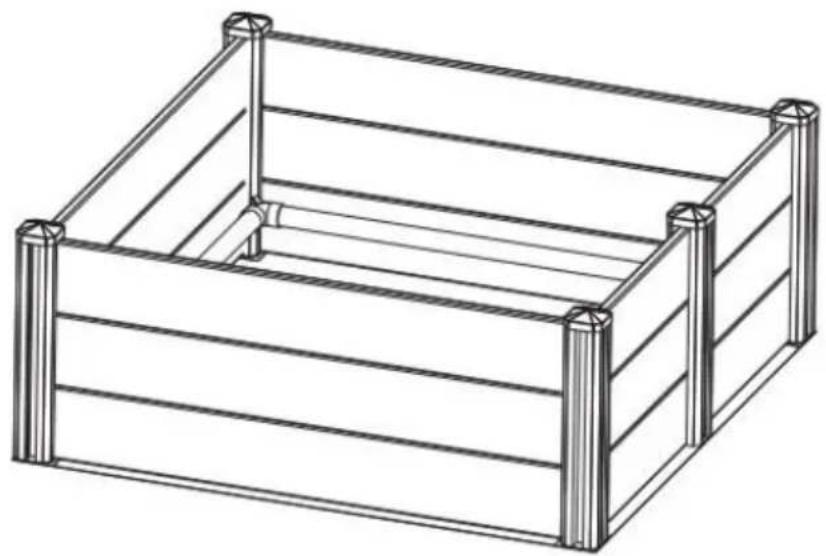

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am M
| UK | REP |
YH CONSULTING LIMITED.
C/0 YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
