Product Type	Training Mannequin
Brand	Vevor
Model	LD-134
Gender	Female
Material	PVC (soft and rigid plastics)
Usage	Nursing care demonstration for health schools and medical universities
Movable Joints	Yes, all joints are movable, foldable waist, removable components
Teaching Elements	24 procedures including washing, oral care, tracheotomy, injections, punctures, etc.
Injection System	Soft plastic needle blocks with 20 CC small bottle
Nasal Feeding and Gastric Lavage	Through mouth and nose, stomach replaced by a tubular bag
Cardiac Resuscitation	Chest compression at 1/3 below sternum, depression of 2.5 cm
Catheterization	Possible for demonstration (no liquid output)
Maintenance and Cleaning	Neutral detergent or mild soap, avoid alcohol and benzene, store away from heat and sunlight
Spare Parts	Replaceable needle blocks, parts included in the model
Included Accessories	Clothing, 10 ml syringe, urinary catheter, gastric tube, injection module
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China

Frequently Asked Questions - LD-134 Vevor

How to clean the LD-134 mannequin?

Use a little neutral detergent or mild soap on a cloth to wipe gently. Avoid alcohol, benzene and other solvents. Store the mannequin in a cool place away from direct sunlight.

What teaching functions are available?

The mannequin allows teaching 24 procedures, including face washing, oral care, tracheotomy, oxygen inhalation, nasal feeding, gastric lavage, injections (intracardiac, intramuscular, subcutaneous, intravenous), punctures (thoracic, hepatic, renal, etc.), cardiac resuscitation, female catheterization, and more.

How to replace a damaged needle block?

Unscrew the nut between the lower iron rod and the body to separate the sections. Remove the damaged needle block and replace it with a new one. Spare parts are provided with the model.

Can the mannequin be used for cardiac resuscitation?

Yes, press with the hand at 1/3 below the sternum to compress the chest about 2.5 cm. A groan indicates good compression. The mannequin is equipped with a battery that can be replaced if necessary.

Is the mannequin delivered with accessories?

Yes, it comes with clothing, a 10 ml syringe, a urinary catheter, a gastric tube and an injection module.

How to perform an intramuscular injection?

Inject into the appropriate needle block area (e.g., deltoid or gluteal muscle). Use a liquid; the internal sponge absorbs and empties easily. Do not force the needle, press gently on the block.

How to perform a gastric lavage?

Insert a nasal tube through the nostril into the esophagus. Before insertion, lower the lower lip. Inject liquid into the stomach's tubular bag. To drain, loosen the clamp at the back of the buttocks.

Where are Vevor mannequins manufactured?

The manufacturer is Shanghaimuxinmuyeyouxiangongsi, located in Shanghai, China. It is imported into Australia by SIHAO PTY LTD and into the United States by Sanven Technology Ltd.

Can the mannequin be used for catheterization?

Yes, it allows insertion of a urinary tube for demonstration purposes. However, there is no liquid flow.

What safety precautions to take?

Read all instructions before use. After use, assemble and store vertically. Avoid high temperatures and direct sunlight. Do not use alcohol or benzene for cleaning.

USER MANUAL LD-134 Vevor

Upgrade · The Home Creator Way

HUMAN BODY TEACHING MODELS USER MANUAL

MODEL: LD-134, LD-135

MODEL: LD-134, LD-135

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Read these instructions before using this product. Failure to do so can result in serious injury.
2. After use, please assemble all the parts and keep them vertically.
3. Avoid high temperature and direct sunlight.
4. Remove minor stains with neutral detergent. The use of alcohol, beer and other substances may damage the product.

SAVE THESE INSTRUCTIONS

INSTRUCTIONS

I. This model is suitable for nursing demonstration in health and nursing schools and medical colleges and universities at all levels. II. The model is all made of PVC material. The material is firm, durable and light to use. III. The joints of each part of the model can be moved, and the waist bent and all the components can be installed and removed.

IV. Teaching and operating items of this model:

(1) face washing and bed scrubbing; (2) oral nursing; (3) tracheotomy; (4) oxygen inhalation therapy (nasal obstruction and nasocatheterization); (5) nasal feeding; (6) gastric lavage; (7) intracardiac injection; (8) extrathoracic cardiac resuscitation; (9) pneumothorax; (10) thoracic puncture; (11) liver puncture; (12) kidney puncture; (13) celiac puncture; (14) bone marrow puncture; (15) lumbar puncture; (16) deltoid muscle injection; (17) hypodermic injection of deltoid muscle; (18) intravenous injection; (19) venipuncture; (20) intravenous infusion; (21) intravenous transfusion; (22) female catheterization; (23) buttock muscle injection; (24) breast nursing.

V. Operating instructions for the use of the model:

1. All parts of the body were injected, large and small needle pieces in puncture site were made of soft plastic, and a small plastic bottle was packed after the small needle block, which could contain 20CC liquid, and the liquid of 20CC could be injected first as the pumping fluid before drawing teaching.
2. The mouth and nose can be used as oxygen supply, nasal feeding gastric lavage (the stomach is replaced by tube sac).
3. Intravenous injection, there is a large needle mass in the buttocks injection supply, nasal feeding and gastric lavage (the stomach is replace by tube sac).
4. Intravenous injection, there is a large needle mass in the buttocks injection place, there is a skin tube (substitute vein tube), when the inject must be injected into the skin tube lumen, if a large amount of glucos infusion, the upper buttocks exposed skin tube should be put into the receptacle to loosen the clamp, And let the infusion run out. During the demonstration, a small amount of liquid is injected into the skin tube, and then the upper end of the skin tube can be clamped.
5. When injecting or puncturing, we must pay attention to the central part of the needle block.
6. The method of subcutaneous and intramuscular injection is the same as that of clinical operation. It can be injected with liquid; the sponge body absorbs water, and the water can be extruded and

dried. Do not apply too much force when operating the needle; you can use the tool to gently press the needle block, and then pull out the needle.

VI. During emergency treatment of extracardiac heart resuscitation, the hand can be pressed 1/3 under the sternum to make the compressed place fall 2.5 cm. When the chest is heard whimpering, it goes and restores, and the battery can be replaced when exhausted. If the injection or puncture needle block is damaged, it can be replaced. As long as the nut is rotated between the low waist and the iron rod and the body is divided into two sections, you can inspect the inner wall, spin down the small plastic bottle, and then

remove the damaged needle block to the outside and replace it with a new one. Then spin on a small plastic bottle. If the hip or arm needle block is damaged, it can be pulled out and replaced with a new one. There are spare parts for each model of this kind of large and small needle block.

VII. Catheterization and enema teaching: can be inserted into the skin only for teaching (no liquid outflow).

VIII. Gastric lavage and nasal feeding can be used to insert the nasal tube from the nostril into the esophagus. Before insertion, the lower lip of the mouth (pressed inwards) can be opened and inserted with the finger, and then injected into the tube sac of the body. Hold the outer tube of the posterior buttocks and release the clamps when irrigation is done. (The skin of the back buttocks can be loosened by the release fluid.)

IX. After the practice is completed, check if the water in the tube bag is drained and clean it dry.

X. Use and maintenance of plastic models: This model is made of rigid plastics.

1. In order to facilitate operation, the needle position can be slightly applied with lubricating powder (that is, talc powder) to help smoothness, and clean it after use.
2. After the model is used, if there is dirt, you can use a little detergent to wipe it away or a little soapy water and then clean with a clear cloth.
3. The model should be placed in a cool place, should not be exposed to the sun, and cover the cover.

PRODUCT PARAMETER

Model	LD-134	LD-135
Gender	Woman	Man
Material	PVC	PVC

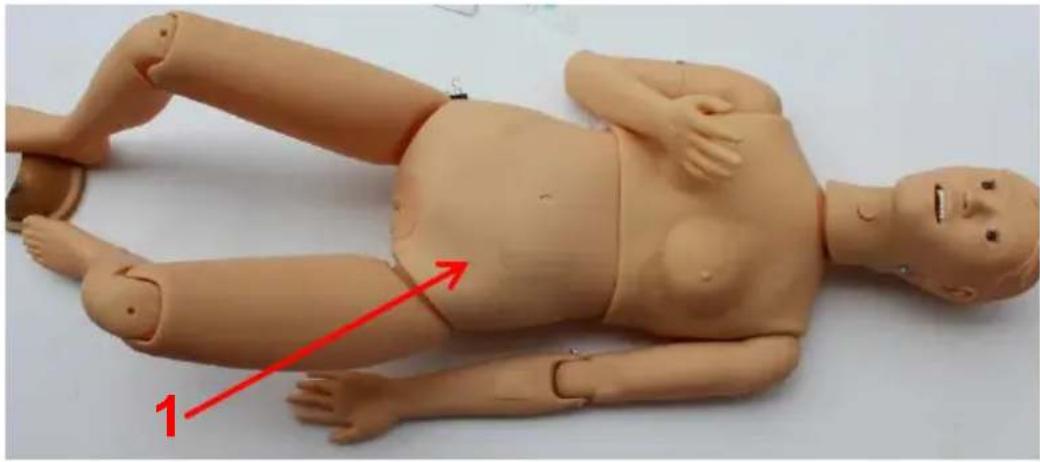

PARTS LIST

NO.	Name	PCS
1	Lower Body Model	1

NO.	Name	PCS
A	Clothes	1
B	Syringe 10ml	1
C	Urinary Catheter	1
D	Gastric Tube	1
E	Injection Module	3

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803, Nong 11, Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
