USER MANUAL HSHTG-01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PINTLE HOOK

MODEL: HSHTG-01

HSHTG-02SQ

HSHTG-03BQ

HSHTG-04BQ

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PINTLE HOOK

MODEL:HSHTG-01/SHTG-02SQ/HSHTG-03BQ/HSHTG-04BQ

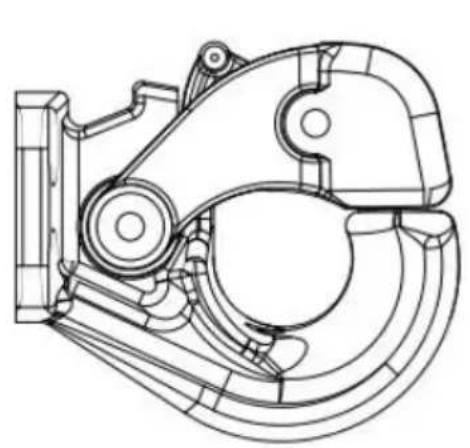

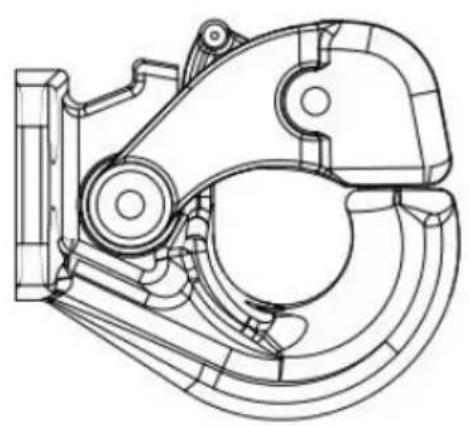

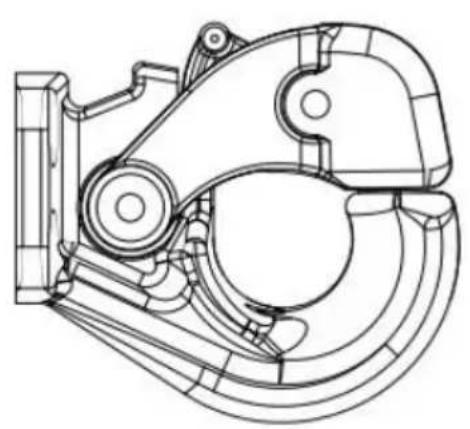

Technical line drawing of a mechanical assembly (no text or symbols)

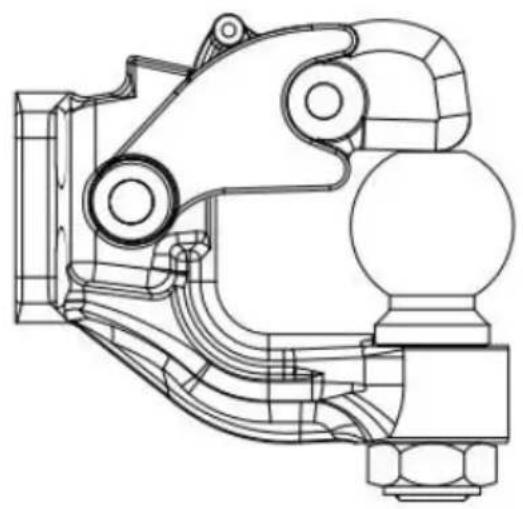

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HSHTG-02SQ/HSHTG-03BQ/HSHTG-04BQ

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of the towing system it is being used with. The consumer or operator is advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

SAVE THESE INSTRUCTIONS

NOTE: Please match your purchase.

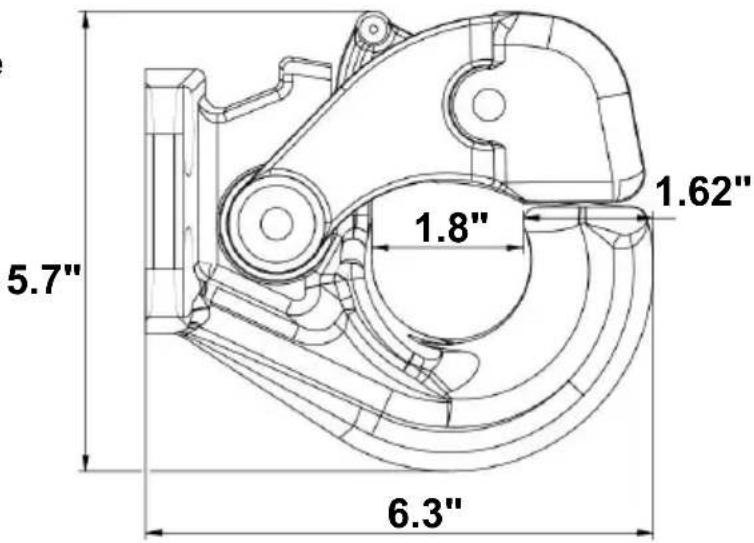

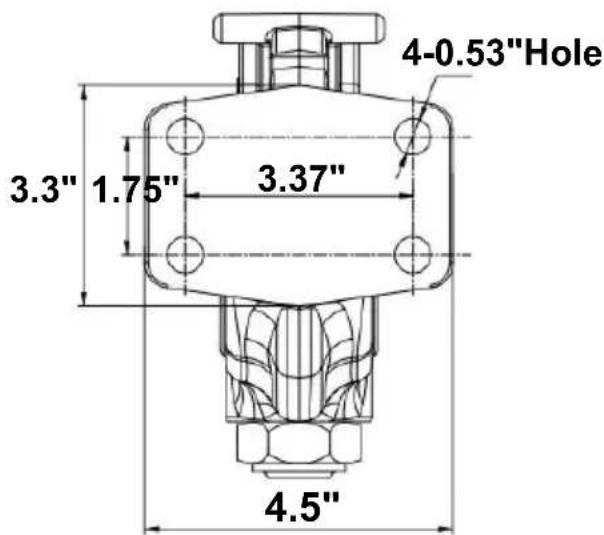

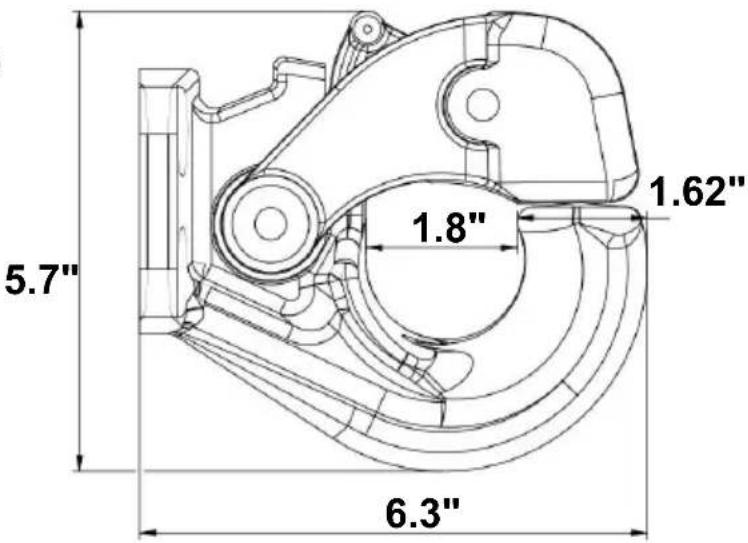

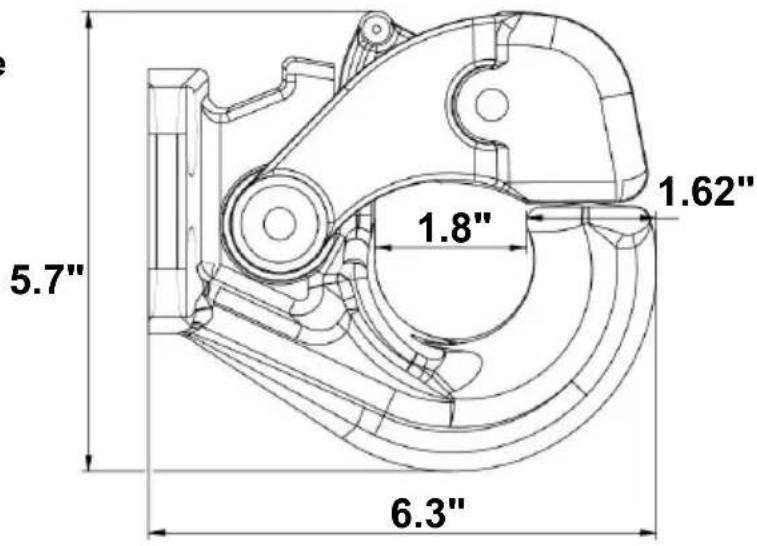

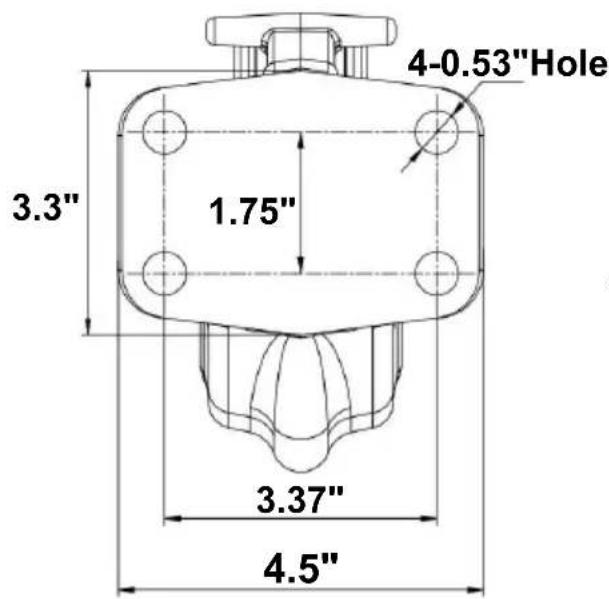

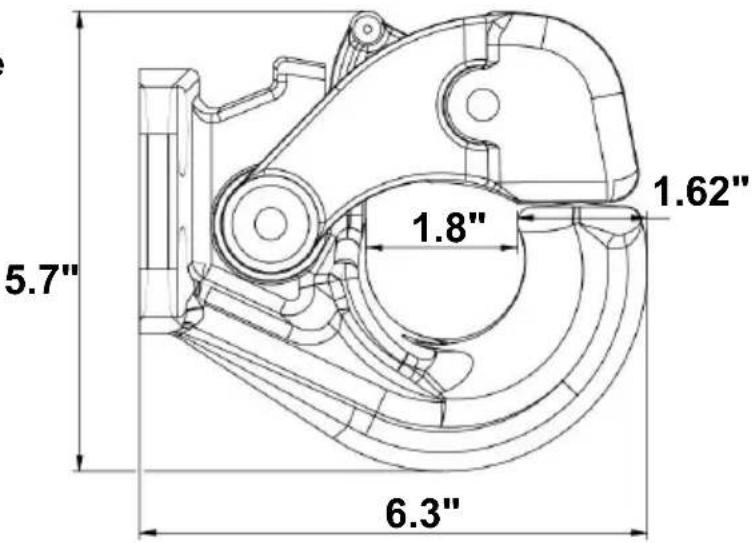

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

Model	HSHTG-01
Max. Gross Trailer WT	30000lbs
Max.Tongue WT	12000lbs
Parameter	No Trailer Ball, Black
Material	Steel

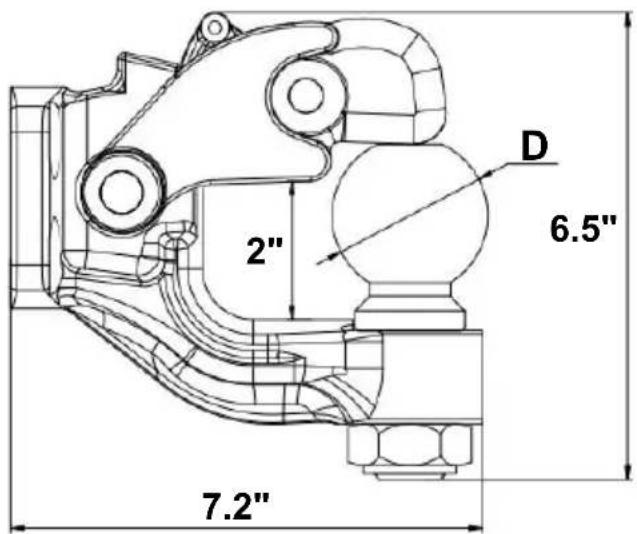

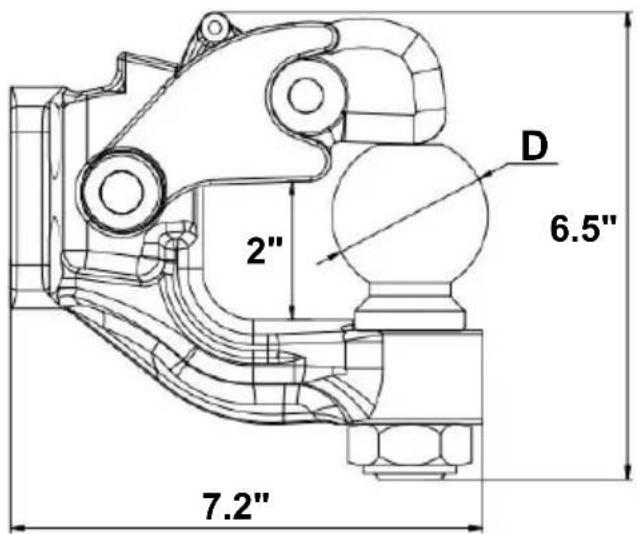

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

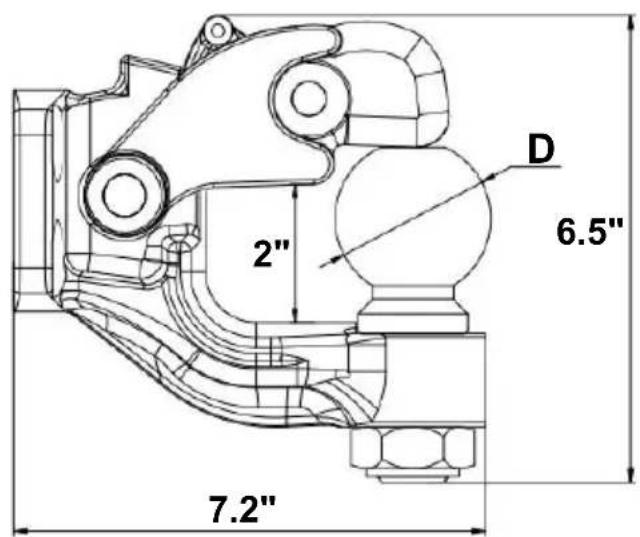

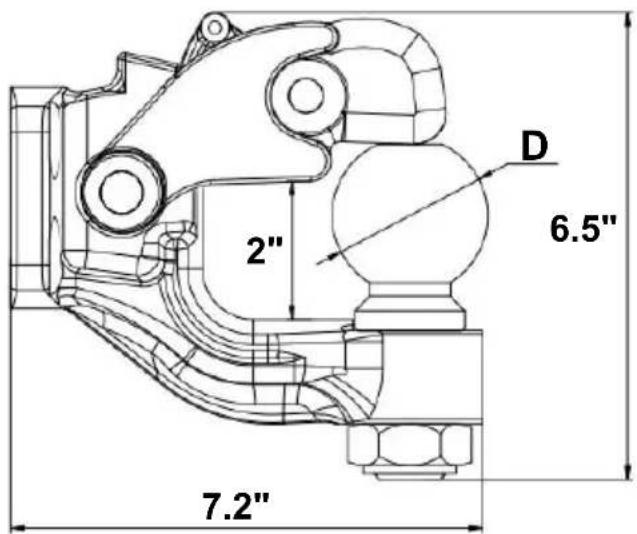

2" D 6.5" 7.2"

Model	HSHTG-02SQ	HSHTG-03BQ	HSHTG-04BQ
Trailer Ball(D)	2"	2-5/16"	2-5/16"
Max. Gross Trailer W	20000lbs	20000lbs	30000lbs
Max.Tongue WT	4000lbs	4000lbs	6000lbs
Color	Black
Material	Steel

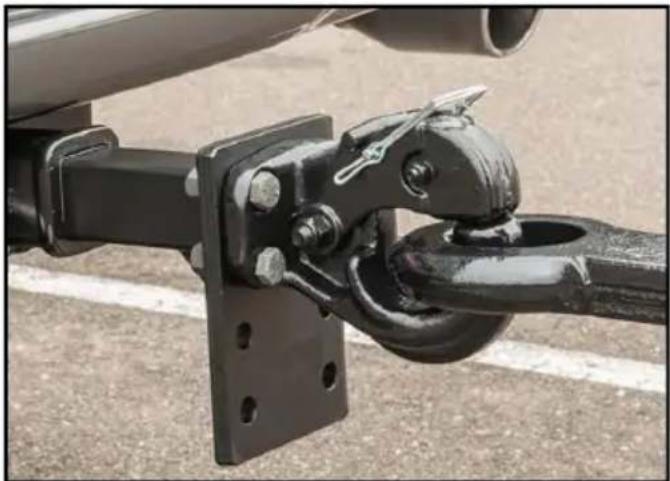

APPLICATION SCENARIOS

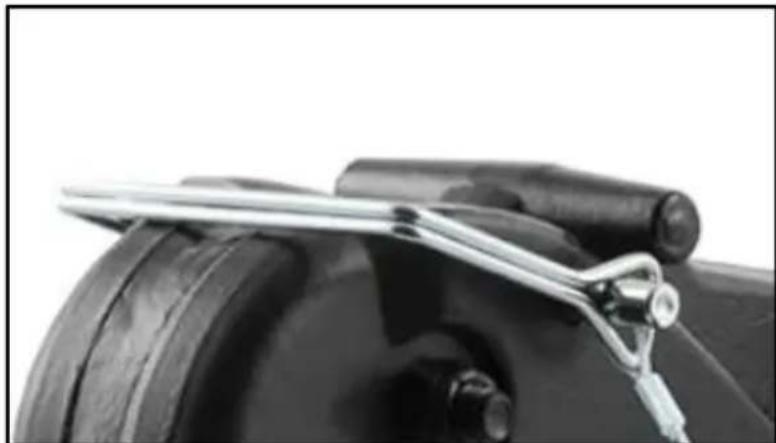

Close-up of a bicycle tire with metal frame and chain (no visible text or symbols)

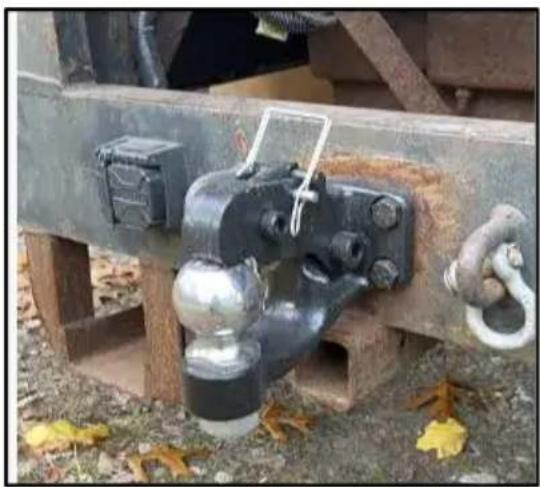

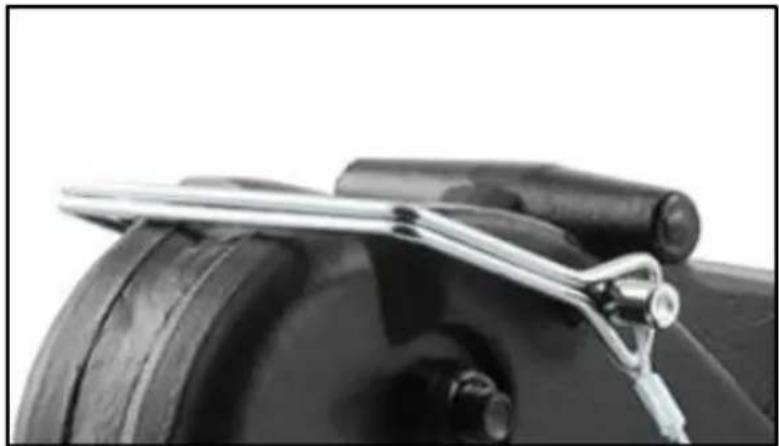

WARNING: Be sure to plug in the safety latch after installation!

Close-up of a black automotive suspension system with metal brackets and bolts (no visible text or symbols)

Close-up of industrial pipe fittings and fixtures mounted on a metal frame, with autumn leaves visible in the background (no text or symbols)

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for lock worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HSHTG -02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

AVERTISSEMENT:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

2" D 6.5" 7.2"

Close-up of a bicycle tire with metal frame and chain handle (no text or symbols visible)

Close-up of a mechanical suspension system with black components and bolts, mounted on a vehicle chassis (no visible text or symbols)

Close-up of a railway track support structure with metal beams, bolts, and attached pipes (no visible text or symbols)

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

MODELL: HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HS HTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNUNG:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

D 2" 6.5" 7.2"

Close-up of a bicycle tire with metal frame and chain handle (no text or symbols visible)

Close-up of a mechanical linkage assembly with black components and bolts, mounted on a metal frame (no visible text or symbols)

Close-up of a railway track with attached mechanical components and safety tags, no visible text or symbols

MAINTENANCE

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO: HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

NUMERO DI MODELLO: HSHTG-01 HSHTG -02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

AVVERTIMENTO:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

2" D 6.5" 7.2"

Close-up of a bicycle tire with metal frame and chain handle (no text or symbols visible)

Close-up of a mechanical linkage assembly with black components and bolts, mounted on a metal frame (no visible text or symbols)

Close-up of a railway track with attached mechanical components and safety tags, no visible text or symbols

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

MODELO: HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HSHTG -02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

ADVERTENCIA:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

2" D 6.5" 7.2"

Modelo	HSHTG-02SQ	HSHTG-03BQ	HSHTG-04BQ
Bola de remolque	2"	2-5/16"	2-5/16"
bruto máximo del	20 000 libras	20 000 libras	30000 libras
máximo de la lengu	4000 libras	4000 libras	6000 libras
Color	Negro
Material	Acero

APPLICATION SCENARIOS

Close-up of a bicycle tire with metal frame and chain handle (no text or symbols visible)

Close-up of a mechanical suspension system with black components and bolts, mounted on a metal frame (no visible text or symbols)

Close-up of a railway track support structure with metal beams, bolts, and attached pipes (no visible text or symbols)

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

MODEL: HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HS HTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

OSTRZEŻENIE:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

D 2" 6.5" 7.2"

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

MODEL: HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HS HTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WAARSCHUWING:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

Model	HSHTG-01
Max. Bruto	30.000 pond
Max. Tonggewicht	1200 0 pond
Parameter	Geen Trailer Ball, Zwaal
Materiaal	Staal

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

2" D 6.5" 7.2"

Model	HSHTG-02SQ	HSHTG-03BQ	HSHTG-04BQ
Aanhangwagenbal	2"	2-5/16"	2-5/16"
Max. Bruto	20.000 pond	20.000 pond	30000 pond
Max. Tonggewicht	4000 pond	4000 pond	6000 pond
Kleur	Zwart
Materiaal	Staal

APPLICATION SCENARIOS

Close-up of a bicycle tire with metal frame and chain handle (no text or symbols visible)

Close-up of a mechanical linkage assembly with black components and bolts, mounted on a metal frame (no visible text or symbols)

Close-up of a railway track with attached mechanical components and safety tags, no visible text or symbols

MAINTENANCE

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: HSHTG-01 / SHTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

HSHTG-01 HS HTG-02SQ / HSHTG-03BQ / HSHTG-04BQ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

5.7" 1.8" 1.62" 6.3"

Modell	HSHTG-01
Max. Gross T railer W	30 000 pund
Max. Tungan WT	1200 0lbs
Parameter	Ingen släpboll, svart
Material	Stål

4-0.53"Hole 3.3" 1.75" 3.37" 4.5"

2" D 6.5" 7.2"

Modell	HSHTG-02SQ	HSHTG-03BQ	HSHTG-04BQ
Trailer Ball (D)	2"	2-5/16"	2-5/16"
Max. Gross T railer	20 000 punc	20 000 pund	30 000 pund
Max. Tungan WT	4000 pund	4000 pund	6000 pund
Färg	Svart
Material	Stål

APPLICATION SCENARIOS

Close-up of a bicycle tire with metal frame and chain handle (no text or symbols visible)

Close-up of a mechanical linkage assembly with black components and bolts, mounted on a metal frame (no visible text or symbols)

Close-up of a railway track with attached mechanical components and safety tags, no visible text or symbols

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
