Product Type	Pintle hook for trailer
Brand	Vevor
Model	HSTCBZH-01
Ball diameter	2 inches (50.8 mm)
Maximum gross trailer weight	20,000 pounds (9,072 kg)
Color	Black
Material	Steel
Approximate dimensions	Length: 25 cm, Width: 12 cm, Height: 10 cm
Approximate weight	3.5 kg
Power supply	None (mechanical accessory)
Main function	Heavy-duty towing
Maintenance and cleaning	Regularly check bolts and pins, clean to remove sand or gravel
Safety	Do not exceed towing capacity, use safety chains, never attach chains to mounting system
Spare parts and repairability	Replaceable safety pin, other parts not specified
General information	Manufactured by Shanghai Muxin Muye Co., Ltd., imported into the United States by Sanven Technology Ltd.

Frequently Asked Questions - HSTCBZH-01 Vevor

How to install the Vevor HSTCBZH-01 pintle hook?

Attach the hook to the vehicle using the provided bolts. Make sure the safety latch is properly engaged after installation. Refer to the manual for recommended torque values.

What is the maximum towing capacity?

The maximum capacity is 20,000 pounds (approximately 9,072 kg) for the gross trailer weight. Never exceed this limit.

Is this hook compatible with my trailer?

The HSTCBZH-01 model has a 2-inch ball. Check that your trailer coupler is the corresponding size.

Can I use safety chains?

Yes, it is highly recommended to install safety chains between the vehicle and the trailer. Never attach the chains to the hook mounting system.

How to maintain the pintle hook?

Regularly inspect the bolts, safety pin, and general condition. Clean to remove sand or gravel. Replace any worn or damaged parts.

What type of safety pin to use?

Use only the pin provided by the manufacturer. Using a non-compliant pin may pose a serious risk and void the warranty.

Is this product suitable for children?

No, this product is not a toy and should not be used by children.

What to do in case of dynamic overload?

Avoid load drops that cause dynamic overload. This can damage the hook and cause injury. Always respect the rated capacity.

Where to find spare parts?

Contact Vevor support via www.vevor.com/support to obtain spare parts such as the safety pin.

Is the hook warranted?

Yes, the device is covered by a warranty. Check the electronic warranty certificate on the Vevor website. Defective accessories must be replaced immediately.

USER MANUAL HSTCBZH-01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PINTLE HOOK

MODEL: HSTCBZH-01 HSTCBZH-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PINTLE HOOK

MODEL:HSTCBZH-01/HSTCBZH-02

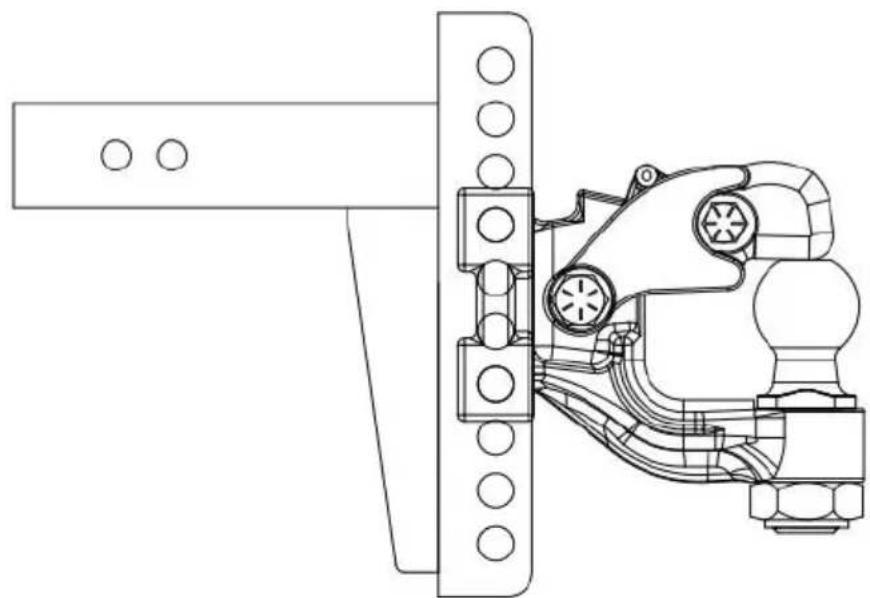

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of tl towing system it is being used with. The consumer or operator is str advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.

2. During their period of use, accessories must be checked for wear, and other damage.

SAVE THESE INSTRUCTIONS

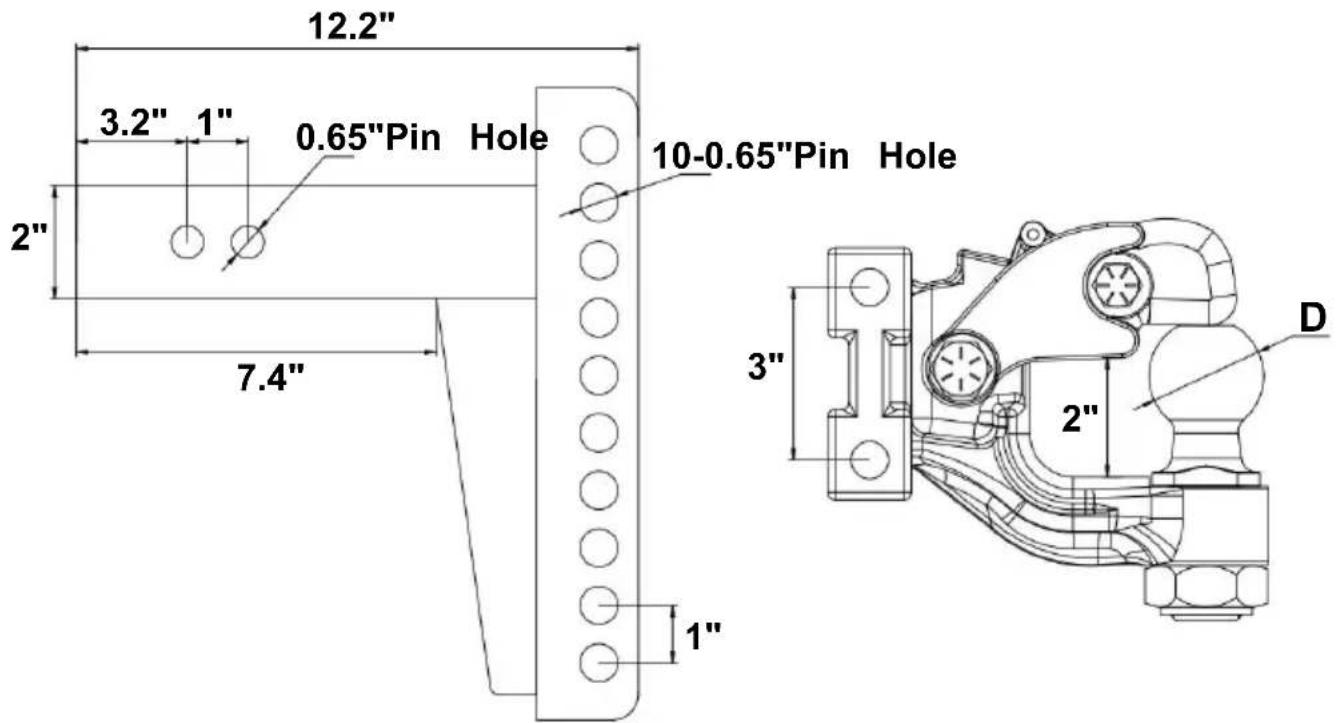

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	HSTCBZH-01	HSTCBZH-02
Trailer Ball(D)	2"	2-5/16"
Max. Gross Trailer W	20000lbs	20000lbs
Color	Black
Material	Steel

APPLICATION SCENARIOS

Close-up of a black tire with metal chains attached to its side (no text or symbols visible)

Exterior view of a military vehicle with mounted equipment and chains on a dirt road, surrounded by trees (no visible text or symbols)

WARNING: Be sure to plug in the safety latch after installation!

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for loc worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
