USER MANUAL HT-2E Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HT-1E / HT-2E

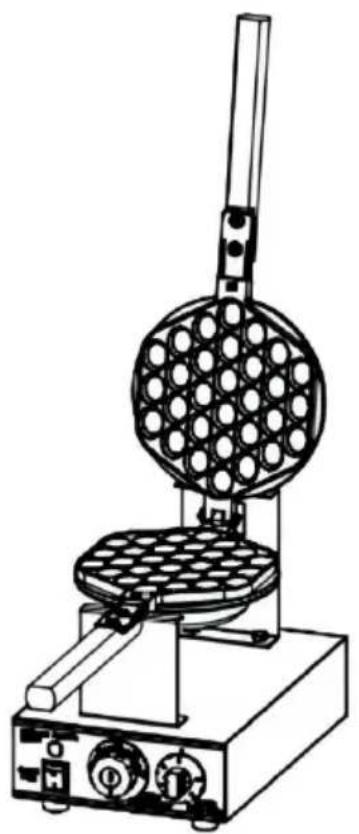

Line drawing of a waffle-based air fryer with a circular head and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Indoor use only.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Compliance is a EC & UK security certification.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operating it and keep it properly for future reference. Please read this page's precautions and safety r to ensure your safe use. This manual will outline safety warnings, precautions operating, maintenance, and cleaning. The warnings and instructions reviewed this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product since the uses will comply with these codes. Please consult a doctor before starting a training

program or engaging in strenuous endurance activity on the device.

Please read ALL the instructions before using your machine.

1. Ensure the voltage in your outlet is the same as indicated on the appliar rating label.

2. Do not let minors and pets get close to or touch the machine.

3. Do not touch the hot surface directly with your hands. Always use the hat knob for operation.

4. do not immerse the cord or plug into water or other liquids to prevent e shock.

5. Do not immerse the appliance in water or any other liquid.

6. Unplug the machine from the outlet when not in use and before cleaning. the appliance before installing or removing parts and before cleaning.

7. Cool down the HOT parts before operation and cleaning.

8. Do not operate the device with a damaged cord or plug, malfunctioning, or mechanical damage. Send it to your nearest authorized service centre for examination and repair (ONLY technicians should open the unit).

9. Using accessories or attachments not provided or recommended by the manufacturer may cause injury.

10. If the machine is not to be used for an extended period, unplug it, clear cover it, and store it in a dry and safe place.

11. Do not leave the power cord hanging over the edge of a table or count it come into contact with any hot surfaces.

12. Do not place the unit on or near hot air, electric burners, or heaters. 1 switch off the power to the socket before plugging in or unplugging. Hold the instead of pulling on the cord.

13. Do not apply this unit to purposes other than the indicated usage.

14. KEEP IT OUT OF CHILDREN'S REACH. Never leave it unattended while use.

15. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

16. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is adequately grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician appropriately qualified to meet local safety and electric codes.

17. Regularly check that the power outlet, plug, and cord in use are in good working condition. Any damaged components should be promptly repaired by a certified electrician who is qualified to meet local safety and electrical cEven if your power cord is functioning properly, it's important to keep it away water and avoid letting it run over carpets or heating devices to prevent pot hazards.

18. It is absolutely prohibited to use this machine in the presence of flamma liquids, gases, dust, or any other explosive situation. This strict rule is in place to ensure your safety and prevent potential accidents.
19. Do not move the machine before cooling and during heating
20. Do not operate the machine in an appliance garage or under a wall call. Always unplug the unit from the electrical outlet when storing it in an appliance garage. Otherwise, it would cause a fire risk, especially if the machine touches garage wall or the door touches it as it closes.
21. Type Y attachment: If the supply cord is damaged, it must be replaced manufacturer, service agent, or similarly qualified persons to avoid a hazard.
22. Children shall not play with the appliance. Children shall not make clean and user maintenance without supervision.
23. Inspect before every use.
24. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
25. Never leave it unattended while in use. Never leave the child unattended
26. Pet urine and feces can damage the product, please keep away.

WARNING:

This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

PRODUCT PARAMETERS

MODEL	Region	Voltage	Power	Plug Type
HT-1E	North America	AC120 V 60Hz	1700W	American PLUG
	Europe	AC220-240V50Hz	3000W	European PLUG
	Australia	AC220-240V50Hz	3000W	Australia PLUG
HT-2E	North America	AC120 V 60Hz	1700W+1700W	American PLUG
	Europe	AC220-240V50Hz	6000W	European PLUG
	Australia	AC220-240V50Hz	6000W	Australia PLUG

Attention:

1. Please use an appropriate external power supply according to the pro voltage.
2. Do not exceed the maximum load specified in the product manual.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional and packaging materials and check that the cooking plates are clean and dust-free necessary, wipe them over with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil.

Note: When your appliance is heated for the first time, it may emit slight smoke or odor, which is normal for many heating appliances, and will not affect the safety of your appliance.

1. Place the machine on a clean, dry, level surface near a plug base outlet
2. Adjust the temperature knob to the lowest temperature position, check again whether the product and power cord are intact, and connect the plug to the
3. Insert the plug into the socket to ensure that the machine is powered on

4. Select the desired temperature with the control knob. It is recommended to set at 320-400(160-200°C).

5. Allow the unit to reach desired temperature. The heating indicator light will turn off when the desired temp is reached.

6. The waffle iron grids are non-stick.

7. After the temperature reaches the set value, pour the batter onto a non s

heating plate and apply it evenly with a scraper.

1. Add the ingredients you need and roll them up for consumption after the product is cooked.
2. Repeat the steps above to make multiple waffles.
3. After finished, for safety, please turn the temperature knob counterclockwise the limit position and cut off the power.

Note: It works this way repeatedly to ensure the temperature is specific range. During the machine's operation, the heating indicator cycles on ar off.

TIPS

1. Please use specialized premix powder. Using the wrong premix powde batter formula can cause physical burning.
2. If the wrong premixed powder is used and causes burning, the temperature be adjusted to 60^ C ( 140^ F), and a small amount of water can be poured non stick coating. Use a scraper to scrape off the burnt part.

CLEANING AND MAINTENANCE

1. After use, turn the temperature knob to the lowest temperature, unplug, ar for the product to cool down.
2. Use a soft brush to clean the residue and oil on the mold surface.
3. For the exterior, wipe with a soft, dry cloth. dry cloth. Never use an abra cleanser or harsh pad.
4. Please clean regularly to avoid dirt.

Note: Do not use hard and sharp objects to clean the mold to avoid damaging the non-stick coating.

Notes: Before using it again, reassemble according to the instructions.

Warning: Do not use liquid to rinse the product directly to avoid water damage to internal components.

STORAGE

1. Always unplug the machine before storage.
2. Always ensure the machine is cleaned, cooled, and dried before the string

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE: HT-1E / HT-2E

Line drawing of a waffle-based air fryer with a circular head and control panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

SAFETY WARNINGS AND PRECAUTIONS

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

KOMMERZIELLER PFANNKUCHEN MASCHINE

MODELL: HT-1E / HT-2E

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: HT-1E / HT-2E

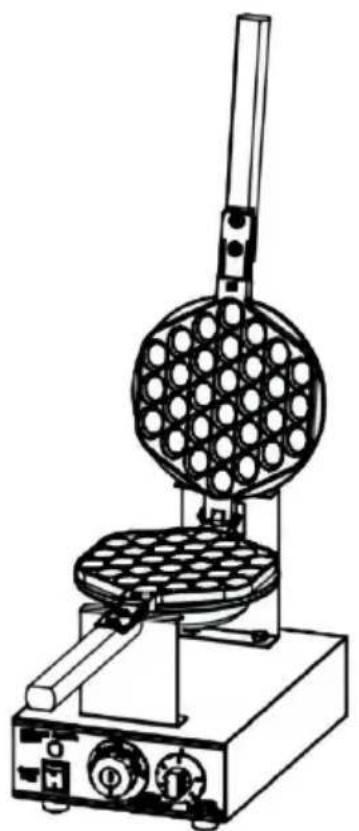

Line drawing of a waffle-based air fryer with a circular head and control panel (no text or symbols)
