USER MANUAL JD-C-17-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

AUTOMOTIVE FLOOR MATS

MODEL:JD-D-10-2/JD-C-3-3/JD-D-12-1/

JD-A-30-2/JD-C-2-2/JD-C-2-2/JD-C-12-1

/JD-C-4-4/JD-C-5-1/JD-A-27-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Automotive Floor Mats

MODEL:JD-D-10-2/JD-C-3-3/JD-D-12-1/JD-A-30-2/JD-C-2-2/JD-C-2-2/JD-C-12-1/JD-C-4-4/JD-C-5-1/JD-A-27-1

The picture is for reference only, all subject to the actual

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PARAMETER LIST

Model	JD-D	-10-2	JD-C	-3-3	JD-D	-12-1	JD-A-30	-2	JD-C-2	-2
Net Weight (Kg)		6.55	5.1	7.2	5.55	6.8

Model JD-C	-17-1	JD-C	-12-1	JD-C	-4-4	JD-C-5	-1	JD-A-27	-1
Net Weight (Kg)	4.7	4.2	4.85	4.95	4.5

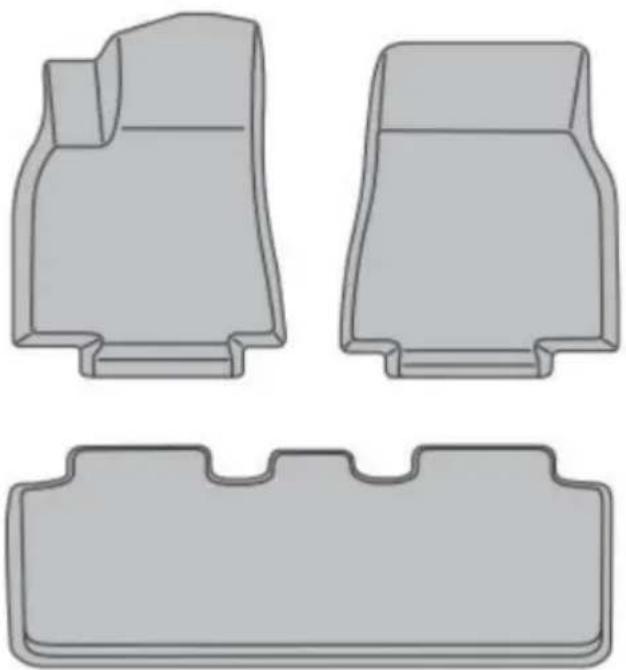

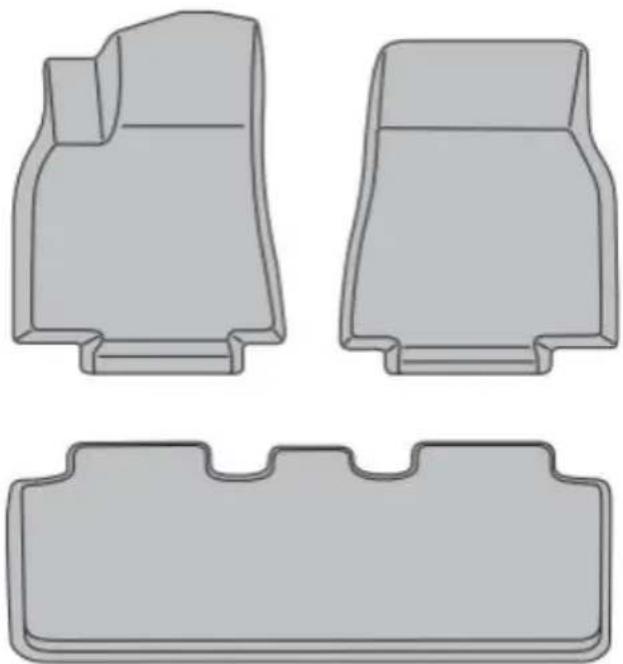

PART LIST

Model Front	Ground Mat	Rear	Ground Mat
JD-D-10-2	2		1
JD-C-3-3	2		1
JD-D-12-1	2		1
JD-A-30-2	2		1
JD-C-2-2	2		1
JD-C-17-1	2		1
JD-C-12-1	2		1
JD-C-4-4	2		1
JD-C-5-1	2		1
JD-A-27-1	2		1

SECURITY & WARNINGS

WARNING:

1. Always use floor mats that are designed to fit your vehicle.
2. Pedals interference can cause loss of vehicle control and increase the risk serious injury.

3. Always make sure that the floor mats are properly secured to the retaining hooks in the carpet, if your vehicle is equipped with retaining hooks.

4. Do not use two or more floor mats on top of each other.

5. Always properly reinstall and secure floor mats that have been removed for cleaning or replacement.
6. Failure to properly follow floor mat installation or attachment instructions can potentially cause interference with pedal operation causing a loss of vehicle control.
7. Keep your foot dry. Do not drive barefoot
8. Do not leave loose objects in or near the driver side foot well.
9. Always use the floor mat with the correct side up. Do not turn it over.

OPERATION

Before Installation:

1. After take the floor mats out of the play the floor mats on a flat surface to re-resilience.

If necessary, fold the floor mats in the opp direction to restore resilience.

1. Recheck fitment details before installation Including but not limited to: Model/ Model Trim Level/ Cab Style/ Seat Type/ Transm Type/ Floor Type

2. Verify the directions of each floor mat refer to

3. Remove factory or other floor mats.
4. Clean the carpet from dust and debris.

Two 3D-rendered mechanical parts with no text or symbols

Simple gray rectangular shape with a notch, no text or symbols present

Reference Image

Installation

1. Adjust front seats to the rear end when installing the first row floor mats.
2. Take the driver side floor mat, carefully install to the driver side floor and accelerator and brake pedals.
3. Engage the retaining hooks if equipped.

Technical line drawing of a mechanical component with clamps and ribbed base (no text or symbols)

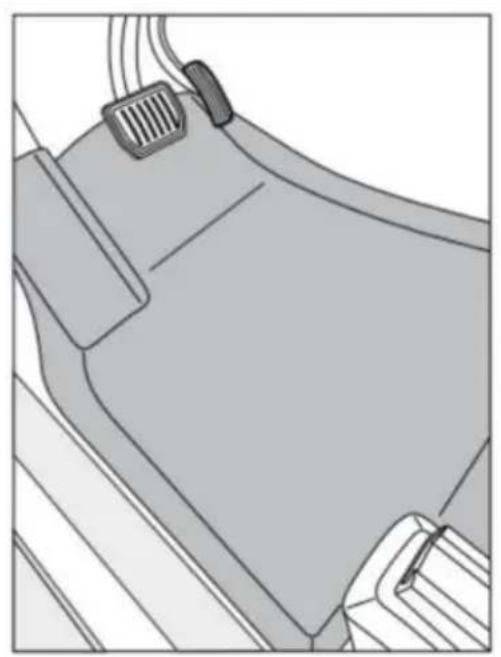

Without the Retaining Hook

Technical line drawing of a mechanical component with no visible text or symbols

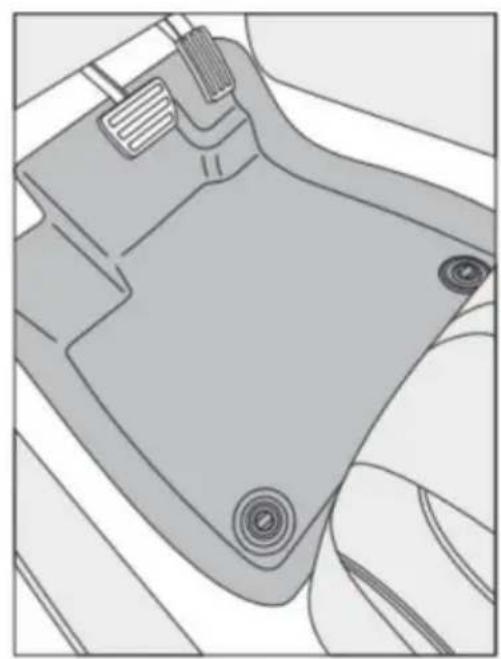

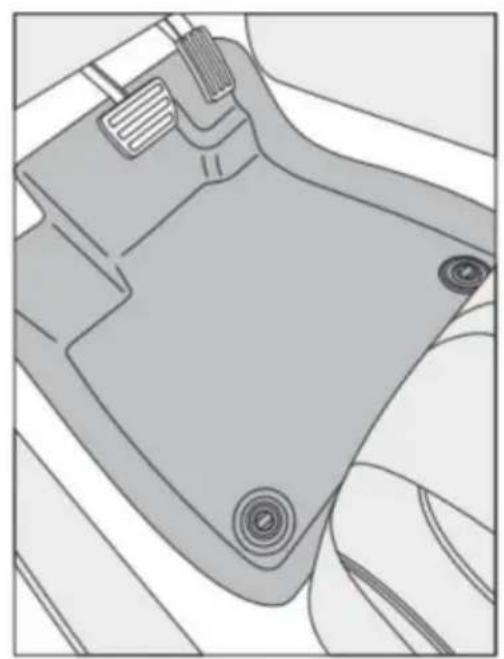

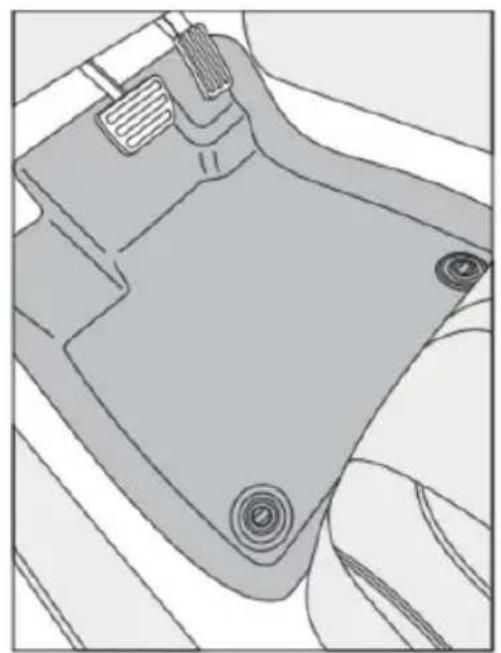

With the Retaining Hook

1. With the engine stopped and the parking brake set, fully depress the pedal make sure there is no interference with the floor mat.

If the pedals have interference with the floor mat, please remove the floor ma contact us.

1. Repeat steps 2 thus 3 to install the front passenger side floor mat

2. Adjust front seats to the front end when installing the second row floor m

3. For pickup trucks fold up the second seats. For SUVs and MPVs adjust the second row seats to the rear end.

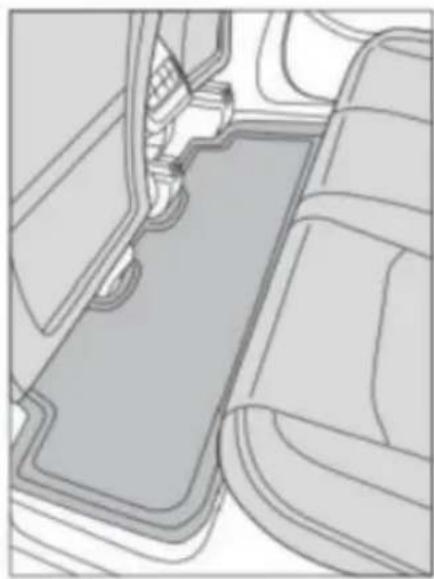

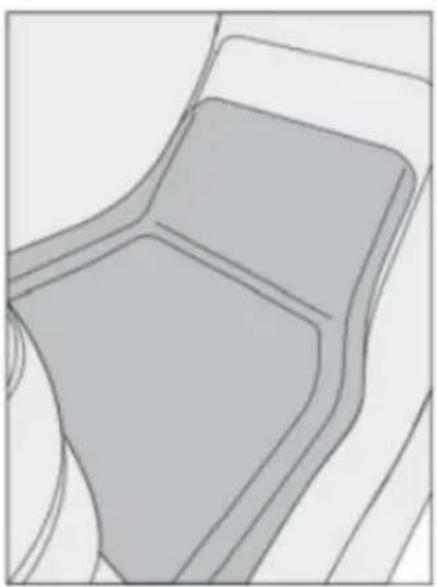

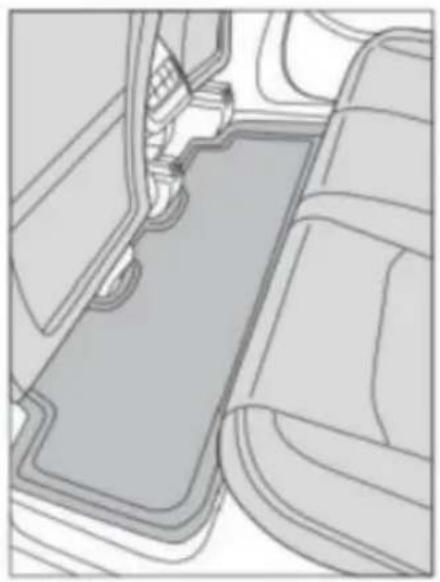

4. Take the second row floor mat(s)and fully install to the second row floor.

Abstract geometric diagram with overlapping polygonal shapes (no text or symbols)

Interior view of a car showing the dashboard and seat area (no text or symbols visible)

Please refer to our

listing images to verify the upside and the downside.

1. Repeat steps 6 thus 8 to install the third row floor mat(s) if equipped.

2. Adjust all the seats back to original positions.

Clean:

1. Periodic cleaning extends service life of your floor mats
2. Remove the floor mats from vehicle and shake off loosen debris and dus
3. Clean the floor mats using neutral cleaner and a soft cloth.
4. Lay the floor mats flat to dry
5. Reinstall the floor mats.

NOTICE:

1. Keep this instruction with the vehicle's owner manual.
2. Please inform the following safety information to all drivers of this vehicle.
3. When selling the vehicle with floor mat, please inform the next owner.

OPEN-BOX:

1. Lay the floor mats on a flat surface to restore resilience.
2. If necessary, fold the second row floor mat in the opposite direction to res resilience

RECHECK FITMENT DETAILS:

1. The AUTOSAVER88 floor mats are designed to fit specific vehicles.

Fitment details including but not limited to: Make/ Model/ Year/ Trim/ Cab Sty Seat Type/ Transmission Type/ Floor Type/ Country of Origin

1. Unfitted floor mats on the driver side may cause danger when driving

2. Do not try to modify the unfitted floor mats, please contact us.

RETAINING HOOK:

1. If the retaining hooks are loosened, please contact your dealer to reinstall the retaining hooks.
2. Periodic check to make sure the retaining hook is secure and tight.
3. Some vehicles may not be equipped retaining hook.

CLEAN:

1. Do not use a scrubbing brush to clean the floor mats.
2. Reinstall the floor mats after dry up.

Deformation recovery:

1. Light method: Take out the foot pad and dry it in a place with sufficient such as in the sun. TPE material has the characteristics of thermal expansion contraction, and the heat of the sun helps it gradually return to its original s
2. Heating method: Use a heat gun or hair dryer to carefully heat the defor area. Pay attention to control the temperature to avoid excessive temperature damage to the material. While heating, gently press the deformed part to hel return to its original shape. This method is suitable for slight deformation.
3. Heavy weight compression method: For some slight deformation, you can lay the foot pad flat and press the deformation part with a heavy object (subbook), so that it can recover its shape naturally within a period of time.
