JDM50-4 - Acoustic panels Vevor - Free user manual and instructions

Product Type	Acoustic foam panels
Brand	Vevor
Model	JDM50-4
Number of panels	4
Dimensions of one panel	1200 x 600 x 50 mm
Density	30 kg/m³
Texture	Egg crate shape
Power supply	No power supply
Main functions	Acoustic reduction, soundproofing, acoustic improvement
Care and cleaning	Regular dusting with a dry cloth or low-power vacuum cleaner
Safety	Keep children and animals away during assembly; do not assemble under the influence of alcohol or drugs
Spare parts and repairability	Not applicable (non-repairable product, no spare parts)
General information	Indoor use, wall mounting with universal adhesive (not included)
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - JDM50-4 Vevor

How to install Vevor JDM50-4 acoustic panels?

Unpack the panels and let them rest for 24 to 48 hours in open air to regain their shape. Clean the wall, apply universal adhesive (not included) evenly to the back of the panel, and stick it to the wall.

What adhesive should I use for the panels?

The manual indicates using universal adhesive (purchased separately). It is recommended to spray the adhesive evenly on the back of the panel.

How long does it take for the panels to regain their shape after unpacking?

Let the panels rest for 24 to 48 hours on a clear floor. To speed up the process, you can soak them in water, wring them out, and then dry them in a tumble dryer at medium temperature.

Are the panels fireproof?

The manual does not mention fireproof properties. The panels are made of foam, so they are potentially flammable. Keep them away from any heat source or flame.

Can I cut the panels to the desired size?

The manual does not specify if cutting is possible. In general, foam panels can be cut with a sharp knife, but this may affect appearance and acoustic efficiency.

How to clean the acoustic panels?

Clean the panels with a dry cloth or a low-power vacuum cleaner to remove dust. Avoid excessive moisture as it might affect the adhesive.

What is the difference between the JDM50-4 model and others?

The JDM50-4 contains 4 panels of 1200x600x50 mm with an egg crate texture. Other models vary in number of pieces, dimensions, and textures (triangle, pyramid). See the parameter table in the manual.

Can I use the panels outdoors?

No, these panels are designed for indoor use. Exposure to weather and moisture could degrade them and compromise the adhesive.

Why do the panels fall off the wall?

Possible causes: wall not properly cleaned (dust, dirt), insufficient or uneven adhesive, or panel not dry enough after soaking (if you sped up the process). Start over by cleaning the wall thoroughly and applying adhesive evenly.

Is there a warranty for Vevor JDM50-4 panels?

Yes, Vevor provides an electronic warranty certificate. Visit www.vevor.com/support for more information.

USER MANUAL JDM50-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Acoustic Foam Panels

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36

/JZT50-24/JDM50-2/JZT50-4/JDM50-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SJ25-80/SJ50-36/SJ50-50/SJ25-52/JZT50-36/JZT50-24/JDM50-2/JZT50-4/JDM50-4

Four black corrugated metal strips arranged in a 2x2 grid, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SECURITY & WARNINGS

WARNING:

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	Quantity	Size	density	Product texture
SJ25-80	80pcs	300*300*25mm	30kg/m^3	triangle
SJ50-36	36pcs	300*300*50mm	30kg/m^3	triangle
SJ50-50	50pcs	300*300*50mm	30kg/m^3	triangle
SJ25-52	52pcs	300*300*50mm	30kg/m^3	triangle
JZT50-36	36pcs	300*300*25mm	30kg/m^3	Pyramid shape
JZT50-24	24pcs	300*300*25mm	30kg/m^3	Pyramid shape
JDM50-2	2pcs	1200*600*50mm	30kg/m^3	Egg shape
JZT50-4	4pcs	1200*600*50mm	30kg/m^3	Pyramid shape
JDM50-4	4pcs	1200*600*50mm	30kg/m^3	Egg shape

Note: The above product installation needs to buy their own additional universal glue.

Note: The instruction manual picture is the model SJ 50-36, please r

the physical objects for other models.

INSTRUCTIONS

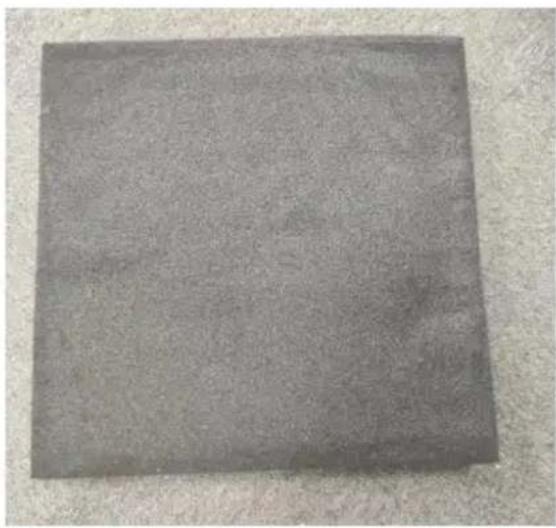

1. Open the box and remove the product from the compression bag. Spread the product on an open ground and stand for 24-48 hours.

Note: In order to make the product return to shape quickly, the product be soaked in water, then twist dry the product. Finally, use the dryer medium-gear temperature to dry the product; if the product is wet, it affects the paste effect of the product;

1. Remove the wall of dust and dirt.

2. Apply universal glue on the back of the product and paste it on th

Solid dark gray square material on a textured gray surface (no text or symbols)

Note: Need to buy their own universal glue, glue spraying needs to be evenly.

Question	Ways of resolution
The product thickness is not u the standard	Product did not return to the sh it is recommended to stand for 24-48 hours
Product paste on the wall to	The wall is not clean, it is recommended to clean the wall dry, and apply the universal glue the product paste surface

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE
