Product Type	Acoustic Panels
Brand	Vevor
Model	JF166-HFK-30220
Panel Dimensions	2450 x 166 mm
Thickness	9 mm
Quantity per Lot	8 panels
Total Surface Area Covered	~3.25 m²
Color	Gray Oak
Material	Wood-Plastic Composite (WPC)
Installation Method	Glue and connector fixation with screws
Recommended Glue	Nail glue (strong adhesive)
Package Contents	8 panels, connectors, decorative pieces, screws
Usage	Indoor
Maintenance	Clean with a dry, soft cloth; avoid humidity
Safety	Install on a flat, clean, and dry wall; check stability regularly; do not install on curved walls
Warranty	Electronic warranty via vevor.com/support
Manufacturer	Shanghaiauxinmuyeyouxiangongsi
Repairability	Difficult due to glue fixation; contact support

Frequently Asked Questions - JF166-HFK-30220 Vevor

How to install Vevor acoustic panels?

Installation is done in several steps: prepare the wall (clean and dry), measure and cut the panels if necessary, apply nail glue to the back, fix the panel to the wall, then use the connectors and screws to assemble the panels together. Finish by placing the decorative pieces.

What type of glue to use?

It is recommended to use nail glue (strong adhesive) to fix the panels to the wall. Make sure it is suitable for WPC materials and wall surfaces.

Can I cut the panels to the desired size?

Yes, you can cut the panels with a circular saw or a knife according to your needs. Measure carefully before cutting.

How to maintain the panels?

Clean the panels with a dry, soft cloth. Avoid direct moisture and aggressive chemicals that could damage the coating.

Are the panels suitable for a bathroom?

No, these panels are designed for indoor use in dry rooms. Excessive moisture can degrade the WPC material.

How many panels are needed for a room?

Calculate the wall area to cover. Each panel measures 2450 x 166 mm (0.4067 m²). Divide the total area by 0.4067 to get the number of panels needed. One lot contains 8 panels covering approximately 3.25 m².

Can the panels be painted?

It is not recommended to paint the panels, as paint could alter their acoustic properties and appearance. If necessary, use a paint suitable for WPC after a discreet test.

What to do if a panel comes off?

If a panel comes off, carefully remove it, clean the glue residue on the wall and the panel, then apply a new layer of nail glue and firmly reattach it.

Is there a warranty?

Yes, Vevor offers an electronic warranty via vevor.com/support. Keep your proof of purchase and register your product to benefit from support.

Can I install the panels on a drywall wall?

Yes, provided the wall is flat, clean, and dry. Use anchors suitable for drywall to fix the connector screws, or make sure the glue adheres well.

USER MANUAL JF166-HFK-30220 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ACOUSTIC WPC SLAT WALL PANELS

MODEL:JF166-HFK-11411/JF166-HFK-09111

/JF166-HFK-30220/JF166-HFK-21381

/JF166-HFK-30110/JF166-HFK-6007

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

ACOUSTIC WPC SLAT WAL PANELS

MODEL:JF166-HFK-11411/JF166-HFK-09111/JF166-HFK-30220

/JF166-HFK-21381/JF166-HFK-30110/JF166-HFK-6007

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you as there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Acoustic WPC slat wall panels

The installation should be done by an adult, and children should not without supervision.

1. Please ensure that the Acoustic WPC slat wall panels is firmly insta otherwise he may fall off and cause harm to people.
2. Check the stability and safety of the product fixation regularly. If the product is loose, it should be strengthened immediately.
3. Do not install wall panels on curved walls. Wall panels may be d and cause harm to people.

PARAMETER LIST

Model	Size	QTY	Color
JF166-HFK-11411	2450*166*9mm	8	White wax wood color
JF166-HFK-09111	2450*166*9mm	8	Black walnut color
JF166-HFK-30220	2450*166*9mm	8	Grey oak color
JF166-HFK-21381	2450*166*9mm	8	Deep pomelo wood color
JF166-HFK-30110	2450*166*9mm	8	Dumb light white
JF166-HFK-6007	2450*166*9mm	8	Mute black

If there is any difference between the color of this product and the instruction manual, please refer to the physical object.

INSTRUCTIONS

Safety and Care Advice

• Check you have all the components and tools listed on the following pages.

• Remove all fittings from the plastic bags and separate them into the groups.

• Keep children and animals away from the work area, small parts c choke if swallowed.

• Make sure you have enough space to layout the parts before start
• Parts of the assembly will be easier with 2 people.
• Please put it carefully when installing. The wall board is brittle and break by impact.

Install the required tools

Circular Saw	Electric Screwdriver	Pencil	band tape	Knife
	·To reduce the likelihood of damaging your pro please ensure that your power drill is set on a torque setting.

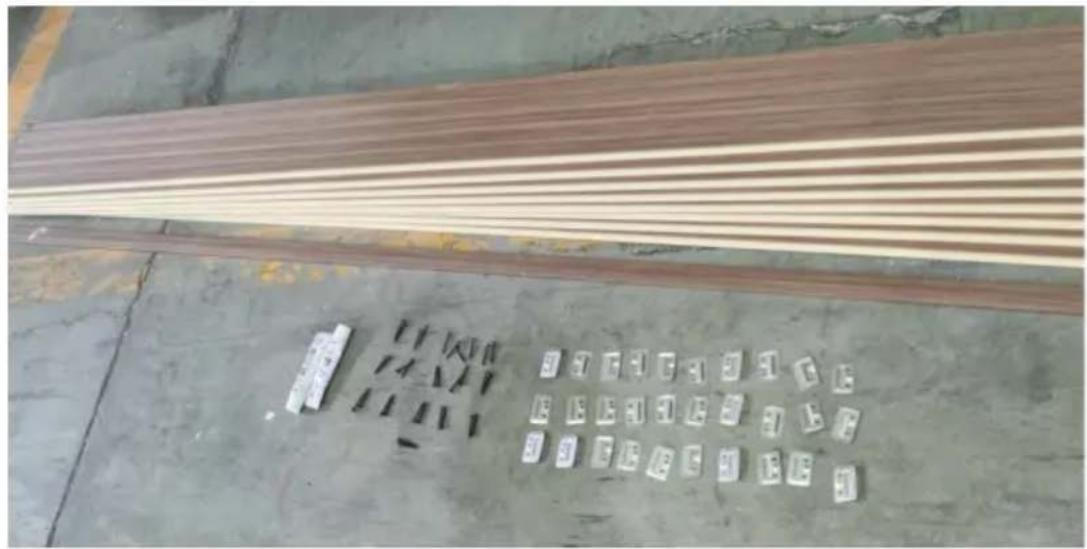

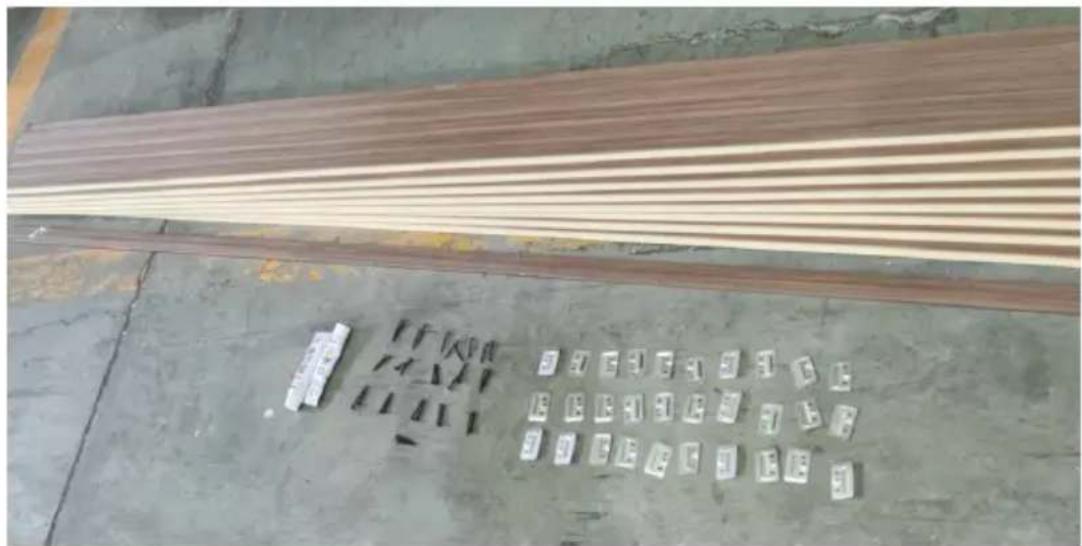

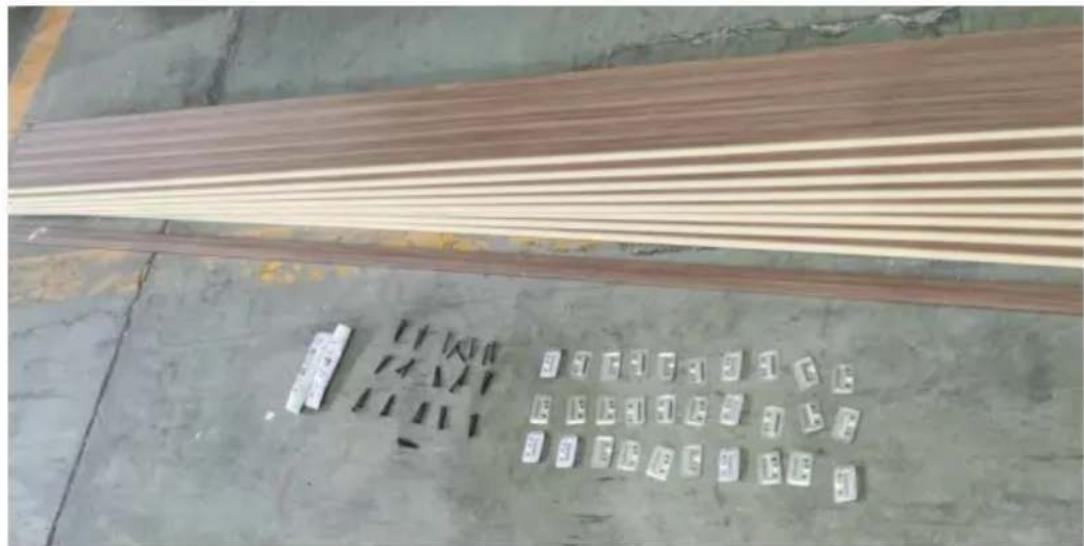

List of kit parts

A:SLAT WALL PANELS x 8pcs	B:decorative sheet x 1pc	C:connection strap x 32pcs
D:screws x 32pcs	E:Nail free glue x 2pc

THE STANDARD INSTALLATION METHOD

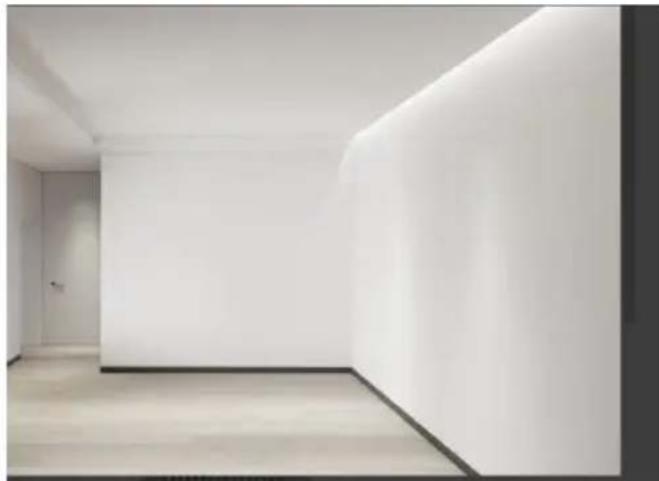

Step1:Preparing the wall.

• Make sure the surfaces are clean and dry, without nails and screw. Measure the wall size with a measuring tape, and record the size of required Acoustic WPC slat wall panels.

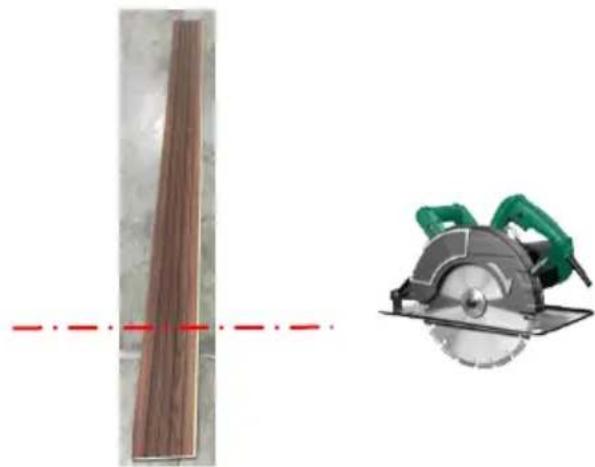

Step 2:Cutting the panels

• Cut products with circular saws and knives for your size requirement need.

Step 3:Mounting the panel

Apply nail glue on the back of the wall panel; attach the panel to t wall

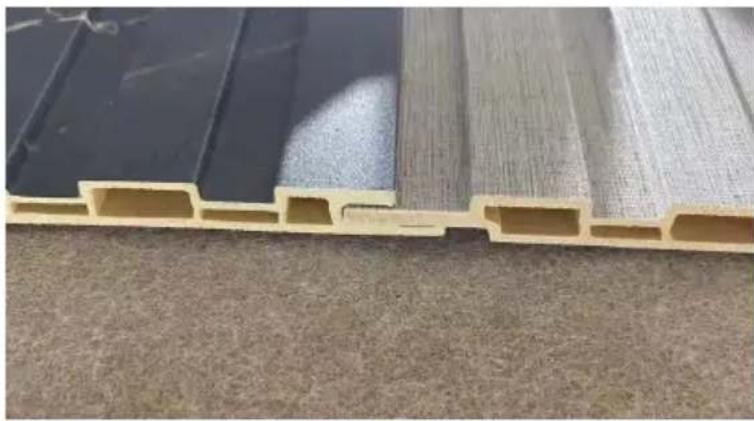

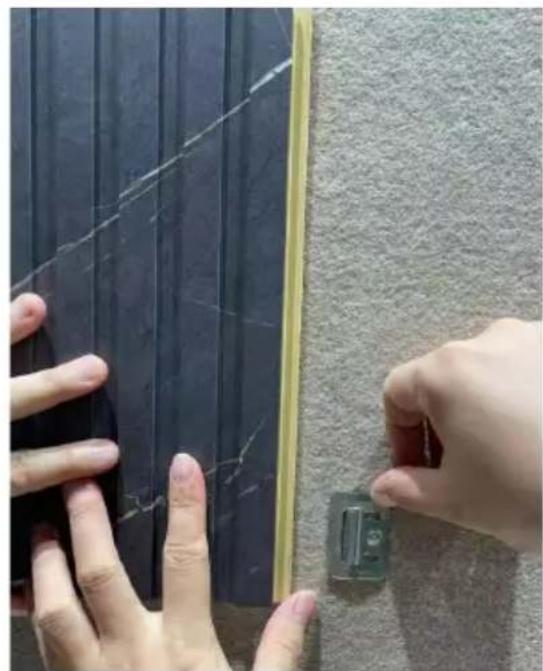

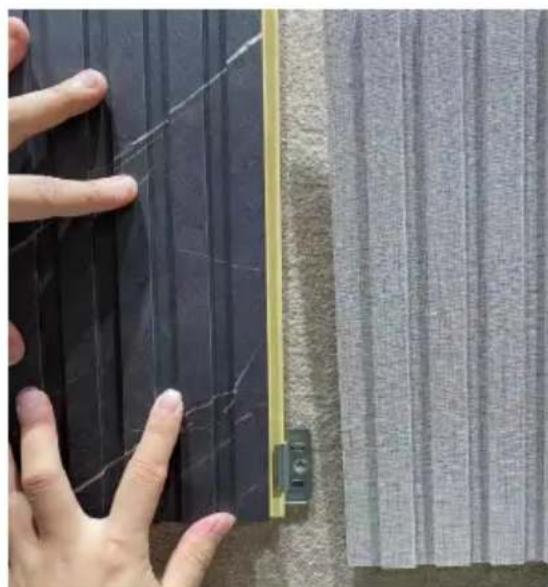

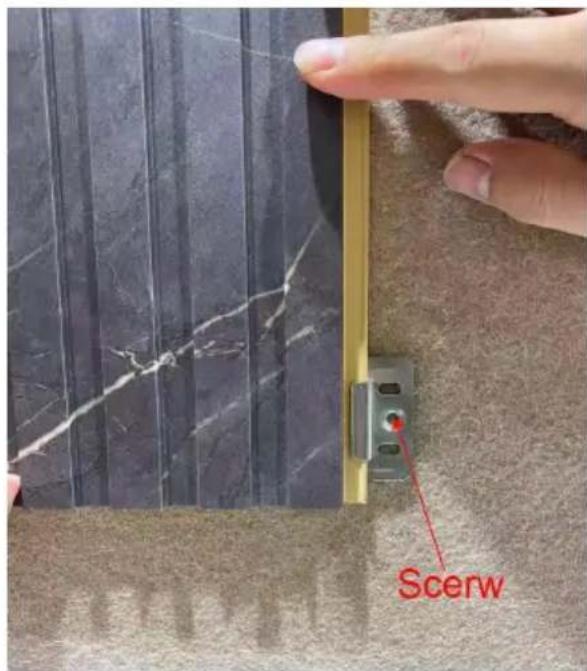

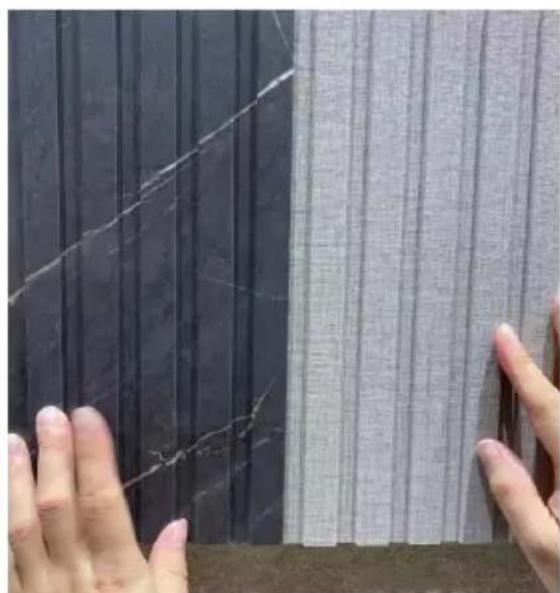

Step 4:Splicing Acoustic WPC slat wall panels;

Card hardware connector into the wall board and secure them with s Each wall board is recommended to install 4 connecting panels, two connecting panels 600mm apart.

Install a screw in the middle round hole of the connecting plate.

Apply nail glue on the back of the wall panel and put it into the in board slot on the wall.

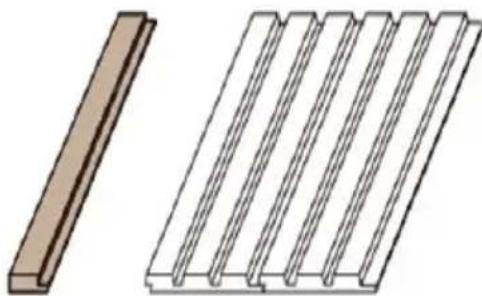

Step 5: Apply nail-free glue on the back of the decorative piece, then card into the Acoustic WPC slat wall panels card slot.

Manufacturer: Shanghaiuxinmuyeyouxiangonsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
