Product type	Professional meat grinder
Brand	Vevor
Model	JQ-90A-12
Dimensions (L x W x H)	395 x 430 x 390 mm
Net weight	33.3 kg
Rated voltage	220 V / 110 V (depending on model)
Rated frequency	50 Hz / 60 Hz
Rated power	700 W
Productivity (meat)	11 lb/min (approx. 5 kg/min)
Housing material	Stainless steel
Intended use	Grinding meat and soft vegetables
Prohibited foods	Frozen foods, bones, dry bread
Included accessories	Large tray, pusher, locking nut, slicing set
Cleaning	All removable parts washable with warm soapy water; motor not submersible
Blade maintenance	Wipe and oil with edible oil after cleaning
Safety	Stop switch, automatic overload protection in case of jamming
Spare parts	Use only original Vevor spare parts
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - JQ-90A-12 Vevor

What types of food can I grind with this grinder?

This grinder is designed for grinding meat and soft vegetables. It is not suitable for frozen foods, bones, or dry bread.

How to clean the grinder after use?

Unplug the appliance. All removable parts (tray, auger, blades, etc.) can be washed with warm soapy water. The motor block must never be immersed. Wipe all parts thoroughly before storing.

What to do if the meat does not come out of the cutting plate?

This may be due to a jam. Turn off the machine and unplug it. Remove the stuck material. Make sure the meat is cut into suitable pieces (10 cm long, 2 cm thick) and contains no bones or hard tendons.

Can I grind frozen meat?

No, never use frozen meat. The meat must be fresh and chilled (but not frozen) to avoid damaging the motor.

How to prevent rust on blades and discs?

After washing and drying them, coat the blades and disc with a few drops of edible oil to protect them from rust.

What is the power of this grinder?

The rated power is 700 W, with a voltage of 220 V or 110 V depending on the model and a frequency of 50/60 Hz.

Is the grinder easy to disassemble for cleaning?

Yes, all parts in contact with food can be removed and disassembled easily in a few simple steps.

What are the residual risks during use?

Even when following instructions, never put your fingers or objects (fork, knife) into the feed opening. Wear fitted clothing and tie back long hair.

Can I use non-recommended accessories or spare parts?

No, use only original Vevor spare parts. Non-recommended accessories may be hazardous or damage the appliance.

Where can I find technical support and warranty?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support.

USER MANUAL JQ-90A-12 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

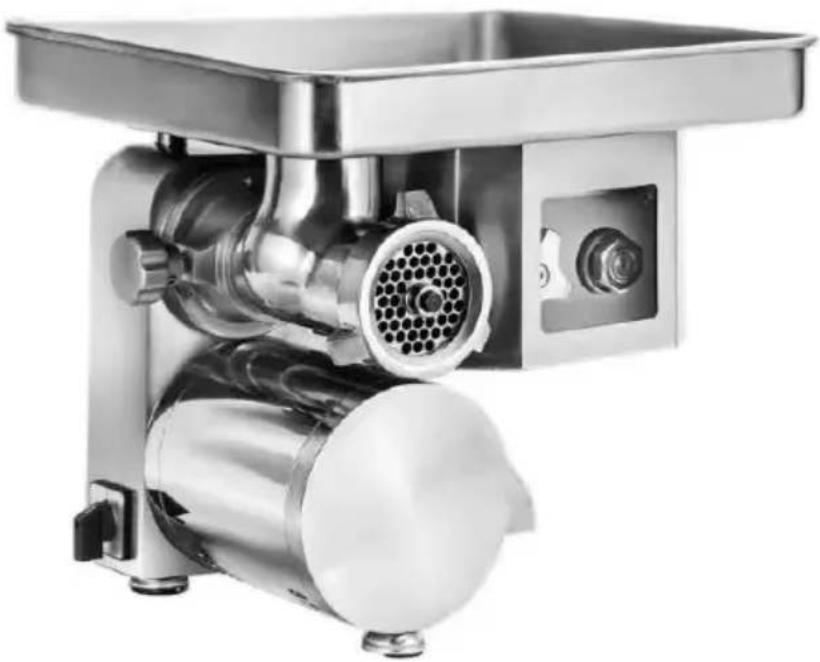

MEAT MINCER & SLICER

MODEL: JQ-90A-12

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands, and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: JQ-90A-12

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Intended use

The operational safety of the appliance is only guaranteed if it is used as intended in accordance with the information in the operating instruction. Any use of the appliance other than the intended use is considered improper use.

This mincer is an appliance for professional use. Ideally suited for chopping meat and soft vegetables. It is not suitable for processing fibrous food, bones, and dry bread.

The housing is made of stainless steel for maximum hygiene. All parts that come into direct contact with food can be easily removed, dismantled, and cleaned in a few simple steps.

We reserve the right to make technical changes to the product in the context of improving the operating characteristics and further development. If you need spare parts,

Only use original spare parts!

Residual risks

Even if all relevant safety regulations and the manufacturer's instructions are complied with, risks may arise due to the design determined by the intended use if the product is not used as intended.

Never bend over the machine with open clothing (e.g., a tie) or long hair. Never reach into the filler opening with your fingers or any unsuitable objects (e.g., fork, knife, etc.). Never touch running parts of the appliance. Residual risks are manifested by the possible occurrence of allergies in connection with the foods to be processed.

If safety instructions, the intended use, and all instructions described in the operating instructions are observed, risks can be minimized.

Safety instructions

Observe the safety instructions and warnings on the appliance and follow the instructions! Follow the instructions in the operating manual.

• Use the device in accordance with these instructions. Take into account the working conditions and the activity to be carried out. Using the appliance for applications other than those for which it is intended can lead to dangerous situations.
• As the first operator, have a qualified person instruct you. Children and young people under the age of 18 must not use the device. If a young person over the age of 16

is being trained by a specialist under supervision, he/she is exempt from the ban. Only lend or give the device to persons who are familiar with handling it. Include the operating instructions in the delivery. The operating personnel are responsible to third parties. Keep other people and pets away when using the appliance. Distractions can cause you to lose control

of the device.

• Never modify the appliance and its operating and safety equipment or render the operating and safety equipment unusable. Modifications to the appliance and changes to the operating and safety equipment endanger your safety and can cause damage to the appliance.
• Be attentive and carry out all work calmly and carefully. Never work when you are tired or under the influence of alcohol, drugs, medication, or substances that can impair your senses. Pay particular attention to your condition at the end of working hours. A moment of carelessness while using the appliance can lead to serious injury.
• Keep your work area clean. Clear the workplace of obstacles. Ensure the workplace is adequately lit. Untidy and poorly lit workplaces increase the risk of injury.
• Before each use, check the appliance for visible external defects.
• Never leave the appliance unattended during operation.
• If the appliance shows signs of malfunction or a defect, disconnect it from the power supply immediately.
• Never wear jewelry such as rings, ties, chains, or watches when handling the appliance. Tie up long hair or wear a protective cap.
• Wear suitable protective clothing and gloves as well as non-slip footwear.
• If a fire occurs, disconnect from the power supply.
• Never extinguish with water! Risk of electric shock!
• Secure the appliance against falling off tables or worktops.
• Do not use any accessories or spare parts that have not been recommended by the manufacturer. These could pose a danger to the user or cause damage to the appliance and lead to personal injury.

Pull out the mains plug:

• Before servicing the appliance - When the device is not in use • Before cleaning the appliance • Before each transport

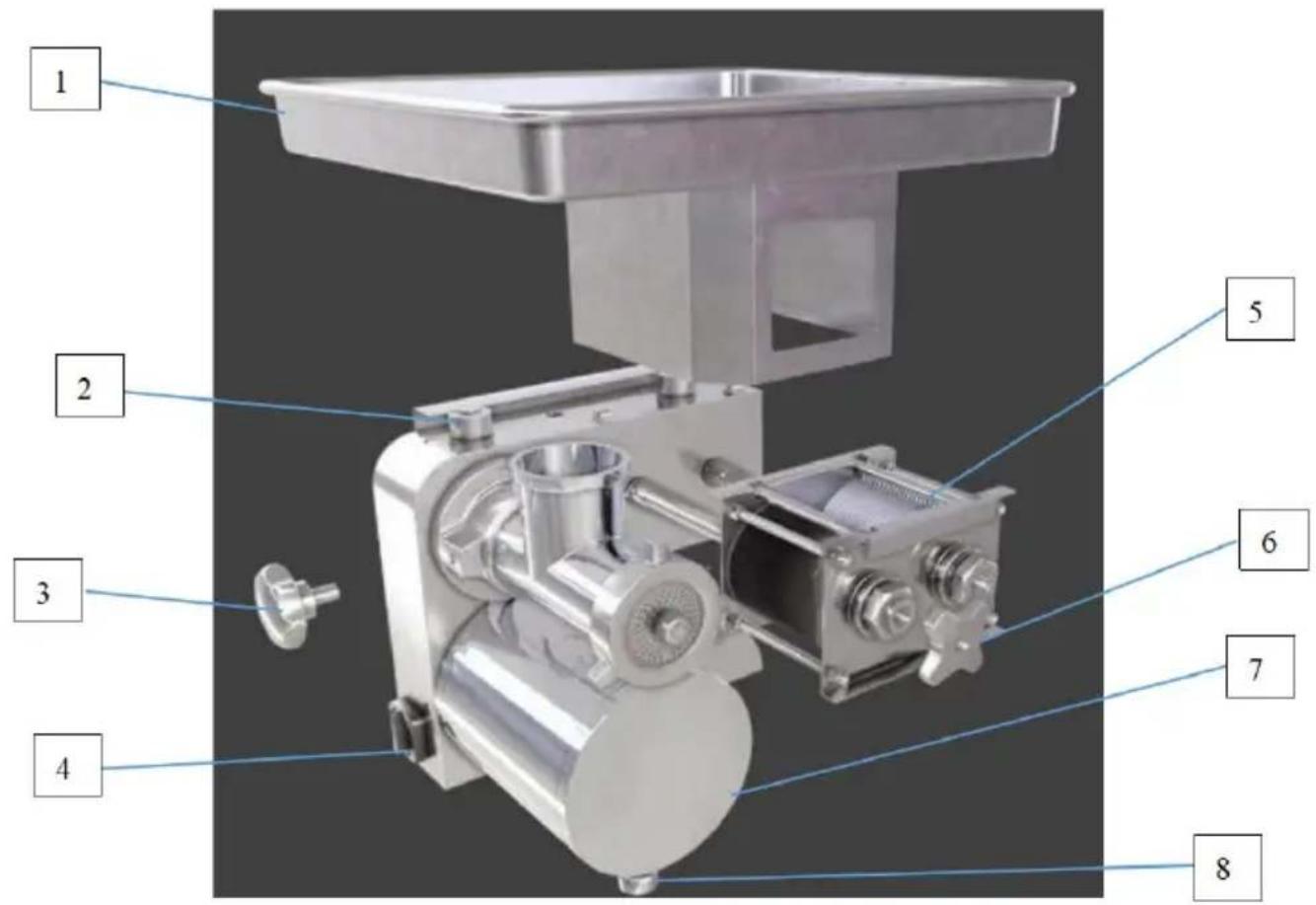

Device description

1.Big Tray	2.Plastic Fixed Par	3.Locking Nut	4.Black Switch
5.Slice Group	6.Slice group Nut	7.Motor	8.Foot Pad

Technical Parameters

Type	JQ-90A-12
Rated Voltage	220V/110V
Rated Frequency	50Hz/60Hz
Rated Power	700W
Meat Productivity	11 lb/min
Net Weight	33.3kg
Dimension	395x430x390mm

Please refer to the nameplate of the machine for specific voltages.

Accessory Install Instructions

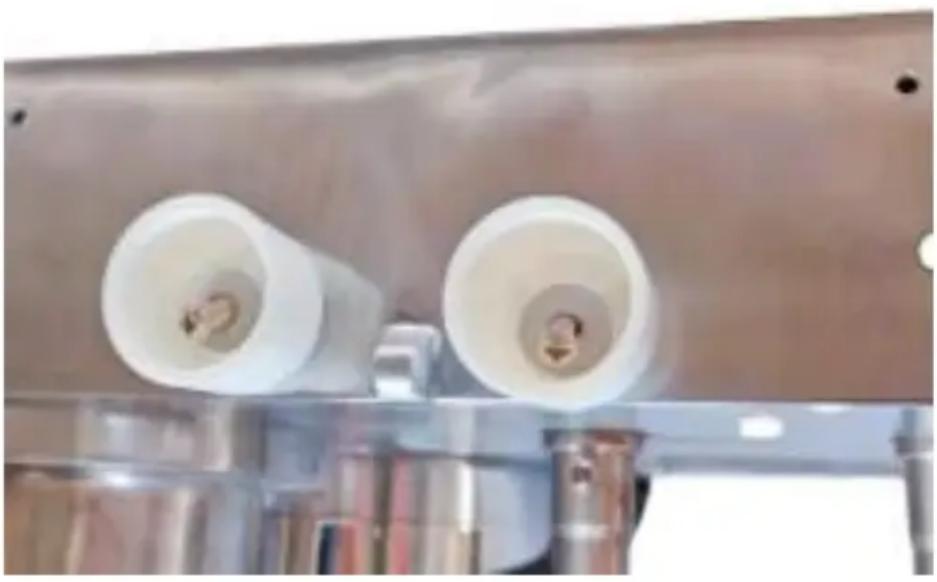

First Step: Find these two parts of the accessory in the machine box. Each accessory part includes one plastic mouth, one spacer, and one screw.

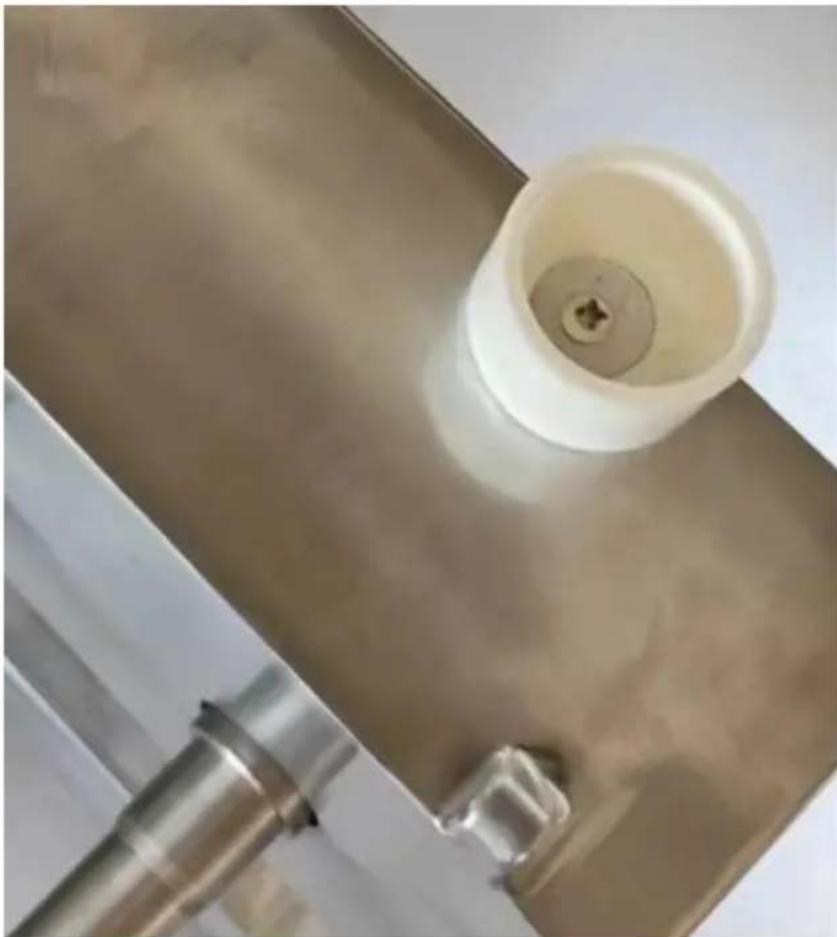

Second Step: The spacer and screw are used to fix the plastic mouth to the machine body. As shown in the figure.

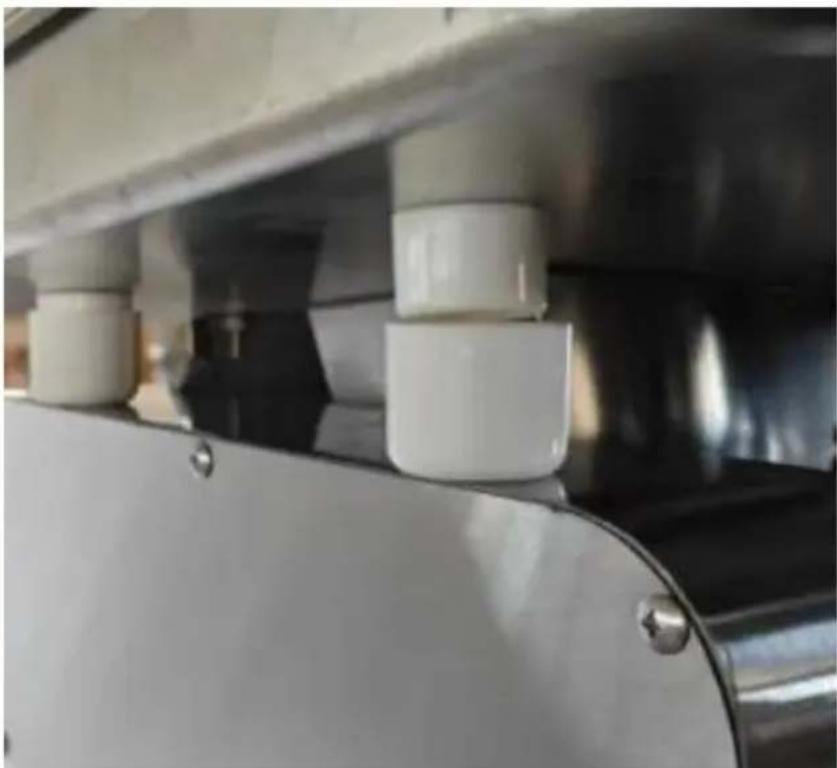

Third Step: Install the tray, aligning the plastic parts on the tray with those on the machine body. When they align, the installation is successful.

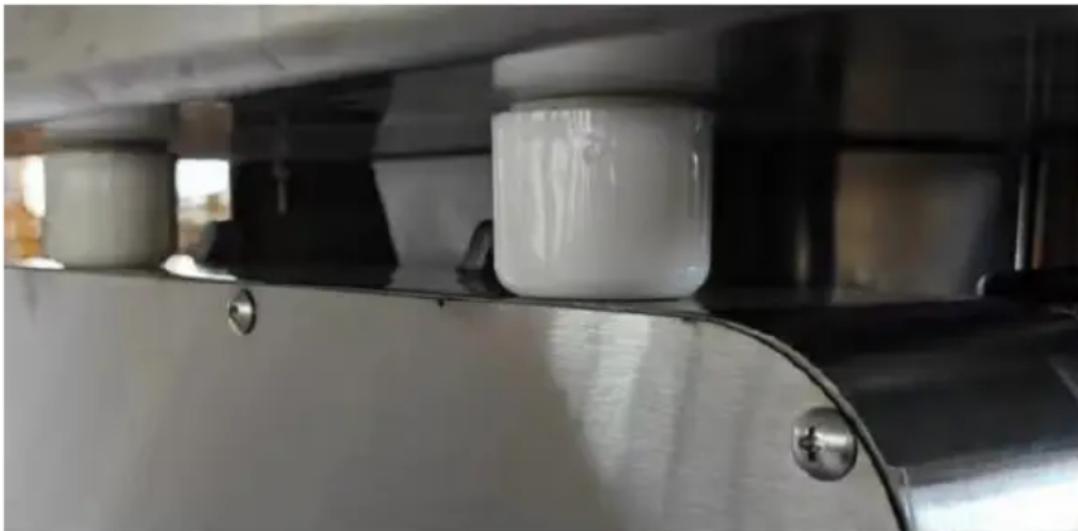

Fourth Step: The successful installation is shown in the figure.

Operating Procedure

Please Note: If you are using your machine for the first time, clean the interior and wipe the inside of your machine with a clean damp cloth before switching it on. Make sure that the voltage and frequency indicated on the rating plate match your local supply. Before plugging in, ensure the switch is off. Follow these procedures for the best operating results and long machine life.

Mince Tips

1. Remove bones, pieces of gristle, and sinews as much as possible. Cut the meat into strips 10 cm long and 2 cm thick. NEVER USE FROZEN MEAT.
2. Always turn the switch on and make sure the unit is running before adding meat.
3. Put the meat onto the tray and then push it into the grinder with the pusher.

Important Tips

1. Cut meat into strips or cubes slightly smaller than the opening on the feeding tube.

Make sure the meat is free of bones, tough tendons, nutshells, etc. before grinding.

1. Make sure the meat is free of bones, tough tendons, nutshells, etc. before grinding.
2. Raw meat or fish should be thoroughly chilled (not frozen) before grinding to reduce the loss of juices in the process.
3. Freshly ground meat should be refrigerated and cooked within 24 hours.

Jamming

When the circuit breaker automatically stops the motor, or when the motor continues to function but no meat comes out of the cutting plate due to jamming of bone or other materials, please switch off the grinder and follow the steps below.

Step 1. Turn the machine off and unplug it from the electrical socket.

Step 2. Clean the jammed material.

Cleaning and Maintenance

1. Make sure that the motor has stopped completely. Disconnect the appliance from the power outlet.

NEVER clean any electrical unit by immersing it in water.

1. Apart from the motor unit, all removable parts may be cleaned in soapy water.

Never use any corrosive or abrasive to clean the products.

1. Wipe dry all machine parts thoroughly before storing it.
2. After washing cutting blades and disc, wipe dry and coat with a few drops of edible oil to prevent rusting.
3. Only mince meat without skin/bones to prevent product malfunction.
4. During extended grinding, fats from meats can build up inside the grinder tube, slowing down grinding efficiency and straining the motor. If this occurs, you should stop the grinder, wash parts in hot water, and reassemble. When possible, alternate bread with meat. This helps to keep the feed screw clean.

Warning: Motor unit is not waterproof. Never immerse the motor unit in water or other liquids. Unplug

immediately if the motor comes into liquid contact and contact the technicians for inspection and maintenance.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Device Description

Procedure

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Operating procedure

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Device description

NEED HELP? CONTACT US!

Operating procedure

warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

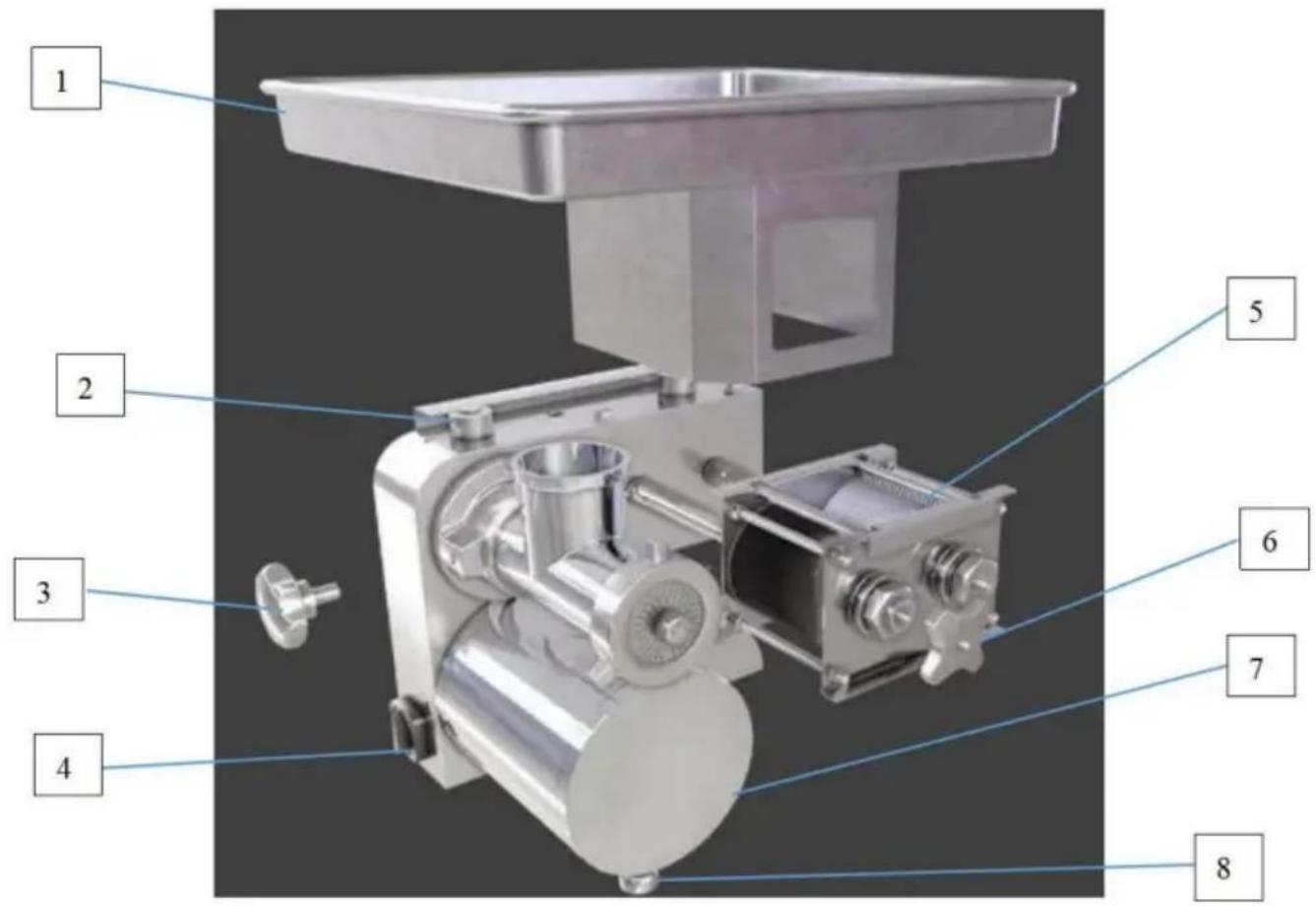

Unit description
