Product Type	Fuel can with manual pump
Brand	Vevor
Model	JGC16PH2
Capacity	16 gallons (approx. 60.6 liters)
Compatible fuel type	Diesel, gasoline, lubricating oil
Maximum flow rate	7.8 L/min (gun at 0.5 m below the tank outlet)
Hose length	250 cm
Hose inner diameter	19 mm
Wheel diameter	6 inches (15.24 cm)
Tank material	Polyethylene (PE)
Color	Red
Gun	Manual oil gun with locking
Valve	Direct ball valve
Handle	Integrated into the tank
Usage	Fuel storage and transfer
Safety	Requires grounding to dissipate static electricity
Maintenance	Regularly clean the gauge and filter; rinse before changing fuel
Storage	Store in a cool, dry environment
Package quantity	2 units (model JGC16PH2)
Included accessories	Hose, gun, clamps, bolts, mounting plate
Repairability	Spare parts available (hose, seals, gun)

Frequently Asked Questions - JGC16PH2 Vevor

How to assemble the JGC16PH2 fuel can?

Install the fixed bracket and mounting plate with the provided bolts. Replace the tank cap. Connect the direct ball valve joint to the bottom outlet, then connect the gun to the tank using the long hose and clamps. Ensure all connections are tightly secured.

What types of fuel can I use?

This can is compatible with diesel, gasoline, and lubricating oil. Do not use corrosive chemicals or other solvents.

How to fill the fuel tank?

Place the tank flat and close the ball valve. Open the tank cap and fill the oil while monitoring the level to avoid overflow. Close the cap tightly after filling.

How to use the manual pump for fuel transfer?

Place the tank vertically and turn the air valve on the cap counterclockwise. Ensure the oil level is at least 0.5 m higher than the gun. Press the gun to prime; you can lock the trigger for continuous flow. Adjust the flow by tilting the tank if necessary.

What safety precautions should I follow?

Fire hazard: Fuels are extremely flammable. Keep the can away from flames, sparks, and heat sources. Do not smoke. Do not use electronic devices nearby. Ground the can to dissipate static electricity. Do not store the can in a moving vehicle or trailer.

How to maintain the fuel can?

Regularly clean the filter and gauge. To change fuel type, thoroughly rinse the tank. If not used for a long time, drain the pump and hose, clean the can, and store it in a cool, dry place.

What is the maximum flow rate of the pump?

The maximum flow rate is 7.8 L/min when the gun is 0.5 m below the tank outlet. The flow rate decreases as the fuel level drops.

Can I use this product to store fuel with propellant?

No, this product is not designed for storing fuel with propellant. Use it only for fuel transfer. Do not modify the tank.

What to do in case of fuel spill?

Immediately drain the pump and hose by lifting the handle in the opposite direction to recover the liquid. Clean the area with an absorbent cloth and dispose of waste according to local regulations. Avoid any ignition source.

Where can I find spare parts or technical support?

For spare parts (hose, seals, gun, etc.) or technical assistance, contact Vevor customer service at [e-mail] or visit the website www.vevor.com/support.

USER MANUAL JGC16PH2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FUEL CADDY

USER MANUAL

Model: JGC16PH,JGC16PH2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

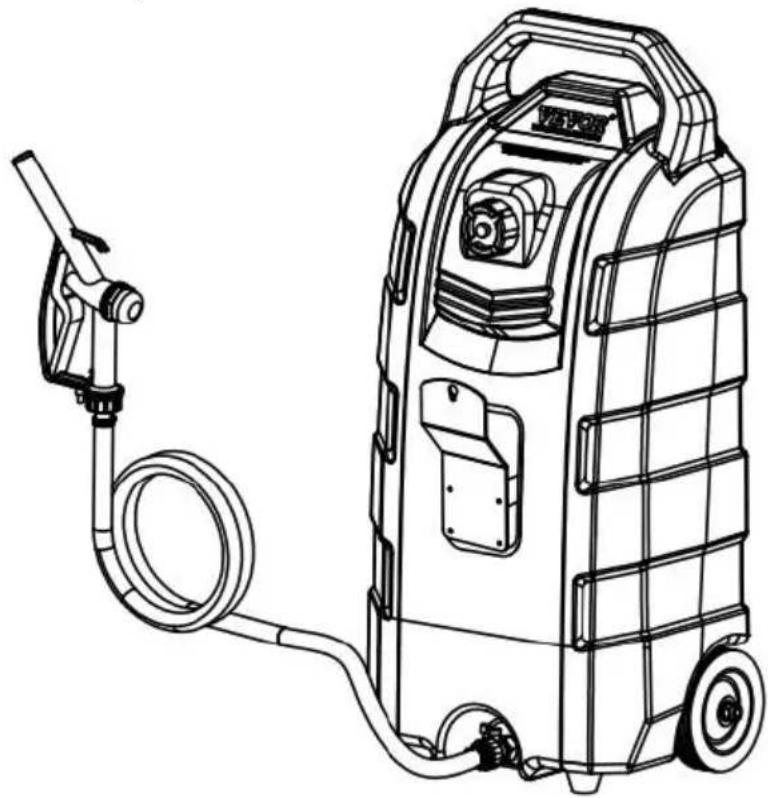

MODEL: JGC16PH,JGC16PH2

Line drawing of a portable water purifier with attached hose and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

GENERAL SAFETY RULES

When using this product, basic precautions should always be followed, including the following;

• This product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the product by a person responsible for their safety.
• Wear proper protective equipment when installing or using this product.
• Ensure all fittings and threaded connections are tightened and leak-free before operating.

A DANGER!

Fuels are extremely flammable. Keep away from heat sparks and ope flames.

• Do not use electronics or mobile communications devices such as mobile phones when pumping flammable liquids.
• Attach ground wire and bond containers that are being pump from into. Ground all containers to a known ground source to dissipate static electricity before pumping liquids.
• Fuel vapors can explode. Harmful or fatal if swallowed. Avoid breathing in fuel vapors.
• Do not smoke near or while using the fuel caddy.
• This product is intended for fuel transfer only and is not intended transport fuel in any vehicle or trailer.

- Do not modify this product.

A WARNING! CAUTION! ATTENTION!

- Do not use this product for prop-longed fuel storage.

- Use the caddy for one fuel type only to avoid possible damage.

● Monitor flow rate and fill level to prevent overflows and spills.

● Always empty the pump and hose after using the caddy. Lift the I and turn the handle in the opposite direction to empty all remain liquid back into the caddy.

- Caution when filling the caddy through the fill tube, Monitor closely prevent overflows or spills.

- This product is unsuitable for placing in a yacht, off-road vehicle, another violent vibration place.

Never use the fuel caddy near open flames or heal sources.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	JGC16PH	JGC16PH2
Capacity	16 Gal	16 Gal(single)
Fuel Type	Diesel,Lubricating Oil,Gasoline
Oil Discharge	Hand oil gun	Hand oil gun
Max. Flow	7.8 L/min(Oil gun is 0.5m below the tank out)
Hose	Φ19(Inside Diameter)x250cm	Φ19(Inside Diameter)x250cm
Wheel	6"	6"
Package	1	2
Material	PE	PE
Color	Red	Red

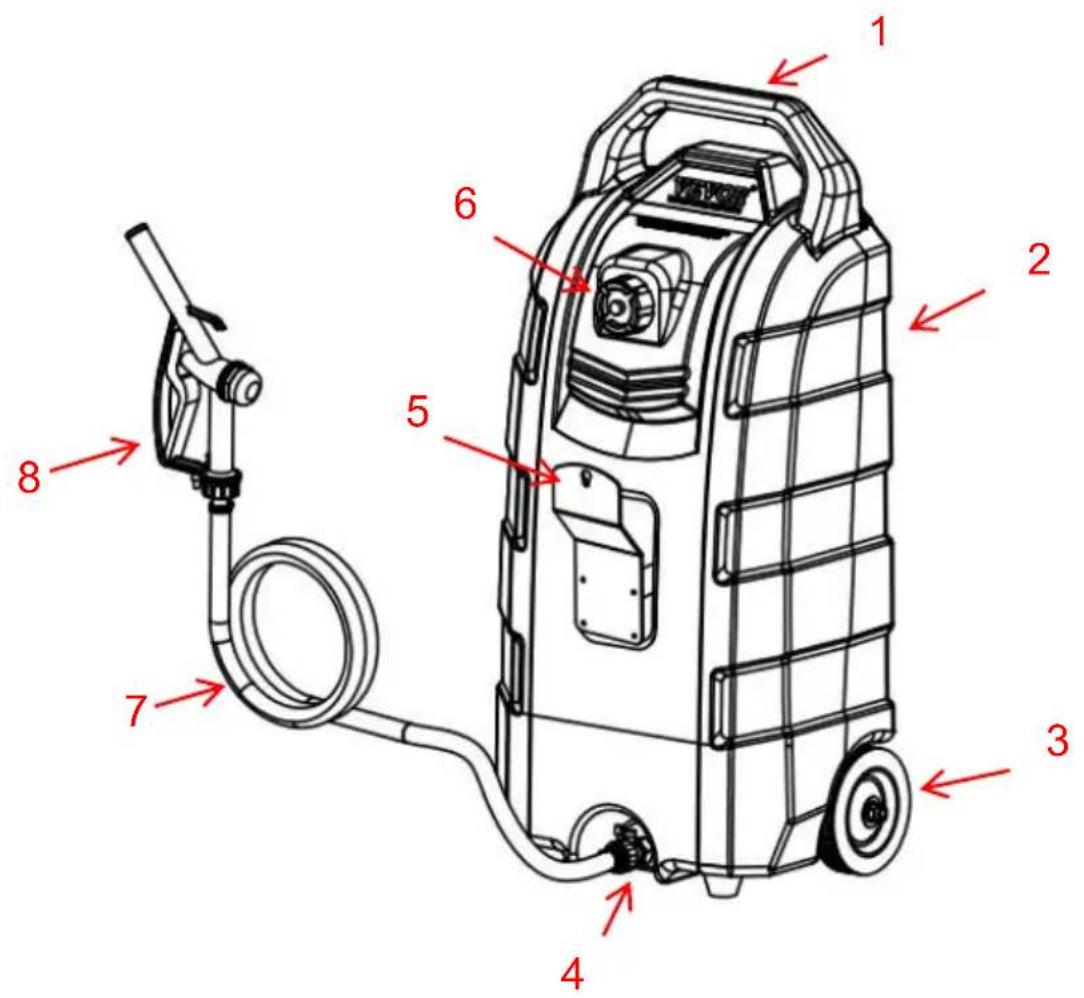

1. Handle 2. Fuel Tank 3. Fixed Wheel 4. Outlet

2. Fixed Mount 6. Fuel Tank Cap 7. Hose 8. Hand Fuel Gun

COMPONENTS (SINGLE)

No.	Picture	Name and Qty	No.	Picture	Name and Qty
1		Fuel Tank(x1)	6		Direct Ball Valve Joint(x1)
2		Fixed Mount(x1)	7		Hose Clamp(x2)
3	[WSAA]	Fuel Tank Cap (x1)	8		Bolt(x3)
4		Fuel Gun (x1)	9		Fixing Plate (x1)
5		Long Hose (x1)	10	/	User Manual(x1)

ASSEMBLY

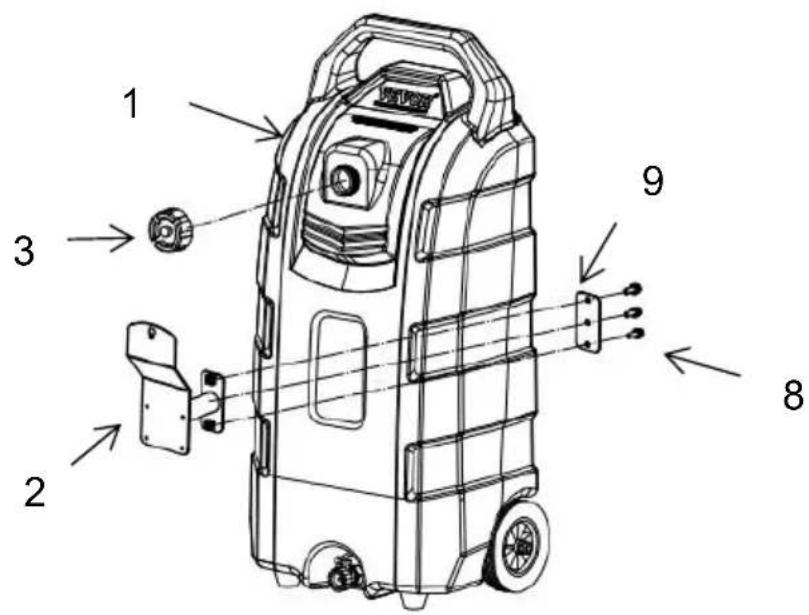

Step1: Install fixed mount(2) and fixing plate(9), lock with bolt (8), as shown below.

Put on the fuel tank cap(3).

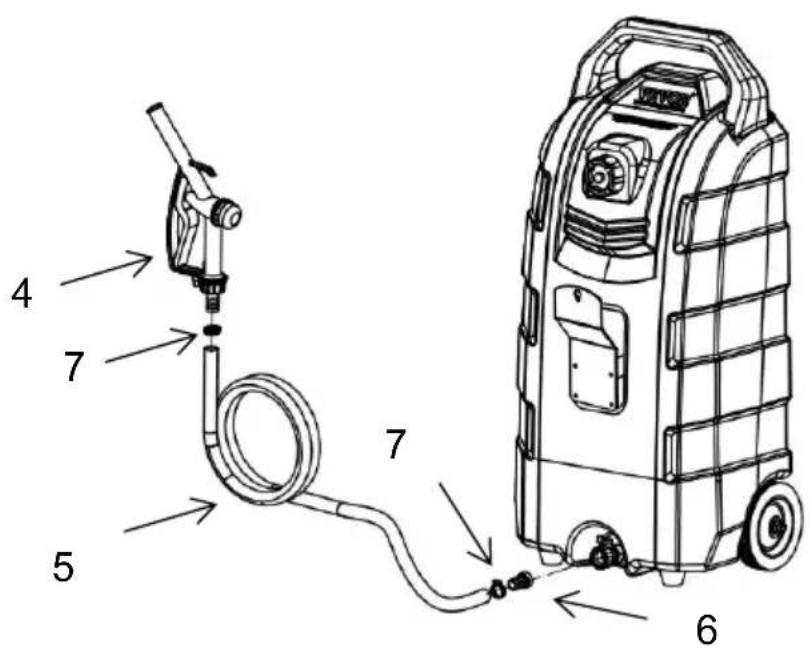

Step2: Install the direct ball valve joint(6) at the bottom outlet of the Connect the inlet fuel gun and the outlet of the fuel tank with the hose(5), and lock them with the hose clamps(7).

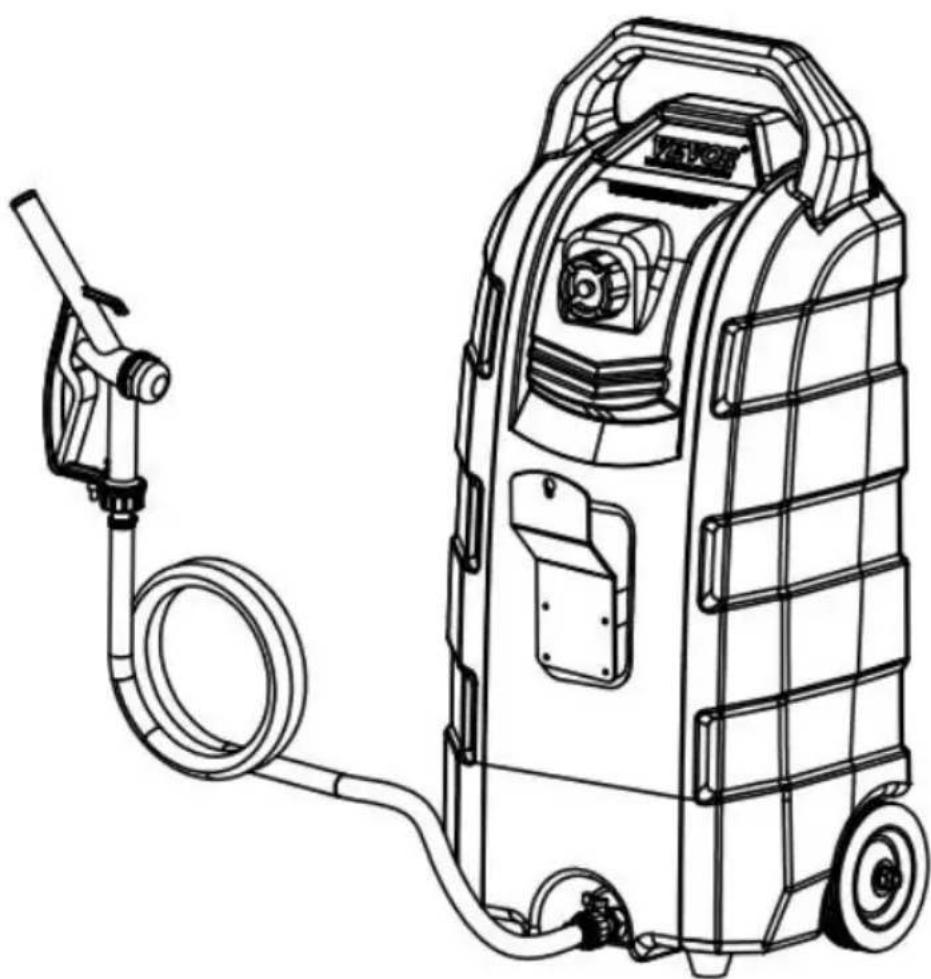

Step3: Make sure that the components are tightened; The product is assembled and ready for use.

Line drawing of a gas washing machine with attached hose and control panel (no text or symbols)

OPERATION

Refueling operation:

-Please choose the appropriate oil filling, do not fill with chemicals or another corrosive solvent.
-Lay the tank flat and make sure the direct ball valve joint is closed
-Open the tank cap and fill the oil.
-During oil filling, pay attention to the filling of the tank to avoid ove
-After filling the tank, tighten the cap and place the tank in a safe |

Pumping operation:

-Place the tank vertically and turn the air valve of the fuel tank cap counterclockwise.
-Ensure that the oil level in the tank is at least 0.5 m higher than gun; Press the fuel gun to refuel. After the oil is discharged, the sw the handle of the oil gun can be locked, and the oil will continue to
-As the oil level in the tank decreases, the oil flow from the oil gun decreases; Please raise the tank so that the oil level is higher than gun.
-When refueling, please raise the gun above the tank to recover the remaining oil in the long hose and return to the tank.
-Close the direct ball valve joint and the air valve of the fuel tank c

MAINTENANCE

1. Please clean the measure and filter regularly.
2. Keep away from fire.
3. For different types of oil, cleaning the tank before storing another type oil is recommended.
4. If this product is not used for a long time, it is recommended to store it in a cool and dry environment.

Sanven Technology Ltd.

Address: Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91

Made in China
