DOG WASTE STATION USER MANUAL

MODEL: HBD008-2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: HBD008-2

Green vertical structure with three rectangular blocks and a grid-patterned base, no visible text or symbols

HBD008-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Fabric Drawer Dresser.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwra and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Fabric Drawer Dresser.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

MODEL: HBD008-2

1X2	2X2	3[47X1]X1	4X1	5X1	6X1
7X1	8X1	9X600	10[HCBD]X50

Close-up of a black threaded bolt with two fasteners (no text or symbols visible)

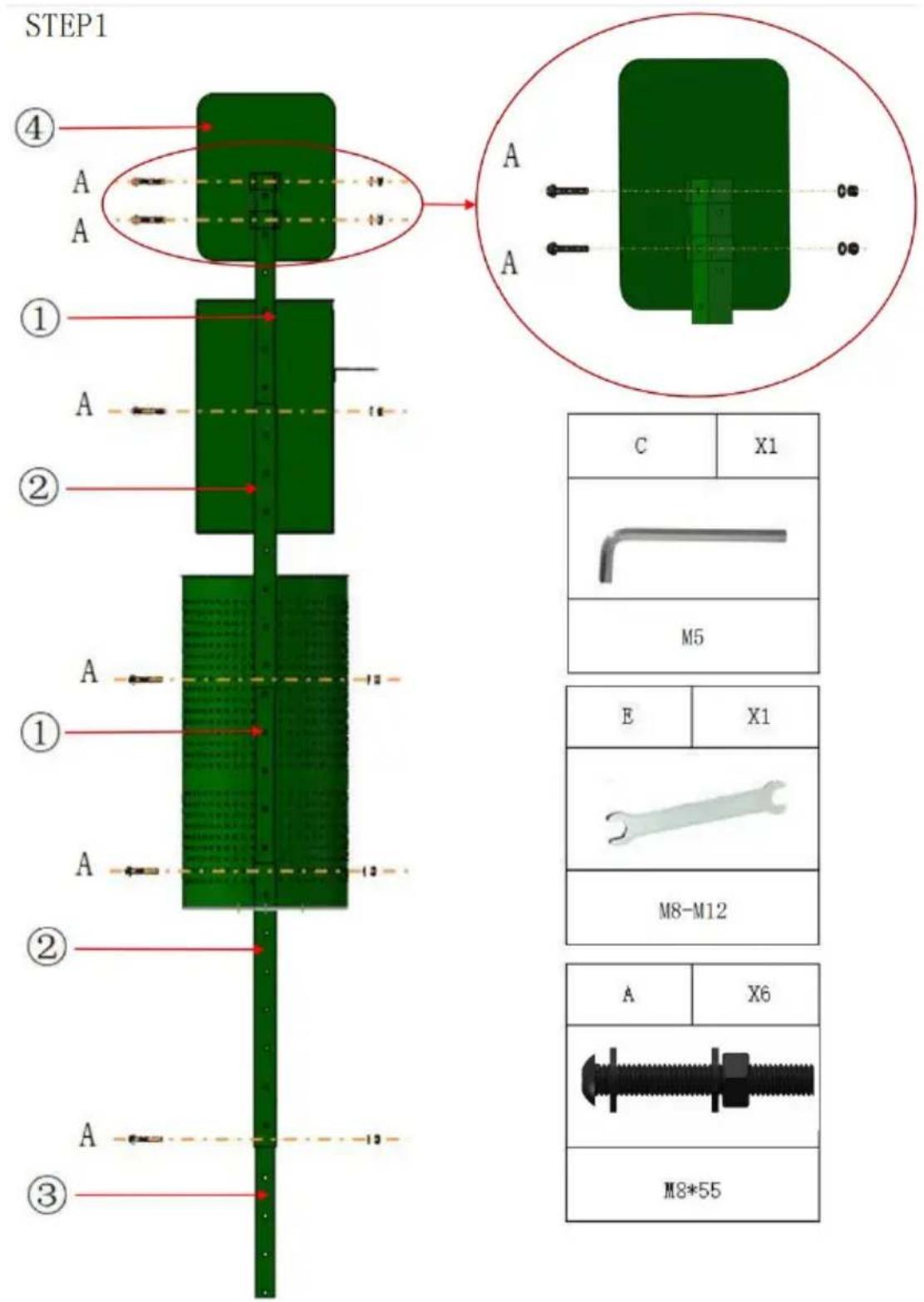

STEP1: Connect the column(①②①②③) by 4pcs M8 bolts(A), and the signage(④) is connected to the column by 2pcs M8 bolts(A).

STEP1 ④ A A ① A ② A ① A ② A ③ A A A A C X1 M5 E X1 M8-M12 A X6 M8*55

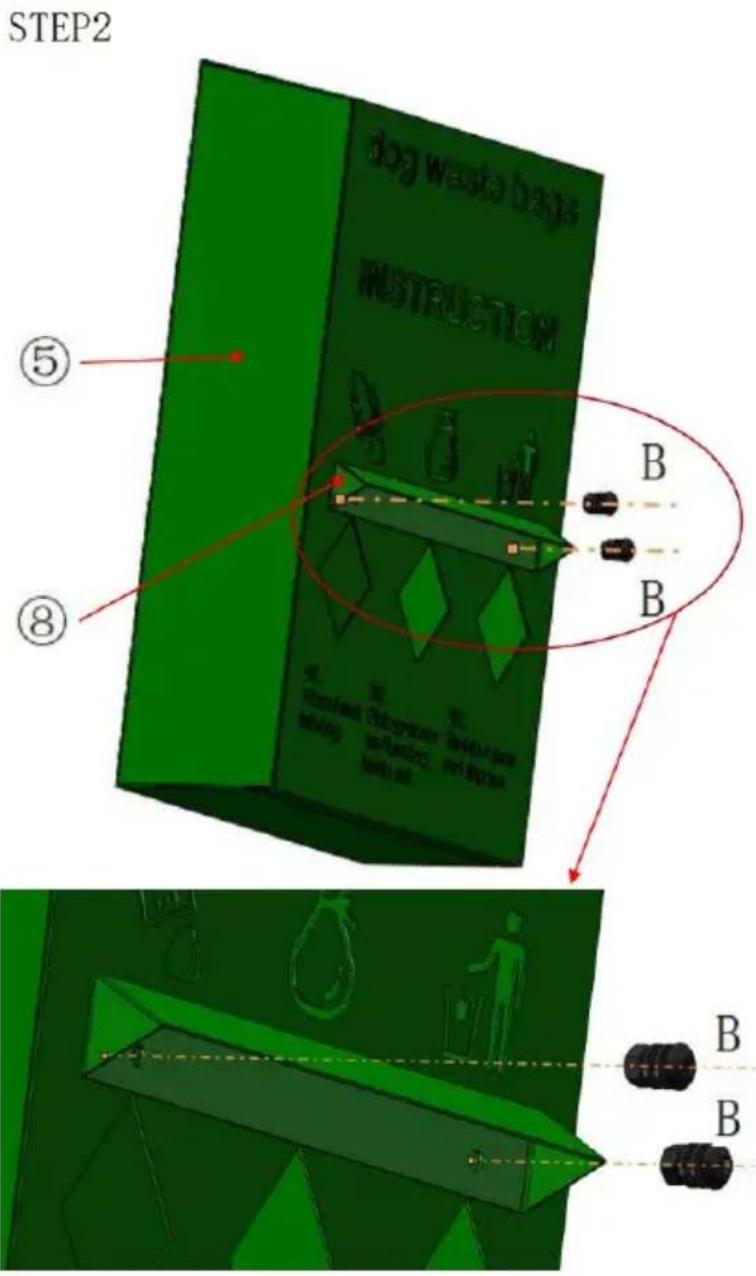

STEP2: Connect the rain flap(⑧) to the bagging box(⑤) through 2pcs M6 bolts(B).

STEP3: Connect the bagging box(⑤) to the column(①②) with 2pcs M8 bolts(A) and connect the Z-handle(⑦) to the trash can lid with 2pcs M6 bolts(B). Then attach the trash can(⑥) to the column(②②) with 2pcs M8 bolts(A).

STEP3 ⑤ A A B B ⑦ A A ⑥ A A C X1 D X1 M5 M4 M8*55 B X2 M6*15 E X1 M8-M12

ASSEMBLY STEP

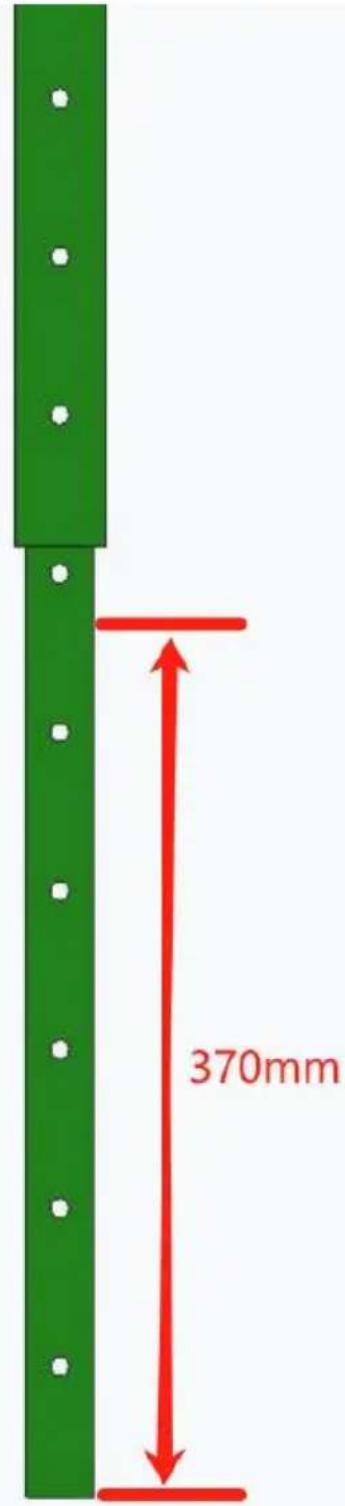

STEP4: Finally, the bottom end of the column(③) is buried into the ground at a depth of 370mm, so that the product can stand on the ground fall down, so that it can be used conveniently and safely by users.

370mm

PRODUCT PARAMETER

Model	HBD008-2
Colour	Green
Trash can capacity	11.5gal (43L)
Material	Galvanized Steel
Product Size	11.8*11.8*90.55in/300*300*2300mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
