USER MANUAL HR-007 Vevor

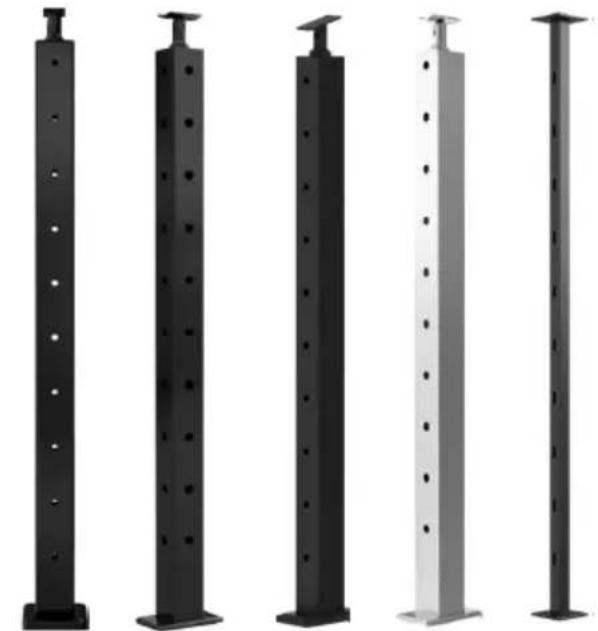

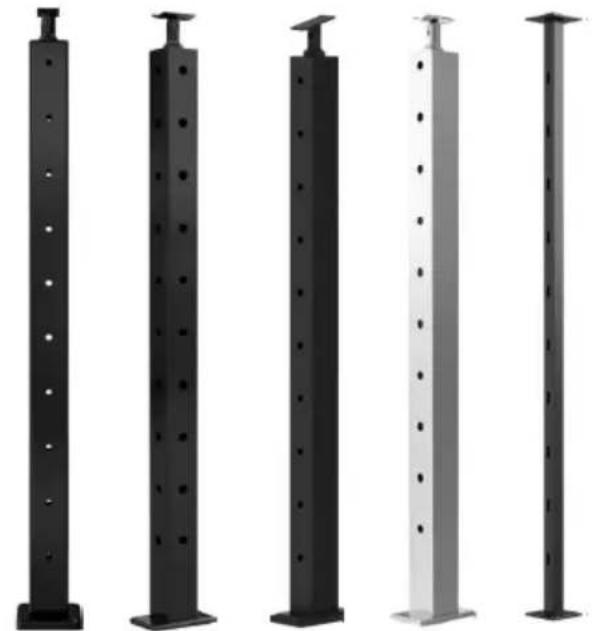

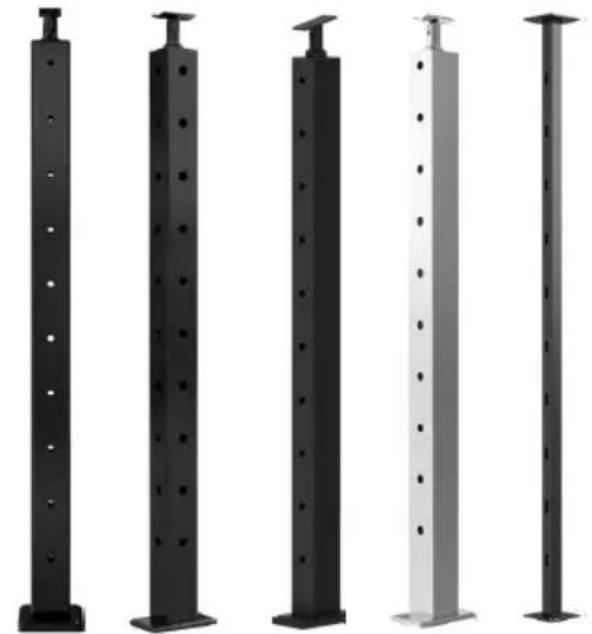

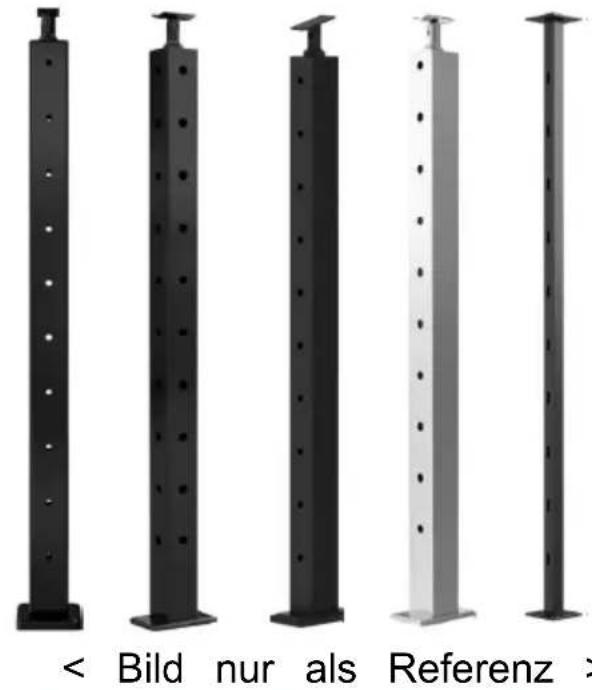

CABLE RAILING POST
MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/
HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014
HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/
HR-022/HR-023
We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only reflect an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.
MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/ HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury. 2. Product capabilities apply to properly and completely assembled products only.
- Keep small spare parts out of children's reach. This product is not a toy; do not allow children to play with it.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram in this manual. Unwrap and separate all parts in a clean work area.
SAVE THESE INSTRUCTIONS
MAIN FEATURES
This product is mainly used for column installation of wire functions and decorative accessories.
VEVOR's Cable Railing Post is made of all stainless steel materials, providing great resistance to rust and corrosion. It will work for a long life in interior and exterior railings with low maintenance. Please note that it is recommended for coastal projects.
We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.

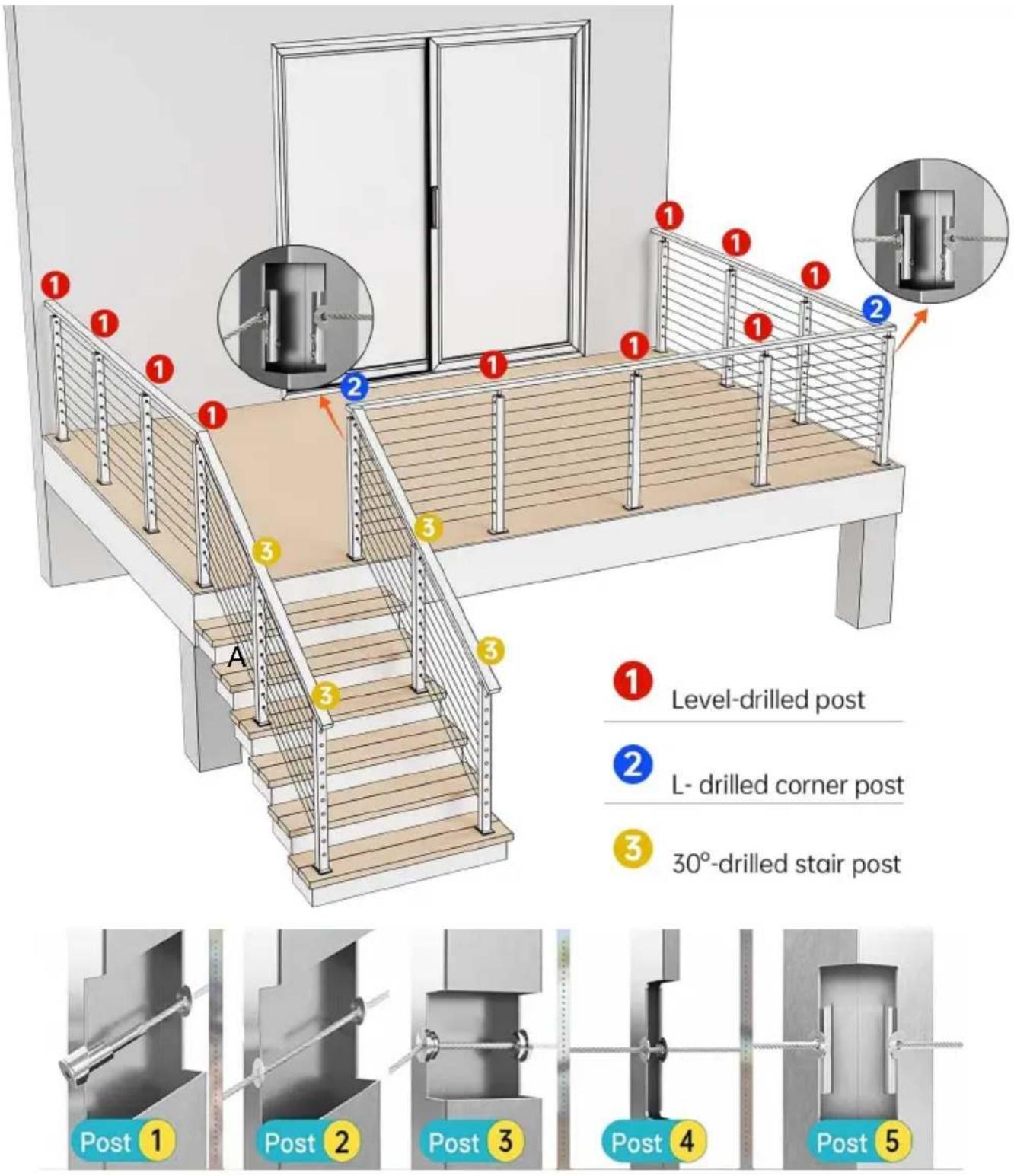

INSTALLATION INSTRUCTION
Installation indication and applicable post
Applicable to all engineering installation scenarios.
Note: This product only includes the column and its installation fasteners, excluding wire rope, Cable Railing Kit, and handrail.

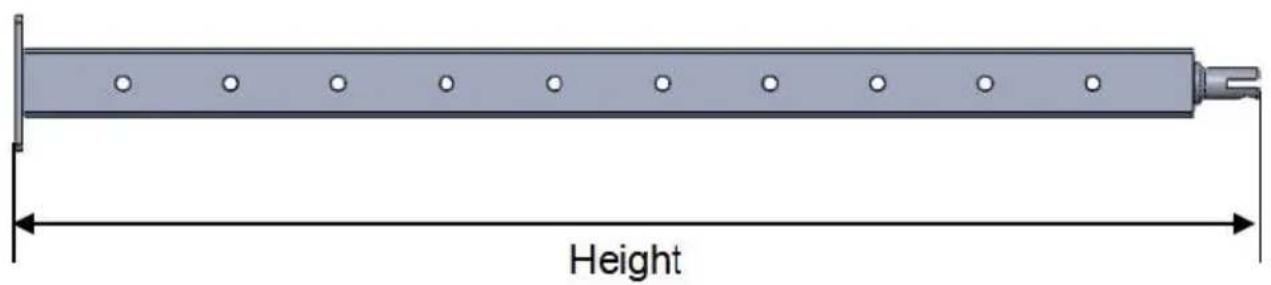

PRODUCT INFORMATION
| Model | Drilled | Heigth (mm) | Drilled number | Hole diameter (mm) | Pitch of holes (mm) | Section size (mm) | Color | Include (pcs) |
| HR-001 | level | 1067 | 12 | φ10.5 | 80 | 50*50 | Black | 4 |
| HR-002 | level | 914 | 10 | φ10.5 | 80 | 50*50 | Black | 4 |
| HR-003 | level | 1067 | 12 | φ8 | 80 | 30*50 | Black | 4 |
| HR-004 | level | 914 | 10 | φ8 | 80 | 30*50 | Black | 4 |
| HR-005 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Silver | 1 |
| HR-006 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-007 | L | 1067 | 12 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-008 | Non | 914 | / | / | / | 50*50 | Black | 1 |
| HR-009 | level | 914 | 10 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-010 | 30° | 914 | 10 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-011 | L | 914 | 10 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-012 | level | 914 | 10 | φ10.5 | 80 | 50*50 | Silver | 1 |
| HR-013 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-014 | L | 1067 | 12 | φ8 | 80 | 30*50 | Black | 1 |
| HR-015 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-016 | L | 914 | 10 | φ8 | 80 | 30*50 | Black | 1 |
| HR-01 7 | Non | 914 | / | / | / | 38*38 | Black | 1 |
| HR-01 8 | level | 1067 | 12 | φ8 | 80 | 30*50 | Black | 1 |
| HR-01 9 | Non | 1067 | / | / | / | 50*50 | Black | 1 |
| HR-02 0 | level | 914 | 10 | φ8 | 80 | 30*50 | Black | 1 |
| HR-02 1 | level | 1067 | 12 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-02 2 | level | 914 | 10 | φ8 | 80 | 30*50 | Silver | 1 |
| HR-02 3 | level | 1067 | 12 | φ10.5 | 80 | 50*50 | Silver | 1 |
PACKAGE INCLUDE
| No | Components | Picture | QTY | ||||
| Fit model | |||||||
| HR-001/HR-002 | HR005~HR012/HR-019/HR-021/HR-023/ | HR-003/HR-004 | HR-013~HR-016/HR-018/HR-020/HR-022/ | HR-017 | |||
| 1 | post | 4 | 1 | 4 | 1 | / | |
| / | / | / | / | 1 | |||
| 2 | Square cover | 4 | 1 | / | / | / | |
| 3 | Rectangular cover | / | / | 4 | 1 | / | |
| 4 | anchor bolt | 16 | 4 | 16 | 4 | 4 | |
| 5 | Curved bracket | 4 | 1 | 4 | 1 | / | |
| 6 | Horizontal bracket | 4 | 1 | 4 | 1 | / | |
| 7 | hex wrench | 4 | 1 | 4 | 1 | 1 | |
| 8 | Open end wrench | 4 | 1 | 4 | 1 | 1 | |
| 9 | Tapping screw | 8 | 2 | 8 | 2 | 4 | |
| 10 | Plastic cover | / | / | / | / | 1 | |
INSTALLATION

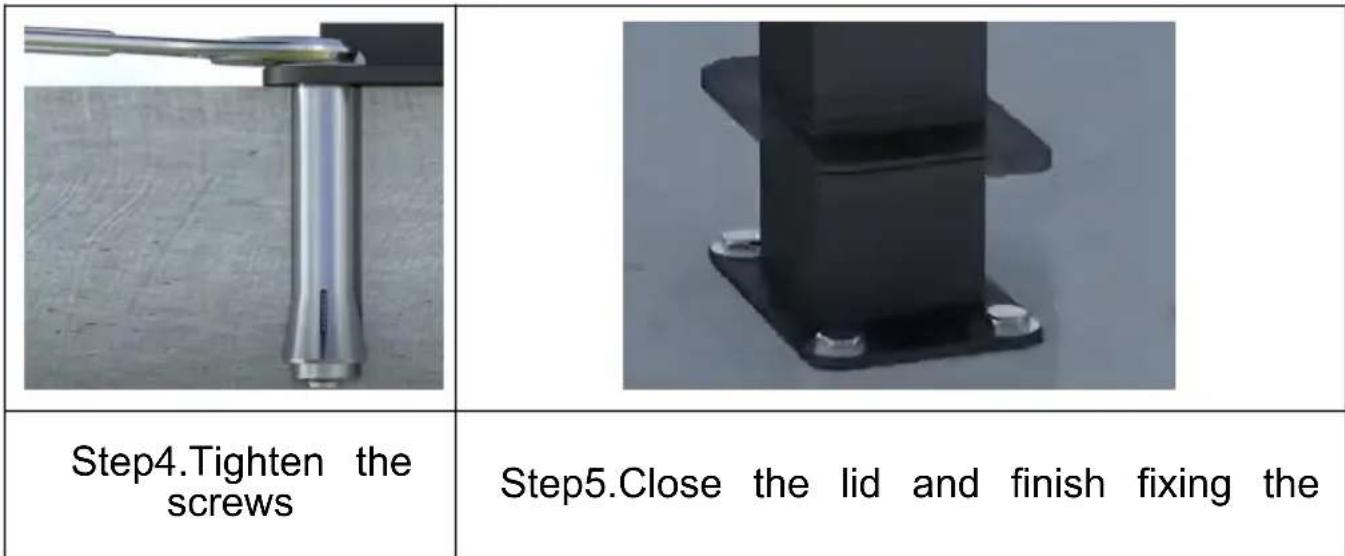

For concrete or wood floor
| Step1.Mark the drillin points at the appropriate installation locations. | Step2.use a hammer drill to make a hole ∅ 12 at the marke points. | Step3.Hammer the anchor screw into the drilled hole. |
Note: Ensure that the column is upright when fixing the bottom plate to the post.

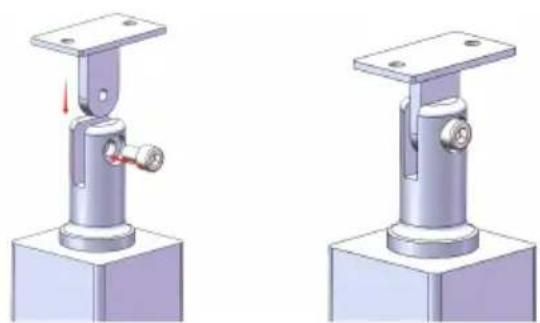

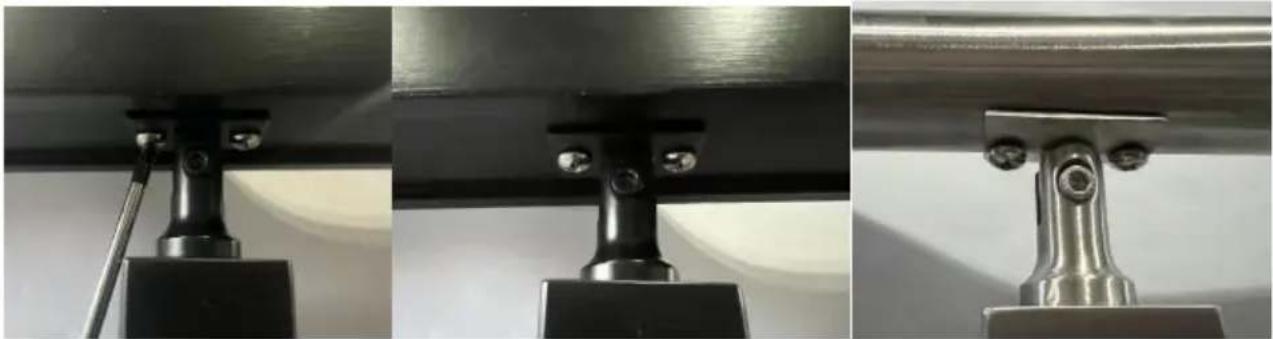

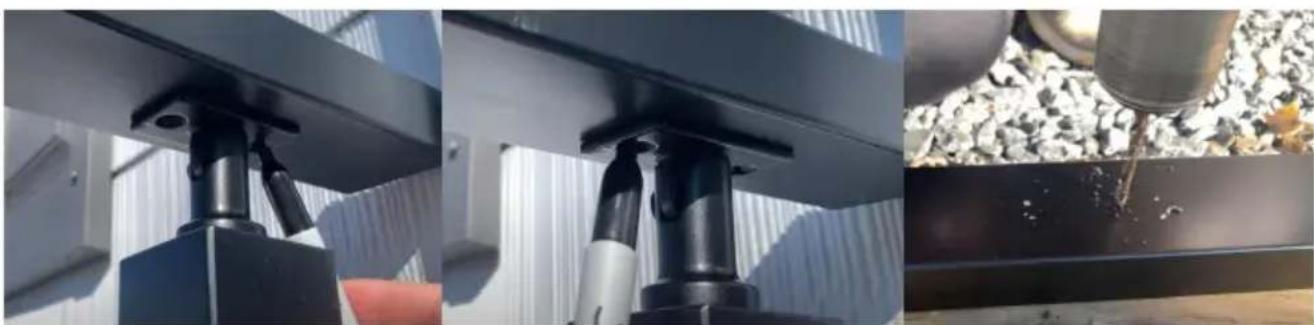

Mount with handrail (horizontal)
Step 1: Fixed bracket
Step 2: Determine the installation position of the handrail, and then mark the position under the handrail and bracket holes and drill holes with a Ø5.5-Ø5.6mm drill.
Step 3: Use the self-tapping screws in the accessory to fix the handrail to the support.
It is also suitable for the installation of arc handrails and brackets.

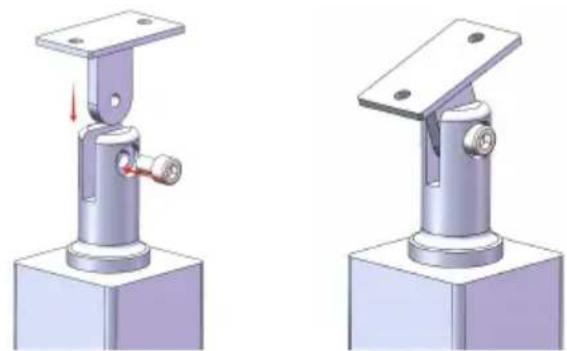

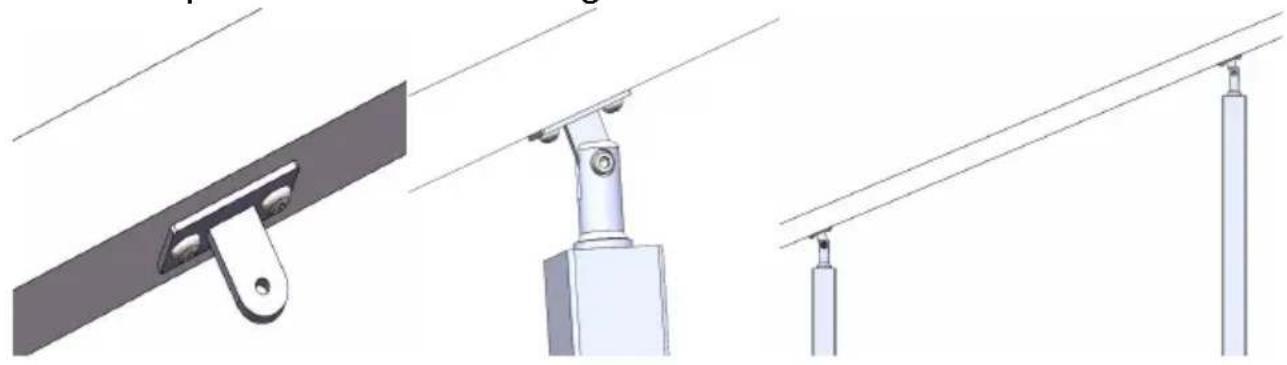

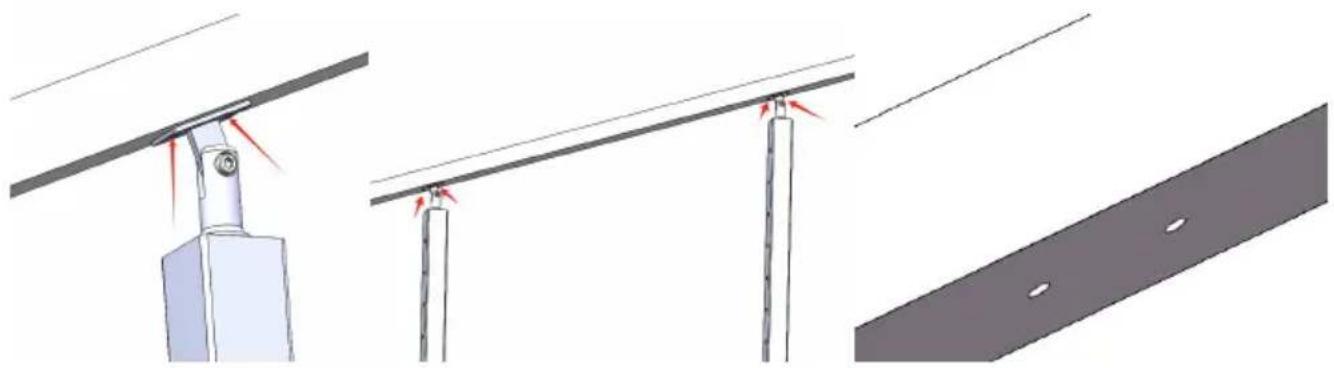

Mount with handrail (gradients)
Step 1: Fixed bracket
Step 2: Adjust the angle of the bracket to fit the underside of the handrail. Determine the installation position of the handrail, and then mark the position under the handrail and bracket holes and drill holes with a Ø5.5-Ø5.6mm drill.
Note: The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.
Step 3: Remove the bracket from the post and then use the self-tapping screws in the accessory to fix the bracket to the handrail.
Fix the post and bracket again.
| It is also suitable for the instal of arc handrails and brackets | For model HR-017 |

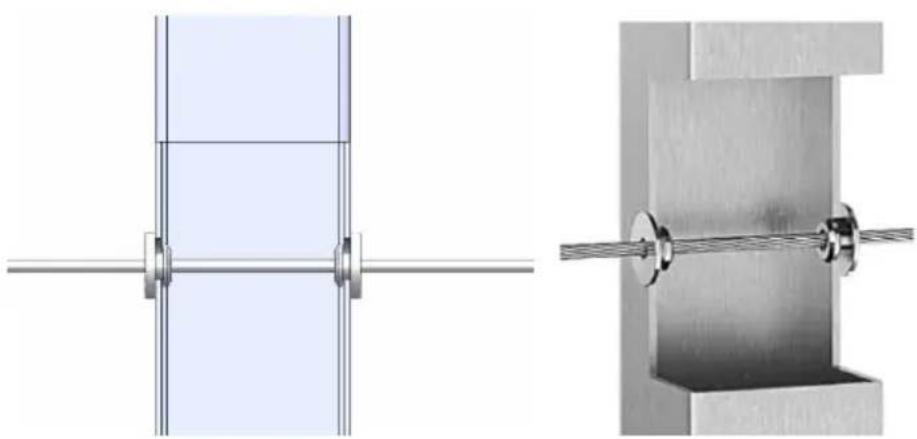

Install with wire rope and fittings
For Level Wheel Protector Sleeve
For Stud Tensioner Horizontal mounting and Angle
For Turnbuckle Tensioner and Fixed Terminal
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Technical Support and E-Warranty Certificate
www.vevor.com/support
