VENTILATION FAN

USER MANUAL

MODEL: GX-04-100/GX-06-150/GX-08-200

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

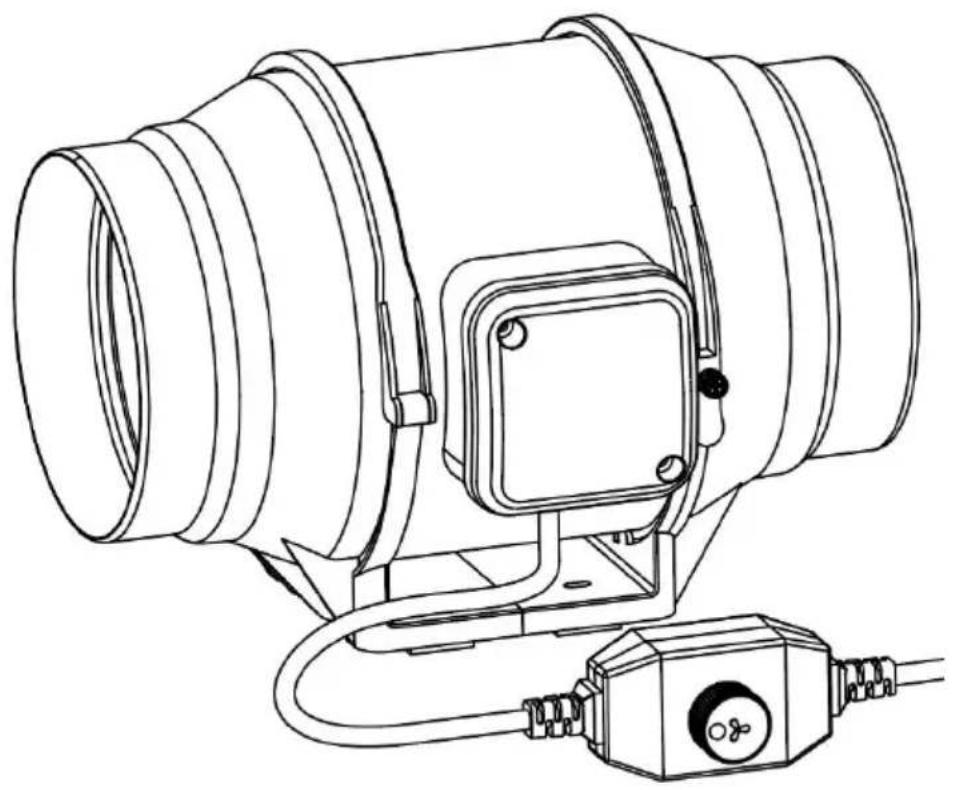

Technical line drawing of a cylindrical mechanical device with attached electrical connector (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CONTENTS

I.SAFETY PRECAUTIONS

II.PRODUCT DESCRIPTION

III.INSTALLATION

IV.DIMENSION AND SPECIFICATION

V.POWERING AND SETUP

VI.CLEANING

VII.PROGRAMMING

VIII.FAQ

IX.ATTENTIONS

SAFETY PRECAUTIONS

\	Improper operation may cause personal injury. Improper operation may cause damage to the machine. Improper operation may cause others to object damage.
	The symbol indicates that the user should pay attention to and pay attention to the drawing situation to be noted, and the left figure shows careful of electric shock"
	Disconnect the fan when moving from one location another.
	Do not use a power supply that does not meet rated voltage. The use of non-compliant power supplies can occur fire or electric shock.
	If the machine emits smoke, odor, motor noise, other abnormal conditions, Please do not use it
	cause fire or electric shock.
	Do not disassemble, repair or rectify the machir during use.Doing so may result in fire or electr and personal injury.
	BE CAREFUL
	DO NOT use the fan in a window. Rain may electrical hazard.
	Do not damage or arbitrarily change the origina cord, and do not bend, forcibly pull, bind or pr power cord under heavy objects.This will damag power cord, causing electric leakage fire or elec shock
	If the machine is not used for a long time, ple unplug the power cord from the socket
	If the power cord is damaged, contact your loc service center or a qualified electrician to install appropriate replacement cord to prevent any inju damage
	Never insert fingers, pencils, or any other objec through the guard when the fan is running.
	When the power cord is unplugged from the sc the plug should be unplugged. Do not pull the cord to forcibly pull the wire, which may cause to the wire and lead to leakage or electric sho
	Please disconnect the power supply when cleani

PRODUCT DESCRIPTION

TECHNICAL PARAMETER

Brand	VEVOR
Model	GX-04-100	GX-06-150	GX-08-200
Voltage	220-240 V	220-240 V	220-240 V
Frequency	50 Hz	50 Hz	50 Hz
Power	36 W	67 W	150 W
Duct Size	Φ100/Φ125	Φ150/Φ160	Φ200
Power Cord Length	1.6 M	1.6 M	1.6 M
Working Ambient Temperatur	-10~ 45 °C	-10~ 45 °C	-10~ 45 °C

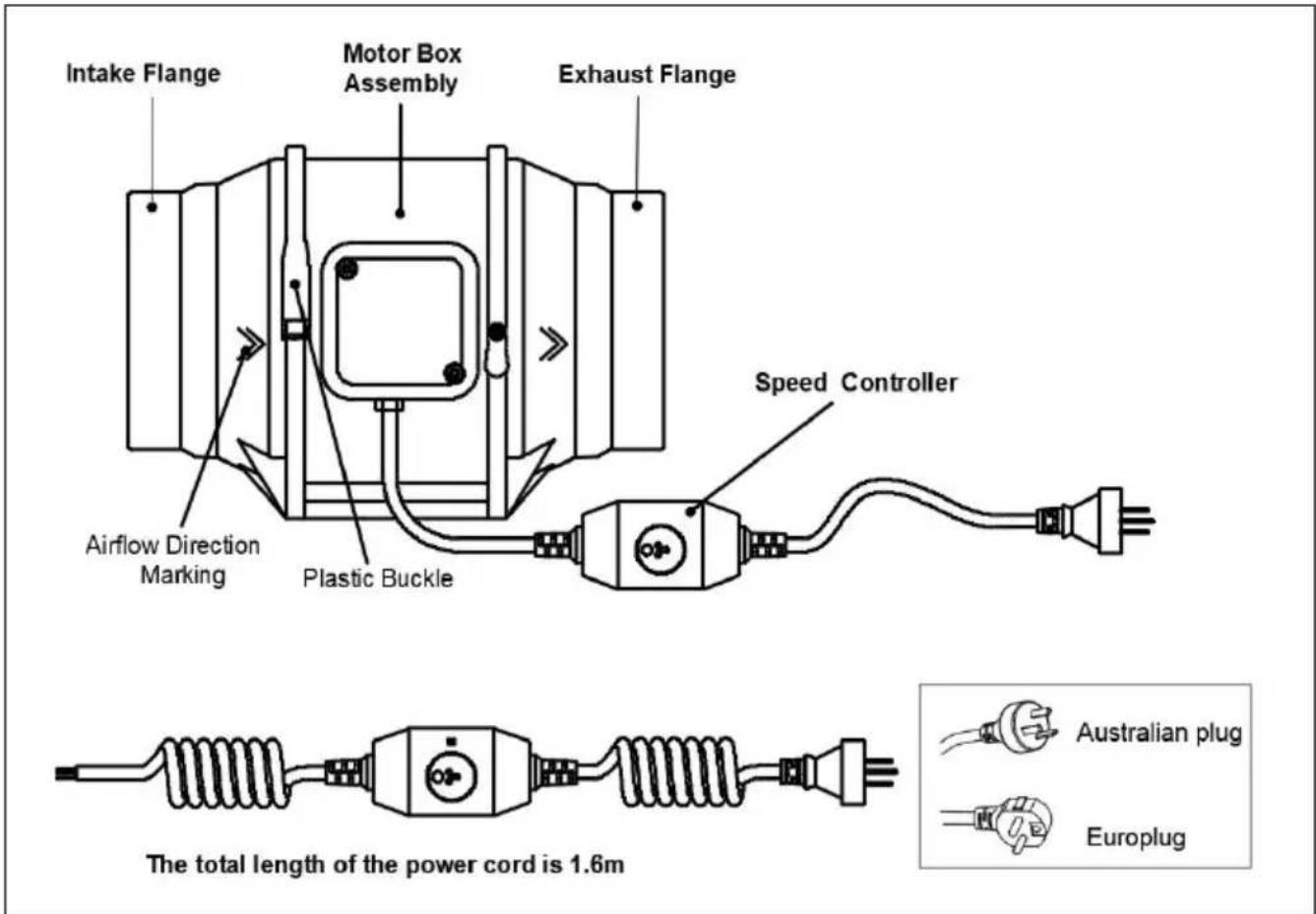

PRODUCT STRUCTURE DIAGRAM

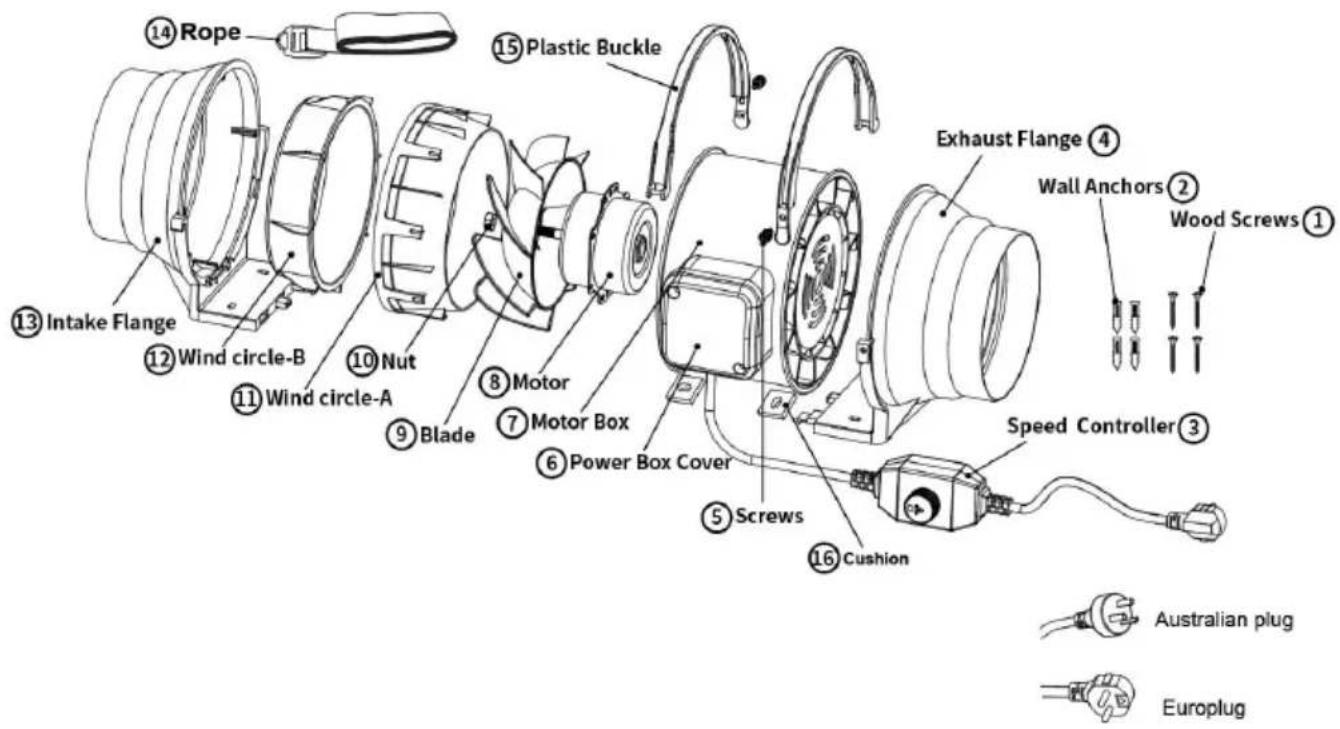

Intake Flange Motor Box Assembly Exhaust Flange Airflow Direction Marking Plastic Buckle Speed Controller The total length of the power cord is 1.6m Australian plug Europlug

INSTALLATION

* TIPS! Prepare tools in advance:

Cross screwdriver, Hammer

⑭ Rope ⑮ Plastic Buckle ⑯ Blade ⑰ Nut ⑱ Wind circle-B ⑲ Intake Flange ⑳ Exhaust Flange ④ Wall Anchors ② Wood Screws ① ⑦ Motor Box ⑧ Motor ⑨ Motor ⑩ Power Box Cover ⑪ Power circle-A ⑫ Screw ⑬ Cushion ⑮ Speed Controller ③ ⑯ Australian plug Europlug

PARTS LIST:

NO	PARTS	Quantity
1	Wood Screws	4
2	Wall Anchors	4
3	Speed Controller	1
4	Exhaust Flange	1
5	Screw	2
6	Power Box Cover	1
7	Motor Box	1
8	Motor	1

NO	PARTS	Quantity
9	Blade	1
10	Nut	1
11	Wind circle-A	1
12	Wind circle-B	1
13	Intake Flange	1
14	Rope	2
15	Plastic Buckle	2
16	Cushion	4

Installation method:

Step 1:

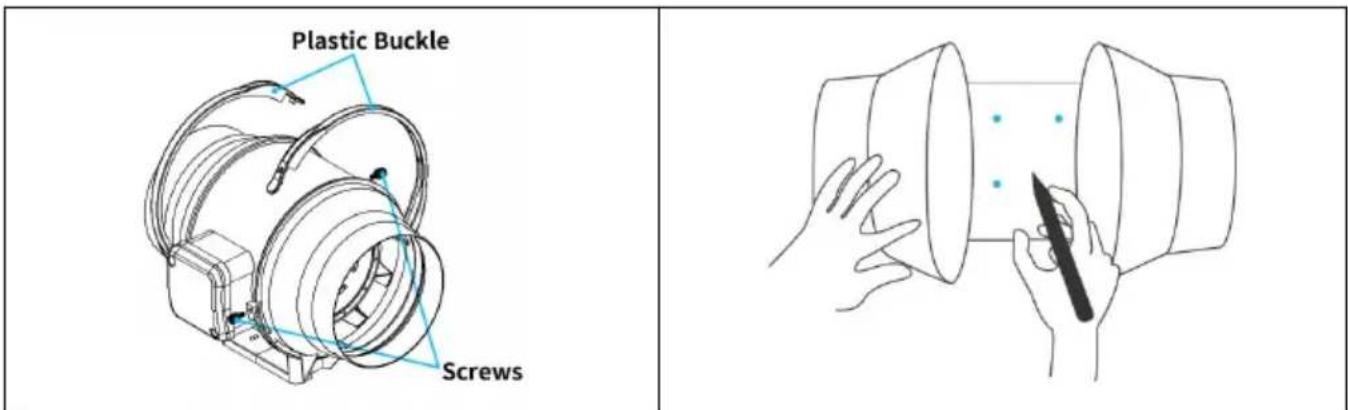

Unscrew and loosen the plastic buckle using a Phillips screwdriver Se the(Fig.1.)

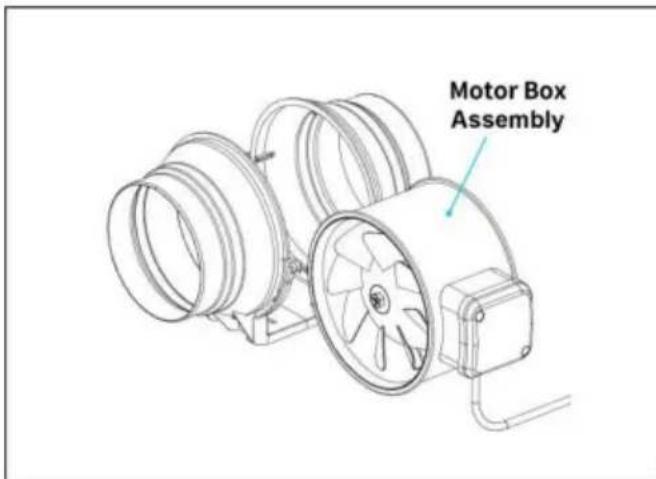

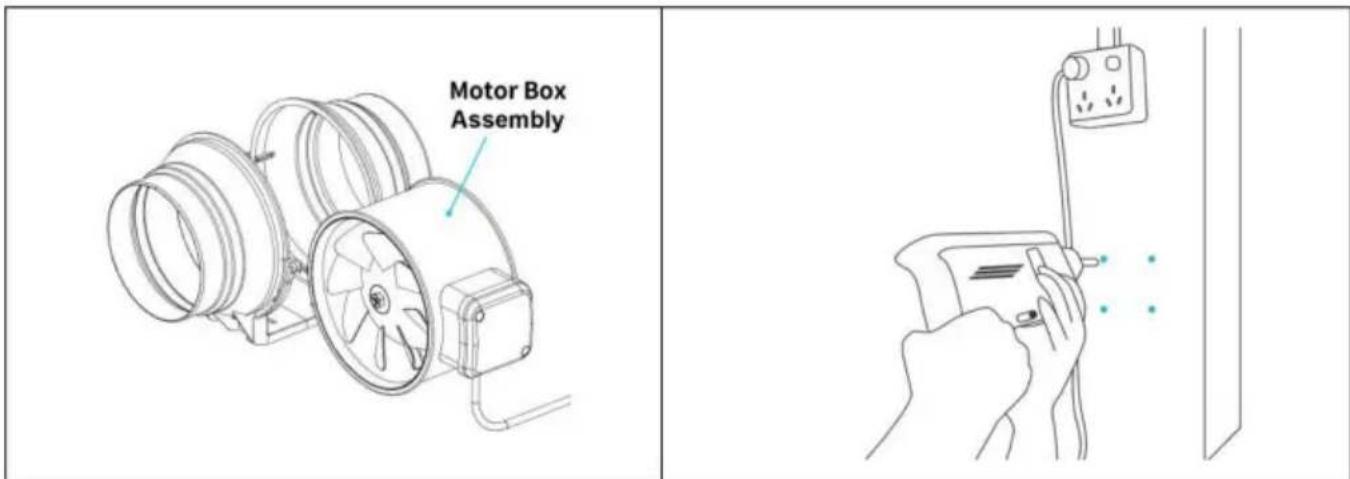

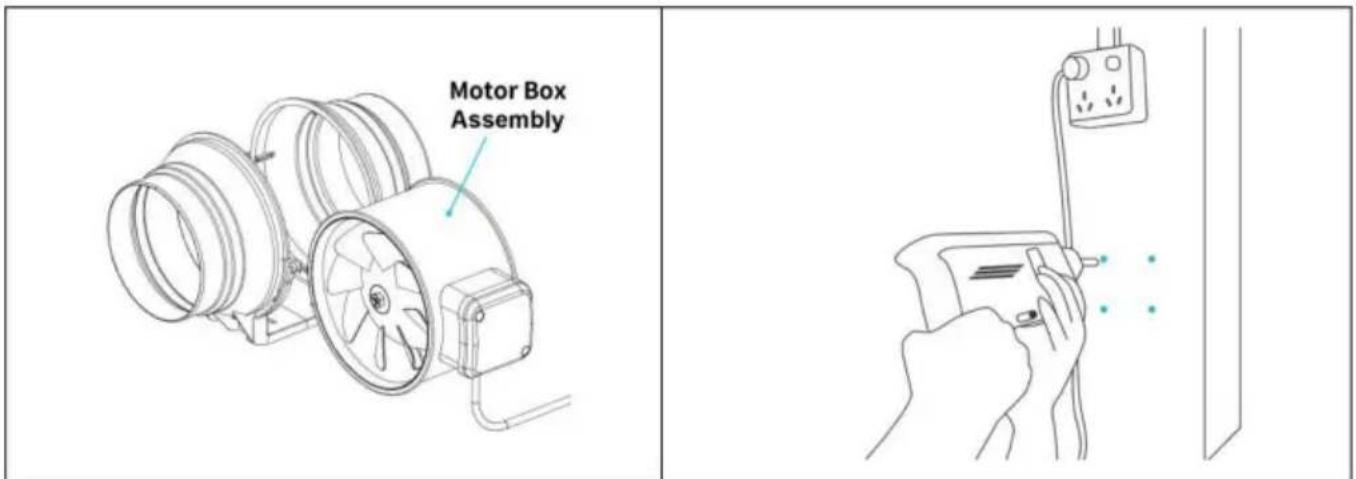

Remove the motor box assembly from the flange bracket.See the(Fig.2

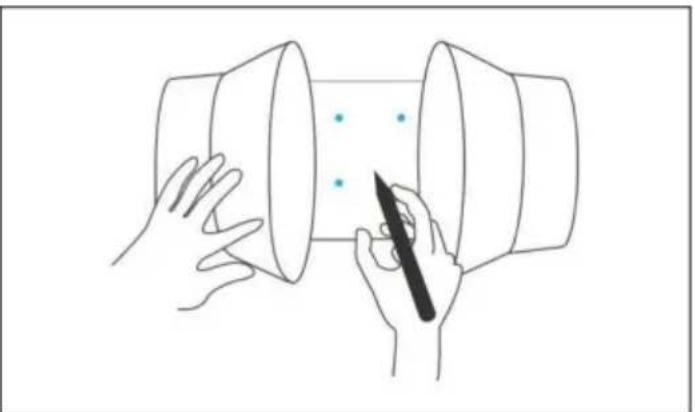

1. Use the flange bracket to set your desired fan position. Mark the f mounting holes. See the (Fig.3.)

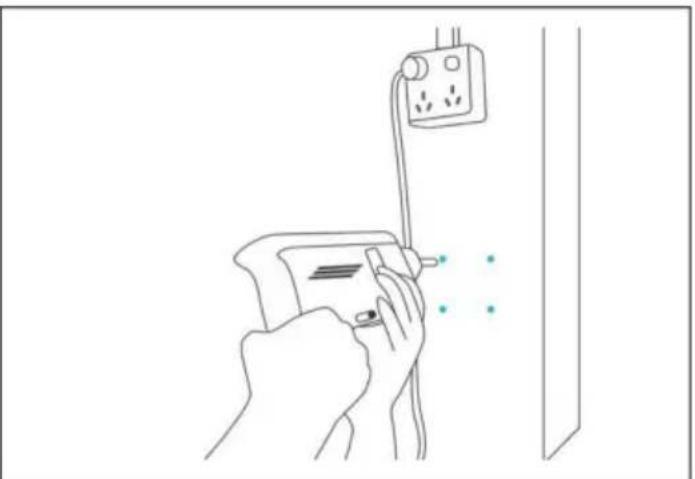

2. Drill four holes into the marked locations. Make sure your mounting is structurally sound and free from obstruction. See the(Fig.4.)

Plastic Buckle Screws

Fig.3.

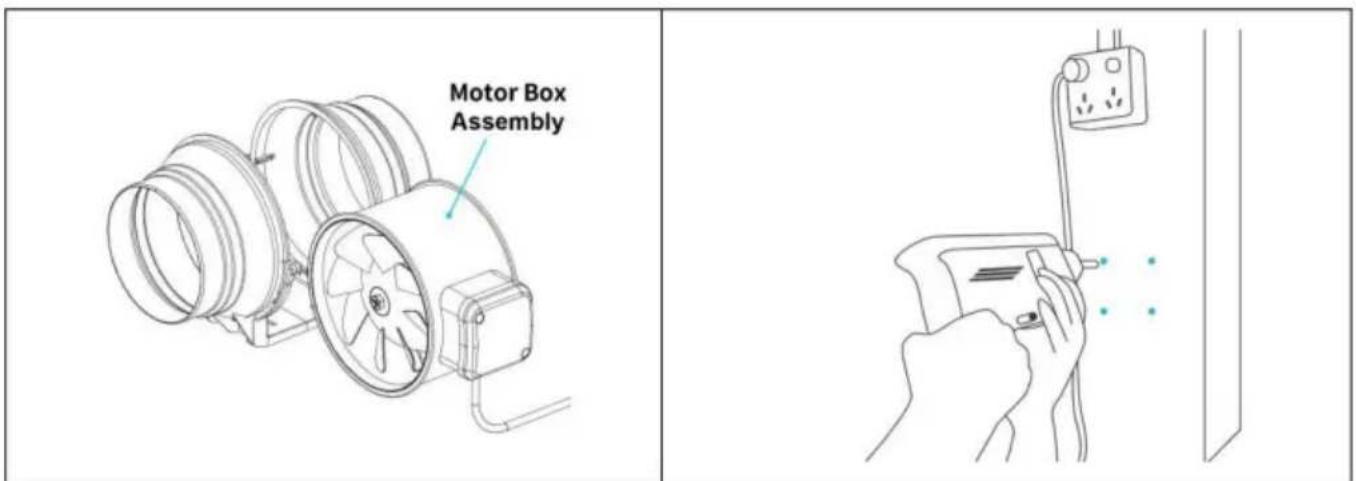

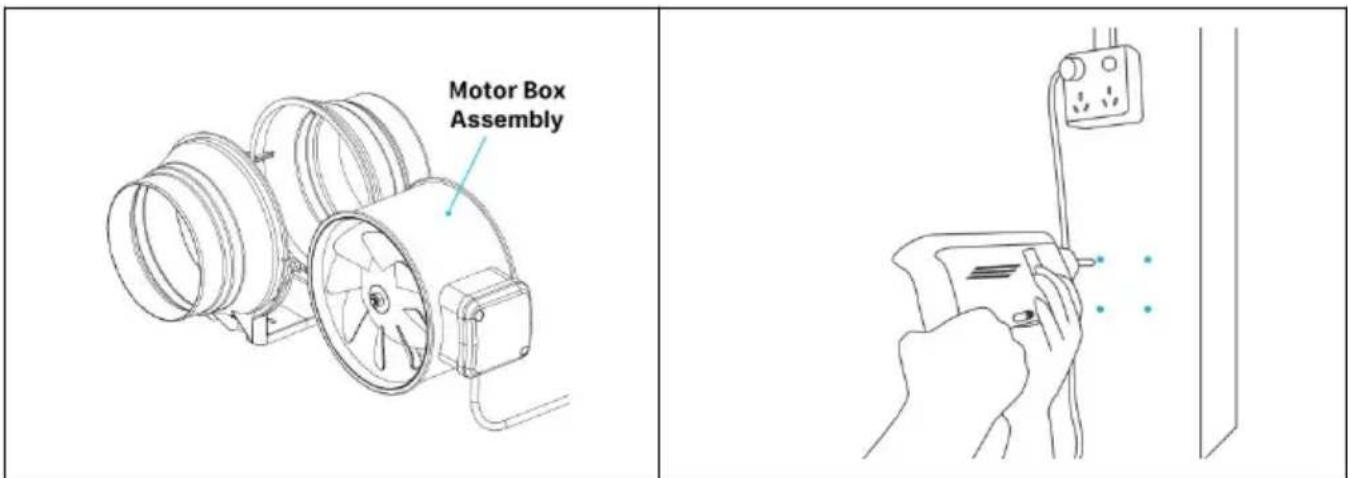

Motor Box Assembly

Fig.4.

Step 2:

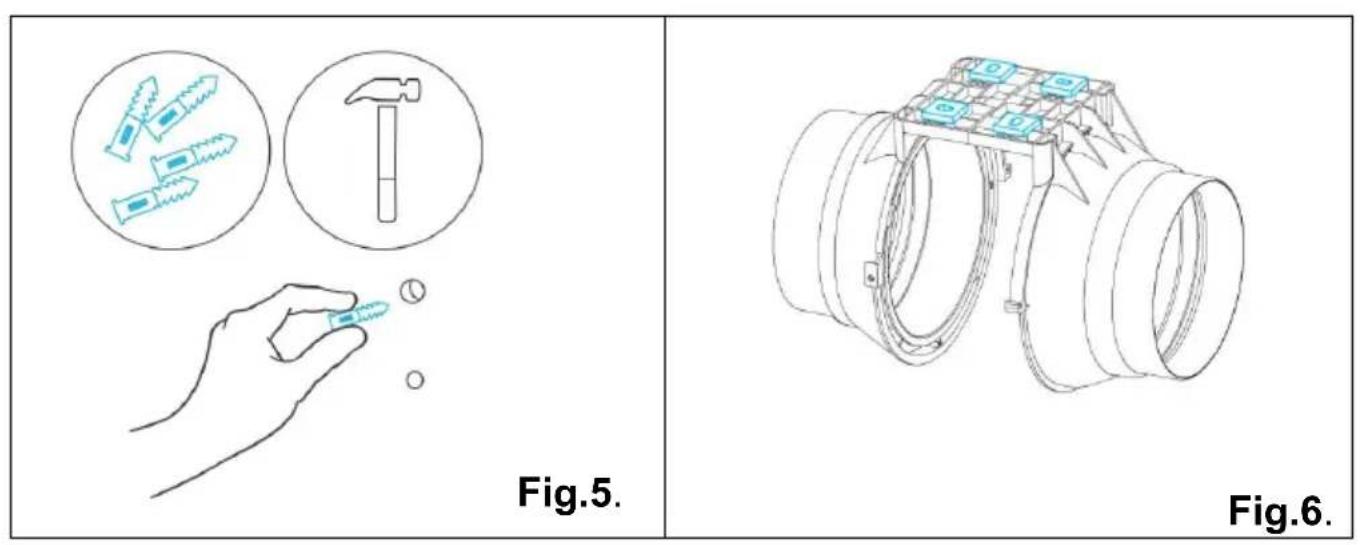

If you are mounting onto anything other than wood support orstud, insert the included four wall anchors into the drilled mounting ho

You may need to use a hammer to secure them through the holes. (Fig.5.)

Paste the cushion onto the flange bracket to ensure that the hole of the cushion is aligned with the hole of the flange bracket. See th (Fig.6.)

Align the flange bracket's holes with the wall anchors. Screw in four wood screws with a screwdriver or drill to secure the flange bracket. Make sure its airflow arrow is pointing in your desired direction the (Fig.7.)

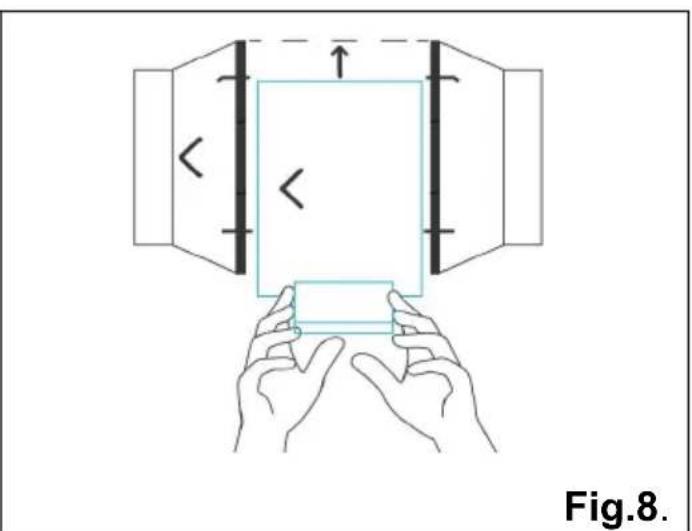

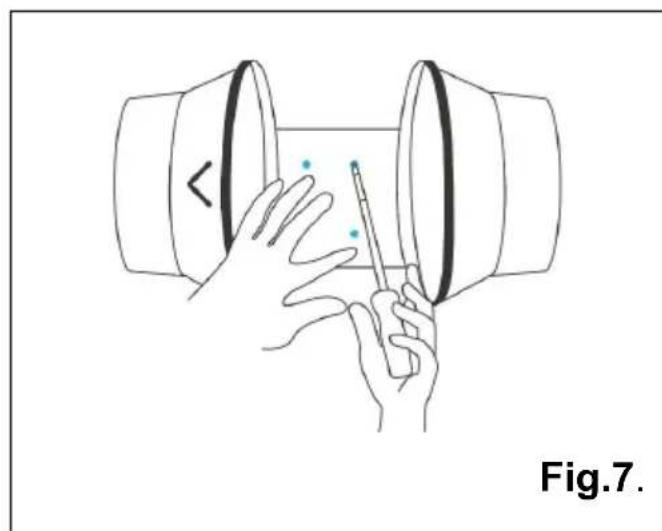

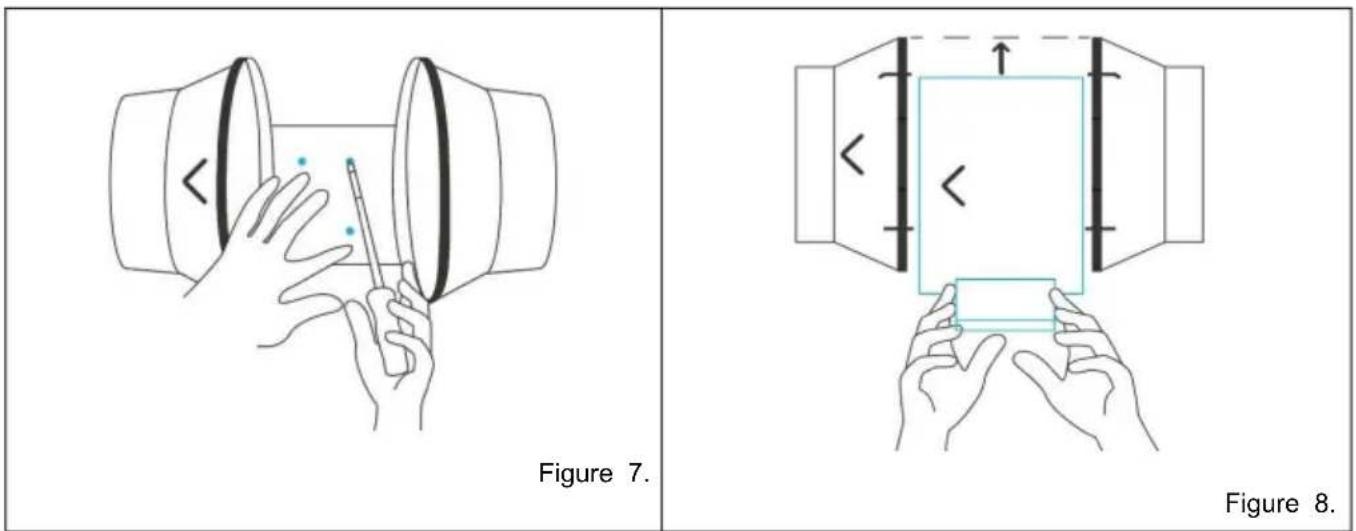

Slide the motor box back into the flange bracket, making sure its airflow arrow is pointing in the same direction as the flange bracket's arrow. See the (Fig.8.)

Illustration of hands using a tool to examine a mechanical component, labeled Fig.7 (no text or symbols on the diagram itself)

Illustration of hands holding a rectangular object with measurement arrows, labeled Fig.8 (no text or symbols on the object itself)

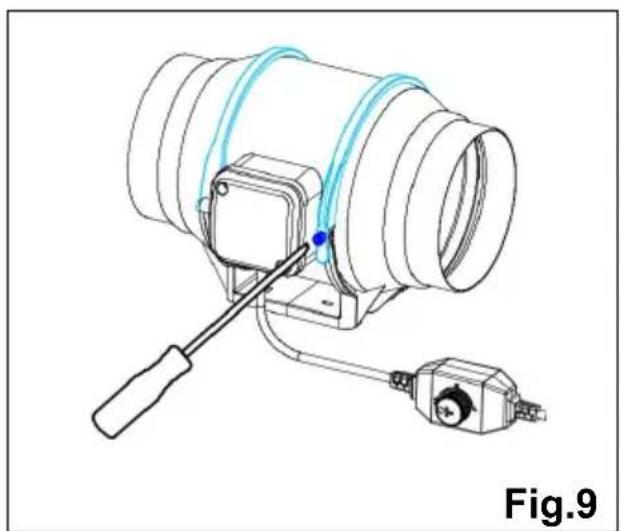

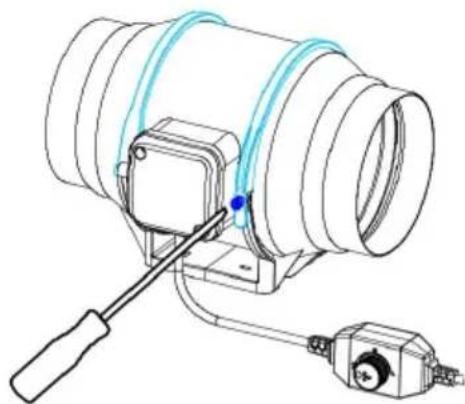

1. Place the plastic clamps back onto the flanges and tighten the sc back to secure the motor box. See the (Fig.9.)

Technical line drawing of a mechanical assembly with a tool inserted, no visible text or symbols

Step 3:

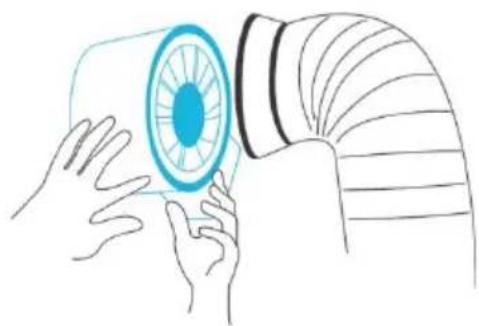

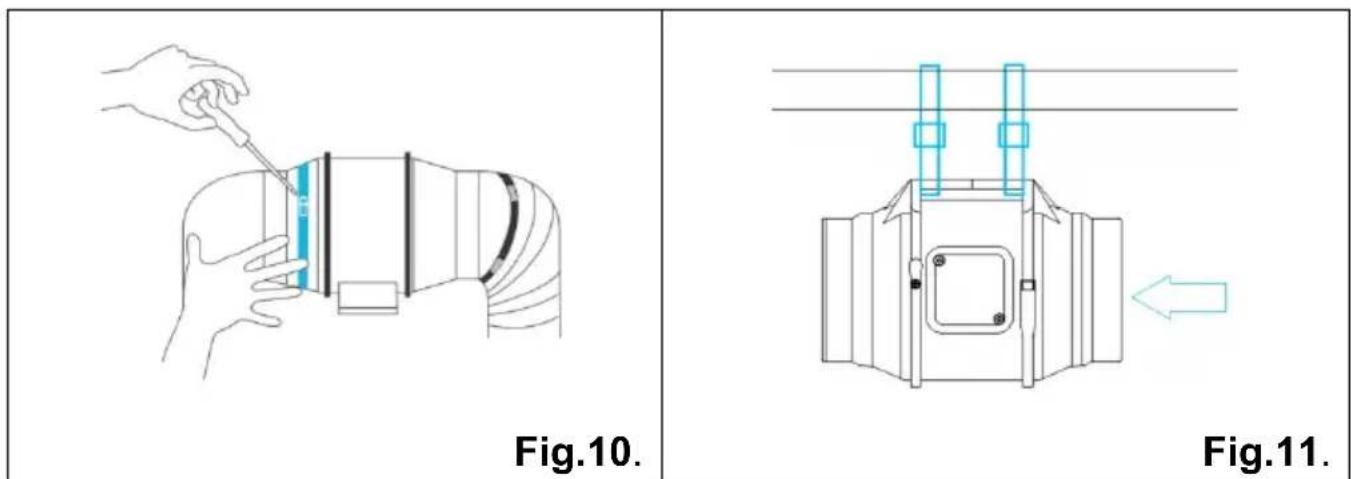

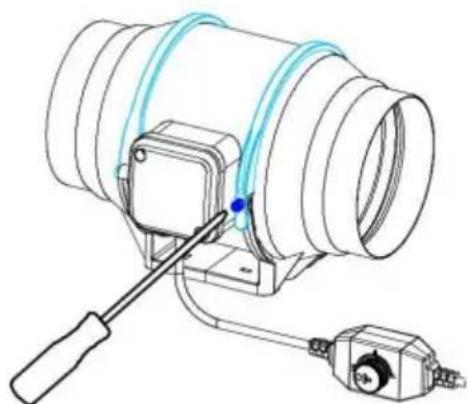

If installing ducting, purchase a suitable duct and duct clamp and sec to both ends of the fan to ensure tight sealing. Finally tighten the air clamp with a screwdriver.See the (Fig.10.)

If installing with rope hangers, loop the ropes around the flanges and tighten the rope to secure the fan. See the (Fig.11.)

Connect the power cord, turn on the switch to check whether the far running, then finish the installation.

Fig.10. Fig.11.

Dimension

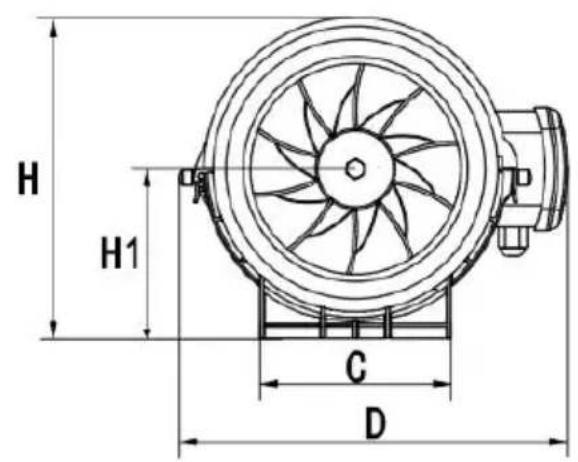

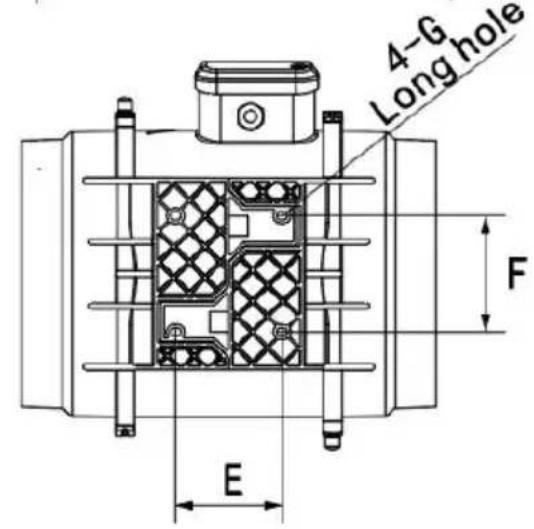

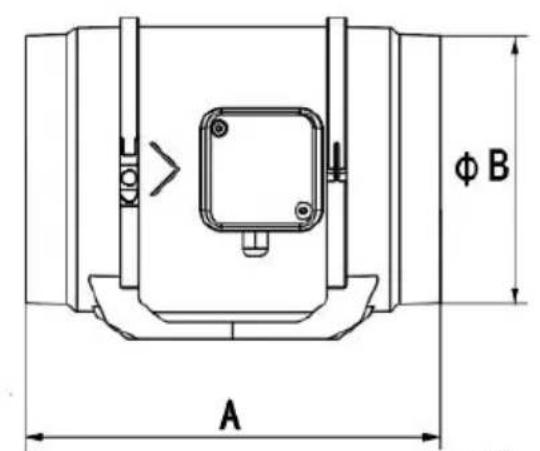

1. Dimension


φ B A

H H1 C D

4-G Long hole F E

Unit: mm

Model NO	A	∅ B	C	D	E	F	GLong hole	H	H1
GX-04-100	302	∅98	102	235	60	77	10X5	191	102
GX-06-150	308	∅148	120	255	59	77	10X5	214	114
GX-08-200	302	∅197	140	275	60	110	10X5	235	124

HOW TO USE

Speed control

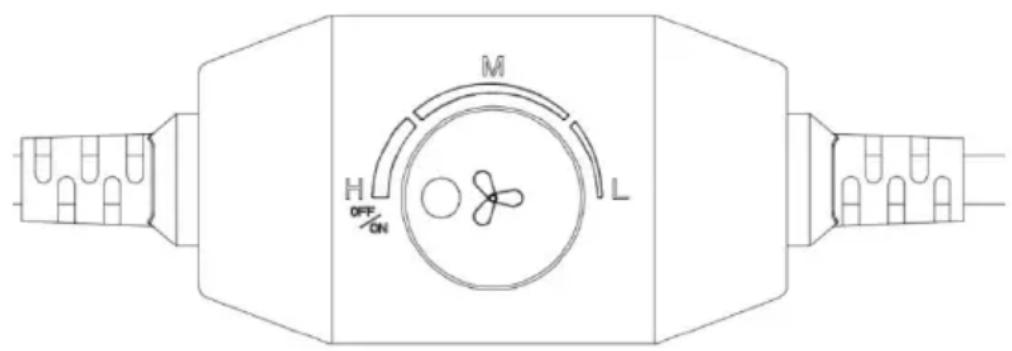

The controller has a button, and the fan speed is stepless. Turn the I

to adjust the wind speed from the highest to the lowest, and select speed you need. See the(Fig.12.)

M H L OFF ON

Fig.12.

Tip: Slight motor sound is normal when running at low speed

MAINTENANCE

1. Regular maintenance is needed each year. Please power off before maintaining
2. Please DO NOT use such chemicals as gasoline, benzene, and di to wipe the fan
3. Please DO NOT let water into the motor and electric parts, and I plastic parts merge into the water with a temperature higher than 60
4. This appliance can be used by children aged 12 years and above persons with reduced physical sensory or mental capabilities or lack of experience and know edge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance. Clean and user maintenance shall not be made by children without supervision.
5. If the power line is damaged, to avoid danger, it should be changed the factory, its maintenance department, or qualified professionals.

CLEANING

Step 1:

Remove the motor box from the mounting flange. (Refer to installation steps 1 to learn how to the mounting installation section to learn how remove the motor box).

Step 2:

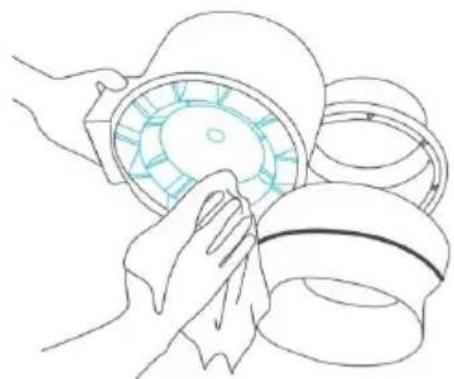

Use a damp cloth to clear the impeller and fan blades of any dust debris. Remove the wind circle in between the motor box and the in flange. (Fig.14.)

Illustration of hands holding a circular object with a blue ring, next to a curved structure (no text or symbols)

Fig.13.

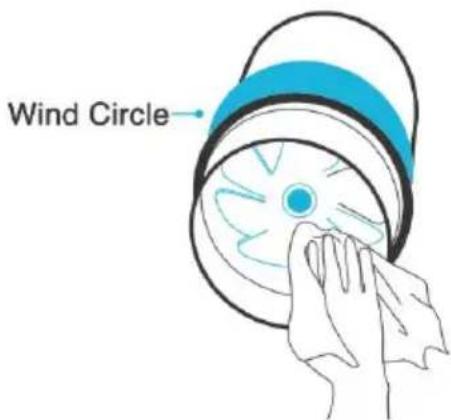

Wind Circle

Fig.14.

Step 3:

Clear the stator blades of any dust and debris on the opposite end. the area inside the output and exhaust flanges. (Fig.15.)

Step 4:

Secure the motor box onto the mounting flanges.Refer to installation s 2-3 to learn how to flanges. Secure the motor box. (Fig.16.)

Line drawing of hands assembling a mechanical component with a circular component (no text or symbols)

Fig.15.

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols.

Fig.16.

ATTENTIONS

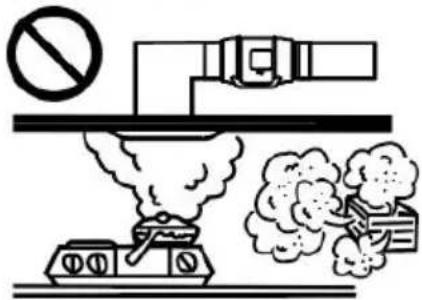

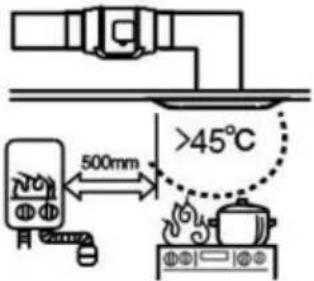

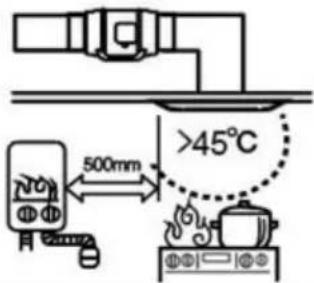

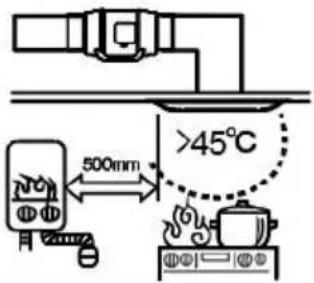

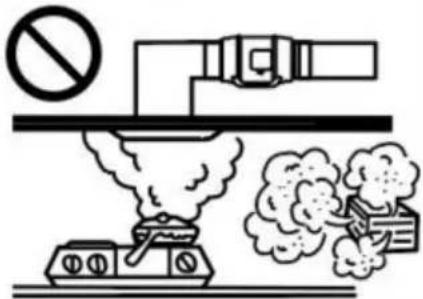

	High-temperatureplaces forbidden.	Places with overmuchlampblack or steamforbidden.	Please set up vent andspot inspection.

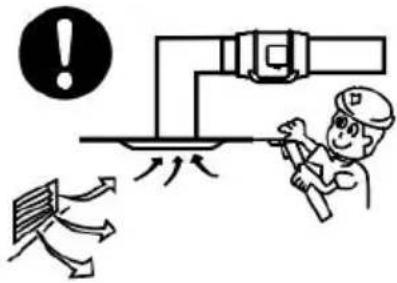

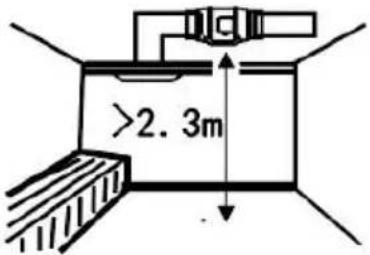

	Installation heightshould be morethan 2.3 m.	Below connectionway of air duct isforbidden.	Should be firmlyinstalled.Gradientinstallation forbidden.
		OverbendingOutlet closed to crookMultiple bend Pipe diameter shrinksat connecting part
	■Direct spraying or cleaning by water or other liquid is forbidden.This may cause short circuit or electric shock.■Installation on window or outdoor is forbidden.
	■When connected to power supply, all-pole power switch withmore-than-3mm contact separation is necessary to be installedon the power supply circuit. Please do the connection accordingto the local electrical equipment technical regulations.■Avoiding air reflux via open air flue or other fired equipment isnecessary.■Earthing device is necessary. Or will cause electric shock whenbreaking down or electric leakage occurs.

This product is subject to the provision of Europe an Directive 2012/1 The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a cylindrical mechanical device with attached electrical connector (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

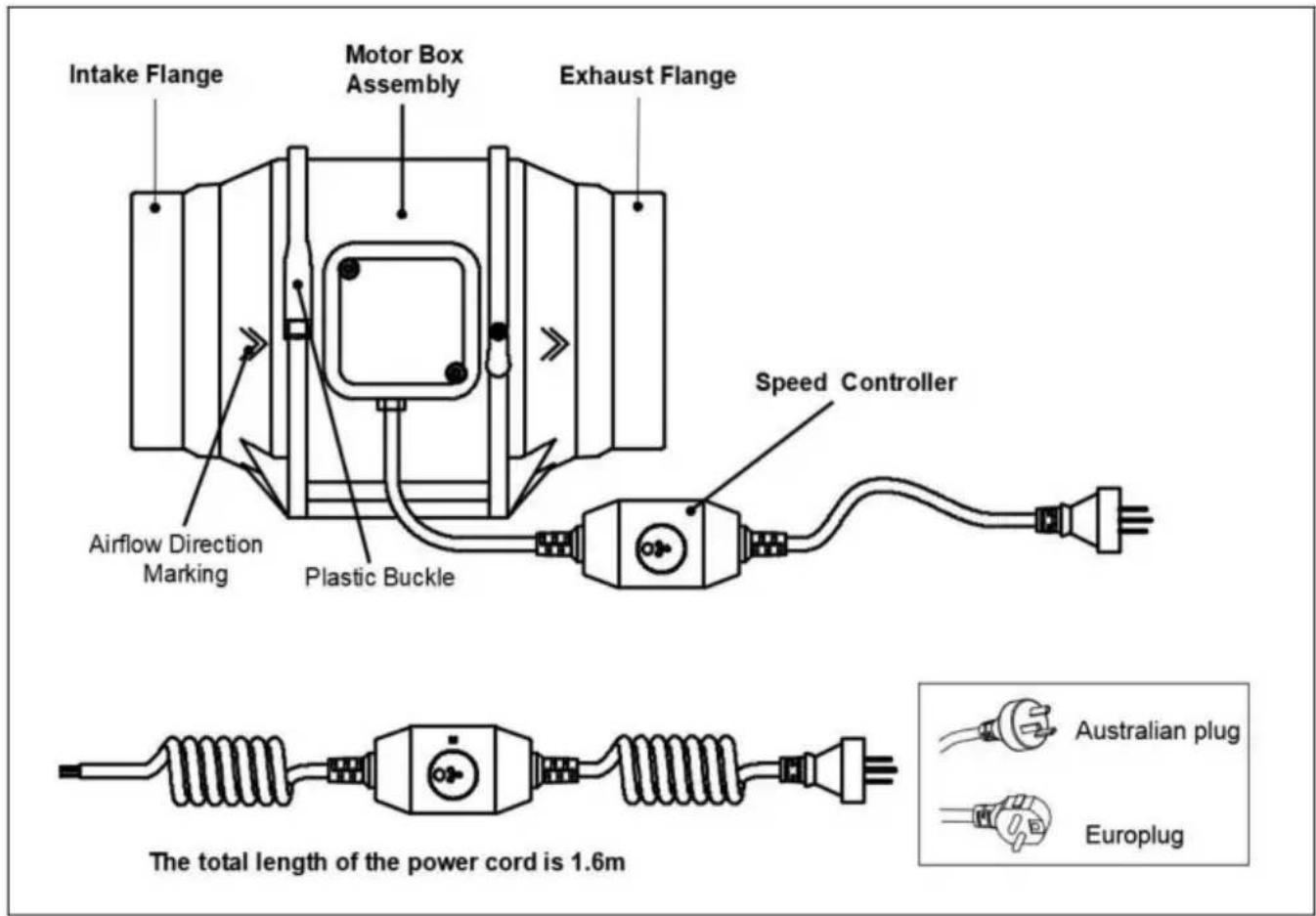

DIAGRAMME DE STRUCTURE DU PRODUIT

Intake Flange Motor Box Assembly Exhaust Flange Airflow Direction Marking Plastic Buckle Speed Controller The total length of the power cord is 1.6m Australian plug Europlug

INSTALLATION

⑭ Rope ⑮ Plastic Buckle ⑬ Intake Flange ⑭ Wind circle-B ⑩ Nut ⑨ Wind circle-A ⑨ Blade ⑧ Motor ⑦ Motor Box ⑥ Power Box Cover ⑤ Screws ⑯ Exhaust Flange ④ Wall Anchors ② Wood Screws ① Speed Controller ③ Cushion ⑯ ⑮ Australian plug Europlug

PARTS LIST:

NO	PARTS	Quantity
1	Wood Screws	4
2	Wall Anchors	4
3	Speed Controller	1
4	Exhaust Flange	1
5	Screw	2
6	Power Box Cover	1
7	Motor Box	1
8	Motor	1

NO	PARTS	Quantity
9	Blade	1
10	Nut	1
11	Wind circle-A	1
12	Wind circle-B	1
13	Intake Flange	1
14	Rope	2
15	Plastic Buckle	2
16	Cushion	4

Plastic Buckle Screws

Figure 3.

Motor Box Assembly

Figure 4.

Étape 2 :

Figure 5. Fig.6.

Figure 7. Figure 8.

Technical line drawing of a mechanical assembly with a tool inserted, no visible text or symbols

Étape 3:

4-G Long hole F E

Unit: mm

Model NO	A	∅ B	C	D	E	F	GLong hole	H	H1
GX-04-100	302	∅98	102	235	60	77	10X5	191	102
GX-06-150	308	∅148	120	255	59	77	10X5	214	114
GX-08-200	302	∅197	140	275	60	110	10X5	235	124

COMMENT UTILISER

Contrôle de

M H L OFF ON

Figure 12.

Illustration of hands holding a circular object with a blue ring, next to a curved pipe or duct (no text or symbols)

Figure 13.

Wind Circle

Figure 14.

Étape

Line drawing of hands assembling a mechanical component with a circular component (no text or symbols)

Figure 15.

Technical line drawing of a mechanical device with a tool inserted, showing no text or symbols

Figure 16.

ATTENTION

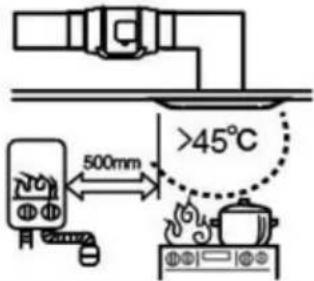

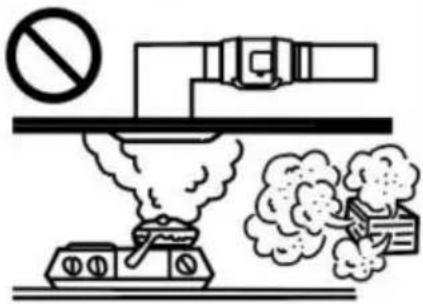

	High-temperatureplaces forbidden.	Places with overmuchlampblack or steamforbidden.	Please set up vent andspot inspection.
