GPS-2 - Fastening accessory Vevor - Free user manual and instructions

Product Type	Manual Lifting Suction Cup
Brand	Vevor
Model	GPS-2
Diameter	8 inches (20.3 cm)
Pad Material	Rubber
Handle Material	Plastic
Style	Circular
Operating Principle	Lever and Vacuum Pump
Application Surface	Smooth, non-porous surfaces (glass, metal, plastic, polished stone)
Usage	Lifting and moving non-porous materials
Power Supply	None (manual)
Deflation Function	Tab or black button
Vacuum Indicator	Red warning line
Maintenance	Clean pads with an antistatic cloth; store in a dry place away from heat and direct sunlight
Safety	Check before each use; do not exceed capacity; do not use on porous surfaces; do not allow children to play
Warranty	Identical replacement parts required for repair; any other part voids the warranty
Storage	Dry place, away from heat and direct sunlight
Manufacturer Reference	GPS-2
Country of Origin	China
Number of Instruction Manual Pages	64

Frequently Asked Questions - GPS-2 Vevor

How to use the GPS-2 suction cup?

Clean the surface of the object with an antistatic cloth. Place the suction cup on the surface, press lightly to ensure contact, then press the inflation button until the red warning line is no longer visible. Check that the line is retracted before lifting.

On which surfaces can I use this suction cup?

Use only on smooth, relatively flat, non-porous surfaces such as glass, metal, plastic, and polished stone. Surfaces must be free of oil, grease, or water to prevent slipping.

How to properly inflate the suction cup?

After positioning the suction cup, press the inflation button until the red warning line completely disappears. If the line does not retract, suction is insufficient and the object cannot be moved.

What to do if the red warning line does not retract?

If the red line is not fully retracted after inflation, it indicates poor sealing. Check the cleanliness of the surface and rubber pad, and ensure the surface is flat and non-porous. Do not attempt to lift the object.

How to release the suction cup after use?

Gently lift the deflation tab or press the black deflation button to release the vacuum and remove the suction cup.

What maintenance is required?

Clean the rubber pads regularly with an antistatic cloth. Check for damage before each use. Store the suction cup in a dry place, away from heat and direct sunlight.

Can I use the suction cup on porous surfaces?

No, porous surfaces like raw wood or concrete do not allow sufficient vacuum. Use only on non-porous materials.

What is the maximum lifting capacity?

The exact capacity is indicated on the device. Never exceed this limit. If no indication, be cautious and do not lift overly heavy loads.

How to store the suction cup after use?

Store it in a dry place, away from heat and direct sunlight, to prevent rust and wear of rubber parts.

What to do if the suction cup appears damaged?

Do not use the product if any part is damaged. Before each use, carefully check the condition of the parts. For repairs, use only identical replacement parts from the manufacturer.

USER MANUAL GPS-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SUCTION CUPS

USER MANUAL

MODEL: GPS-1/GPS-2/GPS-1-10

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SUCTION CUPS

MODEL: GPS-1/GPS-2/GPS-1-10

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

1. This product is not a toy. Do not allow children to play with this.
2. Use as intended only. Do not stand on the product.
3. Make sure the handle is not loose before each use.
4. Do not exceed the listed weight capacity.

Safety Instructions:

1. Keep product away from damp, wet, rainy, high temperature, fire, or direct sun-shining conditions.
2. Check for alignment and binding of all moving parts, broken parts of mounting fixtures, and other conditions that may affect proper operation.
3. Never let children handle the product, and do not use the lifter as a toy.
4. When servicing, use only identical replacement parts. Use of any other parts will void the warranty.
5. Do not exceed the lifter's capacity.
6. Lifter should be used on non-porous materials with smooth, relatively flat surfaces.
7. Lifter can only be operated manually for short distances.
8. Check for damaged parts. Before use, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function, and the surface of rubber pads should be cleaned up without dirt.
9. If there is any question about a condition being safe or unsafe, do not use the product.

Product Use: Lifting and moving non-porous materials.

Storage: When not in use, the product should be stored in a dry, cool place, away from direct sunlight, to prevent rust and wear.

Operation Direction:

1. The principle of operation is by lever and pump action. The round cups are pressed onto the surface of the object to be lifted. The levers are squeezed together into position. The rubber pads are then securely clamped to the surface by vacuum so that the object can be lifted. To release, just flip back the levers.
2. The loaded surface needs to be smooth, relatively flat, and non-porous. Surfaces should be free of oil, grease, or water; otherwise, slipping can occur. Non-porous materials such as glass, metal, plastics, and polished stone are good examples.

OPERATION AS BELOW

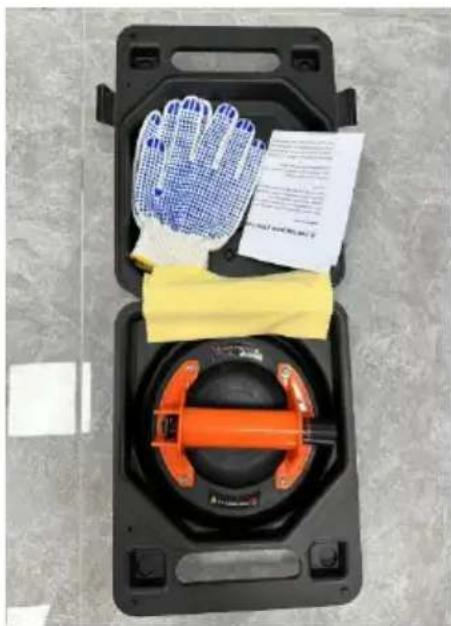

1. Open the vacuum suction plastic box and check if the product and accessories are intact.

1. When operating, clean the surface of the object to be adsorbed with an anti-static cloth to ensure a smooth surface.

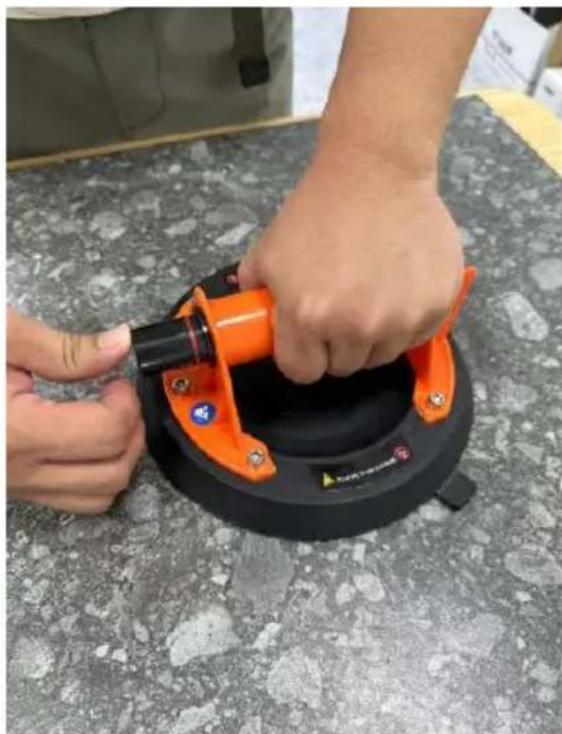

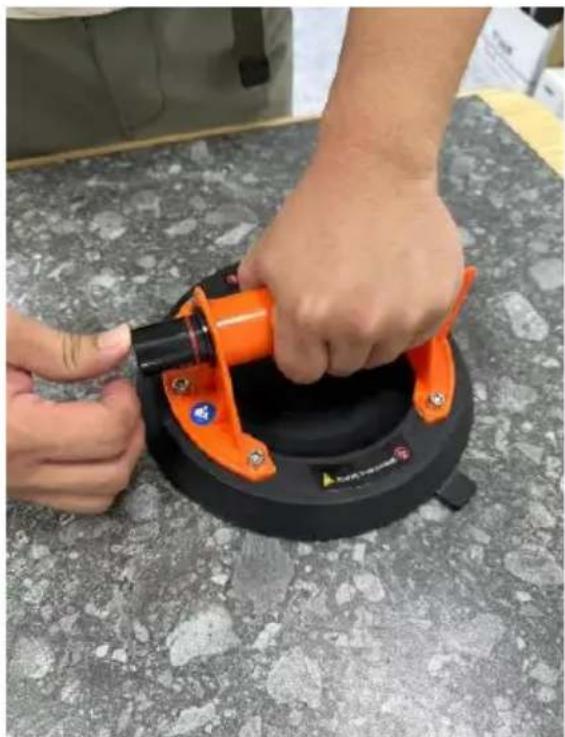

2. When operating, place the vacuum suction cup flat on the surface of the object to be adsorbed; lightly press the vacuum suction cup with your hand to ensure full contact between the rubber pad and the object's surface. Then press the inflation button until it is fully inflated and the red warning is not visible.

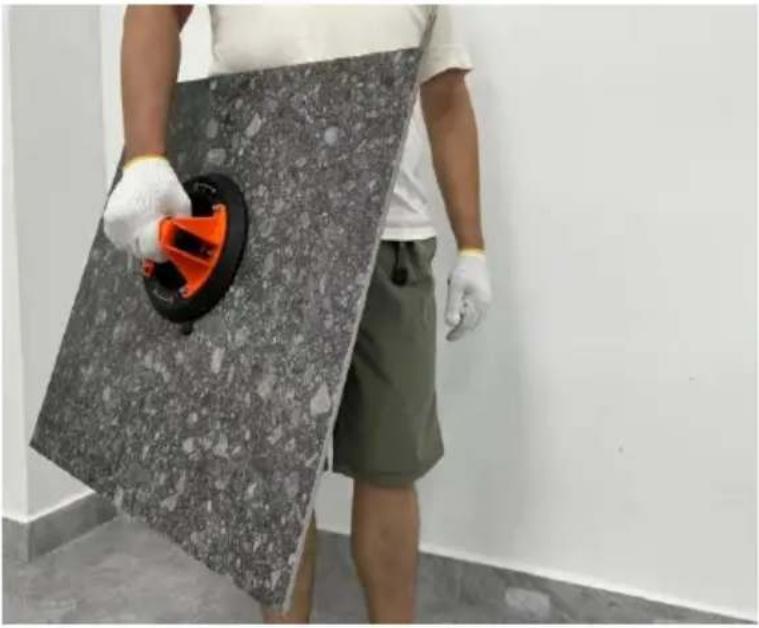

1. After complete inflation, check the red warning line to see if it has retracted. If it has not retracted, then the object can be moved.

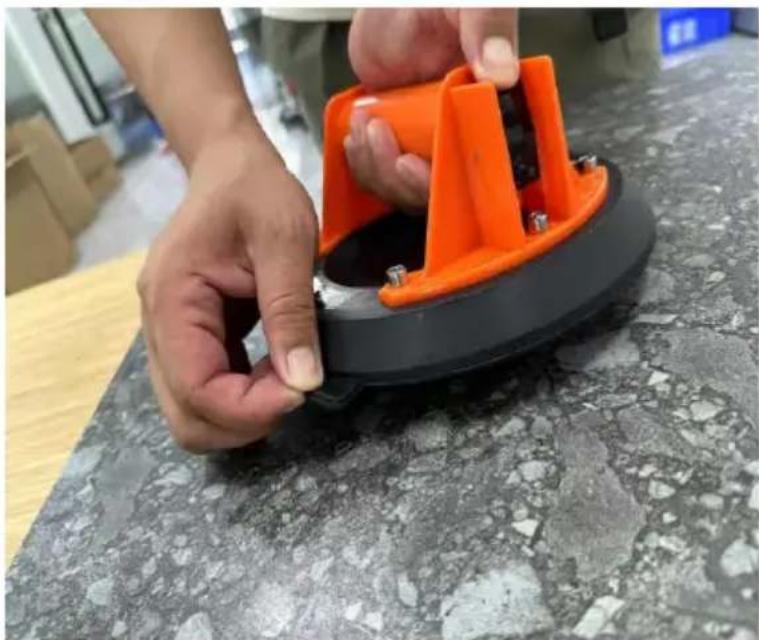

1. After the transportation process is completed, gently lift the deflation tongue or press the black deflation button to remove the suction cup.

	Items	Description
1	Name	Suction Cups
2	Model	GPS-2
3	Parameter	8 inches Plastic handle Circular style

	Items	Description
1	Name	Suction Cups
2	Model	GPS-1
3	Parameter	8 inches Metal handle Circular style

	Items	Description
1	Name	Suction Cups
2	Model	GPS-1-10
3	Parameter	10 inches Metal handle Circular style
