FFB12 - Outdoor fireplace protection Vevor - Free user manual and instructions

Product Type	Outdoor fireplace screen (flame guard)
Brand	Vevor
Model	FFB12
Shape	Rectangular
Dimensions (LxWxH)	773 x 367 x 191 mm
Glass panel thickness	8 mm
Main material	Heat-resistant tempered glass
Clip material	Aluminum
Package contents	2 long glass panels, 2 short glass panels, 4 upper brackets, 4 lower brackets, 1 screwdriver
Main function	Block wind, maintain a steady flame
Usage	Terrace, garden, around a fire table
Installation	Simple assembly with included screwdriver
Maintenance	Clean with a soft cloth and soapy water. Avoid abrasive products.
Safety	Heat-resistant tempered glass. Do not touch during use. Keep away from children.
Installation precautions	Do not assemble on an uneven surface. Do not cover with flammable materials.
Periodic check	Ensure all bolts are tight.
Repairability	Spare parts available via after-sales service (www.vevor.com/support)
Country of origin	China (Shanghai)

Frequently Asked Questions - FFB12 Vevor

How to install the Vevor FFB12 fire screen?

Installation is done by assembling the long and short glass panels using the upper and lower brackets. Use the included screwdriver to tighten the bolts. Follow the steps in the manual: place the panels on a soft surface, assemble the brackets, then tighten all bolts.

Is the fire screen delivered with tools?

Yes, a screwdriver is included in the package to facilitate assembly.

What are the exact dimensions of the FFB12 model?

The dimensions are 773 mm in length, 367 mm in width, and 191 mm in height. The glass thickness is 8 mm.

Can I use this fire screen with any outdoor fireplace?

The fire screen is designed to be placed around a fire table. It fits most outdoor fireplaces, but check the dimensions for a perfect fit. It is recommended to use it on a flat, stable surface.

What maintenance is required for this product?

Clean the glass regularly with a soft cloth and soapy water. Avoid abrasive products. Periodically check that all bolts are tight.

Is the glass heat-resistant?

Yes, the panels are made of heat-resistant tempered glass, designed to withstand high temperatures from an outdoor fireplace.

Is this product safe for children?

The manual advises against letting children play with the product. The glass can be hot during use. Keep children away and do not touch the glass when hot.

What to do if parts are missing from the package?

Carefully check all packaging materials. If a part is missing, contact after-sales service via www.vevor.com/support.

Can I order spare parts?

Yes, spare parts are available. Visit the Vevor support site to request replacement parts such as glass panels or brackets.

Where can I find the complete manual in French?

The manual is available for free download in PDF format on notice-facile.com. You can also request a translation in other languages via the form on the page.

USER MANUAL FFB12 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FIRE PIT FLAME GUARD

MODEL:ffb18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ffb18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

Circular glass ring with four small protrusions and a central hole, no text or symbols visible

Transparent rectangular frame with four corner supports and a central hole, no text or symbols visible.

Transparent rectangular metal frame with mounting feet and a small inset showing internal structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using boat trailer guides. And this product is not a not allow children to play.
• Keep away from sharp points, blades and other items.
• Assembly precautions.

Assemble only according to these instructions. Improper assembly can create hazards.

1. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
2. Keep assembly area clean and well-lit.
3. Keep bystanders out of the area during assembly.
4. Do not assemble when tired or when under the influence of alcohol drugs or medication.
5. Product capabilities apply to properly and completely assembled product only.
6. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

PRODUCT INTRODUCTION

• Tempered glass wind guard fence is made of tempered heat resist glass. Aluminum linking clips offer firm connection and steady support.
• Fit around your fire table and assist to block breeze to compromise fire and enjoy a steady flame! A must-have fire pit supply to blend it patio and garden.

PRODUCT PAREMETERS

Model	Shape	Dimensions LxWxH(mm)	board thickness(mm)	Picture
ffb18#	round	740*740*214	6
FFB16#	square	493*493*191	8
FFB17#	square	543*543*191	8
FFB11#	rectangle	748*340*165	8
FFB12#	rectangle	773*367*191	8
FFB13#	rectangle	798*317*165	8
FFB14#	rectangle	924*417*191	8
FFB15#	rectangle	1128*367*191	8

PACKAGE INCLUDE

Model:ffb18#

NO	PIC	DESC	QTY
A		Glass Panel	4 pcs
B		Glass Top Holder	4 pcs
C		Glass Bottom Holder	4 pcs
D		Screwdriver	1 pcs

Model:FFB16#/FFB17#

NO.	PIC	DESC	QTY
A		Glass Panel	4 pcs

B		Glass Top Holder	4 pcs
C		Glass Bottom Holde	4 pcs
D		Screwdriver	1 pcs

Model:FFB11#/FFB12#/FFB13#/FFB14#/ FFB15#

NO.	PIC	DESC	QTY
A		Long Glass Panel	2 pcs
B		Short Glass Panel	2 pcs
C		Glass Top Holder	4 pcs
D		Glass Bottom Holde	4 pcs
E		Screwdriver	1 pcs

ASSEMBLY INSTRUCTIONS

Thanks for purchasing this quality product. Be sure to check all pack materials carefully for small parts, which may have come loose inside carton during shipment. Identify and count all parts and compare with Hardware List above.

Easy to install, with several pieces of glass and corresponding fastening. Please keep the glass inserted into the firmware at the correct angle. Properly tighten the screw to the glass can not shake can not be to cause damage to the glass.

The assembly procedures of the three shape products are similar. He take the rectangular one as an example. You can follow the same s finish the assembly for the other products.

INSTALLION

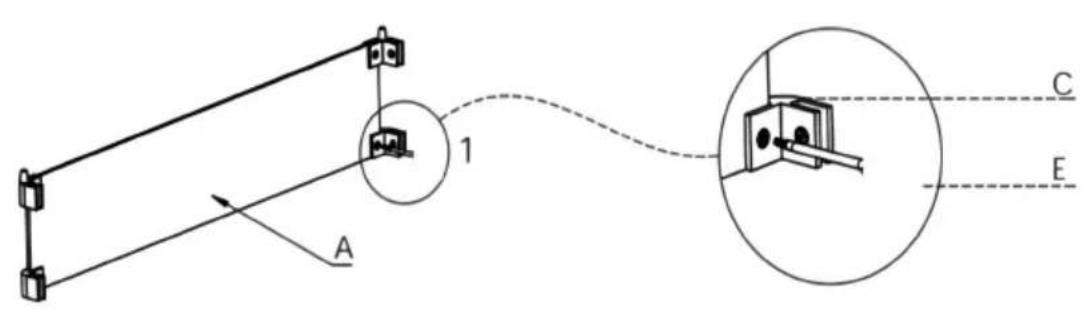

Step 1: Place the Long Glass panels(Part A) on a clean and soft suit a blanket or carpet. Assemble 2 Class Bottom Holders(Part D)and 2 Top Holders(Part C)to Long Glass Panels(Part A) by bolts and loosely tighten with Screwdriver (Part E).

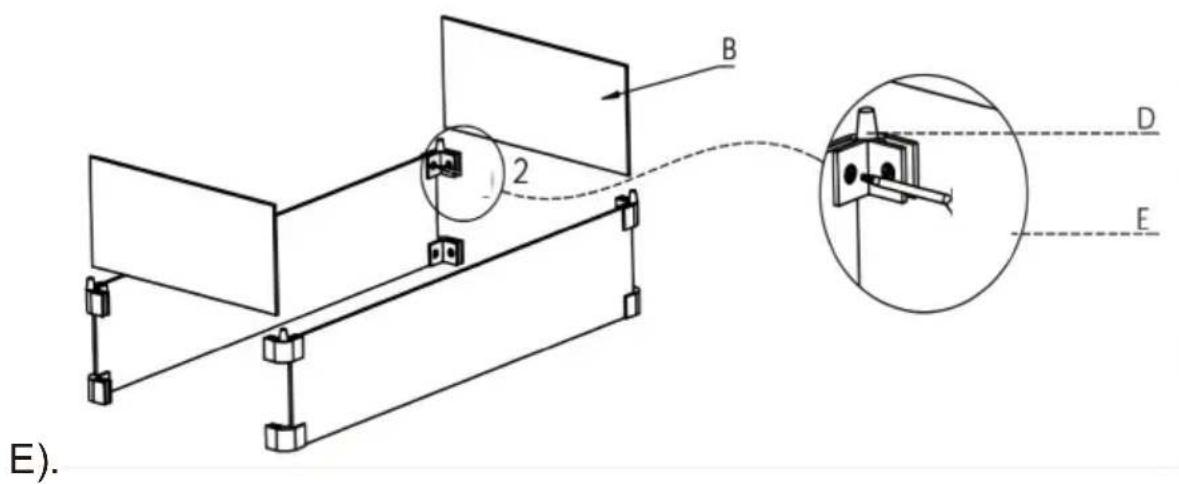

Step 2: Assemble the Short Glass Panels(Part B) to Long Glass Pan bolts and tighten with Screwdriver (Part

Step 3: After tightening all bolts, your product is ready for use.

Isometric line drawing of a rectangular frame with corner connectors (no text or symbols)

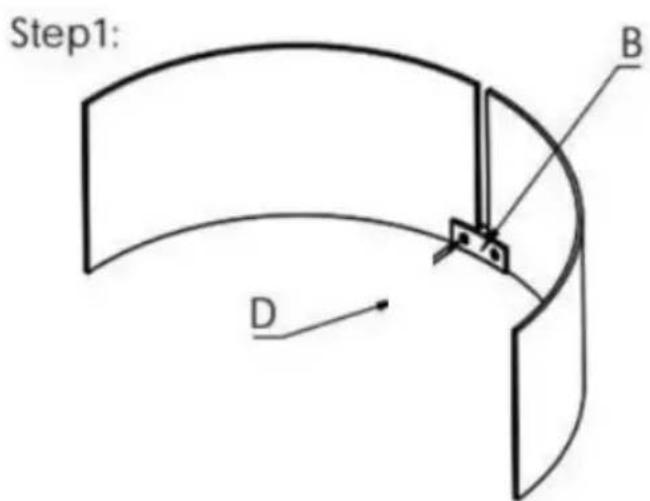

Step 1: Place the Glass Panels(Part A) on a clean and soft surface blanket or carpet. Assemble the Glass Top Holder(Part B) to 2 Glass Panels by bolts and loosely tighten with Screwdriver (Part D).

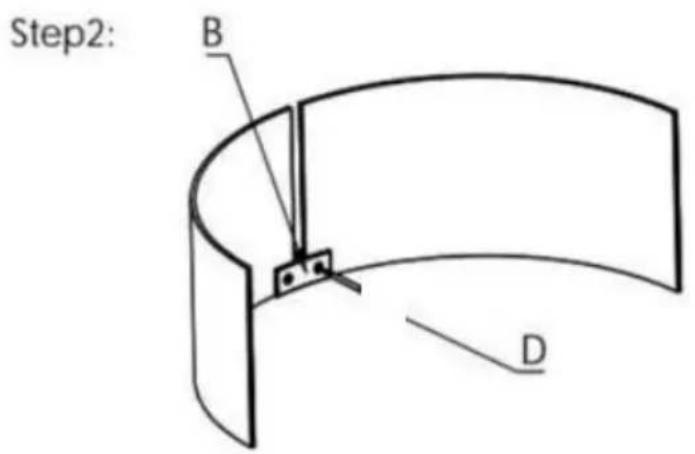

Step 2: Assemble the Glass Top Holder(Part B) to the remaining 2 (Panels by bolts and loosely tighten with Screwdriver (Part D).

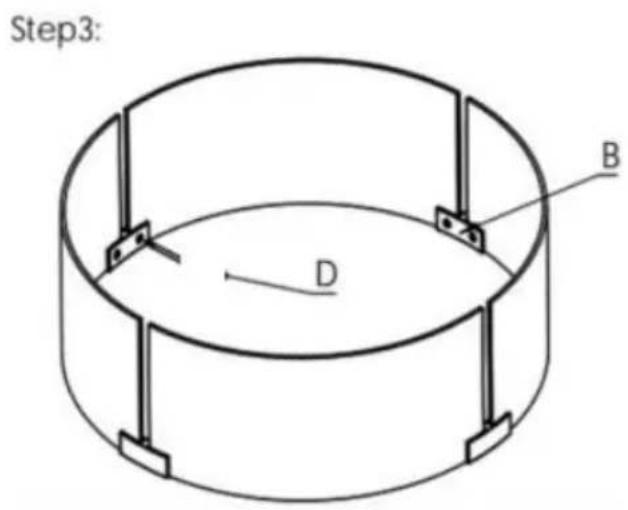

Step 3: Assemble 4 Glass Panels together by bolts and tighten with Screwdriver (Part D).

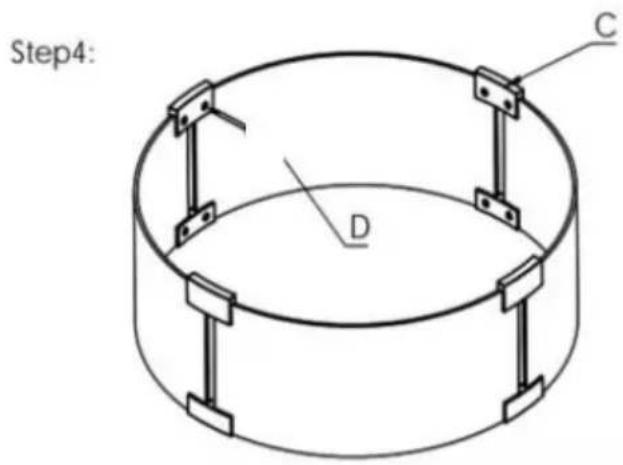

Step 4: Assemble the Glass Botom Holders(Part C) to the Glass Pan bolts and tighten with Screwdriver (Part D).

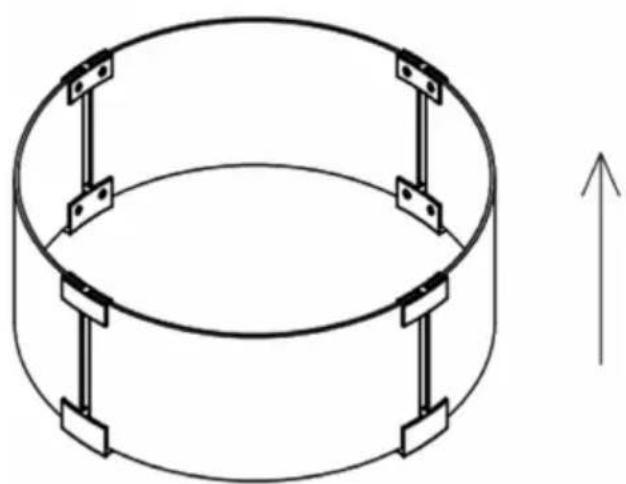

Step 5: After tightening all bolts, your product is ready for use.

Pure technical line drawing of a cylindrical mechanical component with mounting brackets and an upward arrow indicator (no text or symbols)

CARE INSTRUCTIONS

Don't put the Flame Guard on an uneven surface.

Don't cover with flammable materials.

Don't touch during use to prevent burns.

Periodically check and make sure all bolts are fully tightened.
