Product Type	Fire Screen for Outdoor Fire Pit
Brand	Vevor
Model	VV-FWG-FX3810.5
Shape	Rectangular
Dimensions (L x W x H)	965 x 270 x 150 mm
Glass Thickness	8 mm
Material	Heat-resistant tempered glass, aluminum connecting clips
Package Contents	2 long panels, 2 short panels, 4 top brackets, 4 bottom brackets, screwdriver
Main Functions	Protects the fire pit from wind, maintains a stable flame, installs around the fire table
Assembly	Easy to assemble with provided hardware, requires a screwdriver
Safety Precautions	Do not use on uneven surface, do not cover with flammable materials, do not touch during use
Maintenance and Cleaning	Clean with a soft cloth and soapy water, avoid abrasive products
Spare Parts	Glass panels, brackets, replacement screws available
Repairability	Individual parts can be easily replaced
Warranty Terms	Electronic warranty, technical support via www.vevor.com/support
Intended Use	For outdoor fire pits, patio or garden

Frequently Asked Questions - VV-FWG-FX3810.5 Vevor

How to install the VV-FWG-FX3810.5 fire screen?

Place the long glass panels on a soft surface. Attach the bottom and top brackets using the provided bolts and screwdriver. Then assemble the short panels on each side. Tighten all bolts without over-tightening to avoid breaking the tempered glass.

What is the height of the fire screen?

The height is 150 mm (15 cm). The total dimensions are 965 mm length, 270 mm width, and 150 mm height.

Is the glass heat resistant?

Yes, it is tempered glass specially designed to withstand high temperatures. It can withstand direct heat from a fire pit without breaking.

Can I use this fire screen with any fire pit?

It is designed to be placed around a fire table or an outdoor fire pit. Make sure the dimensions of your fire pit allow the fire screen to be inserted around it.

How to maintain the fire screen?

Clean the glass with a soft cloth and soapy water. Do not use abrasive cleaners that could scratch or damage the glass surface.

Is the fire screen stable in strong wind?

Yes, the aluminum connecting clips provide a firm connection between panels, and tempered glass offers good stability. However, in very strong wind, it is recommended to secure it in place or temporarily move it.

How many glass panels are included?

The VV-FWG-FX3810.5 model includes 2 long panels and 2 short panels, for a total of 4 panels. It also comes with 4 top brackets, 4 bottom brackets, and a screwdriver.

Can I replace a broken glass panel?

Yes, the glass panels are spare parts. You can order a replacement panel from Vevor. The modular design allows replacing a single panel without disassembling the whole unit.

What are the important safety precautions?

Do not place the fire screen on an uneven surface. Do not cover it with flammable materials. Avoid touching the glass during or after use as it becomes hot. Keep children away.

Where to find the complete user manual?

The complete manual is available on notice-facile.com for the Vevor model VV-FWG-FX3810.5. You can download it for free in PDF in several languages.

USER MANUAL VV-FWG-FX3810.5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FIRE PIT FLAME GUARD

MODEL:VV-FPWG-Y-17\*6/VV-FPWG-Y-23\*8/VV-FPWG-Y-26\*6/VV-FWG-FX1515/VV-FWG-FX248/VV-FWG-FX3810.5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:VV-FPWG-Y-17*6/VV-FPWG-Y-23*8/VV-FPWG-Y-26*6/VV-FWG-FX1515/VV-FWG-FX248/VV-FWG-FX3810.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using boat trailer guides. And this product is not a not allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions.

• Assemble only according to these instructions. Improper assembly can create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled product only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

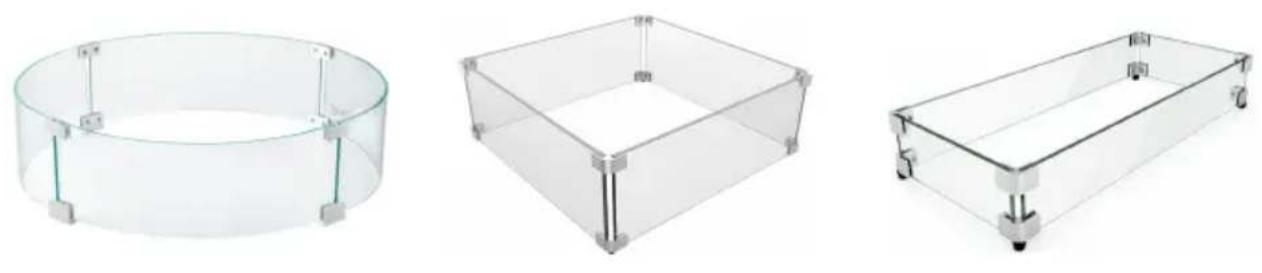

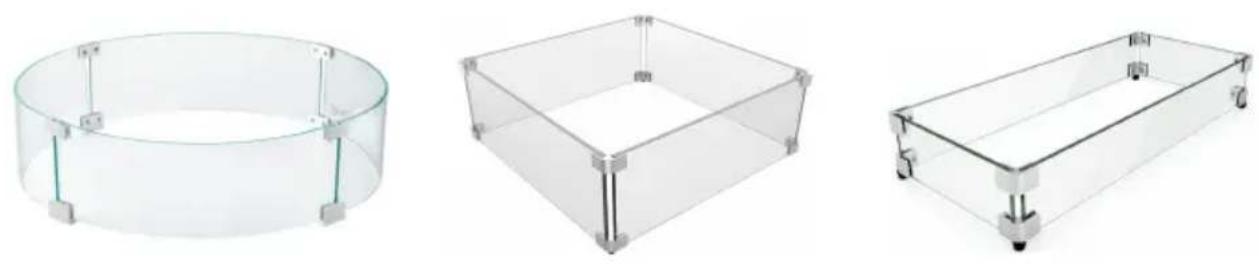

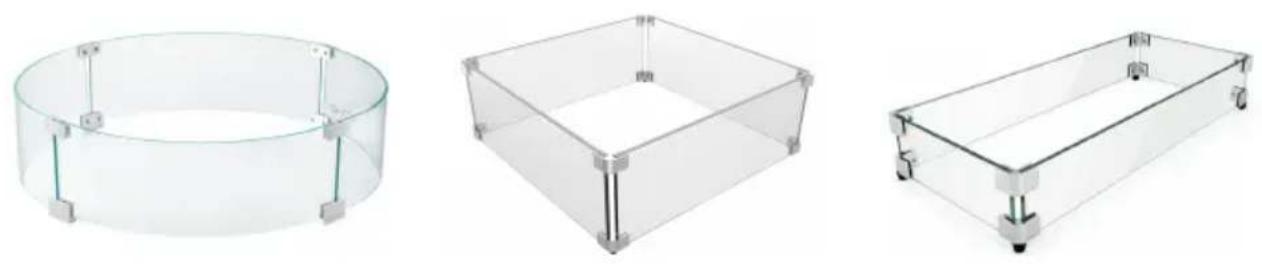

PRODUCT INTRODUCTION

• Tempered glass wind guard fence is made of tempered heat resistant glass. Aluminum linking clips offer firm connection and steady support.
• Fit around your fire table and assist to block breeze to compromise fire and enjoy a steady flame! A must-have fire pit supply to blend a patio and garden.

PRODUCT PAREMETERS

Model	Shape	Dimensions LxWxH(mm)	board thickness (mm)	Picture
VV-FPWG-Y-17*6	round	435*435*170	6
VV-FPWG-Y-23*8		590*590*215
VV-FPWG-Y-26*6		660*665*165
VV-FWG-FX1515	square	380*380*180	8
VV-FWG-FX248	rectangle	595*190*165	8
VV-FWG-FX3810.5		965*270*150

PACKAGE INCLUDE

Model:VV-FPWG-Y-17*6/VV-FPWG-Y-23*8/VV-FPWG-Y-26*6

NO.	PIC	DESC	QTY
A		Glass Panel	4 pcs
B		Glass Top Holder	4 pcs
C		Glass Bottom Holde	4 pcs
D		Screwdriver	1 pcs

Model:VV-FWG-FX1515

NO.	PIC	DESC	QTY
A		Glass Panel	4 pcs
B		Glass Top Holder	4 pcs
C		Glass Bottom Holde	4 pcs
D		Screwdriver	1 pcs

ASSEMBLY INSTRUCTIONS

Thanks for purchasing this quality product. Be sure to check all packi materials carefully for small parts, which may have come looseinside i carton during shipment. Identify and count all parts and compare with Hardware List above.

Easy to install, with several pieces of glass and corresponding fastene

Please keep the glass inserted into the firmware at the correct angle

Properly tighten the screw to the glass can not shake can not be to cause damage to the glass

The assembly procedures of the three shape products are similar. He take the round one and the rectangular one as an example. You can the same steps of the rectangular one to finish the assembly for the one.

Model:VV-FPWG-Y-17\*6/VV-FPWG-Y-23\*8/VV-FPWG-Y-26\*6

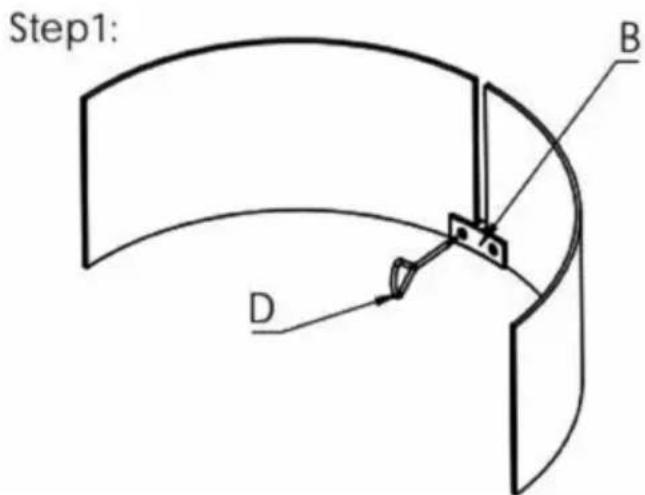

Step 1: Place the Glass Panels(Part A) on a clean and soft surface blanket or carpet. Assemble the Glass Top Holder(Part B) to 2 Glass Panels by bolts and loosely tighten with Screwdriver (Part D).

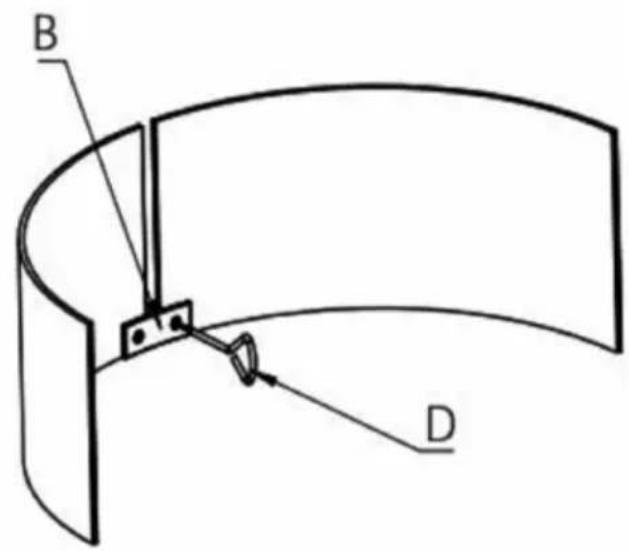

Step 2: Assemble the Glass Top Holder(Part B) to the remaining 2 Panels by bolts and loosely tighten with Screwdriver (Part D).

Step2:

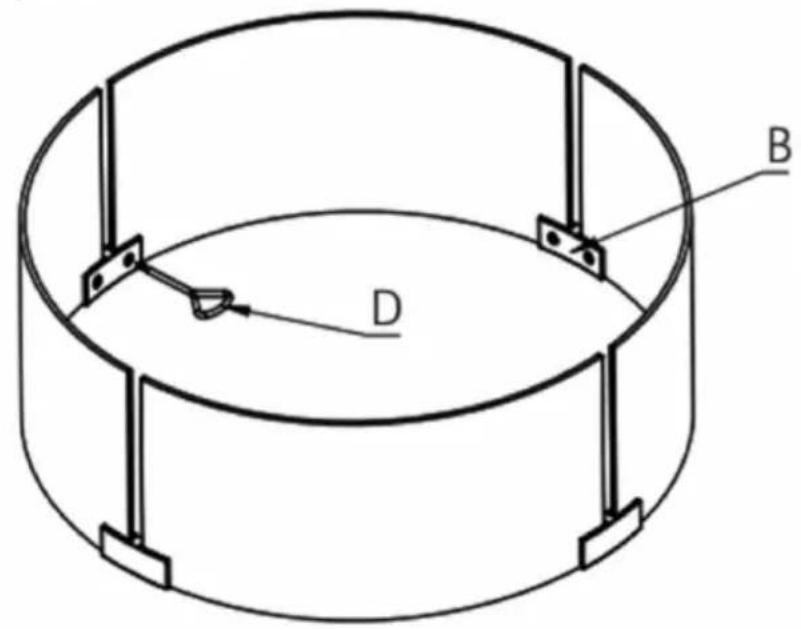

Step 3: Assemble 4 Glass Panels together by bolts and tighten with Screwdriver (Part D).

Step3:

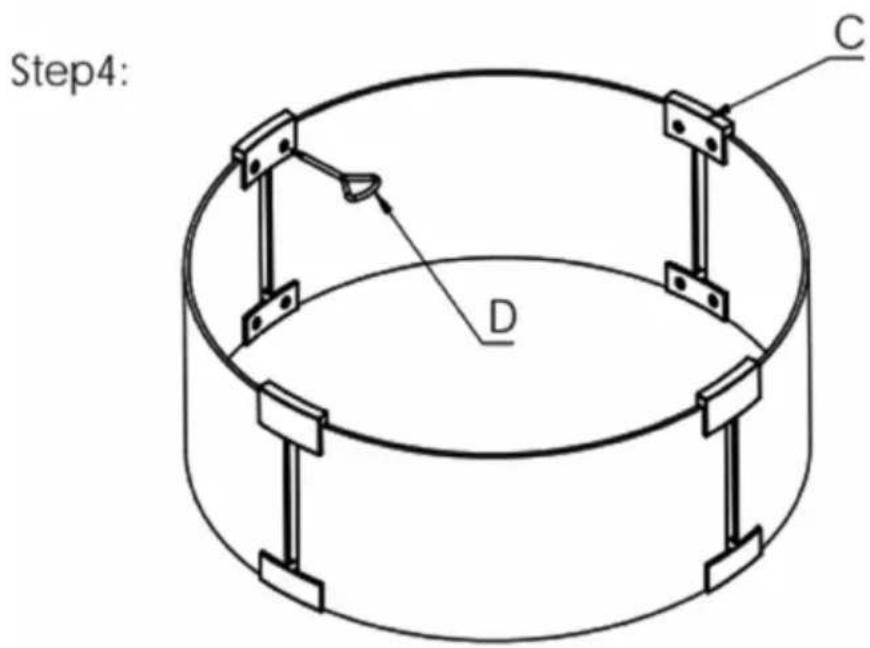

Step 4: Assemble the Glass Botom Holders(Part C) to the Glass Par bolts and tighten with Screwdriver (Part D).

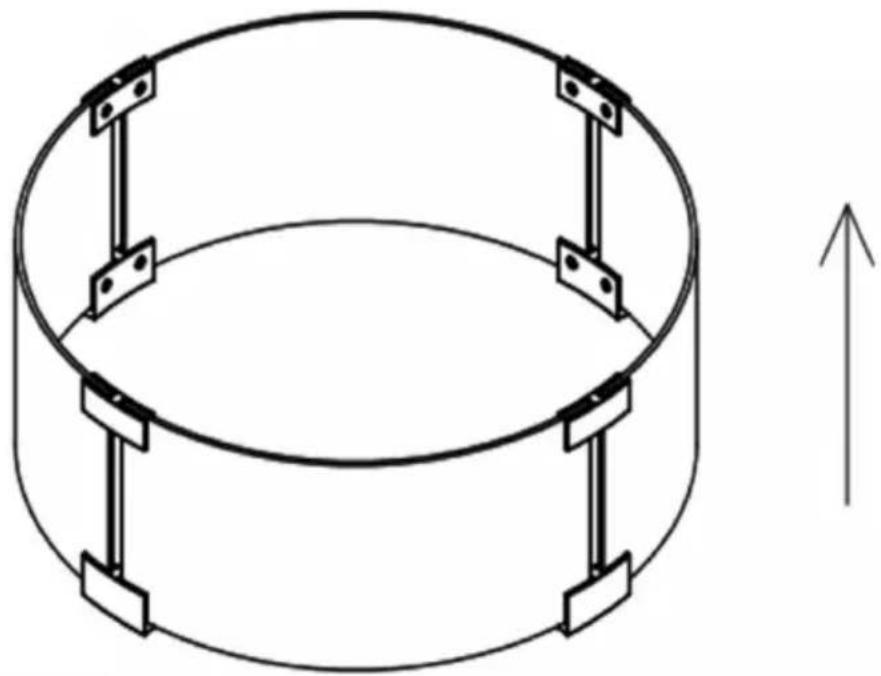

Step 5: After tightening all bolts, your product is ready for use.

Pure technical line drawing of a cylindrical mechanical component with mounting brackets and an upward arrow indicator (no text or symbols)

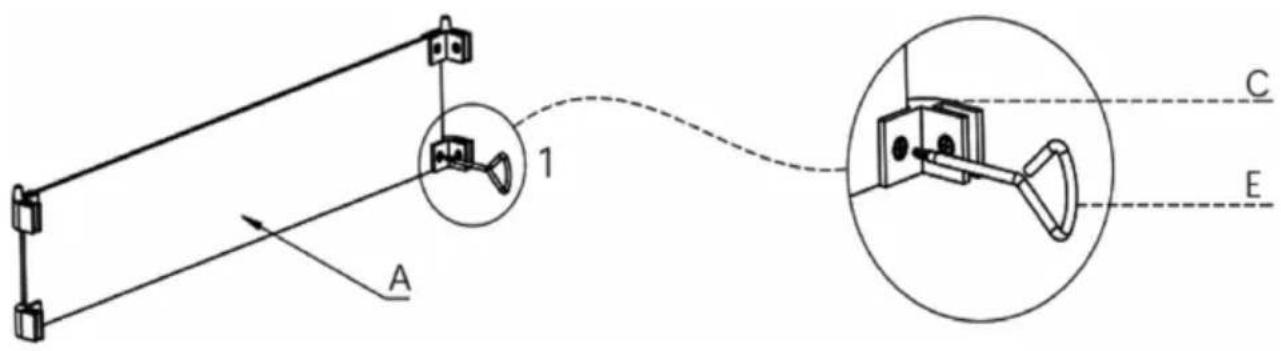

Step 1: Place the Long Glass anels(Part A) on a clean and soft su a blanket or carpet. Assemble 2 Class Bottom Holders(Part D)and 2 Top Holders(Part C)to Long Glass Panels(Part A) by bolts and loosely

tighten with Screwdriver (Part E).

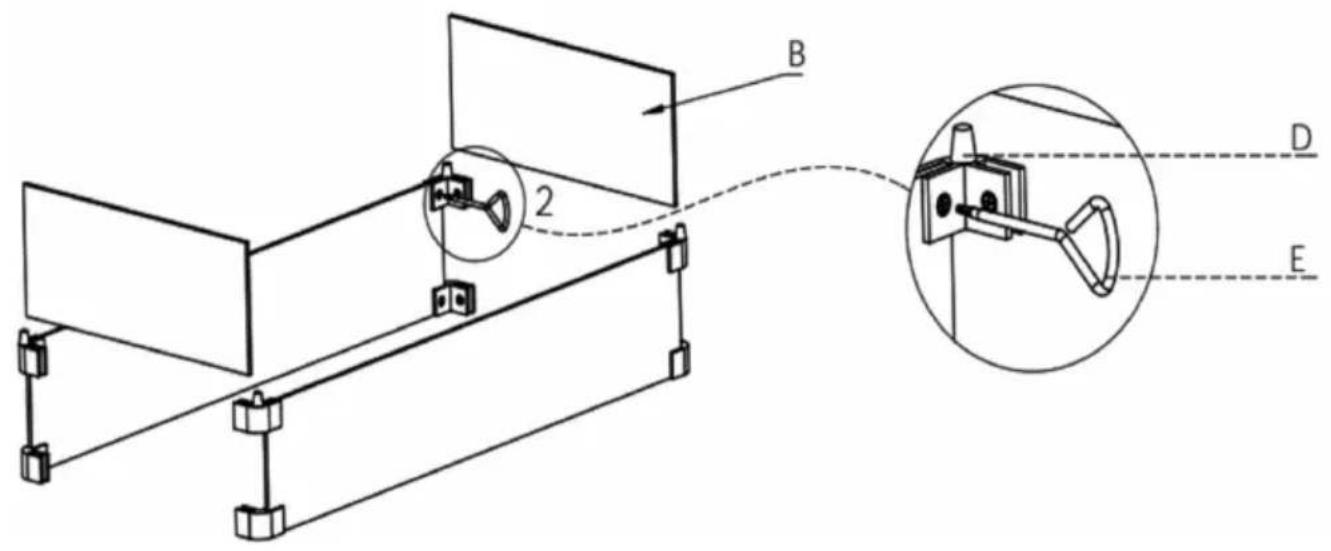

Step 2: Assemble the Short Glass Panels(Part B) to Long Glass Par bolts and tighten with Screwdriver (Part E).

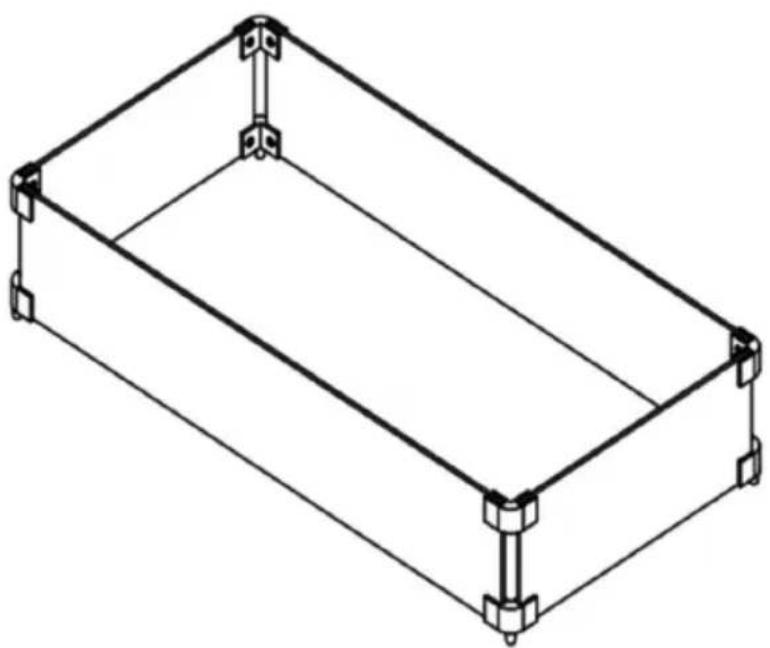

Step 3: After tightening all bolts, your product is ready for use.

Isometric line drawing of a rectangular metal frame with corner connectors (no text or symbols)

CARE INSTRUCTIONS

Don't put the Flame Guard on an uneven surface.

Don't cover with flammable materials.

Don't touch during use to prevent burns.

Periodically check and make sure all bolts are fully tightened.
