FFB16 - Outdoor fire protection Vevor - Free user manual and instructions

Product Type	Fire Screen for Outdoor Fire Pit
Brand	Vevor
Model	FFB16
Shape	Square
Dimensions (L x W x H)	493 x 493 x 91 mm
Panel Thickness	8 mm
Main Material	Heat-resistant Tempered Glass
Fastener Material	Aluminum
Package Contents	4 glass panels, 4 top brackets, 4 bottom brackets, 1 screwdriver
Intended Use	Installation around a fire table to block wind and maintain a steady flame
Assembly	Easy, tool included (screwdriver), assembly in a few steps
Power Source	None (non-electric product)
Care and Cleaning	Clean with a soft cloth; avoid impacts on tempered glass
Safety	Do not use on uneven surface; do not cover with flammable materials; do not touch during use (burn risk); periodically check bolt tightness
Spare Parts and Repairability	Spare parts available (brackets, screws); technical support at vevor.com/support
Warranty	Electronic warranty certificate available at vevor.com/support
Assembly Instructions	Wear safety goggles and gloves; assemble on a clean, soft surface; do not overtighten screws to avoid damaging glass
Precautions	Keep out of reach of children; do not use as a toy

Frequently Asked Questions - FFB16 Vevor

How to assemble the FFB16 flame guard?

Place the glass panels on a soft surface (carpet). Attach the bottom and top brackets to the panels using the provided bolts, then tighten with the screwdriver. For square models, assemble the 4 panels starting with two panels, then add the others. Tighten all bolts after assembly.

What are the exact dimensions of the FFB16 model?

The dimensions are 493 mm in length, 493 mm in width, and 91 mm in height. The thickness of the glass panels is 8 mm.

Can this product be used with any outdoor fire pit?

The flame guard is designed to be installed around a fire table. Make sure the surface is level and stable. It is compatible with most square or rectangular fire pits, but check dimensions for optimal fit.

How to clean the tempered glass?

Use a soft, non-abrasive cloth. Avoid harsh cleaners that could damage the glass. A damp cloth with soapy water is sufficient. Do not use sharp objects to scrape residues.

What to do if a bolt is lost or a bracket is broken?

Spare parts are available. Contact Vevor technical support via vevor.com/support to order additional brackets or screws.

Is the flame guard resistant to high temperatures?

Yes, the tempered glass is designed to withstand heat from an outdoor fire pit. However, do not touch the glass during use as it becomes hot. Allow it to cool before any contact.

Can I use this product on a wooden or grass surface?

It is recommended to place the flame guard on a stable, non-flammable surface (stone, concrete). Avoid wooden or grass surfaces near the fire pit to prevent fire hazards.

How to know if the FFB16 model is compatible with my fire table?

Measure the circumference of your fire table. The FFB16 has internal dimensions of 493x493 mm. It is suitable for square tables of similar size. For round tables, use model ffb18#.

Is the product warranted?

Yes, Vevor offers an electronic warranty. Register your product at vevor.com/support to activate the warranty. Keep the proof of purchase.

Can I assemble the flame guard alone?

Yes, assembly is simple and can be done by one person. However, due to the fragility of the glass, it is advisable to ask for help handling the panels to avoid impacts.

USER MANUAL FFB16 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FIRE PIT FLAME GUARD

MODEL: FFB18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: FFB18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using boat trailer guides. This product is not a toy; do not allow children to play with it.
• Keep away from sharp points, blades, and other items.
• Assembly precautions.

Assemble only according to these instructions. Improper assembly can create hazards.

1. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
2. Keep the assembly area clean and well-lit.
3. Keep bystanders out of the area during assembly.
4. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
5. Product capabilities apply to properly and completely assembled product only.
6. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

PRODUCT INTRODUCTION

• Tempered glass wind guard fence is made of tempered heat-resistant glass. Aluminum linking clips offer firm connection and steady support.
• Fit around your fire table and assist to block breeze to compromise fire and enjoy a steady flame! A must-have fire pit supply to blend into patio and garden.

PRODUCT PARAMETERS

Model	Shape	Dimensions LxWxH(mm)	board thickness(mm)	Picture
ffb18#	round	740*740*214	6
FFB16#	square	493*493*191	8
FFB17#	square	543*543*191	8
FFB11#	rectangle	748*340*165	8
FFB12#	rectangle	773*367*191	8
FFB13#	rectangle	798*317*165	8
FFB14#	rectangle	924*417*191	8
FFB15#	rectangle	1128*367*191	8

PACKAGE INCLUDE

Model: FFB18#

NO	PIC	DESC	QTY
A		Glass Panel	4 pcs
B		Glass Top Holder	4 pcs
C		Glass Bottom Holder	4 pcs
D		Screwdriver	1 pcs

Model: FFB16#/FFB17#

NO.	PIC	DESC	QTY
A		Glass Panel	4 pcs

B		Glass Top Holder	4 pcs
C		Glass Bottom Holde	4 pcs
D		Screwdriver	1 pcs

Model: FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

NO.	PIC	DESC	QTY
A		Long Glass Panel	2 pcs
B		Short Glass Panel	2 pcs
C		Glass Top Holder	4 pcs
D		Glass Bottom Holde	4 pcs
E		Screwdriver	1 pcs

ASSEMBLY INSTRUCTIONS

Thanks for purchasing this quality product. Be sure to check all pack materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all parts and compare with the Hardware List above.

Easy to install, with several pieces of glass and corresponding fastening. Please keep the glass inserted into the firmware at the correct angle. Properly tighten the screw to the glass so that it cannot shake, but do not over-tighten to cause damage to the glass.

The assembly procedures of the three shape products are similar. Take the rectangular one as an example. You can follow the same steps to finish the assembly for the other products.

INSTALLATION

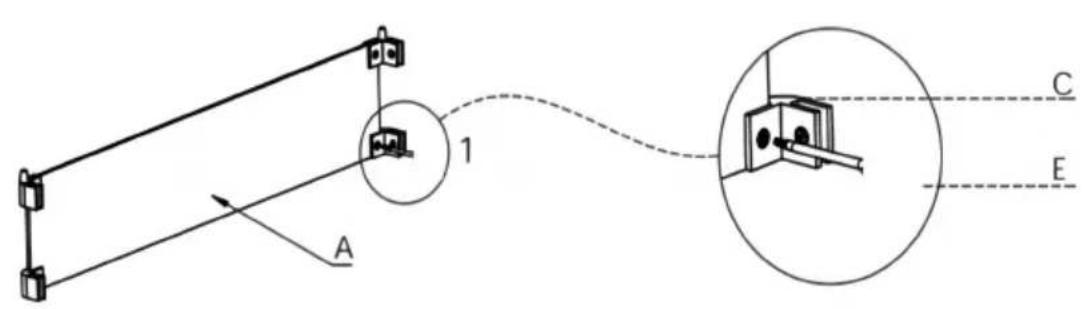

Step 1: Place the Long Glass panels (Part A) on a clean and soft surface, such as a blanket or carpet. Assemble 2 Glass Bottom Holders (Part D) and 2 Top Holders (Part C) to Long Glass Panels (Part A) with bolts and loosely tighten with a Screwdriver (Part E).

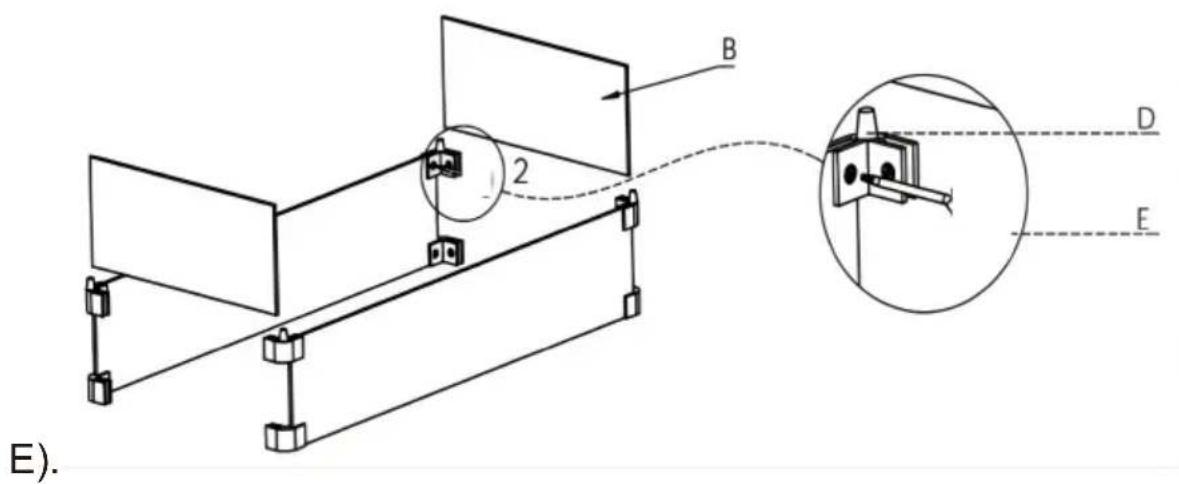

Step 2: Assemble the Short Glass Panels (Part B) to Long Glass Panels with bolts and tighten with a Screwdriver (Part E).

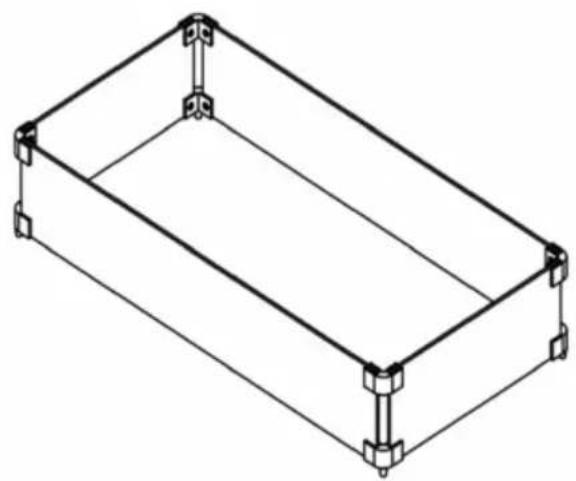

Step 3: After tightening all bolts, your product is ready for use.

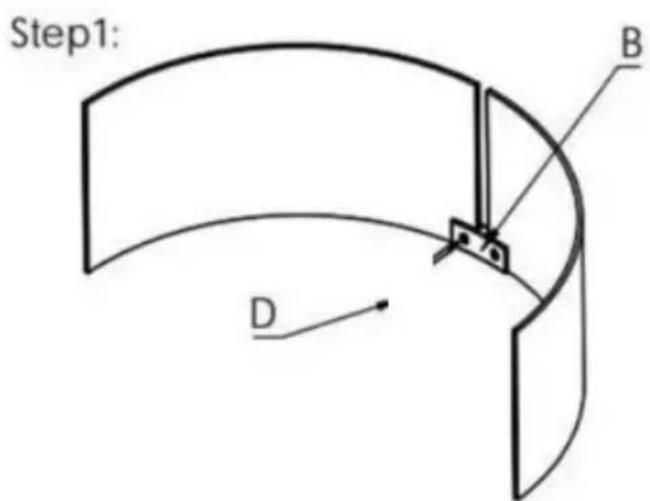

Step 1: Place the Glass Panels (Part A) on a clean and soft surface, such as a blanket or carpet. Assemble the Glass Top Holder (Part B) to 2 Glass Panels with bolts and loosely tighten with a Screwdriver (Part D).

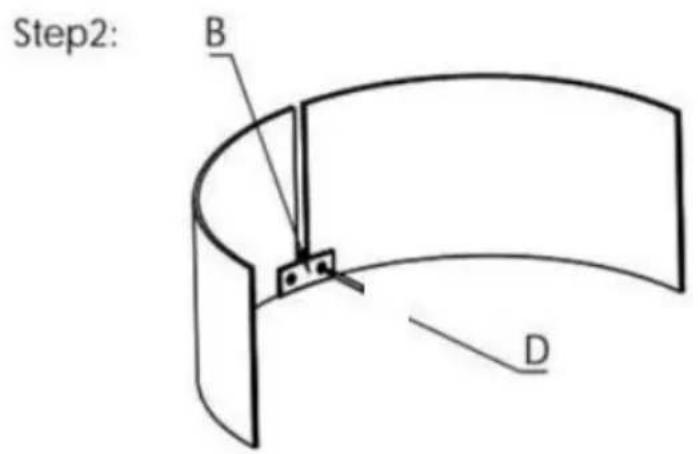

Step 2: Assemble the Glass Top Holder (Part B) to the remaining 2 Glass Panels with bolts and loosely tighten with a Screwdriver (Part D).

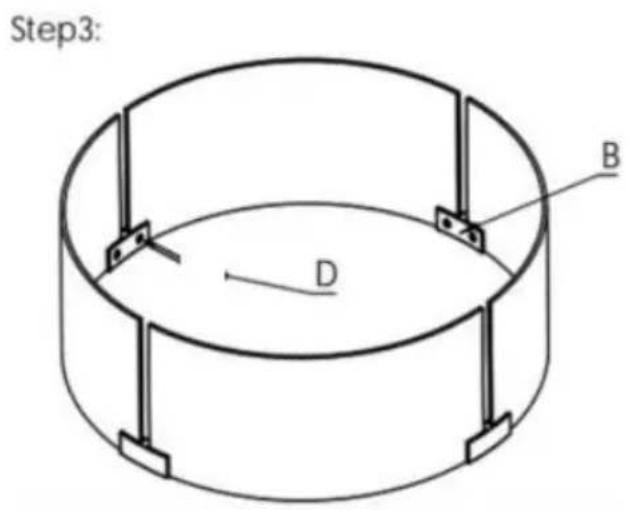

Step 3: Assemble 4 Glass Panels together with bolts and tighten with a Screwdriver (Part D).

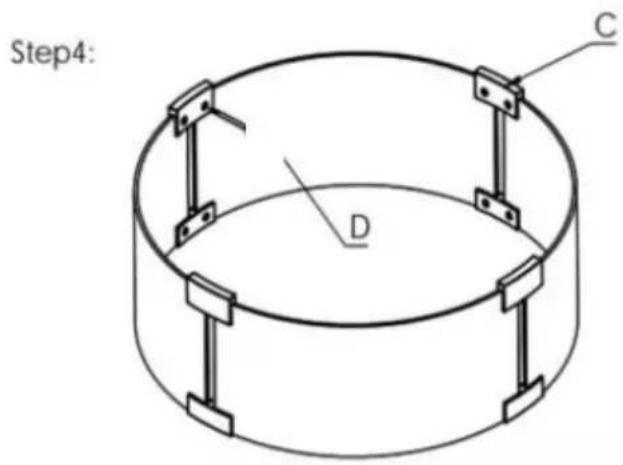

Step 4: Assemble the Glass Bottom Holders (Part C) to the Glass Panels with bolts and tighten with a Screwdriver (Part D).

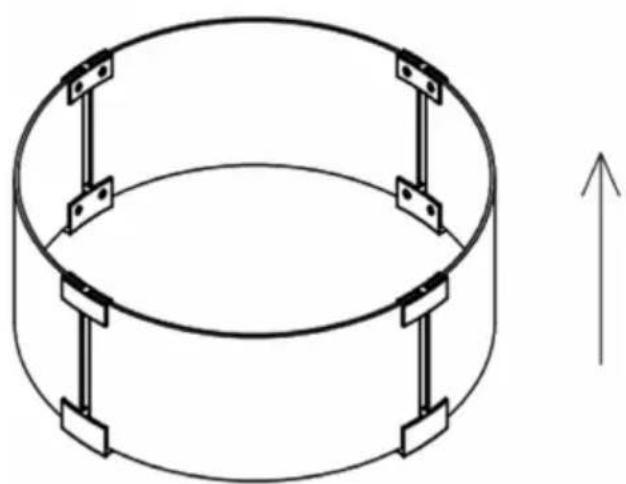

Step 5: After tightening all bolts, your product is ready for use.

CARE INSTRUCTIONS

Don't put the Flame Guard on an uneven surface.

Don't cover with flammable materials.

Don't touch during use to prevent burns.

Periodically check and make sure all bolts are fully tightened.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
