USER MANUAL FFB15 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
FIRE PIT FLAME GUARD
MODEL:ffb18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:ffb18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- Avoid children using boat trailer guides. And this product is not a not allow children to play.
- Keep away from sharp points, blades and other items.
- Assembly precautions.
Assemble only according to these instructions. Improper assembly can create hazards.
- Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
- Keep assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or when under the influence of alcohol drugs or medication.
- Product capabilities apply to properly and completely assembled product only.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.
SAVE THESE INSTRUCTIONS
PRODUCT INTRODUCTION
- Tempered glass wind guard fence is made of tempered heat resist glass. Aluminum linking clips offer firm connection and steady support.
- Fit around your fire table and assist to block breeze to compromise fire and enjoy a steady flame! A must-have fire pit supply to blend it patio and garden.
PRODUCT PAREMETERS
| Model | Shape | Dimensions LxWxH(mm) | board thickness(mm) | Picture |
| ffb18# | round | 740*740*214 | 6 |  |
| FFB16# | square | 493*493*191 | 8 |  |
| FFB17# | square | 543*543*191 | 8 | |
| FFB11# | rectangle | 748*340*165 | 8 |  |
| FFB12# | rectangle | 773*367*191 | 8 | |
| FFB13# | rectangle | 798*317*165 | 8 | |
| FFB14# | rectangle | 924*417*191 | 8 | |
| FFB15# | rectangle | 1128*367*191 | 8 |
PACKAGE INCLUDE
Model:ffb18#
| NO | PIC | DESC | QTY |
| A |  | Glass Panel | 4 pcs |
| B |  | Glass Top Holder | 4 pcs |
| C |  | Glass Bottom Holder | 4 pcs |
| D |  | Screwdriver | 1 pcs |
Model:FFB16#/FFB17#
| NO. | PIC | DESC | QTY |
| A |  | Glass Panel | 4 pcs |
| B |  | Glass Top Holder | 4 pcs |
| C |  | Glass Bottom Holde | 4 pcs |
| D |  | Screwdriver | 1 pcs |
Model:FFB11#/FFB12#/FFB13#/FFB14#/ FFB15#
| NO. | PIC | DESC | QTY |
| A |  | Long Glass Panel | 2 pcs |
| B |  | Short Glass Panel | 2 pcs |
| C |  | Glass Top Holder | 4 pcs |
| D |  | Glass Bottom Holde | 4 pcs |
| E |  | Screwdriver | 1 pcs |
ASSEMBLY INSTRUCTIONS
Thanks for purchasing this quality product. Be sure to check all pack materials carefully for small parts, which may have come loose inside carton during shipment. Identify and count all parts and compare with Hardware List above.
Easy to install, with several pieces of glass and corresponding fastening. Please keep the glass inserted into the firmware at the correct angle. Properly tighten the screw to the glass can not shake can not be to cause damage to the glass.
The assembly procedures of the three shape products are similar. He take the rectangular one as an example. You can follow the same s finish the assembly for the other products.
INSTALLION

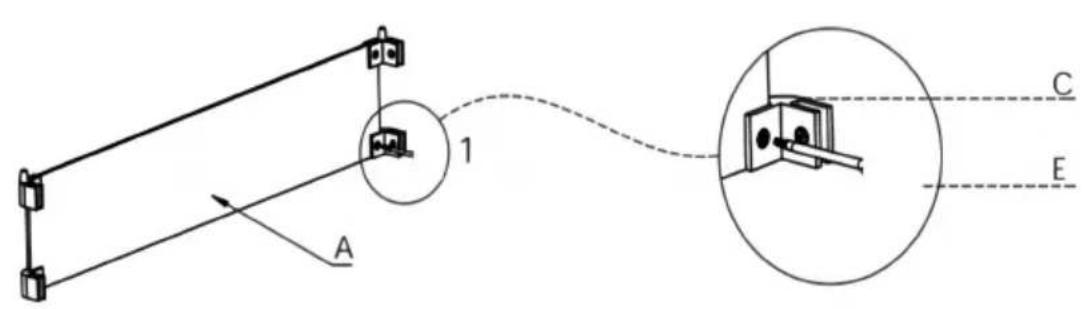

Step 1: Place the Long Glass panels(Part A) on a clean and soft suit a blanket or carpet. Assemble 2 Class Bottom Holders(Part D)and 2 Top Holders(Part C)to Long Glass Panels(Part A) by bolts and loosely tighten with Screwdriver (Part E).


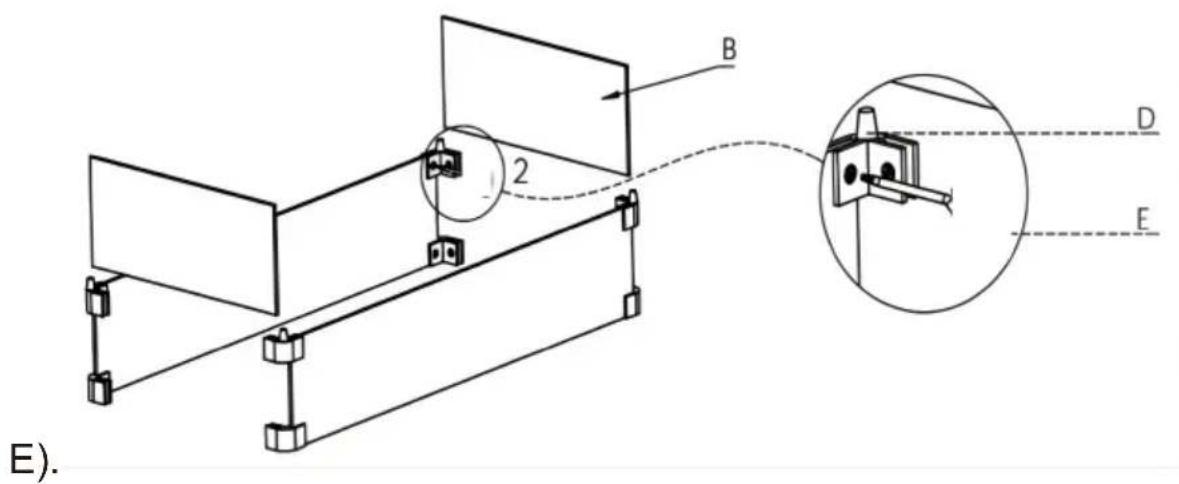

A 1 C EStep 2: Assemble the Short Glass Panels(Part B) to Long Glass Pan bolts and tighten with Screwdriver (Part

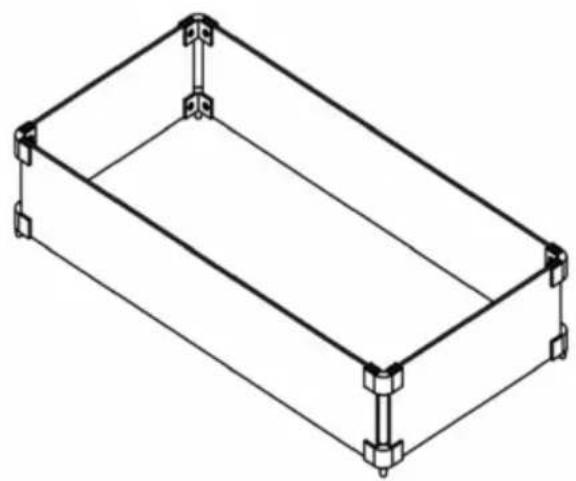

Step 3: After tightening all bolts, your product is ready for use.


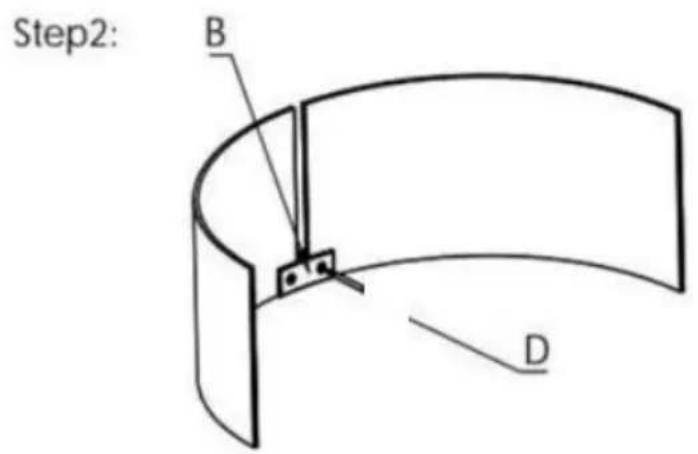

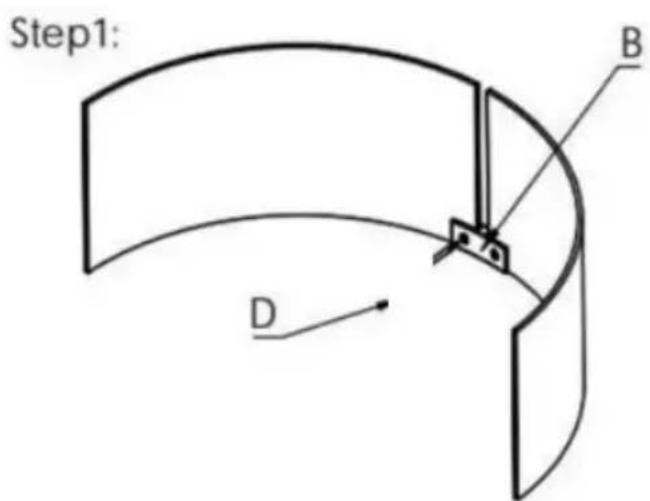

Step1: B DStep 2: Assemble the Glass Top Holder(Part B) to the remaining 2 (Panels by bolts and loosely tighten with Screwdriver (Part D).


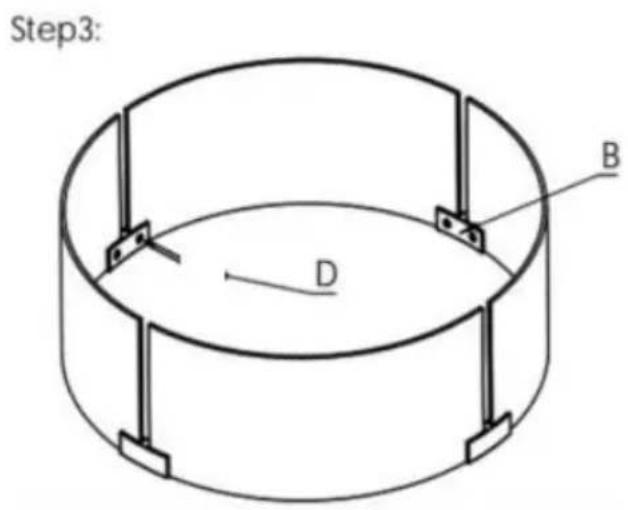

Step2: B DStep 3: Assemble 4 Glass Panels together by bolts and tighten with Screwdriver (Part D).


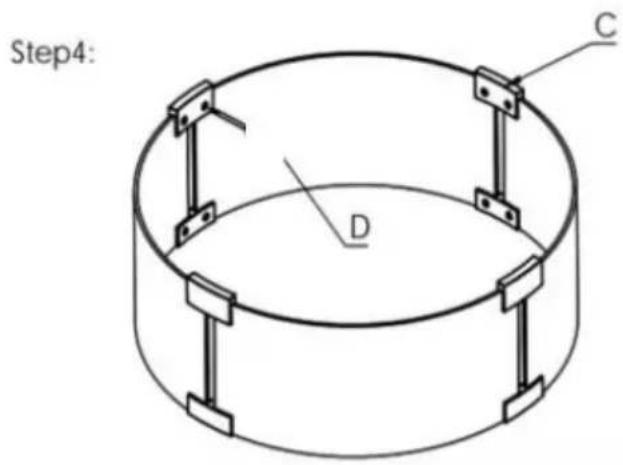

Step3: B DStep 4: Assemble the Glass Botom Holders(Part C) to the Glass Pan bolts and tighten with Screwdriver (Part D).


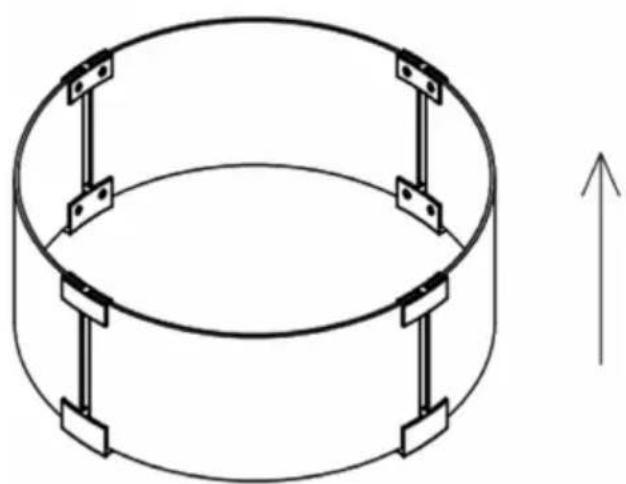

Step4: C DStep 5: After tightening all bolts, your product is ready for use.
Don't put the Flame Guard on an uneven surface.
Don't cover with flammable materials.
Don't touch during use to prevent burns.
Periodically check and make sure all bolts are fully tightened.
