FBL860517 - Mobility aids Vevor - Free user manual and instructions

Product Type	Mobility aid (walker)
Brand	Vevor
Model	FBL860517
Load Capacity	350 lb (approx. 159 kg)
Material	Aluminum
Weight	Approx. 6 kg
Dimensions (folded)	Approx. 80 x 30 x 90 cm
Adjustable Height	Yes, via interchangeable foot tubes (straight and curved)
Main Functions	Foldable, rear brakes, wheel lock, ergonomic handles
Safety	Parking brake, folding mechanism lock, non-slip
Maintenance and Cleaning	Clean with water, dry immediately, apply anti-rust paint if scratched
Warranty	1 year (manufacturing defects and raw materials)
Technical Support	Customer service by email, website: www.vevor.com/support
Included Accessories	Straight and curved foot tubes, main frame

Frequently Asked Questions - FBL860517 Vevor

How to assemble the walker?

Insert the straight foot tubes into the upper sockets of the main frame, then the curved tubes into the lower sockets. Press the push button to lock them. Make sure the folding mechanism is securely locked before use.

What is the maximum supported weight?

The maximum load capacity is 350 lb (approx. 159 kg). Do not exceed this limit to avoid risk of damage or injury.

How to fold and unfold the walker?

Grasp the handle of the upper main frame and the U-shaped iron plate with both hands. By applying upward or downward force on the U-shaped plate, the frame folds or unfolds. Check that the mechanism is properly locked before use.

Are brakes included?

Yes, the walker is equipped with rear brakes and a wheel locking system to prevent slipping, especially on slopes.

How to clean and maintain the product?

Wash with clean water, dry immediately. If the surface paint is scratched, apply an anti-rust product to prevent corrosion.

Is the product guaranteed?

Yes, Vevor offers a one-year warranty against manufacturing defects and raw materials from the date of shipment.

Can I use this walker outdoors?

Yes, but be sure to use the parking brake on slopes and be accompanied if necessary. Avoid rough terrain that could damage the device.

How to adjust the height?

The height is adjusted by choosing the appropriate foot tubes: straight tubes for a higher height, curved tubes for a lower height. Insert them into the corresponding sockets on the main frame.

What to do if a part is damaged?

Contact customer service immediately via www.vevor.com/support. Do not use the device if parts are loose or broken.

How to contact customer service?

Go to www.vevor.com/support for technical support and the electronic warranty certificate. Customer service is available by email 24/7.

USER MANUAL FBL860517 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STANDARD ASSISTED DRIVING

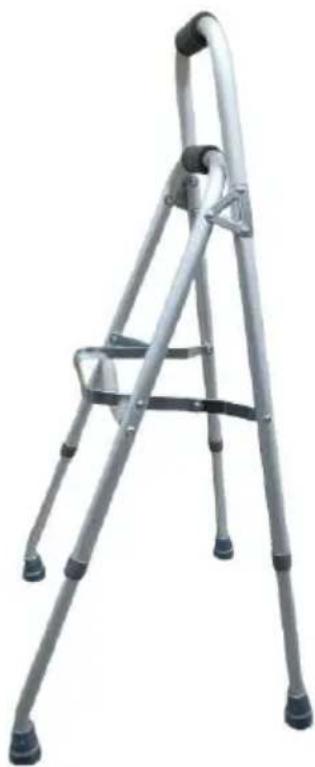

MODEL: FBL860517

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used represent an estimate of savings you might benefit from buying certain products with us compared to the major top brands and do not necessarily cover all categories of tools offered by us. You are kindly reminded to carefully consider whether you are actually comparing with the top major brands when placing an order with us.

MODEL: FBL860517

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment. This manual is written to help you use this equipment better. We hope that our company's products and services will bring you convenience and satisfaction.

Pay attention

This product must be used in strict accordance with the usage methods described in this manual. Any misuse or use by any other methods may cause damage. The company does not provide any warranty, including (but not limited to) implied warranties of merchantability or fitness for a particular purpose.

The company accepts no liability. The company shall not be liable for any errors contained in this material, or for any incidental or consequential damages resulting from the provision, performance, or use of this manual.

This manual contains proprietary information protected by patent law. All rights reserved. Without the written consent of the Company, this manual is not allowed to be photocopied, copied, or translated any part into another language.

The content contained in the manual may be changed without the user's notice.

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of the performance of the equipment only if the assembly operation, returning, improvement and maintenance are carried out by personnel approved by the Company, the electrical equipment concerned conforms to national standards, and the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment (except parts) are in regular use and repair condition, free of manufacturing process and raw materials faults for one year from the date of shipment. None of our inspections is perfect.

PRECAUTIONS

Precautions for use

Warning:

1. If the equipment feels loose, falls or is damaged, please contact the company in time;
2. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
3. Keep children and bystanders away while operating, distractions will cause to lose control.
4. During normal use, please use with the accompaniment of family or friends.
5. Reasonably use according to one's own situation, and do not overuse when the body is not in a timely manner.
6. BEFORE USE, PLEASE CONFIRM WHETHER THE COMPONENTS ARE COMPLETE, WHETHER THE BRAKE IS SENSITIVE, AND ASSEMBLE THE ENTIRE PRODUCT IN STRICT ACCORDANCE WITH THE INSTRUCTIONS.
7. CLEANING PRODUCTS NEED TO BE WASHED WITH WATER AND DRY TIME. IF THE SURFACE COATING OF THE PRODUCT HAS SCRATCHES OR FALLS OFF, REPAIR MATERIALS NEED TO BE USED IN TIME TO ACHIEVE THE BEST ANTI-RUST EFFECT.
8. PLEASE ENSURE THAT THE REAR WHEEL OF THE PRODUCT IS LOCKED TO AVOID SLIDING WHEN THE USER STAYS IN THE SLOPING ENVIRONMENT.
9. PLEASE ENSURE THAT THE FOLDING MECHANISM OF THE SEAT PLATE IS LOCKED WHEN USING THIS PRODUCT.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

Product Name

Standard assisted driving

model

FBL860517

Load bearing capacity/lb

350lbs

PRODUCT COMPONENTS

1

Straight leg tube

2

2

Curved leg tube

2

3

Main frame

1

INSTALLATION STEPS

1. Install foot tubes: Hold down the marble and insert the two straight foot tubes into the main frame tube mouth with a higher grip in sequence, and insert 1 bent foot tube into the main frame tube mouth with a lower grip in sequence.

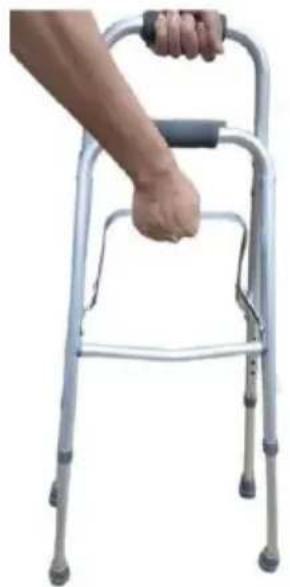

1. Usage demonstration: Grasp the upper main frame handle and U-shaped plate with both hands, and when using force to lift or press down the U-shaped plate, the main frame can be folded or unfolded.

Nice Service: 100% tested before leaving the factory and 24-hour friendly email customer service.
