GM-001 - Choppers Vevor - Free user manual and instructions

Product Type	Electric Grain Grinder
Brand	Vevor
Model	GM-001
Supply Voltage	120 V (US) / 230 V (EU) AC
Frequency	50/60 Hz
Plug Type	Three-prong grounded
Usage	Indoor use only
Housing Material	Metal
Adjustment Mechanism	Adjustment handle for grinding thickness
Grinding Plates Included	Dry grinding plate (and wet plate for GM-002)
Electric Shock Protection	Grounded connection required
Recommended Safety Equipment	Safety goggles, gloves, hearing protection
Cleaning	Unplug before cleaning, do not immerse, use a damp cloth
Grinding Disc Maintenance	Dry completely after use, regular inspection, use rust preventive
Troubleshooting	Check power supply, replace damaged wires or capacitors
Included Accessories	Adjustment handle, hopper, cover, grinding plate, etc. (full list in manual)
Warranty	Void if plug is modified or improper use
Minimum Age of Use	14 years old with supervision
Disposal	Do not dispose of with household waste, selective collection according to WEEE

Frequently Asked Questions - GM-001 Vevor

What is the supply voltage of the Vevor GM-001?

The grinder operates on 120 V (US) or 230 V (EU) AC, depending on the model. It must be plugged into a grounded wall outlet.

Can I use the grinder outdoors?

No, the appliance is intended for indoor use only. Do not use outdoors to avoid any risk of electric shock or damage.

What safety equipment should I wear?

It is mandatory to wear safety goggles, gloves, and hearing protection when using the grinder to avoid injury.

How to adjust the grind fineness?

Turn the adjustment handle located on top of the device to adjust the thickness of the ground ingredients. Turn one way for finer, the other for coarser.

How to clean the grinder?

Always unplug the appliance before cleaning. Never immerse the motor in water. Use a damp cloth to wipe surfaces. The grinding disc must be dried completely after cleaning.

What to do if the motor does not start?

First check the power supply. If the voltage is low or wires or capacitors are damaged, replace the defective parts. Refer to the troubleshooting table in the manual.

How to remove rust from the grinding disc?

Use sandpaper or a wire brush to rub off light rust. Start with a coarse grit then move to a fine grit. Then apply a rust preventive spray after cleaning.

Where can I find spare parts?

Contact Vevor customer service at www.vevor.com/support to order spare parts. Use of non-recommended parts voids the warranty.

Can children use this appliance?

Yes, from 14 years old and under adult supervision. Children must not play with the appliance or perform cleaning without supervision.

What does the crossed-out wheeled bin symbol mean?

This symbol indicates that the product must be recycled in accordance with European directive 2012/19/EU. Do not dispose of it with household waste; deposit it at a collection point for electrical and electronic equipment.

USER MANUAL GM-001 Vevor

GRAIN GRINDER USER MANUAL

MODEL: GM-001 GM-002

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

Grain GRINDER

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Note: Before beginning assembly of the product, make sure all parts are present. Compare parts with the package content list and hardware contents. Do not attempt to assemble the unit if any parts are missing or damaged. Contact customer service for replacement parts.

SAFETY INSTRUCTIONS

WARNING: Read all safety warnings, instructions, illustrations, and

specifications provided with this Grinder. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

SAVE THIS INSTRUCTION!

	Warning - To reduce the risk of injury, user must instructions manual carefully.
	Alternating current
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this may lead to an accident. To reduce the risk of injurelectrocution, please always follow the recommendation shown below.
	Danger!Risk of personal injury or environmental damage! Risk electric shock! Risk of personal injury by electric sh
	Warning- Be sure to wear ear protectors when using product.
	Warning- Be sure to wear eye protectors when using product.
	Warning- Be sure to wear gloves when using this p
	Protective earth

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed out indicates that the product requires separate collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal waste, but must be taken to a collection point for electrical and electronic devices.

1. READ ALL OPERATING INSTRUCTIONS AND PRODUCT SAFETY LABELS! FAILURE TO FOLLOW ALL INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE!

2. CHECK FOR DAMAGED PARTS: Before using the grinder, check whether all parts work normally and perform the expected functions. Check for alignment, binding, and installation of moving parts, and any other conditions that may affect the operation. If any parts, the power cord, or the grinder are damaged, call the Customer Service number shown in this manual.

1. Always unplug the power cord from the outlet when not in use, before putting on or taking off parts or accessories, and before cleaning. After unplugging the unit, turn the power switch ON, then OFF to ensure that all power has been discharged from the grinder.
2. This appliance can be used by children aged from 14 years and above, and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. NEVER LEAVE THE GRINDER UNATTENDED WHILE IT IS RUNNING!
4. Wait until all moving parts have stopped and turn off the power before removing any part from the grinder.
5. DO NOT use outdoors; this product is intended for INDOOR USE ONLY.
6. DO NOT pull the power cord to disconnect.
7. DO NOT USE WITH EXTENSION CORD. Always plug directly into a grounded wall receptacle.
8. This grinder uses a grounded, three-prong plug (hot, neutral, and ground). The grounding plug is used for electrical appliances with a metal shell to prevent electric shock. DO NOT change or alter the plug in any way. NEVER break off a grounding prong from a 3-conductor plug. Doing so will invalidate the warranty and may cause electric shock.
9. Place the grinder on a firm and stable surface. Ensure that the grinder is not placed near the edge of the worktop, where it can be easily pushed off or fall.
10. The Gear Housing and the Motor Cover may become HOT during operation. This is normal. DO NOT TOUCH these parts while operating.
11. To reduce the risk of unintentional starting, check that the control is OFF before plugging the cord into the wall outlet. To disconnect, turn the controller to OFF, then remove the plug from the wall outlet.
12. DO NOT operate your grinder under a wall cabinet. Always unplug the unit from the electrical outlet when storing

it. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.

1. NEVER plug the grinder in where water may flood the area.
2. To protect against risk of electrical shock, DO NOT submerge the grinder in water or other liquids. Be sure the grinder is disconnected from the power source before cleaning. NEVER rinse the Grinder Motor under running water, only use a moist cloth to clean the Grinder Motor Unit.
3. The use of attachments or parts not specifically recommended or sold by the manufacturer for this grinder will void the warranty and may cause fire, electric shock or injury.
4. The Manufacturer disclaims any responsibility in the case of improper use of Grinder. Improper use of the Grinder voids the warranty.
5. DO NOT REMOVE WARNING LABELS FROM THE GRINDER. Doing so will void the product warranty and may result in serious personal injury. This appliance must be grounded while in use to protect the operator.

from electrical shock. This grinder uses a grounded, three prong plug should be connected directly to a grounded 120V(US)/230V(EC), three prong grounded wall outlet receptacle. Grounded plugs are used on metal-encased electric appliances in order to provide protection from electric shock. DO NOT change or alter the plug in anyway. NEVER cut off a grounding prong from a 3-conductor plug. Doing so voids the warranty and may result in electric shock.

1. Type X attachment: If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

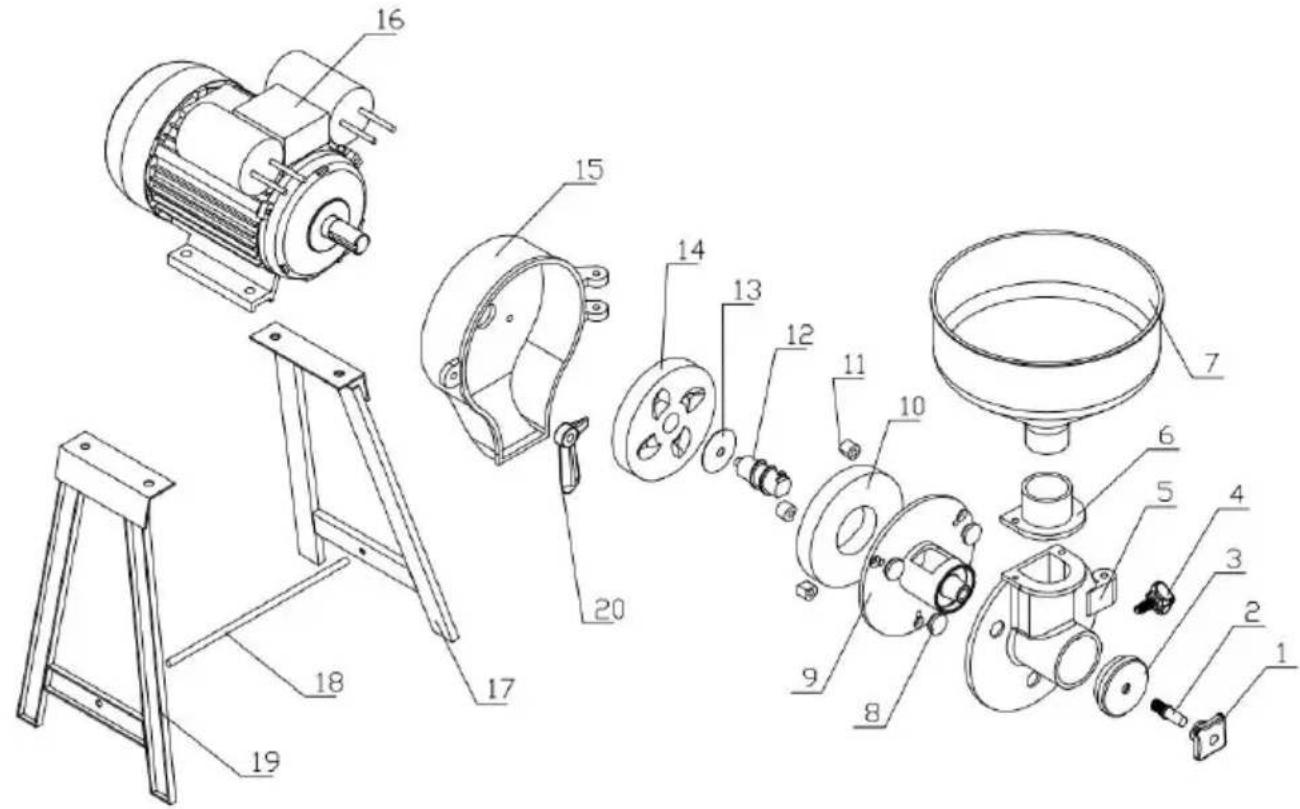

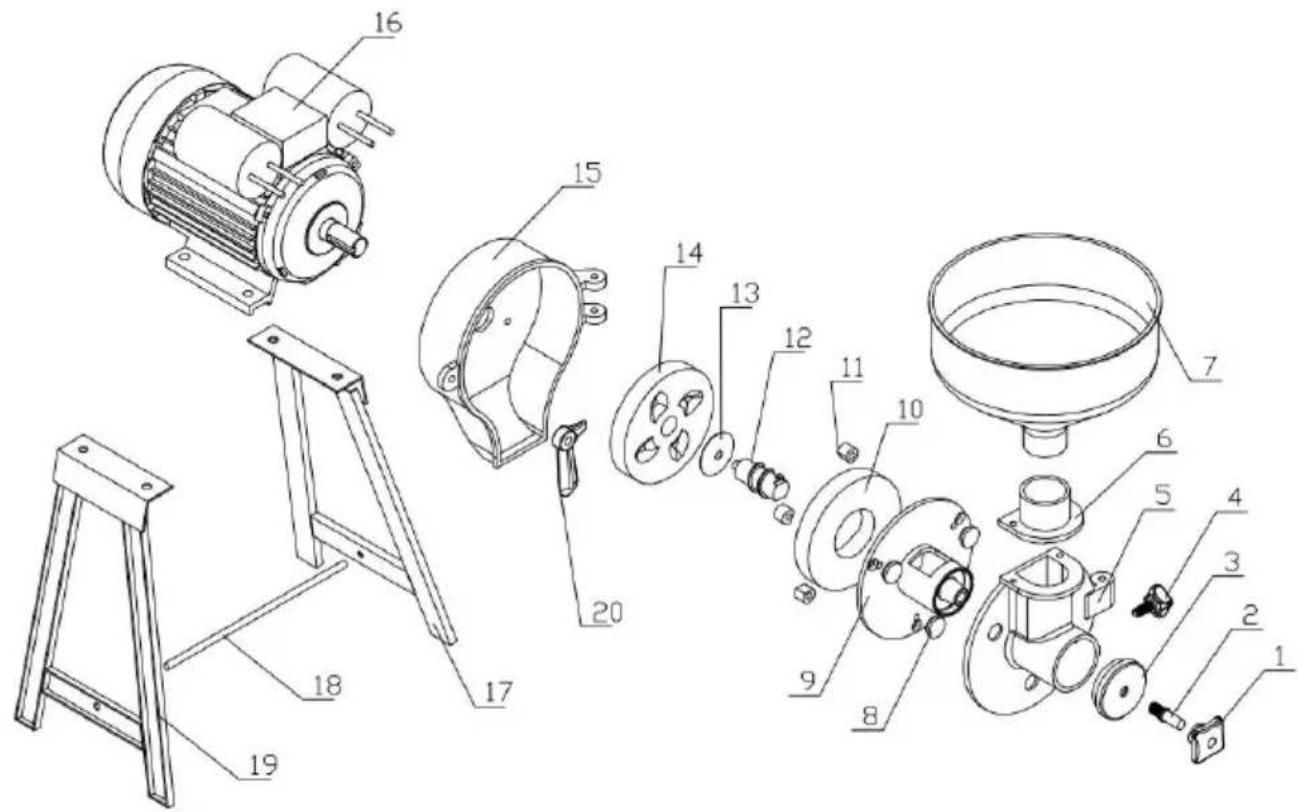

PRODUCT STRUCTURE

NO.	Name	Quantity
1	Adjusting handle	1
2	Regulating screw	1
3	Plugging plug	1
4	Screw	1
5	Head cover	1
6	Hopper base	1
7	Hopper	1
8	Dust cover	1
9	Millstone base	1
10	Stationary grinding plate	Dry grinding plate*1Wet grinding plate*1(only for GM-00)
11	Latch	2
12	Worm	1
13	Shim	1
14	Moving grinding plat	Dry grinding plate*1Wet grinding plate*1(only for GM-00)
15	Hood	1
16	Motor	1
17	Support frame(R)	1
18	Support rod	1
19	Support frame(L)	1
20	Fastening handle	1

1. Install and fix the machine;
2. Turn on the power to run the machine;
3. Containers placed at the outlet;
4. Place the ingredients to be processed in the funnel;
5. Turn the adjusting handle to adjust the thickness of the ground ingredients.

CARE AND MAINTENANCE

Discovery of rust on the grinding disc is normal, and users can use removal methods and daily maintenance precautions.

Rust removal method:

1. Mechanical grinding method:

If the rust is not very severe, sandpaper, wire brush, or electric polisher can be used to remove the rust. Starting from the thickest grinding wheel, gradually transition to finer grinding wheels to avoid excessive wear on the grinding disc.

1. Daily maintenance:

Keep dry: After use, the grinding disc should be thoroughly cleaned and ensured to be completely dry to avoid moisture retention and corrosion.

1. Regular inspection:

Regularly check whether there are initial signs of rust on the grinding disc and deal with them in a timely manner. Use of anti-rust spray: after cleaning and drying the grinding plate, consider using anti-rust spray to provide additional protection.

1. Avoid humid environments:

Try not to store the grinding disc in damp or high-salt environments to reduce the risk of corrosion.

1. Cleaning and maintenance:

Regularly use a dust gun to blow off the dust on the grinding disc, ensuring the cleanliness of the grinding disc and motor cooling groove.

1. Avoid contact with chemicals:

During operation, avoid the grinding disc from coming into contact with chemicals to prevent corrosion caused by chemical reactions.

By using these simple rust removal methods and daily maintenance measures, the service life of the grinding disc can be effectively extended and its good working condition can be maintained.

TROUBLESHOOTING

Failure description	Failure cause	Operation method
The engine cannot be started or is difficult to sta	Low voltage, damaged wire or capacitors.Check the power supply.	Start when the grid voltage improves.Replace the wires.Replace the power supply.
The engine is not running smoothly and is very hot.	Motor overheating or bear damage.	Check the motor an replace the bearing necessary.
Strong engine vibration	One of the parts is unbala	Check the weight of parts. Replace couplings and bearings. Again,balance the millstone
