FT-34-1 - Wall shelf Vevor - Free user manual and instructions

Product type	Wall shelf
Brand	Vevor
Model	FT-34-1
Dimensions (W x D)	Approximately 80 cm x 25 cm
Weight	Approximately 2 kg
Power supply	Not applicable
Main material	Steel
Load capacity	Up to 20 kg (depending on bracket type and installation)
Main functions	Wall storage, shelf support
Installation	Requires drilling, level, Phillips screwdriver
Fixing type	Screws and wall plugs for concrete or drywall
Maintenance and cleaning	Clean with a damp cloth; avoid abrasive cleaners
Safety	Install into studs or wall plugs; do not exceed maximum load
Spare parts	Screws, wall plugs, brackets available; contact Vevor customer service
Repairability	Repairable by replacing defective parts
Warranty	See www.vevor.com/support for terms
General information	Manufactured by Shanghaimuxinmuyeyouxiangongsi, Shanghai, China

Frequently Asked Questions - FT-34-1 Vevor

How to properly install the Vevor FT-34-1 wall shelf?

First assemble the shelf on the brackets, then remove the bracket. Position the brackets on the wall with screws, use a level to adjust them, tighten the screws, then install the remaining screws. Make sure to fix into studs or use appropriate wall plugs.

What is the maximum load supported by this shelf?

The load capacity depends on the bracket model and installation. For FT-34-1, the maximum load is approximately 20 kg if installed correctly on a solid wall. Never exceed the specifications in the manual.

What types of walls are suitable for installation?

The shelf can be installed on concrete walls or drywall. For drywall, use the provided wall plugs. It is imperative to fix into studs or use appropriate wall plugs to avoid sagging.

How to use shims if the wall is not straight?

If your wall is not perfectly straight, place shims under the bracket so it is perpendicular to the wall. The shelf will only fit correctly if the bracket is straight. You can also use wooden shims under the back bar to adjust front-to-back level.

What tools are needed for installation?

You will need a drill, a level, a tape measure, and a Phillips screwdriver. Make sure to have the appropriate drill bits for the wall type.

Can I install the shelf alone or do I need two people?

It is recommended to have two people for installation, especially when positioning the brackets and the shelf. This makes alignment easier and reduces the risk of falling.

How to maintain the wall shelf?

Clean the shelf with a damp cloth and avoid abrasive cleaners. Regularly check the fixation and tighten screws if necessary. Do not overload the shelf.

What to do if the shelf sags after installation?

If the shelf sags, first check that the brackets are firmly fixed into the studs. Use shims under the back bar to adjust level. If the problem persists, reduce the load or contact Vevor support.

Where to find spare parts for the FT-34-1 model?

Spare parts (screws, wall plugs, brackets) are available on the website www.vevor.com/support or by contacting customer service. Check the manual for exact references.

Is the shelf guaranteed?

Yes, Vevor offers a warranty. For more details, visit www.vevor.com/support to get the electronic warranty certificate. Keep the proof of purchase.

USER MANUAL FT-34-1 Vevor

FLOATING SHELF BRACKET

MODEL: FT-16-2 \ FT-22-2 \ FT-34-1 \ FT-43-1 \ FT-46-1

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: FT-16-2 \ FT-22-2 \ FT-34-1 \ FT-43-1 \ FT-46-1

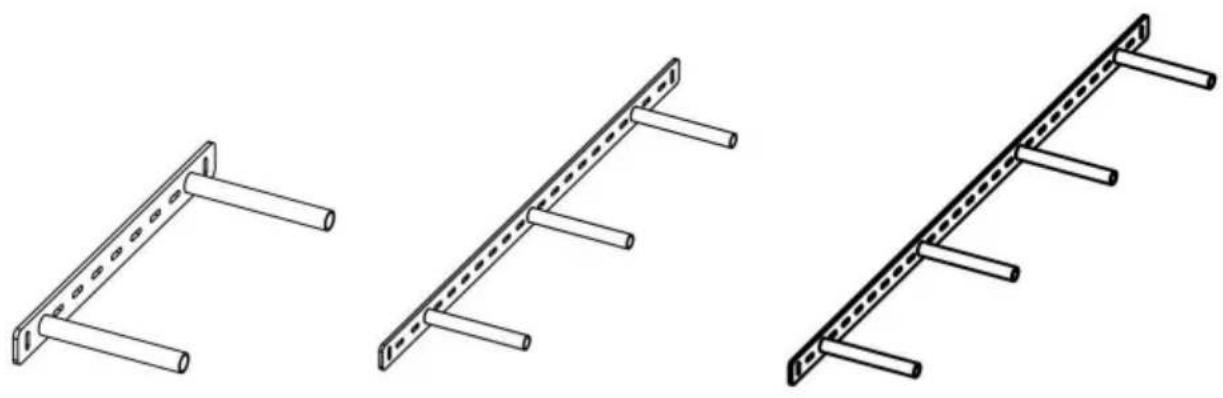

(FT-16-2 \ FT-22-2) (FT-34-1) (FT-43-1 \ FT-46-1)

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning - To reduce the risk of injury, the user must read the instructions manual carefully.

Warnings

1.1 Shelf brackets must be correctly installed into studs or wall blocking. Failure to do so may result in sagging shelves, falling objects, or serious injury. 1.2 Every bracket weight class and length has been engineered for use with specific shelf capacities/dimensions. Failure to follow our specified capacity ratings and correct shelf dimensions may result in sagging shelves, falling objects, or serious injury.

Part List
Code	Picture	Qty.
		FT-16-2	FT-22-2	FT-34-1	FT-43-1	FT-46-1
1		2	2	-	-	-
2		-	-	1	-	-
3		-	-	-	1	1
4		16	16	10	14	14
5		16	16	10	14	14
6	[2482]ST4.5*50mm	16	16	10	14	14
7	ST4*30mm	6	6	8	10	10
8		1	1	1	1	1
9		1	1	1	1	1
10		1	1	1	1	1
11		1	1	1	1	1
12		1	1	1	1	1

Required Tools

Drill	Level
Measuring Tape	Phillips-head Screwdriver

Product Installation

(Take the FT-34-1 for example.)

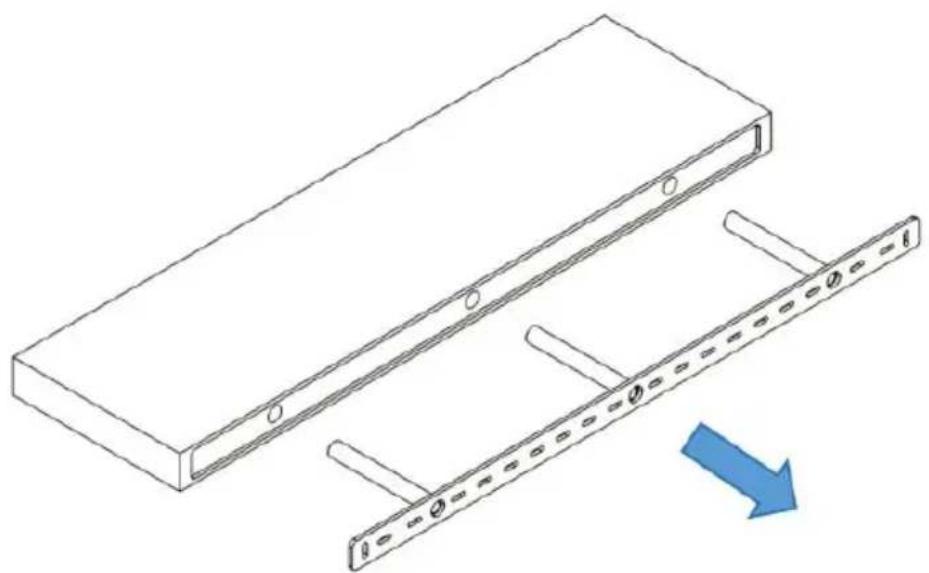

Step 1: After pairing the shelf, remove the bracket.

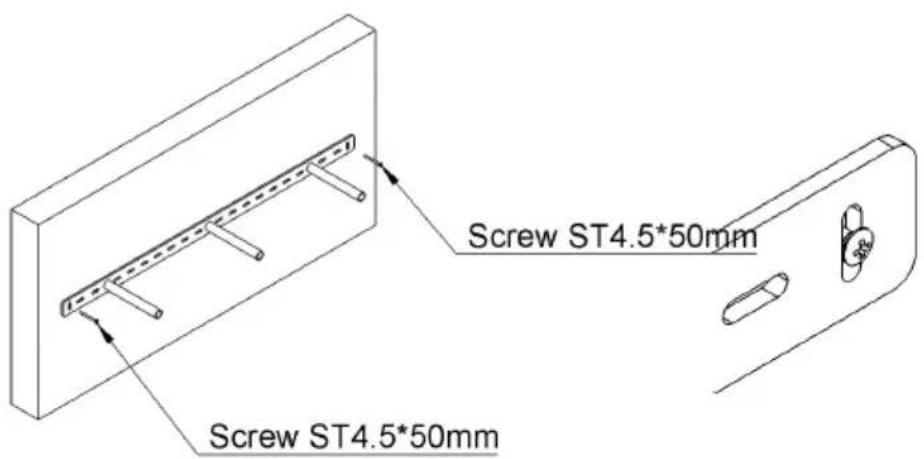

Step 2: Position the bracket preliminarily with screws.

Step 3: Use a level to adjust the bracket. Tighten the screw adjustment.

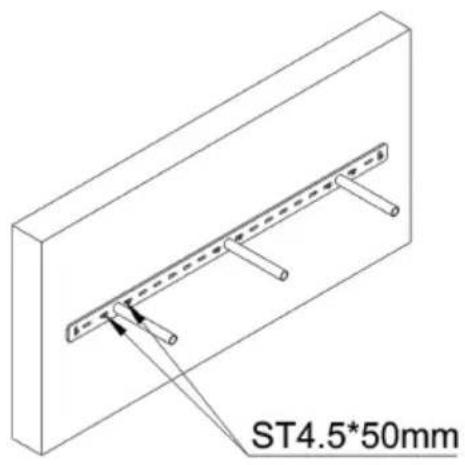

Step 4: Install remaining screws.

Note: Install the screws in the holes on both sides of the rod bracket load will be better.

How to use accessories

1		For cement walls.
2		For drywall.

Using Shims With Your Bracket

	If your wall is not straight, use shims to en bracket is installed straight across the wall and square to the wall. The shelf slab and will properly mate only if the bracket is strai plum.
	If your bracket continues to sag after correct use wood shims underneath the backbar to front to back level.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
