Product Type	Rolling Walker (Rollator)
Brand	Vevor
Model	FBL427113
Color	Blue, Black, Red
Front Wheels Size	8 inches
Rear Wheels Size	10 inches
Load Capacity	300 lb (136 kg)
Estimated Weight	Approximately 12 kg
Frame Material	Aluminum or steel
Main Features	Seat with cushion, automatic brake, storage bag, foldable
Brakes	Automatic braking activated when seated
Storage	Zipped bag under seat
Assembly	Requires assembly of wheels, armrests, and pedals
Foldability	Yes, by pulling the seat strap
Maintenance and Cleaning	Wash with water, dry immediately; repair scratches with anti-rust paint
Safety	Lock rear wheels on slopes; lock seat folding mechanism before use
General Information	1-year warranty on manufacturing defects; 24/7 email support

Frequently Asked Questions - FBL427113 Vevor

How to assemble the Vevor FBL427113 walker?

Follow the steps in the manual: insert the front wheels into the main frame and secure them with screws and buttons. Then, snap the rear wheels into place. Unfold the frame and lock the seat plate. Install the armrests and brake pedals. Finish with the crutch holder.

How to use the automatic brake?

The automatic brake engages when you sit on the seat. To rest, activate the automatic braking and sit down. Release the brake by standing up.

How to fold the walker?

To fold the product, pull the seat plate strap upward. The frame folds for compact storage.

What is the maximum supported weight?

The load capacity is 300 lb (136 kg). Do not exceed this limit to ensure safety.

How to clean and maintain the walker?

Wash it with water and dry immediately. If the coating is scratched, apply anti-rust paint to prevent corrosion.

What are the important safety precautions?

Before use, check that all components are complete and brakes work. On a slope, lock the rear wheels. Ensure the seat folding mechanism is locked.

Is there a warranty?

Yes, a one-year warranty on manufacturing and material defects from the shipping date. Contact technical support via www.vevor.com/support.

Is the walker suitable for outdoor use?

Yes, thanks to the 360° swivel front wheels and 10-inch rear wheels, it offers good stability for indoor and outdoor use.

How to use the storage bag?

The zipped bag is located under the seat cushion. It allows carrying personal items or daily groceries.

Can I adjust the height of the armrests?

The armrest tubes are installed at a fixed height until they click. No additional adjustment is mentioned in the manual.

User questions about FBL427113 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Walker in PDF format for free! Find your manual FBL427113 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FBL427113 by Vevor.

USER MANUAL FBL427113 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROLLING WALKER

MODEL: FBL427113

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used represent an estimate of savings you might benefit from buying certain products with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded to carefully consider when placing an order with us if you are actually comparing with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROLLING WALKER

MODEL: FBL427113

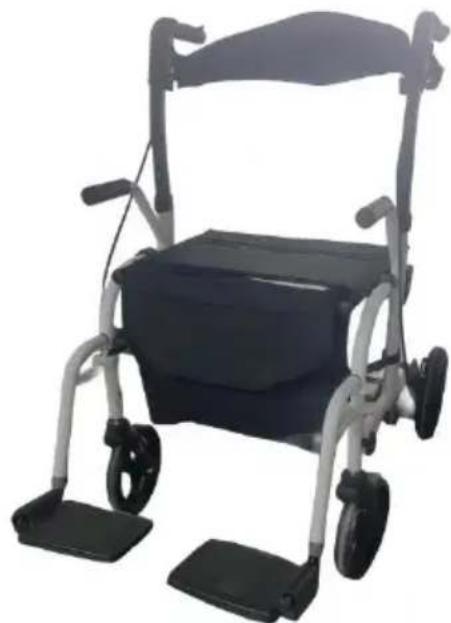

Exterior view of a modern mobility walker with black wheels and adjustable arms.

The product color is for reference only and is mainly promoted on the website.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who purchased our equipment. This manual is written to provide better service to our customers. We hope that our company's products and services will bring you convenience and satisfaction.

Attention

This product must be used in strict accordance with the instructions in this manual. Any misuse or use by any other method may void any warranty, including (but not limited to) any implied warranties of merchantability or fitness for a particular purpose.

The company accepts no liability. The company shall not be liable for errors contained in this manual, or for any incidental or consequential damages resulting from the provision, performance, or use of this manual.

This manual contains proprietary information protected by patent law. All rights reserved. Without the written consent of the company, no part of this manual may be photocopied, copied, or translated into any language.

The content contained in this manual may be changed without prior notice.

Manufacturer's liability

The company shall be held responsible for the safety and reliability of the equipment only if assembly, operation, adjustments, and maintenance are carried out by personnel approved by the company, the electrical equipment concerned conforms to national standards, and the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The company guarantees that the equipment (except parts) under normal use and repair conditions is free from defects in manufacturing process and raw materials for one year from the date of shipment. None of our inspections is perfect.

Manufacturing process and raw materials faults for one year from the date of shipment. None of our inspections is perfect.

Precautions for use

Warning:

If the equipment feels loose, falls, or is damaged, please contact the company in time.

If the equipment feels loose, falls, or is damaged, please contact a company in time;
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Keep children and bystanders away while operating, distractions will cause you to lose control.
During normal use, please use with the accompaniment of family or friends.
Reasonably use according to one's own situation, and do not overuse when the body is not in a timely manner.
BEFORE USE, PLEASE CONFIRM WHETHER THE COMPONENTS ARE COMPLETE, WHETHER THE BRAKE IS SENSITIVE, AND ASSEMBLE THE ENTIRE PRODUCT IN STRICT ACCORDANCE WITH THE INSTRUCTIONS. 7.CLEANING PRODUCTS NEED TO BE WASHED WITH WATER AND DRY IN TIME. IF THE SURFACE COATING OF THE PRODUCT HAS SCRATCHES AND FALLS OFF, REPAIR MATERIALS NEED TO BE USED IN TIME TO ACHIEVE THE BEST ANTI-RUST EFFECT.
PLEASE ENSURE THAT THE REAR WHEEL OF THE PRODUCT IS LOCKED TO AVOID SLIDING WHEN THE USER STAYS IN THE SLOPING ENVIRONMENT.
PLEASE ENSURE THAT THE FOLDING MECHANISM OF THE SEA PLATE IS LOCKED WHEN USING THIS PRODUCT.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

Product Name	Rolling Walker
model	FBL427113
colour	Blue/Black/Red
Wheel size	Front 8in/Back 10in
Load bearing capacity/lb	300

INSTALLATION STEPS

Mechanical device with a black wheel and metallic lever, showing a red arrow indicating motion direction.

Close-up of a mechanical device with a black wheel and attached lever.

Close-up of a mechanical device with a black circular wheel and metallic frame.

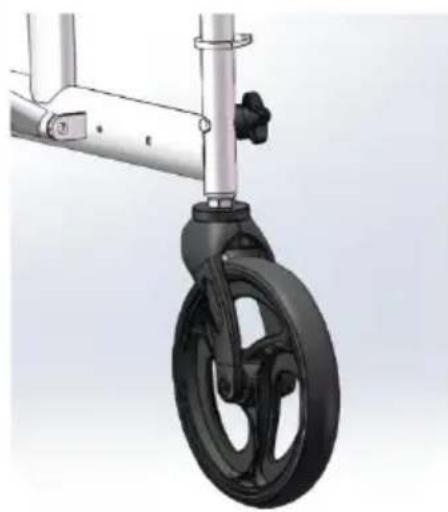

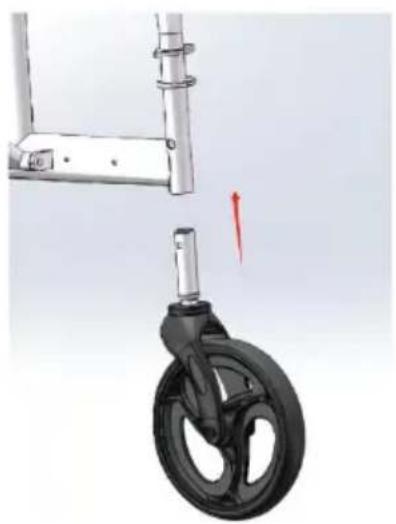

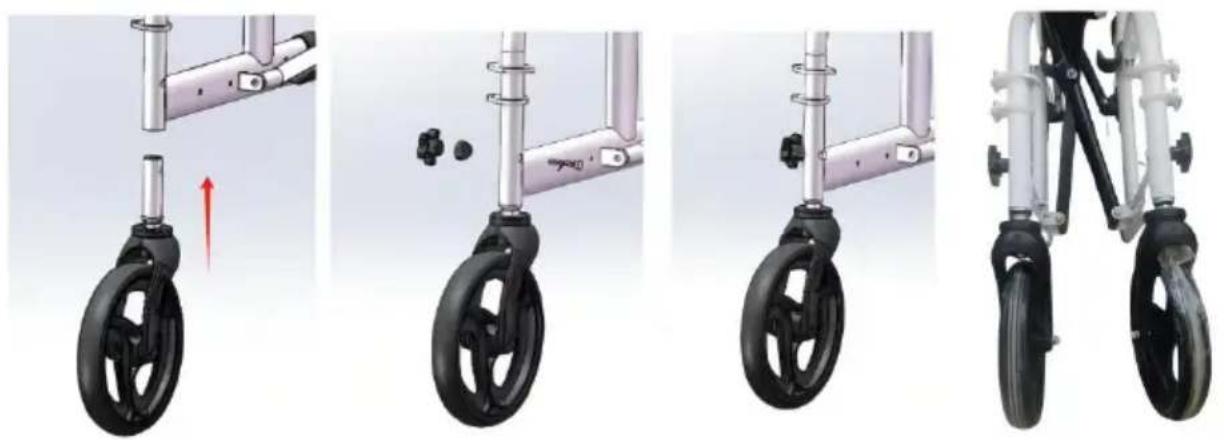

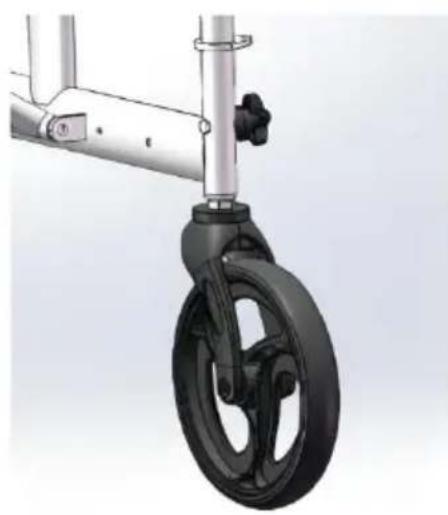

As shown in the figure: Place the front wheel into the main frame bend, align it with the hole position, and lock it with screws and knobs.

Four-panel diagram showing a bicycle leg mechanism with black wheels and adjustment arrows.

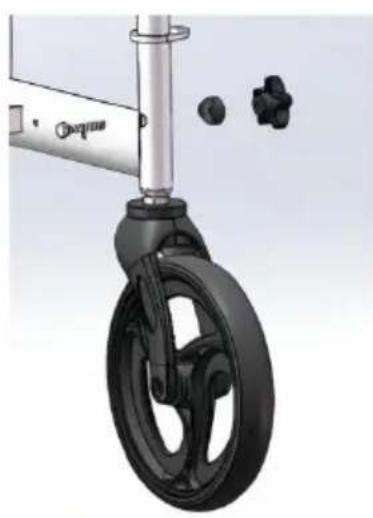

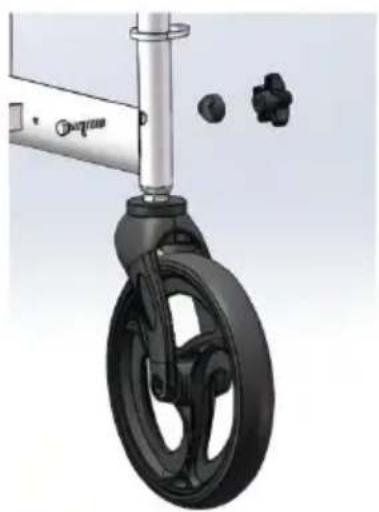

As shown in the figure: Install the front wheel on the other side above.

Close-up of two identical gray industrial dummies with black wheels, shown from top and side views against a white background.

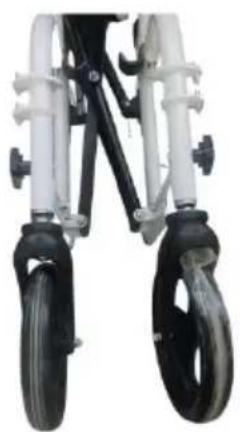

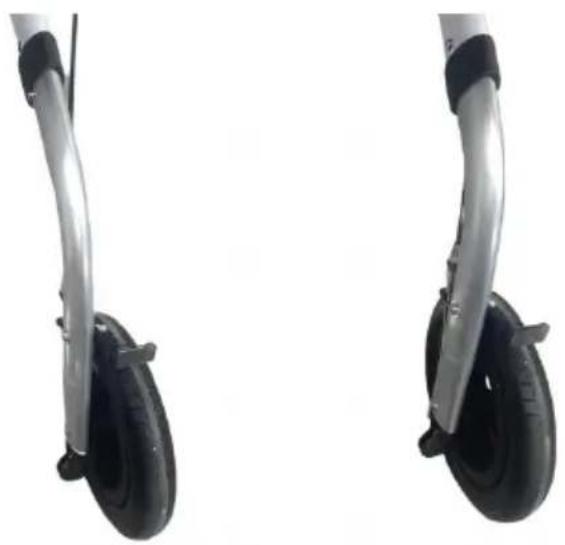

As shown in the figure: Place the rear wheel into the straight tub main frame, align it with the hole and push it inward until the marble pops out.

Close-up of two metallic outdoor transport wheel legs, showing tread and seat.

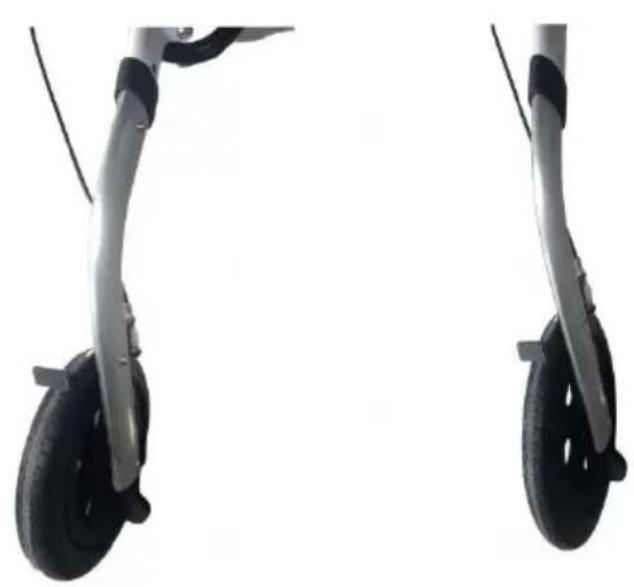

As shown in the figure: Install the front wheel on the other side shown above.

Top-down view of a black robotic dog with articulated legs and feet.

Black and white photo of a portable exercise chair with adjustable arms and legs.

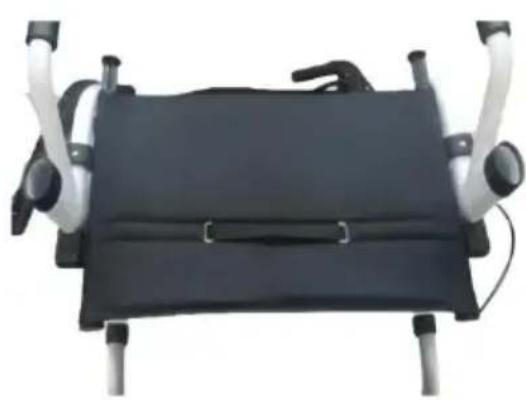

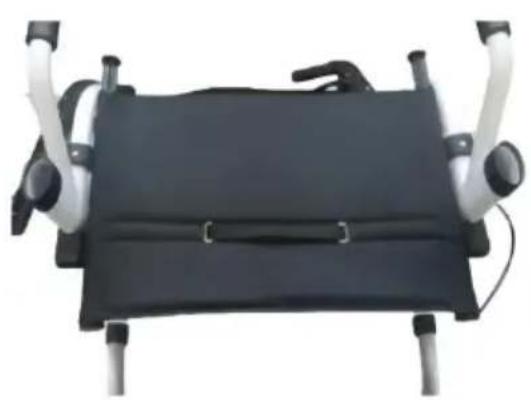

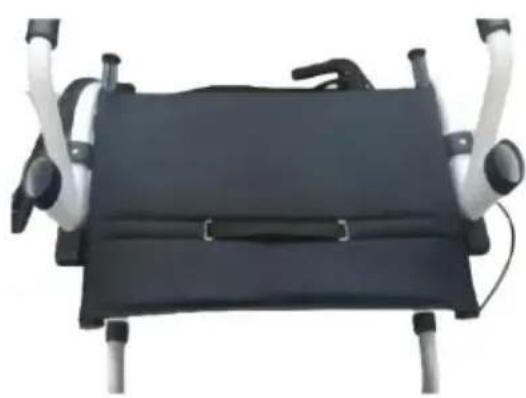

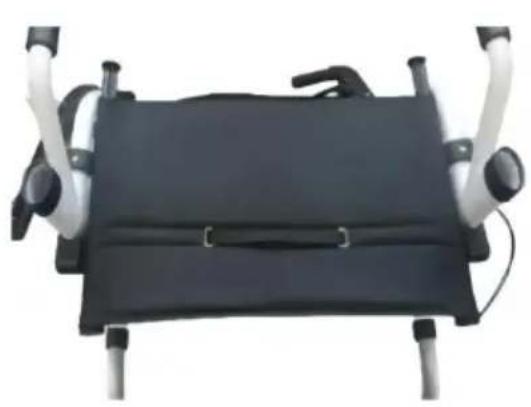

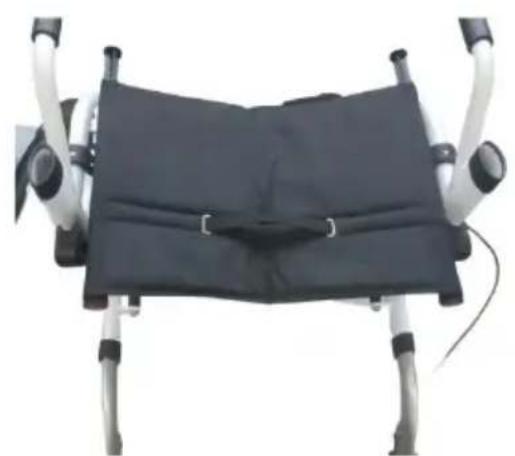

As shown in the figure: Unfold the main frame and press the two of the seat plate by hand to make the hook catch the round pin. When retracting, pull the seat plate webbing up by hand to complete the retraction process.

Close-up of a black and silver robotic leg with a red arrow pointing to the lower leg area.

Close-up of a small wheeled wheelchair seat with black and white legs, showing a red arrow indicating motion or movement.

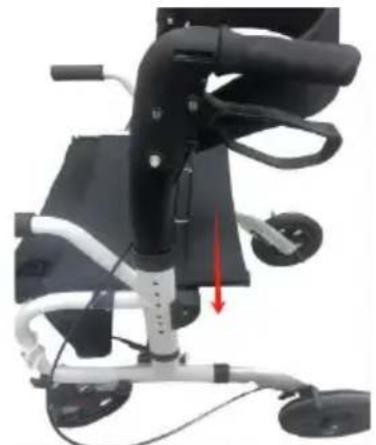

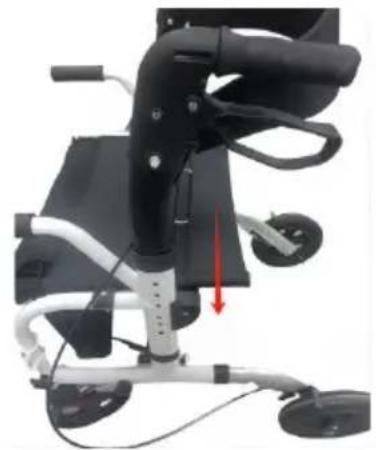

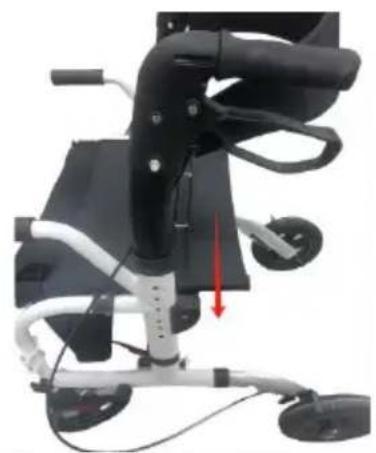

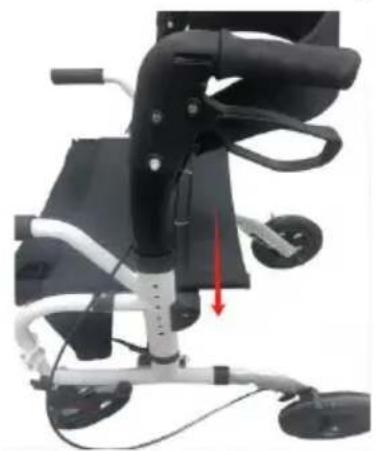

As shown in the figure: Install the left and right armrest tubes into the main frame tube until the marble pops out.

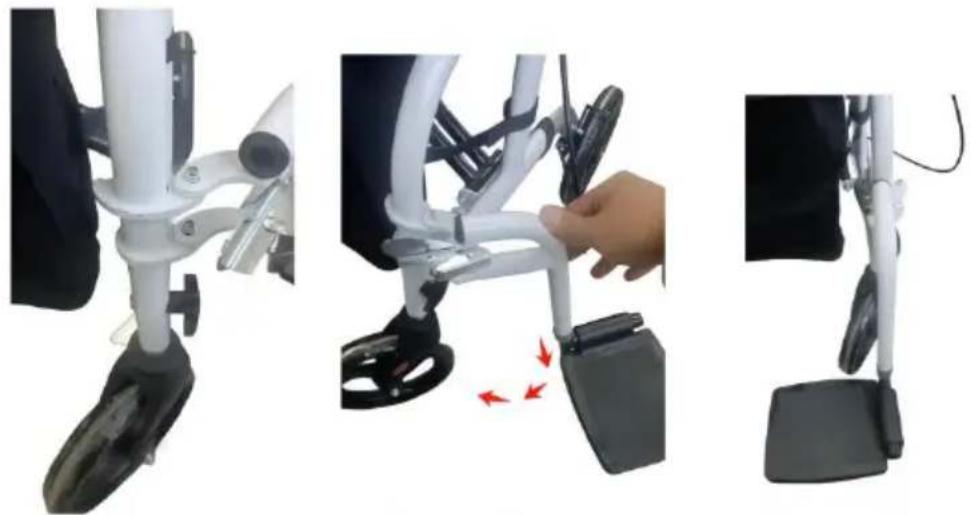

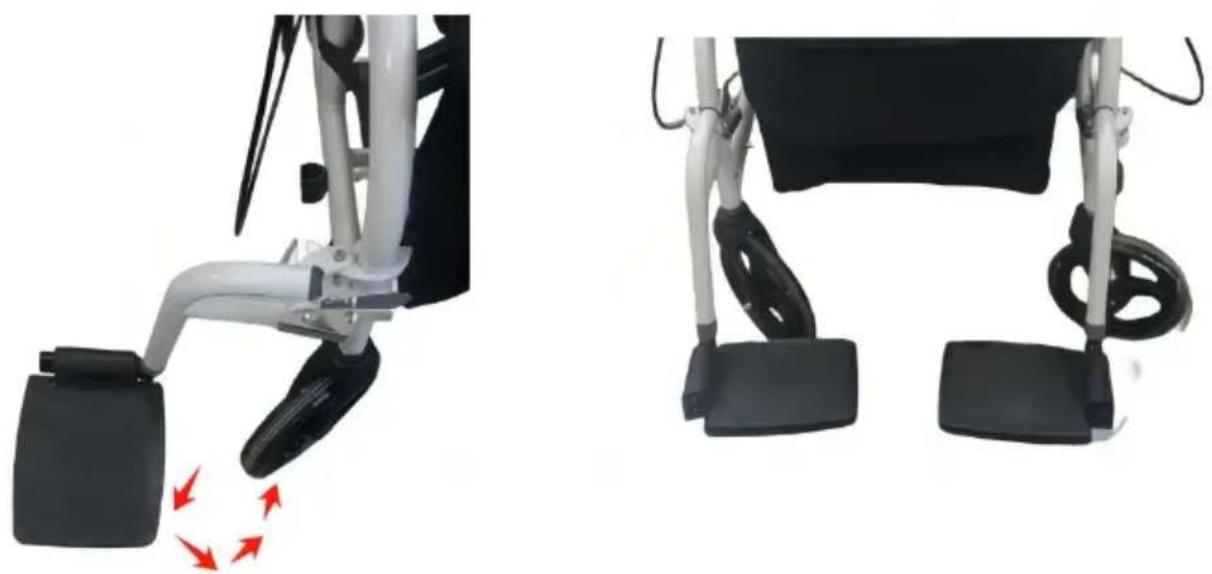

As shown in the figure: Install the right foot pedal assembly into the right side of the main frame, rotate it to the left to fix the assembly.

Three-panel image showing a bicycle leg mechanism with a hand adjusting the seat.

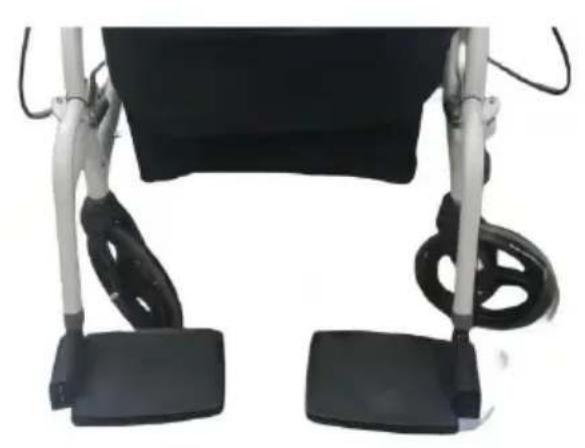

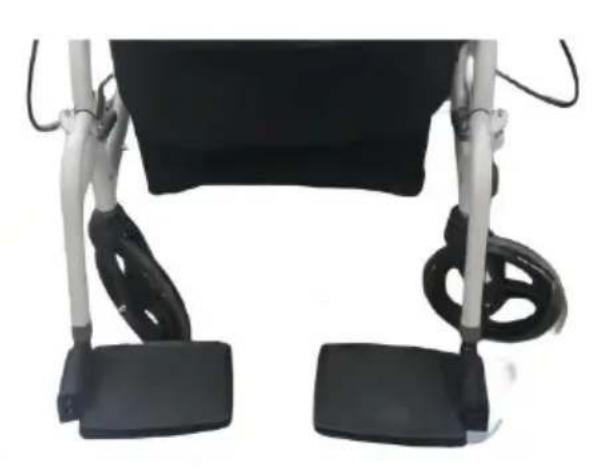

As shown in the figure: Install the left foot pedal assembly into the left side of the main frame, rotate it to the right to fix the assembly.

Two views of a mobility bicycle leg, one showing the lower foot and black legs, with red arrows indicating motion or movement.

As shown in the figure: Install the left foot pedal assembly into the right side of the main frame, then rotate it to the right to fix the assembly.

Close-up of a hand holding a black plastic object, next to a metallic bracket with adjustment clips.

Close-up of a bicycle seatbelt mechanism with a circular component and a cross symbol.

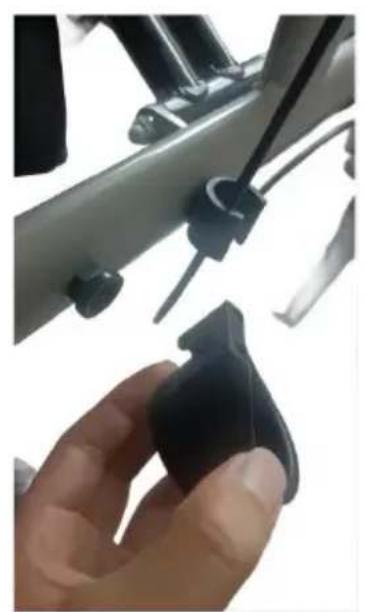

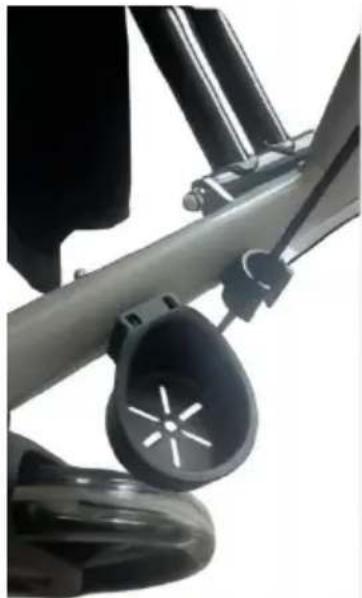

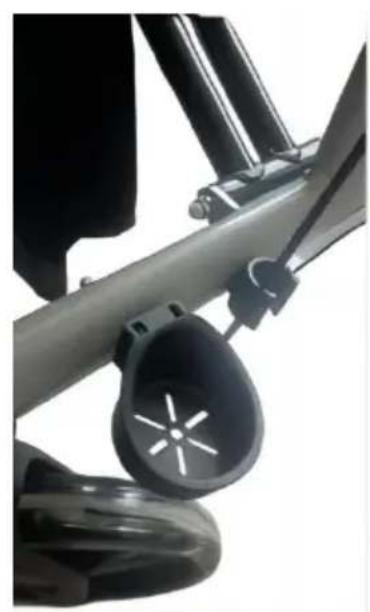

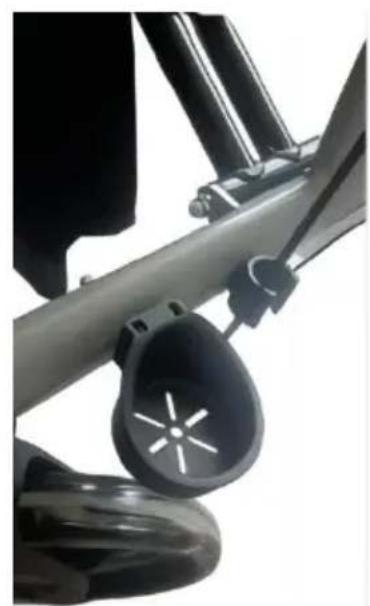

As shown in the figure: Install the crutch holder into the crutch holder.

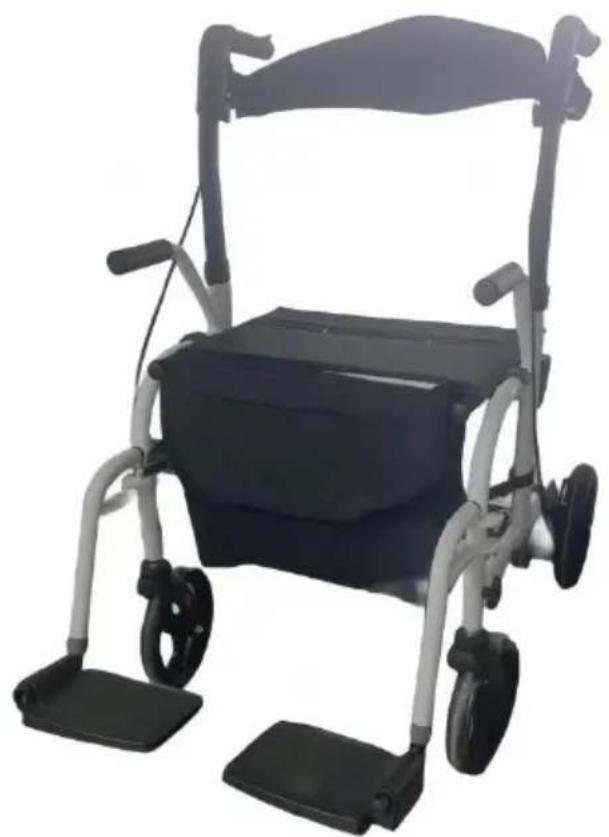

Exterior view of a modern mobility walker with black seat and wheels (no text or symbols visible)

About this item

Stable & Not Easy to Tip Over: 8" front rear wheels, 360° swivel wheels for easy maneuvering, sturdy enough for indoor and outdoor smooth ride.

Stable & Not Easy to Tip Over: 8" front and rear wheels, 360° swivel wheels for easy maneuvering, sturdy enough for a smooth ride indoors and outdoors.
Convenient to Go Outside: Zippered carrying pouch, keep all your important items instantly within reach, free your hands to fully enjoy a life.
Nice Service: 100% tested before leaving the factory and 24-hour friendly email customer service.
This product comes with self-braking and auxiliary seat cushion functions. When the operator needs to rest, they can turn on the self-braking and sit on the seat cushion to rest.
There is a portable storage bag under the product cushion, which is convenient for storing miscellaneous items and for storing daily necessities you purchase.
