Product Type	Outdoor fire pit protection (flame guard)
Brand	Vevor
Model	FFB14#
Panel Material	Heat-resistant tempered glass
Support Material	Aluminum
Shape	Rectangular
Dimensions (L x D x H)	924 x 417 x 191 mm
Glass panel thickness	8 mm
Number of panels	4 (2 long, 2 short)
Approximate weight	Approximately 11 kg
Power supply	None (non-electric product)
Intended use	Outdoor, around a fire pit
Main functions	Wind protection, flame stabilization, spark guard
Assembly	Requires manual assembly with included screwdriver
Package contents	2 long glass panels, 2 short glass panels, 4 upper brackets, 4 lower brackets, 1 screwdriver
Maintenance	Periodically check bolt tightness; do not touch during use; do not place on uneven surface; do not cover with flammable materials
Safety	Wear safety goggles and gloves during assembly; keep out of reach of children; heat-resistant tempered glass
Spare parts	Brackets and panels replaceable via manufacturer
Warranty	Electronic warranty via www.vevor.com/support
Importer (Australia)	SIHAO PTY LTD, 1 Rokeva Street, Astwc NSW 2122
Importer (United States)	Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Representative (United Kingdom)	Pooledas Group Ltd

Frequently Asked Questions - FFB14# Vevor

How to assemble the FFB14# flame guard?

Place the long glass panels on a soft surface (blanket or mat). Attach the lower and upper brackets to the long panels using the bolts, then fix the short panels to the long ones. Tighten all bolts with the included screwdriver. See detailed steps in the manual.

What are the exact dimensions of the FFB14# model?

The dimensions are: length 924 mm, depth 417 mm, height 191 mm. The glass panel thickness is 8 mm.

What materials are used for this flame guard?

The panels are made of tempered glass resistant to heat and the connecting brackets are made of aluminum, providing a firm connection and stable support.

Can this product be used indoors?

No, this flame guard is designed for outdoor use around a fire pit. Do not use indoors.

How to clean the glass of the flame guard?

Allow the product to cool completely before cleaning. Use a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals.

Is the glass heat resistant?

Yes, the glass is tempered and designed to withstand the heat from an outdoor fire pit. However, do not touch the panels during use to avoid burns.

What should I do if a bolt loosens over time?

Periodically check the tightness of all bolts and retighten them using the screwdriver. Do not overtighten to avoid damaging the glass.

Where can I find spare parts?

Spare parts (glass panels, brackets) are available from the manufacturer. Contact customer service via www.vevor.com/support.

What is the warranty for this product?

The warranty is electronic. Register your product at www.vevor.com/support to obtain warranty details and the electronic warranty certificate.

Is the product stable in strong wind?

The flame guard provides wind protection to stabilize the flame, but it may be moved by very strong winds. Make sure to place it on a stable, level surface. Do not leave it unattended in high winds.

USER MANUAL FFB14# Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FIRE PIT FLAME GUARD

MODEL: FFB18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: FFB18#/FFB16#/FFB17#/FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using boat trailer guides. This product is not a toy. Do not allow children to play with it.
• Keep away from sharp points, blades, and other items.
• Assembly precautions.

Assemble only according to these instructions. Improper assembly can create hazards.

1. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
2. Keep assembly area clean and well-lit.
3. Keep bystanders out of the area during assembly.
4. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
5. Product capabilities apply to properly and completely assembled product only.
6. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SAVE THESE INSTRUCTIONS

PRODUCT INTRODUCTION

• Tempered glass wind guard fence is made of tempered heat-resistant glass. Aluminum linking clips offer firm connection and steady support.
• Fit around your fire table and assist to block breeze to compromise fire and enjoy a steady flame! A must-have fire pit supply to blend into patio and garden.

PRODUCT PARAMETERS

Model	Shape	Dimensions LxWxH(mm)	board thickness(mm)	Picture
ffb18#	round	740*740*214	6
FFB16#	square	493*493*191	8
FFB17#	square	543*543*191	8
FFB11#	rectangle	748*340*165	8
FFB12#	rectangle	773*367*191	8
FFB13#	rectangle	798*317*165	8
FFB14#	rectangle	924*417*191	8
FFB15#	rectangle	1128*367*191	8

PACKAGE INCLUDE

Model: FFB18#

NO	PIC	DESC	QTY
A		Glass Panel	4 pcs
B		Glass Top Holder	4 pcs
C		Glass Bottom Holder	4 pcs
D		Screwdriver	1 pcs

Model: FFB16#/FFB17#

NO.	PIC	DESC	QTY
A		Glass Panel	4 pcs

B		Glass Top Holder	4 pcs
C		Glass Bottom Holde	4 pcs
D		Screwdriver	1 pcs

Model: FFB11#/FFB12#/FFB13#/FFB14#/FFB15#

NO.	PIC	DESC	QTY
A		Long Glass Panel	2 pcs
B		Short Glass Panel	2 pcs
C		Glass Top Holder	4 pcs
D		Glass Bottom Holde	4 pcs
E		Screwdriver	1 pcs

ASSEMBLY INSTRUCTIONS

Thanks for purchasing this quality product. Be sure to check all pack materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all parts and compare with the Hardware List above.

Easy to install, with several pieces of glass and corresponding fastening. Please keep the glass inserted into the firmware at the correct angle. Properly tighten the screw to the glass so that it cannot shake, but do not over-tighten to cause damage to the glass.

The assembly procedures of the three shape products are similar. Take the rectangular one as an example. You can follow the same steps to finish the assembly for the other products.

INSTALLATION

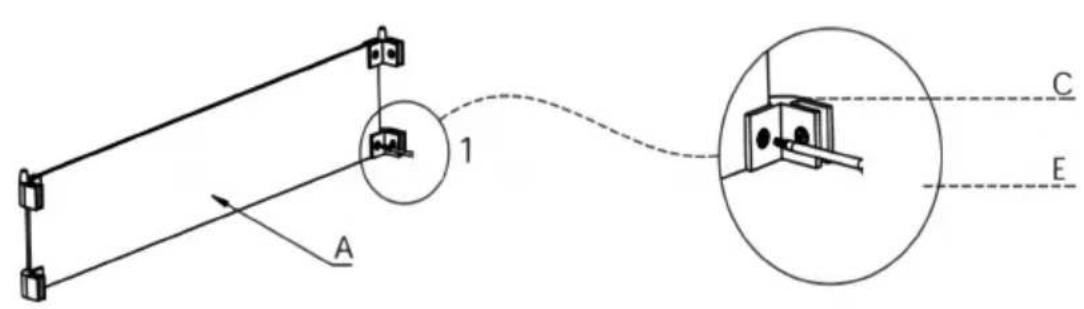

Step 1: Place the Long Glass panels (Part A) on a clean and soft surface, such as a blanket or carpet. Assemble 2 Glass Bottom Holders (Part D) and 2 Top Holders (Part C) to Long Glass Panels (Part A) with bolts and loosely tighten with a Screwdriver (Part E).

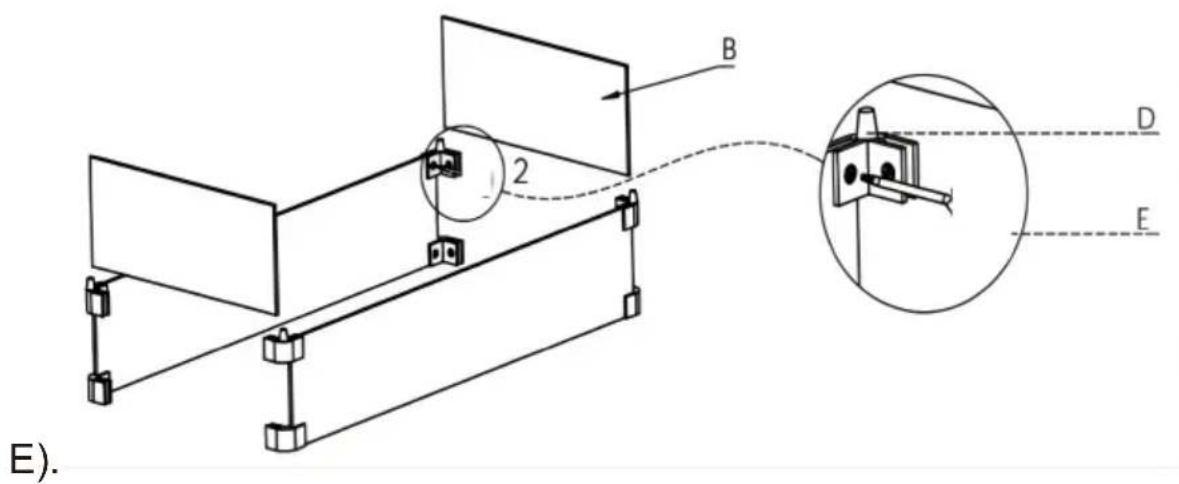

Step 2: Assemble the Short Glass Panels (Part B) to Long Glass Panels with bolts and tighten with a Screwdriver (Part E).

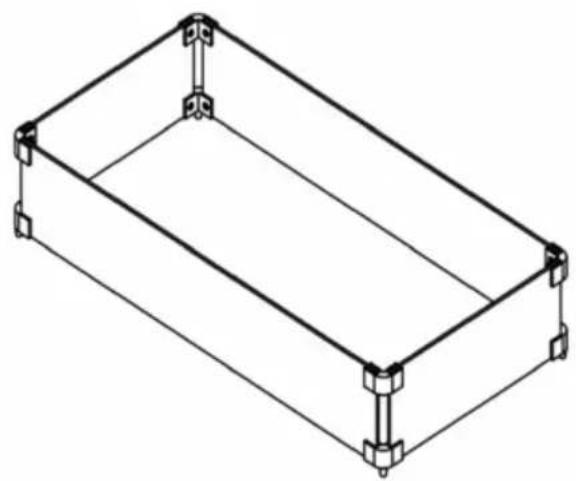

Step 3: After tightening all bolts, your product is ready for use.

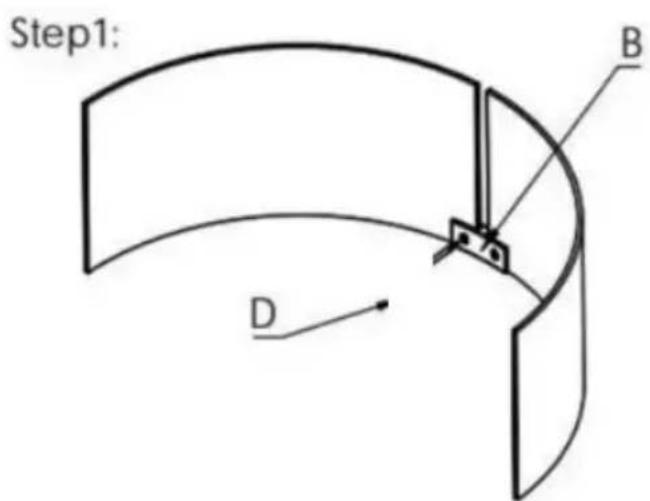

Step 1: Place the Glass Panels (Part A) on a clean and soft surface, such as a blanket or carpet. Assemble the Glass Top Holder (Part B) to 2 Glass Panels with bolts and loosely tighten with a Screwdriver (Part D).

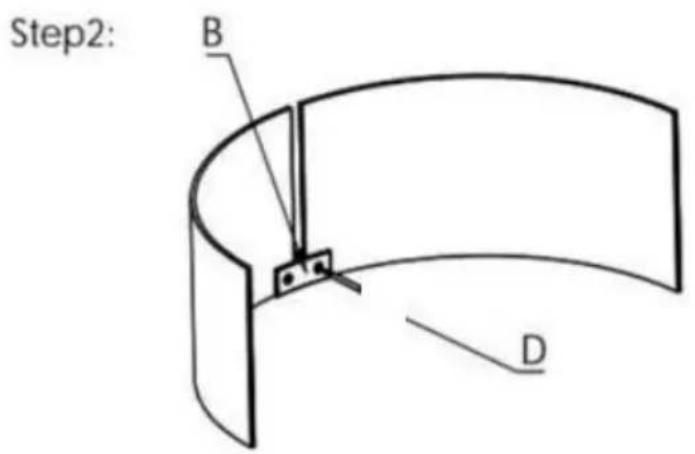

Step 2: Assemble the Glass Top Holder (Part B) to the remaining 2 Glass Panels with bolts and loosely tighten with a Screwdriver (Part D).

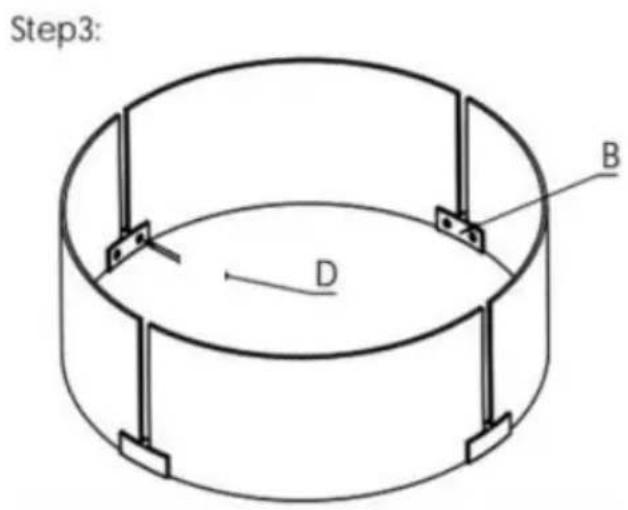

Step 3: Assemble 4 Glass Panels together with bolts and tighten with a Screwdriver (Part D).

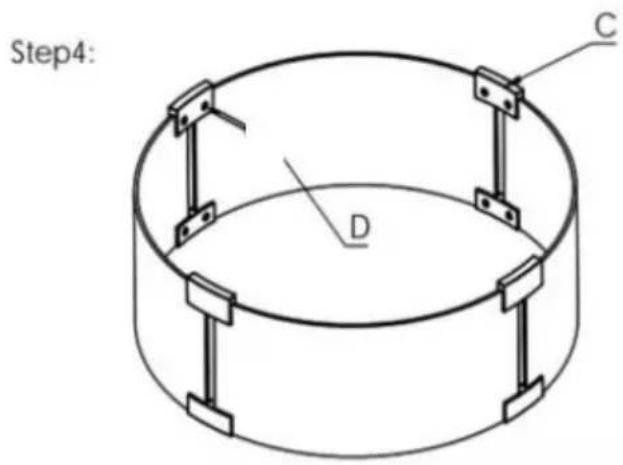

Step 4: Assemble the Glass Bottom Holders (Part C) to the Glass Panels with bolts and tighten with a Screwdriver (Part D).

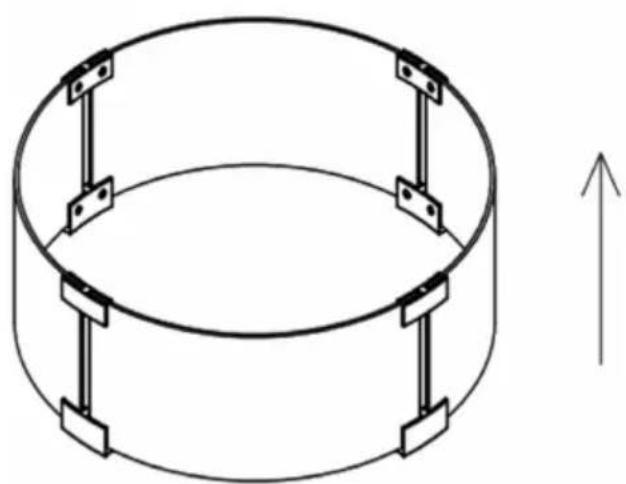

Step 5: After tightening all bolts, your product is ready for use.

CARE INSTRUCTIONS

Don't put the Flame Guard on an uneven surface.

Don't cover with flammable materials.

Don't touch during use to prevent burns.

Periodically check and make sure all bolts are fully tightened.
