DM-F300 - Beer dispenser Vevor - Free user manual and instructions

Product Type	Beer Fermenter
Brand	Vevor
Model	DM-F300
Maximum Capacity	30 liters
Material	Food-grade plastic
Included Accessories	Lid, airlock, thermometer, valves (outer and yeast), clamps, adjustable legs, silicone seals
Thermometer	Integrated, to be inserted into the pre-drilled hole with seal
Valves	2 valves (beer and yeast) for flow control
Airlock	Included, to be filled with water to release CO2
Adjustable Legs	3 legs with screws and nuts for stabilization
Main Functions	Wort fermentation, beer storage and racking
Maintenance and Cleaning	Clean with food-grade disinfectant after use, use soft cloth, mild detergent possible
Safety	Do not apply pressurized water, do not exceed 30 L to avoid bubbles, check sealing
Storage	Dry place, clean tank and accessories before reuse
Repairability	Spare parts available (valves, seals, thermometer) via Vevor after-sales service
Power Supply	None (passive device, no electricity)
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - DM-F300 Vevor

What is the maximum capacity of the DM-F300 fermenter?

The maximum capacity is 30 liters. Do not fill beyond to leave space for air bubbles.

How to sterilize the fermenter before use?

Use a food-grade disinfectant or soak it in water with sterilization tablets for 20 to 30 minutes.

How to install the thermometer?

Insert the thermometer into the pre-drilled hole, then secure the parts in order: silicone ring + flat washer + nut. Tighten with a wrench to prevent leaks.

What to do if the airlock does not work?

Make sure you have filled the airlock with water and that it is properly inserted into the lid. Check that there is no crack in the silicone.

Can I use metal tools to clean the inside?

No, use a soft cloth or non-abrasive sponge to avoid scratching the surface.

How to adjust the valves?

The valves open and close manually. Turn the valve to open (parallel position) or close (perpendicular position) the flow of wort or yeast.

Can the fermenter be used for other beverages besides beer?

Yes, it is suitable for fermenting any liquid like cider, wine, or kombucha, as long as the capacity is not exceeded.

How to attach the adjustable legs?

Use the screws and nuts provided to attach the legs to the lower holes of the fermenter, then add a rubber pad for stability.

Where to find spare parts if a part is broken?

Contact Vevor support at www.vevor.com/support to obtain spare parts like valves, seals, or thermometer.

How to store the fermenter after use?

Clean and sterilize all parts, dry them thoroughly, and store the whole set in a dry place away from dust.

USER MANUAL DM-F300 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FERMENTER

MODEL:DM-F300

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FERMENTER

MODEL:DM-F300

Exterior view of a stainless steel industrial vessel with three legs and a central control knob (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

Safety Instructions

Please read all the instructions carefully, and keep this manual for further reference.

- Do not apply water or heavy stuff before the extend feet is complete case of

water leakage by pressuring the water outlet.

- Before installing extend feet, remember do not apply water or put I things to

avoid the water outlet under pressure will caused by leakage.

- The airlock should be turned on after applying amount of water

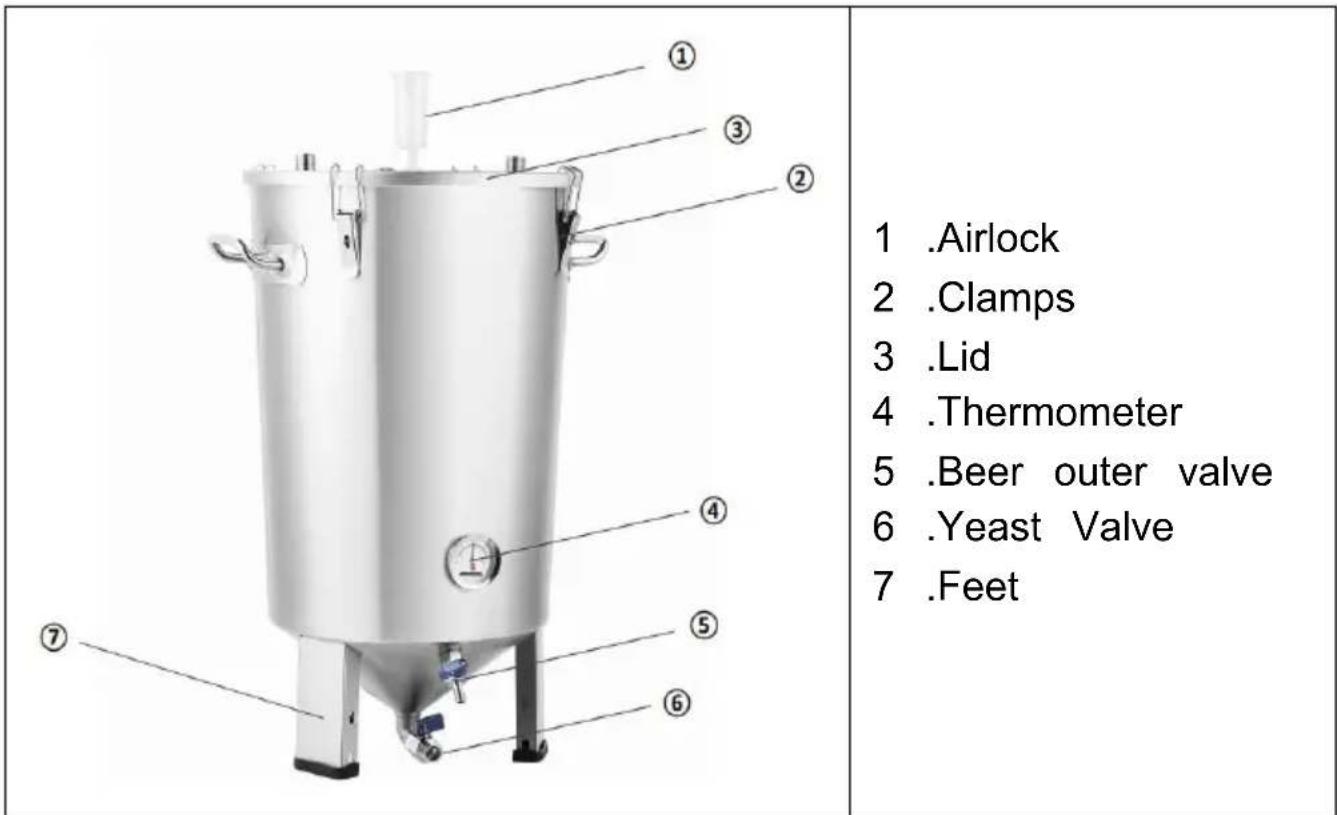

What's In The Box

Parts

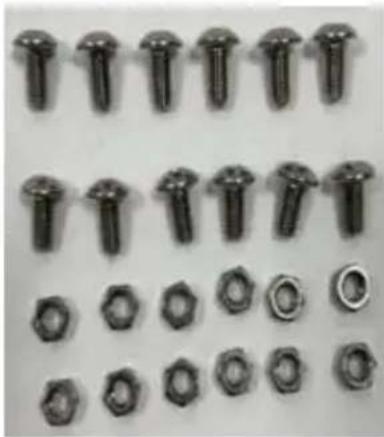

Extend feet (3pcs)	Screws and nuts for feet (12 sets)	Airlock with silicone

Operation

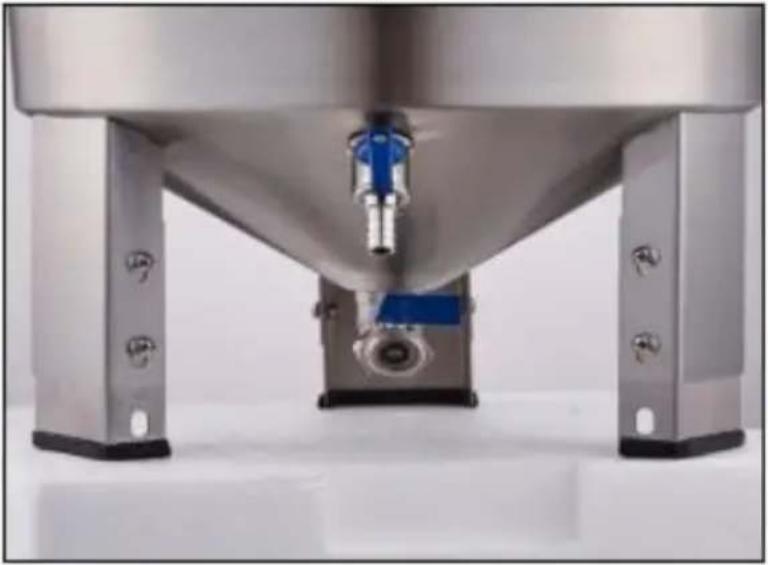

Extend Feet Operation

Use the screws to secure the extend feet to the position of the botthole , and then fix the rubber pad them .

Close-up of a metallic industrial device with a central blue component and mounting base (no visible text or symbols)

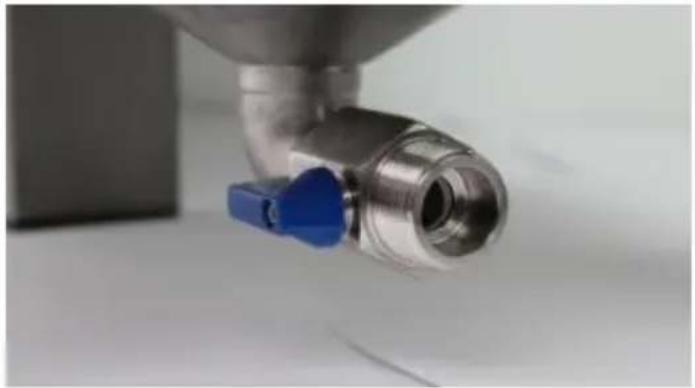

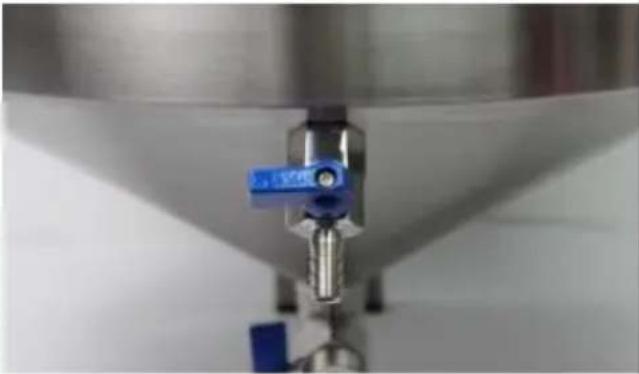

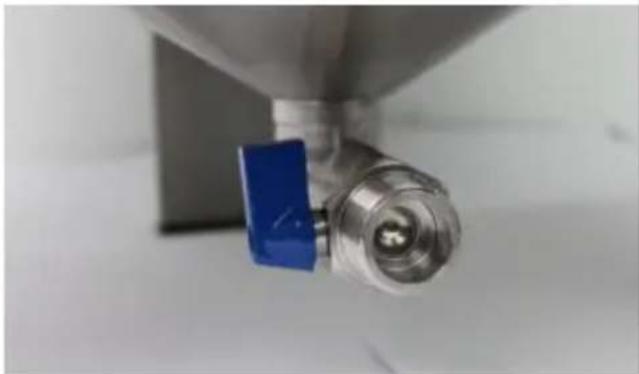

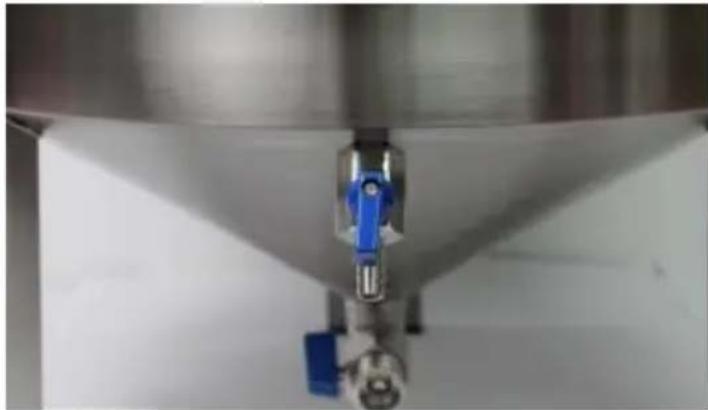

Valve Operation

This valve serves to open and close the wort and yeast.

Valve ON	Valve ONValve OFF

Thermometer Operation

Insert the thermometer into the hole	Fix the parts in sequence (Silicone ring+flat washer+nut)	Finished

Note: please make sure the thermometer is aligned at tightened it with a tool (such as wrench). Otherwise, leakage in fermentation.

FERMENTATION

Preparation

1. Before fermentation, it is essential to sterilize the fermenter as well accessories. You can clean the fermenter with a food-grade disinfectant soak the fermenter in water with sterilization tablets for 20-30 minutes
2. Please fill the tank up to the top with water and make sure that no leaks before adding the wort.
3. Do not fill the tank with more than 30 liters of wort. Make sure enough
   room to blow off the air bubbles.
4. Insert the water seal into the lid as shown and fill with a little water seal.
5. Secure the lid with clamps.
6. Place the fermentat ion vessel on a stable table.

After fermentation

1. Clean and sterilize the fermenter and accessories (including the val after use.
2. Do not use sharp metal tools to remove debris. Use a soft cloth scouring pad to clean the inside of the kettle.
3. Suitable detergents can be used, such as dish washing detergent, vinegar or soda.
4. Store the fermentation vessel in a dry place.
5. Make sure the tank and all accessories are clean and sterilized by next use.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE
