CT-7 - Desk drawer Vevor - Free user manual and instructions

Product Type	Under-desk drawer
Brand	Vevor
Model	CT-7
Number of Drawers	1
Total Drawer Length	26.7 inches (approx. 67.8 cm)
Interior Drawer Length	26 inches (approx. 66 cm)
Hub	2 pieces
Sliding Rails	Stainless Steel
Lining	Yes (1 piece)
Dividers	No
Locking	No
Maximum Load Capacity	Approx. 20 kg (estimate)
Primary Use	Under-desk storage, can be used as keyboard tray
Material	Steel (estimate)
Finish	Paint (estimate)
Installation	Under the desk, screw-mounted
Tools Provided	Screws, nuts (see parts list)
Maintenance	Clean with a soft cloth, avoid corrosive products
Precautions	Wear gloves during installation, do not exceed load
Warranty	Technical support via www.vevor.com/support

Frequently Asked Questions - CT-7 Vevor

What are the dimensions of the CT-7 drawer?

The drawer measures 26.7 inches long (interior 26 inches). Width and height are not specified in the manual.

Can the drawer be used as a keyboard tray?

Yes, the manual indicates a keyboard tray function by mounting the drawer under the desk (Function 1).

How to install the drawer under my desk?

Follow the steps in the manual: assemble parts P1 to P7 with screws F1-F4 and nuts, then attach the assembly under the desk. Wear gloves.

Is the drawer delivered with dividers?

No, the CT-7 model does not include dividers according to the features table.

Can I lock the drawer?

No, the CT-7 is not equipped with a locking system.

What is the maximum load capacity?

The manual does not specify an exact weight. To avoid damage, do not store very heavy items; estimate a maximum load of 20 kg.

How to maintain the drawer?

Check the fastenings regularly. Clean with a soft cloth and avoid corrosive or abrasive products.

What to do if the drawer is hard to open?

Check for foreign objects or damage on the sliding rail. Clean the rail or replace it if necessary.

Are the rails made of stainless steel?

Yes, the features table indicates stainless steel rails.

Where to find Vevor technical support?

Visit the website www.vevor.com/support for assistance and the electronic warranty certificate.

USER MANUAL CT-7 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Under Desk Drawer

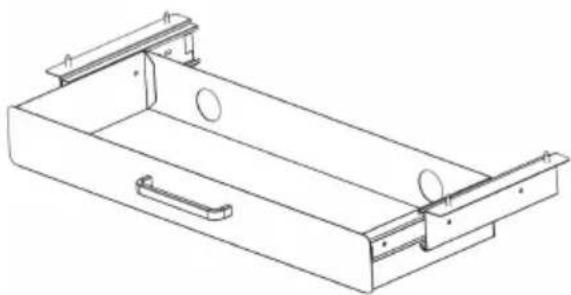

MODEL: CT-6 / CT-7 / CT-8

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

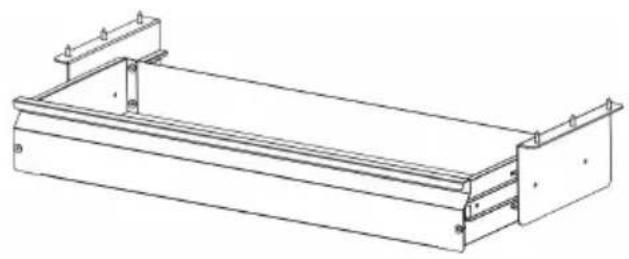

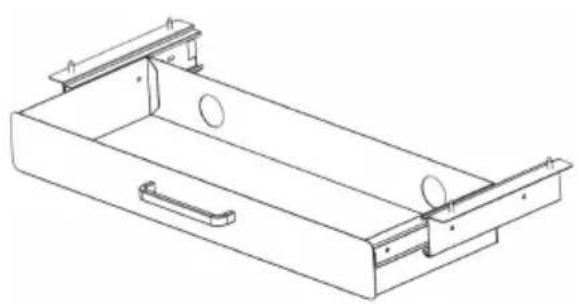

MODEL: CT-6 / CT-7 / CT-8

CT-6

CT-7

CT-8

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

1. SAFETY INSTRUCTIONS

	Warning - To reduce the risk of injury, user must read ins manual carefully.
	Warning- Be sure to wear gloves when using this product.

1.1 Please make sure to read and understand all instructions before assembling and installing this product. 1.2 Make sure to use the correct tools and fixings for installation and avoid using unsuitable substitutes. 1.3 Please be careful when installing to avoid pinching hands or other body parts. 1.4 Do not store items in the drawer that exceed the recommended weight to avoid injury or damage due to the drawer falling off.

Product Description

Under desk drawers are a type of drawer used for storing and organizing tools, parts, or other items, usually installed beneath a workbench. They help keep the work area neat and orderly, allowing users to conveniently access the tools or items they need at any time.

Under desk drawers can be widely used in workshops, laboratories, garages, offices, and various other places, making it convenient to store and retrieve all kinds of necessary tools or items.

Product Parameter

Model	drawer layers	Total drawer length	Inner drawer length	With dividers	With lock	Hub	Stainless steel rails	liner
CT-6	1	22.8inch	21.7inch	×	×	2pcs	√	1
CT-7	1	26.7inch	26inch	×	×	2pcs	√	1
CT-8	1	30.7inch	30inch	×	×	2pcs	√	1

Part List - CT-6

P1x1	P2x1	P3x1
P4x1	F1x4 M5	F2x2 M4

INSTALLATION INSTRUCTIONS - CT-6

Step 1: Assemble P1 and P2 using screw F1

Step 2: Assemble P4 and P3 using screw F2

Step 3: Assemble the component from Step 1 and Step 2

Step 4: Assemble the product under desk. Finished

Part List - CT-7 / CT-8

r1x1	P2x1	P3x1
P4x1	P5x1	F6x1
P7x1	[07A2]F1x6 M5	[267C]F2x11 M6
F3x6 M5	[08B4]F4x6 M5

INSTALLATION INSTRUCTIONS - CT-7

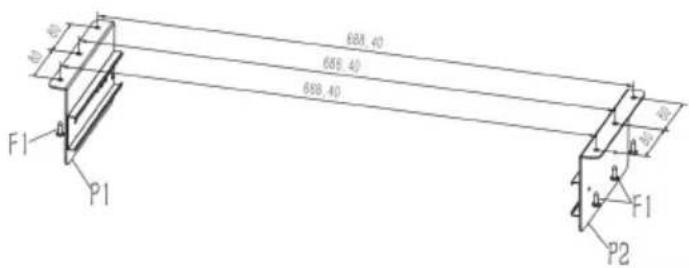

Step 1: Assemble P1 and P2 using screw F1

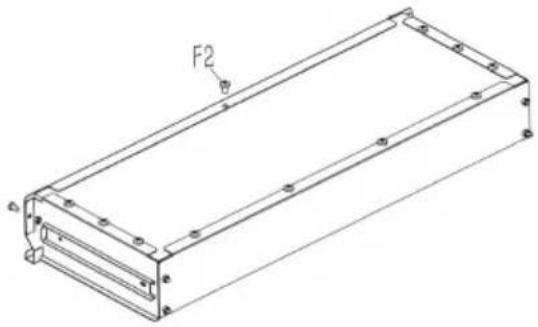

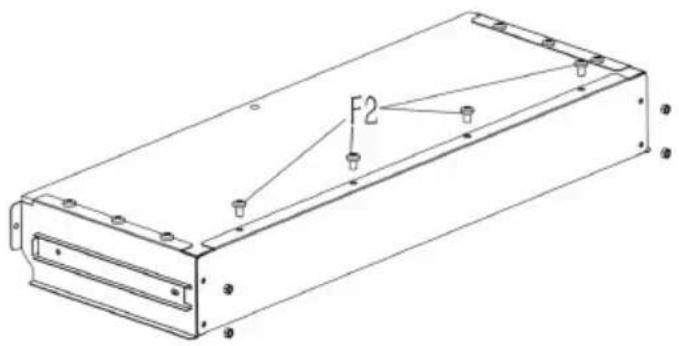

Step 2: Assemble P3, P4, P6 using screw F2

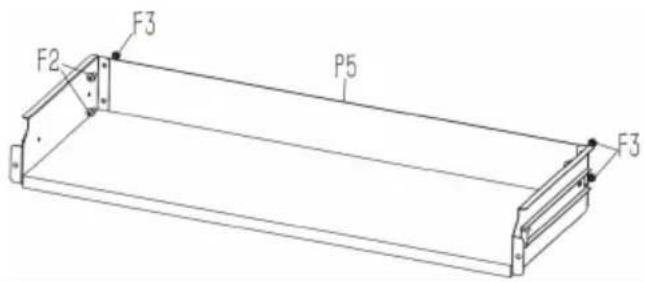

Step 3: Assemble P5 with the component from Step 2 using screw F2 and nut F3

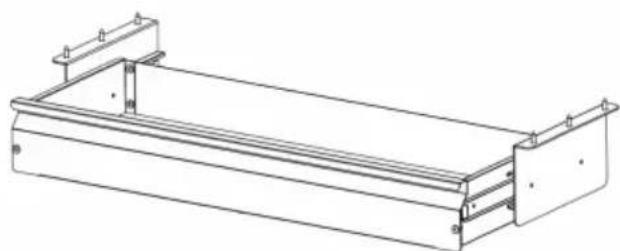

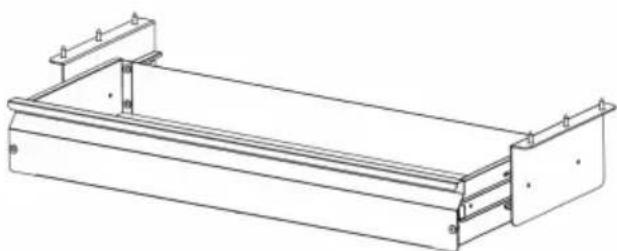

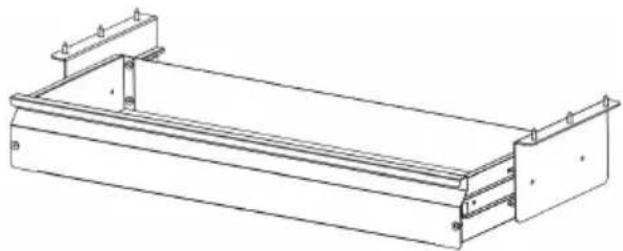

Function 1: Assemble the product under desk. In this mode, it can be used as a keyboard tray.

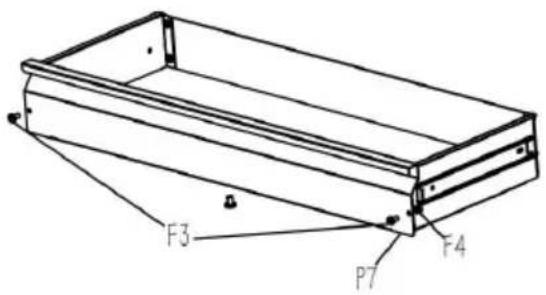

Step4: Assemble P7 with the component from Step 3 using scr F3 and nut F4	Step5: Assemble the product under desk. (Function 2)

INSTALLATION INSTRUCTIONS - CT-8

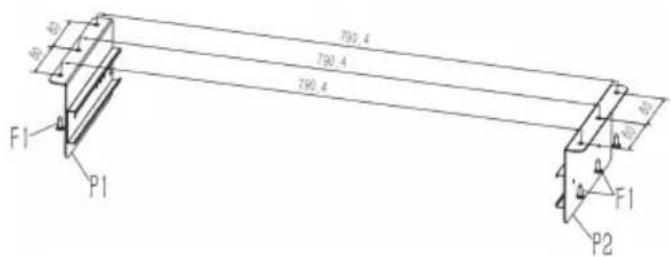

Step 1: Assemble P1 and P2 using screw F1

Step 2: Assemble P3, P4, P6 using screw F2

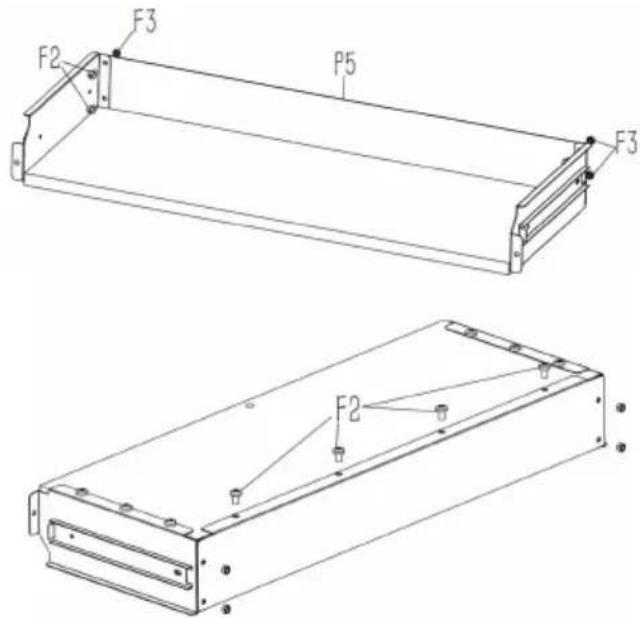

Step 3: Assemble P5 with the component from Step 2 using screw F2 and nut F3

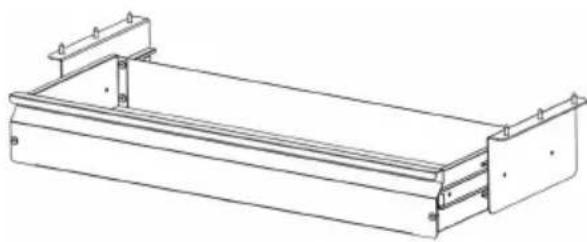

Function 1: Assemble the product under the desk. In this mode, it can be used as a keyboard tray.

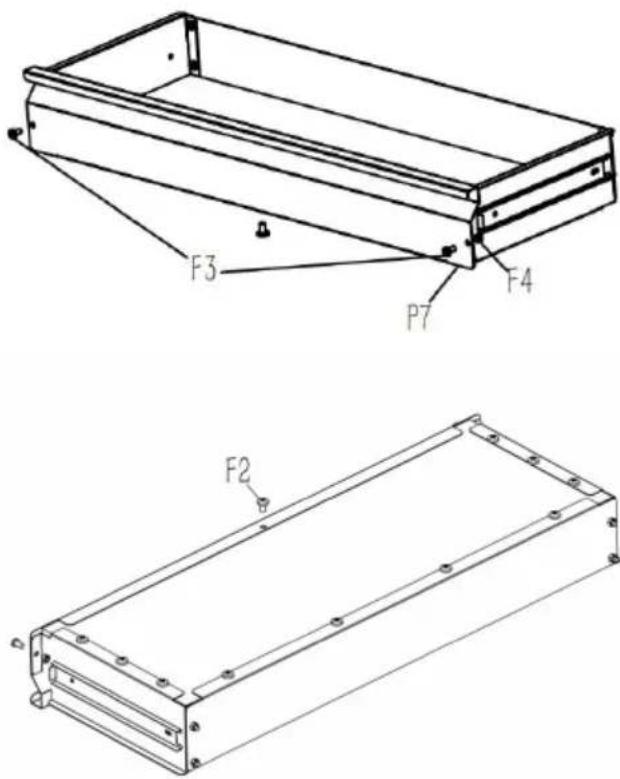

Step 4: Assemble P7 with the component from Step 3 using screw F3 and nut F4

Step 5: Assemble the product under the desk. (Function 2)

PRECAUTIONS FOR USE

1. Gently pull the handle to open or close the drawer smoothly.
2. Avoid pulling the drawer violently to prevent damage to the slide rail or derailment of the drawer.

TROUBLESHOOTING INSTRUCTIONS

1. Drawer is not stable: Check if the slide rail is installed correctly and bolts are tight.
2. Drawer is difficult to pull: Check if there is foreign matter or damage to the slide rail, clean the slide rail or replace it if necessary.
3. Drawer is loose: Retighten all fixing bolts.

MAINTENANCE

1. Check all drawer fastenings regularly to ensure they are securely fastened.
2. Avoid using corrosive or abrasive cleaning agents.
