DW6 - Roller shutter accessory Vevor - Free user manual and instructions

Product Type	Carrier wheels for chain link rolling gate
Brand	Vevor
Model	DW6
Wheel outer diameter	146 mm
Wheel spacing	165 mm
Maximum load capacity	600 lbs (approx 272 kg)
Compatible gate frame tube outer diameter	32 - 50 mm
U-bolts included	2 pieces
Fixing type	U-bolts and cotter pins
Alignment adjustment	4 adjustment bolts (2 on each side)
Material	Steel with recommended anti-rust treatment
Installation	For adults only, gloves required
Maintenance	Regular cleaning of dirt, check tightness, anti-rust treatment for metal parts
Intended use	Outdoor, for chain link rolling gate
Technical support	www.vevor.com/support
Warranty	Electronic warranty certificate on Vevor website

Frequently Asked Questions - DW6 Vevor

How to install DW6 carrier wheels on my gate?

Remove the nuts from the U-bolts, place the gate frame tube between the brackets, then clamp the two U-bolts onto the tube. Tighten the nuts. Repeat for each wheel. Use the side adjustment bolts to align the gate.

What is the maximum load capacity of the DW6?

The maximum load capacity is 600 lbs (approx 272 kg). Do not exceed this limit to avoid damage.

What gate frame tube diameters are compatible?

The DW6 is compatible with gate frame tubes having an outer diameter between 32 mm and 50 mm.

How to adjust gate alignment after installation?

Use the 4 adjustment bolts (two on each side of the bracket) to adjust the wheel axle position, ensuring straight sliding and alignment with the lock.

How to maintain DW6 wheels to extend their lifespan?

Regularly clean dirt from the surface. Check the tightness of fasteners. Apply an anti-rust treatment to metal parts, as the product is used outdoors.

Can I install the DW6 myself?

Installation must be done by an adult. Gloves are required. Children must not install the product.

How to remove the carrier wheels from the gate?

Remove the two U-bolts, lift the fence, then remove the bracket. To separate the wheel from the bracket, remove the cotter pins at both ends. Keep small hardware parts.

Where to find technical support for the DW6?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support.

Is the DW6 delivered with installation instructions?

Yes, the product comes with a user manual. You can also download the manual for free in PDF format from notice-facile.com.

What to do if the wheels do not slide properly?

First check the tightness of the U-bolts. Then use the adjustment bolts to align. If the problem persists, clean the wheels and check that no obstacle is blocking the path.

USER MANUAL DW6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CHAIN LINK ROLLING GATE CARRIER WHEELS

MODEL:DW6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Chain link rolling gate carr wheels

Model:DW6

Mechanical vehicle with three tires and a metallic frame, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Products need to be installed by adults, and gloves are required due the installation.
2. Children are prohibited from installing the product.
3. Check the product for stability regularly to avoid product damage ca by nut loosening.
4. The product is outdoors for a long time, so it is recommended that metal parts be treated with rust prevention to better prolong the life of product.

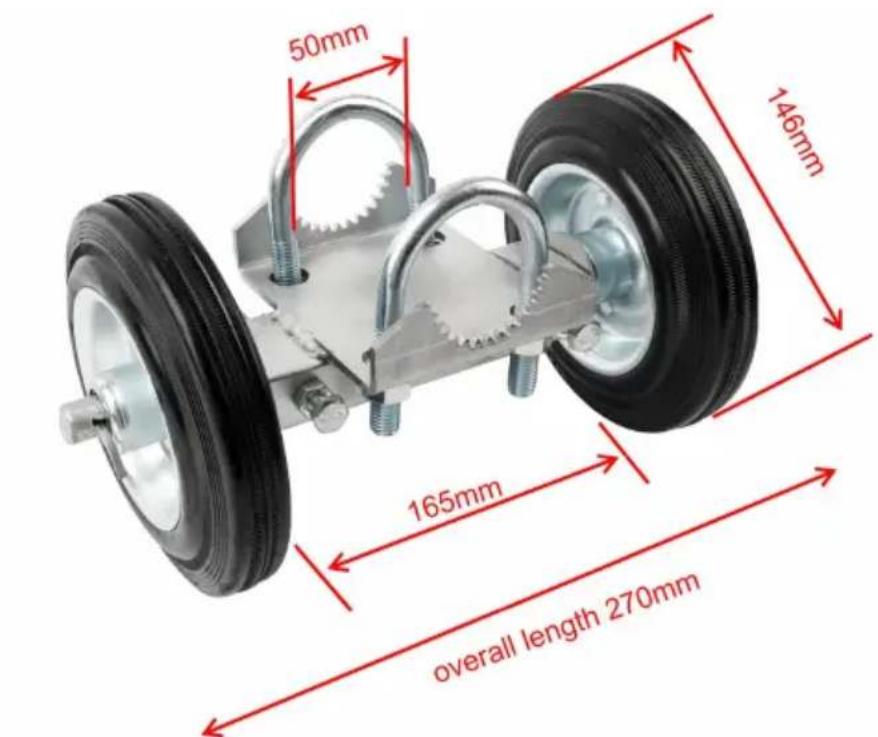

PARAMETER LIST

Model	SW6
Wheel outer diameter	146mm
Wheel spacing	165mm
Maximum load bearing	600lbs
Door frame tube outer diameter	∅32-∅50mm
Install U-shaped bolts	2pcs

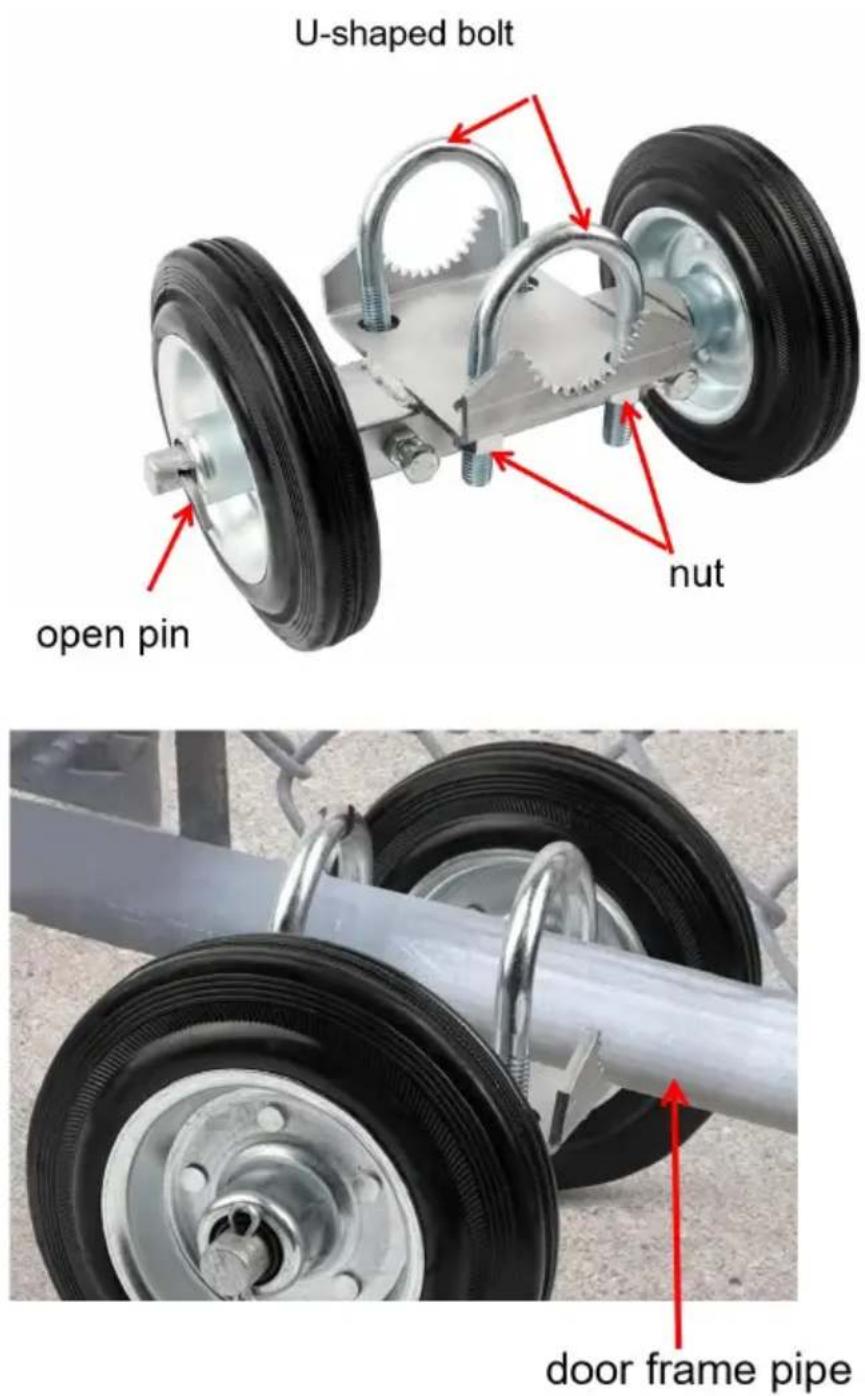

INSTALLATION GUIDE

1. Insert the open pin back into the through holes at both ends of the shaft.

2. Open the nut of the U-shaped bolt, remove the two U-shaped bolts the door frame pipe in the middle of the rolling door wheel bracket, trap the two U-shaped bolts on the door frame pipe, lock the nut, a complete the installation of the rolling door wheel and door.

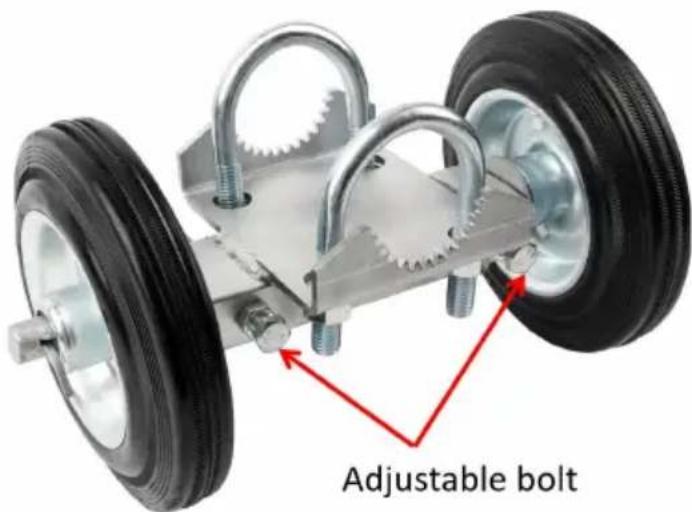

1. By adjusting the bolts on both sides of the wheel support, you can the position of the wheel shaft in the wheel bracket, so as to ensure the door slides in a straight line and is better aligned with the door.

Note:A total of 4 adjustment bolts on both sides

1. If the chain link rolling gate carrier is to be removed, remove the u-shaped bolts, lift the fence and remove the chain link rolling gate or remove the open pins at both ends to separate the wheel from the Note: If you remove the chain link rolling gate carrier wheels, keep hardware parts properly to avoid loss and cannot be assembled.

Product maintenance

1. Check the product regularly for loose installation to avoid damage to operation of loose parts.

2. Clean up the dirt on the surface of the product regularly, so that t product runs more smoothly.

3. The product is outdoors for a long time, so it is recommended that metal parts be treated with rust prevention to better prolong the life of product.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
