USER MANUAL DM-F600 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FERMENTER

MODEL:DM-F600

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FERMENTER

MODEL:DM-F600

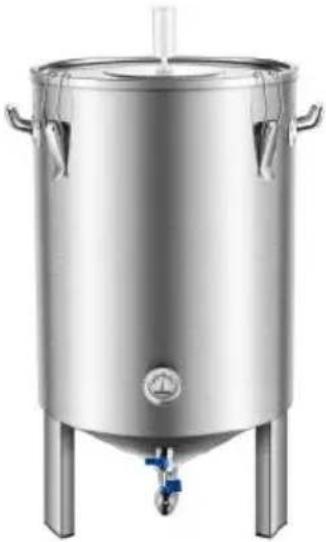

Exterior view of a stainless steel industrial vessel with water tap and side handles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

Safety Instructions

Please read all the instructions carefully, and keep this manual for further reference.

- Do not apply water or heavy stuff before the extend feet is complete case of

water leakage by pressuring the water outlet.

- Before installing extend feet, remember do not apply water or put I things to

avoid the water outlet under pressure will caused by leakage.

- The airlock should be turned on after applying amount of water

What's In The Box

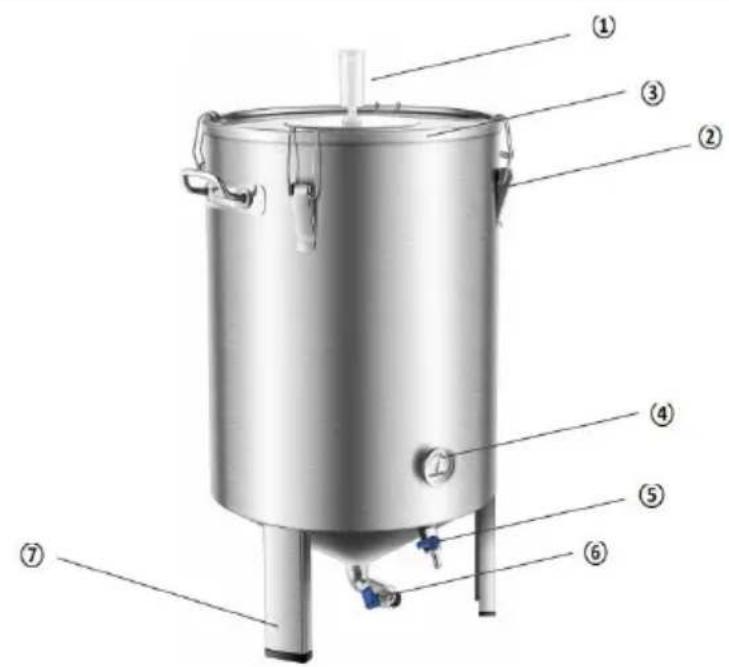

Labeled diagram of a stainless steel industrial vessel with numbered components for identification.

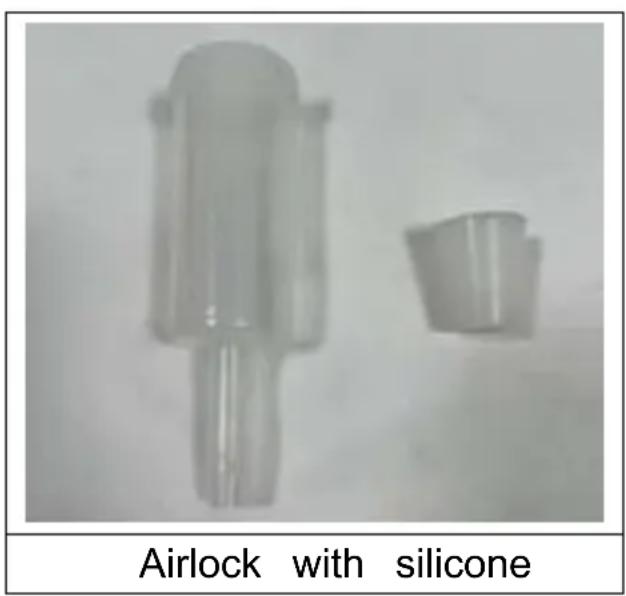

1 .Airlock

2 .Clamps

3 .Lid

4 .Thermometer

5 .Beer outer valve

6 .Yeast Valve

7 .Feet

Parts

Operation

Thermometer Operation

Insert the thermomete into the hole	Fix the parts in sequence (Silicone ring+flat washer+nut)	Finished

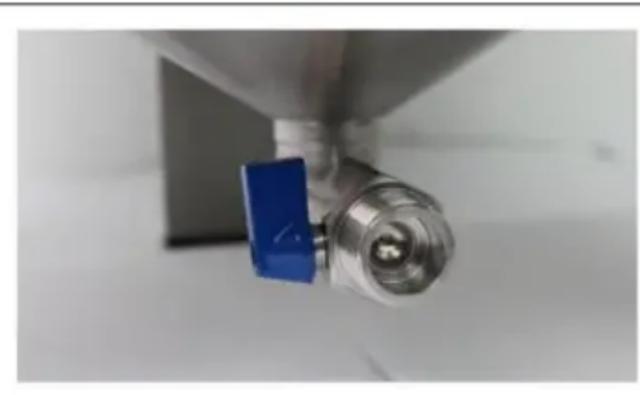

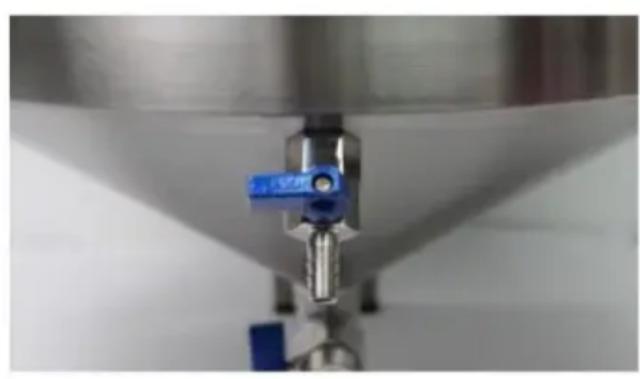

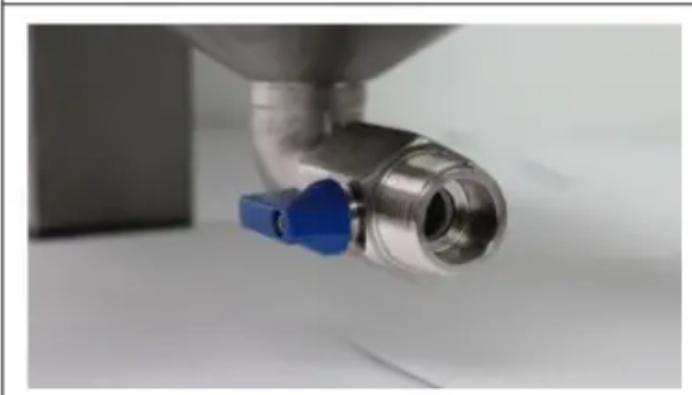

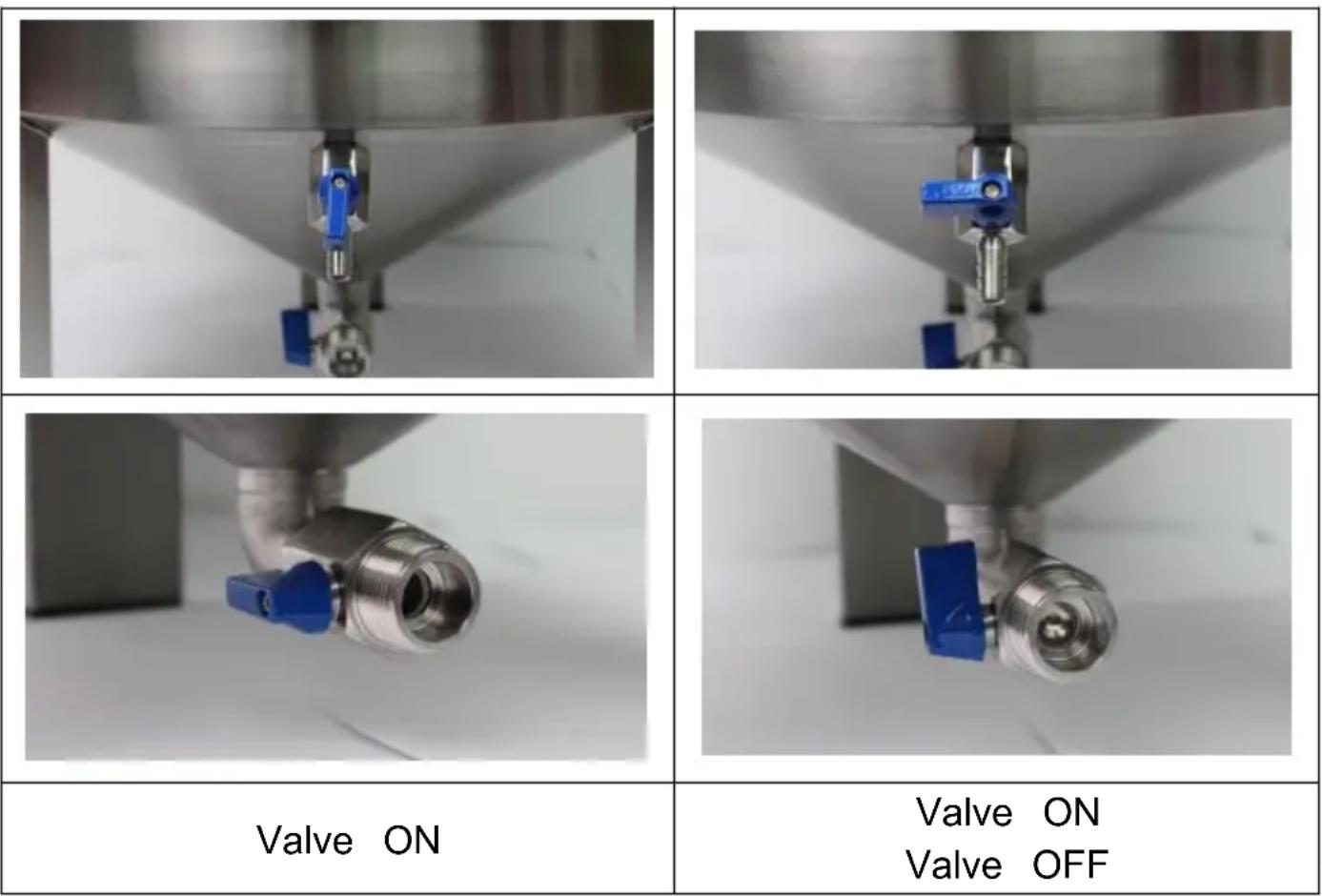

Valve Operation

This valve serves to open and close the wort and yeast.

Note: please make sure the thermometer is aligned tightened it with a tool (such as wrench). Otherwise, leakage in fermentation.

FERMENTATION

Preparation

1. Before fermentation, it is essential to sterilize the fermenter as well accessories. You can clean the fermenter with a food-grade disinfectant soak the fermenter in water with sterilization tablets for 20-30 minutes
2. Please fill the tank up to the top with water and make sure that no leaks before adding the wort.
3. Do not fill the tank with more than 30 liters of wort. Make sure enough

room to blow off the air bubbles.

1. Insert the water seal into the lid as shown and fill with a little w

water seal.

1. Secure the lid with clamps.
2. Place the fermentat ion vessel on a stable table.

After fermentation

1. Clean and sterilize the fermenter and accessories (including the val after use.
2. Do not use sharp metal tools to remove debris. Use a soft cloth scouring pad to clean the inside of the kettle.
3. Suitable detergents can be used, such as dish washing detergent, vinegar or soda.
4. Store the fermentation vessel in a dry place.
5. Make sure the tank and all accessories are clean and sterilized by next use.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Labeled diagram of a stainless steel industrial vessel with numbered components for identification.

Close-up of a metallic industrial component with blue and black components, no visible text or symbols

Close-up of a metallic mechanical component with blue and white parts, no visible text or symbols

Close-up of a metallic pipe fitting with blue connectors (no text or symbols visible)

Close-up of a metallic mechanical component with a blue square clip attached, no visible text or symbols.

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Labeled diagram of a stainless steel industrial vessel with numbered components

Close-up of a metallic industrial component with blue and black components, no visible text or symbols

Close-up of a metallic mechanical component with blue and white parts, no visible text or symbols

Close-up of a metallic pipe fitting with blue connectors (no text or symbols visible)

Close-up of a metallic cylindrical component with a blue handle, possibly a valve or connector (no visible text or symbols)

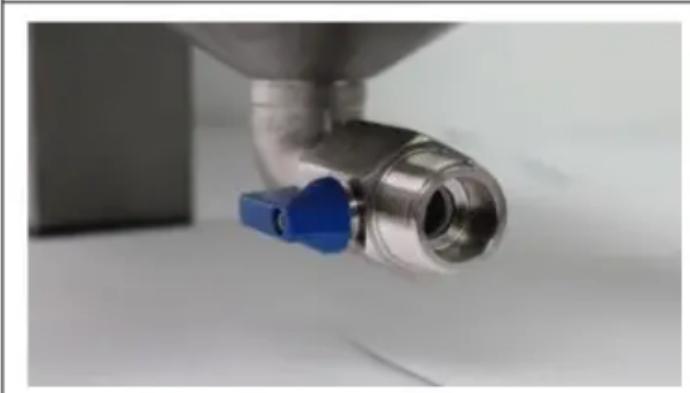

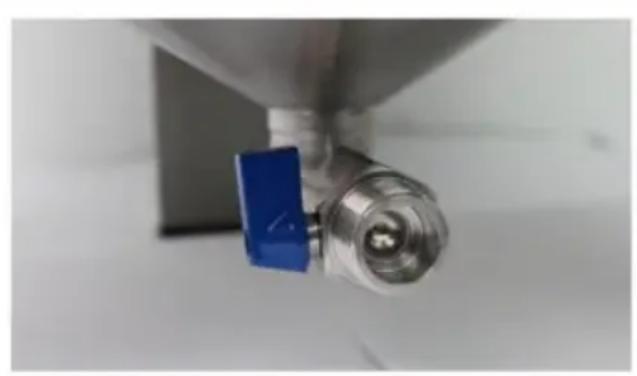

Ventil EIN
Ventil AUS

Ventil EIN

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

Labeled diagram of a stainless steel industrial vessel with numbered components

Close-up of a metallic industrial component with blue and black components, no visible text or symbols

Close-up of a metallic mechanical component with blue and black components, no visible text or symbols

Close-up of a metallic pipe fitting with blue connectors (no visible text or symbols)

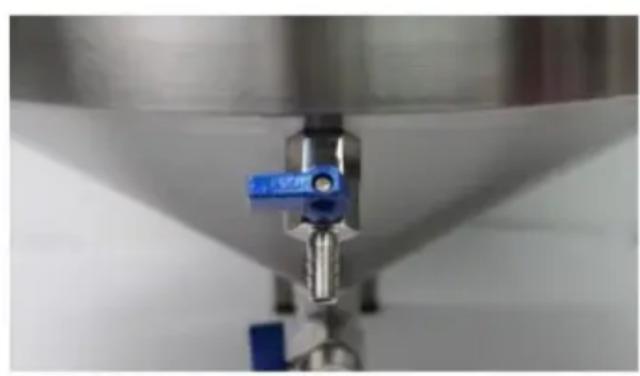

Valvola inserita

Close-up of a metallic cylindrical component with a blue tab, possibly a valve or connector (no visible text or symbols)

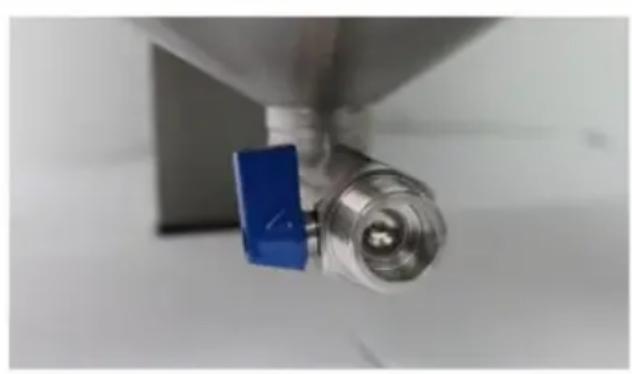

Valvola inserita
Valvola spenta

Importato in AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Anaheim Place, Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

Labeled diagram of a stainless steel industrial vessel with numbered components

Close-up of a metallic industrial component with blue and black components, no visible text or symbols

Close-up of a metallic mechanical component with blue and white parts, no visible text or symbols

Close-up of a metallic pipe fitting with blue connectors (no text or symbols visible)

Close-up of a metallic mechanical component with a blue square clip attached, no visible text or symbols.

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Labeled diagram of a stainless steel industrial vessel with numbered components

Close-up of a metallic industrial component with blue and black components, no visible text or symbols

Close-up of a metallic mechanical component with blue and white parts, no visible text or symbols

Close-up of a metallic pipe fitting with blue connectors (no text or symbols visible)

Close-up of a metallic mechanical component with a blue square clip attached, no visible text or symbols.

Zawór WŁĄCZONY
Zawór WYŁĄCZONY

Zawór WŁĄCZONY

PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

FERMEERDER

MODEL: DM-F600

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled diagram of a stainless steel industrial vessel with numbered components

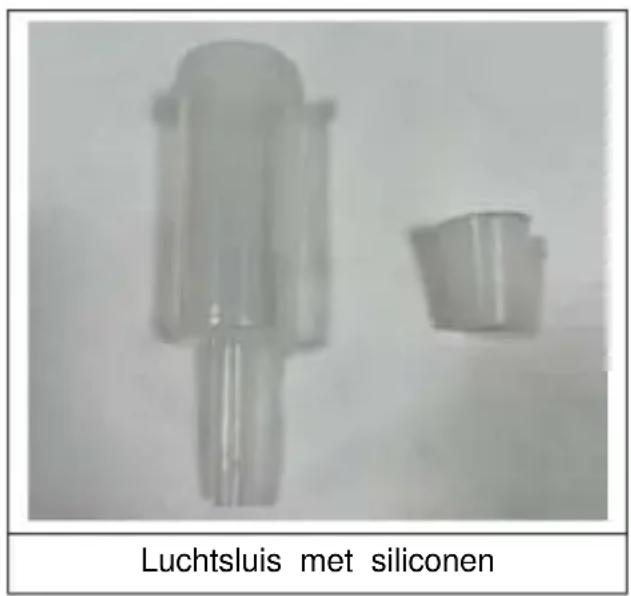

1. Luchtsluis
2. Klemmen
3. Deksel
4. Thermometer
5. Buitenventiel bier
6. Gistklep
7. Voeten

Onderdelen

Operatie

Thermometerbediening

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a stainless steel industrial vessel with water tap and side legs (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

Labeled diagram of a stainless steel industrial vessel with numbered components

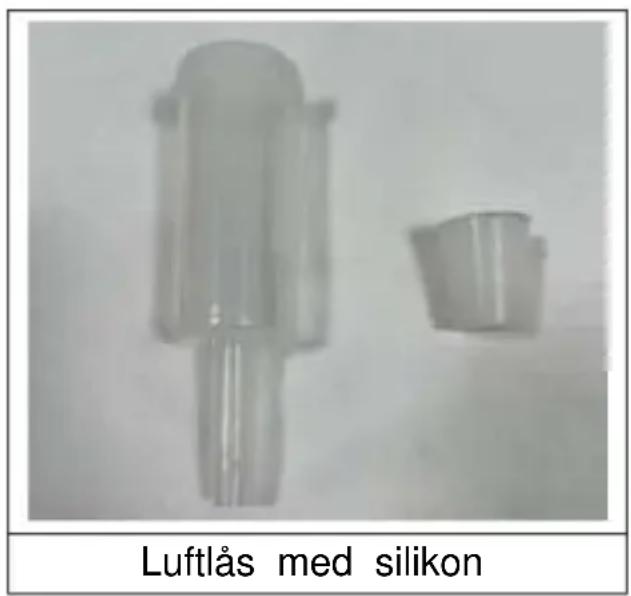

1 .Luftlås

1. Klämmor

2. Lock

4 .Termometer

5.Öl yttre ventil

6 .Jästventil

7 .Fötter

Delar

Drift

Termometerdrift

Sätt i termometern in i hålet	Fixa in delarna sekvens (Silikonring+plattbricka+mutter)	Färdiga

Ventildrift

www.vevor.com/support
